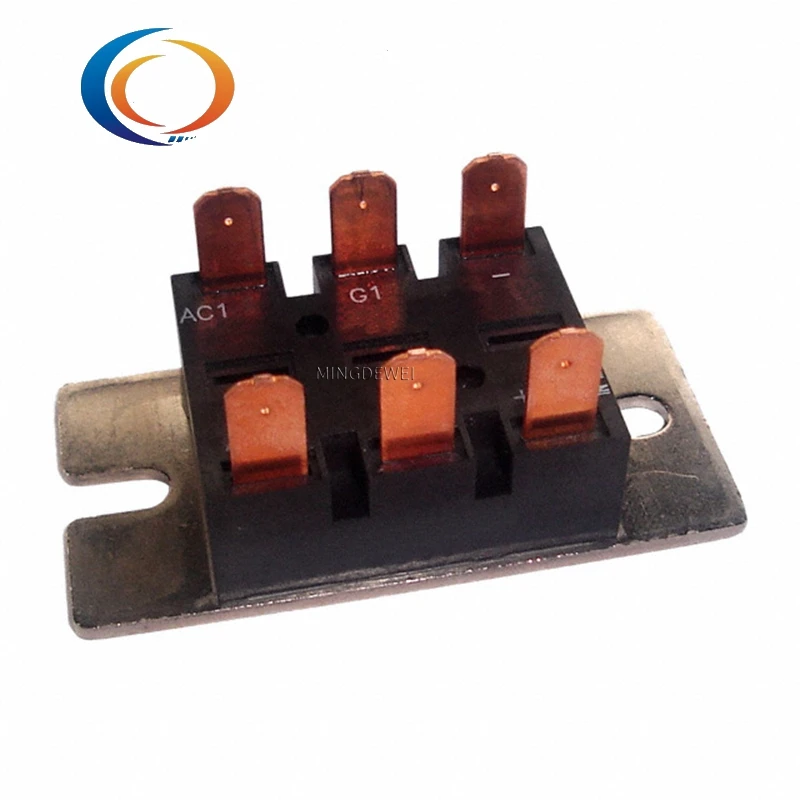

M252512F modules MODULE POWER 25A 600V SCR DIODE IGBT

Product Overview

Description

Packaging	Bulk
Part Status	Active
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes	2 SCRs, 2 Diodes
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Current - Gate Trigger (Igt) (Max)	50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	300A @ 60Hz
Current - Hold (Ih) (Max)	75 mA
Operating Temperature	-
Mounting Type	Chassis Mount
Package / Case	Module
Base Product Number	M252512
