$12,600

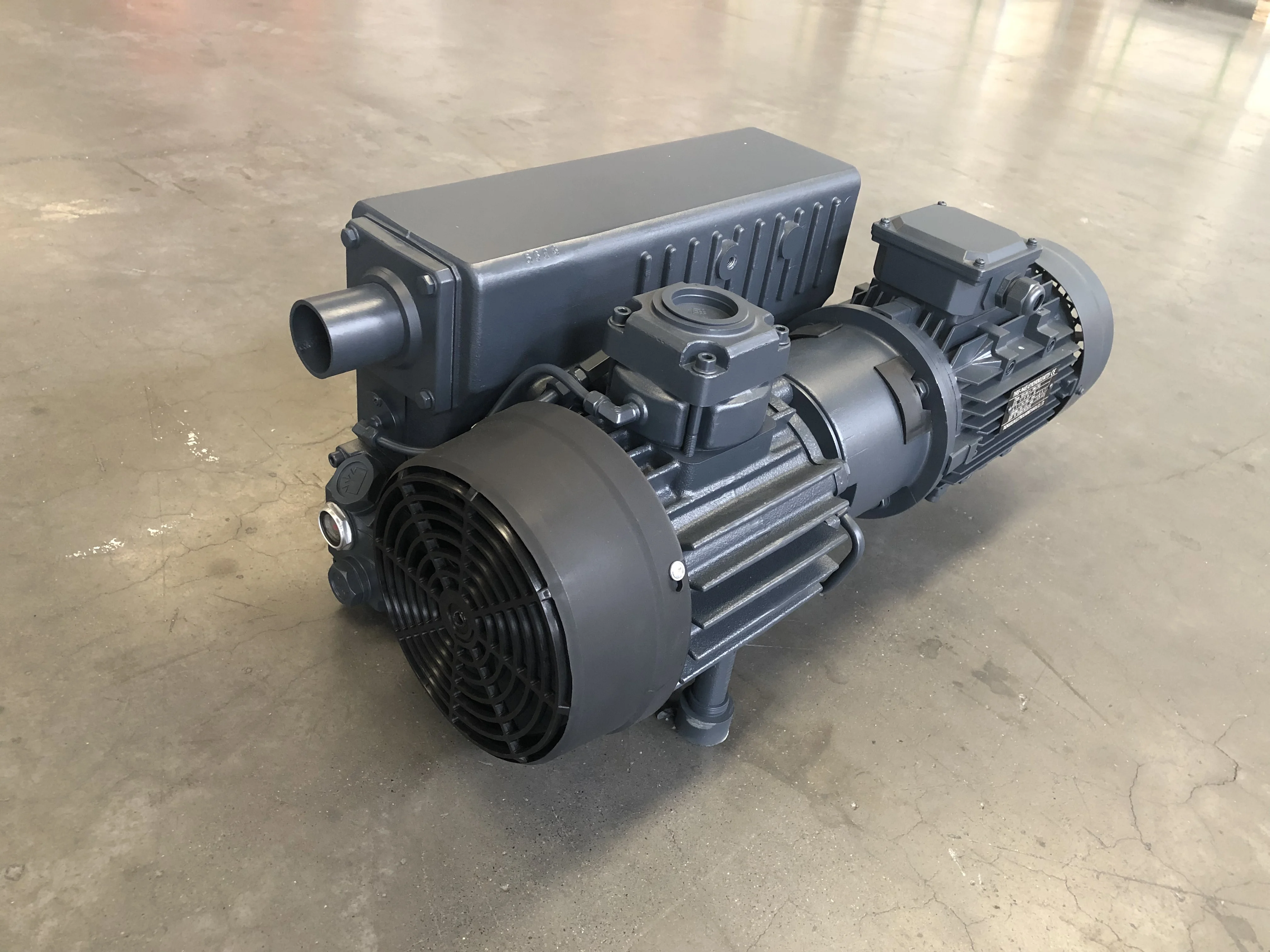

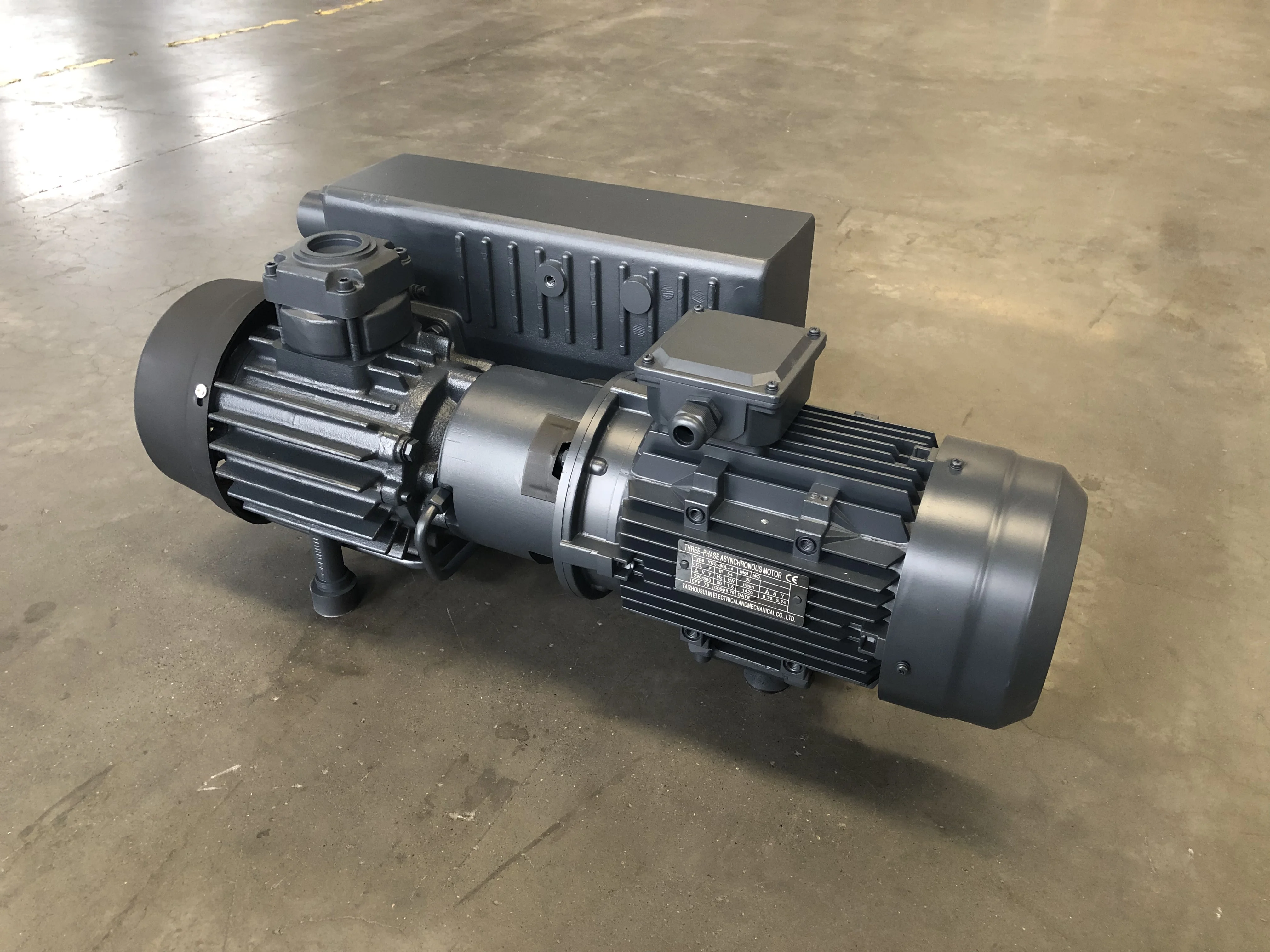

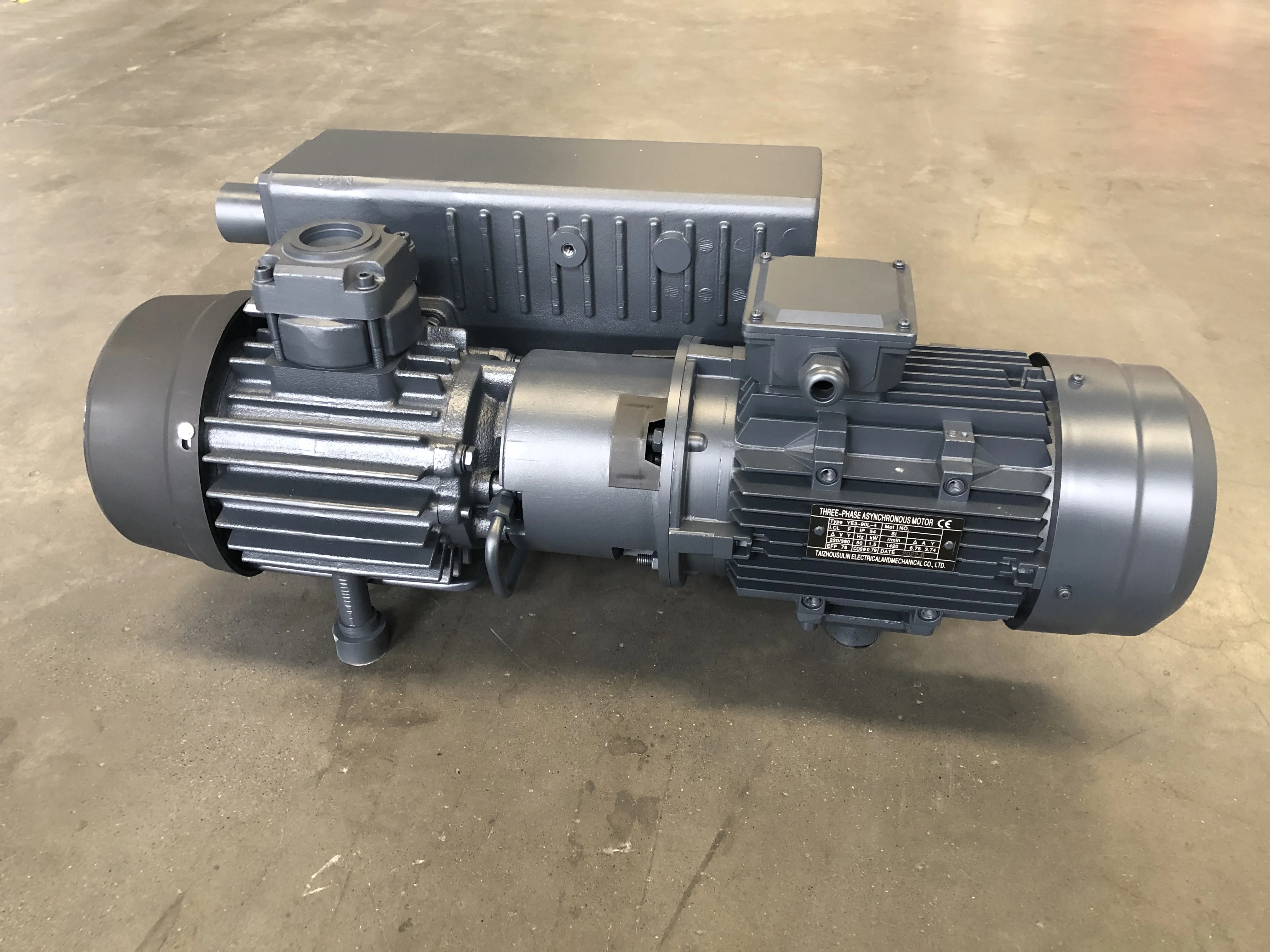

40m³/h 50hz 1.5kw Famous Brand JQT industrial grade oil pump 60hz 1425 1710 rpm oil rotary vane pump for membrane vacuum press
- Category: >>>
- Supplier: Jinan Golden Bridge Precision Machinery Co. Ltd.
Share on (1601286603552):
Product Overview
Description
Products Description
Model | Power (kw) | Max Air flow(m3/h) | Max Vacuum (mbar) | Oil filling amount (L) | ||||||||
50Hz | 60Hz | 50Hz | 60Hz | RA | RB | RC | ||||||
W1.020 | 0.75 | 0.9 | 20 | 24 | 0.5 | 2 | 20 | 1 | ||||
W1.025 | 0.9 | 1.1 | 25 | 30 | 0.5 | 2 | 20 | 1 | ||||
W1.040 | 1.5 | 1.8 | 40 | 48 | 0.5 | 2 | 20 | 1 | ||||
W1.063 | 1.5 | 1.8 | 60 | 72 | 0.5 | 2 | 20 | 2 | ||||
W1.063 | 2.2 | 2.6 | 63 | 76 | 0.5 | 2 | 20 | 2 | ||||
W1.100 | 3 | 3.6 | 100 | 120 | 0.5 | 2 | 20 | 2 | ||||
W1.140 | 4 | 4.8 | 140 | 168 | 0.5 | 2 | 20 | 2 | ||||
W1.202 | 5.5 | 6.6 | 200 | 240 | 0.5 | 2 | 20 | 5 | ||||
W1.302 | 7.5 | 9 | 300 | 360 | 0.5 | 2 | 20 | 7 | ||||
Work Principle

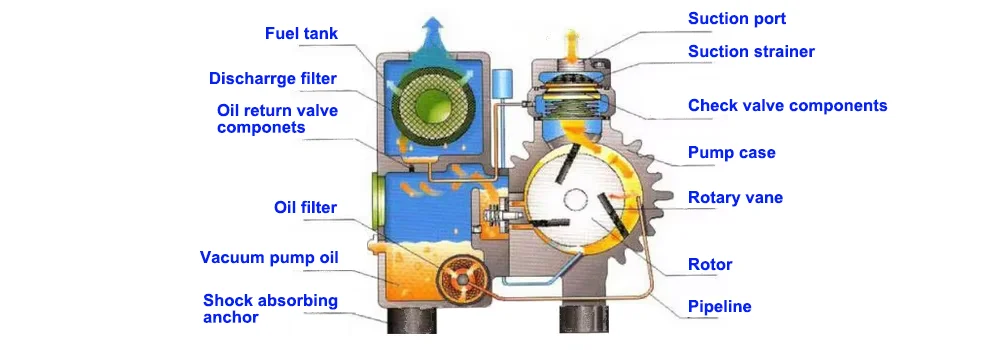

1. According to the rotary vane principle, the eccentric mounted rotor rotates in the pump body. The centrifugal force generated by rotation makes the rotary vane slide in the rotor slot close to the inner wall of the pump body. The rotary vane pump body and rotor between the crescent space are separated into several working chambers. When the working chamber and the intake channel are connected, the pump inhales the gas, and the rotary vane continues to rotate so that the gas is compressed into the tank, The constant pressure difference also makes the lubricating oil of the vacuum pump enter the compression chamber. The lubricating oil and the extracted gas are discharged together into the tank and separated from the oil-gas mixture by gravity and separation of the oil-gas filter and the separation of the exhaust filter. The lubricating oil returns to the bottom of the tank and then enters the pump chamber again (oil circulation). The pumped gas, which does not contain oil, is discharged into the atmosphere through the exhaust port.
2. The cooling of the pump is achieved in the following ways. the surface of the vacuum pump radiates heat, the pumping /discharging gas takes away heat, and the cooling fan of the pump and the motor.
3. The vacuum pump suction valve's role is to prevent pump shutdown after the reversal and damage to the blade, can not be used as a vacuum pipe stop valve or boiler check valve, if the a need for an on-off vacuum pipe, should be additionally installed manual, pneumatic or electric valve.
4. The return valve of the vacuum pump generally adopts the floating bal form, and some applications use the return screw (one-waybal valve) or the forced return pipe form. The special type of return valve configuration will affect the ultimate pressure that the vacuum pump can achieve.
2. The cooling of the pump is achieved in the following ways. the surface of the vacuum pump radiates heat, the pumping /discharging gas takes away heat, and the cooling fan of the pump and the motor.
3. The vacuum pump suction valve's role is to prevent pump shutdown after the reversal and damage to the blade, can not be used as a vacuum pipe stop valve or boiler check valve, if the a need for an on-off vacuum pipe, should be additionally installed manual, pneumatic or electric valve.
4. The return valve of the vacuum pump generally adopts the floating bal form, and some applications use the return screw (one-waybal valve) or the forced return pipe form. The special type of return valve configuration will affect the ultimate pressure that the vacuum pump can achieve.
Company Profile
Jinan Golden Bridge Precision Machinery Co., Ltd was established in 2007 with a registered capital of RMB 1 million. Our factory is in Dezhou, and our office is in Jinan, both in Shandong Province.
Since its establishment, our company has been committed to developing and innovating the national industry. We adhere to the enterprise spirit of "efficient, pragmatic, rigorous, and innovative" and are committed to creating precision machinery and equipment.

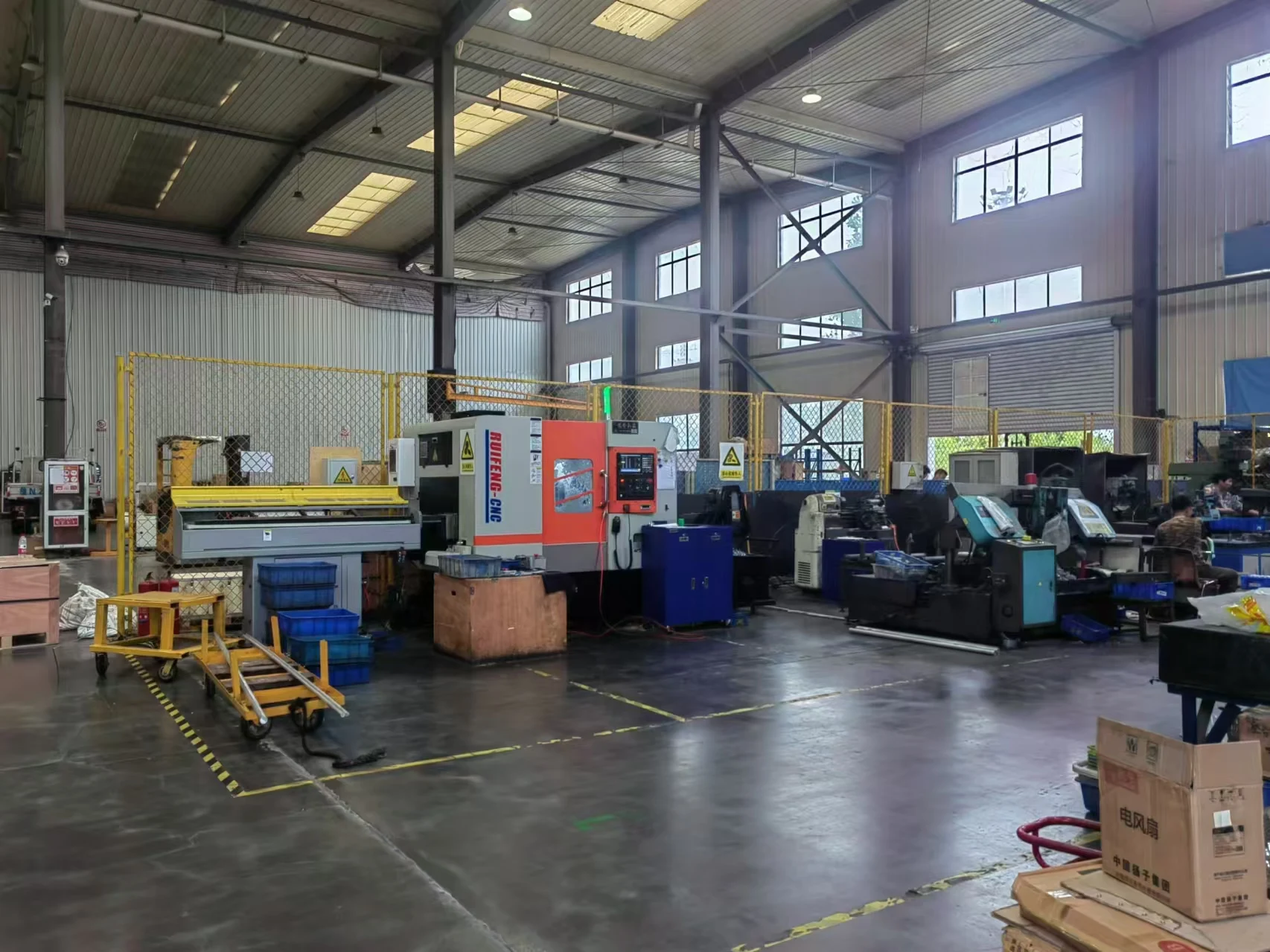

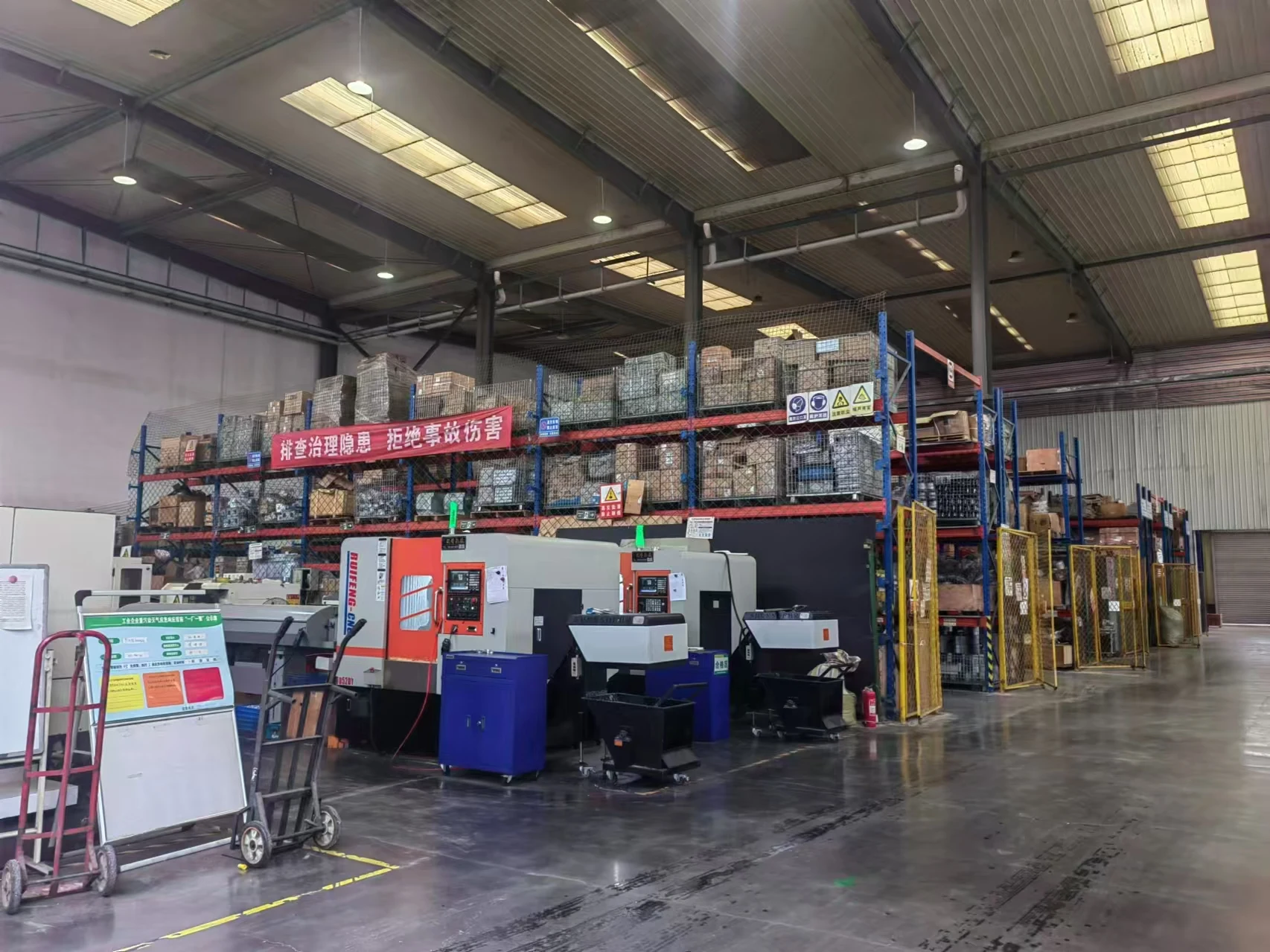

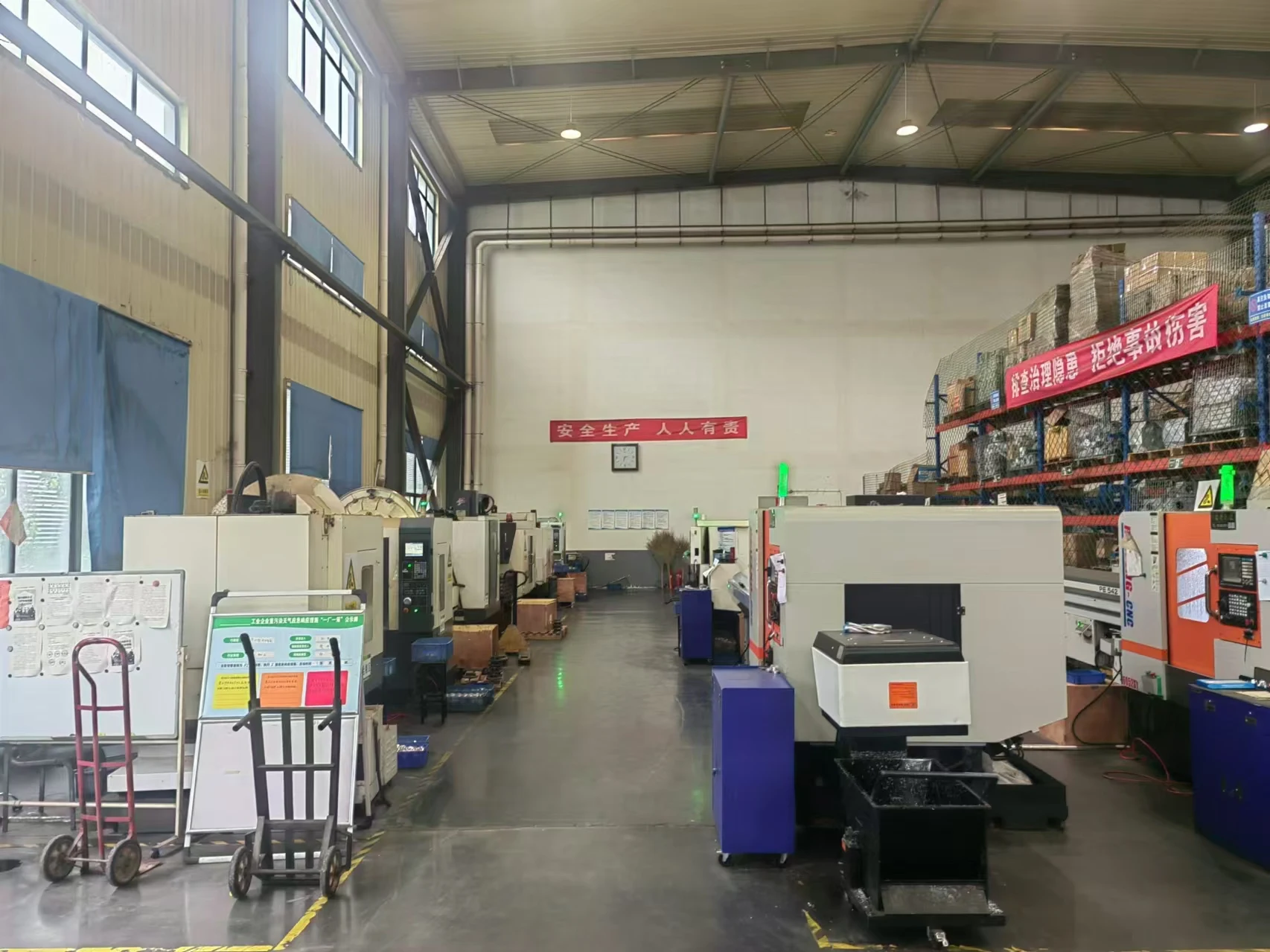

We have had dozens of imported machining centers, CNC lathes, drilling centers, CNC cutting, and other advanced machining equipment. We have been focusing on researching, developing, producing, and selling precision parts and vacuum equipment.
At present, the main products include aluminum alloy and steel couplings, ring blowers, high-pressure blowers, rotary vane vacuum pumps, oil vacuum pumps, vacuum systems, air compressors, voltage stabilizers, and other series of products.
Since its establishment, our company has been committed to developing and innovating the national industry. We adhere to the enterprise spirit of "efficient, pragmatic, rigorous, and innovative" and are committed to creating precision machinery and equipment.
We have had dozens of imported machining centers, CNC lathes, drilling centers, CNC cutting, and other advanced machining equipment. We have been focusing on researching, developing, producing, and selling precision parts and vacuum equipment.
At present, the main products include aluminum alloy and steel couplings, ring blowers, high-pressure blowers, rotary vane vacuum pumps, oil vacuum pumps, vacuum systems, air compressors, voltage stabilizers, and other series of products.
Our company has a clear corporate system, including the general manager's office, finance department, technical department, production department, sales department, after-sales department and human resources department, The total number of people reached 63.

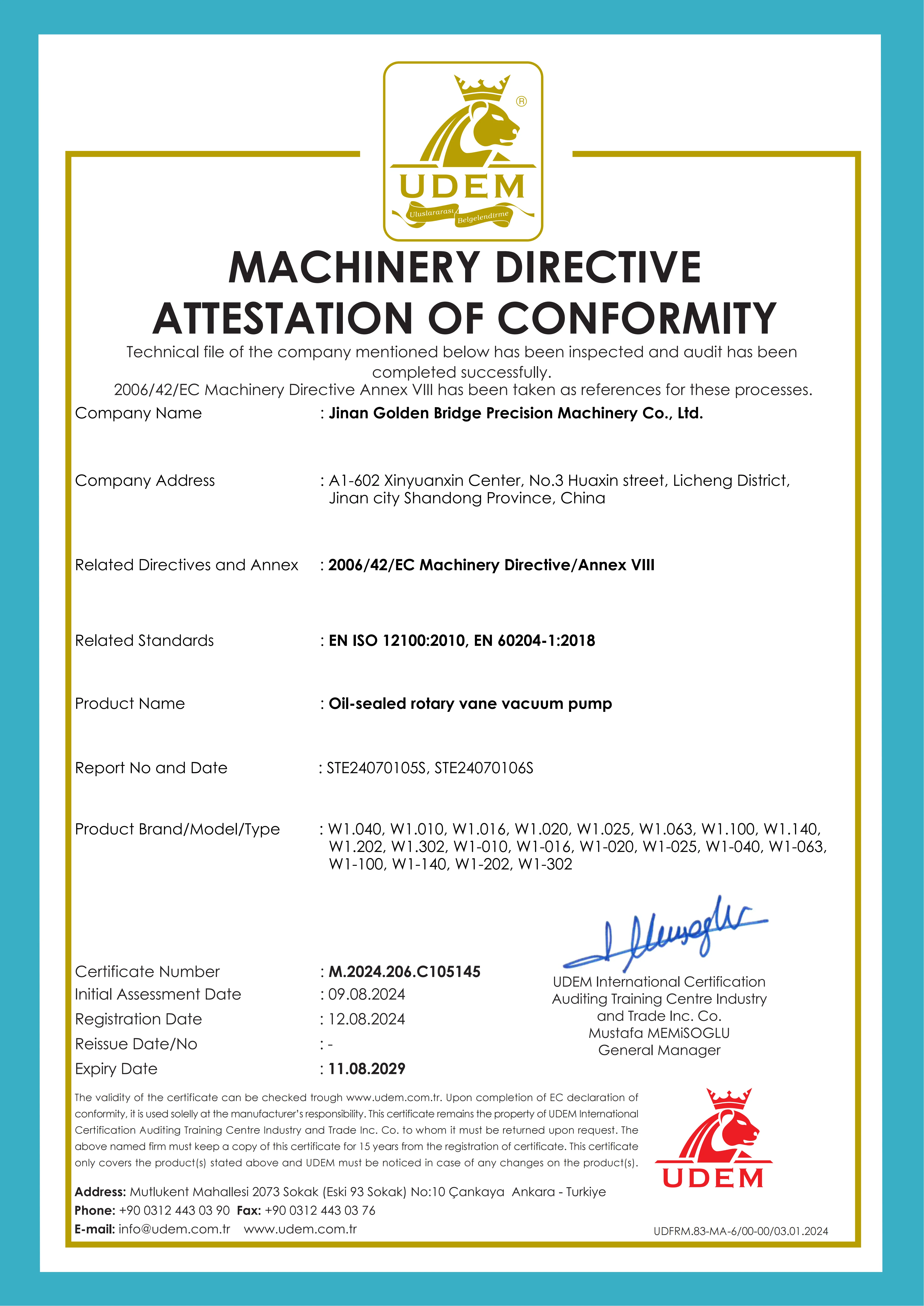

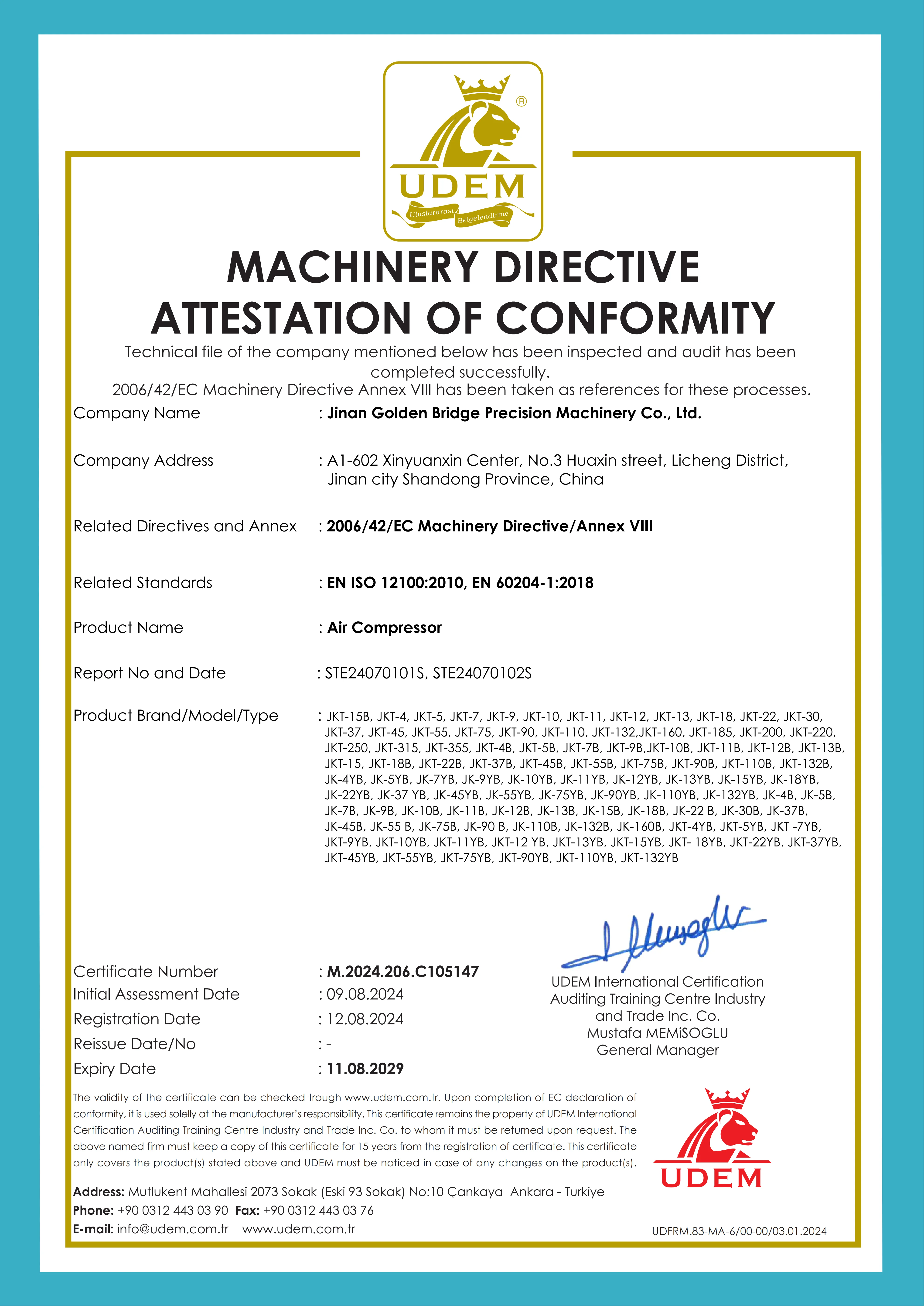

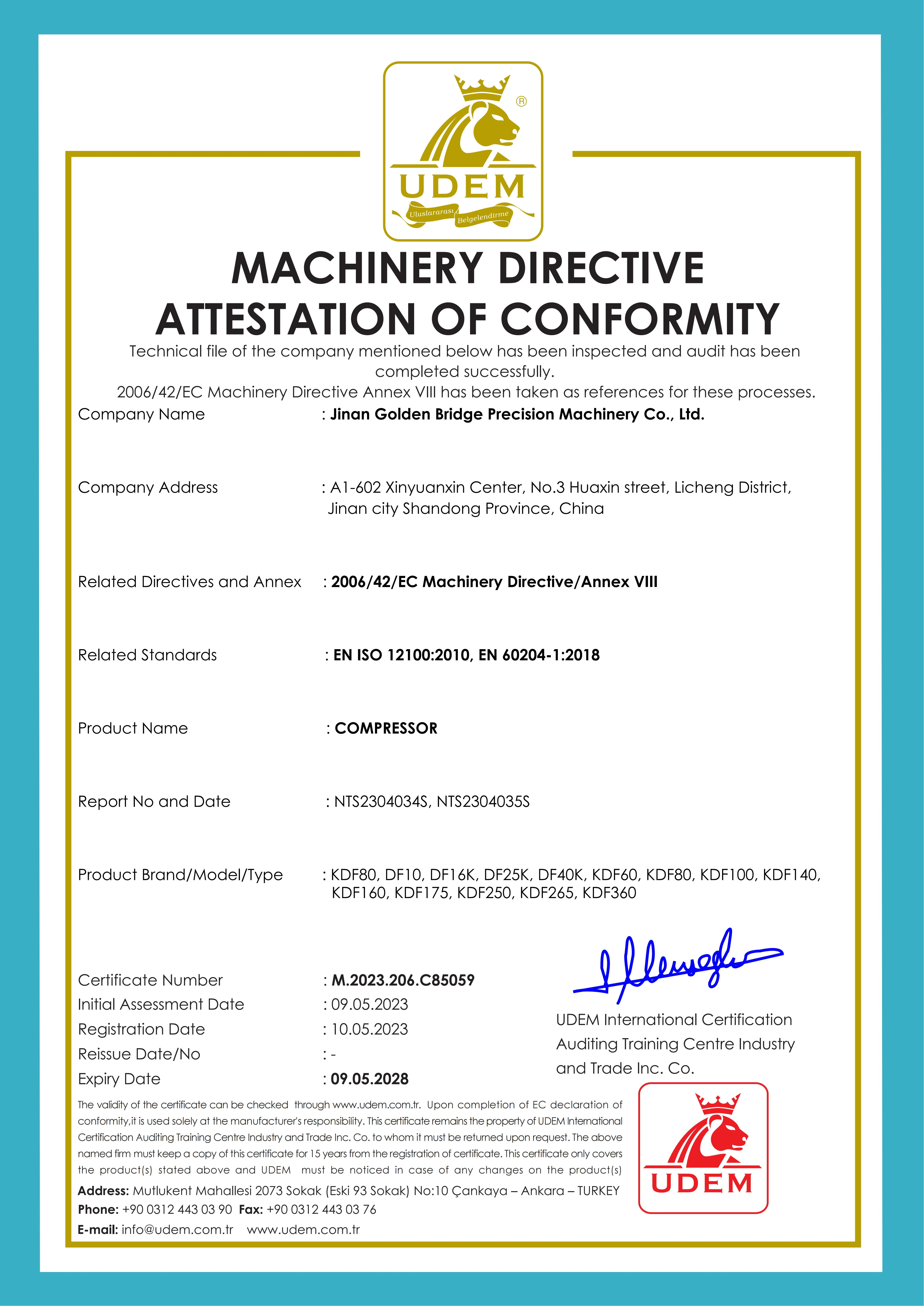

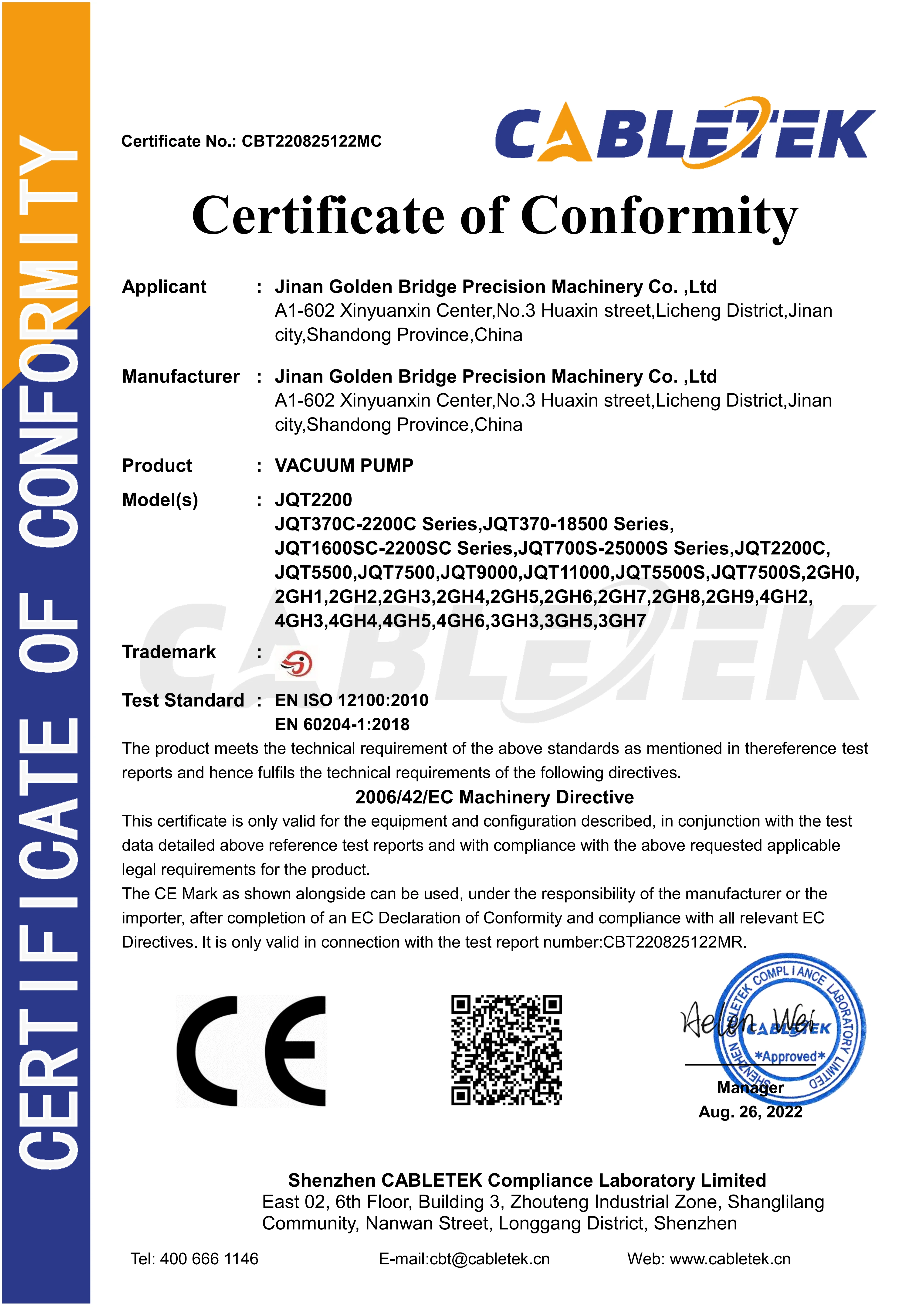

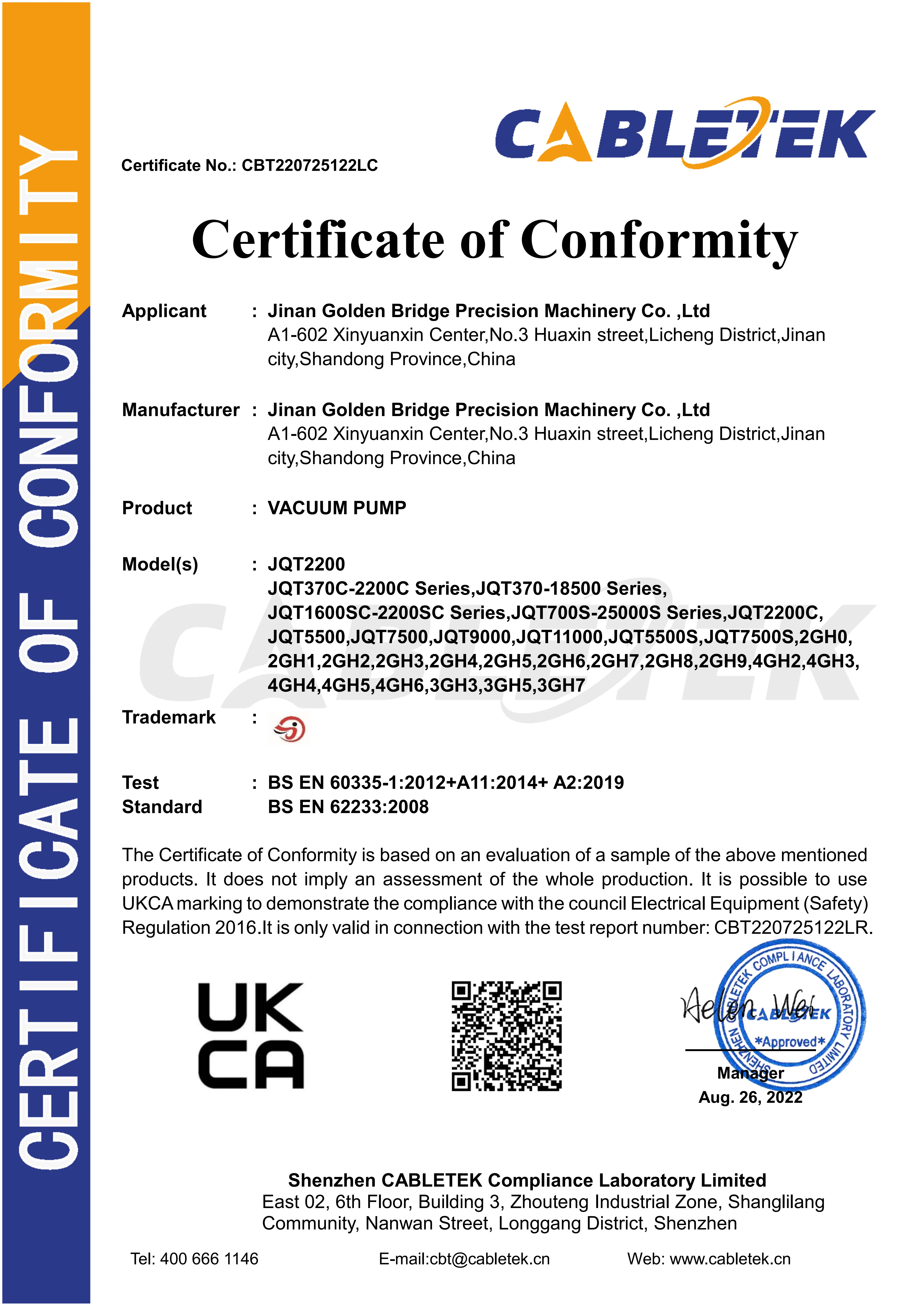

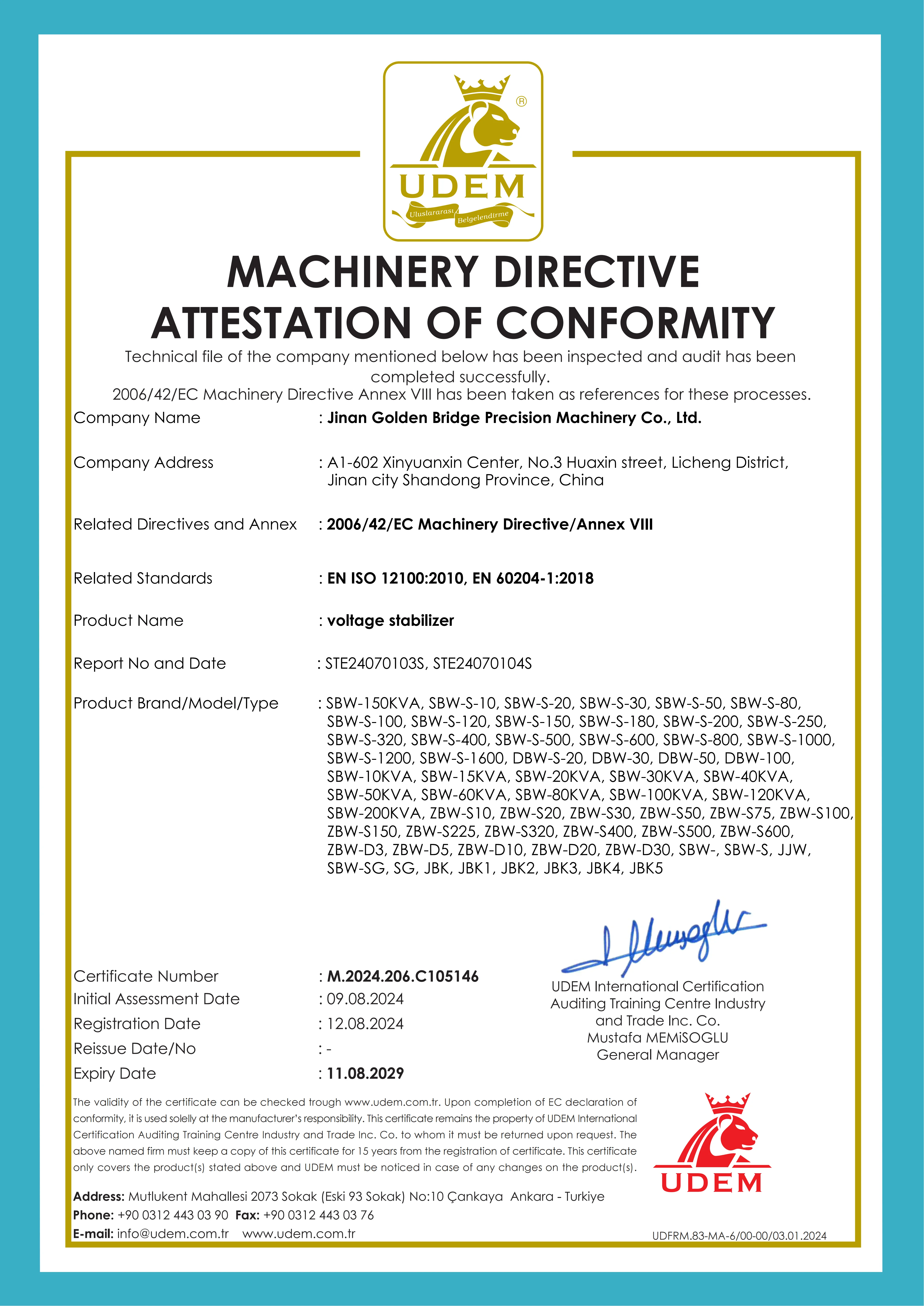

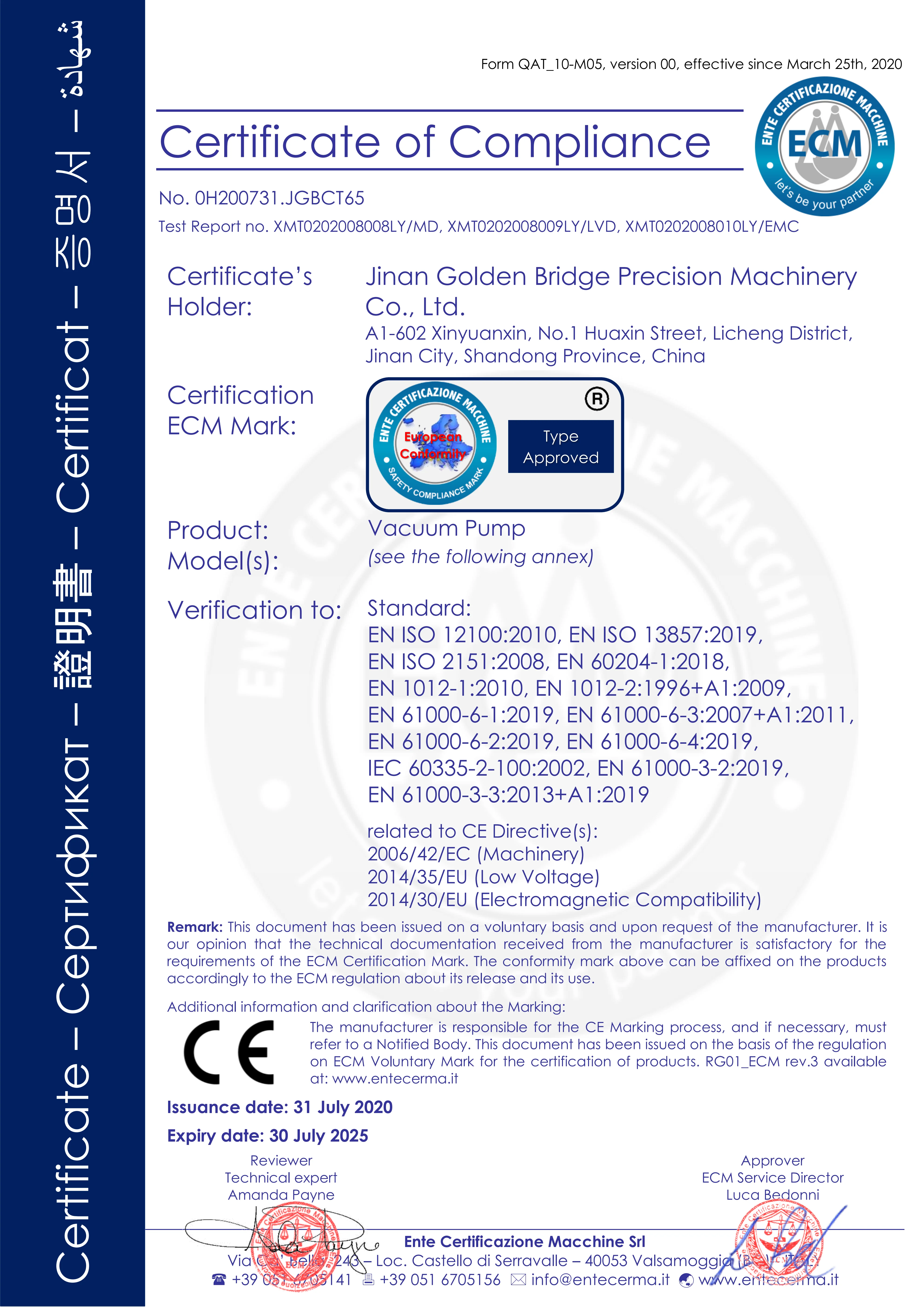

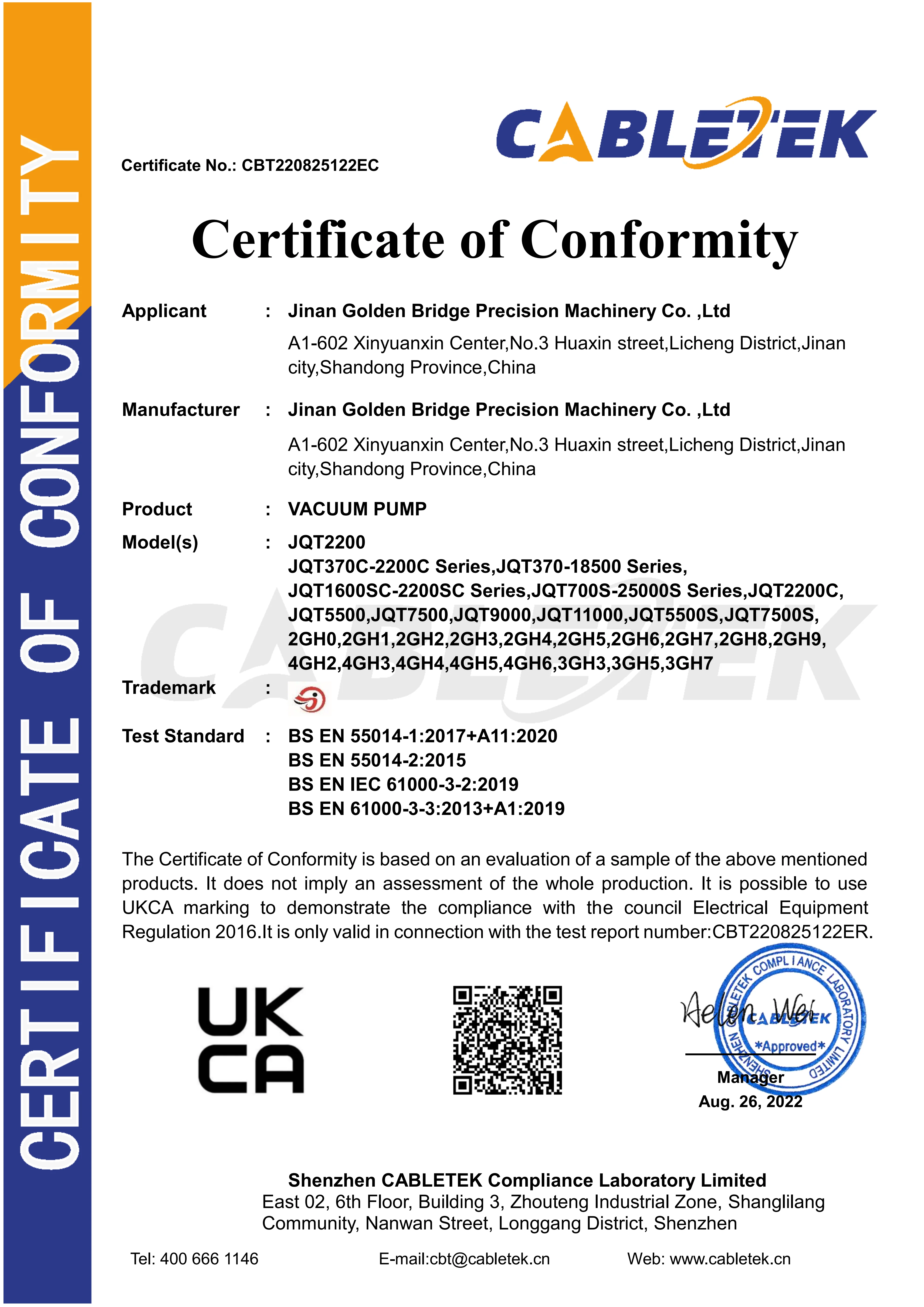

Our company has import and export rights, and the Foreign Trade Department was established in 2009. Our products are not only adopted by major domestic enterprises, but also exported to Europe, America, Africa, Southeast Asia, and other regions, and are deeply welcomed by clients. Annual turnover is 10 million US dollars. We have dozens of product patent certificates and various CE certificates.
Our company has import and export rights, and the Foreign Trade Department was established in 2009. Our products are not only adopted by major domestic enterprises, but also exported to Europe, America, Africa, Southeast Asia, and other regions, and are deeply welcomed by clients. Annual turnover is 10 million US dollars. We have dozens of product patent certificates and various CE certificates.
Our company's foreign trade staff have more than five years of work experience. We are online 24 hours a day.
We participate in foreign exhibitions all year round, including Germany, the USA, South Korea, Turkey, Mexico, Vietnam, Thailand, Indonesia, Russia, etc.
We participate in foreign exhibitions all year round, including Germany, the USA, South Korea, Turkey, Mexico, Vietnam, Thailand, Indonesia, Russia, etc.
Application
Food and Beverage Industry, Spatial simulation, Crude oil distillation, Automobile industry, Food industry, Power engineering, Metallurgy, Medical technology, Furnaces and factories, Laser Technology, Metal and Equipment Manufacturers, Handling and lifting, Freeze Drying, Packaging, Degassing, Pharmaceutical industry, and Heat treatment.
FAQ
Q1: How long can I get the feedback after we send the inquiry?
We will reply to you within 5 hours of the working day.
Q2: Are you a direct manufacturer or trading company?
We have our own factory and foreign trade department.
We produce and sell all by ourselves.
Q3: How to guarantee the quality and after-sales service of your goods?
1, Strict detection during production.
2, Strict sampling inspection of products before shipment and intact product packaging are ensured.
3, Follow up and adopt customers' feedback in a timely manner after sales.
Q4: What is your warranty term?
There is a 12-month warranty for our export products from the date of shipment.
If the warranty has run out, our customer should pay for the replacement parts.
Q5: Is the sample available?
Yes, Usually we send our samples by DHL, TNT, FedEx, or UPS, it will take around 3 or 4 days for our customers to receive them, but the customer will charge all costs related to the samples, such as sample cost and air freight. We will refund our customer the sample cost after receiving the order.
We will reply to you within 5 hours of the working day.
Q2: Are you a direct manufacturer or trading company?
We have our own factory and foreign trade department.
We produce and sell all by ourselves.
Q3: How to guarantee the quality and after-sales service of your goods?
1, Strict detection during production.
2, Strict sampling inspection of products before shipment and intact product packaging are ensured.
3, Follow up and adopt customers' feedback in a timely manner after sales.
Q4: What is your warranty term?
There is a 12-month warranty for our export products from the date of shipment.
If the warranty has run out, our customer should pay for the replacement parts.
Q5: Is the sample available?
Yes, Usually we send our samples by DHL, TNT, FedEx, or UPS, it will take around 3 or 4 days for our customers to receive them, but the customer will charge all costs related to the samples, such as sample cost and air freight. We will refund our customer the sample cost after receiving the order.
