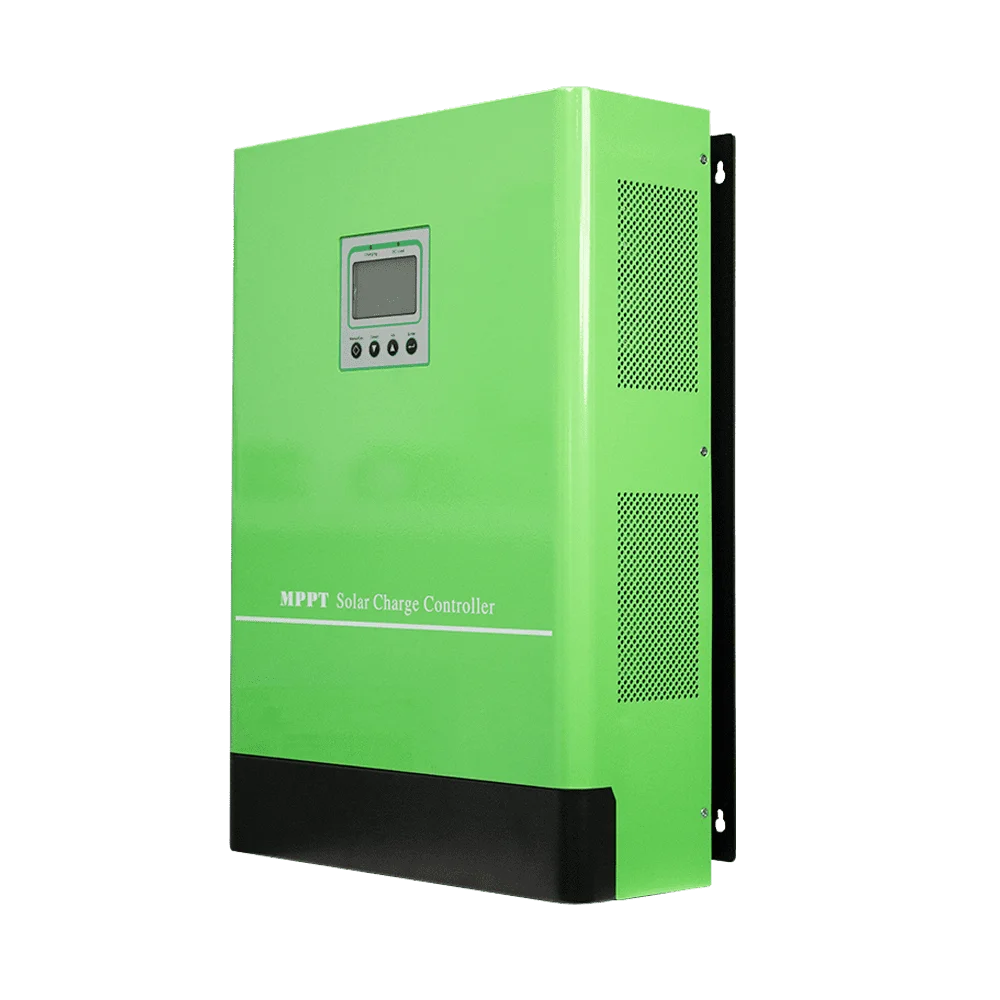

High Voc 300V 450V 500 PV 50 100 AMP Dual MPPT Solar Charge Controller for Solar system

Product Overview

Description

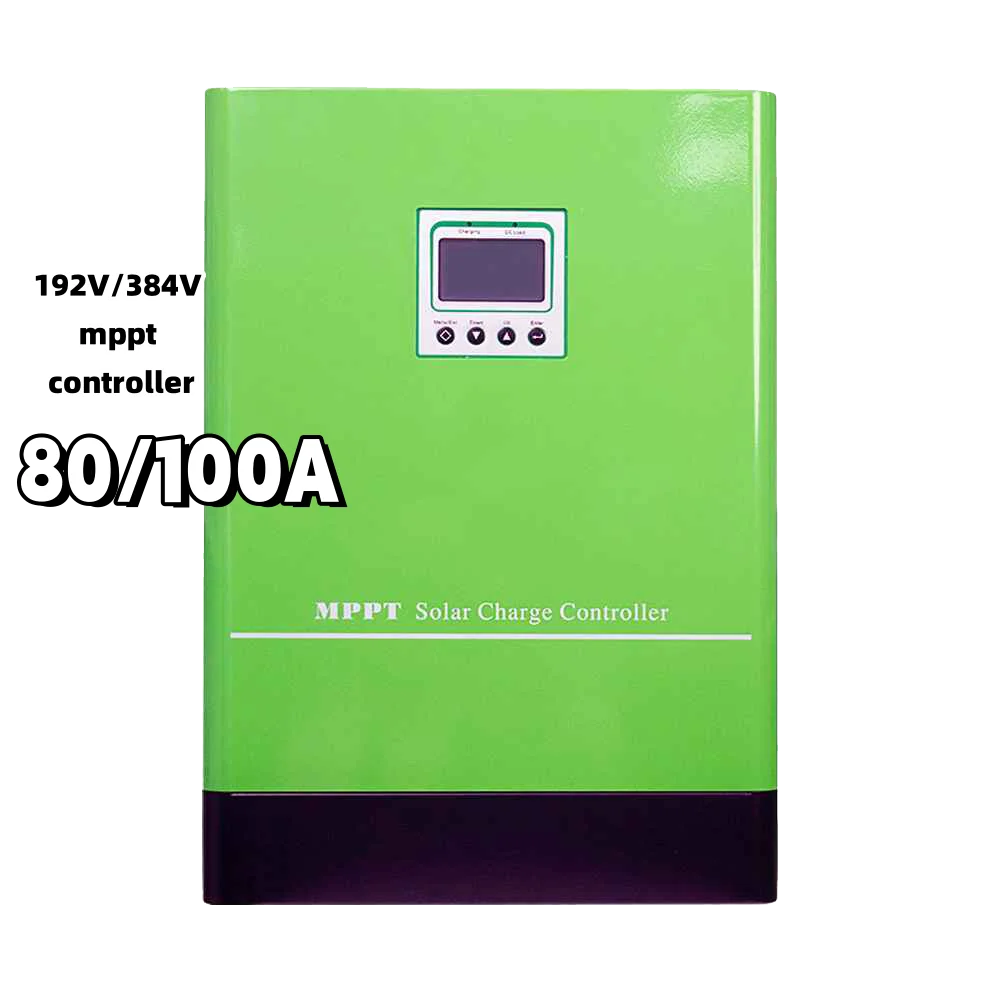

New Arrival_96V-192V MPPT Controller 60A/100A

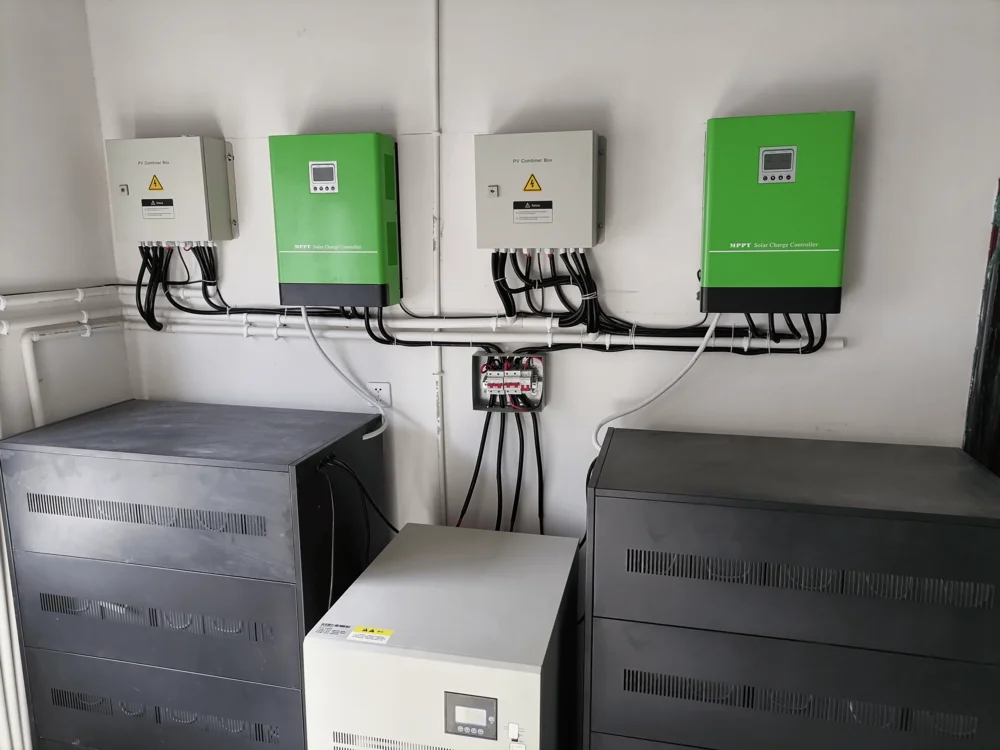

TUNTO's MPPT High Voltage Charge Controller optimizes solar panel charging efficiency, making it a reliable choice for commercial and industrial solar systems



MAIN FEATURES

*Intelligent maximum power tracking technology
*High precision and high effciency with DSP chip control
*The PV wide range voltage input, three stage charging technology
*The photovoltaic/battery connection reverse protection short-circuit protection /over current protection
*Display technology parameter with 7 inch touch screen
*Rs485 remote communication and data transmission (optional)



DATA Sheet:

(12-48V/30A,40A,50A,60A,80A,100A)
Product Specifications
Model:CM-			30A	40A	50A	60A	80A	100A
Charging Mode			MPPT Automatic Maximum Power Point Tracking
Charging Method			Three stages: Constant Current (MPPT), Balanced Charging, Floating Charge
System Type		12V/24V/48V	Automatic Identification/Manual Setting
System Identification Voltage Range		12V System	DC9V-DC15V
		24V System	DC18V-DC30V
		48V System	DC36V-DC60V
Soft Start Time		12V/24V/48V	10s
Dynamic Response Recovery Time		12V/24V/48V	500us
Static Power		12V/24V/48V	2W
Machine Efficiency		12V/24V/48V	96.5%
PV Module Utilization		12V/24V/48V	99%
Input Characteristics
MPPT Operating Voltage Range		12V System	DC18V-DC150V
		24V System	DC34V-DC150V
		48V System	DC65V-DC150V
Maximum Solar Panel Input Power		12V/24V/48V	420W	570W	700W	900W	1100W	1400W
		12V/24V/48V	840W	1130W	1400W	1700W	2200W	2800W
		12V/24V/48V	1650W	2270W	2800W	3400W	4400W	5600W
Output Characteristics
Optional Battery Type (Default is lead-acid maintenance- free battery)		12V/24V/48V	Lead-acid maintenance-free Battery, Gel Battery, Lithium Battery
			(Can also be customized for other types of battery)
Current Limiting Protection		12V/24V/48V	32A	42A	52A	62A	82A	102A
Temperature Coefficient		12V/24V/48V	± 0.02%/°C
Temperature Compensation		12V/24V/48V	14.2V-(Maximum Temperature -25°C)*0.3
Output Regulation Accuracy		12V/24V/48V	±15%
Protection	Input Low Voltage Protection		Reference Input Characteristics
	Input High Voltage Proteciton		Reference Input Characteristics
	Short  Circuit Protection		After 5 trial starts will enter the protection state, Restart Recovery
	Temperature Protection		90°C
	Temperature Rise Protection		Reduce Power Output When Exceed 85°C
Other Parameters	Noise		50dB
	Heat Dissipation Method		Forced air cooling, fan speed is adjusted by temperature
	Mechanical Protection Type		IP21
	Humidity		0-90%RH (No condensation)
PV Module Configuration	System Battery Voltage		PV module load voltage (Recommended Value)
	12V System		18V-60V (30V module*1 string, 36V module*1 string)
	24V System		36V-72V (30V module*2 string, 36V module*2 string)
	48V System		72V-144V (30V module*3 string, 36V module*3 string)
