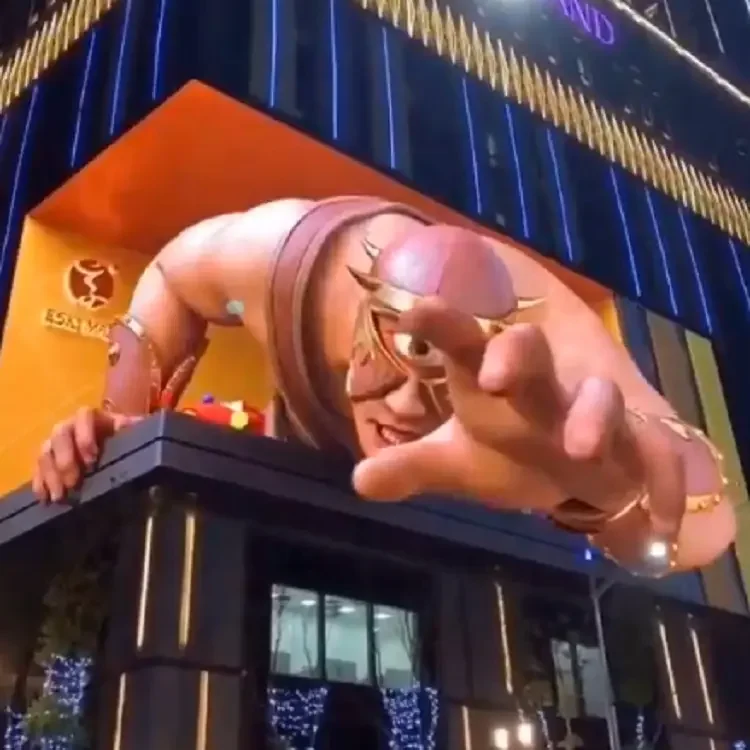

Naked Eye Hologram Technology Immersive Advertising Interactive 3D Video Wall Screen Outdoor 3D
- Category: >>>
- Supplier: Shenzhen Huaxintong Photoelectric Technology Co. Ltd.Shenzhen Ltd.
Share on (1601287122442):
Product Overview
Description
Related Products
LED Display series:
1) Small pitch pixel: P1.2,P1.5625,P1.667,P1.875,P1.9,P1.923,P2,P2.5
2) Professional Rental led display:P3.91,P4.81,p5.95
3) Indoor LED display: P3,P4,P5,P6,P7.62,P8,P10
4) Outdoor LED display: P4,P5,P6,P8,P10
1) Small pitch pixel: P1.2,P1.5625,P1.667,P1.875,P1.9,P1.923,P2,P2.5
2) Professional Rental led display:P3.91,P4.81,p5.95
3) Indoor LED display: P3,P4,P5,P6,P7.62,P8,P10
4) Outdoor LED display: P4,P5,P6,P8,P10
Product Description
1.High Brightness
2.High Uniformity & Contrast
3.Anti-UV Module
4.IP65 Waterproof Protect
5.Reliable
Durable outdoor SMD led with 5500-7000 nits high brightness to match different occasions;
2.High Uniformity & Contrast
High quality led lamp and mask for super bright display and high contrast image;
3.Anti-UV Module
Anti-Oxidation module frame with anti-UV material to protect high temperature ultraviolet radiation;

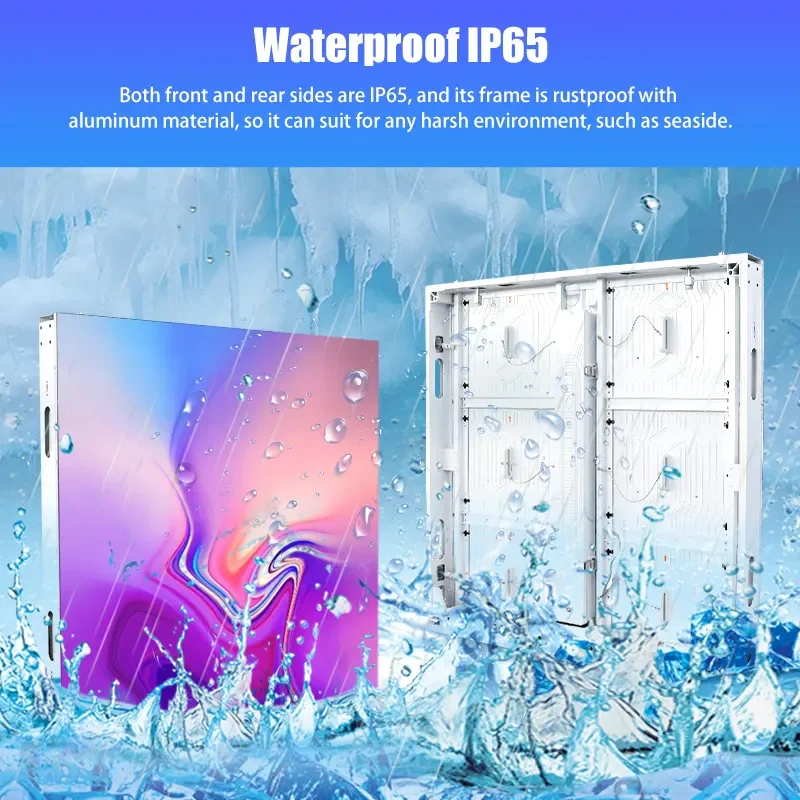

4.IP65 Waterproof Protect
With waterproof tape around the modules, prevent the rain and dust;
5.Reliable
Over 100000 working hours for longtime use;
6.Multi-Control Systems
Synchronous and asynchronous systems for option.
Product advantages
Specification
Parameters | P6 | P8 | P10 |
Pixel Pitch(mm) | 6mm | 8mm | 10mm |

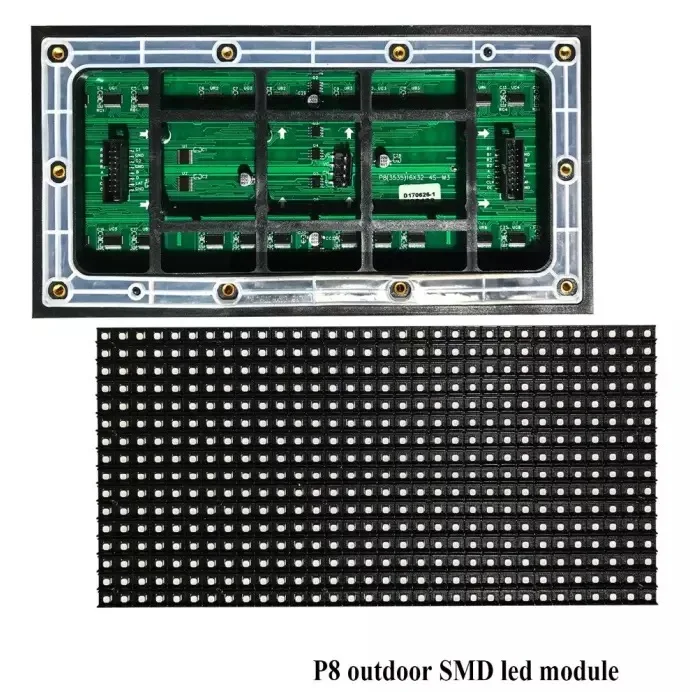

Pixel Conguration | SMD 2727 | SMD 3535 | SMD 3535 |
Pixel Matrix per Panel(dots) | 32 x 32 dots | 32 x 16 dots | 32 x 16 dots |
Pixel Density(dots/m²) | 27,777 dots/m² | 15,625 dots/m² | 10,000 dots/m² |

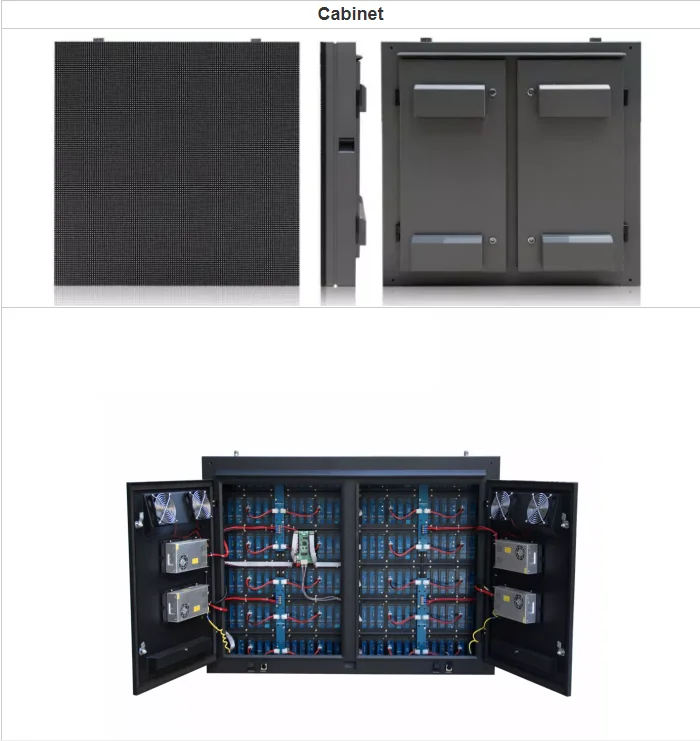

Cabinet Size(mm) | 960 x 960 x 65mm | 1024 x 1024 x 65mm | 960 x 960 x 65mm |
Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Panel Weight(kg/panel) | 5.6 kg/panel (12.3 lb/panel ) | 5.6 kg/panel (12.3 lb/panel ) | 5.6 kg/panel (12.3 lb/panel ) |
Color Depth(Bit) | 14 bit | 14 bit | 14 bit |
Refresh Rate(Hz) | ≥1920Hz | ≥1920Hz | ≥1920Hz |
Driver Method/scan | Scan 1/8 | Scan 1/4 | Scan 1/2 |
Brightness(nits) | 900nits, adjustable | 900nits, adjustable | 900nits, adjustable |
Horizontal Viewing Angle(°) | 160 ° | 160 ° | 160 ° |
Vertical Viewing Angle(°) | 160 ° | 160 ° | 160 ° |
AC Power Input(V) | AC110V~ 220V ±10% | AC110V~ 220V ±10% | AC110V~ 220V ±10% |
AC Power Frequency(Hz) | 50 ~ 60 Hz | 50 ~ 60 Hz | 50 ~ 60 Hz |
Max. Power(W/m²) | 550 W/m² | 550 W/m² | 550 W/m² |
Avg. Power(W/m²) | 180 W/m² | 180 W/m² | 180 W/m² |
Storage/Operating Humidity(RH ) | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
IP Rating(IP ) | IP68 / IP68 | IP68 / IP68 | IP68 / IP68 |
Lifetime Typical Value(Hrs) | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Installation Type | Fix , Front installation | Fix , Front installation | Fix , Front installation |
Maintenance Method | Front & Rear serviceable | Front & Rear serviceable | Front & Rear serviceable |
Certications | TUV-CE,ET | TUV-CE,ET | TUV-CE,ET |

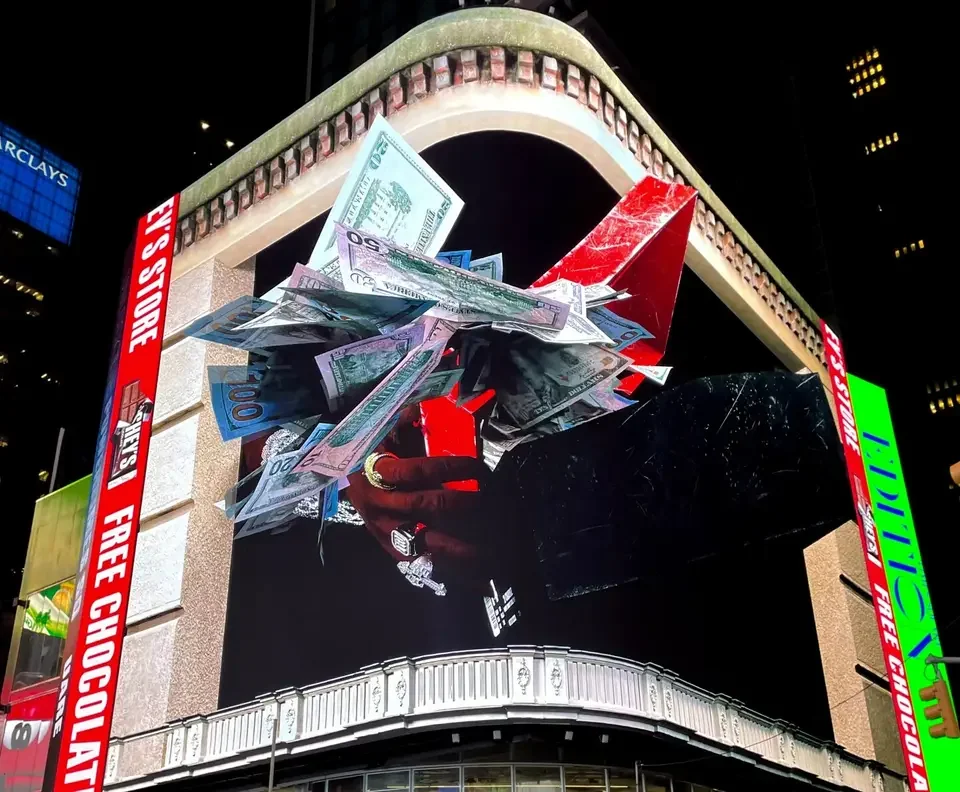

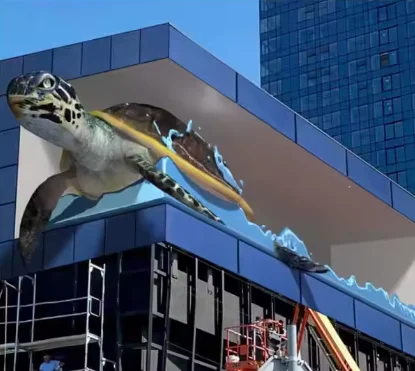

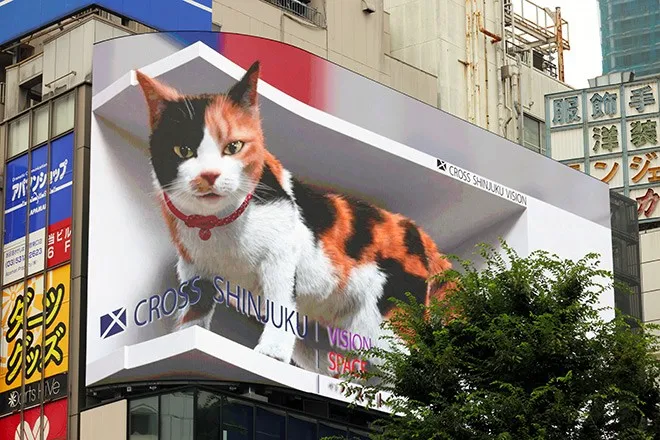

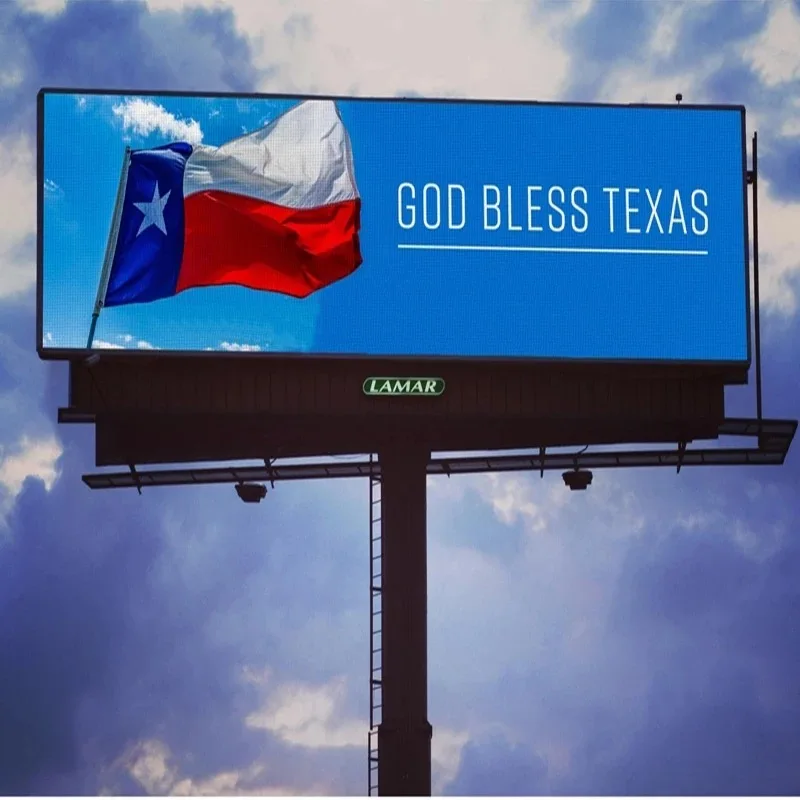

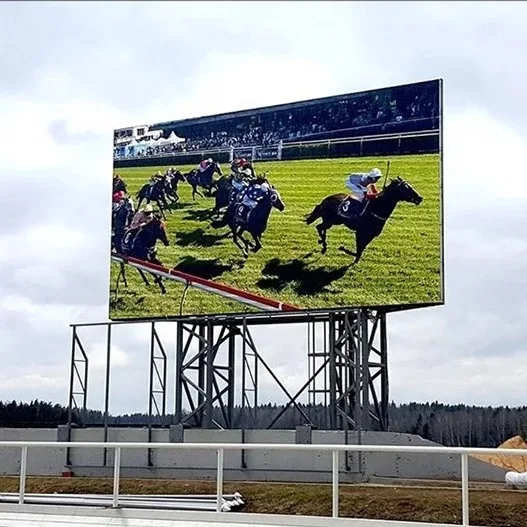

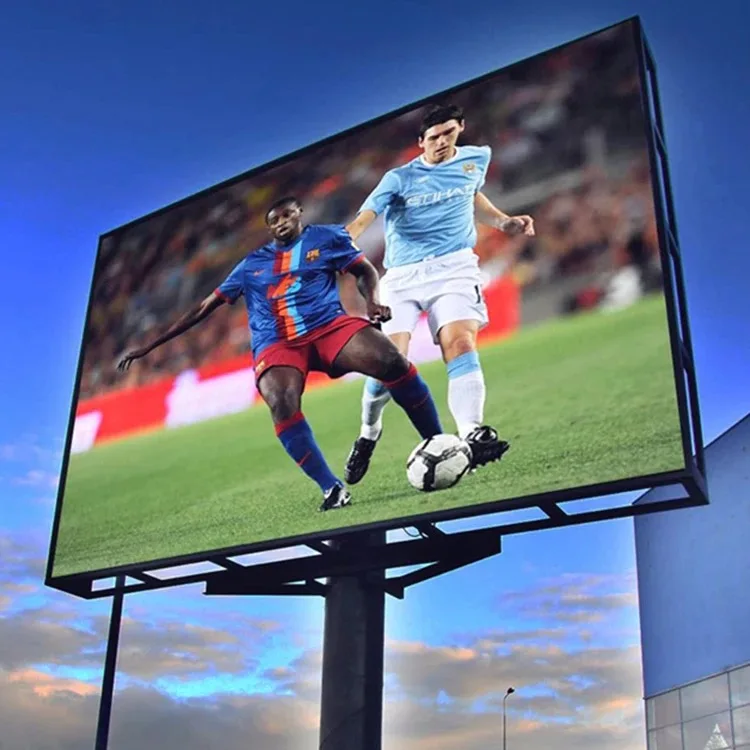

On-site outdoor installation

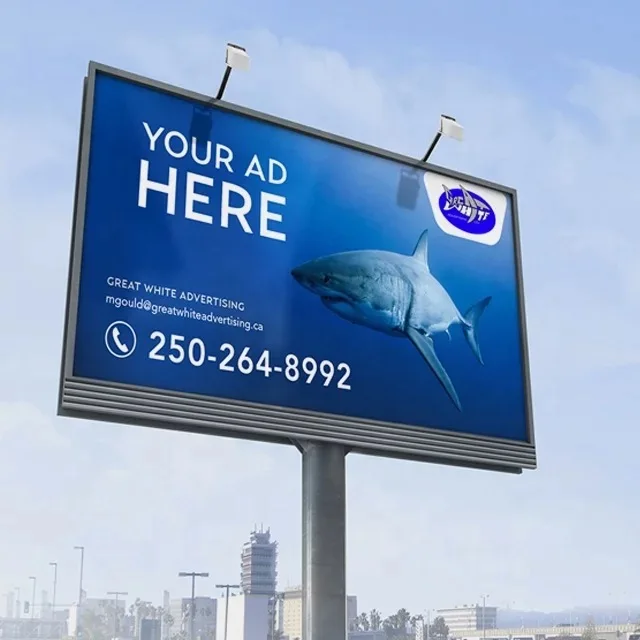

Application
Schematic of the control system
Packing&Shipping
Our Factory
FAQ
Pre-sale service:
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
2. Provide photos and videos as per customer's requirement during production.
1. Inquiries will be replied within 24 hours. 2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
How to order
You are just 6 simple steps
1. Know your application, indoor or outdoor use, fixed install in one place or move often.
2. Know you desired size or available space for the LED Display
3. Know the types of message you want to display on your LED Display: Picture messages, or video messages.
4. Know your budget – need to balance between what you want to do and your budget to choose an optimal LED Display.
5. Choose your resolution (pixel pitch) depending on your need and your budget.
6. If you are not sure, you can contact us with above information. Our knowledgeable customer service will help you choose a right
led display for you.
What is after sale service?
RE: Our engineer will give you the drawing CAD, after you are ordered the display, our engineer can remote control, before you got the display, our engineer will design customized drawings for you, Because different size, installation ways, different drawings.
How to install?
RE: We have 2 optional solutions.
a: Our professional engineers can go to your country to provide installation guidance on site, but you need to pay some fees,personnel $120 per day, and accommodation, airfare and so on.
b:Our company provides free training for new customers. When we confirm the order, you can send your engineers to our factory for free training. and our engineer will make the led cabinets which is very convenient for you to install it.
How are these LED lights controlled?
RE: We use colorlight control system. we can can provide C4 or C6 player box specification and manual. Before delivery, our engineer will shoot the video for installation and debugging. Including all connect cable video.main pow power cable ,main data cable connect diagram.
What the software your company uses for your product?
RE: Colorlight, Linsn or Nova is the main software we provide at the moment.
1. Know your application, indoor or outdoor use, fixed install in one place or move often.
2. Know you desired size or available space for the LED Display
3. Know the types of message you want to display on your LED Display: Picture messages, or video messages.
4. Know your budget – need to balance between what you want to do and your budget to choose an optimal LED Display.
5. Choose your resolution (pixel pitch) depending on your need and your budget.
6. If you are not sure, you can contact us with above information. Our knowledgeable customer service will help you choose a right
led display for you.
What is after sale service?
RE: Our engineer will give you the drawing CAD, after you are ordered the display, our engineer can remote control, before you got the display, our engineer will design customized drawings for you, Because different size, installation ways, different drawings.
How to install?
RE: We have 2 optional solutions.
a: Our professional engineers can go to your country to provide installation guidance on site, but you need to pay some fees,personnel $120 per day, and accommodation, airfare and so on.
b:Our company provides free training for new customers. When we confirm the order, you can send your engineers to our factory for free training. and our engineer will make the led cabinets which is very convenient for you to install it.
How are these LED lights controlled?
RE: We use colorlight control system. we can can provide C4 or C6 player box specification and manual. Before delivery, our engineer will shoot the video for installation and debugging. Including all connect cable video.main pow power cable ,main data cable connect diagram.
What the software your company uses for your product?
RE: Colorlight, Linsn or Nova is the main software we provide at the moment.
