China Factory Sell Commercial Air to Water High Temperature HeatPumps Water Heaters New Energy High COP Air Source Heat Pump

Product Overview

Description

This commercial hot water heat pump is the best solution for hot water supply of commercial project, and can work with advantages of high safety, stability, much convenience, energy saving, and environment friendly, which assures 24 hours comfortable hot water using. It is widely used in hot water project of school, hotel, hospital, supper market and other large building, which needs large water volume supply.

Main Features:

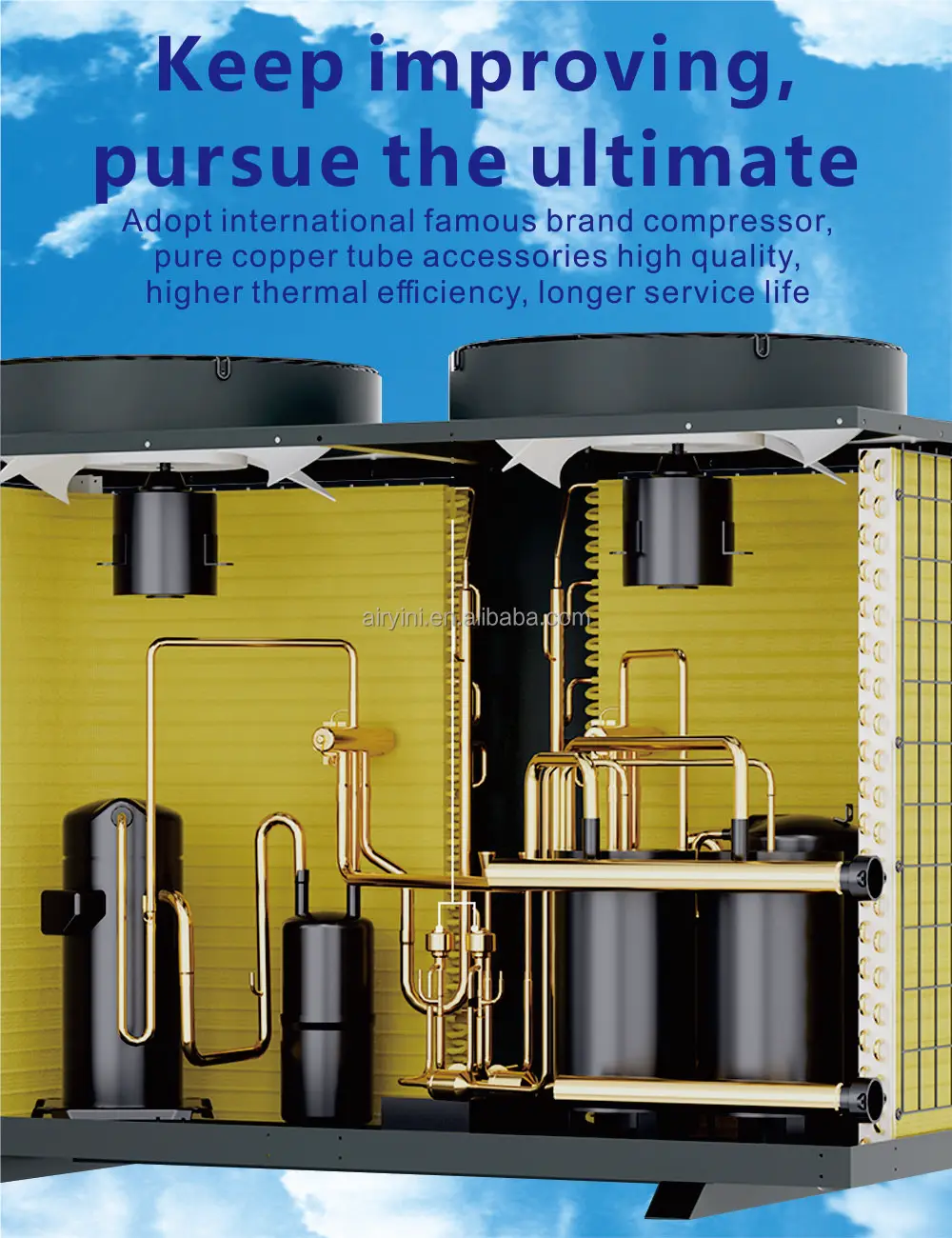

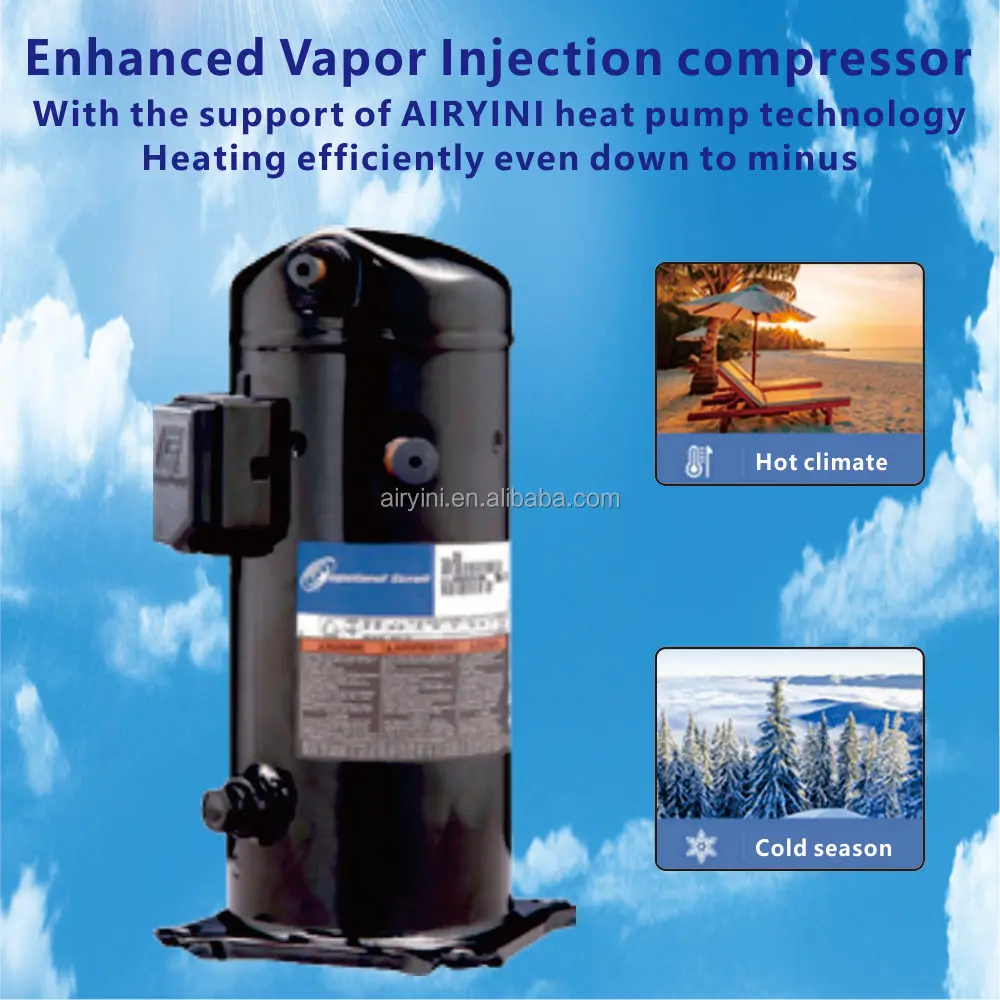

1) Copeland scroll compressor, quiet and high efficiency.

2) High efficiency heat exchanger.

3) 600 stage adjustment precision electronic expansion valve.

4) Schneider electrical components.

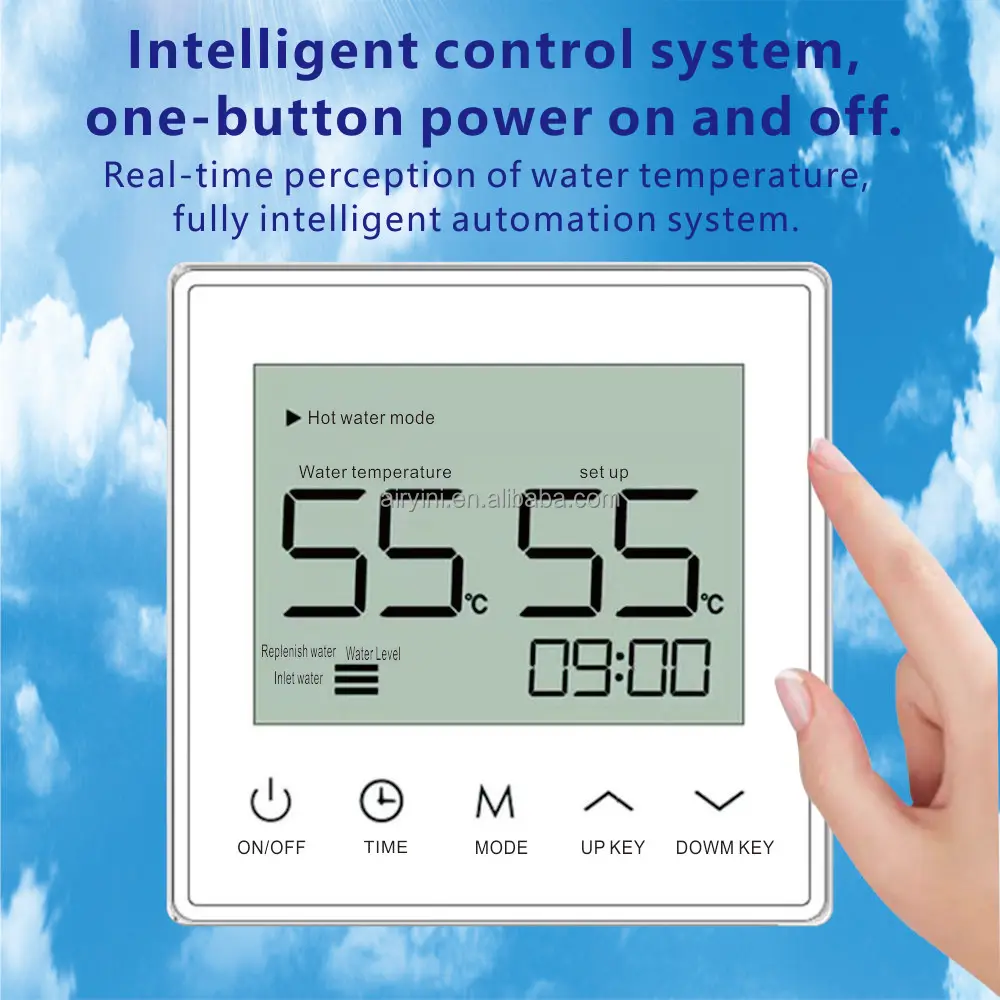

5) Intelligent controlling system.

6) Intelligent EE valve, excellent efficiency at different ambient temp.

7) Easy installation and LCD operation.

8) Automatically defrosting.



MODEL		YINI-030-RS	YINI-050S-RS	YINI-070S-RS	YINI-100S-RS	YINI-150S-RS	YINI-200S-RS	YINI-250S-RS	YINI-300S-RS	YINI-500S-RS	YINI-600S-RS
Heating mode		Circulating
Rated heating capacity	kw	10	18	23	36	45	70	90	105	180	210

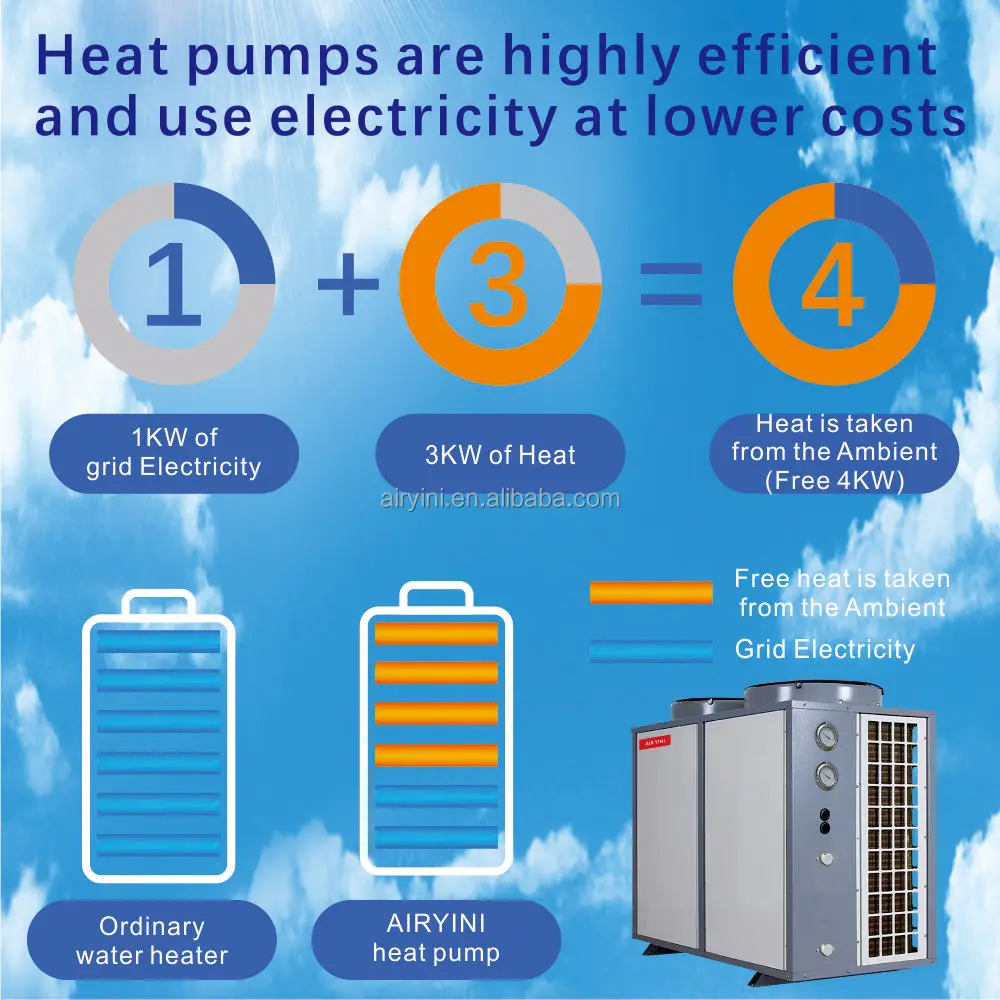

COP	w/w	4.17	4.3	4	4.2	4.2	4.1	4.1	4.1	4.1	4.1
Rated power input	kw	2.4	4.2	5.75	8.57	10.7	17	21.9	25.6	43.8	51.2
Max. running current	A	17	14	16	24.8	30	45	58	63	116	125
Power supply	/	220V/1N/ 50Hz-60Hz	380V/3N/50Hz-60Hz
IP code	/	IPX4
Safety function	/	High and low pressure protection, Overload protection, Temperature protection Power phase sequence protection, etc.
Refrigerant type	/	R407c / R410a / R22
Compressor QTY	pcs	1	1	1	2	2	2	2	1	2	2
Compressor type	/	Scroll
Max. temp. outlet water	℃	60
Water side heat exchanger type	/	Casing/high efficiency tank
Air side heat exchanger type	/	Finned heat exchanger
Circulating waterpipe nozzle	inch	G3/4''	G1''	G1.2''	G1.5''	G1.5''	G2.0''	G2.5''	G2.5''	G3.0''	G3.0''
Outlet nozzle	inch	G3/4''	G1''	G1.2''	G1.5''	G1.5''	G2.0''	G2.5''	G2.5''	G3.0''	G3.0''
Circulating water flow	m³/h	1.72	3.1	3.95	6.2	7.74	12.04	15.48	18.06	30.96	36.11
Air out type	/	Top discharge
Fan motor QTY	pcs	1	1	1	2	2	2	2	2	2	2
Noise	dB/(A)	56	56	57	59	65	69	72	72	73	73
Machine dimension (W×D×H)	cm	75×69×87	75×69×107	83×79×108	150×69×107	150×69×107	210×110×200	210×110×200	210×110 ×200	224x118 x222	224x118 x222
Packing dimension (W×D×H)	cm	80×74×100	80×74×120	90×93×120	155×74×120	155×74×120	215×120×215	215×120×215	215×120 ×215	230x125 x237	230x125 x237
Net weight	kg	110	130	150	290	350	700	800	850	1000	1100
Gross weight	kg	130	150	170	330	390	750	860	900	1100	1200
Remarks:1. Test conditions: (DB/WB) 20°C/15°C, inlet water temperature 15°C, outlet water temperature 55°C.
