High Quality Customized Stainless Steel Distillation Equipment Western Yarrow Essential Oil Models for Restaurant Industries
- Category: >>>
- Supplier: Zhongtu(Nantong) Eco-Build Co. Ltd.Zhongtu(Nantong) Ltd.
Share on (1601287181311):
Product Overview
Description
You use my equipment, I buy your essential oils, essential oil quotation please email:oil_su@126.com
Product Overview

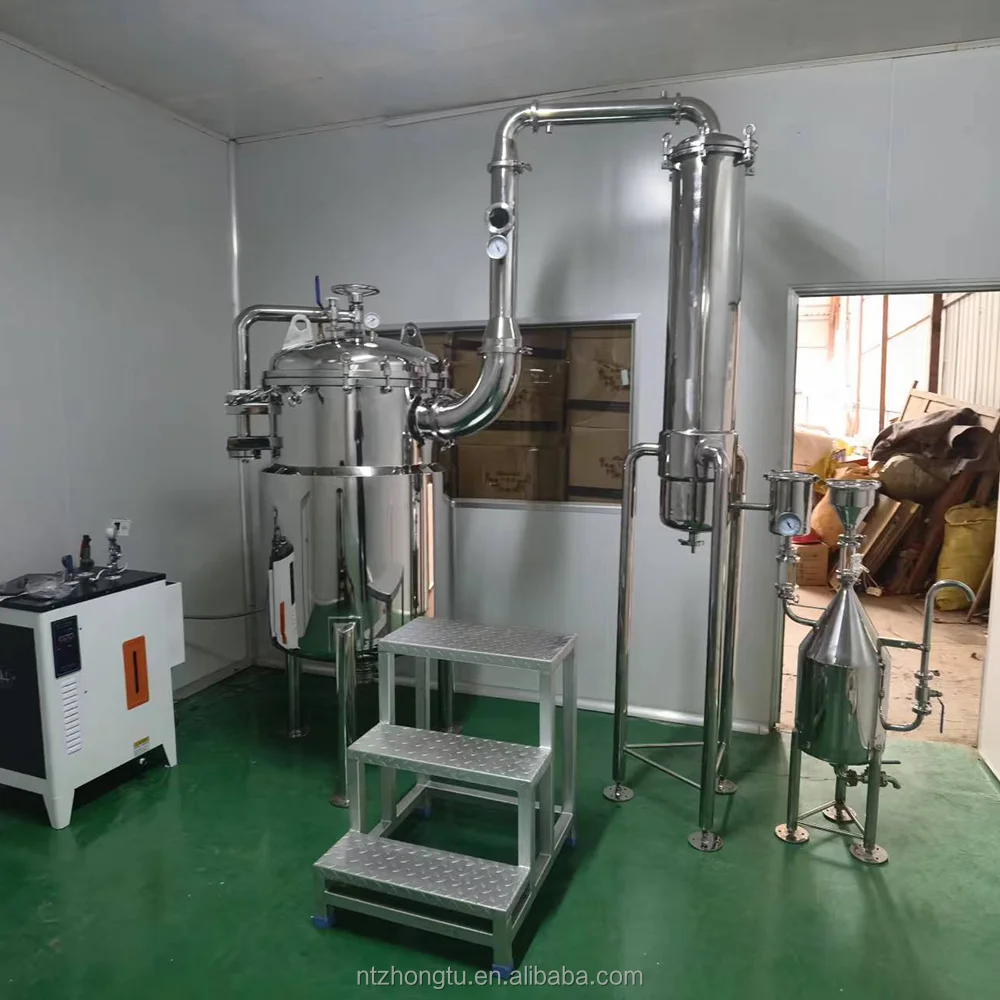

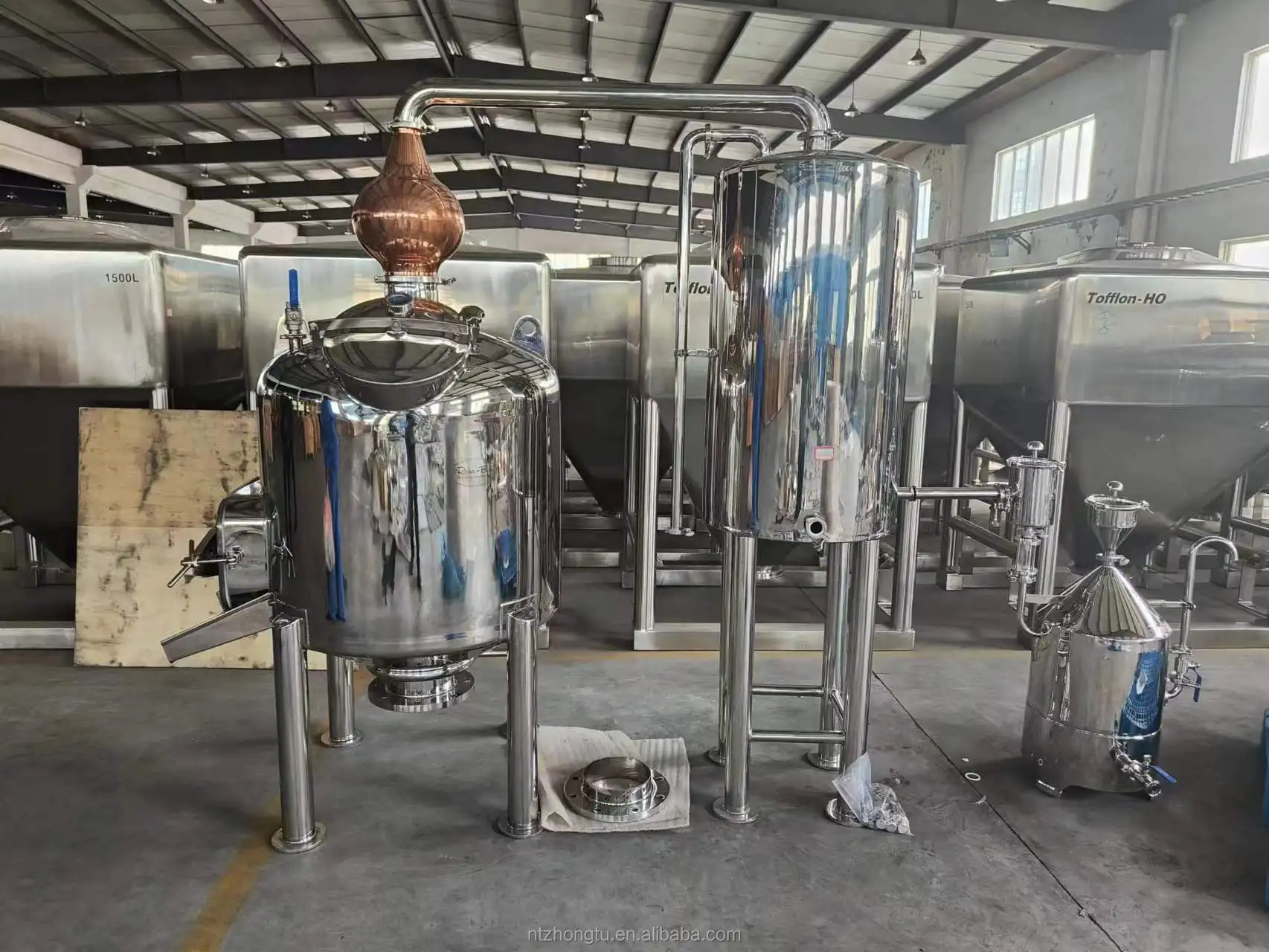

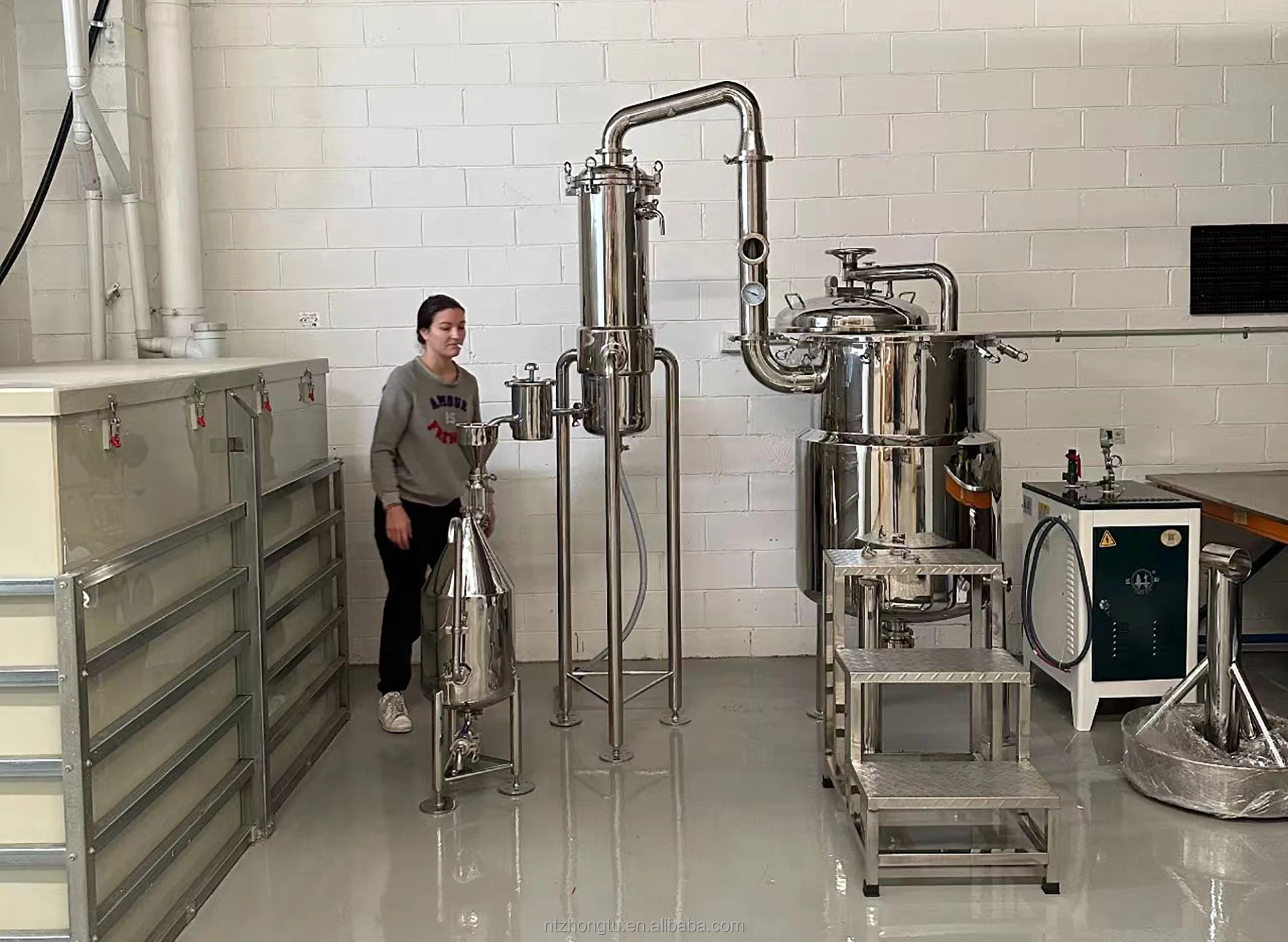

Yarrow Essential oil stills
Our brand “Rosa~bio”larger distiller, Gas, oil, coal, firewood or electric boilers can be selected to generate steam
heating.Smaller distillers such as the 10 L Al ambiq can be placed on a stove top burner, or electric hotplate.
heating.Smaller distillers such as the 10 L Al ambiq can be placed on a stove top burner, or electric hotplate.
FEATURES AT A GLANCE
Distillation equipment material: ：SUS304
Platform material：carbon steel
Platform surface coating： spraying
Collecting essential oils in the cleanroom
Collecting hydrosols in the cleanroom
Heated with boiler water vapor
Ecological processing： Recycling of Yarrow dregs
Cooling water is recycled Method： Material distillation ABOVE water
Platform material：carbon steel
Platform surface coating： spraying
Collecting essential oils in the cleanroom
Collecting hydrosols in the cleanroom
Heated with boiler water vapor
Ecological processing： Recycling of Yarrow dregs
Cooling water is recycled Method： Material distillation ABOVE water
Usage section： Flowers and upper foliage
Oil color： Very deep indigo
Oil yield ：0.007～0.50%
Oil color： Very deep indigo
Oil yield ：0.007～0.50%
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
ltem\\ Model | LSZL-500 | LSZL-1000 | LSZL-2000 | LSZL-3000 | LSZL-6000 | ||||
Tank volume(L) | 500L | 1000L | 2000L | 3000L | 6000L | ||||
The amount of material loaded (kg) | 100 | 200 | 400 | 600 | 1200 | ||||
Working pressure in the tank (MPa) | Normobaric | 125Ton | |||||||
Working temperature in distillation（°C） | 95~105 °C | 96kN | |||||||
Energy-saving insulation | Outer material：2mm/SUS304 Insulation：aluminum silicate thickness：50mm | 96kN | |||||||
Heating area （㎡） | 3 | 3.8 | 5 | 6.8 | 9.5 | ||||
Condensing area （㎡） | 3 | 5 | 6 | 13 | 15 | ||||
Cooling area （㎡） | Max. torque | 500N.m | |||||||
Condenser inlet water temperature(°C) | ＜ 25°C | ||||||||
Heating method | According to the materials, choose the distillation above or in water | ||||||||
Energy options | Electricity, solar energy, firewood, coal, fuel oil, gas, biomass fuel | ||||||||
Feed port caliber (mm) | 350 | 400 | 400 | 400 | 500 | ||||
Slag discharge caliber（mm） | Customized according to different distillation methods and materials | ||||||||
Amount of vapor（kg/h） | 50 | 100 | 200 | 300 | 600 | ||||
Cooling water flow（T/h) | 2 | 2 | 3.5 | 4.2 | 4.5 | ||||
Steam pipes, water pipes, instrument calibers | Customized | ||||||||
PRODUCT CONFIGURATION
Oil-fired gas boilers
Electric steam generators
Coal-fired and wood-fired steam boilers
SALES AND SERVICE NETWORK
Successful Project
Hungarian project
Malaysia Project
Sri Lanka Project
SIMILAR PRODUCTS
The company was founded by a team in 2008. After years of continuous research and improvement, it has deeply cultivated the natural aromatic plant industry at home and abroad, accumulated its own intellectual property rights, and successfully broke through international technological barriers. In 2015, Jiangsu Rosa Biotechnology Co., Ltd. was established in Nantong.
The company is committed to natural plant extraction technology, specializing in the cultivation of aromatic plants, technical training, planning and design of aromatic plant planting parks, research and development of aromatic products, research and development of aromatic product production and processing lines, design and equipment manufacturing, and construction of aromatic product sales channels, providing one-stop solutions for the primary, secondary, and tertiary industries. At the same time, we cooperate with research institutions to transform scientific and technological achievements into productivity, and strive to integrate and connect planting bases, research institutions, product processing enterprises, and market sales.
So far, it has gained recognition and support from numerous research institutions and clients both domestically and internationally, with clients covering more than 30 countries and regions across five continents.
The company is committed to natural plant extraction technology, specializing in the cultivation of aromatic plants, technical training, planning and design of aromatic plant planting parks, research and development of aromatic products, research and development of aromatic product production and processing lines, design and equipment manufacturing, and construction of aromatic product sales channels, providing one-stop solutions for the primary, secondary, and tertiary industries. At the same time, we cooperate with research institutions to transform scientific and technological achievements into productivity, and strive to integrate and connect planting bases, research institutions, product processing enterprises, and market sales.
So far, it has gained recognition and support from numerous research institutions and clients both domestically and internationally, with clients covering more than 30 countries and regions across five continents.
FAQ
01 What can we do for you, the customer?
We can provide you with various forms of stainless steel products design according to your requirements
02 We can provide you with the design of various forms of stainless steel products according to your requirements
We can also customize various forms of stainless steel products and spray teflon according to your design
03 We will arrange engineers to design and draw drawings for you
We will arrange engineers to design and draw drawings for you
04 After you confirm our design and drawings, we will start the accounting process and provide you with a quotation.
After you have confirmed our design and drawings, we start the accounting procedure and provide you with a quotation
05 After getting your approval of our design and quotation, we will sign a contract with you
After obtaining your consent to our design and quotation, we contract with you
06 Welcome to visit our company
Welcome to visit our company at any time
