Product Overview

Description

One Touch Rebar Coupler For Concrete Construction Rebar Splicing Coupler



One Touch Rebar Coupler For Concrete Construction  Rebar Splicing Coupler

Trico's one touch rebar coupler, as the world’s first one-touch rebar coupler, it can complete the docking of two steel bars in 15 seconds without any process, it is the fastest construction speed among site coupling types.

Trico's one touch coupler tensile strength is much higher than existing products. This innovative one-touch rebar coupler is suitable to connect rebar to rebar without screw fitting, gas connection or any other process. eliminating the previous process of threading steel bars, greatly saving project construction time and improving construction efficiency.





Model	Outside Diameter D(mm)	Length L(mm)	Weight (KG)
D13	35	100	0.51
D16	40	106	0.63
D19	46	123	0.85
D22	51	133	1.0
D25	56	143	1.45
D29	65	166	2.05
D32	70	170	2.55
D36	78	190	3.5
D40	83	200	4.6

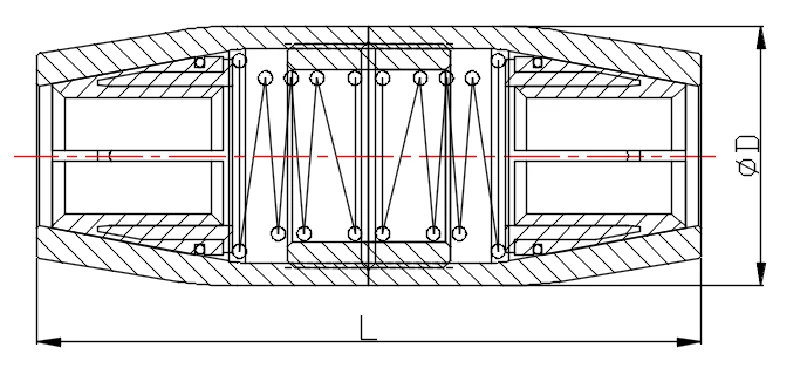

One touch rebar coupler is a node piece coupled to the groove of the rebar node with excellent tensile strength. The One Touch Steel Rebar Coupler consists of a main steel pipe with a ring inside it at the middle two springs, and two guards. two locks and two caps. The coupler parts are made of carbon steel except for the guards which are made from plastic.

The couplers are available for splicing ASTM A615 Grade 60 and ASTM A706 Grade 60 deformed steel reinforcing bars in US Customary bar sizeNos.4,5.6,7.8.9,10.11.and 18.

Product Advantage:

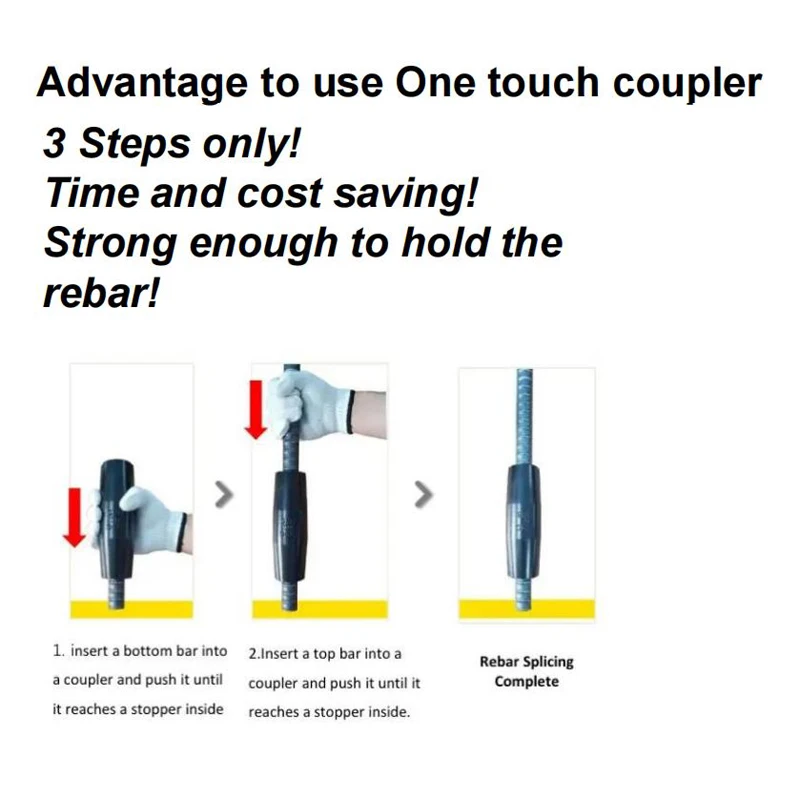

1. Very fast, it can complete the docking of two steel bars in 15 seconds
2. No need for machine process rebar
3. Manufactured under strict quality assurance plan ISO9001

Rebar Coupler For Concrete Construction Application

High-Rise Buildings

Bridges and Tunnels

Road and Rail Infrastructure

Precast Concrete Structures

Seismic Zone Construction

TRICO has a wide range of product lines, including the production and supply of full system of building formwork, scaffolding and related components, and has realized the "1+N" one-stop service mode. The products sell well in more than 90 countries and regions, winning the recognition and trust of business partners around the world.

TRICO's R&D team is experimenting and optimizing products every day. The endless improvement and perfection is the gene of TRICO culture. TRICO's mission is to promote the quality improvement, cost reduction and environmental protection and efficiency enhancement of global buildings.

Let's work together to make it easier to build houses anywhere in the world!
