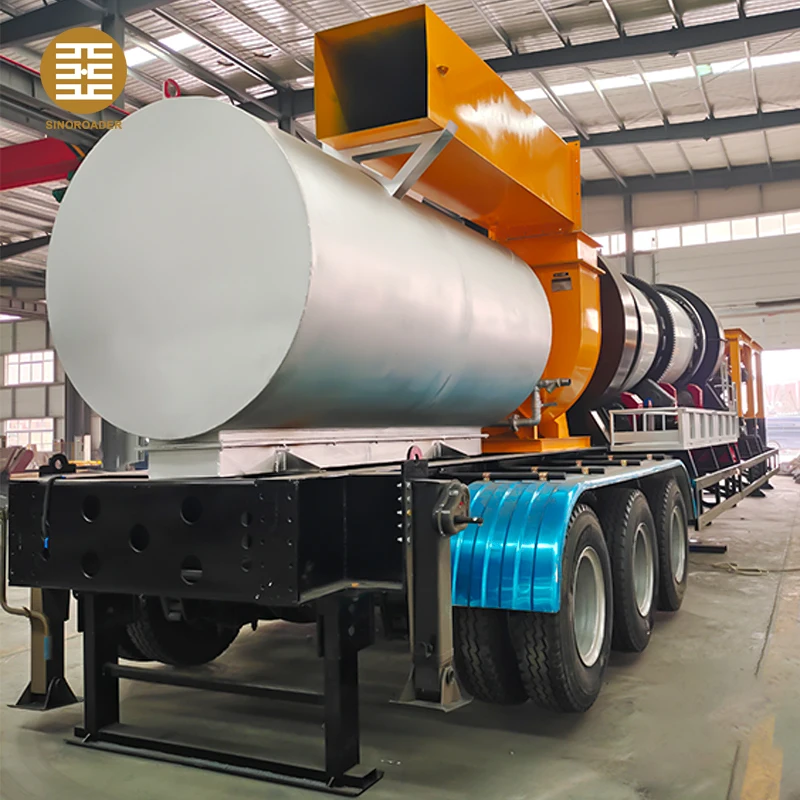

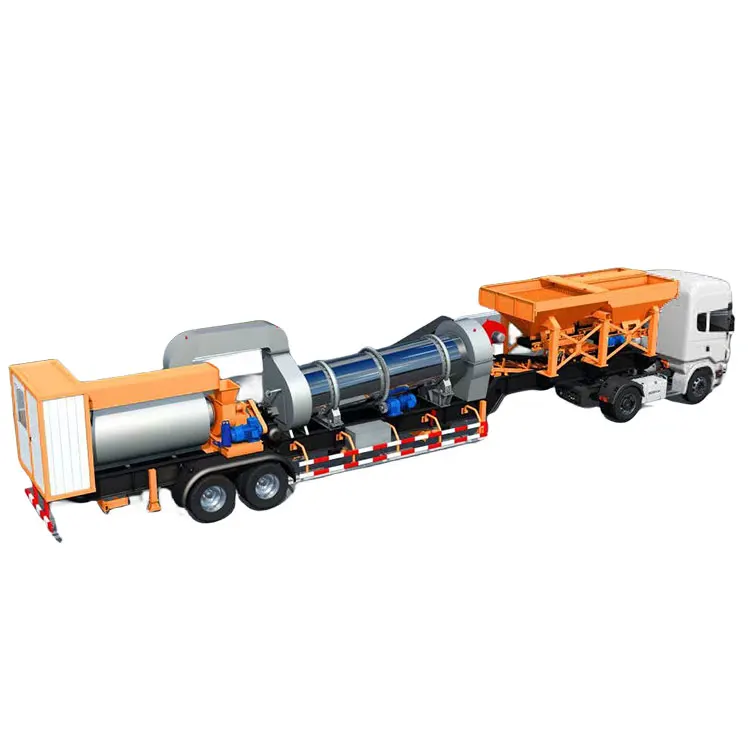

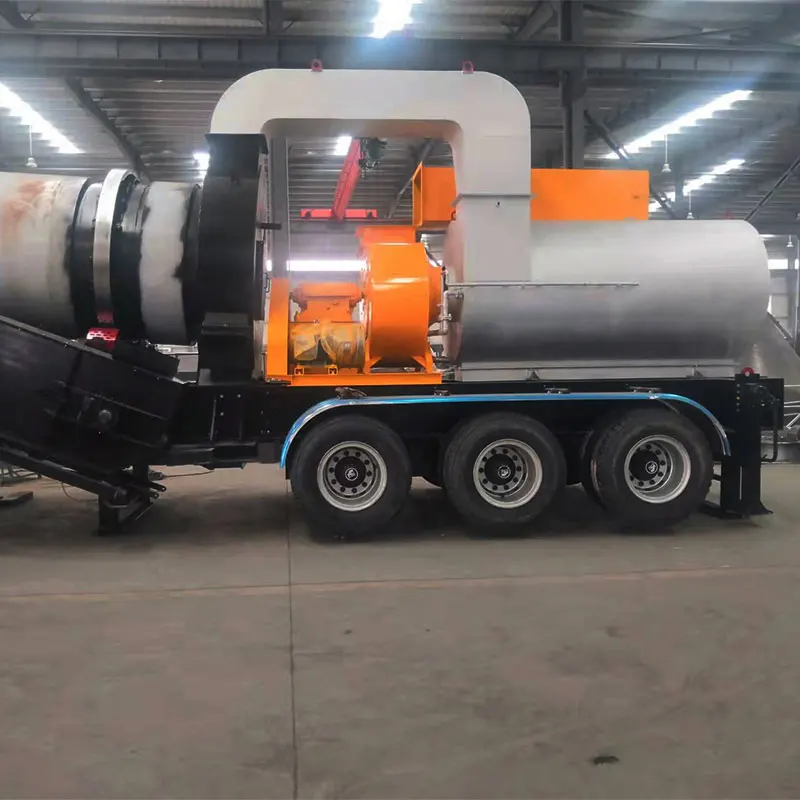

Mobile 40tph Traile Rmounted Small Mobile Drum Mix Asphalt Plant
Mobile 40tph Traile Rmounted Small Mobile Drum Mix Asphalt Plant
Mobile 40tph Traile Rmounted Small Mobile Drum Mix Asphalt Plant
Mobile 40tph Traile Rmounted Small Mobile Drum Mix Asphalt Plant
Mobile 40tph Traile Rmounted Small Mobile Drum Mix Asphalt Plant
Mobile 40tph Traile Rmounted Small Mobile Drum Mix Asphalt Plant
Mobile 40tph Traile Rmounted Small Mobile Drum Mix Asphalt Plant

Mobile 40tph Traile Rmounted Small Mobile Drum Mix Asphalt Plant

Share on (1601287939064):


Price:$155,000.00

Quantity:


Product Overview

Description





Product Overview


60tph mobile continuous asphalt mixplant
Sinoroader asphalt drum mix plant is one type of continuous asphalt plant, with characteristics of simple structure, low cost and convenient maintain.This series asphalt drum mixing plant with capacity from40-100t/h.It's easy to transport, transfer site, and recommissioning, also it is equipped with high level dust filter, more environmentally friendly.






Cold Aggregate Feed System
①Modular design, easy to install and transport;
②The cold aggregate feeder is equipped with frequency conversion speed control, synchronous proportional automatic control and adjustment, safe and reliable;
③The hopper is equipped with a screen, the two fines hoppers will automatically vibrate when the material blocked, the lack of material will alarm, and the discharge door can be adjusted;
Drying System
The repeatedly optimized design of the lifting blade and the stainless steel insulation layer can effectively reduce the heat loss of the drying drum, save fuel consumption and greatly improve the thermal efficiency;
Unique purge pipeline, effectively prevent oil circuit blockage.


Lifting System
The elevator plate chain is made of high-strength wear-resistant materials, and the shell liner is made of wear-resistant steel plate, which has a long service life.


Hot Finished Asphalt Storage Silo
The upper equipped level sensing device, the discharge port is equipped with a temperature sensor; the door opening mechanism adopts a pneumatic mechanism


Dust Collection System

Utilization of water dust removal system to reduce environmental pollution caused by exhaust emissions;
②The air door of the induced draft fan is automatically adjusted to ensure the constant negative pressure of the drying drum.
Electrical Control System

The electrical control adopts a desktop console, the main components are Siemens brand electrical appliances, with interlocking and secondary protection; the console is equipped with manual control operating devices, main motor current display, finished material temperature display, frequency converters of cold aggregate, water pump, bitumen pump; convenient and intuitive operation.




Model
SMAP-40
SMAP-60
SMAP-80
SMAP-100
Type
Continuous integrated mobile type, hot mix
Continuous integrated mobile type, hot mix
Continuous integrated mobile type, hot mix
Continuous integrated mobile type, hot mix
Capacity
40 t/h
60 t/h
80 t/h
100 t/h
Drying & Mixing Drum
Φ1200*5000mm
Φ1500*6500mm
Φ1500*6650mm
Φ1500*6650mm
Fuel Consumption
6.5kg /ton
6.5kg /ton
6.5kg /ton
6.5kg /ton
Hot Asphalt Temperature
130℃-165℃
130℃-165℃
130℃-165℃
130℃-165℃
Air Emissions
≤100mg/Nm³
≤100mg/Nm³
≤100mg/Nm³
≤100mg/Nm³
Working Noise
≤70db(A)
≤70db(A)
≤70db(A)
≤70db(A)
Operation
Manual
Manual
Manual
Manual
Installation Power
65.kw
99.5kw
115kw
137kw
Electrical Design
220V/380V-50Hz
220V/380V-50Hz
220V/380V-50H
220V/380V-50Hz
Total Weight
26T
30T
44T
48T






Founded in 1997, Sinoroader has grown to become a leading provider of technological developments and has been a pioneer in its sector with its innovation departments and became the first China manufacturer of “Mobile Concrete Batching Plants”, “Concrete Pump”, “Concrete Mixer Pump”, “Compact Type Concrete Batching Plants” ," Concrete Trailer Pump" and “Self Loading Concrete Mixer”,"Wheel Loader","Concrete Mixer Truck","Concrete Pavers machine . Sinoroader provides an unparalleled, single-source solution for all of their clients’ aggregate-based facilities. owadays,asphalt mixing plant, concrete mixing plant and road maintenance equipment produced by Sinoroader have been widely used in more than 120 countries and regions.








FAQ


Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 20 years.

Q2. What markets do your asphalt mix plant export to?
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.

Q3. What information should I let you know if I want to get a quotation?
Please let us know the your purpose，how many capacity ,quantity etc. The more info. you provide, the more accurate model and price you will get.

Q4. Is it available to print our own brand on the asphalt mix plant?
Totally acceptable as you wish.We can produce according to your requirements,the size, color, materials, logo etc.

Q5. How can I get the price of your asphalt mix plant?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.

Q6. What is your after-sale service?
12 month warranty.
Provision with relevant technical support.
Available spare parts after ordering.
