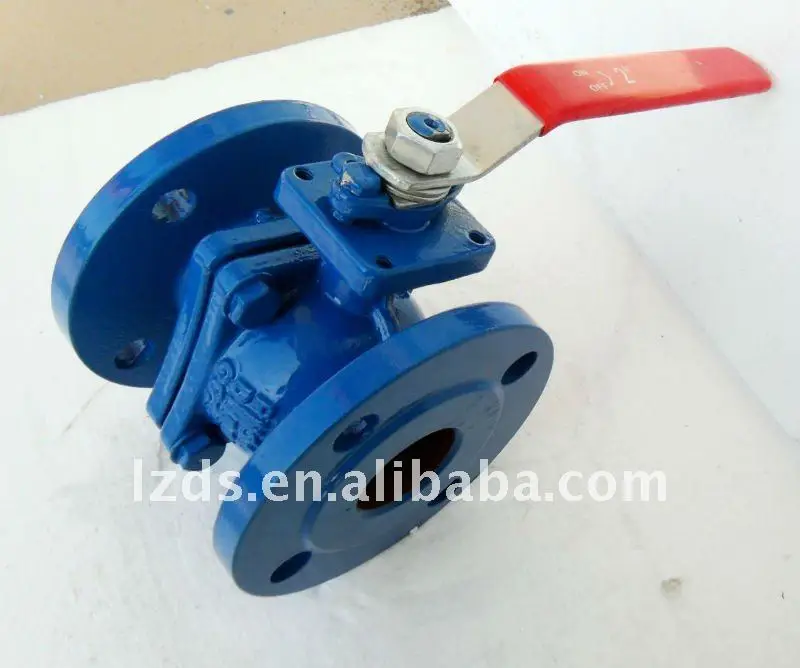

Water Valve hydraulic valves manual Water Media Cast iron ball valve
- Category: >>>
- Supplier: Laizhou Dongsheng Valve Co. Ltd.Laizhou Ltd.
Share on (1601287940445):
Product Overview
Description
Threaded Ball Check Valve
Product Description
DESCRIPTION
1. Working pressure: 1.0/1.6Mpa
2. Working temperature:NBR:0℃~80℃ EPDM:-10℃~120℃
3.Testing:DIN3230,API598
4. Medium: Water, Oil ,food stuff
4. Medium: Water, Oil ,food stuff

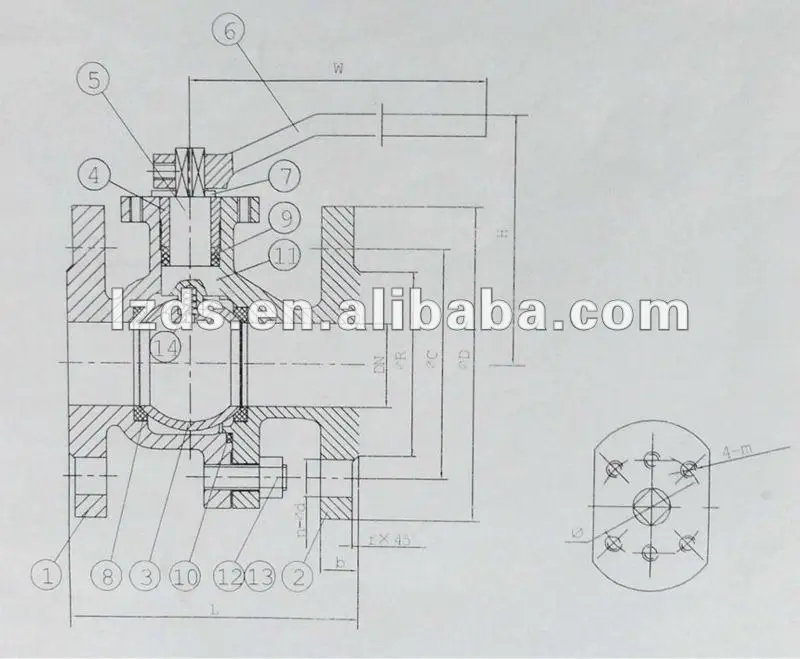

NO. | Part | Material |
1 | BODY | GG25/GGG40 |
2 | Ball | SS304/SS316 |
3 | SEAT | PTFE |
4 | WASHER | PTFE |
5 | PACKING SEAL | PTFE |
6 | PACKING GLAND | GGG40 |
7 | LOCATING PLATE | STEEL |
8 | CLAMP RING | 65MN |
9 | HANDLE | STEEL |
10 | SHAFT | STAINLESS STEEL |
11 | BOLT | STEEL |
12 | NUT | STEEL |
13 | BOLT | STEEL |
Product Show
Processing Equipment
①Casting ②Machine work ③Shot blasting ④Hot spray
⑤Accessories producing ⑥Assemble ⑦Testing one by one ⑧Package
*Laizhou Dongsheng Valve are the factory focused on valves since 2002.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
Testing Equipment
CHEMICAL ANALYSIS
SPECTROMETER TEST
PRESSURE TEST ONE BY ONE
ZINC THICKNESS TEST
TENSILE FORCE TEST
DIMENTION TEST
*PRESSURE TESTING BASED ON API598 ONE BY ONE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
