Sinya Flanged Connection Needle Valve Flanged Type Needle Valve Water Line Tube Valves and Fittings
- Category: >>>
- Supplier: Yangzhong Xinya Automatic Control Engineering Co. Ltd.Yangzhong Ltd.
Share on (1601288007300):
Product Overview
Description
Product Description
1、A dust-proof cap is supplied on the top of the stuffing box gland which can protect the stem thread from the outside impurities. | ||||||||
2、The stuffing filling is under the thread to effectively protect the lubricating grease from being brushed away. | ||||||||
3、The core and the stem is of lapped joint with the functions of up sealing. | ||||||||
4、Vertical hard sealing is used between the core and the body, also between the seat and the body. | ||||||||
5、Non-rotational ball-shaped stem head and adjustable stem head can be supplied. | ||||||||
6、Operating pressure can be up to 6000 psi (413bar). | ||||||||
7、Operating temperature: -53 to 232℃（-65 to 450 F）for PTFE sealing. -53 to 649℃（-65 to 1200 F ）for graphite sealing. | ||||||||

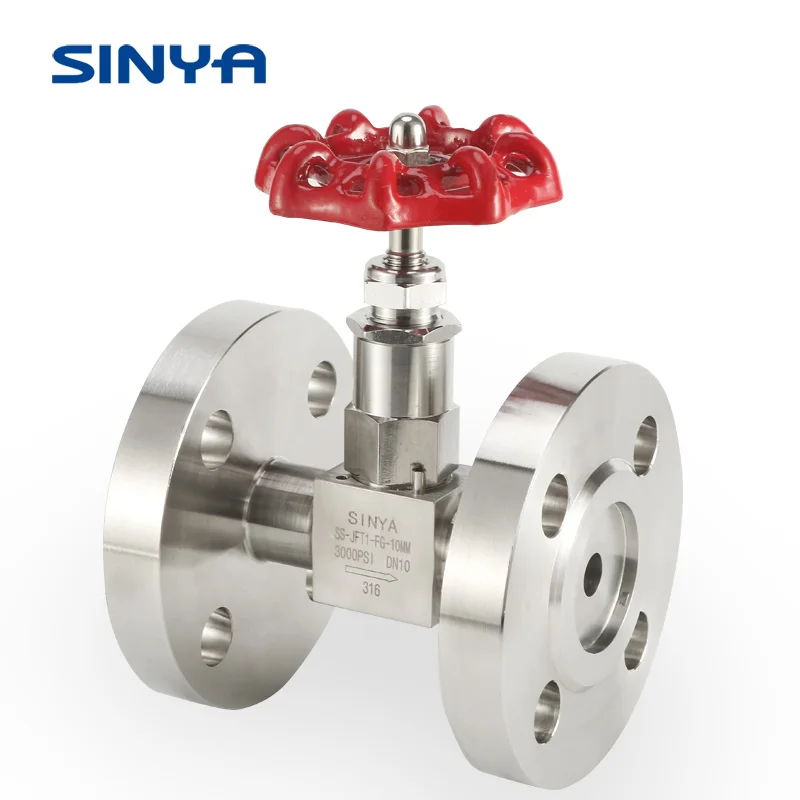

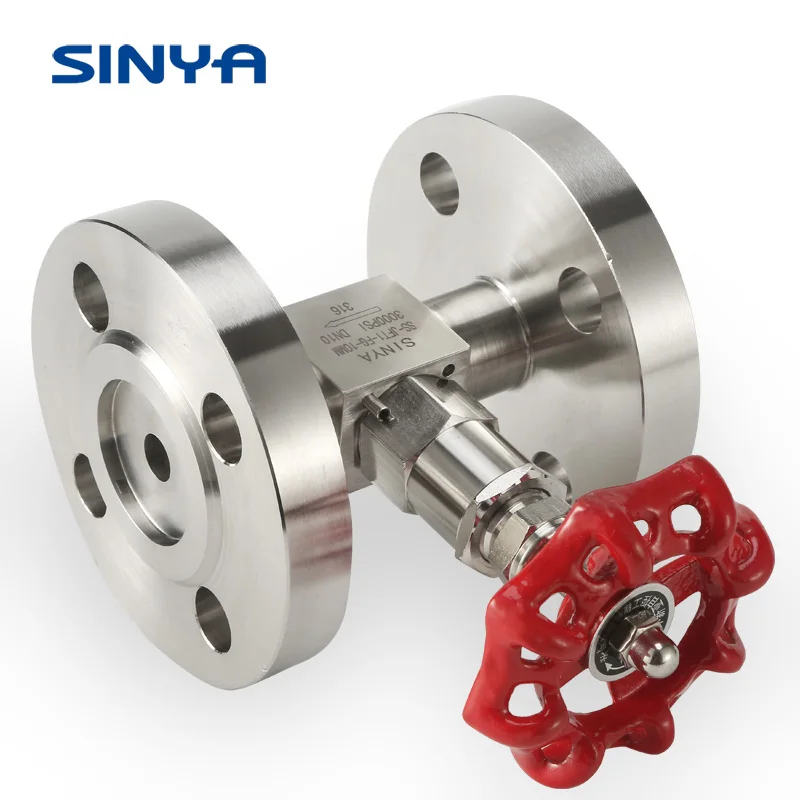

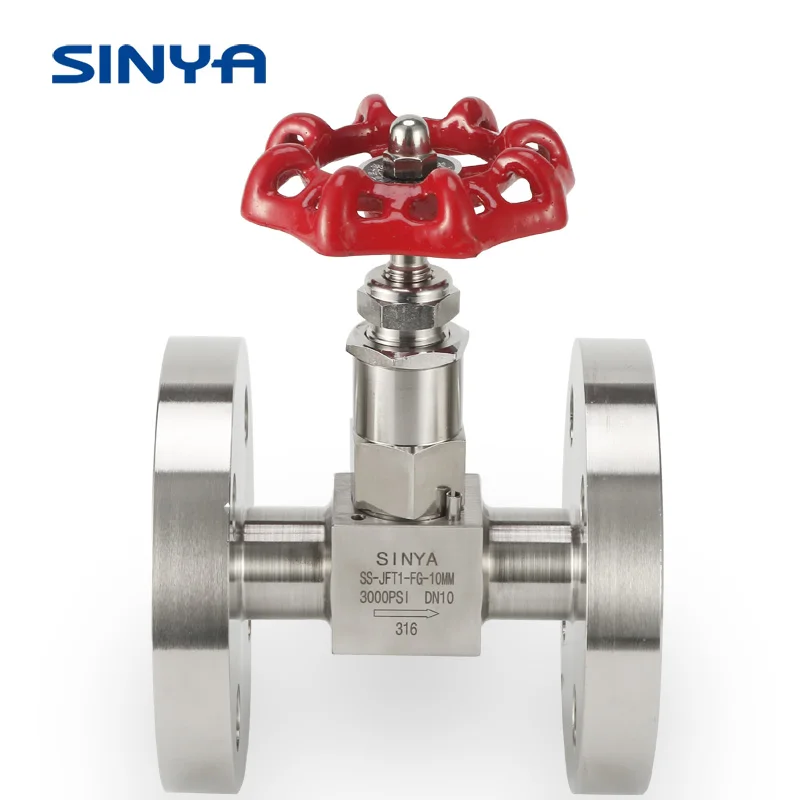

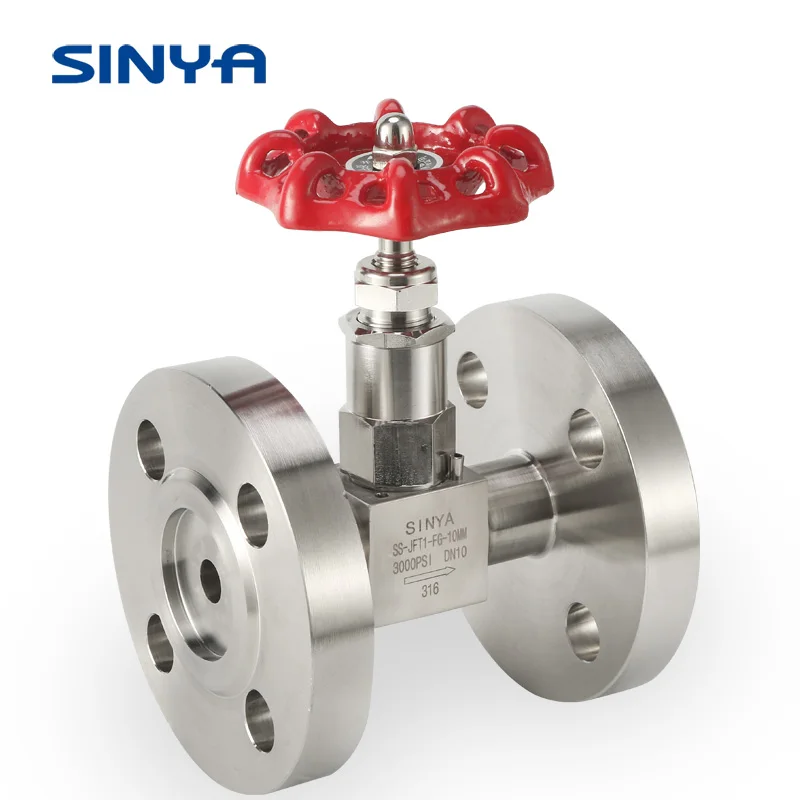

-JFT1 Flange Straight Valve | ||||||||||||
Order information | DN | D | b | |||||||||
(in) | (mm) | (in) | (mm) | (in) | (mm) | |||||||
-JFT1-FG-3mm | 0.12 | 3 | 2.76 | 70 | 0.59 | 15 | ||||||
-JFT1-FG-6mm | 0.2 4 | 6 | 2.7 6 | 70 | 0.5 9 | 15 | ||||||
-JFT1-FG-10mm | 0.3 9 | 10 | 3.7 4 | 95 | 0.7 9 | 20 | ||||||
-JFT1-FG-15mm | 0.5 9 | 15 | 4.1 3 | 105 | 0.7 9 | 20 | ||||||
Order information | L | H | F | Pressure Class | ||||||
(in) | (in) | (in) | (mm) | (in) | (mm) | ≤ | ||||
-JFT1-FG-3mm | 4.72 | 120 | 3.9 | 99 | 2.99 | 76 | 32MPa | |||
-JFT1-FG-6mm | 4.7 2 | 120 | 3.9 | 99 | 2.9 9 | 76 | 32MPa | |||
-JFT1-FG-10mm | 7.0 9 | 180 | 3.98 | 101 | 2.9 9 | 76 | 32MPa | |||
-JFT1-FG-15mm | 8.2 7 | 210 | 6.22 | 158 | 3.9 4 | 100 | 32MPa | |||
Our Services
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery. Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability | ||||||||
1.Custom design, CAD drawing | ||||||||
2.P&ID | ||||||||
3.Component selection | ||||||||
4.Bill of material | ||||||||
5.Professional services such as bending and welding | ||||||||
6.Testing to guarantee the system | ||||||||
7.Professional packaging and delivery | ||||||||
Products Display
Contact us to get more information : | ||||||||
Tube Fittings | Check Valves | Manifolds Valves | In-line Filters | Thermowells | ||||
Pipe Fittings | Relief Valves | Distribution Manifolds | Instrumentation Tubing | Syphons | ||||
Needle Valves | Air Headers | Bleed & Purge valves | Sample Cylinders | Tube Clamps | ||||
Ball valves | Gauge Valves | T-type Filters | Pots and Vessels | |||||
Packaging & Delivery
Mode of packing: | Export standard package or as your detail request. | ||||||||
Delivery time: | 2 weeks after receipt of payment | ||||||||
Mode of shipment: | By Express like DHL,Fedex,TNT Ups. | ||||||||
Our Company
1.Established in 1995. | ||||||||
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories. | ||||||||
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium. | ||||||||
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide. | ||||||||
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding. | ||||||||
6.Always available to discuss your requirements and ensure full customer satisfaction. | ||||||||
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc. | ||||||||
8.We have obtained ISO9001 certificate, CE Certificate. | ||||||||
9.Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries. | ||||||||
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us. | ||||||||
