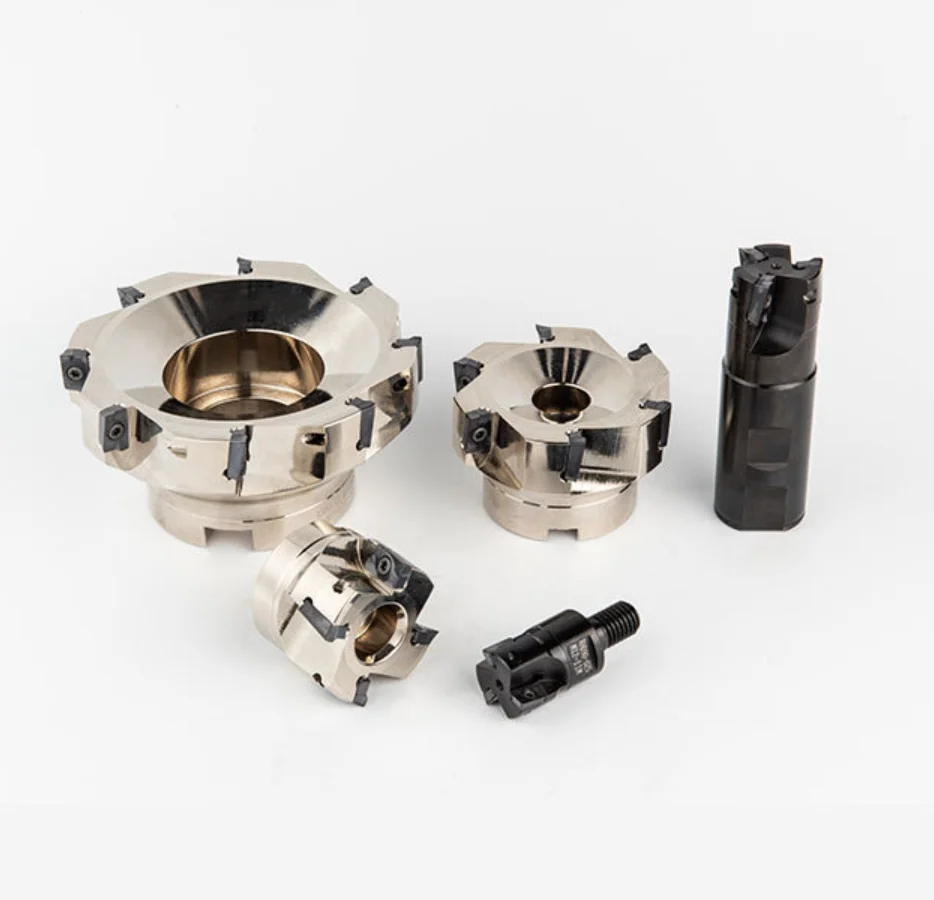

Carbide Indexable Face Mill Cutter Roughing High Feed Face Mill High Quality Milling Cutter

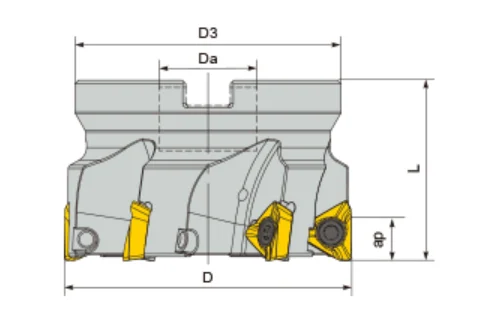

Spec.

D

ap

Z

L

D3

Da

Coolant

Kg

Insert

MF90TD D050.B22.Z04.15.C

50

13

4

40

46

22

Y

0.278

TD..1505..

MF90TD D063.B22.Z05.15.C

63

13

5

50

59

22

Y

0.523

TD..1505..

MF90TD D080.B27.Z06.15.C

80

13

6

50

74

27

Y

1.17

TD..1505..

MF90TD D100.B32.Z06.15.C

100

13

6

50

80

32

Y

1.45

TD..1505..

MF90TD D125.B40.Z07.15.C

125

13

7

63

82

40

Y

2.294

TD..1505..

MF90TD D160.B40.Z10.15

160

13

10

63

105

40

N

3.996

TD..1505..

MF90TD D200.B60.Z11.15

200

13

11

63

135

60

N

5.219

TD..1505..

Spec.

D

ap

Z

L

D3

Da

Coolant

Kg

Insert

MF90AN D050.B22.Z04.17.C

50

16.3

4

40

48

22

Y

0.304

AN..1706..

MF90AN D063.B27.Z04.17.C

63

16.3

4

50

59.2

27

Y

0.669

AN..1706..

MF90AN D080.B27.Z05.17.C

80

16.3

5

50

63

27

Y

0.8

AN..1706..

MF90AN D100.B32.Z08.17.C

100

16.3

8

50

80

32

Y

1.474

AN..1706..

MF90AN D125.B40.Z07.17.C

125

16.3

7

63

82

40

Y

2.41

AN..1706..

MF90AN D160.B40.Z08.17

160

16.3

8

63

105

40

N

4.1

AN..1706..

MF90AN D200.B60.Z10.17

200

16.3

10

63

135

60

N

5.988

AN..1706..

MF90AN D250.B60.Z12.17

250

16.3

12

63

144

60

N

9.338

AN..1706..
