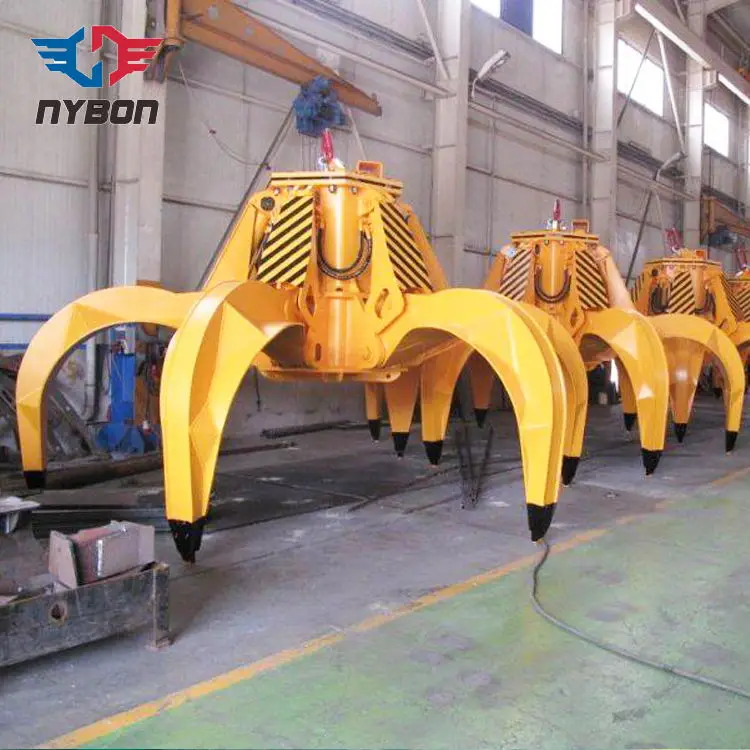

Wireless Remote Control Garbage Disposal Electric Hydraulic Mutivalve Grab Bucket
- Category: >>>
- Supplier: Henan Nybon Machinery Co. Ltd.
Share on (1601288285241):
Product Overview
Description

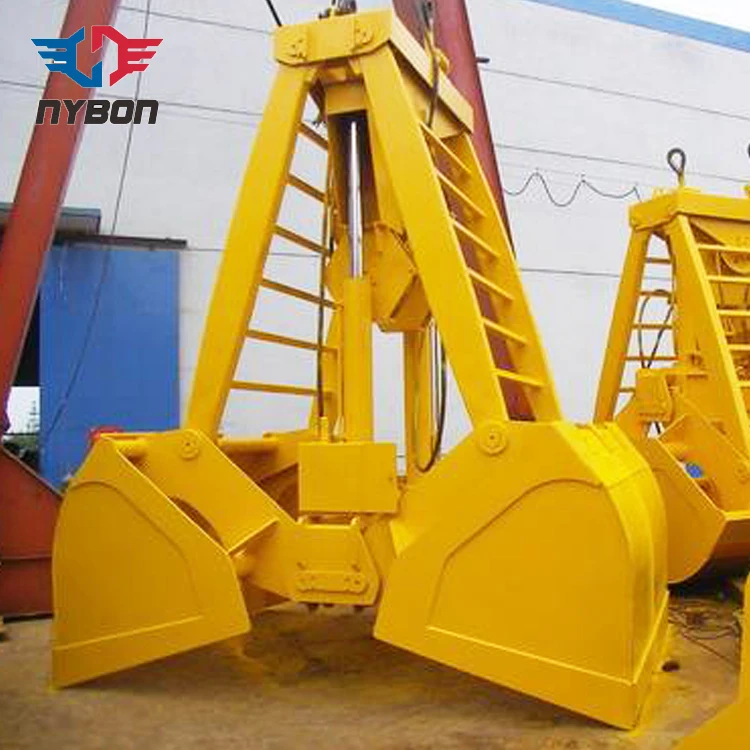

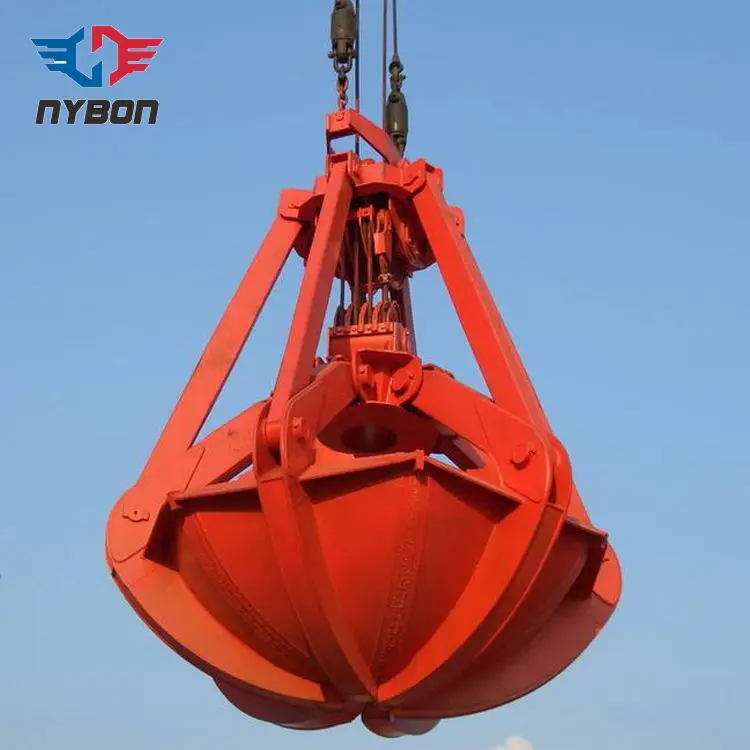

Radio Remote Control Clamshell Grab Bucket for Grain Loading

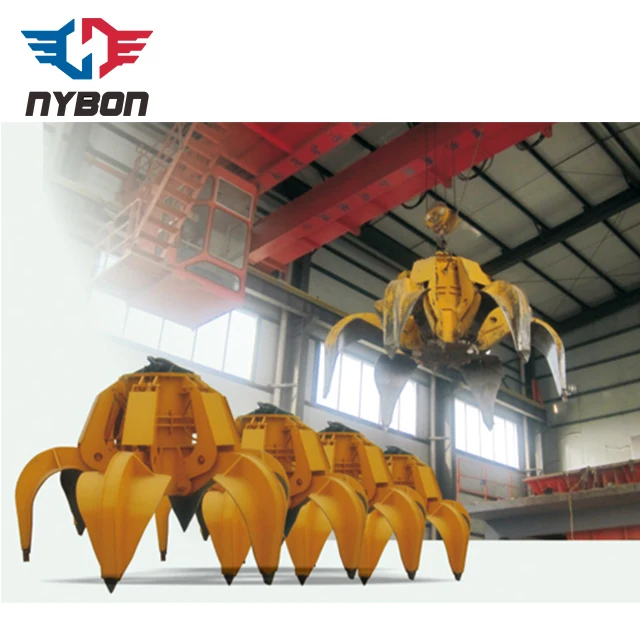

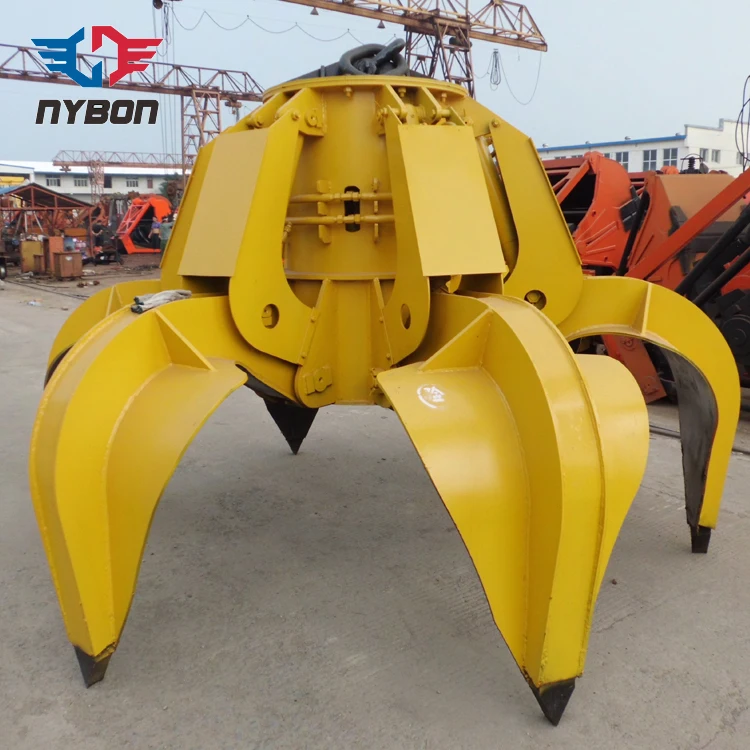

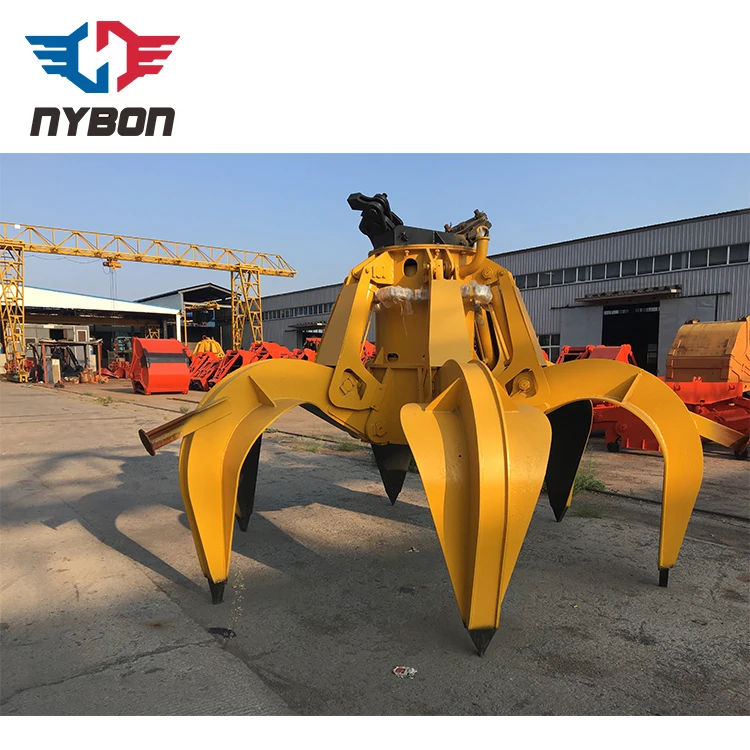

DYZ electric hydraulic multi petal grab and DY type electric hydraulic double petal grab are the manufacturing technology introduced by our company in Europe and America. According to the system technical data of Europe and America, the main hydraulic components are imported from Europe and America. The advanced electrical and hydraulic machinery technology is adopted, the grasping force is big and the degree of automation is high, it is ideal loading and unloading tools for large ore, raw iron block and waste steel, garbage, iron powder, straw, slag and other materials. It is mainly used in iron and steel, mines, forest farms, coal mines, port wharves, scrap purchase, garbage disposal, bio power generation and other industries. The product is compact in structure, beautiful in appearance, energy saving and easy to operate. According to the shape of the claw, it is divided into multi petal and two petal type.

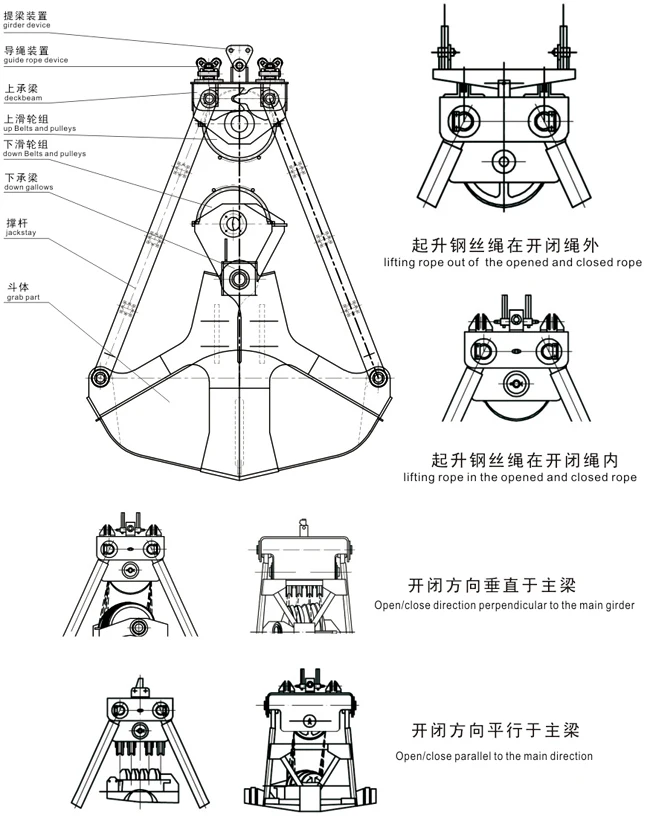

Feature of hydraulic clamshell grab:
Suitable to grab sand,coal,grain, slag,scrap.
through beam is shortened,high strength,light self weight.
main shaft sleeve is of bearing steel, Pin shaft material is 40Cr.
High temperature resistant bearing for pulley.
Knife edge plate adopts wear-resisting steel plate,adopts multilayer sealing craft.
Dirt proof and water proof and it could be underwater operation.
Clearance of two knife dege plate is very small,0.3mm,good sealing, keep working site clean.
Whole structure is strong and not distortion,good sealing.
Safety features of hydraulic clamshell grab
Suitable to grab sand,coal,grain, slag,scrap.
through beam is shortened,high strength,light self weight.
main shaft sleeve is of bearing steel, Pin shaft material is 40Cr.
High temperature resistant bearing for pulley.
Knife edge plate adopts wear-resisting steel plate,adopts multilayer sealing craft.
Dirt proof and water proof and it could be underwater operation.
Clearance of two knife dege plate is very small,0.3mm,good sealing, keep working site clean.
Whole structure is strong and not distortion,good sealing.
Safety features of hydraulic clamshell grab
Technical Parameter
Model | Volume | Grab self weight (t) | Motor power (380v50Hz)(kw) | Operating pressure (Mpa) | close time(s) | crane lifting capacity(t) | ||
Full | Stop | |||||||
KDY8-12 | 4.5 | 2.5 | 3.7 | 18.5 | 20 | 13 | 8 | |
KDY10-12 | 5.5 | 3.5 | 4.5 | 22 | 20 | 17 | 10 | |
KDY15-12 | 7 | 4.5 | 5 | 22 | 20 | 18 | 15 | |
KDY20-12 | 10.0 | 6.8 | 7 | 28 | 20 | 18 | 20 | |
KDY25-12 | 12 | 8.1 | 9.3 | 37 | 25 | 18 | 25 | |
KDY30-12 | 18 | 10 | 14.5 | 55 | 20 | 19 | 32 | |
KDY8-23 | 3 | 1.9 | 3.2 | 18.5 | 20 | 13 | 8 | |
KDY10-23 | 4 | 2.2 | 4.2 | 18.5 | 20 | 18 | 10 | |
KDY15-23 | 6.5 | 4 | 5.6 | 22 | 20 | 17 | 15 | |
KDY20-23 | 8 | 5.4 | 6.5 | 28 | 20 | 18 | 20 | |
KDY25-23 | 10 | 6.9 | 8 | 37 | 20 | 18 | 25 | |
KDY32-23 | 12.5 | 8 | 10.5 | 45 | 20 | 18 | 32 | |

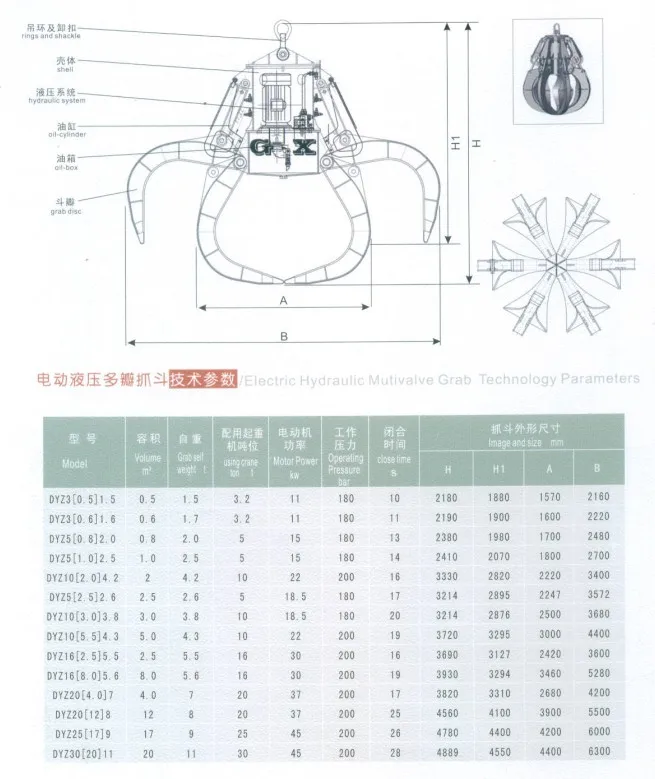

Model | Volume | Dead weight | crane capality | Motor power | Working pressure | Closing time |
CBM | t | t | KW | Pa | s | |
DYZ3[0.5]1.5 | 0.5 | 1.5 | 3.2 | 11 | 180 | 10 |
DYZ3[0.6]1.7 | 0.6 | 1.7 | 3.2 | 11 | 180 | 11 |
DYZ5[0.8]2.0 | 0.8 | 2.0 | 5 | 15 | 180 | 13 |
DYZ5[1.0]2.5 | 1.0 | 2.5 | 5 | 15 | 180 | 14 |
DYZ10[2.0]4.2 | 2.0 | 4.2 | 10 | 22 | 200 | 16 |
DYZ5[2.5]2.6 | 2.5 | 2.6 | 5 | 18.5 | 180 | 17 |
DYZ10[3.0]3.8 | 3.0 | 3.8 | 10 | 18.5 | 180 | 20 |
DYZ10[5.0]4.3 | 5.0 | 4.3 | 10 | 22 | 200 | 19 |
DYZ16[2.5]5.5 | 2.5 | 5.5 | 16 | 30 | 200 | 16 |
DYZ16[8.0]5.6 | 5.6 | 5.6 | 16 | 30 | 200 | 19 |
DYZ20[4.0]7 | 4.0 | 7 | 20 | 37 | 200 | 17 |
DYZ20[12]8 | 12 | 8 | 20 | 37 | 200 | 25 |
DYZ25[17]9 | 17 | 9 | 25 | 45 | 200 | 26 |
DY30[20]11 | 20 | 11 | 30 | 45 | 200 | 28 |

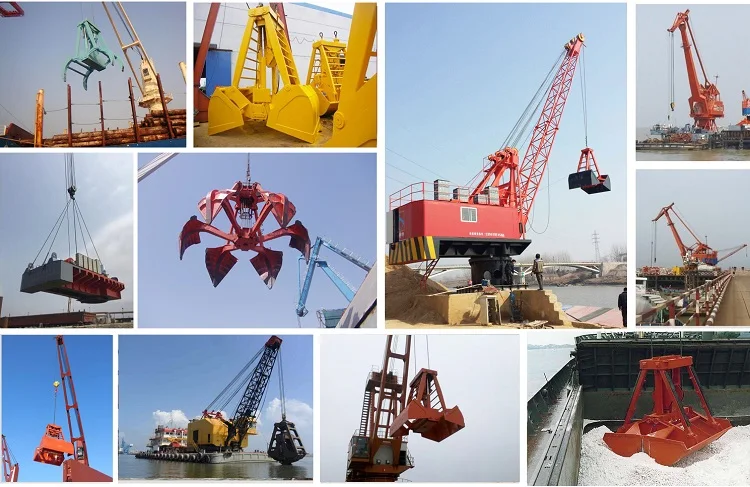

Application

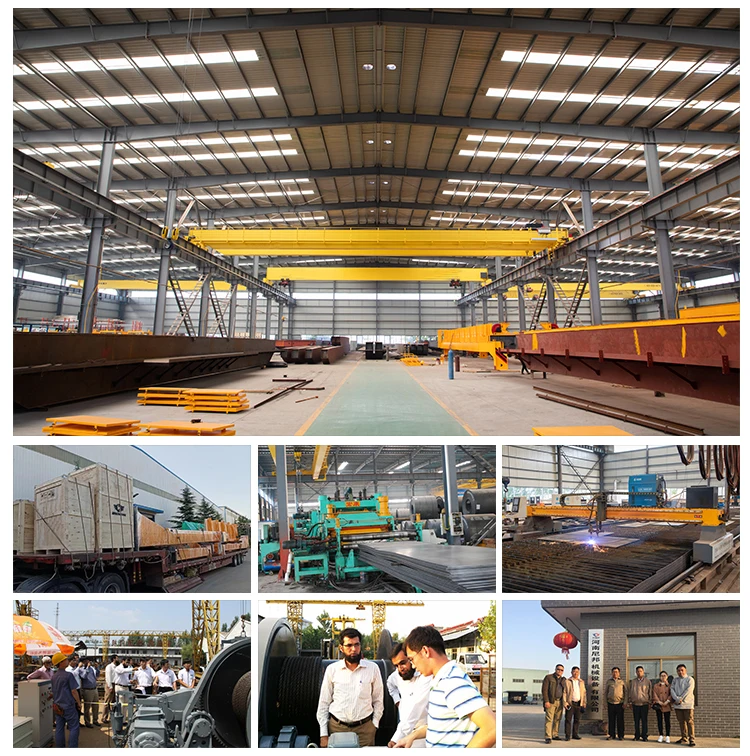

Company Profile
Nybon is a group of Lifting Business with Rich Experience, sercving abroad range of customers, including factory lifting work,manufacturing and process industries, shipyards, ports and terminals. Regardless of your lifting needs, Nybon is committed to providing you with lifting equipment and services that increase the value and effectiveness of your business.
Certifications
Packaging & Shipping
Main Products
FAQ
1. Q: What’s your MOQ?
A: 1 Set;
2. Q: What’s your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What’s your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock
catch, wire rope, fiber rope, etc.
5. Q: Could your winches drag inclined?
A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
A: 1 Set;
2. Q: What’s your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What’s your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock
catch, wire rope, fiber rope, etc.
5. Q: Could your winches drag inclined?
A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
