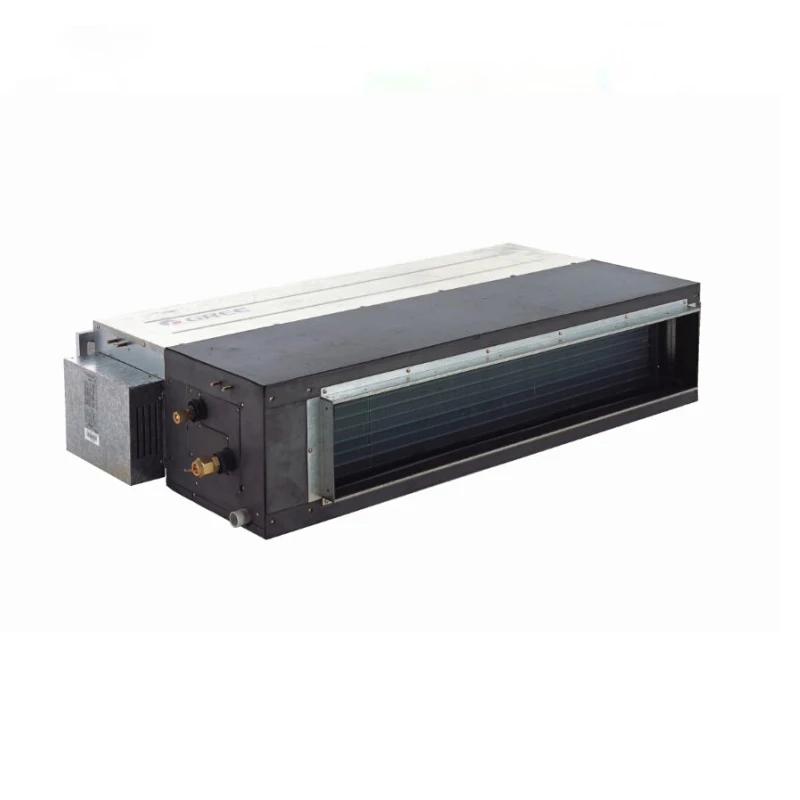

Inverter Type Scroll Compressor Hot Sale Vrv Air Conditioning Price Vrv System Hvac Ducted Vrf System
- Category: >>>
- Supplier: Zhengzhou Tongxing Air Conditioning Technology Co. Ltd.Zhengzhou Ltd.
Share on (1601288336323):
Product Overview
Description
Product Description

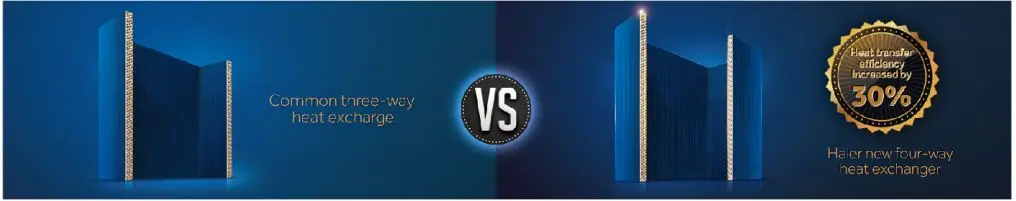

1. 3 layers fin and new four way heat exchanger
Three layers fin and new four way heat exchanger increase the heat exchange area, realize big capacity

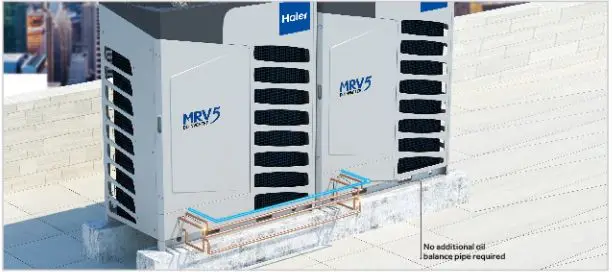

2.Automatic oil balancing
Without oil balancing pipe, the oil is balanced automatically This simplifies system design and improves reliability
3.Automatic snow clearing and dust removal function
According to the ash accumulation on the outdoor heat exchanger. the unit will blow away the dust. according to the reverse operation of the fan.
4. Piping refrigerant storage technology
Advanced refrigerant control technology, the refrigerant is stored in the indoor and outdoor machine piping, remove the high pressure tank, less refrigerant filling in unit. high efficiency

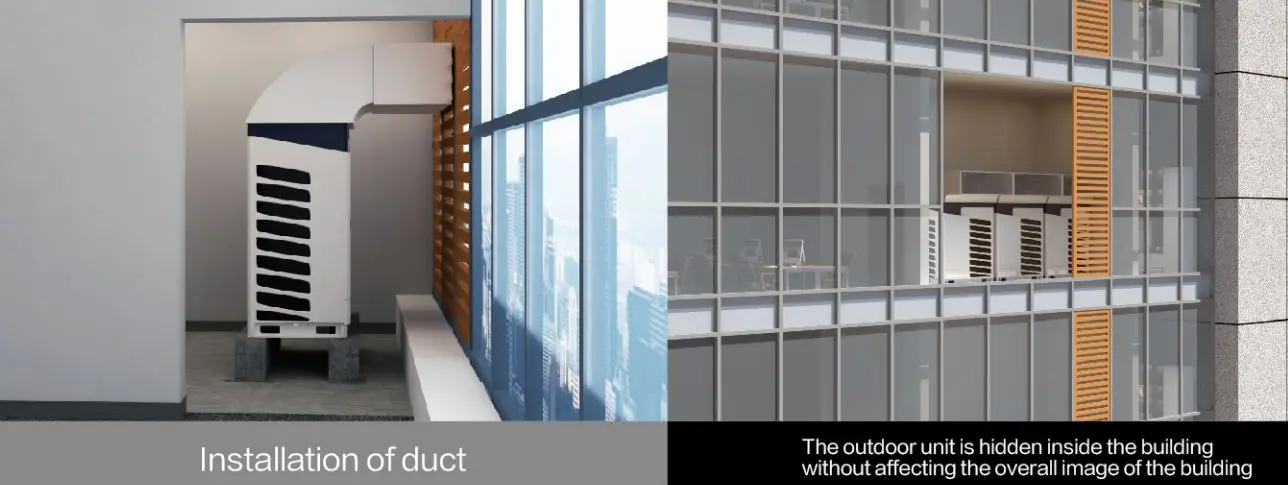

5.110Pa external static pressure design
The static pressure of the air outlet is up to 110Pa, which can meet the cooling effect of the layered arrangement of the outdoor unit

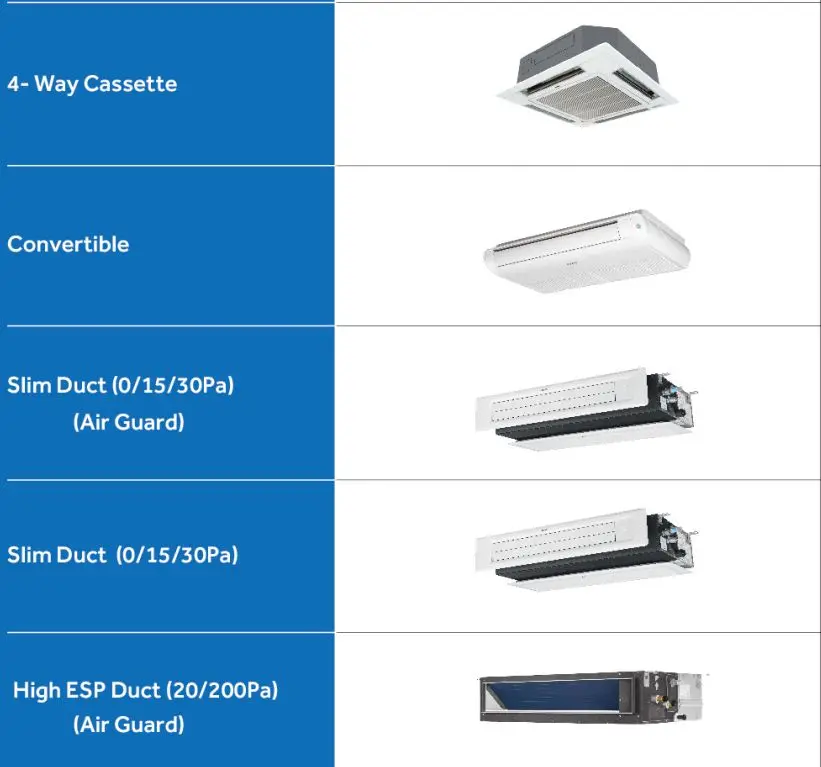

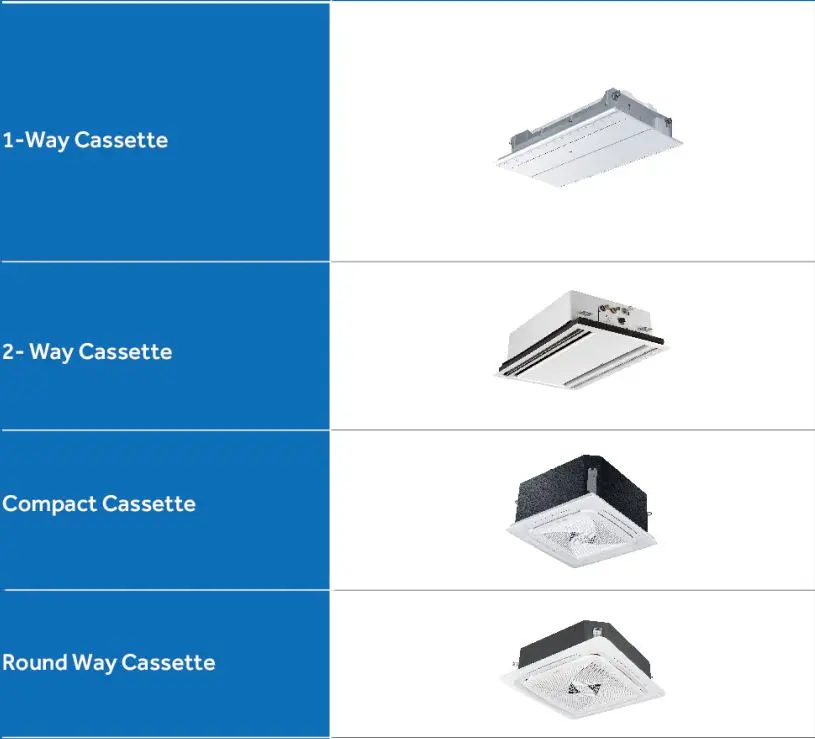

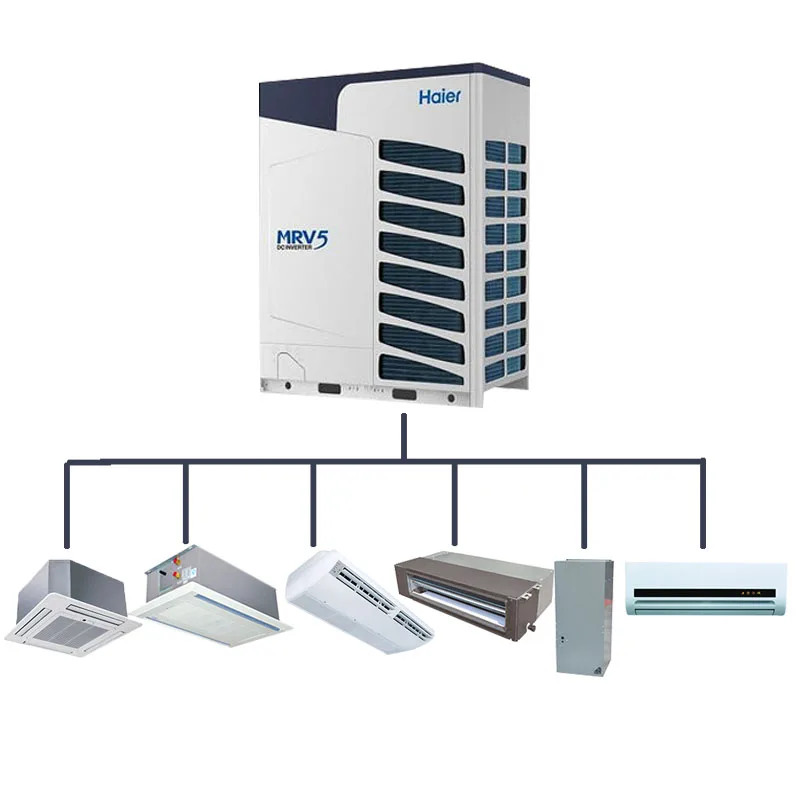

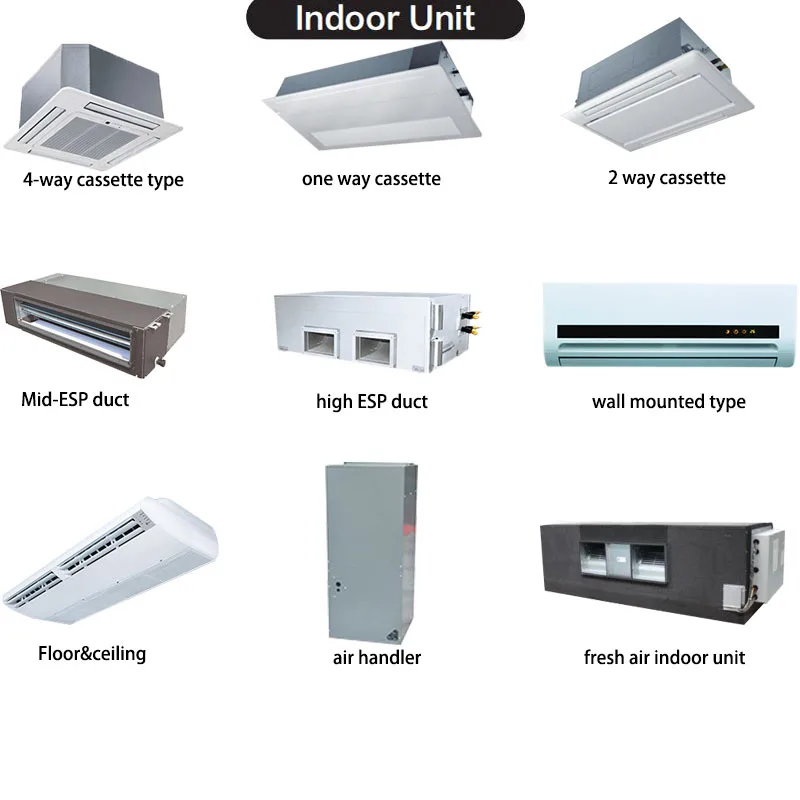

Indoor units line-up
Specification
Model | AV08IMVEVA | AV10IMVEVA | AV12IMVEVA | ||||||
Capacity | Cooling | 25.2KW | 28.0KW | 33.5KW | |||||
Heating | 25.2KW | 28.0KW | 33.5KW | ||||||
Power supply | 3/380-415/50/60hz | ||||||||
Electrical parameters | Rated power input | 6.24KW | 7.37KW | 10.15KW | |||||
Max power input | 10.08KW | 11.56KW | 13.80KW | ||||||
Rated current | 10.53A | 12.44A | 17.14A | ||||||
Max. current | 17.02A | 19.52A | 23.30A | ||||||
Rated power input | 5.73KW | 6.51KW | 8.59KW | ||||||
Max power input | 9.90KW | 11.25KW | 12.50KW | ||||||
Rated current | 9.67A | 10.99A | 14.52A | ||||||
Max. current | 16.71A | 18.99A | 21.10A | ||||||
Seer | 7.52 | 7.09 | 6.69 | ||||||
Scop | 4.41 | 4.31 | 4.31 | ||||||
Performance | Air flow(H) | 11000M3/H | 11000M3/H | 12000M3/H | |||||
Sound pressure level(dbA) | 56 | 56 | 59 | ||||||

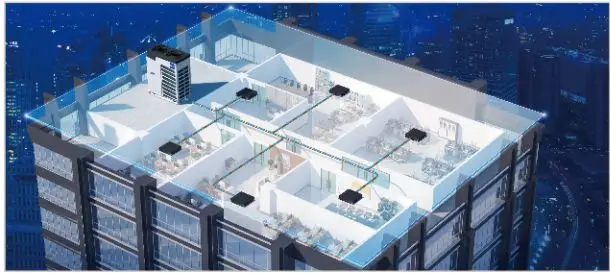

Commercial vrf air conditioner
Why Choose Us?

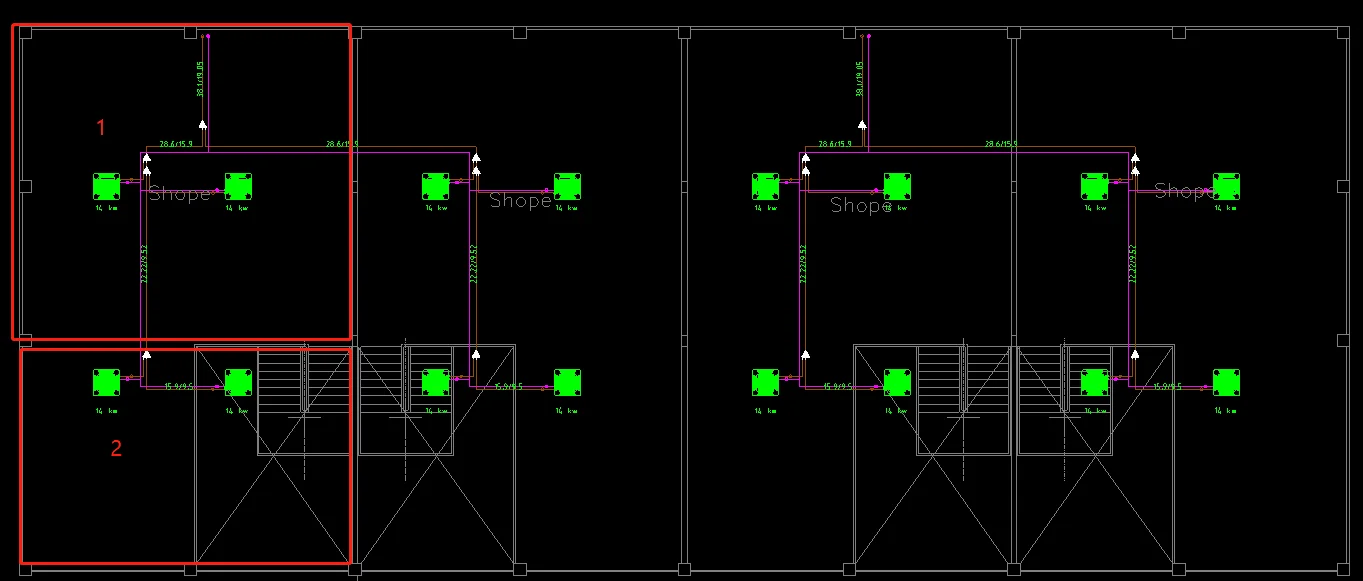

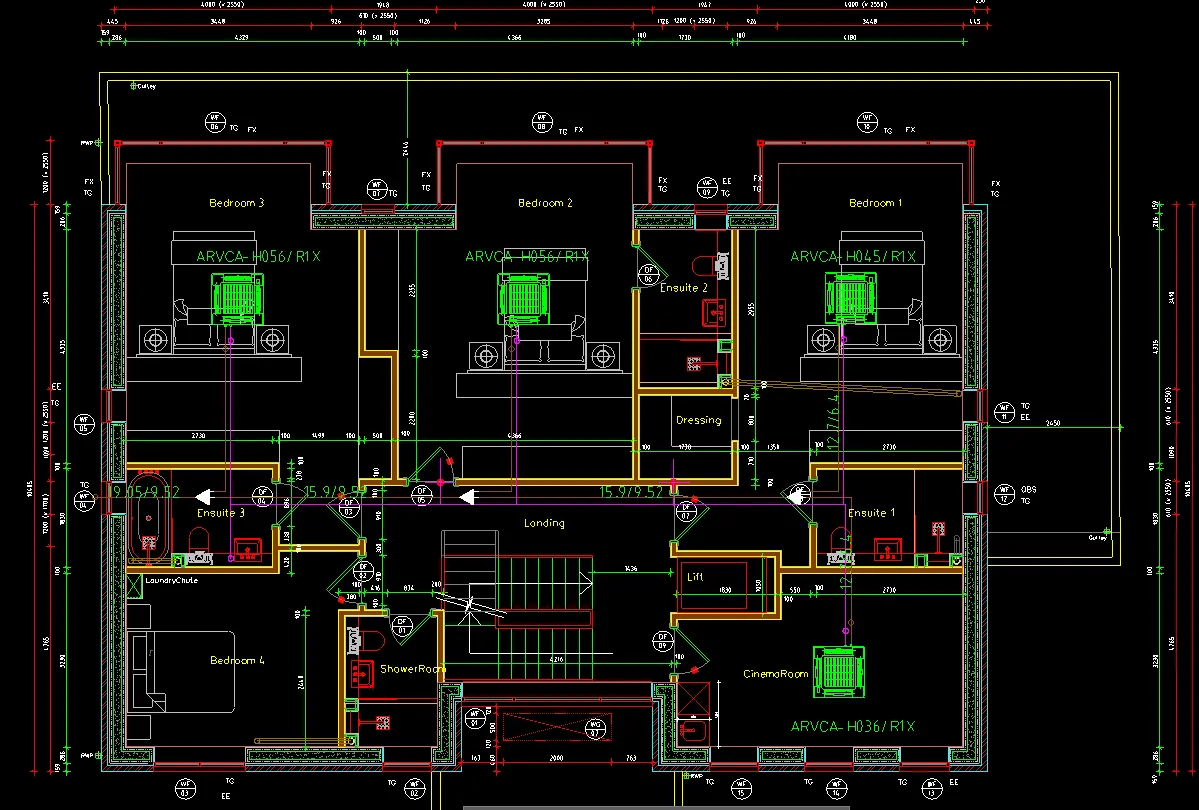

We have been in HVAC for 20 years with very rich experience, with professional design team and installation team. Free CAD design for you:
Packing & Delivery
Project solution

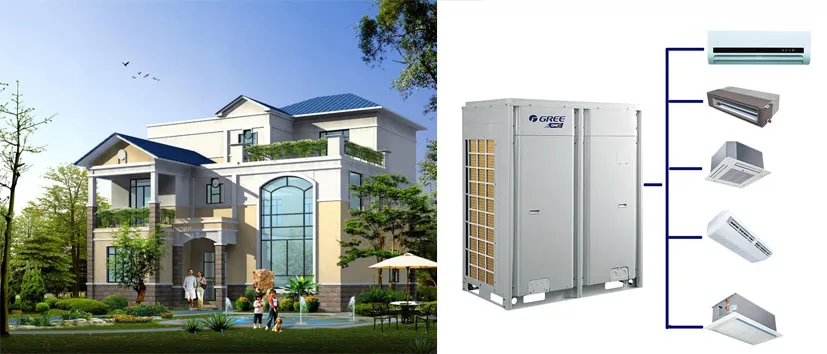

Villa Project Solution(Cooling,Heating,Hot water)
**Mini Chiller + Air source heat pump

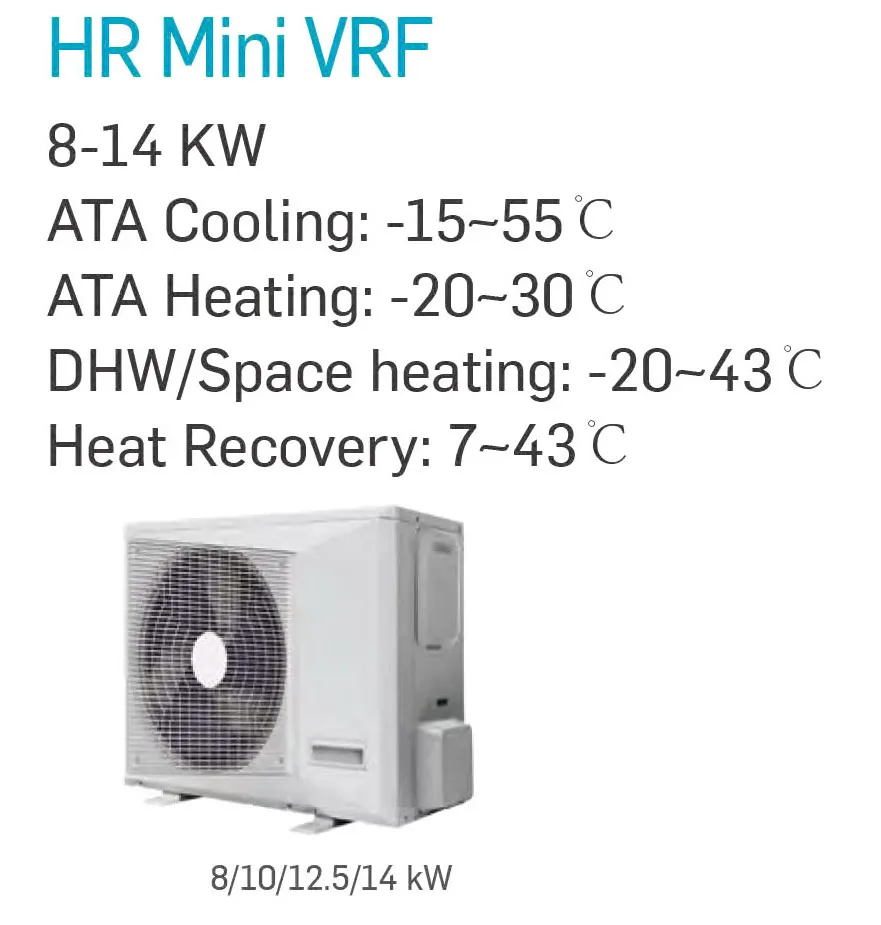

**Mini VRF + Air source heat pump
**Mini VRF + Air source heat pump

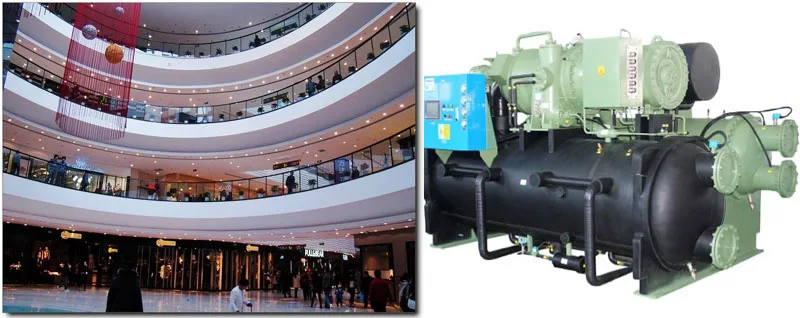

Shopping Mall Project Solution(Cooling,Heating,Fresh air)
water cooled centrifugal chiller+municiple heating

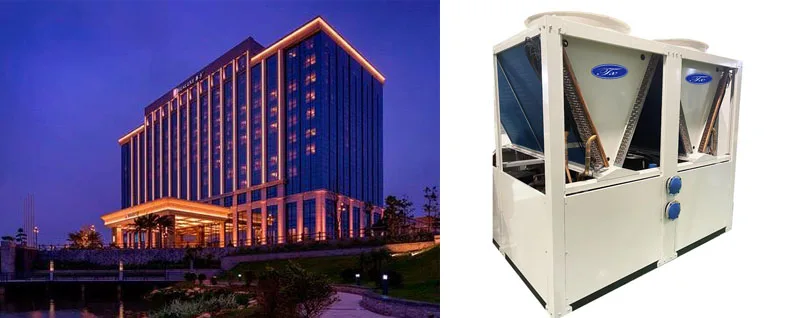

Hotel Project Solution(Cooling,Heating,hot water)
Air cooled chiller

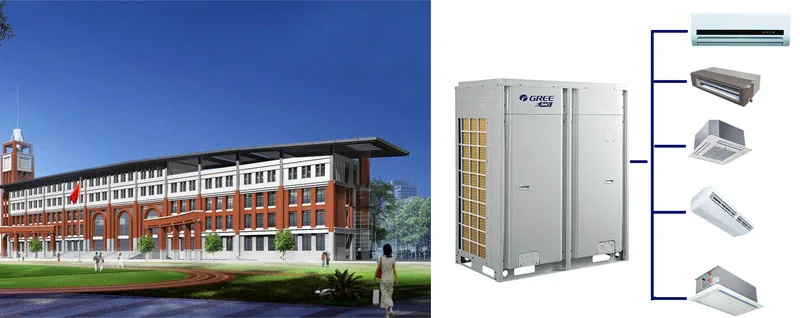

University Project Solution(Cooling,Heating,Hot water,Fresh air)
VRF Central air conditioning+municiple heating

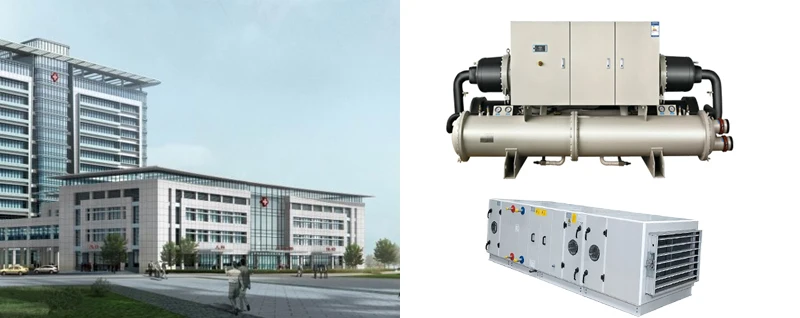

Hospital Solution(Cooling,Heating,hot water,Filter air,Sterilization)
Water cooled chiller+Modular system+AHU
Greenhouse Project Solution(Cooling,Heating,24hr running)
Water cooled chiller + munic
Company Profile
A leader in energy saving service industry, Tongxing Company was founded in 2000 and located in Zhengzhou, China. Tongxing is engeged in the fields of air conditioning product R&D, manufacture, sales, service and provide one-stop energy system solution to customs
indoor vrf air conditioner
