Product Overview
Description
Proaduct Description
Controller specifications：
Model | IDP-5210 | IDP-8210 | IDP-300 | ||||
Supply Voltage | 3-phase 380V (50/60Hz) | ||||||
Control frequency | 1kHz/2kHz/3kHz/4kHz/5kHz | ||||||
Max. output current | 4000A | 8000A | 15000A | ||||
Rated power | 15kVA | 25kVA | 90kVA | ||||
Control method | Constant Pulse Width/Constant Peak Primary/Constant Secondary Current/Constant Secondary Voltage/Constant Power/Hybrid Control | ||||||
Number of welding norms | 32 Group Norms | ||||||
Welding time setting | Pre-pressure time | 0-9999ms | |||||
Pressurization time | 0-9999ms | ||||||
Slow rise 1 time | 0-9999cyc | ||||||
Welding 1 time | 0-9999cyc | ||||||
Slow down 1 time | 0-9999cyc | ||||||
Cooldown | 0-9999cyc | ||||||
Slow rise 2 time | 0-9999cyc | ||||||
Welding 2 time | 0-9999cyc | ||||||
Slow down 2 time | 0-9999cyc | ||||||
Slow rise 3 time | 0-9999cyc | ||||||
Welding 3 time | 0-9999cyc | ||||||
Slow down 3 time | 0-9999cyc | ||||||
Holding time | 0-9999ms | ||||||
Rest period | 0-9999ms | ||||||
Finish time | 0-9999ms | ||||||
Number of cycles | 0-9 | ||||||
Setting range for secondary current | 0.1-4.00KA | 0.2-8.00KA | 0.3-15.00KA | ||||
Setting range of pulse width | 1%-100% | ||||||
Setting range for secondary voltage | 0.01-10V | ||||||
Size (L*W*H) | 549*220*320mm | ||||||
Weight | 22KG | ||||||
Matching transformer | IDT-40A | IDT-80A | IDT-915C | ||||
Communication method | RS-232/RS-485/Ethernet , etc. | ||||||
Transformer Specifications：
Model | IDT-40A | IDT-80A | IDT-915C | ||
Supply voltage | PWM 500V | PWM 500V | PWM 500V | ||
Rated power | 15KVA | 25KVA | 90KVA | ||
Rated primary voltage | 500V | 500V | 500V | ||
No load secondary voltage | 10V | 11V | 11V | ||
Max. utilization rate | 4000A(5%) | 8000A(10%) | 15000A(10%) | ||
Cooling method | Air-cooling | Water-cooling | Water-cooling | ||
Input frequency | 1-5KHz | ||||
Transformer volume ratio | 50:1 | 45:1 | 45:1 | ||
Size | 424*205*280mm | 440*205*280mm | 343*146*106mm | ||
Weight | 18.5KG | 22KG | 17KG | ||

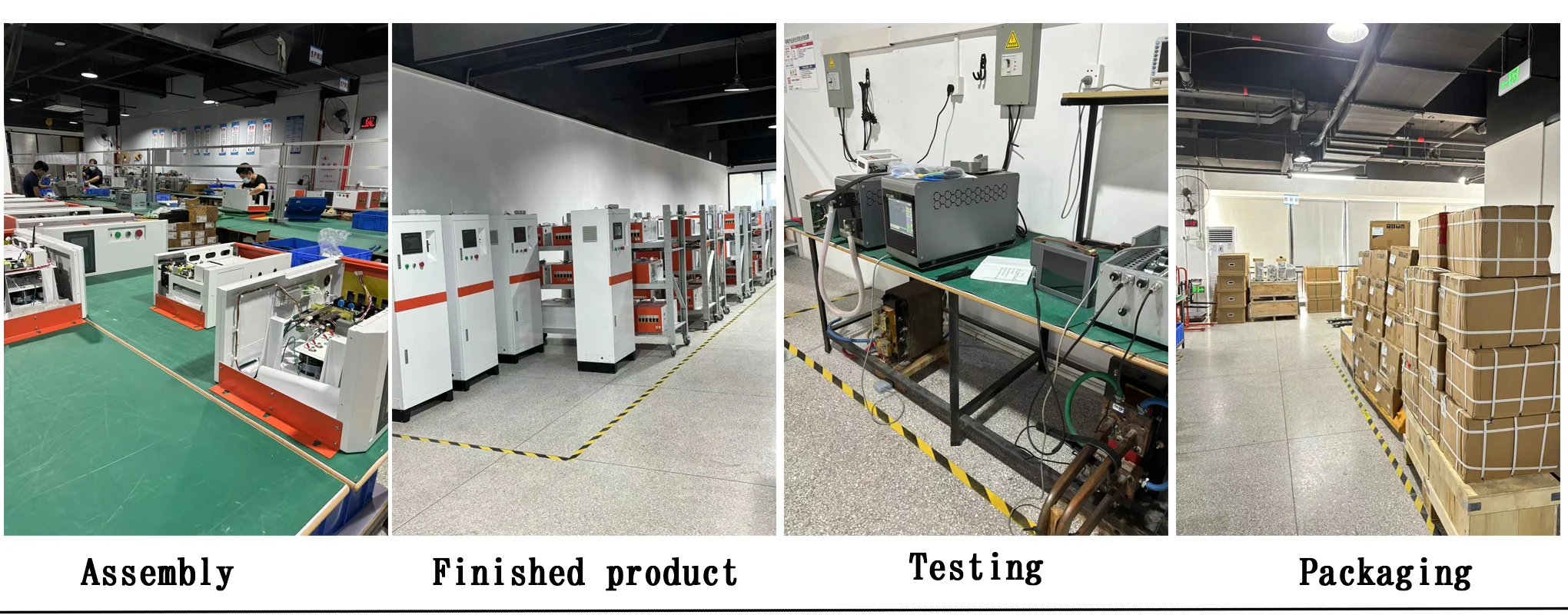

Production workshop
Exhibition
Certificates
Company Profile
HUANDZK HuanDian Intelligent Control Technology (Guangdong) Co., Ltd. specializes in precision resistance welding power supply, precision spot welder, resistance welding controller R & D, manufacturing, sales of high-tech enterprises, the company all precision welding power supply products are independent research and development, with independent intellectual property rights. In the control precision, welding quality, as well as product stability far more than domestic counterparts, completely comparable to foreign imported brands.
Huan Dian has been committed to serve the high-tech manufacturing industry, in the automotive industry, automotive electronics, motor motor, new energy batteries, solar energy, electric light source, enamelled wires, coils, wiring harnesses, capacitors, protectors, sensors, relays, optical communications, crystal industry, etc., for the world's high-end customers to provide advanced metal welding products and solutions.
Huan Dian has been committed to serve the high-tech manufacturing industry, in the automotive industry, automotive electronics, motor motor, new energy batteries, solar energy, electric light source, enamelled wires, coils, wiring harnesses, capacitors, protectors, sensors, relays, optical communications, crystal industry, etc., for the world's high-end customers to provide advanced metal welding products and solutions.
Product packaging
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2016,sell to North America(20.00%),Southeast Asia(15.00%),Western
Europe(10.00%),South America(10.00%),Northern Europe(7.00%),Eastern Asia(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3.What can you buy from us?
Precision resistance welding power supply, spot welder, precision inverter welding power supply, high power high frequency dc welding power supply, high frequency welding transformer, comprehensive welding monitor, welding quality monitor system, welding network group control system, precision spot welding machine head, etc.
4. Why should you buy from us not from other suppliers?
HuanDian Intelligent Control Technology (Guangdong) Co., Ltd. is a company specializing in the production and processing of high-frequency spot welders, resistance welding controllers, high-frequency welding power supply, spot welder power supply and other.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF；
Accepted Payment Currency: USD, EUR, HKD;
Accepted Payment Type: T/T, Credit Card, PayPal, Cash;
Language Spoken: English, Chinese.
We are based in Guangdong, China, start from 2016,sell to North America(20.00%),Southeast Asia(15.00%),Western
Europe(10.00%),South America(10.00%),Northern Europe(7.00%),Eastern Asia(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3.What can you buy from us?
Precision resistance welding power supply, spot welder, precision inverter welding power supply, high power high frequency dc welding power supply, high frequency welding transformer, comprehensive welding monitor, welding quality monitor system, welding network group control system, precision spot welding machine head, etc.
4. Why should you buy from us not from other suppliers?
HuanDian Intelligent Control Technology (Guangdong) Co., Ltd. is a company specializing in the production and processing of high-frequency spot welders, resistance welding controllers, high-frequency welding power supply, spot welder power supply and other.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF；
Accepted Payment Currency: USD, EUR, HKD;
Accepted Payment Type: T/T, Credit Card, PayPal, Cash;
Language Spoken: English, Chinese.
