SAN Brand New Rail-Mounted Crane MQG1630S Prices
$500,000.00-1,000,000.00
Wall Mounted Electric Swing Jib Crane Product Type Jib Cranes
- Category: >>>
- Supplier: Xinxiang Magicart Cranes Co. Ltd.Xinxiang Ltd.
Share on (1601288363599):
Product Overview
Description

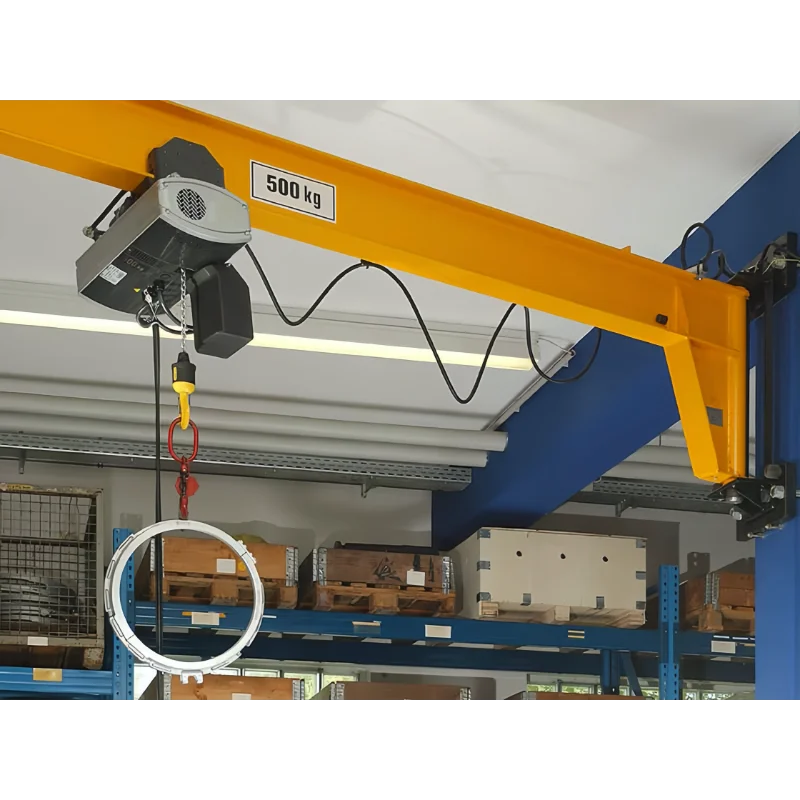

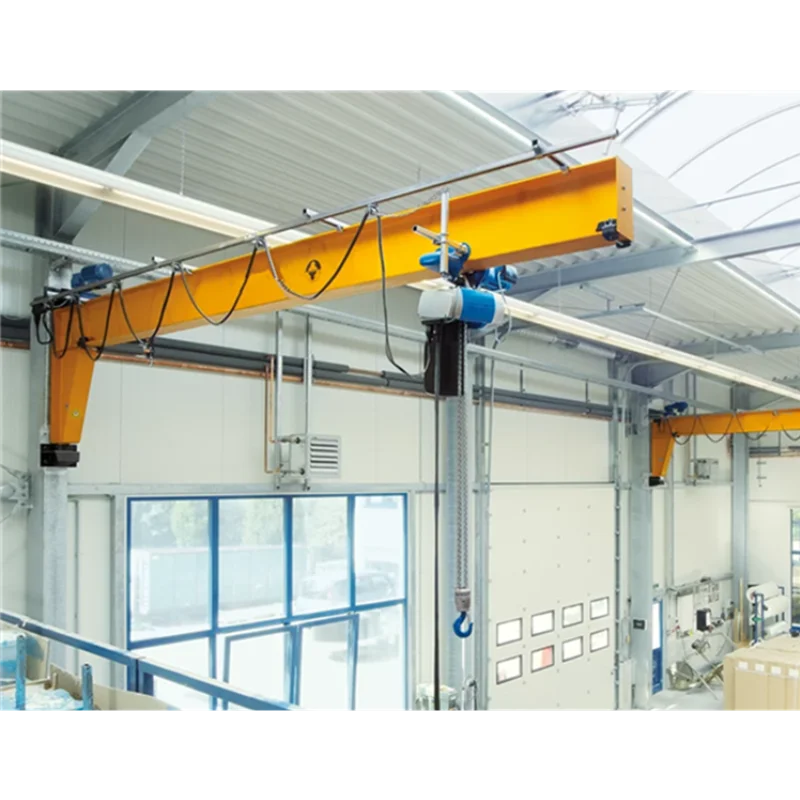

Wall Mounted Jib Crane
features a rotating arm (jib) mounted on a bracket or column that is securely fixed to the wall, allowing for horizontal lifting
and movement of loads within a defined radius. Ideal for tight spaces and smaller work areas, wall-mounted jib cranes provide excellent flexibility with a 180° or 360° rotation range. These cranes are perfect for warehouses, workshops, and factories where overhead space is limited, offering efficient load handling without requiring a large footprint. Available in manual or motorized versions, wall-mounted jib cranes improve productivity, reduce strain on workers, and ensure safe, precise lifting.
• Lightweight body, Low purchase cost
• Full safety protection, Easy maintenance
• Low power consumption & operating cost
• Full safety protection, Easy maintenance
• Low power consumption & operating cost
Application
• Workshop, Concrete plant, all Factories
• For assembly, loading, unloading area, etc.
• Workshop Indoor or Outdoor design
• For assembly, loading, unloading area, etc.
• Workshop Indoor or Outdoor design
1. Space-Saving Design
* Feature: Mounted directly to the wall, saving valuable floor space.
* Benefit: Ideal for environments where floor space is limited, such as workshops or warehouses.
2. Rotating Arm (Jib)
* Feature: The crane’s arm can rotate, typically between 180° and 360°.
* Benefit: Provides flexibility to move loads within a defined range without requiring the crane to move.
3. Load Capacity
* Feature: Wall-mounted jib cranes can typically handle loads ranging from 500 lbs to several tons.
* Benefit: Offers a variety of load options to suit different material handling needs.
4. Compact and Efficient
* Feature: Compact design fits in tight spaces with minimal intrusion.
* Benefit: Perfect for locations with limited space, such as narrow aisles or small workstations.
5. Manual or Powered Operation
* Feature: Available with manual or electric hoists.
* Benefit: Manual cranes are cost-effective for light loads, while electric versions provide more efficient lifting for heavy
loads.
6. Customizable Arm Length
* Feature: Arm length can be customized based on your workspace and lifting requirements.
* Benefit: Ensures the crane can cover the necessary area for handling loads.
7. 360° Rotation Option
* Feature: Many wall-mounted jib cranes allow full 360° rotation.
* Benefit: Increases operational efficiency by offering full coverage within the crane’s range.
8. Quick and Easy Installation
* Feature: Can be installed by bolting the crane arm and mount to the wall.
* Benefit: Simple installation process with minimal disruption to ongoing operations.
9. Overload Protection
* Feature: Equipped with overload protection to prevent lifting beyond the crane's capacity.
* Benefit: Enhances safety by preventing potential equipment failure.
10. Versatility
* Feature: Suitable for a wide range of industries including manufacturing, warehouses, and maintenance.
* Benefit: Ideal for moving heavy materials, parts, or tools within a fixed area, improving workflow and reducing manual
handling.
11. Durability and Material Options
* Feature: Made from durable steel or other high-strength materials, with options for corrosion-resistant finishes.
* Benefit: Ensures long-lasting performance in demanding environments.
12. Safety Features
* Feature: Includes emergency stop buttons, limit switches, and anti-collision devices.
* Benefit: Provides safety for operators and prevents accidental damage or injuries.
* Feature: Mounted directly to the wall, saving valuable floor space.
* Benefit: Ideal for environments where floor space is limited, such as workshops or warehouses.
2. Rotating Arm (Jib)
* Feature: The crane’s arm can rotate, typically between 180° and 360°.
* Benefit: Provides flexibility to move loads within a defined range without requiring the crane to move.
3. Load Capacity
* Feature: Wall-mounted jib cranes can typically handle loads ranging from 500 lbs to several tons.
* Benefit: Offers a variety of load options to suit different material handling needs.
4. Compact and Efficient
* Feature: Compact design fits in tight spaces with minimal intrusion.
* Benefit: Perfect for locations with limited space, such as narrow aisles or small workstations.
5. Manual or Powered Operation
* Feature: Available with manual or electric hoists.
* Benefit: Manual cranes are cost-effective for light loads, while electric versions provide more efficient lifting for heavy
loads.
6. Customizable Arm Length
* Feature: Arm length can be customized based on your workspace and lifting requirements.
* Benefit: Ensures the crane can cover the necessary area for handling loads.
7. 360° Rotation Option
* Feature: Many wall-mounted jib cranes allow full 360° rotation.
* Benefit: Increases operational efficiency by offering full coverage within the crane’s range.
8. Quick and Easy Installation
* Feature: Can be installed by bolting the crane arm and mount to the wall.
* Benefit: Simple installation process with minimal disruption to ongoing operations.
9. Overload Protection
* Feature: Equipped with overload protection to prevent lifting beyond the crane's capacity.
* Benefit: Enhances safety by preventing potential equipment failure.
10. Versatility
* Feature: Suitable for a wide range of industries including manufacturing, warehouses, and maintenance.
* Benefit: Ideal for moving heavy materials, parts, or tools within a fixed area, improving workflow and reducing manual
handling.
11. Durability and Material Options
* Feature: Made from durable steel or other high-strength materials, with options for corrosion-resistant finishes.
* Benefit: Ensures long-lasting performance in demanding environments.
12. Safety Features
* Feature: Includes emergency stop buttons, limit switches, and anti-collision devices.
* Benefit: Provides safety for operators and prevents accidental damage or injuries.

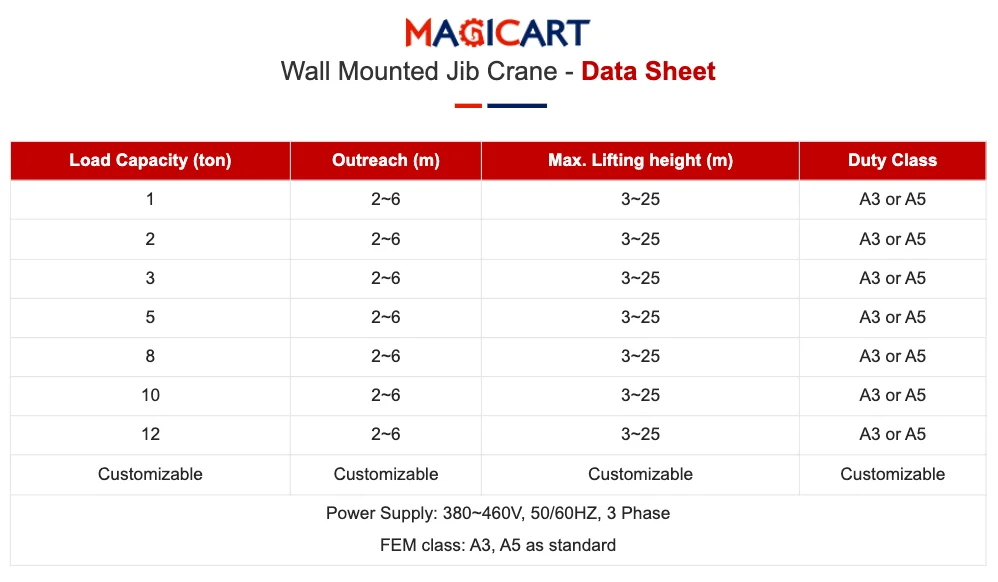

Data Sheet
Packing & Delivery
A wall-mounted jib crane is a type of lifting equipment that is attached to a wall or building structure. It features a rotating
arm (jib) that can move horizontally to lift and carry loads within a specified radius, making it ideal for operations in confine spaces or areas with limited floor space.
2. How does a wall-mounted jib crane work?
The crane’s arm is mounted to a wall using a bracket or column. The arm can rotate around the mounting point, typically providing a 180° or 360° range of movement. A hoist attached to the arm is used to lift and lower loads. The crane can be operated manually or with a motorized hoist, depending on the model.
3. What are the benefits of a wall-mounted jib crane?
* Space-saving: Mounted on the wall, it eliminates the need for floor space, making it ideal for tight or crowded work areas.
* Increased productivity: It allows quick and easy movement of materials, reducing downtime and improving workflow.
* Flexibility: The rotating arm provides flexibility to move loads across a designated area with ease.
* Cost-effective: It requires less installation and maintenance compared to larger overhead cranes.
4. How do I choose the right size of wall-mounted jib crane for my operation?
To select the correct crane size, consider the following factors:
* Load capacity: Choose a crane that can handle the maximum weight you need to lift.
* Arm length: Select an arm length that provides the reach needed for your workspace.
* Rotation range: Determine whether you need 180° or 360° rotation based on your operational needs.
* Mounting location: Consider the structure and strength of the wall or mounting surface to ensure proper installation.
5. Is a wall-mounted jib crane easy to install?
Yes, wall-mounted jib cranes are relatively easy to install. They are typically bolted or anchored to a wall or building
structure. Proper installation requires ensuring that the wall is strong enough to support the crane’s weight and the loads it
will lift. Installation should be done by qualified personnel to ensure safety and proper alignment.
6. How safe are wall-mounted jib cranes?
Wall-mounted jib cranes are generally safe when used correctly. They come with several safety features, including overload protection, limit switches, and emergency stop buttons. It is essential to follow all safety guidelines and ensure that the crane is installed and maintained properly to prevent accidents.
7. Can a wall-mounted jib crane be customized?
Yes, wall-mounted jib cranes can be customized in several ways:
* Arm length: Choose a custom length to fit your work area.
* Rotation range: Select 180° or 360° rotation depending on your workspace.
* Load capacity: Adjust the crane's capacity to meet your lifting requirements.
* Hoist type: Choose between manual, electric, or pneumatic hoists based on your lifting needs. Customization options allow the crane to meet the specific needs of your operation.
Yes, wall-mounted jib cranes can be customized in several ways:
* Arm length: Choose a custom length to fit your work area.
* Rotation range: Select 180° or 360° rotation depending on your workspace.
* Load capacity: Adjust the crane's capacity to meet your lifting requirements.
* Hoist type: Choose between manual, electric, or pneumatic hoists based on your lifting needs. Customization options allow the crane to meet the specific needs of your operation.
