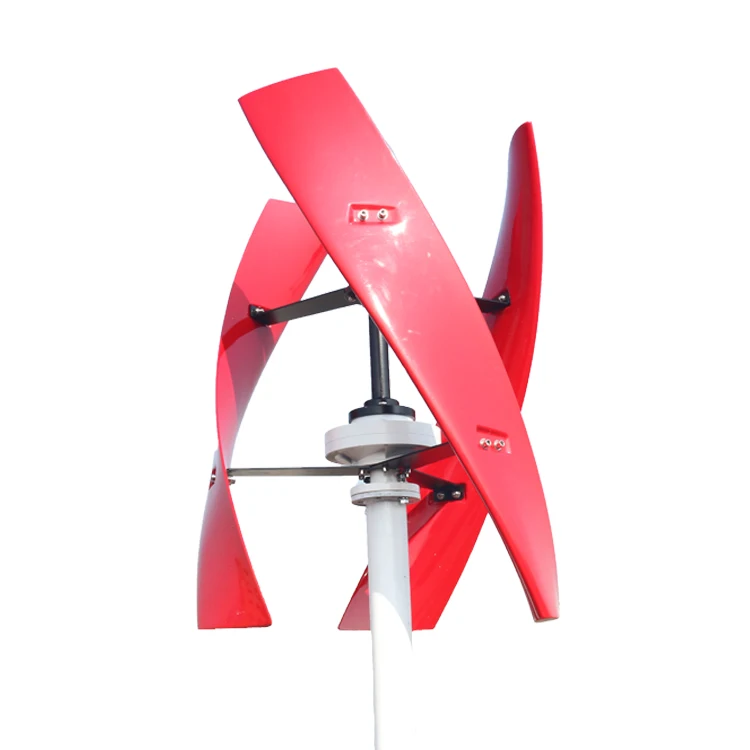

High Efficiency 400w 600w 1kw 12v/24v/48v 96v Vertical AXIS Permanent Maglev Wind Turbine Generator MPPT Controller
- Category: >>>
- Supplier: Wuxi Roywell Motortech CorporationWuxi Corporation
Share on (1601288424745):
Product Overview
Description
Products Description
Item | VS-600 | VS-800 | VS-1000 | VS-2000 | VS-3000 | ||
Started Wind Speed (m/s) | 1.3 m/s | 2 m/s | 2 m/s | 2 m/s | 2m/s | ||
Cut-in Wind Speed (m/s) | 2.5 m/s | 3 m/s | 3 m/s | 3 m/s | 3m/s | ||
Rated Wind Speed (m/s) | 10 m/s | 10 m/s | 10 m/s | 10 m/s | 10m/s | ||
Rated Voltage(AC) | 12/24V | 12/24V | 12/24/48V | 24/48/96/120V | 48v/96v/120v/220v | ||
Rated Power(W) | 600W | 800W | 1000W | 2000W | 3000w | ||
Max Power(W) | 650W | 810W | 1050W | 2010W | 3020w | ||
Rotor Diameter of Blades(m) | 0.6m | 0.6m | 0.95m | 1.1m | 1.6m | ||
Product Assembly Weight (Kg) | <20Kg | <23Kg | <35Kg | <45Kg | <90kg(CBM 190KG) | ||
Blades Height(m) | 0.8m | 1m | 1.32m | 1.64m | 1.92M | ||
Safe Wind Speed (m/s) | ≤40m/s | ≤40m/s | <40M/S | ||||
Blades Quantity | 3 | 3 | 3 | ||||
Blade Material | glass/basalt | glass/basalt | Fiber glass | ||||
Generator | Three phase permanent magnet suspension motor | Three phase permanent magnet suspension motor | Three phase permanent magnet suspension motor | ||||
Mount Height(m) | 2~12m | 2~12m | 3-15m | ||||
Generator Protection Grade | IP54 | IP54 | IP54 | ||||
Work Environment Temperature | -25~+45ºC | -25~+45ºC | -25~+45ºC | ||||

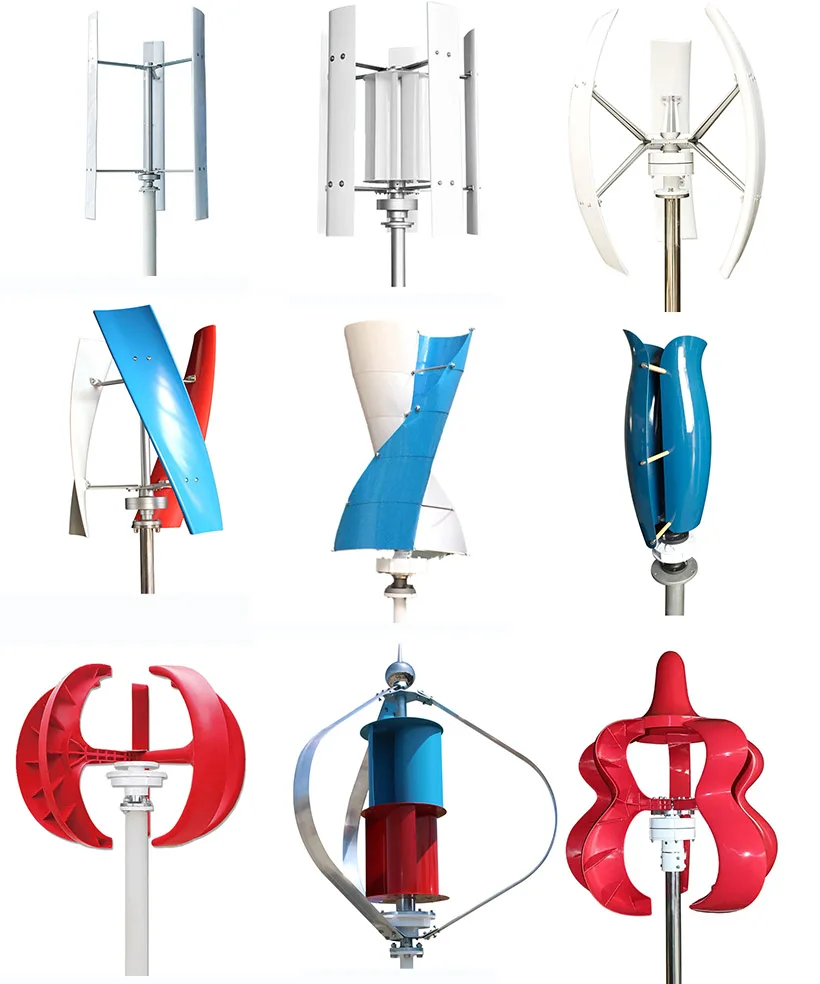

Vertical Wind Power Generation Type
