Ceramic heating tile
- Category: >>>
- Supplier: Miyo Hot Core Heater Co. LimitedMiyo Limited
Share on (1601288550390):
Product Overview
Description
Product Overview
Technical Data
Material | Ceramic solid body in white glaze colour with an embedded resistance heating coil |
Heater Voltage | 230 V (standard) |
Operating Temperature | Max permissible 750°C |
Useful wave-length range | 2 - 10 μm (microns) long wavelength |

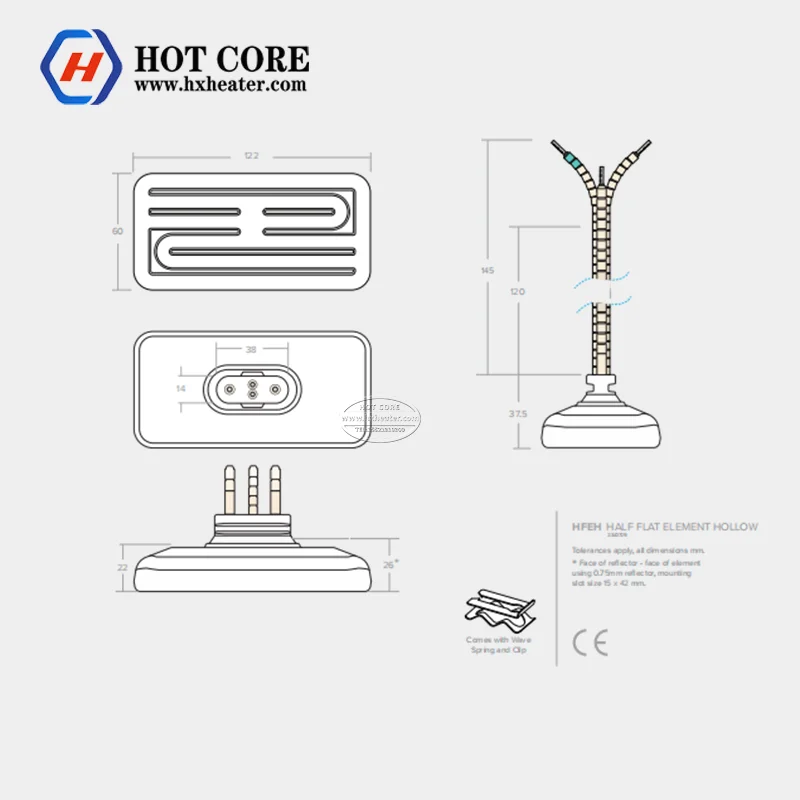

Dimensions | 122 x 60 x 37.5 mm |
Average weight | 162g |
Electric connection | 120 mm ceramic beaded power leads |
Assembly | Recommended radiation distance from heater is 100mm to 200 mm. Mounting slot size oval 15x42 mm Steel wave spring and clip set included |
Recommended Spacing | 5mm minimum spacing between elements |
Average operating life | Up to 20 000 hrs depending on conditions |
Standards | CE |
Packaging w x h x d | 126 x 64 x 64 mm |
Standard assortment | ||||||
Model HFEH | Power(W) | Mean Surface Temperature °C | Max Power Density kW/m² | |||
HFEH 125 | 125 | 390 | 15 | |||
HFEH 300 | 300 | 602 | 36 | |||
HFEH 400 | 400 | 710 | 48 | |||

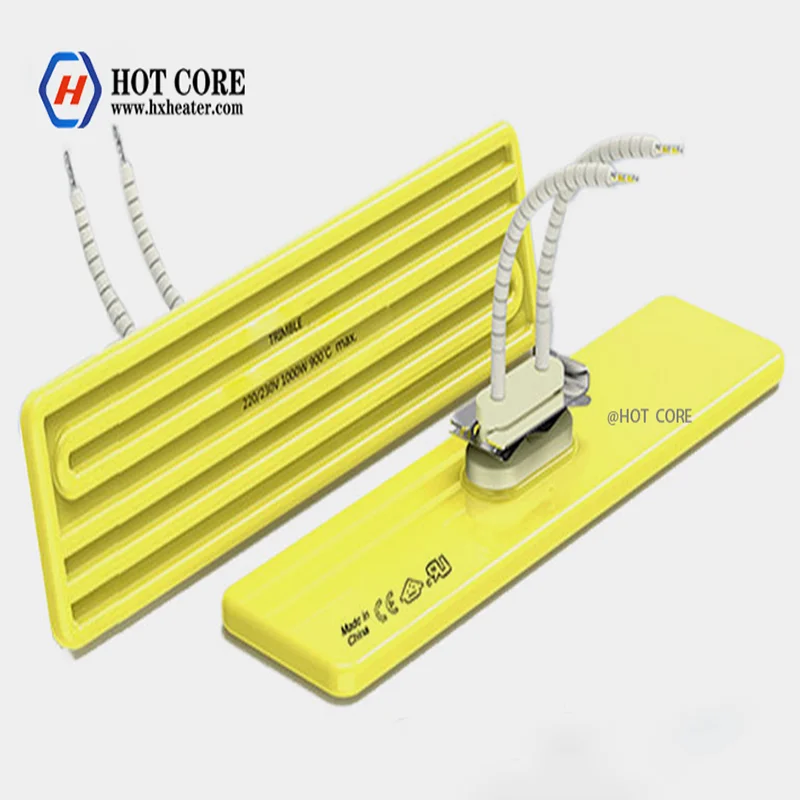

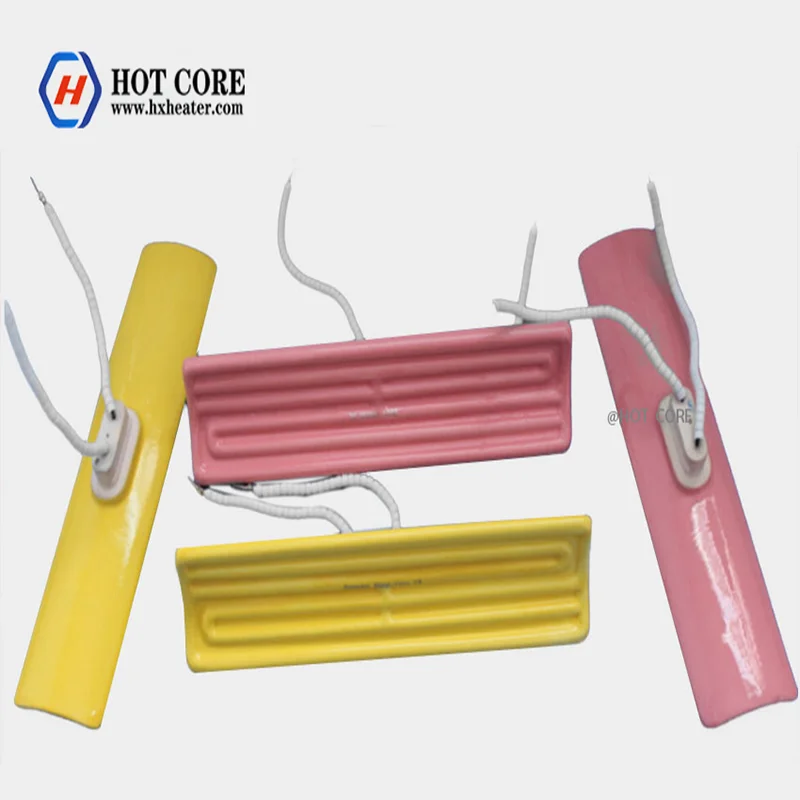

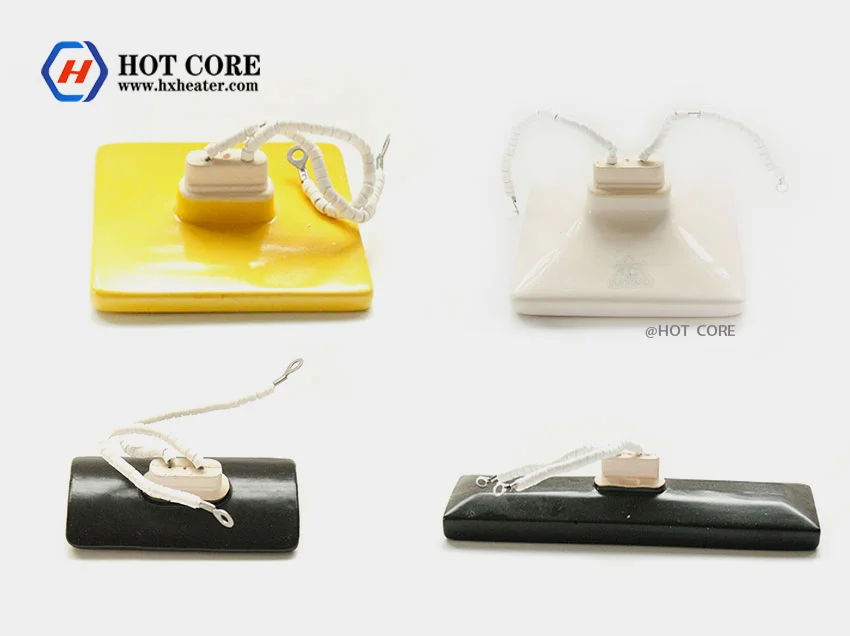

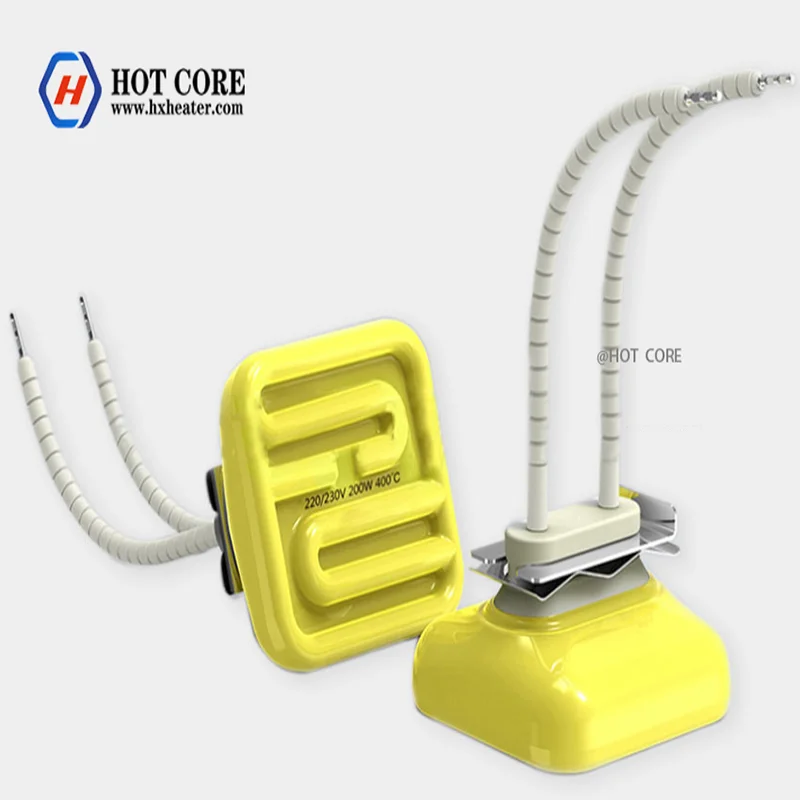

infrared ceramic heater
The standard range of ceramic infrared elements in stock are used
in a wide range of industrial and engineering applications such as
thermoforming, packaging, paint curing, printing, drying, gluing,
sterilisation, roasting etc. They are also very effectively used in
infrared outdoor heaters and saunas.
Most plastics and many other materials absorb infrared best in the
wavelength range of 2-10 μm, which makes the ceramic heater the
most popular radiant emitter on the market.
in a wide range of industrial and engineering applications such as
thermoforming, packaging, paint curing, printing, drying, gluing,
sterilisation, roasting etc. They are also very effectively used in
infrared outdoor heaters and saunas.
Most plastics and many other materials absorb infrared best in the
wavelength range of 2-10 μm, which makes the ceramic heater the
most popular radiant emitter on the market.

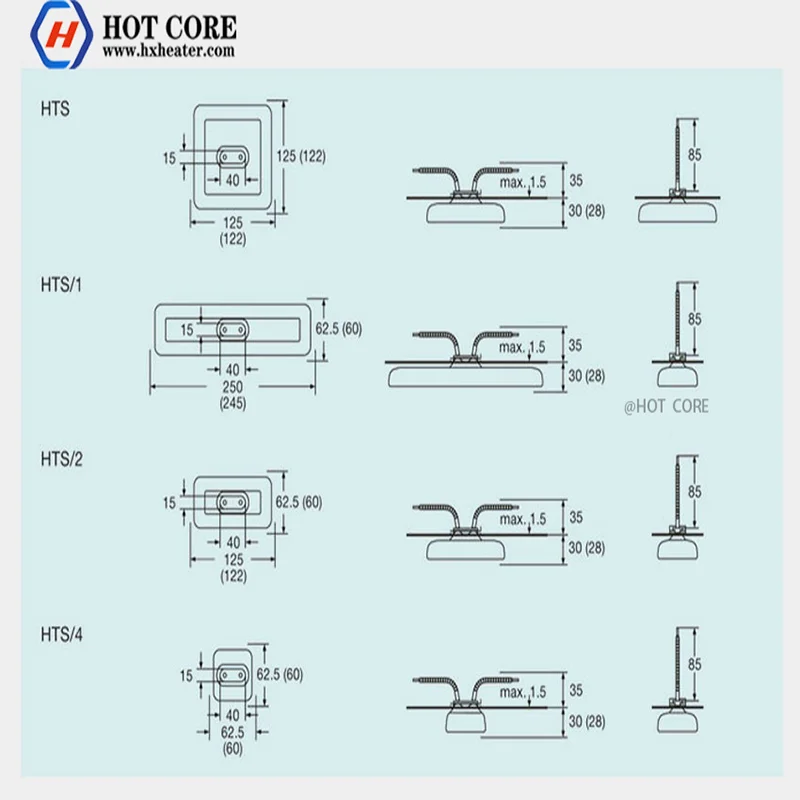

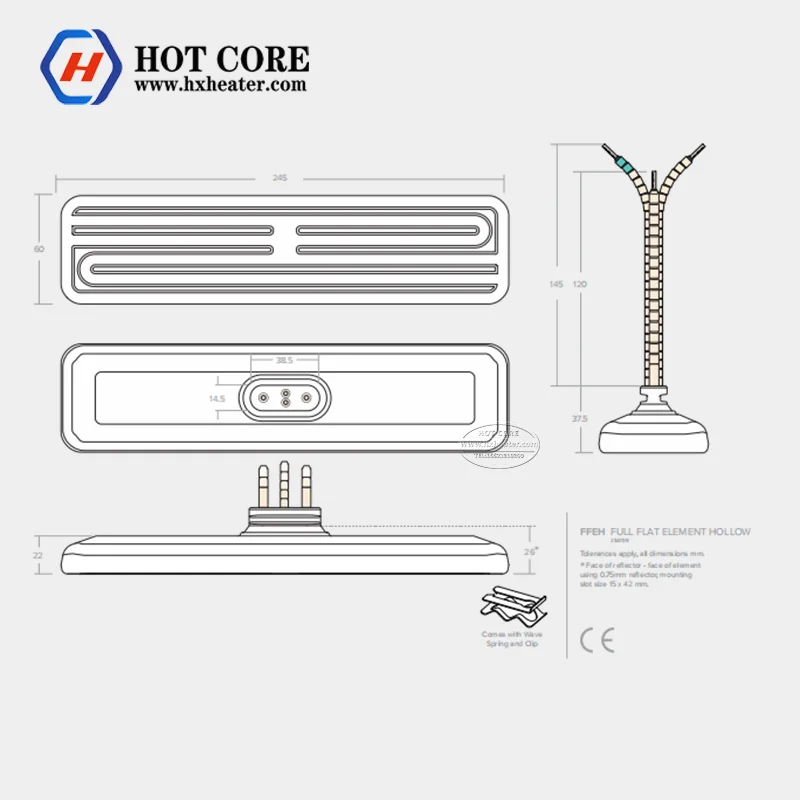

Product Structure

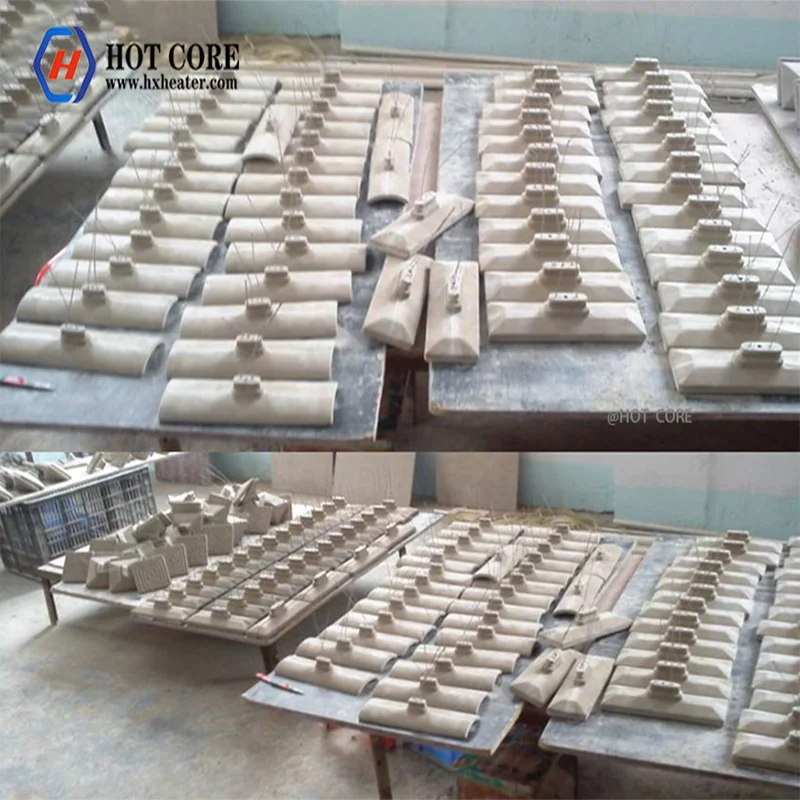

Production Process
