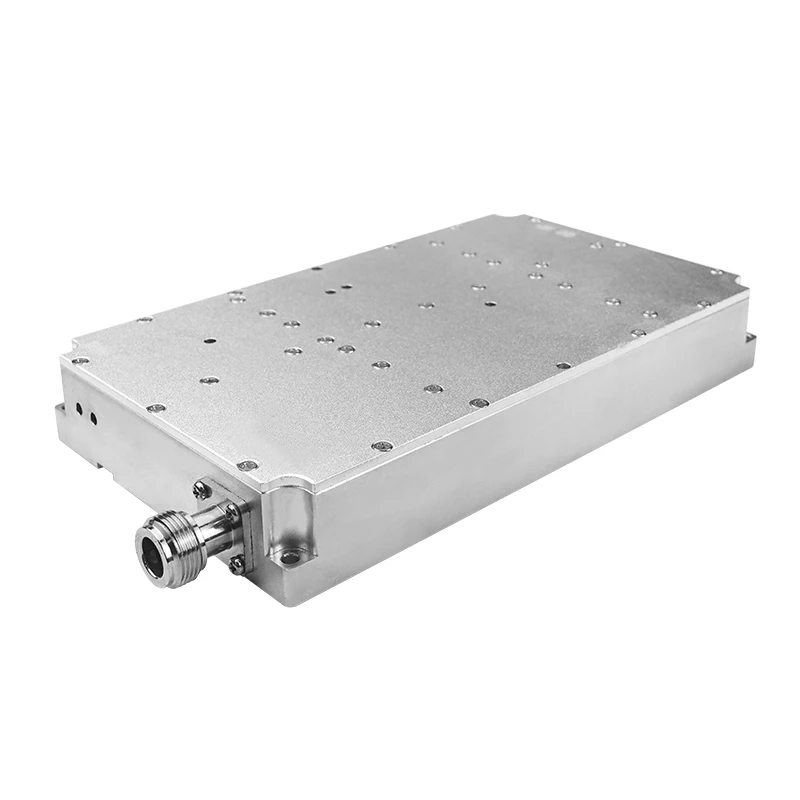

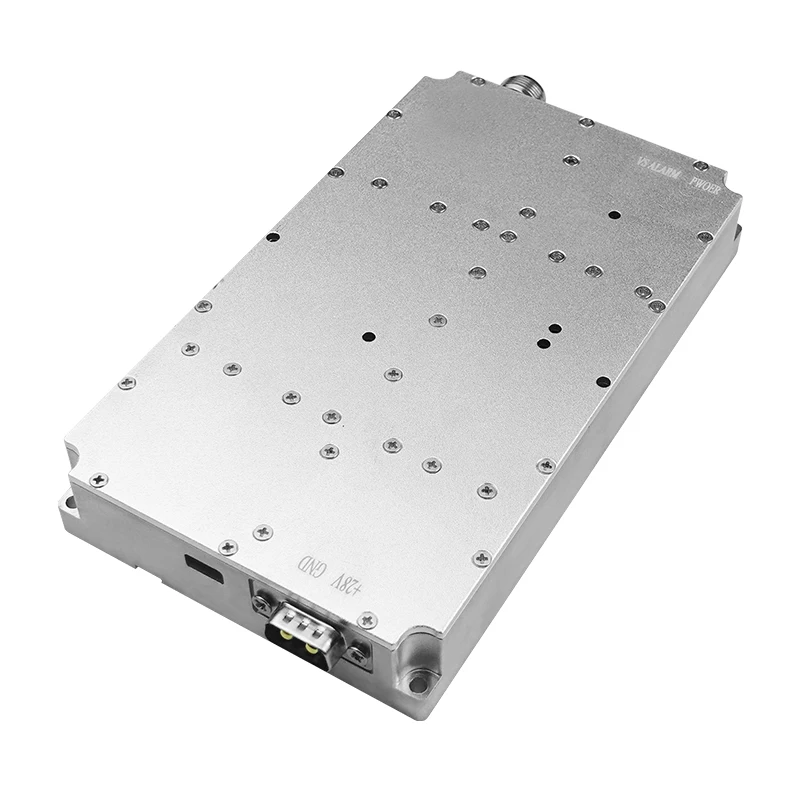

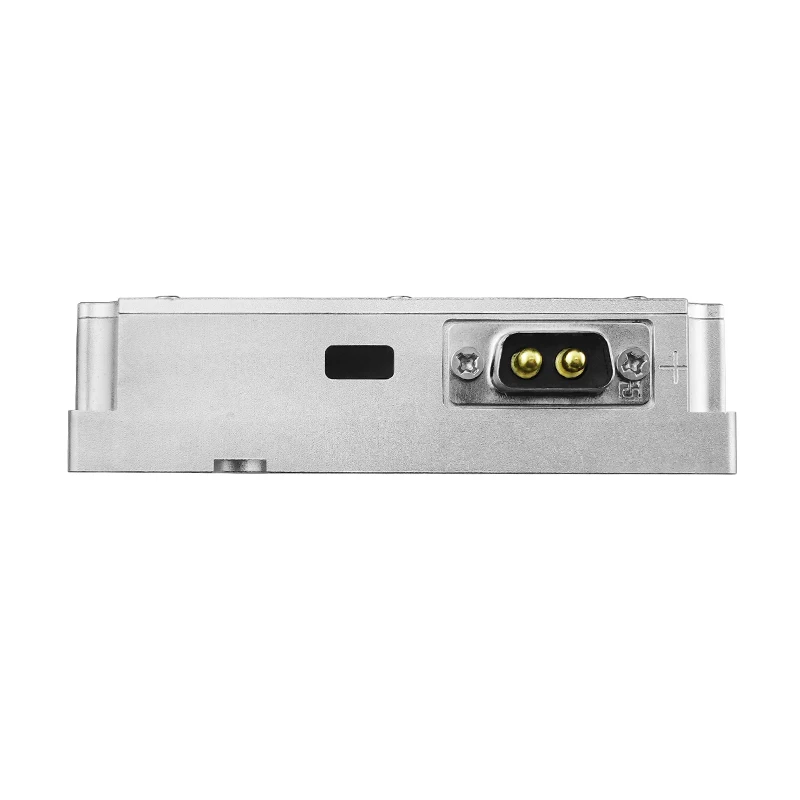

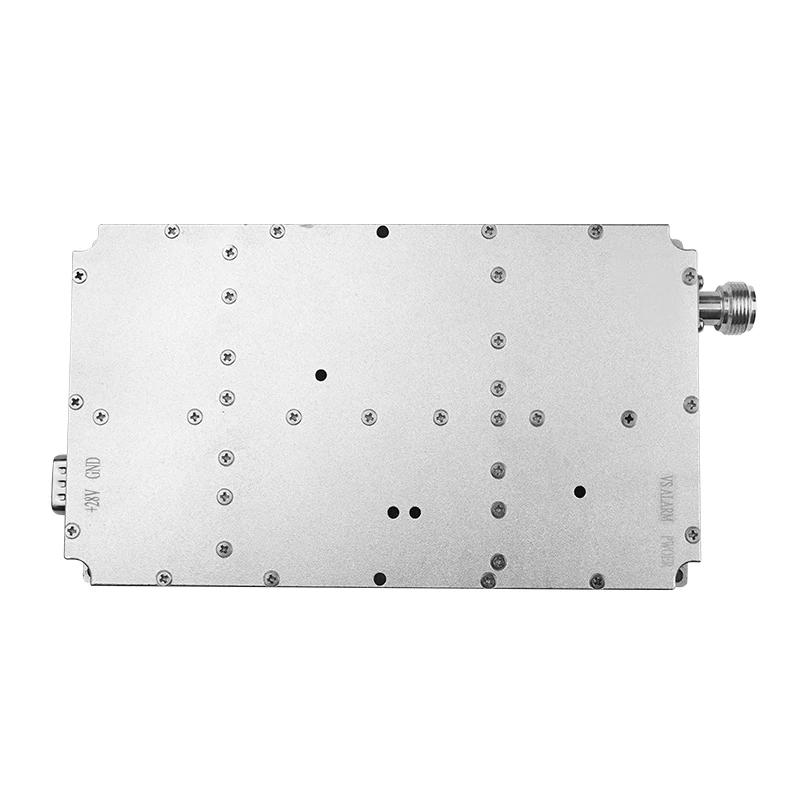

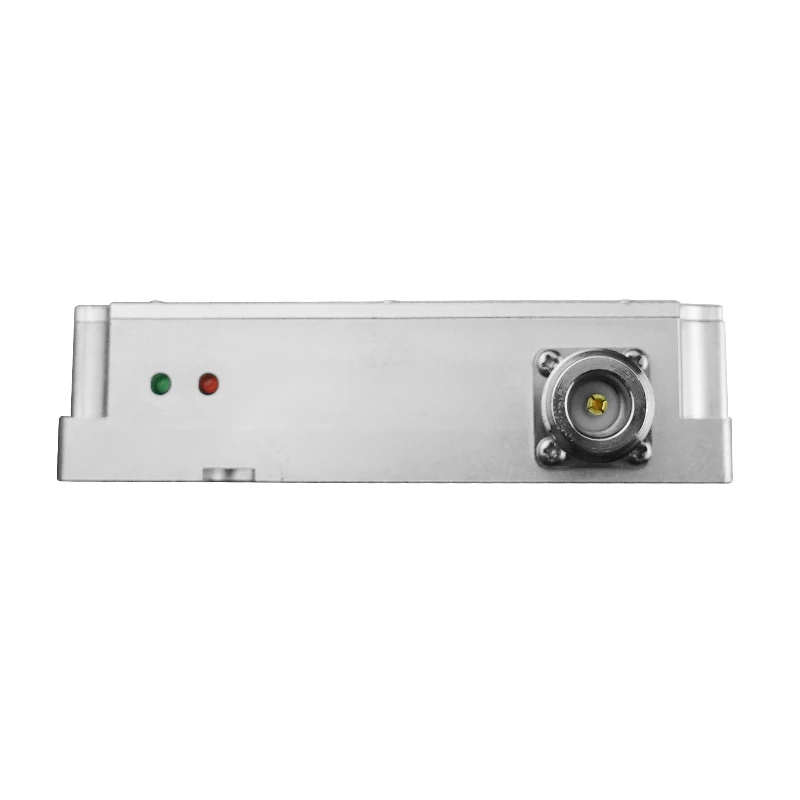

High Power 100W RF Amplifier with Circulator High Effect Good quality Module

Product Overview

Description

introduction

This is a high power RF module which can effctively block the target.  A high power 100W module with circulator is so porpular in the market. Frequency of this module can be customized into 433MHz, 868MHz, 915MHz, 1.2GHz, 1.5GHz, 2.4GHz etc.

It is a wireless information security module dedicated to 1560-1620MHz signals. This module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower sidebands.



Specification

100W  RF Power Amplifier Specification
No.	Item	Data	Unit	Notes
1	Frequency	1560-1620	MHZ
2	Work Temperature	-20~+70	℃
3	Max Output Power	100	W
4	Input power	5	dBm	0-10dbm optional Regular type with VCO inside no need input
5	Work Voltage	24-32	V
6	Max Gain	50	dB
7	Max Current	10	A
8	Impedance	50Ω
9	Output Connector	N/F		Customized
10	Switch Control	high low level current	V	24-28V Or Customized
11	Power adjustable	Customize		Can make if you need
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size	200*110*24	mm
15	Weight	0.91	Kg
