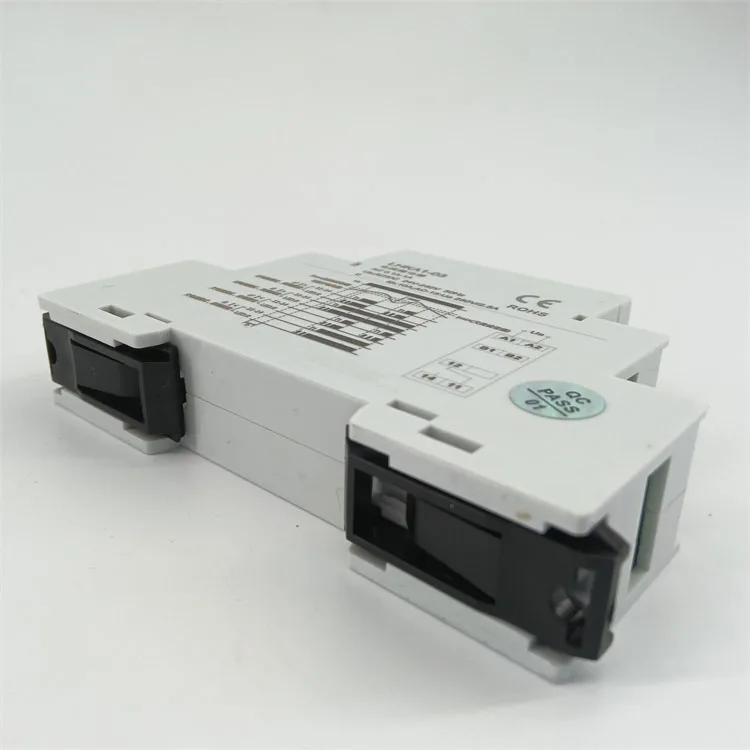

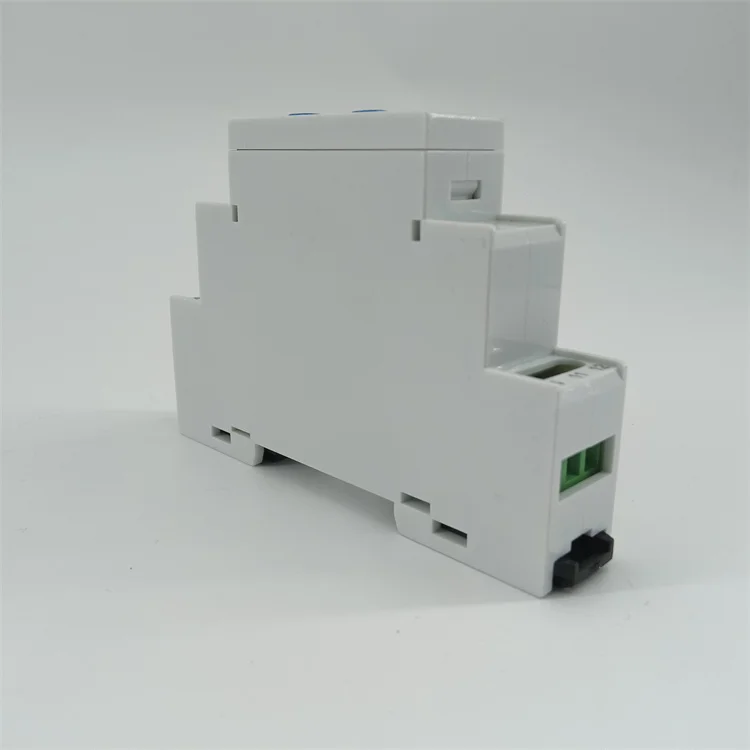

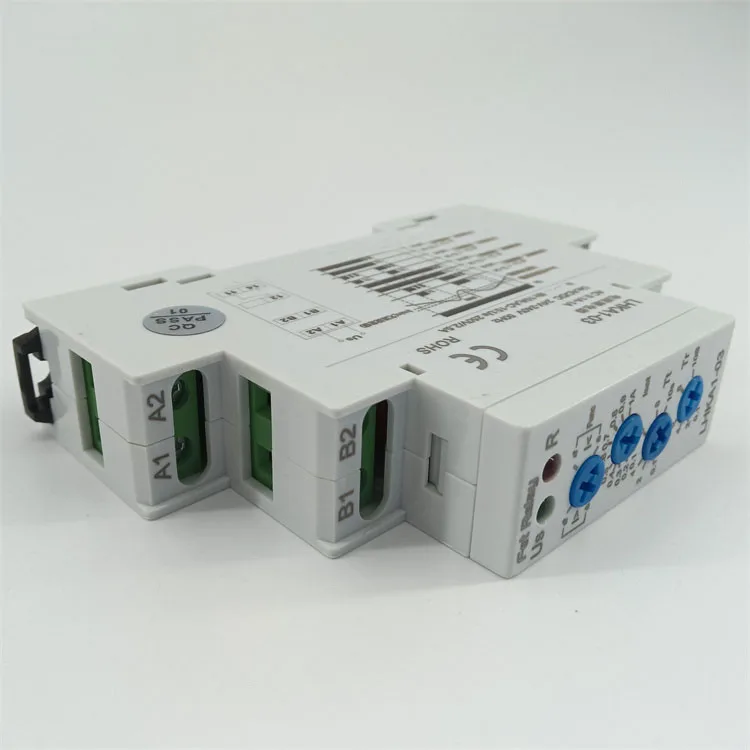

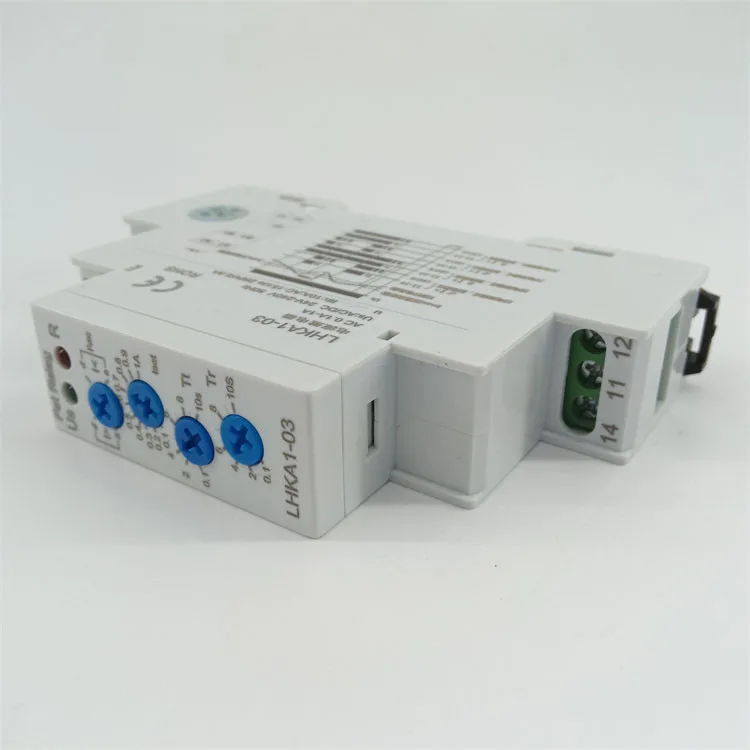

FRLHKA1 03 Current relay for current monitoring of single phase motors Over/under current protection relay
- Category: >>>
- Supplier: Shanghai United Supply Chain Group Ltd.
Share on (1601288891565):
Product Overview
Description
Product Description

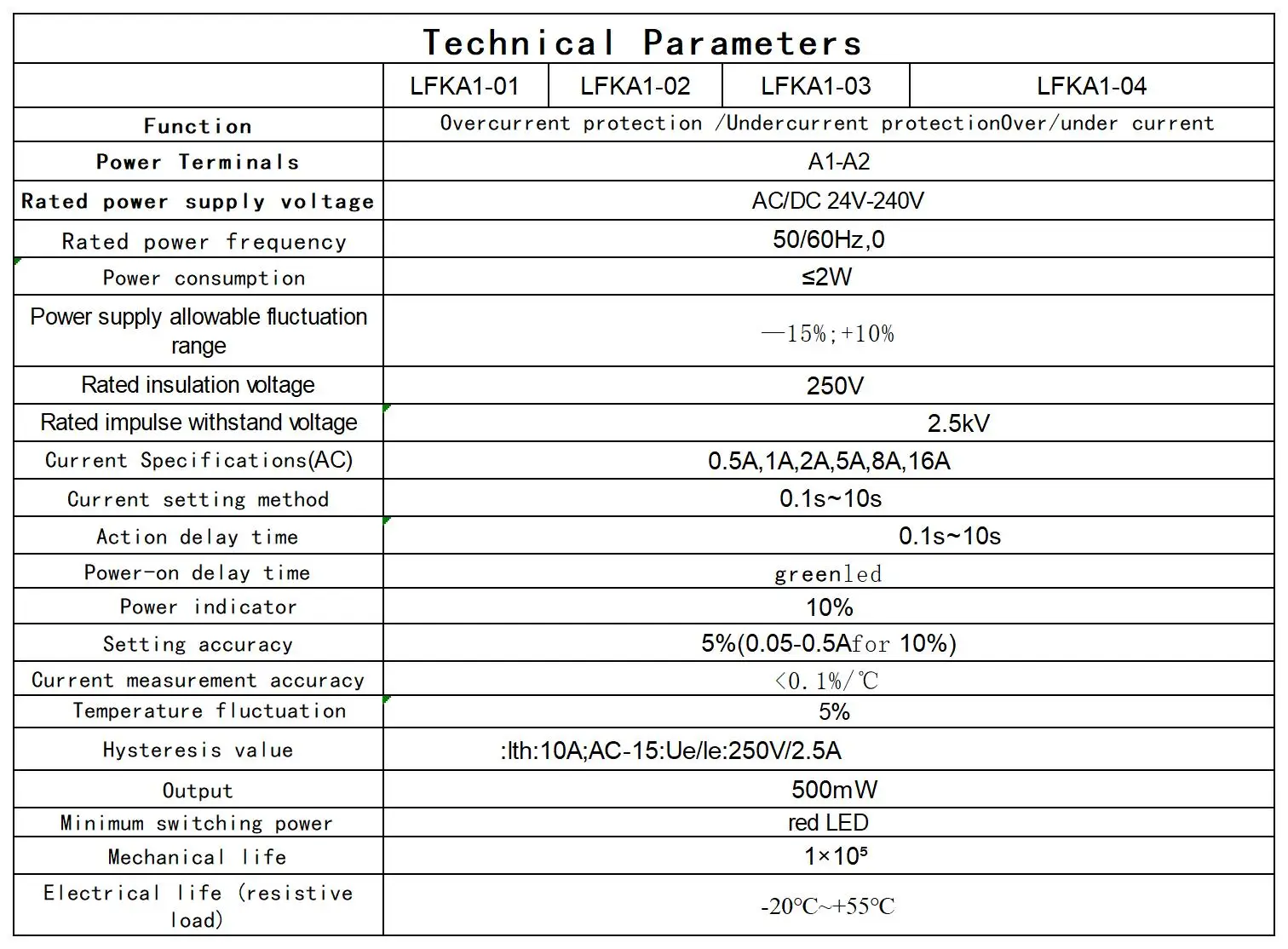

Specification
Application | - Elevator overload monitoring. - Single-phase motor monitoring current monitoring. - Current overload indication. |
Features | -Action delay time 0.1s~10s adjustable to avoid peak current. -6 current specifications optional. -Built-in isolation current transformer, and external current transformer can be connected to expand the monitoring current range. -Working power supply voltage AC/DC 24~240V. -Relay working status is indicated by LED indicator. -Ultra-small size, only 18mm width, 35mm rail installation. |
model | FRLHKA1-03 |
Installation | 35mm rail installation |
Function | Over/under current protection |
Rated power supply voltage | AC/DC 24V-240V |
Lifetime | 1×105 times |
