Vet Animal B/W Diagnostic System Medical Black And White Portable Veterinary Ultrasound Scanner
- Category: >>>
- Supplier: Waleeta Medical Co. ltdWaleeta ltd
Share on (1601289020425):
Product Overview
Description
Products Description

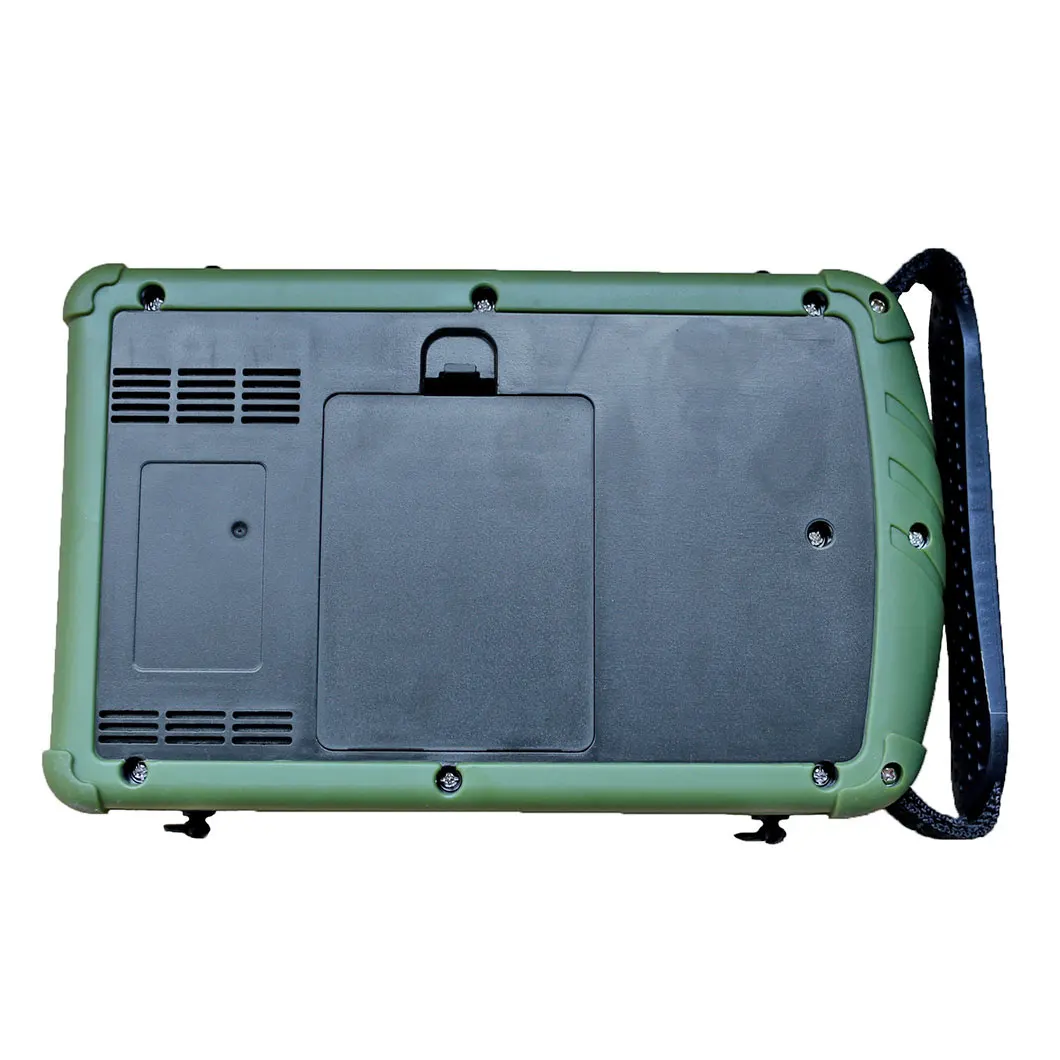

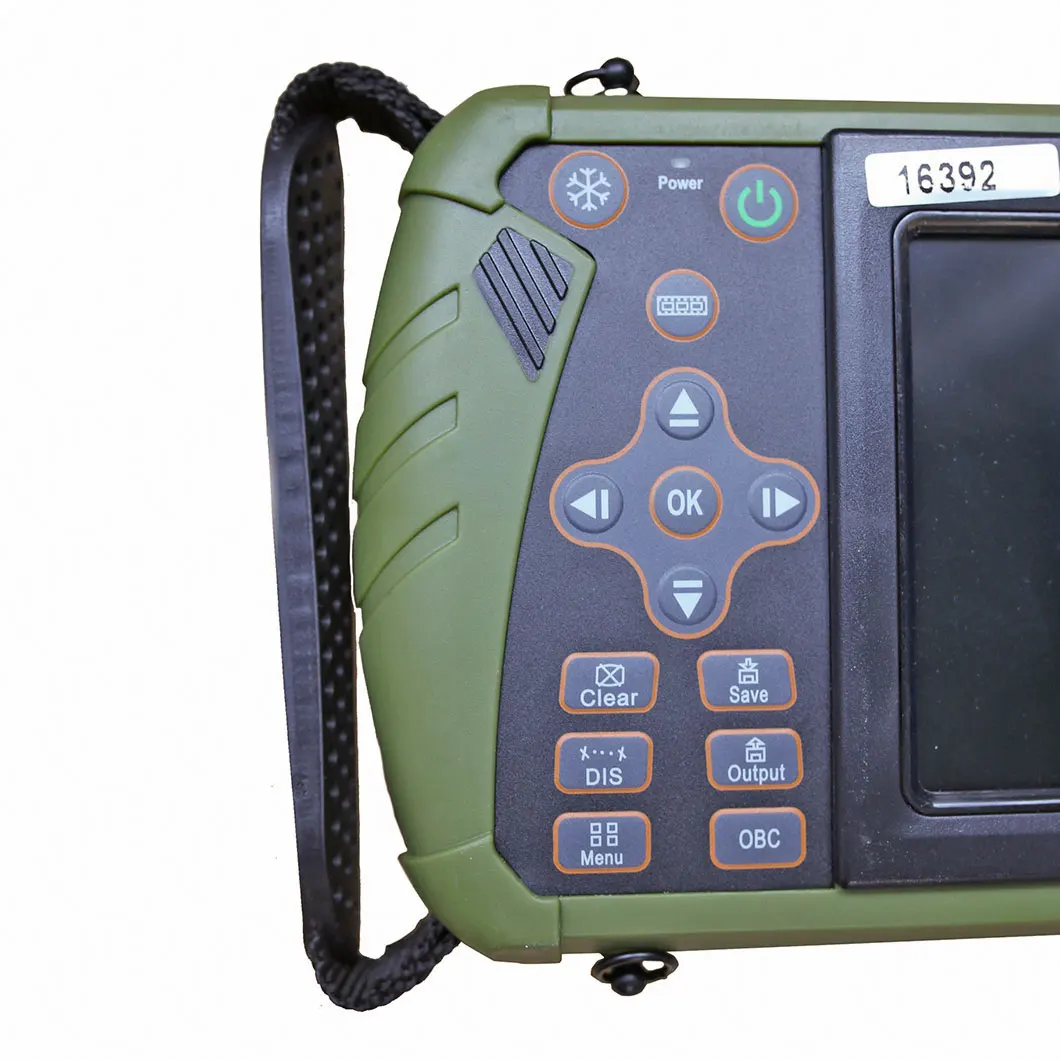

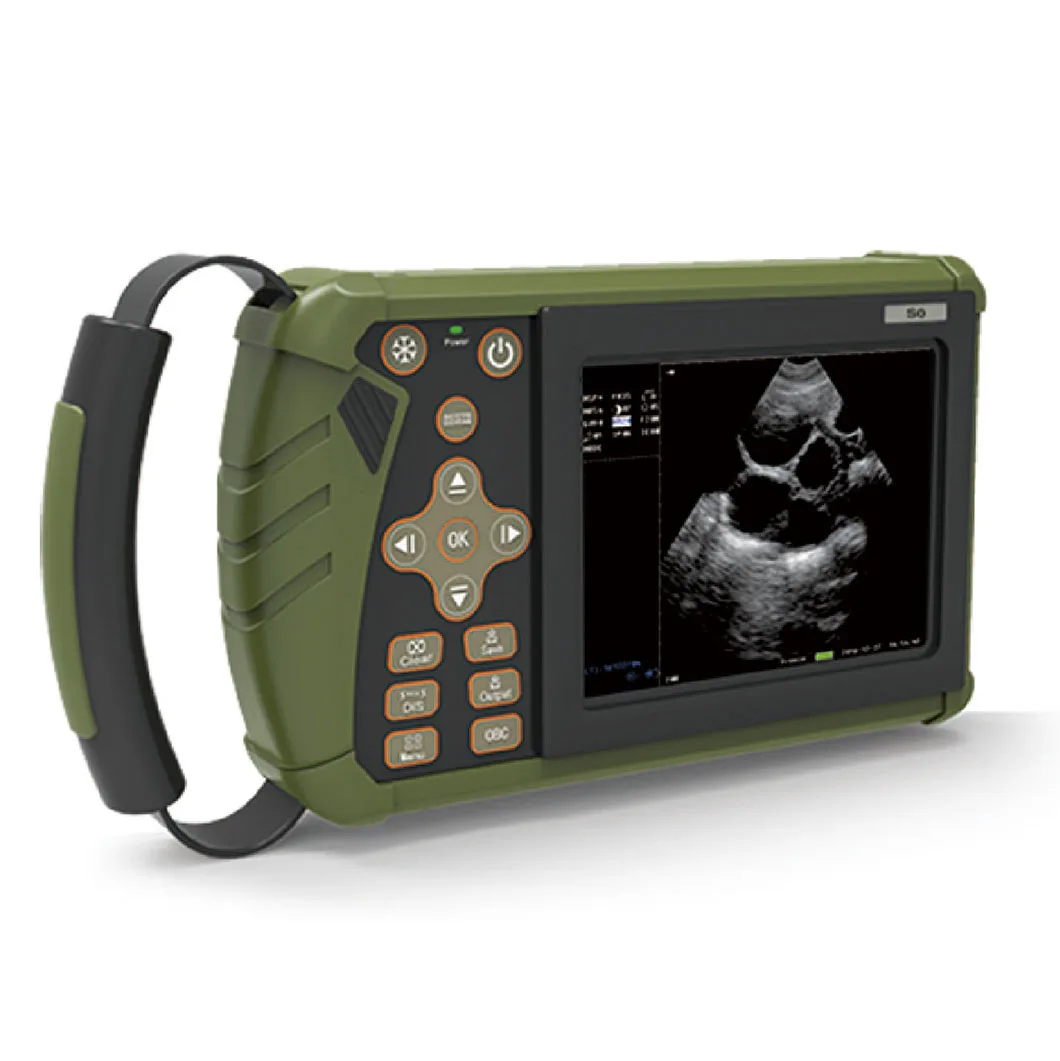

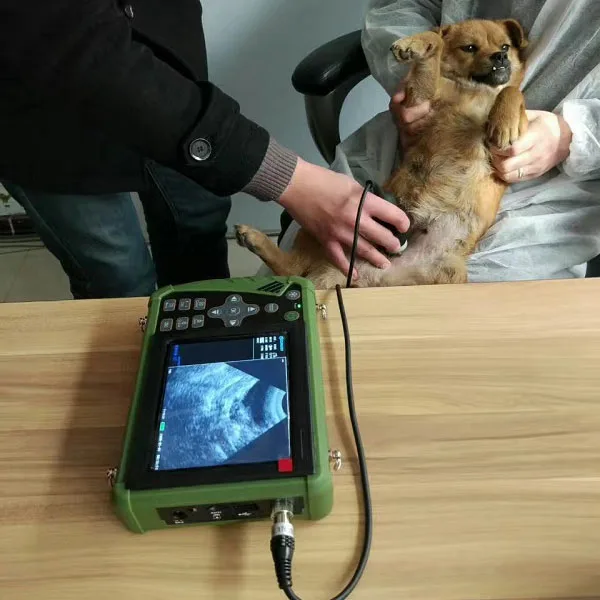

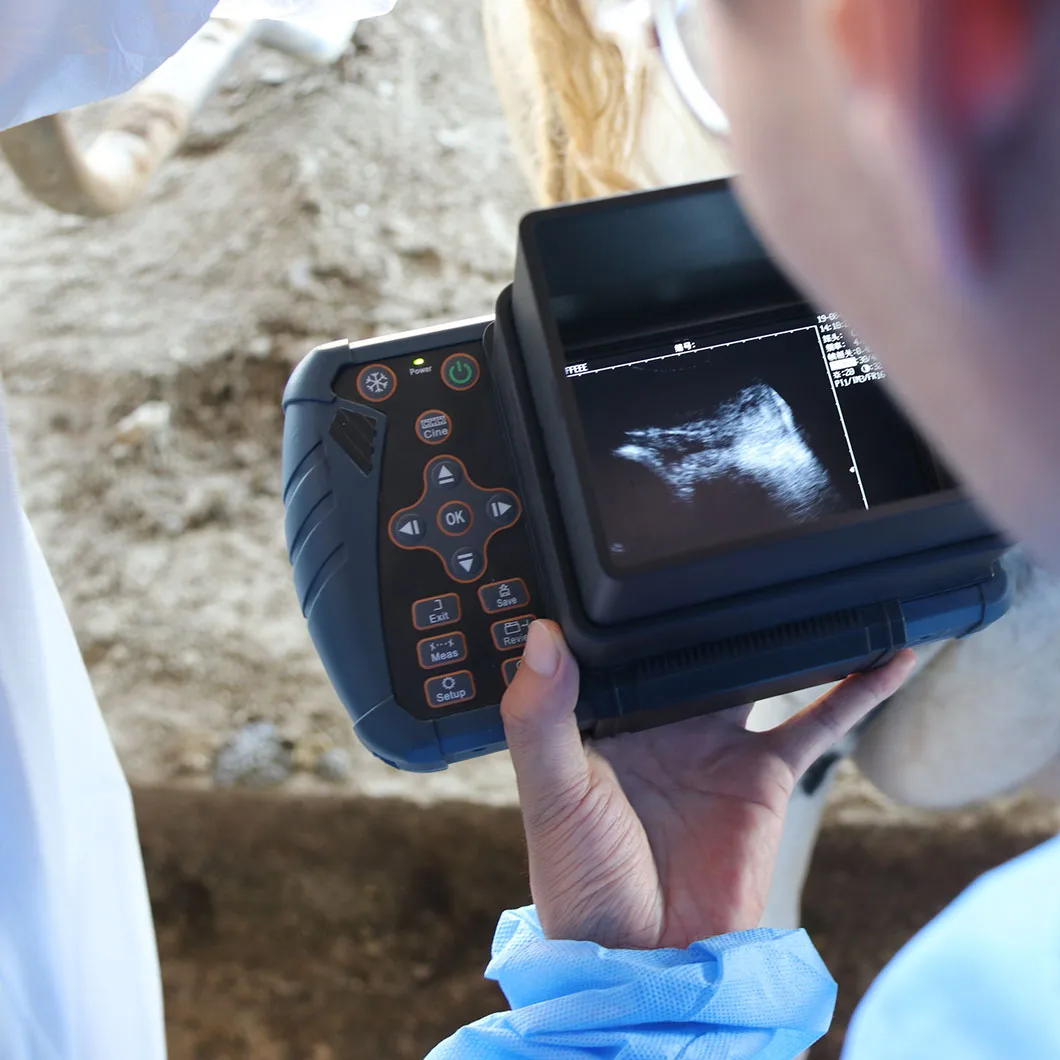

WUB-W1 Portable Veterinary B/W Ultrasound Scanner
WUB-W1 gathers the technology of computer control, digital scanning converter (DSC), broadband low noise voltage amplifier, digital logarithmic compression, digital dynamic filtering, frame correlation processing and edge enhancement to make the whole image more clearer with high resolution. Small and portable with built-in battery and waterproof probe, it’s easy to operate and get accurate diagnosis.
Features:
1. Image storage: machine is with TF card and USB port, the picture can be stored directly into the TF card, the storage can achieve unlimited expansion.
2. Image processing: up / down, left / right, black / white invert, real-time freeze.
3. The images stored in the TF memory card can be recalled frame by frame or continuously.
4. Pseudo color: 8 kinds.
5. Playback: 255 frames.
6. Large capacity plug-able mobile rechargeable lithium-ion battery with imported 18650 battery cells can work for 4-5 hours.
7. Power protection function can extend battery life.
8. One key to start the winter mode. In winter mode, the probe can be used directly without waiting for warm-up.
9. 15 levels images pre-processing make the image more delicate.
Applications:
Detect pregnancy
Estimate fetal quantities
Diagnose disease
Fetal vitality evaluation
Fetal heart beats
Applicable to: sheep, pigs ,dogs and other animals for pregnancy diagnosis (integration of six common animal gestational age measurement data kits)
measurement:
Swine: HLA, SLA
Sheep: STD, SHD, SCRL
Scope: large-scale animal farms, artificial insemination station, feed / veterinary drug distributors and business, research and teaching units
Features:
1. Image storage: machine is with TF card and USB port, the picture can be stored directly into the TF card, the storage can achieve unlimited expansion.
2. Image processing: up / down, left / right, black / white invert, real-time freeze.
3. The images stored in the TF memory card can be recalled frame by frame or continuously.
4. Pseudo color: 8 kinds.
5. Playback: 255 frames.
6. Large capacity plug-able mobile rechargeable lithium-ion battery with imported 18650 battery cells can work for 4-5 hours.
7. Power protection function can extend battery life.
8. One key to start the winter mode. In winter mode, the probe can be used directly without waiting for warm-up.
9. 15 levels images pre-processing make the image more delicate.
Applications:
Detect pregnancy
Estimate fetal quantities
Diagnose disease
Fetal vitality evaluation
Fetal heart beats
Applicable to: sheep, pigs ,dogs and other animals for pregnancy diagnosis (integration of six common animal gestational age measurement data kits)
measurement:
Swine: HLA, SLA
Sheep: STD, SHD, SCRL
Scope: large-scale animal farms, artificial insemination station, feed / veterinary drug distributors and business, research and teaching units
Technical Specifications | ||
Scanning mode | mechanical sector scan | |
Frequency | 2.5MHZ, 3.0MHZ, 3.5MHZ, 5.0MHZ | |
Display mode | B、B+B | |
Depth | 46-208mm，adjustable | |
Gain control | far field, near field, main gain | |
Frame frequency | 30frames/s | |
Grey map | 256 | |
Magnifications | 15 kinds | |
Monitor | 5.6inch LED | |
Measurement | distance, perimeter, area, gestational age, etc. | |
Extend ports | Mini USB port, TF card slot | |
Power consumption | 13W(working in non-charging state)/25W(working in charging state) | |
Machine dimension | 240*120*45mm | |
Machine weight | 800g | |
Standard configuration:
◆ machine（including one lithium battery）
◆ 3.5MHw waterproof mechanical sector scan probe
◆ 8G TF memory card
◆ Operation manual
◆ Adapter
Optional:
◆ Extra lithium battery
◆ Adapter for car
◆ External charger
◆ machine（including one lithium battery）
◆ 3.5MHw waterproof mechanical sector scan probe
◆ 8G TF memory card
◆ Operation manual
◆ Adapter
Optional:
◆ Extra lithium battery
◆ Adapter for car
◆ External charger
Ovarian follicle
pregnancy 35 days
Product Images
