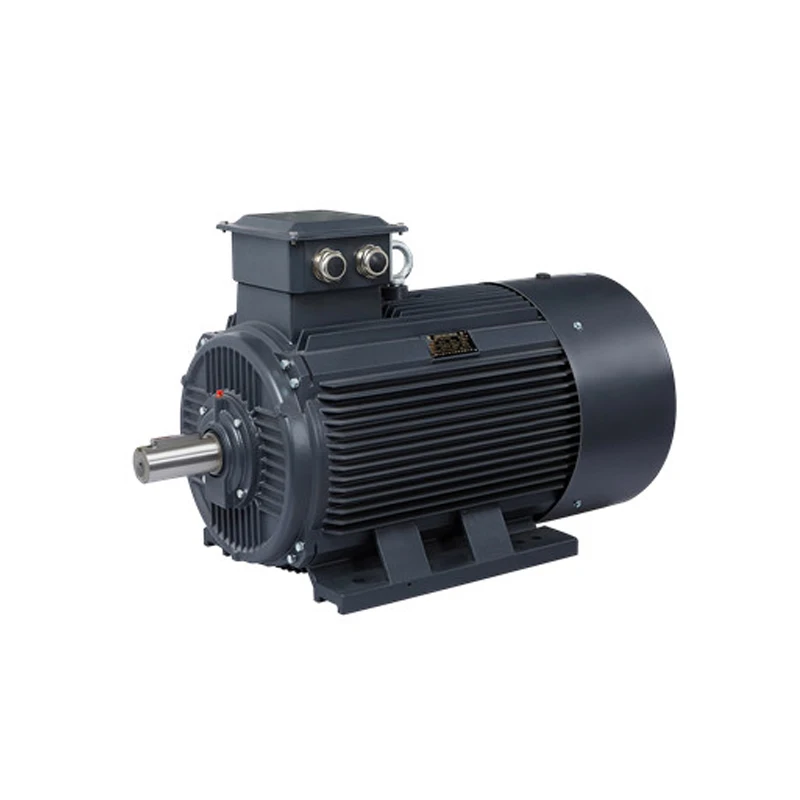

Technological Innovation Assisted Synchronous Reluctance Motor Ferrite Assisted Synchronous Reluctance Motor For Graphite
- Category: >>>
- Supplier: Zhejiang Hiatran Electric Technology Co. Ltd.
Share on (1601289052248):
Product Overview
Description
What Can Hiatran Motor Solutions Offer you?

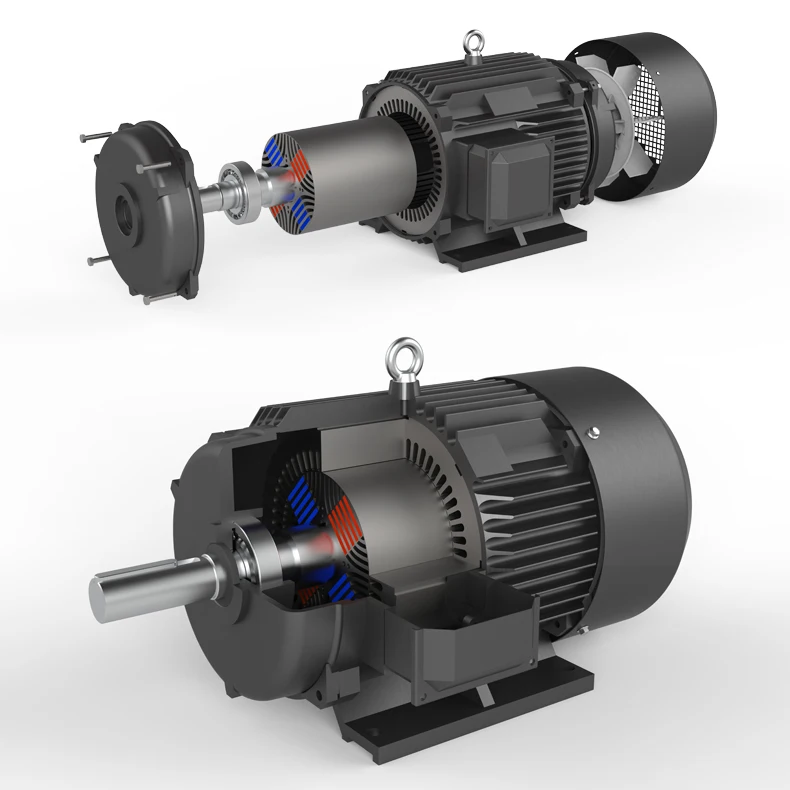

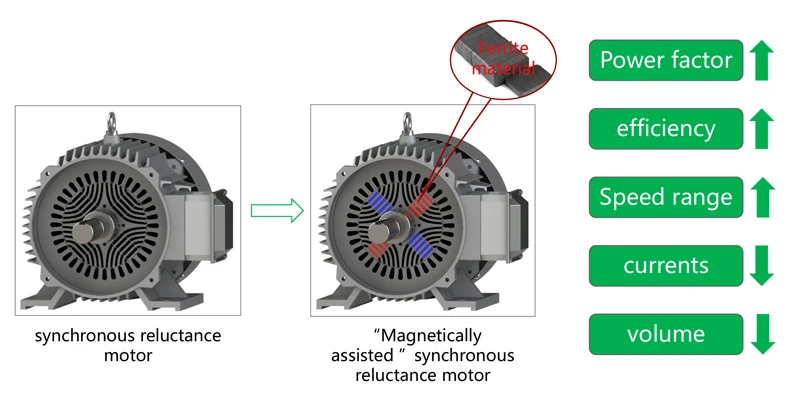

What is Magnetically Assisted Synchronous Reluctance Motor？
The magnet-assisted synchronous reluctance motor is an upgrade from the synchronous reluctance motor, which combines the features of synchronous reluctance motors (SynRM) and permanent magnet motors. Its basic principle is to achieve synchronous rotation of the rotor through the reluctance effect, while adding ferrite magnets inside the rotor to enhance performance.

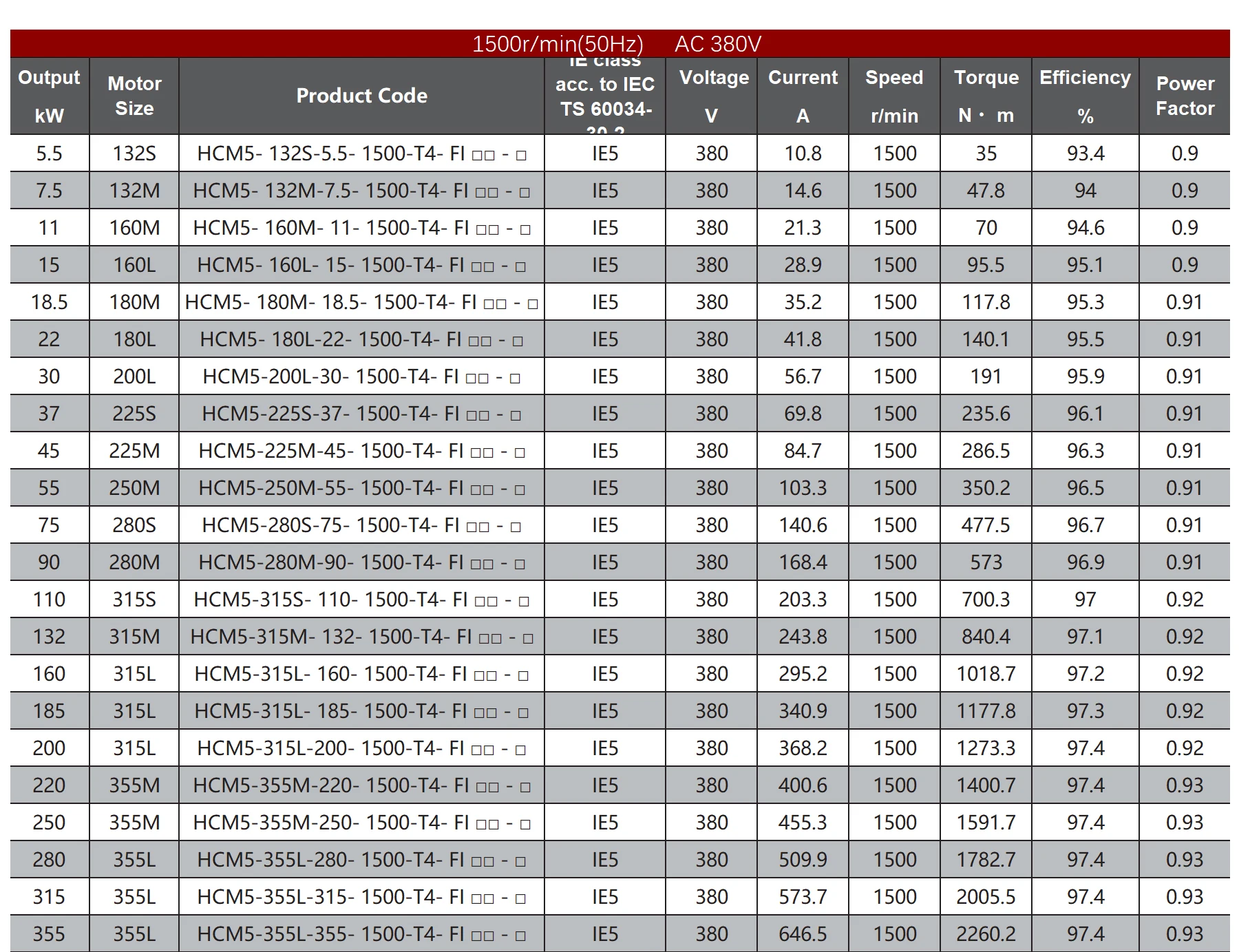

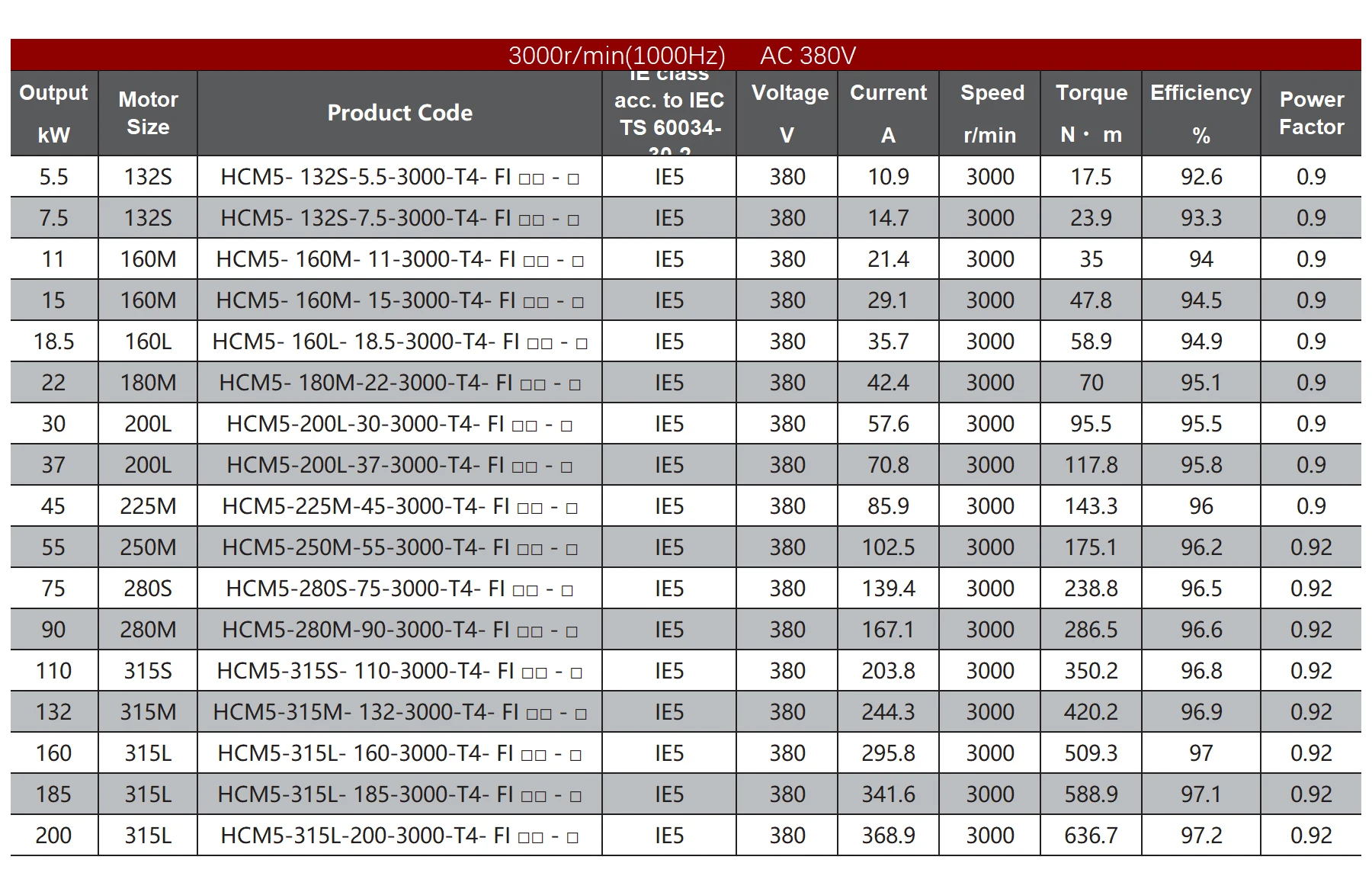

Motor Type | Magnetic Assisted Synchronous Reluctance Motor | ||||
Energy Efficiency Grade | IEC TS 60034-30-2: IE3,IE4,IE5 | ||||
Voltage | AC 380V | ||||
Vibration Level | B | ||||
Temperature rise class | F/H | ||||
Levels of Protection | IP54 IP55 | ||||
Cooling-down Method | IC411 / IC416 | ||||
Way to Install | B3/B5/B35 or other | ||||
Speed Sensor | No encoder / Incremental encoder | ||||
The Way Out of the Axis | Optical axis / Single key slot / Customization | ||||
Service Snvironment | Altitude: below 1000 meters, Temperature:-15℃--40℃ | ||||

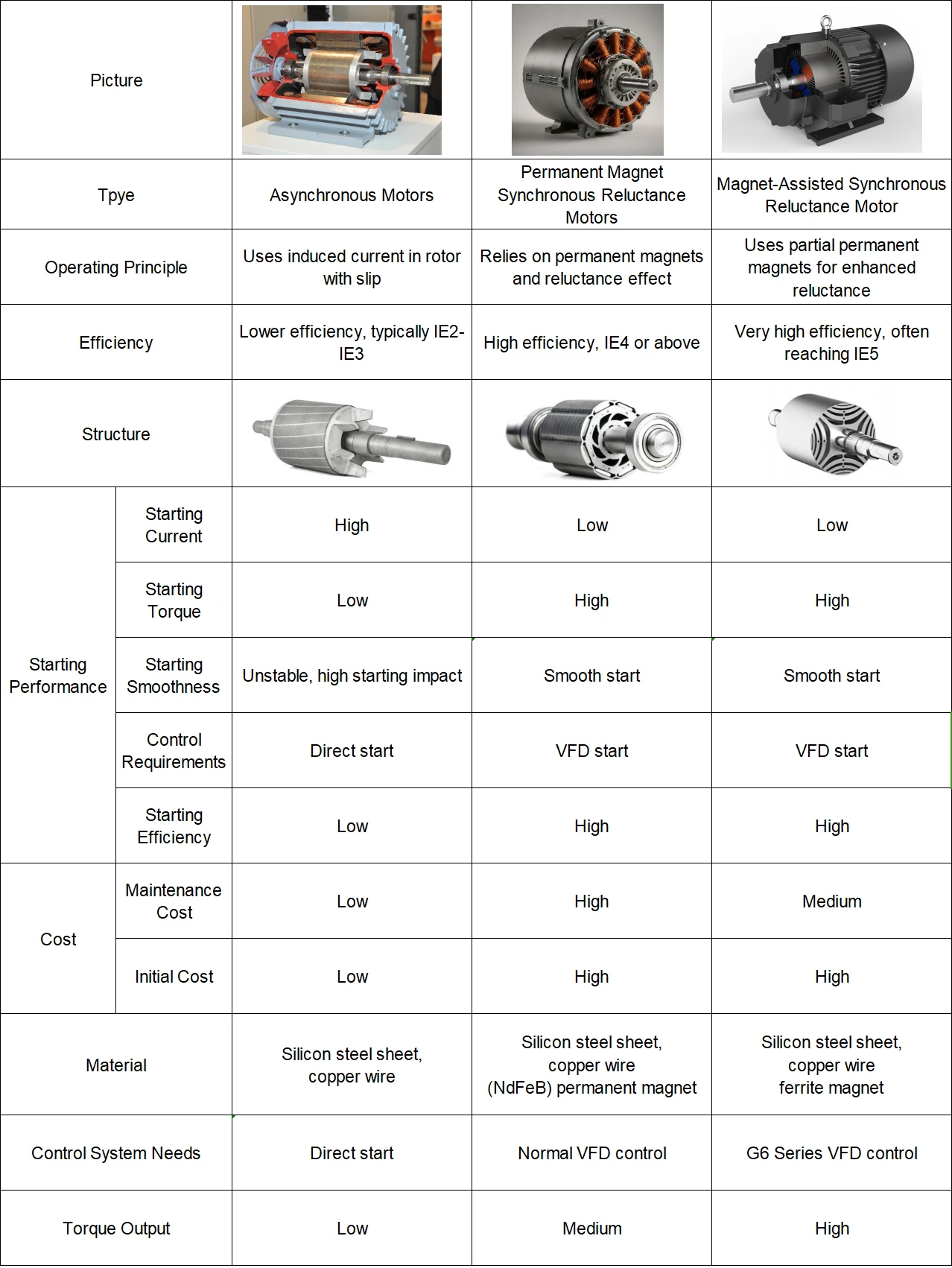

What Is The Difference With Other Motors?
Why Is It More Expensive Than A Normal Motor?
1. Synchronous reluctance motors are relatively complex to design and manufacture. Precise design to optimise the flux path. This complexity increases R&D and manufacturing costs.
2. Hiatran relies on the technical background of Zhejiang University, one of the top 10 universities in China, and has trained many technicians for subsequent customer motor solutions and maintenance.
3. Synchronous reluctance motors typically have higher energy efficiencies, especially when used with variable frequency drives (VFDs), and are capable of achieving IE4, IE5 energy efficiency standards. These high-efficiency designs require the use of better materials and more advanced manufacturing processes.
4. The operation of synchronous reluctance motors requires precise control strategies, which often rely on advanced electronic control systems such as high-performance Variable Frequency Drives (VFDs) and specialised control algorithms. These control systems also increase the overall cost of the equipment.
2. Hiatran relies on the technical background of Zhejiang University, one of the top 10 universities in China, and has trained many technicians for subsequent customer motor solutions and maintenance.
3. Synchronous reluctance motors typically have higher energy efficiencies, especially when used with variable frequency drives (VFDs), and are capable of achieving IE4, IE5 energy efficiency standards. These high-efficiency designs require the use of better materials and more advanced manufacturing processes.
4. The operation of synchronous reluctance motors requires precise control strategies, which often rely on advanced electronic control systems such as high-performance Variable Frequency Drives (VFDs) and specialised control algorithms. These control systems also increase the overall cost of the equipment.
Magnet-Assisted Synchronous Reluctance Motor Advantages

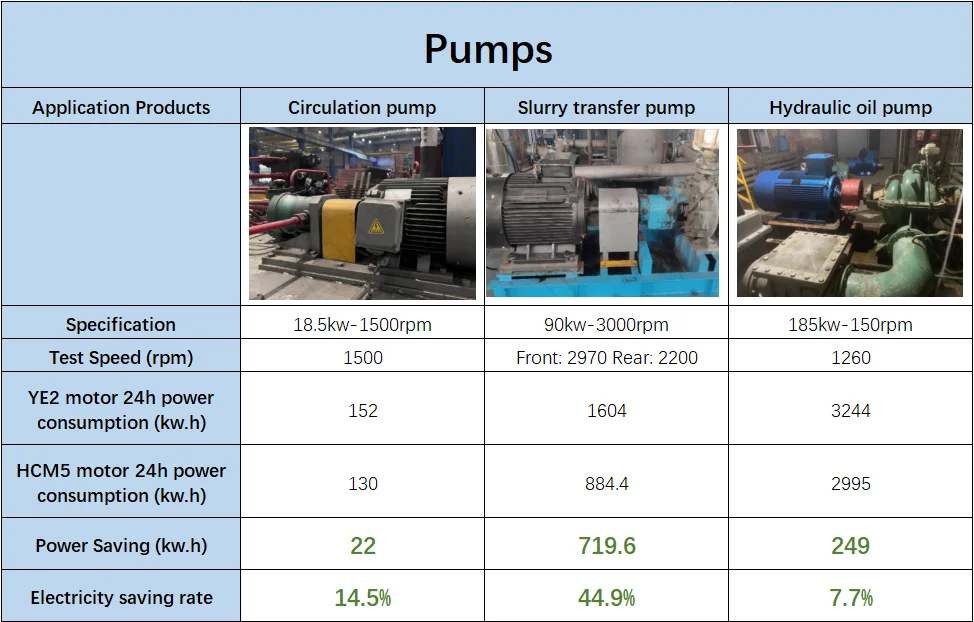

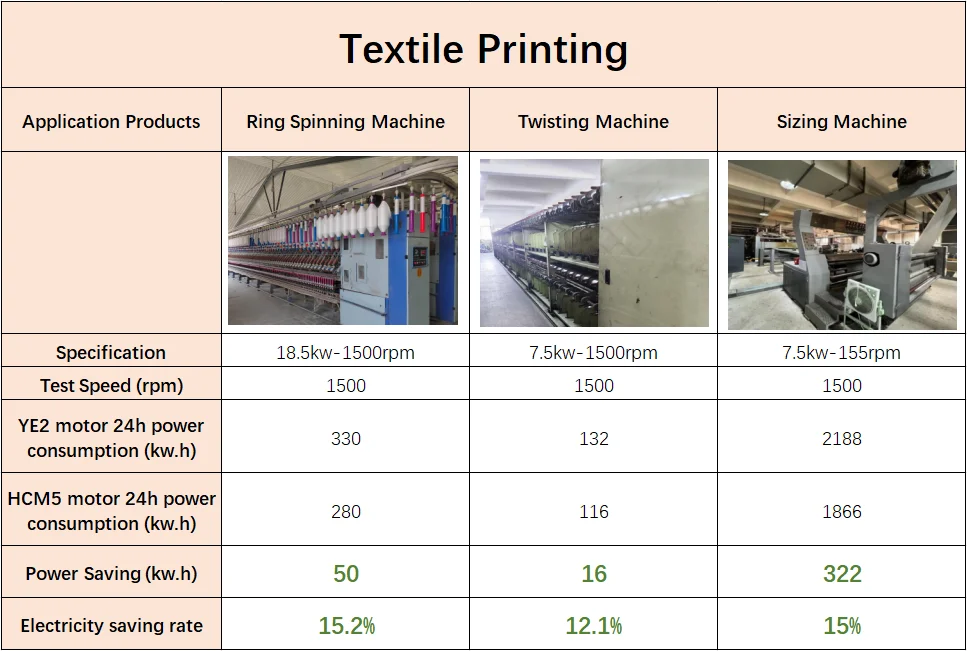

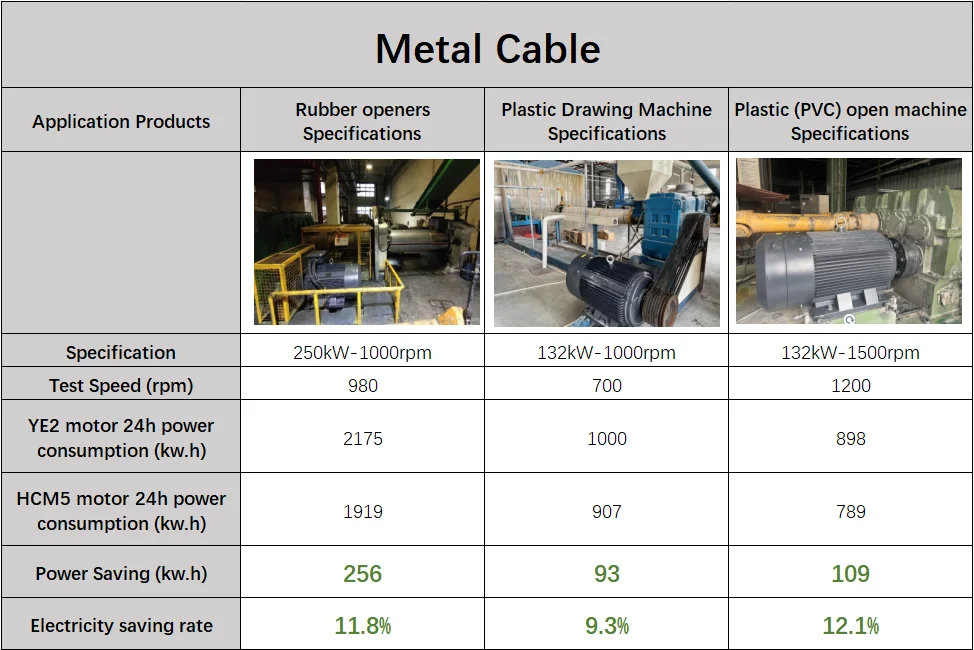

IE5 High Efficiency Energy Saving : the high efficiency operation of the motor can significantly reduce the consumption of electric energy, which can reach 15-45% energy saving efficiency. Especially suitable for industrial equipment running for a long time. The cost of replacement equipment can be recovered in 1-3 years.
High Reliability: Synchronous motors have low losses due to their simple structure. Ferrite permanent magnet material excitation, no risk of high temperature demagnetisation. Long-term efficient and stable operation.
High Economy: the motor has no rare earth permanent magnet material, high grade silicon steel sheet and other expensive raw materials, stable price, stable performance in high temperature, humidity, corrosion and other harsh environments, easy to maintain.
Reduced Carbon Footprint: under the condition of high efficiency operation, it can reduce the energy consumption per unit of production, which is in line with the demand of green manufacturing and sustainable development.
High Reliability: Synchronous motors have low losses due to their simple structure. Ferrite permanent magnet material excitation, no risk of high temperature demagnetisation. Long-term efficient and stable operation.
High Economy: the motor has no rare earth permanent magnet material, high grade silicon steel sheet and other expensive raw materials, stable price, stable performance in high temperature, humidity, corrosion and other harsh environments, easy to maintain.
Reduced Carbon Footprint: under the condition of high efficiency operation, it can reduce the energy consumption per unit of production, which is in line with the demand of green manufacturing and sustainable development.
Increase Productivity: the high dynamic response and high reliability of the motor help to increase the overall productivity of the equipment and reduce downtime.
Why Choose Us?
1. Price Advantage: Our products have more price advantage than the international famous brand synchronous reluctance motors.
2. Independent R&D and manufacturing: Our company has the independent R&D and manufacturing capability of rare-earth-free motors and drive systems, and our products have reached the IE5 energy-efficiency level of the international IEC standard, and do not need to rely on rare-earth elements, which is in line with the requirements of green environmental protection.
3. Leading technology: We have core technology in the Magnet-Assisted synchronous motor and drive matching, which can provide you with stable performance, energy-saving and efficient solutions.
4. Customised service: We provide customised motor solutions according to the actual needs of customers to ensure the best match between motors and specific working conditions and improve the overall system efficiency. At present, we have achieved a variety of customised products, air compressor motor products, deep well pump motor products, low-speed direct-drive motor products, high-speed direct-drive motor products.
5. A variety of delivery methods: the drive is independently developed by us, we can provide a variety of delivery methods, motor and matching drive delivery, motor delivery, drive delivery, drive delivery, frequency conversion algorithm authorisation delivery, drive card delivery and other delivery methods.
6. Wide range of applications: we have more than 200 cooperative users in coal mine, electric power, chemical industry, iron and steel, paper making, rubber and plastic, textile printing and dyeing, oil field and other industries. In the new energy bus, ship, forklift, nuclear power and other industries have cooperation in the development of scientific research projects. In the future, we will provide more diversified product lines. Mining all-in-one machine, water pump all-in-one machine, cooling tower motor, electric drum motor, ball mill motor.
2. Independent R&D and manufacturing: Our company has the independent R&D and manufacturing capability of rare-earth-free motors and drive systems, and our products have reached the IE5 energy-efficiency level of the international IEC standard, and do not need to rely on rare-earth elements, which is in line with the requirements of green environmental protection.
3. Leading technology: We have core technology in the Magnet-Assisted synchronous motor and drive matching, which can provide you with stable performance, energy-saving and efficient solutions.
4. Customised service: We provide customised motor solutions according to the actual needs of customers to ensure the best match between motors and specific working conditions and improve the overall system efficiency. At present, we have achieved a variety of customised products, air compressor motor products, deep well pump motor products, low-speed direct-drive motor products, high-speed direct-drive motor products.
5. A variety of delivery methods: the drive is independently developed by us, we can provide a variety of delivery methods, motor and matching drive delivery, motor delivery, drive delivery, drive delivery, frequency conversion algorithm authorisation delivery, drive card delivery and other delivery methods.
6. Wide range of applications: we have more than 200 cooperative users in coal mine, electric power, chemical industry, iron and steel, paper making, rubber and plastic, textile printing and dyeing, oil field and other industries. In the new energy bus, ship, forklift, nuclear power and other industries have cooperation in the development of scientific research projects. In the future, we will provide more diversified product lines. Mining all-in-one machine, water pump all-in-one machine, cooling tower motor, electric drum motor, ball mill motor.
FAQ
Who are we?
Zhejiang Hiatran Electric Technology Co. Ltd is located by the beautiful West Lake relying on the strong industrial technology background of Zhejiang University. It is a high-tech enterprise mainly engaged in the research and development, production,and sales of industrial high-efficiency motors and drives.
What services can we provide?
Why should you buy from us not from other suppliers?
How does your factory control quality?
What is your terms of delivery?
What is the payment term?
Normally we accept T/T (30% deposit before production and the balanced before shipment ),also we can make L/C or other payment term if request.
Zhejiang Hiatran Electric Technology Co. Ltd is located by the beautiful West Lake relying on the strong industrial technology background of Zhejiang University. It is a high-tech enterprise mainly engaged in the research and development, production,and sales of industrial high-efficiency motors and drives.
What services can we provide?
The company's main product is ferrite assisted synchronous reluctance motors and supporting drivers. We also offer separate delivery options for inverter algorithmsand drive boards.
Why should you buy from us not from other suppliers?
Hiatran has more than 10 years of experience in the development and production of motor drives. Our core competence is rare earth-free high-efficiency motor and drive matching development capability.
How does your factory control quality?
All the material purchasing and production quality control are strictly following the IS09001 management system, Besides the in-house quality control , we also applied different certificates for our products.
What is your terms of delivery?
We accept FOB, CIF, EXW etc. You can choose the one which is the most convenient or cost effective for you.
What is the payment term?
Normally we accept T/T (30% deposit before production and the balanced before shipment ),also we can make L/C or other payment term if request.
