Factory Direct Sale Soil Brick Machine Making Automatic Brick Making Machine Clay



Product Description


 Brief Introduction

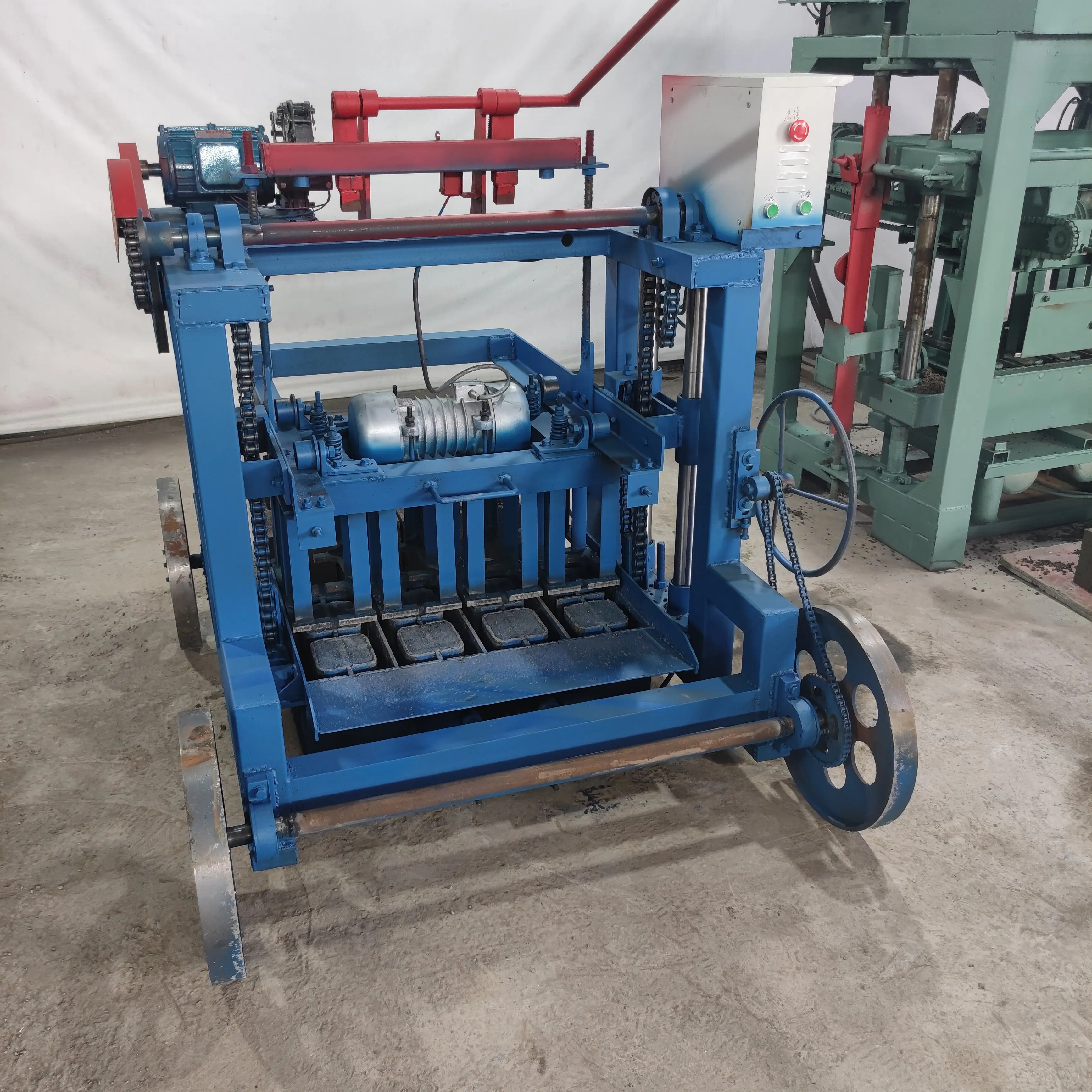

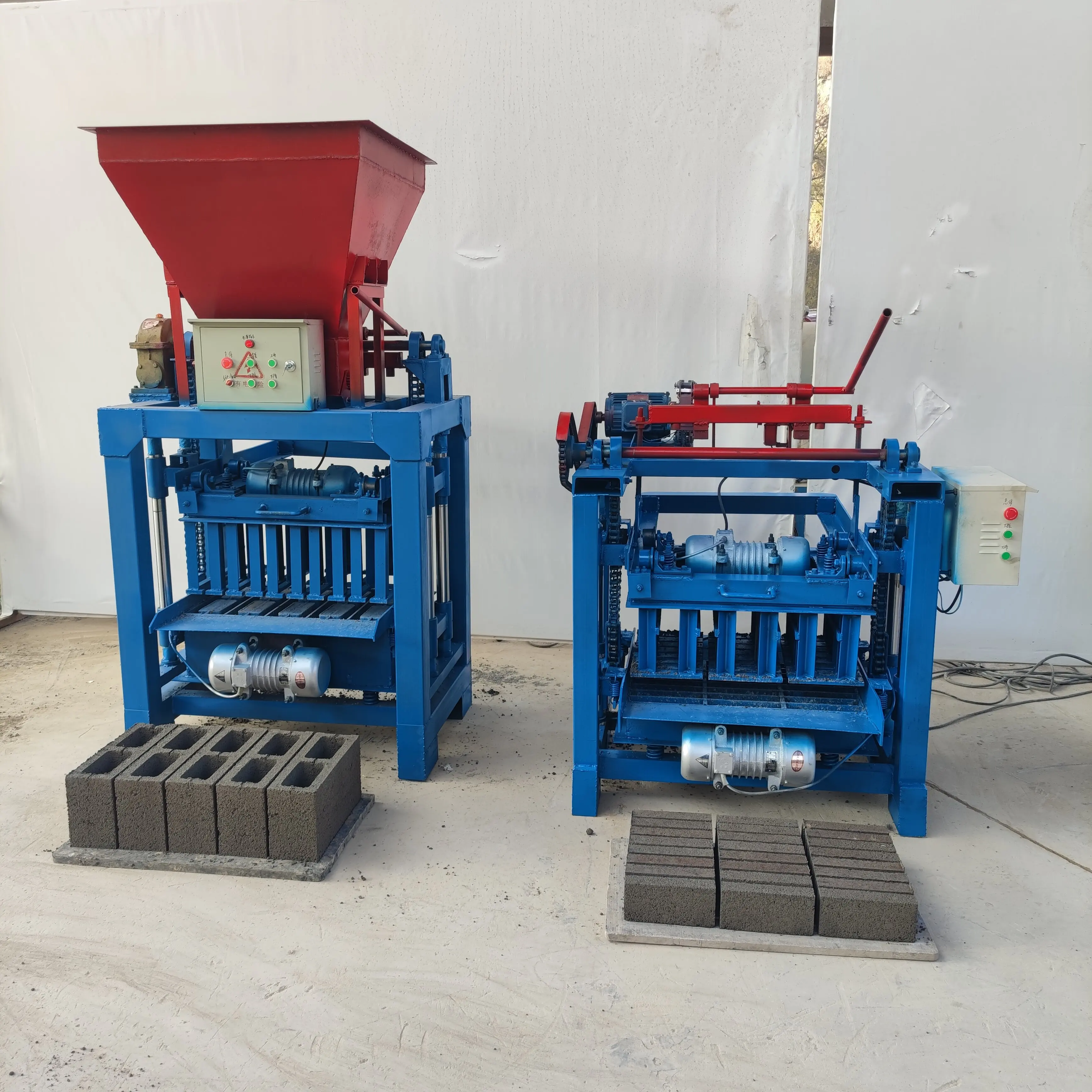

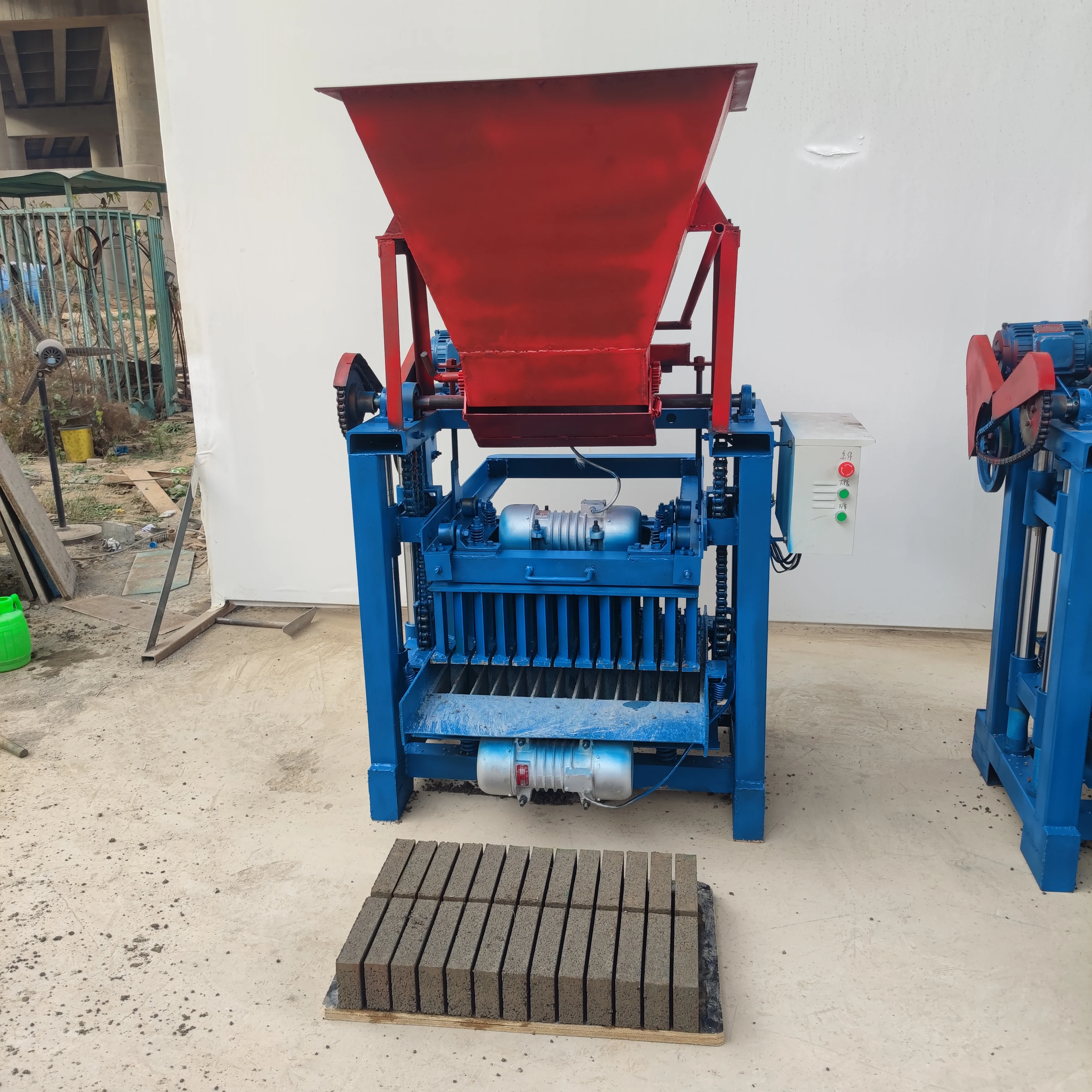

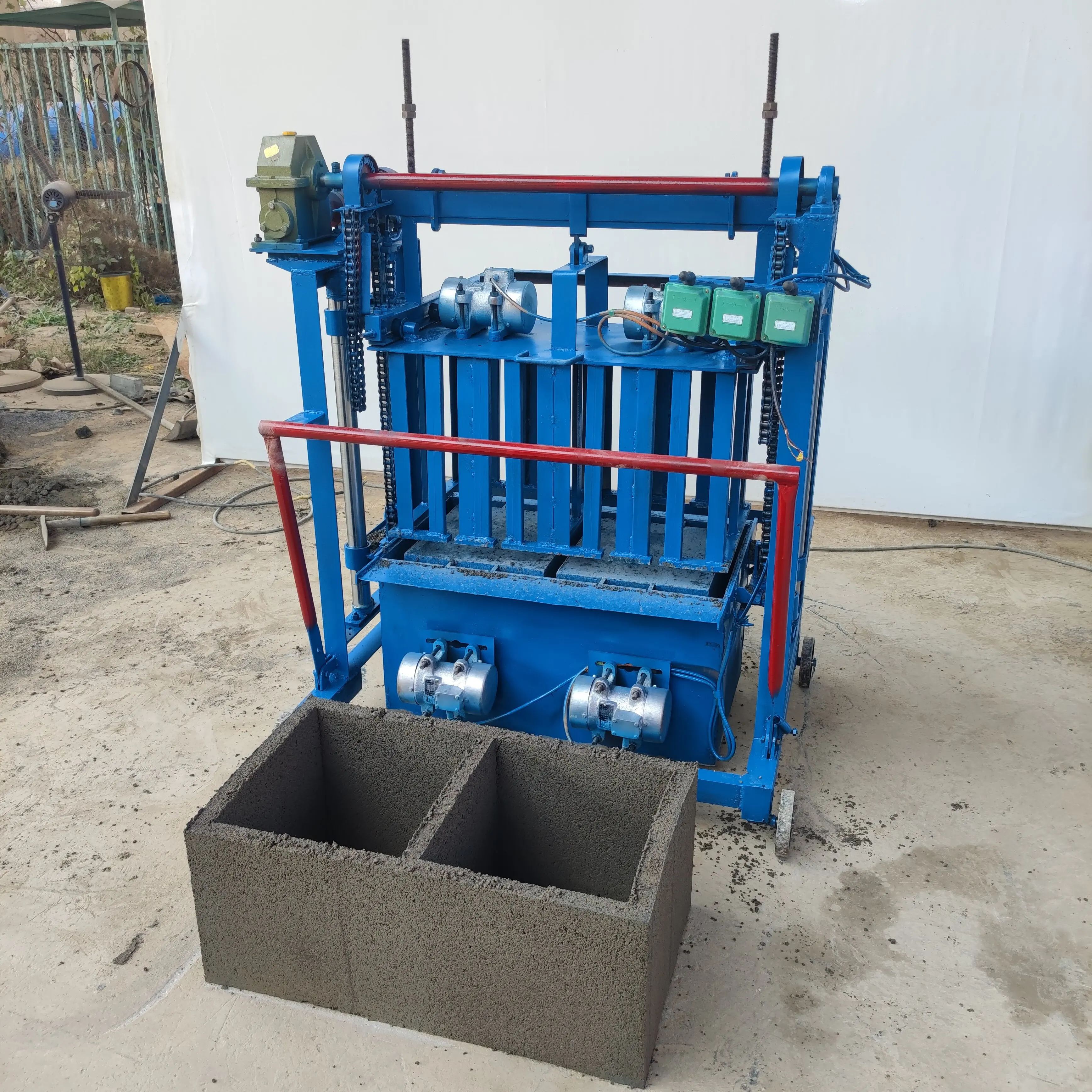

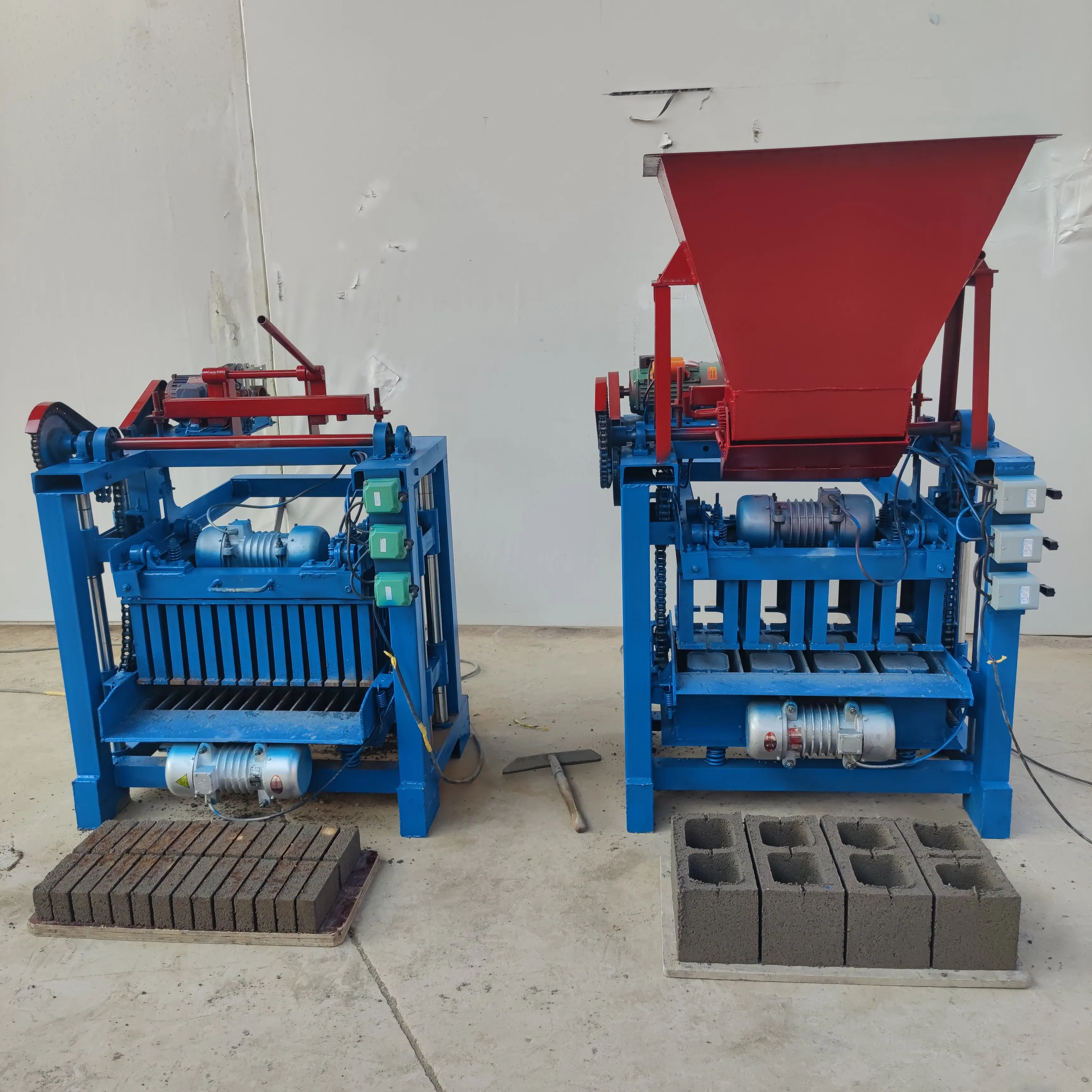

1)YGQT4-25 block machine is one of our newly designed block making machines.With less power, it achieves super strong vibration.It adopts full automatic spiral material laying method,so the material in the mould is well-distributed.With simple operation and high productivity,when producing hollow blocks,it has an advantage over the large hydraulic block machines.
2)It uses 350 type speed reducer to raise and lower the mold,so it greatly increased the usage life of the speed reducer.It combines pressure and super vibration.The lower vibration adopts two 3kw vibrators and the upper vibration adopts two 1.5kw vibrators,so the blocks made by this machine has high strength and nice shape.Its performance and product quality are comparable to the large equipment.
















































































Main Technical Specifications
Overall Dimension4800×1600×2600mm
Rated pressure15MPa
Main vibration formPlatform vibration
Exciting force42KN
Cycle Time25 seconds
Vibrating Frequency50-70HZ
Main Motors Power15.5kw
Pallet Size880*550(mm)
Raw Materialscrushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes
Applied Productsconcrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks (without color), etc.

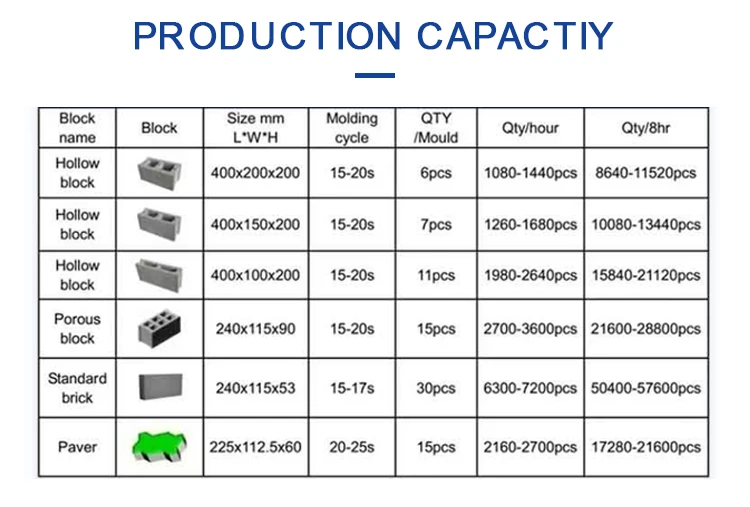

Productivity of YGQT4-25 concrete block making machine
ItemSize (L*W*H)mmCycle moldingQTY/MouldPer hour
Hollow brick 400*200*20020-25s4pcs580pcs
Hollow brick 400*150*20020-25s5pcs720pcs
Standard brick250*115*7520-25s18pcs3000pcs
















FAQ


1. Q: Are you trading company or manufacturer?


    A: We are original equipment manufacturer.


2. Q: How long is your delivery time?


    A: It is according to the model and quantity.


        Generally it is 3-5 days if the machines are in stock.


        It will be 15-30 days if you want to customize the machines.


3. Q: Do you provide samples? Is it free or extra?


    A: Yes, we could offer you the sample machine.


        But it's not free. You need to pay for the sample and the cost of freight.


4. Q: What is your terms of payment?


    A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.


        Payment<=USD 5000, 100% in advance.


        Payment>=USD 5000, 30% T/T in advance, balance before shipment.
