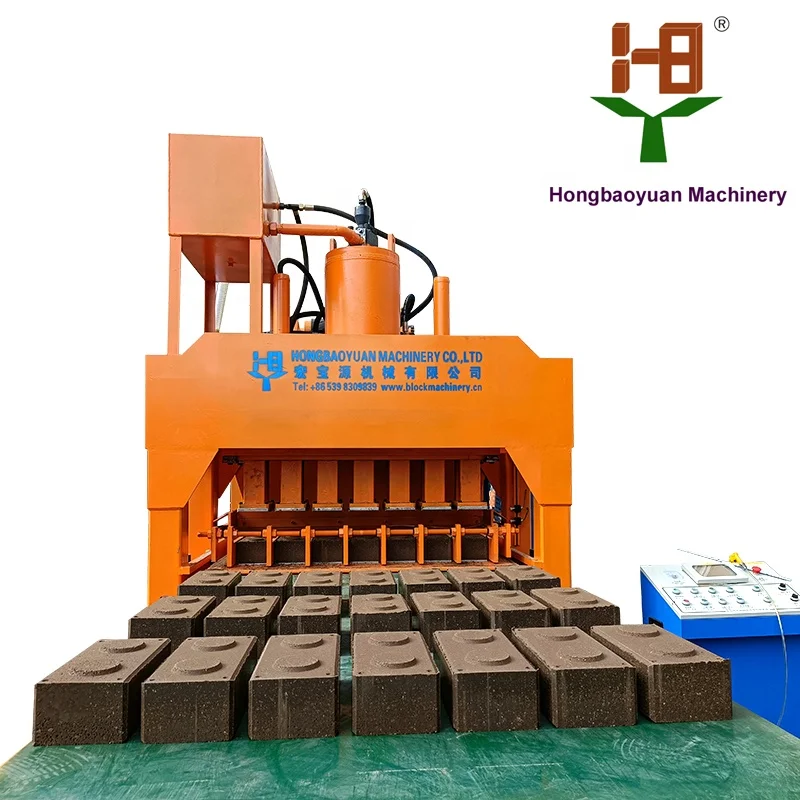

HBY7 10 Automatic Clay Interlocking Brick Machine Block Making Machinery Cay Brick Pressing Machine
- Category: >>>
- Supplier: Linyi Leading International Trading Co. Ltd.Linyi Ltd.
Share on (1601289285483):
Product Overview
Description
Product Description

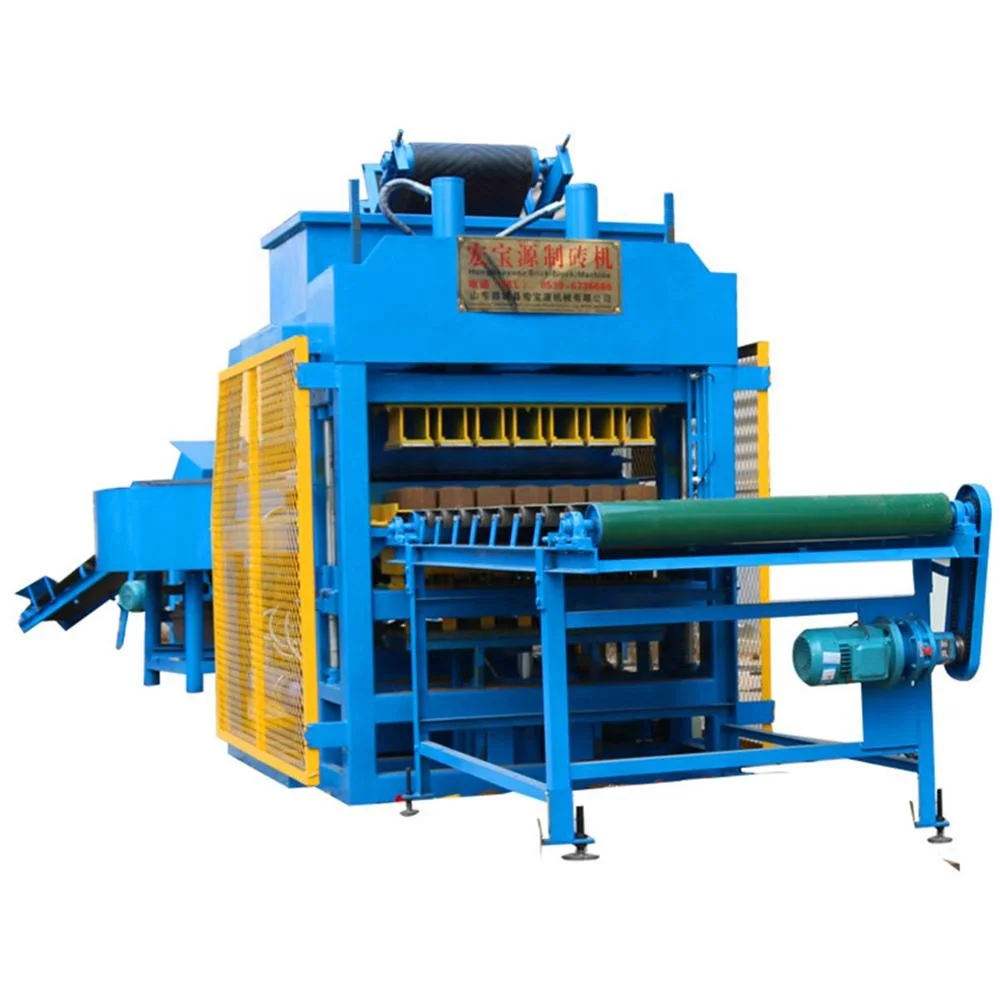

HBY7-10 Automatic Clay Interlocking Brick Machine Block Making Machinery Cay Brick Pressing Machine
Working Video:https://youtu.be/knA3MXzZaZEhttps://youtu.be/DfaaAvhOQfc
https://youtu.be/c4nqqiyp9vc (with brick stacker)
whatsapp/mob:+86 18306506031
LC7-10 advantages:
1.Function
Full automatic hydraulic adobe blocks making machine can produce various interlocking bricks by changing moulds.
2. Large capacity
Making 7 bricks at one time, and shaping cycle only 8~10 seconds, so the daily capacity as high as 20000 pieces/8hours.
Best Choice for Large-scale Block Factory

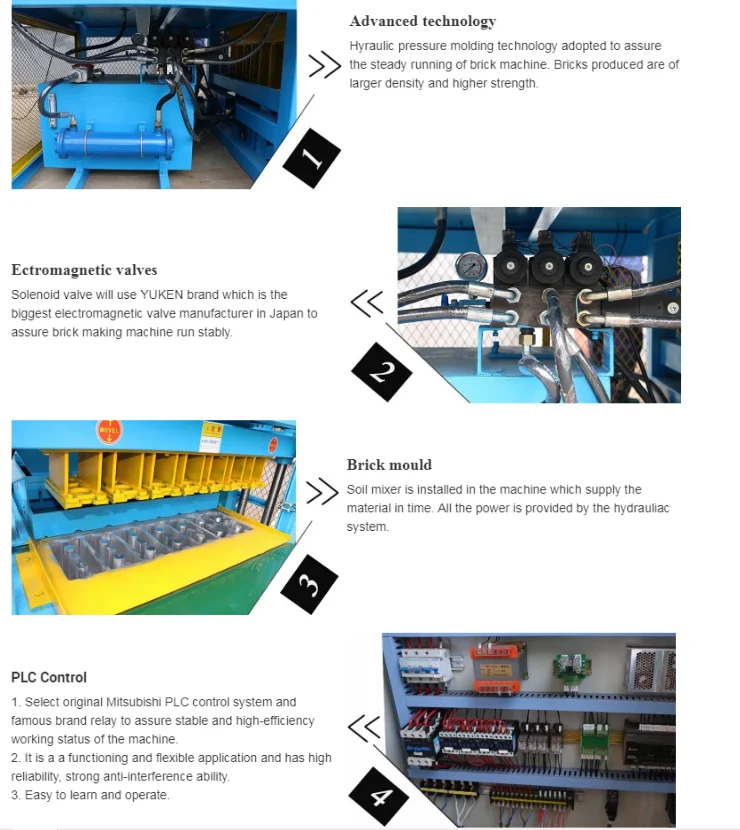

3. Advanced technology
Hydraulic pressure technology is adopted by this machine, the pressure can be as high as 60Mpa, so the blocks produced are of good
quality, large density and high strength. Four guidepost, the moulds rise/drop steadily.
4. PLC control system
Adopt the proportional valves, can adjust the pressure through PLC control system.
There are two oil cylinder on top mould and one oil cylinder under down mould, up and down press at same time, the brick is much
stonger.
There is the touch screen attached in PLC control box, can adjust the pressure through the touch screen, it is so easy.
5. High quality mould
Adopt the plunger pump and proportional valves, the pressure is double. All mould use precise wire cutting and carburizing heat
treatment to prolong its service ce life.The mac machine frame is made of special thick steel and using special welding
techniques. The whole machine is strong and durable.
6. Hydraulic Press
100Ton-120Ton Hydraulic Press, High Strength of Interlocking Brick and pavers
Specification
Product Name | LC7-10 interlocking brick machine |
Dimension | 2660x1900x2380mm |
Shifting cycle | 7-10s |
Shifting method | Hydraulic pressure |
Power | 18.5kw |
Pressure | 30-35mpa |
Total Mass | 2900kgs |
Rate voltage | 380v-440v as request |

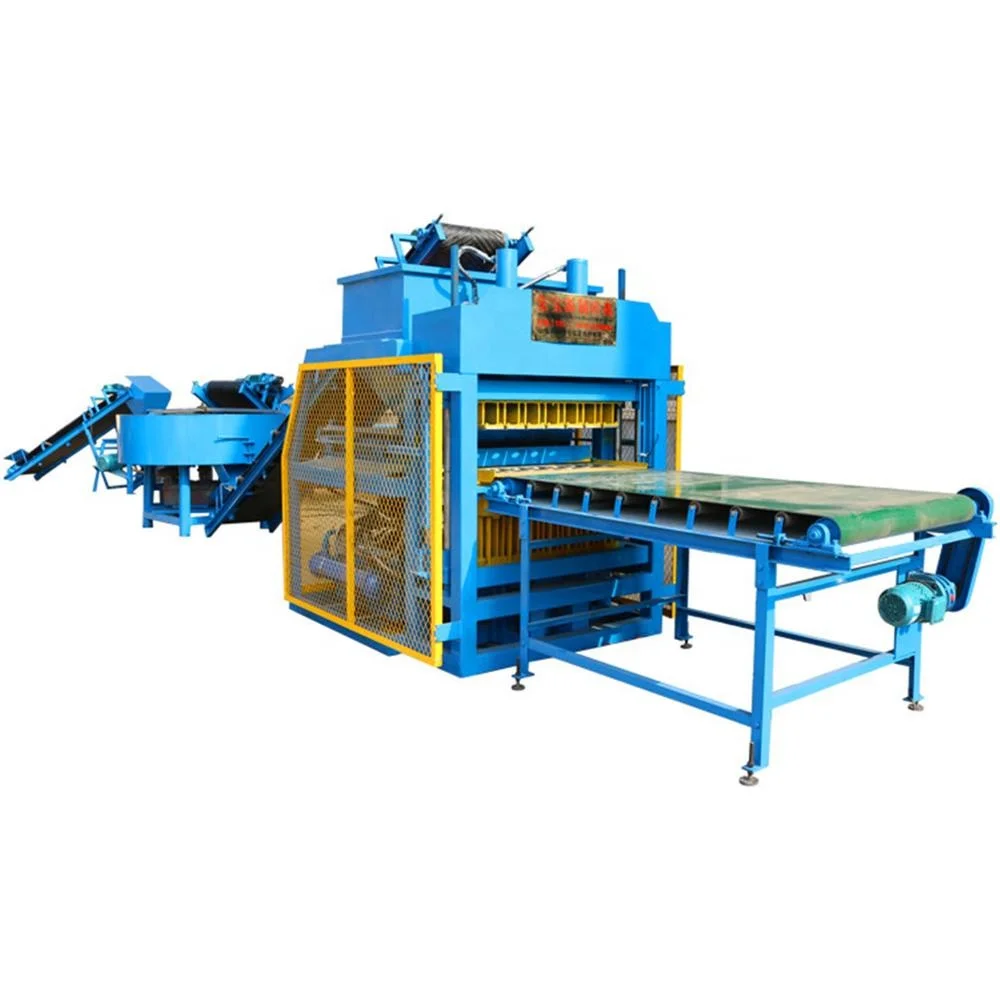

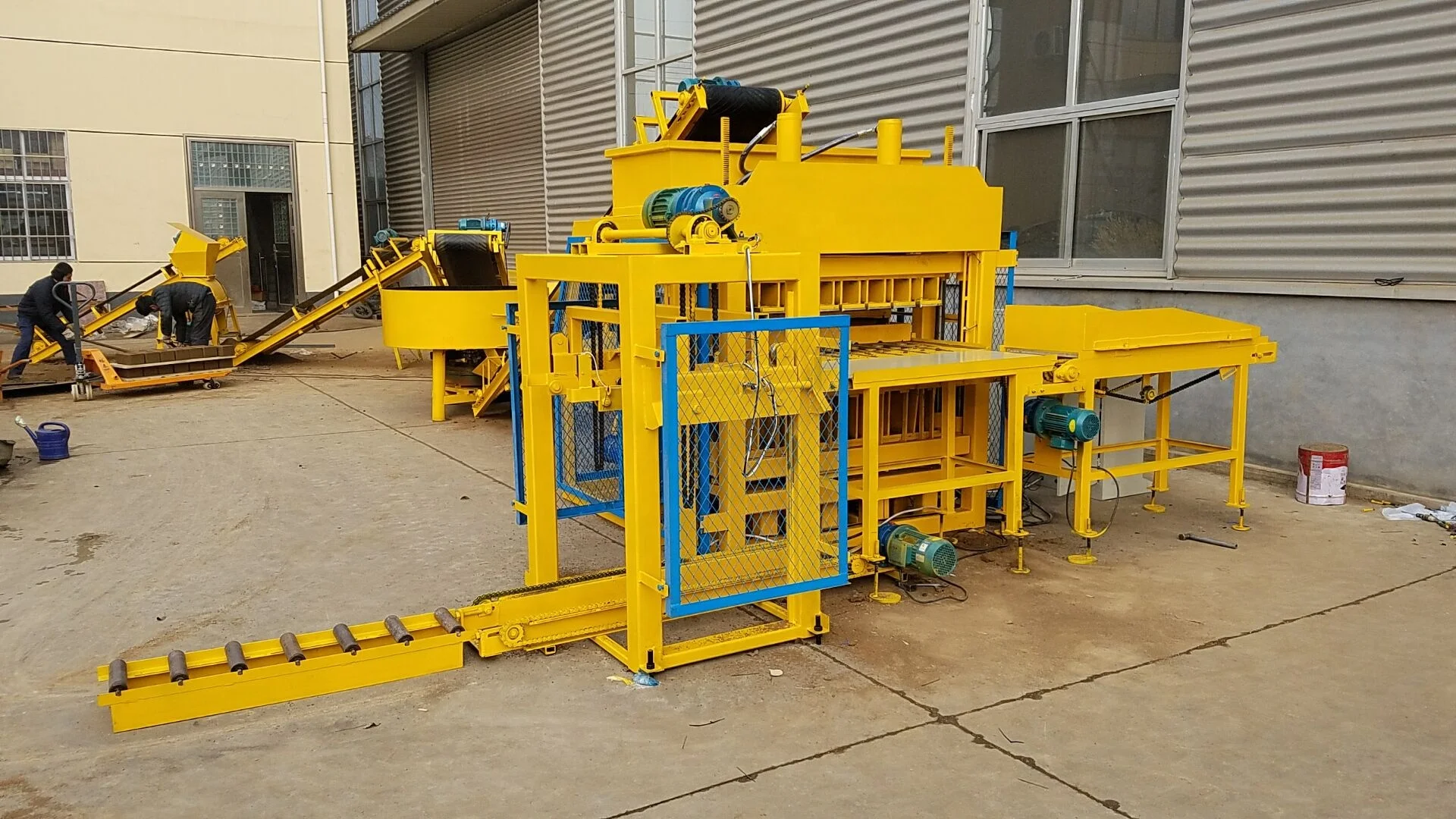

New type, with brick stacker and use pallets
Other details for LC7-10 Interlocking Soil pavement bricks making machinery

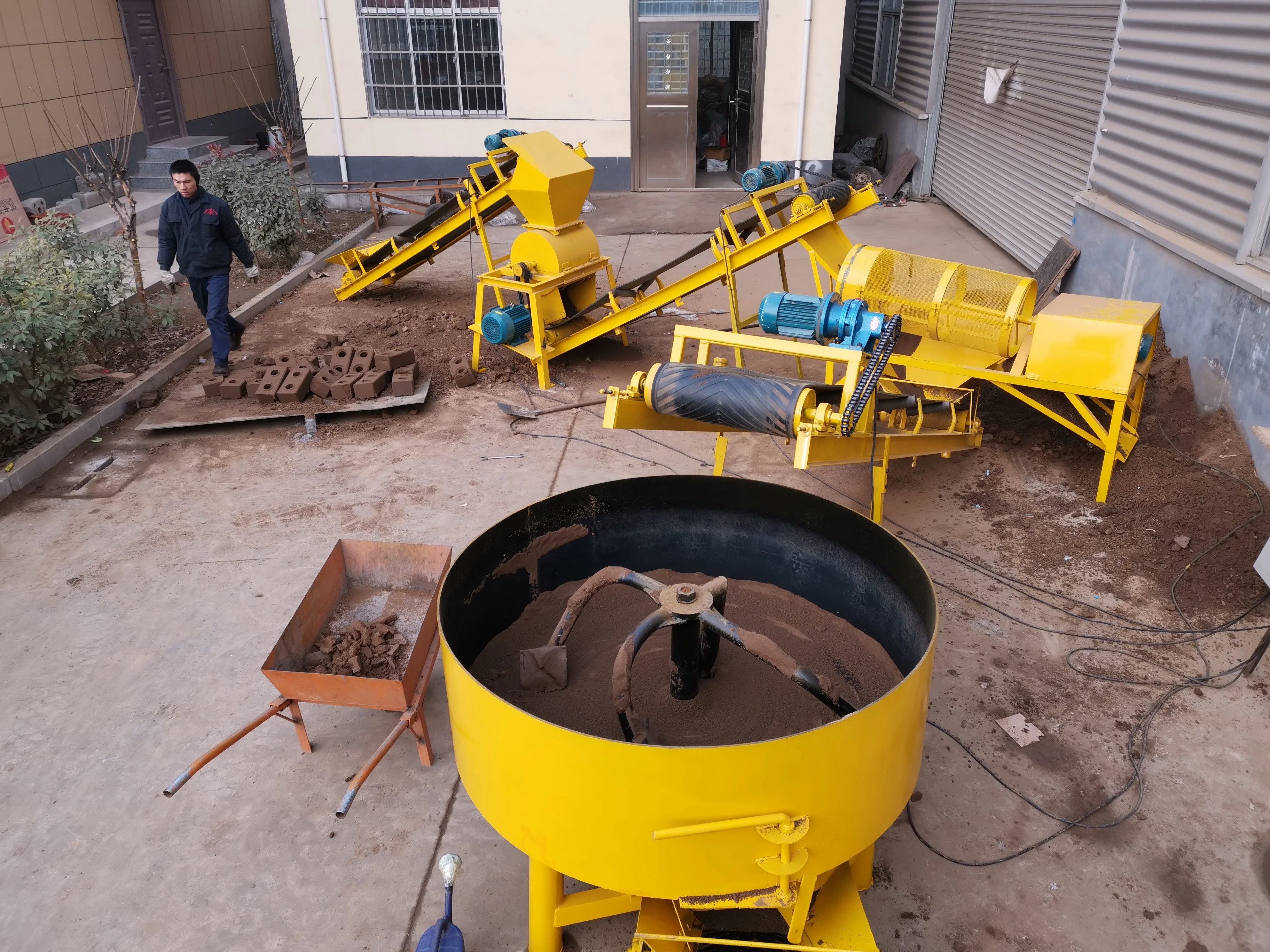

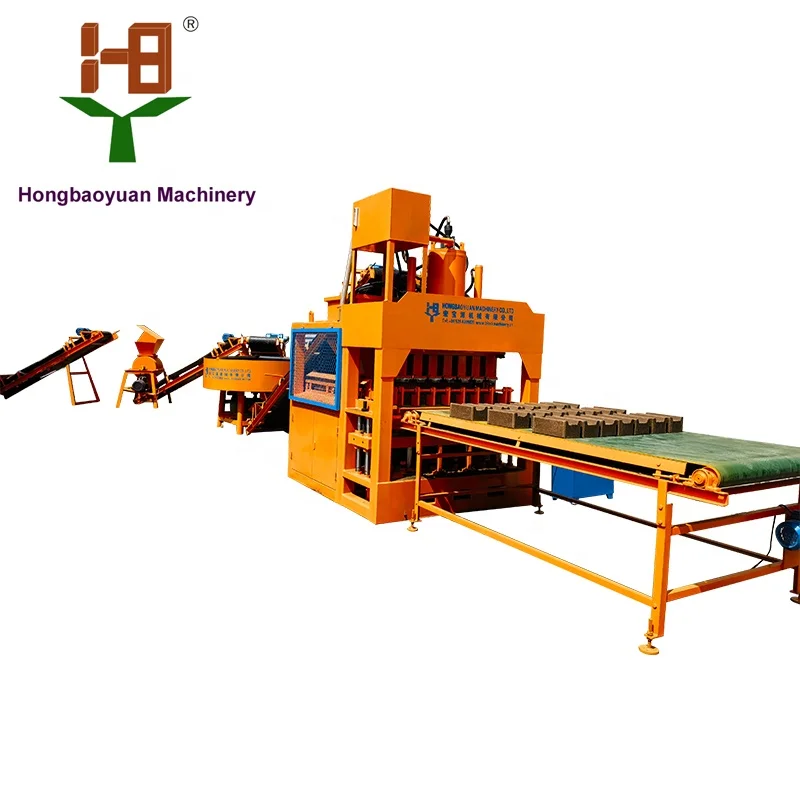

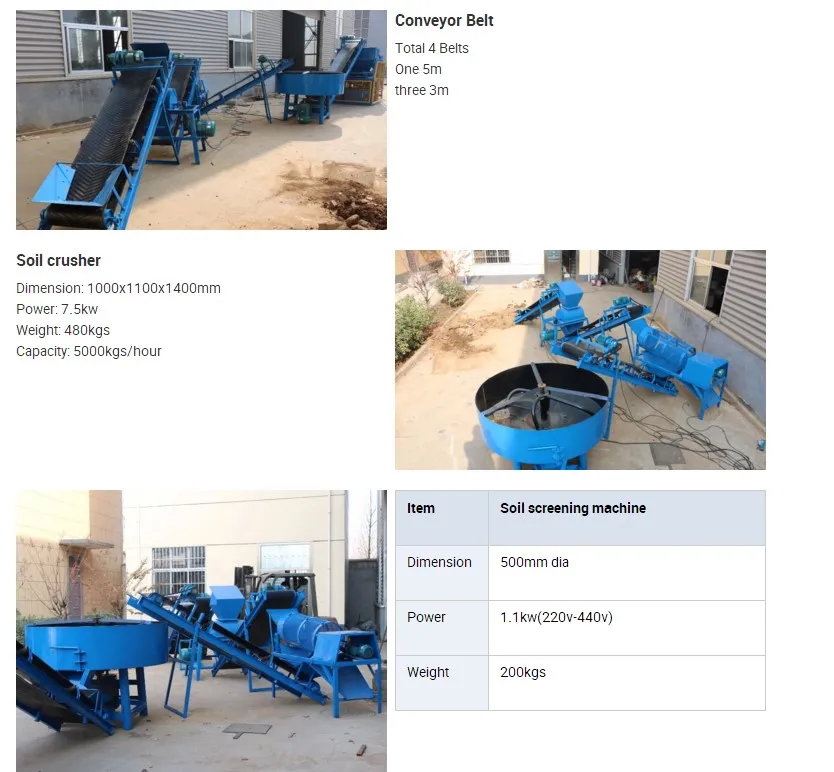

1: Electric Power List for LC7-10 automatic comressed earth block making machine line
Total power for this FULL PRODUCTION LINE is 34KW
220V/380V/415V/440V TRIHASE 50HZ/60HZ
2. Workers number for hby4-10 hydraulic press block machine: 5 Workers in total.

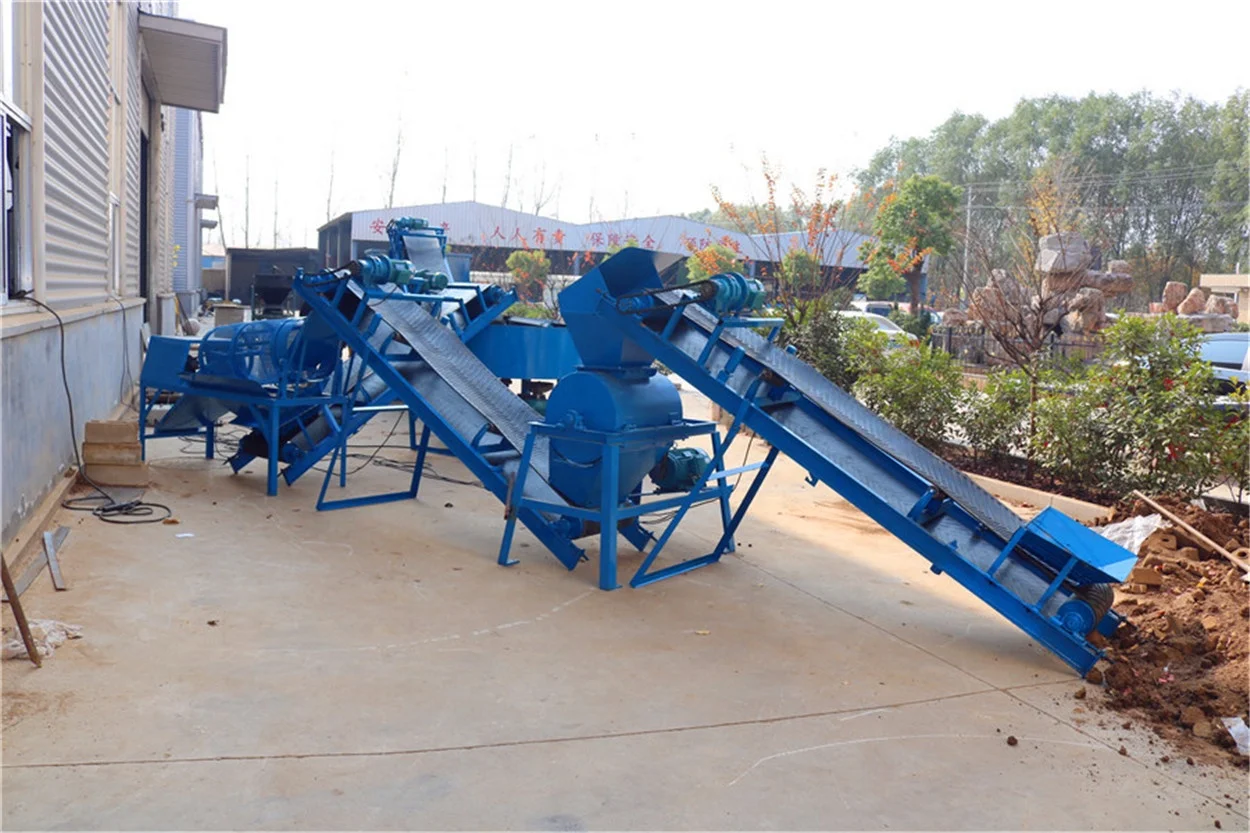

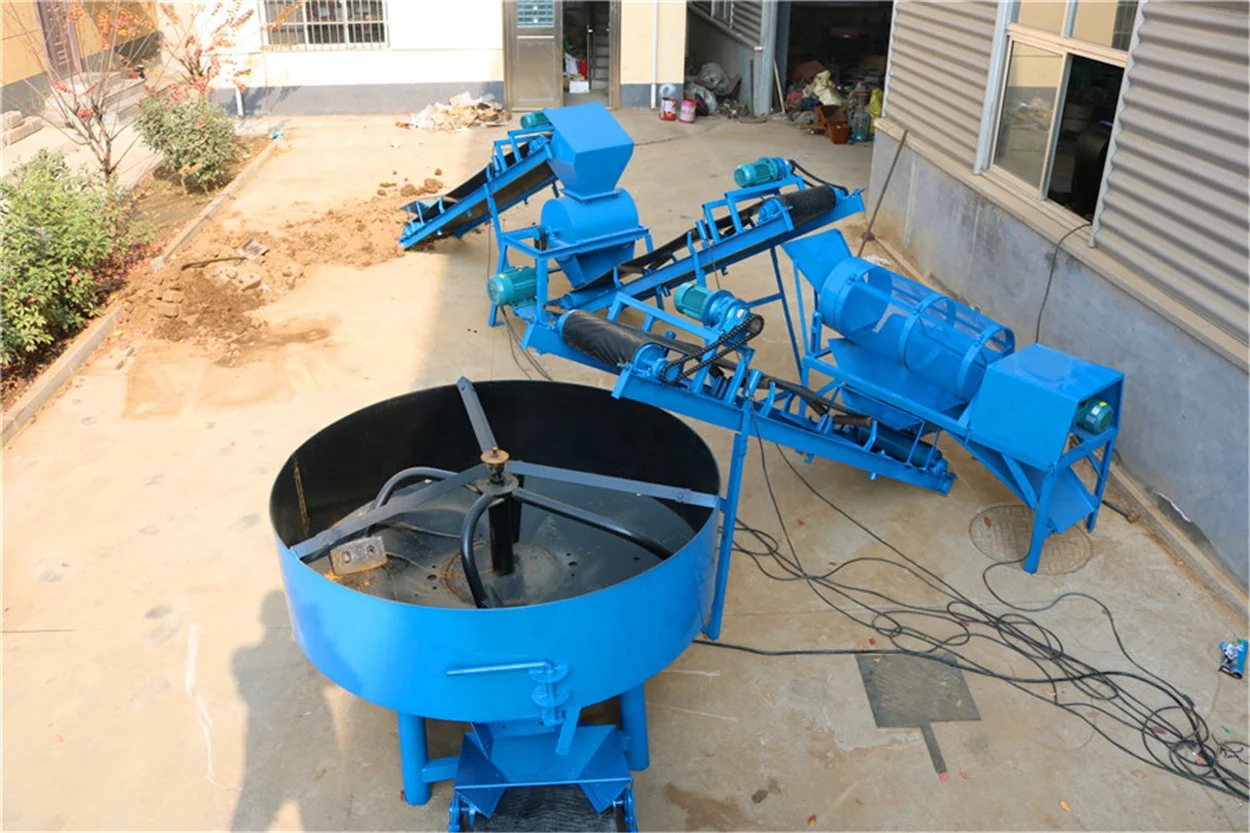

One worker for loading soil to: Belt conveyor for crushing
One Worker for loading cement and water into : JQ800 Mixer(1.8m)
One worker for operating: Brick Machine
Two Worker for Carrying Fresh brick from: brick receiver to curing site
3. Factory Area :2000-2500M2
Shelter Area for machines: 70M2 (10*7m)
4. Material Ratio for Bricks: 5%-10% cement and 90%-95% soil
5. Raw Material Consumption in one day
Here we take 300*150*100mm bricks as example and recommend 8% cement.
6: Install Service: We will supply customers manual and install video and we will can send our engineer to customers place to help
customer install machine and train workers
1: Electric Power List for LC7-10 automatic comressed earth block making machine line
Total power for this FULL PRODUCTION LINE is 34KW
220V/380V/415V/440V TRIHASE 50HZ/60HZ
2. Workers number for hby4-10 hydraulic press block machine: 5 Workers in total.
One worker for loading soil to: Belt conveyor for crushing
One Worker for loading cement and water into : JQ800 Mixer(1.8m)
One worker for operating: Brick Machine
Two Worker for Carrying Fresh brick from: brick receiver to curing site
3. Factory Area :2000-2500M2
Shelter Area for machines: 70M2 (10*7m)
4. Material Ratio for Bricks: 5%-10% cement and 90%-95% soil
5. Raw Material Consumption in one day
Here we take 300*150*100mm bricks as example and recommend 8% cement.
6: Install Service: We will supply customers manual and install video and we will can send our engineer to customers place to help
customer install machine and train workers

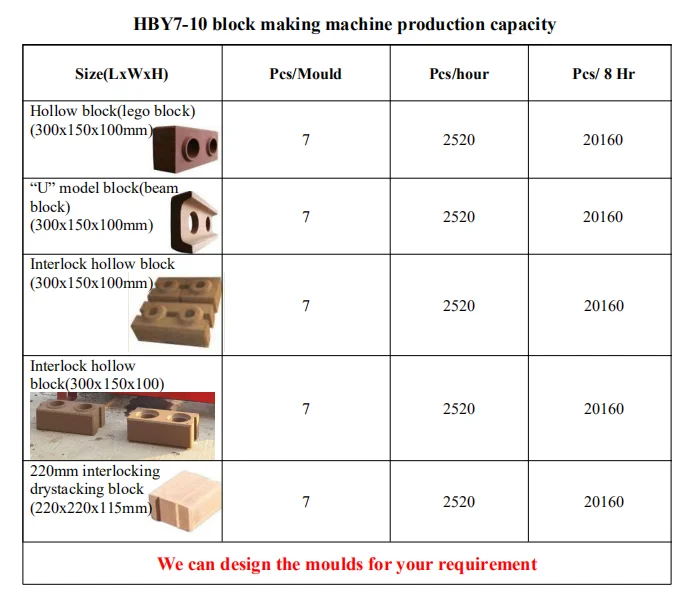

Detailed Capacity
Details Images

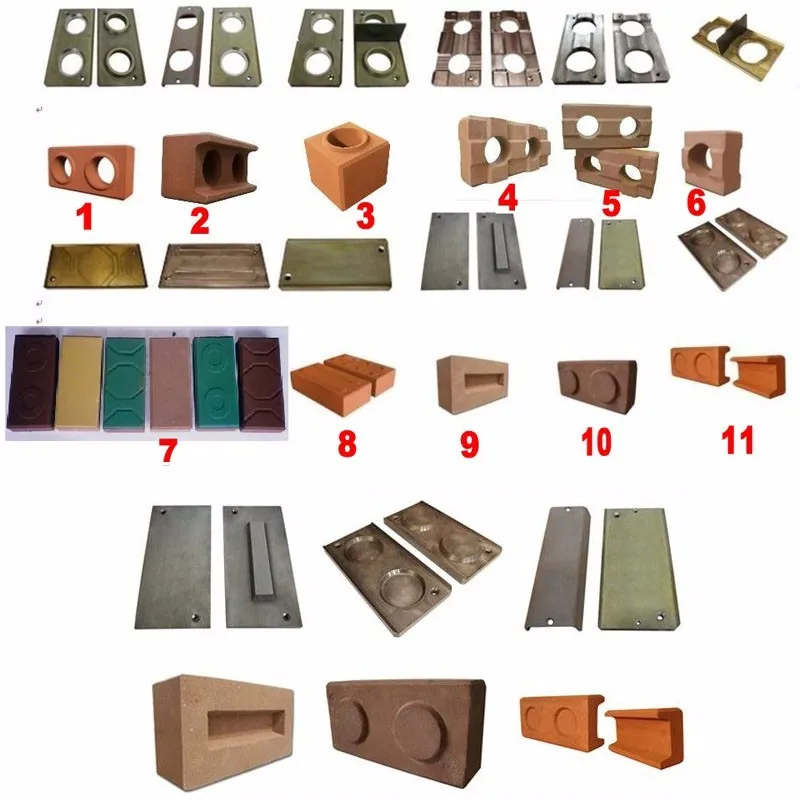

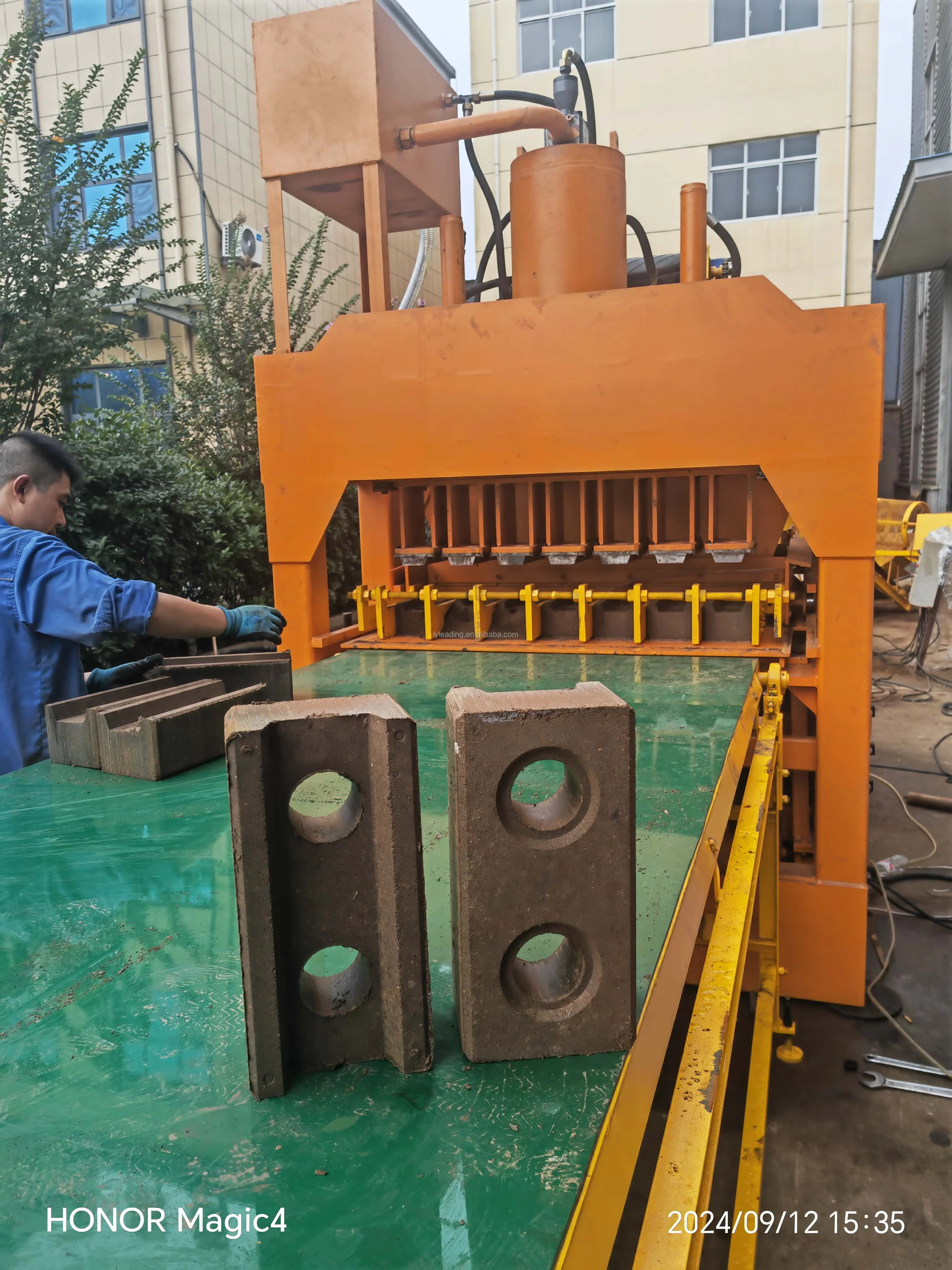

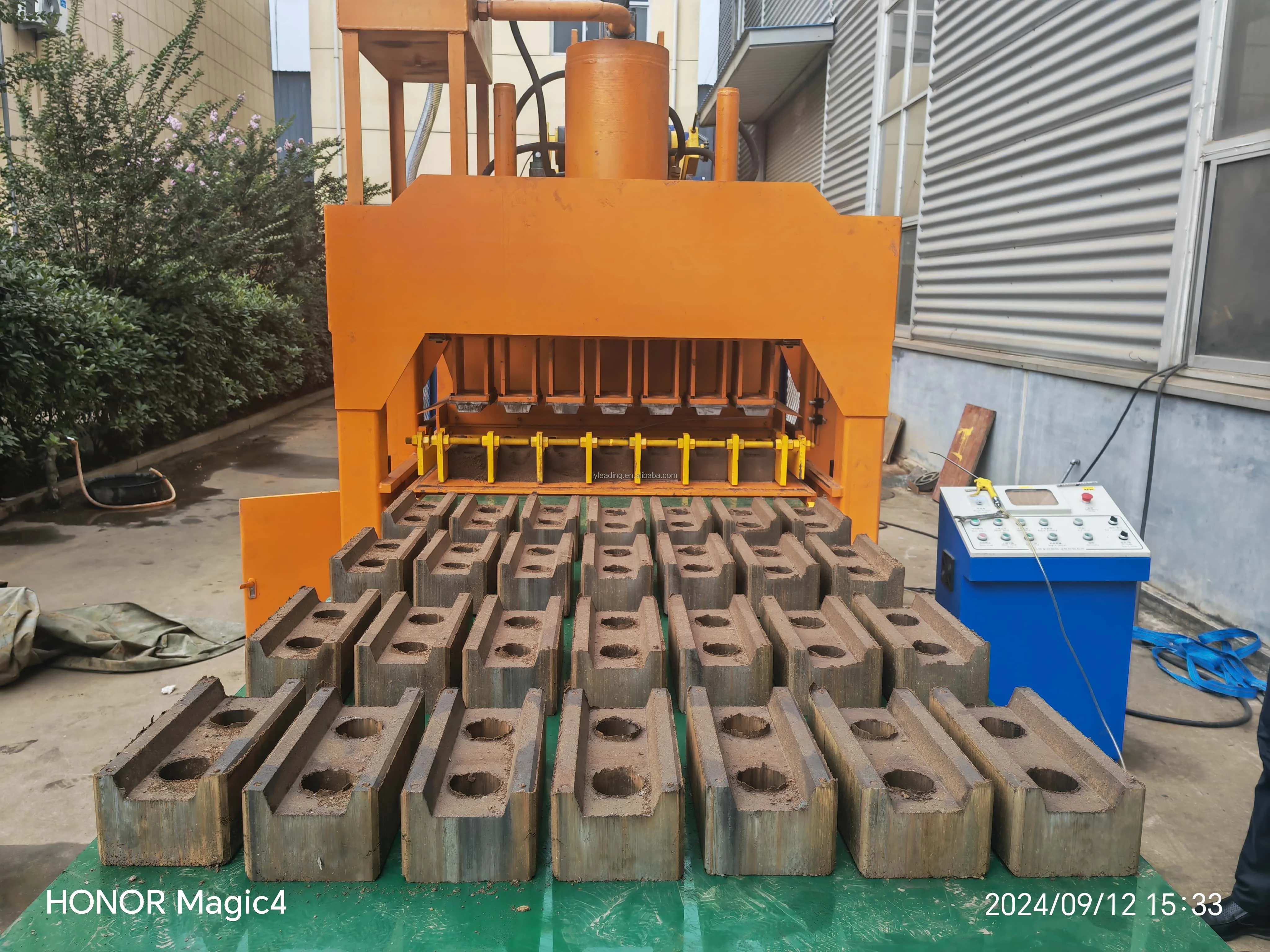

Brick samples
Packing & Delivery
Packing Details : Packing, HYB7-10 brick machine,Nude package in 20FT container
We use PE cover the machine first then load in container
Delivery Details : 5-15 days after order the machine.
HBY7-10 super automatic hydraulic interlocking lego brick making machine Tijolos ladrillos ecologicos
We use PE cover the machine first then load in container
Delivery Details : 5-15 days after order the machine.
HBY7-10 super automatic hydraulic interlocking lego brick making machine Tijolos ladrillos ecologicos
Company Profie
FAQ
1.Q:Can you make our size bricks?
A:Yes,we can design different brick mould according to your size.
2.Q:How to sure your brick making machine quality?
A:Our machine use strongth hight -strength steel structure,the total weight much bigger than others,hollow block machine mould all
by heat treatment ,can use thirty million times.
3.Q:How about your hollow brick making machine price?
A:The showing price only reference price ,please sent us inquiry email,we will send you the lastest hollow bricks machine
quotation and will give you a best price accroading to the order quantity.
4.Q:If you have need technical help,what should do ?
A:please just call 0086-18306506031, 24 hours service.
A:Yes,we can design different brick mould according to your size.
2.Q:How to sure your brick making machine quality?
A:Our machine use strongth hight -strength steel structure,the total weight much bigger than others,hollow block machine mould all
by heat treatment ,can use thirty million times.
3.Q:How about your hollow brick making machine price?
A:The showing price only reference price ,please sent us inquiry email,we will send you the lastest hollow bricks machine
quotation and will give you a best price accroading to the order quantity.
4.Q:If you have need technical help,what should do ?
A:please just call 0086-18306506031, 24 hours service.
