QT15 15 big automatic concrete hollow block paver brick curb stone making machine in China block machine factory
- Category: >>>
- Supplier: Shandong Hongfa Scientific Industrial And Trading Co. Ltd.Shandong Ltd.
Share on (1601289336952):
Product Overview
Description
Product Description
different type brick machine & interlocking concrete block making machine
Hydraulic machines enjoy the following preferential activities ! ! !
QT15-15 big automatic concrete hollow block paver brick curb stone making machine in China block machine factory

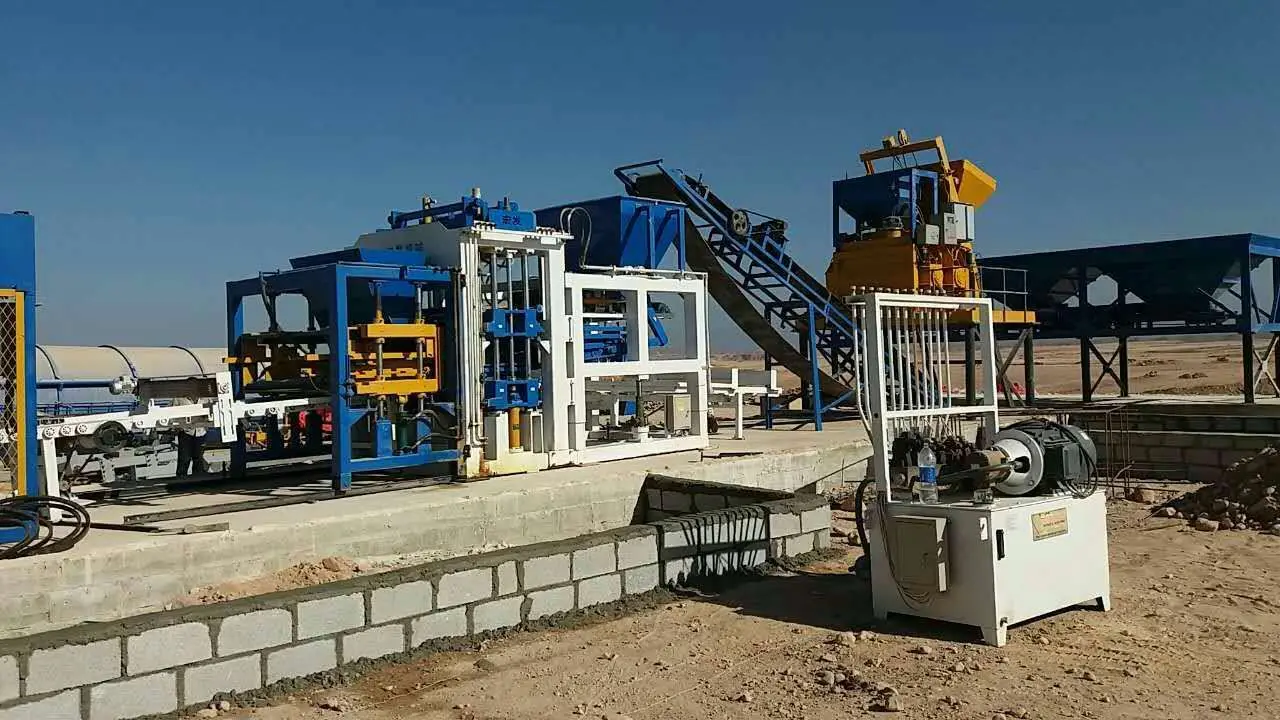

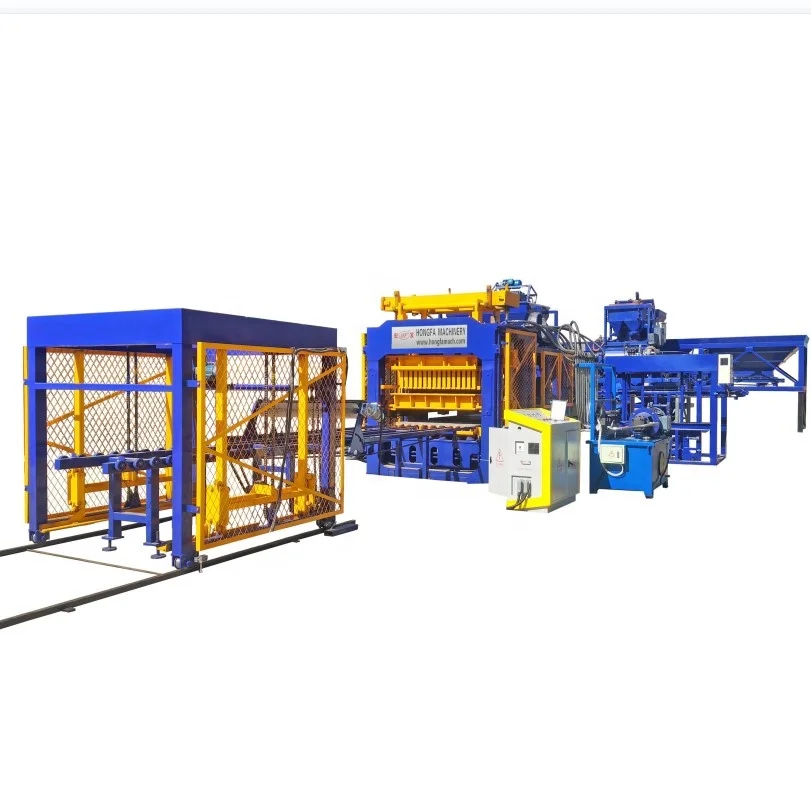

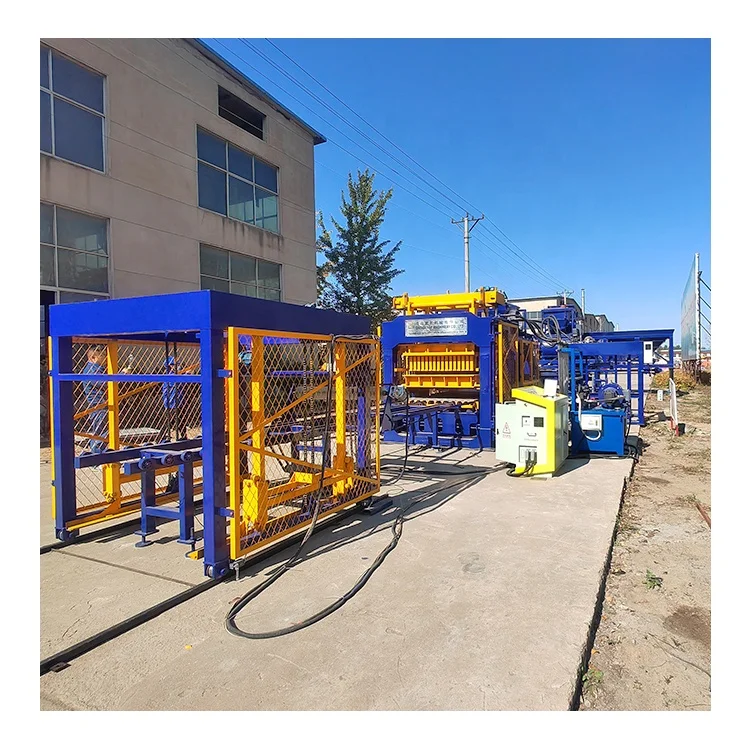

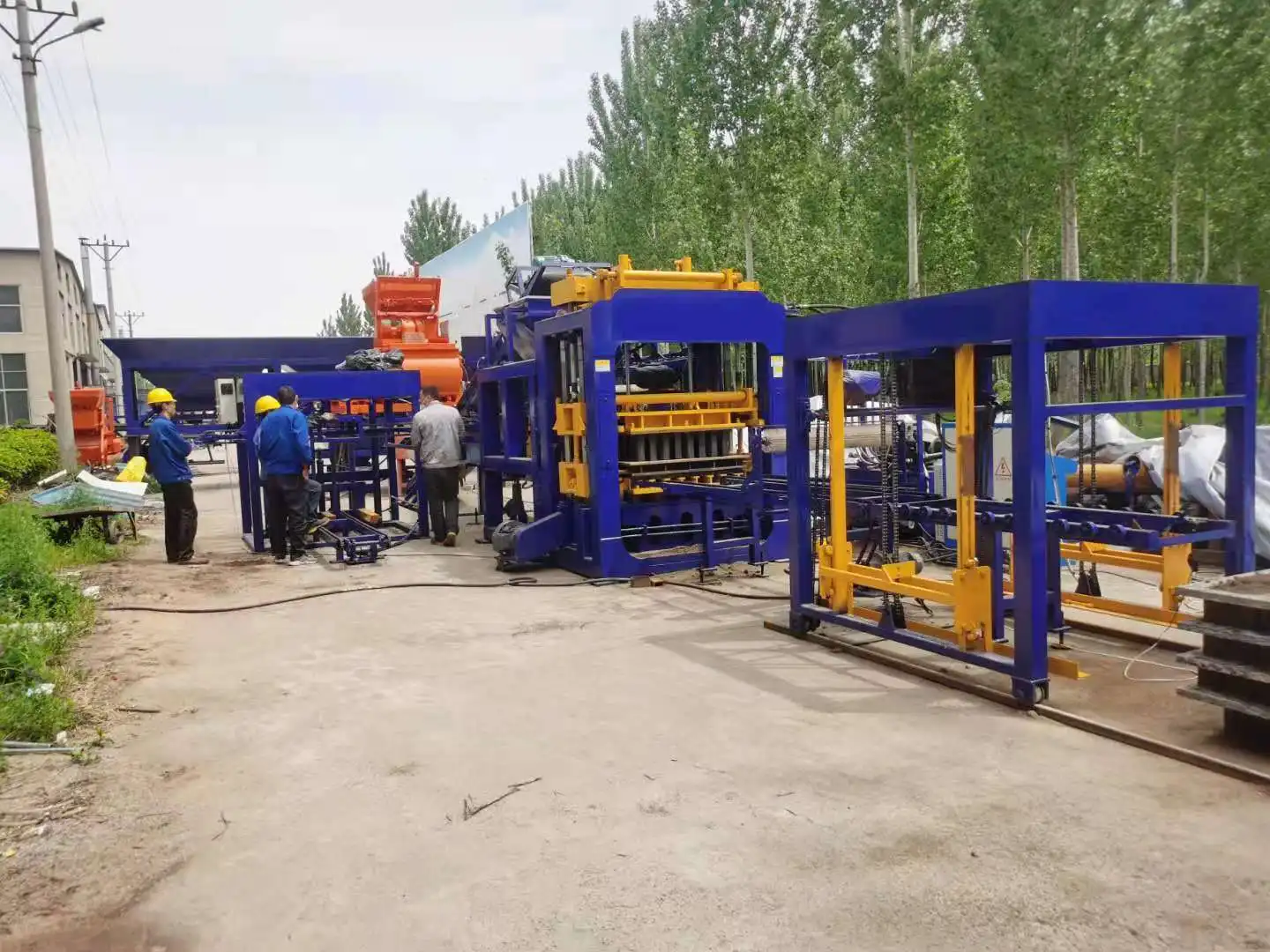

QT15-15 brick /block/ pavement production line is commonly used with totally full-automatic line with cubing system as well as full automatic pallet return system , robot stacker, elevator etc.
If you like the machine , please contact our manager : Mr. Ken Zhang . Whatsapp : 0086-18315759901
It adopts four-lead ,channel steel stander making the equipment more firm and the mould and the squeeze head Orentation more precise ,and bed mould orientation vertical vibration and upper mould compression vibration ,which improves the efficiency greatly and manufactures blocks with more average density and higher strength.
It adopts four-lead ,channel steel stander making the equipment more firm and the mould and the squeeze head Orentation more precise ,and bed mould orientation vertical vibration and upper mould compression vibration ,which improves the efficiency greatly and manufactures blocks with more average density and higher strength.
Technical Parameter | Detailed Data |
Overall Dimension | 9550*3400*2900mm |
Rated Pressure | 21Mpa |
Main Vibration Form | Platform Vibration |
Pallet Size | 1350*1100mm |
Mould cycle | 15-25s |
Exciying | 110kn |
Overall power | 67kw |
Vibration frequency | 2800-5100r/min |

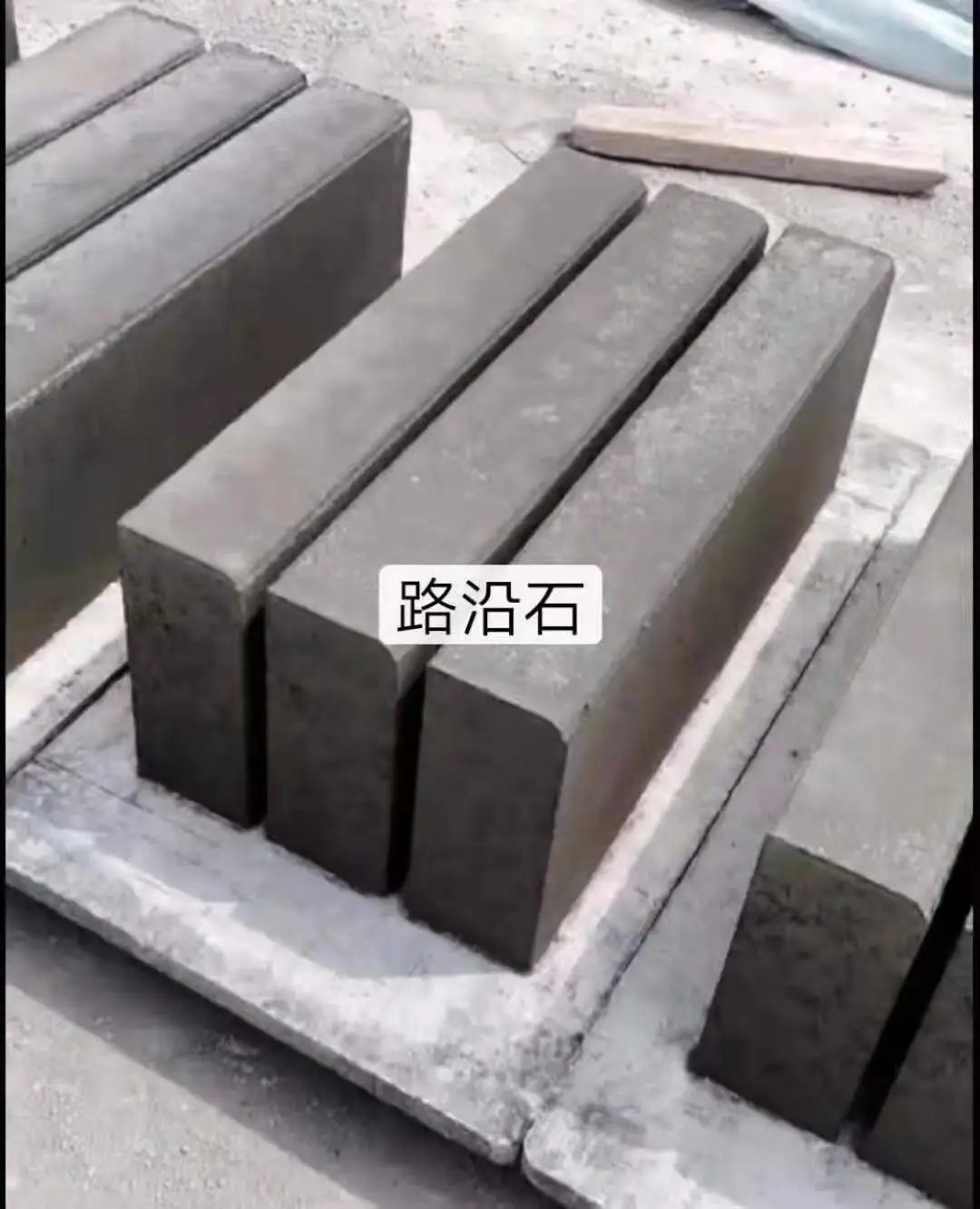

Main production specification and theoretical productivity of QT15-15 big automatic concrete hollow block paver brick curb stone making machine in China block machine factory.
Item | Specification size(mm) | Quantity per moulding (pcs/mould) | Cycle moulding (s) | Output per hour (pcs/h) |

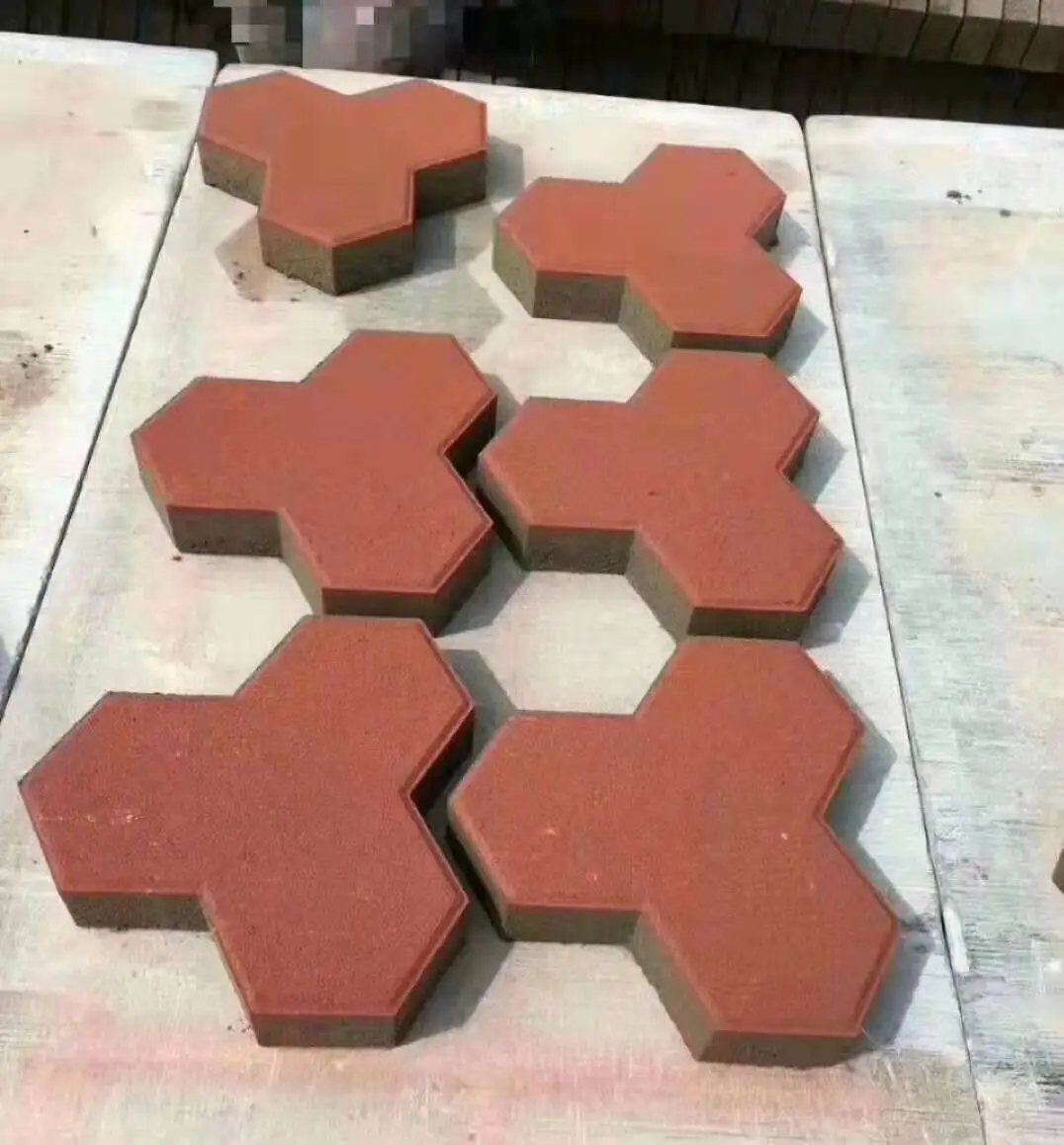

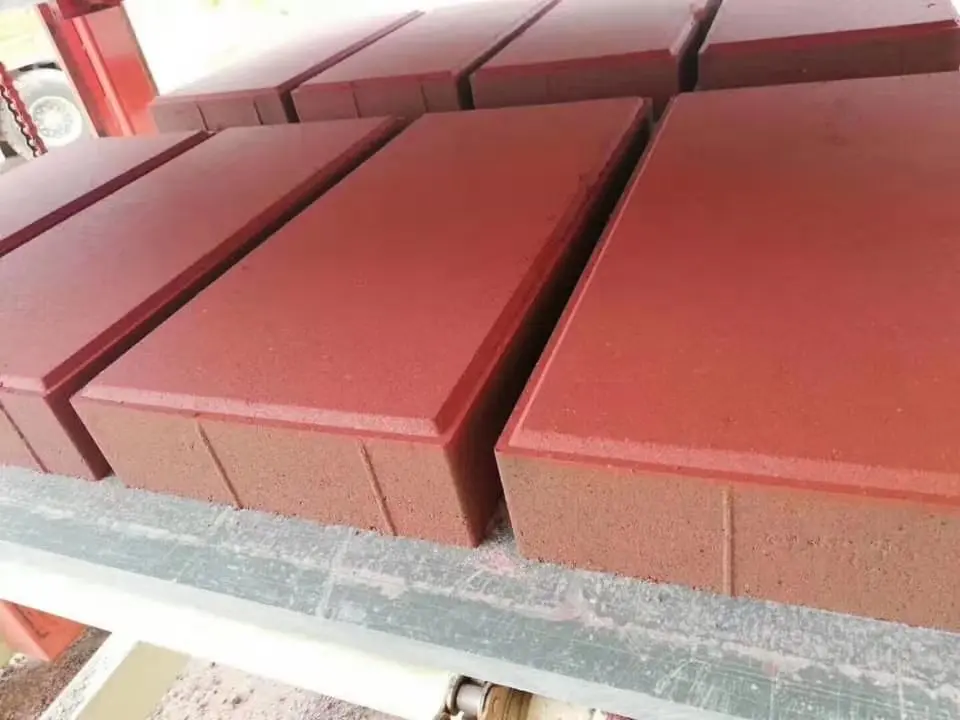

color brick | 200*100*60 | 50 | 18-23 | 9000 |
Solid brick | 240*115*53 | 72 | 15-17 | 17200 |

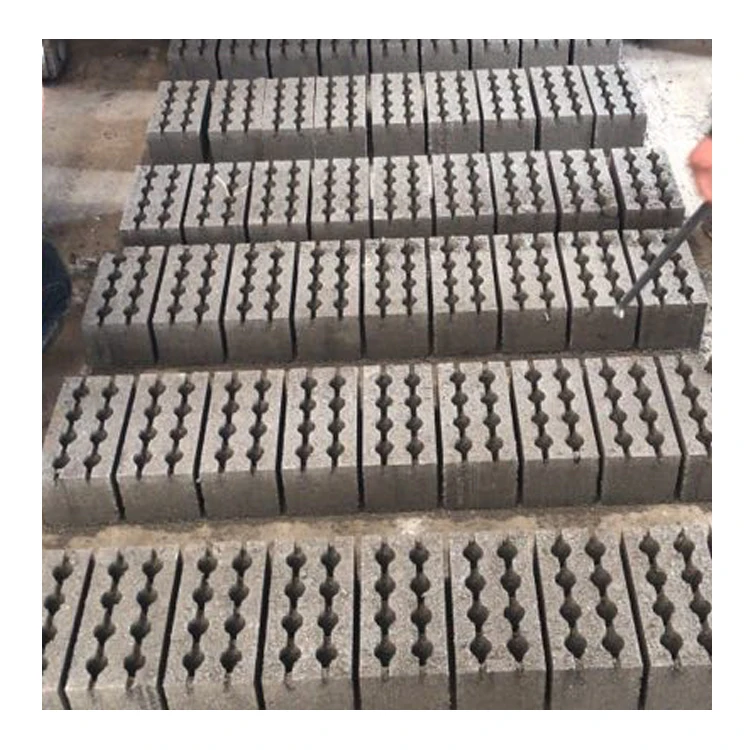

Hollow brick | 390*190*190 | 15 | 20 | 2700 |
Technical

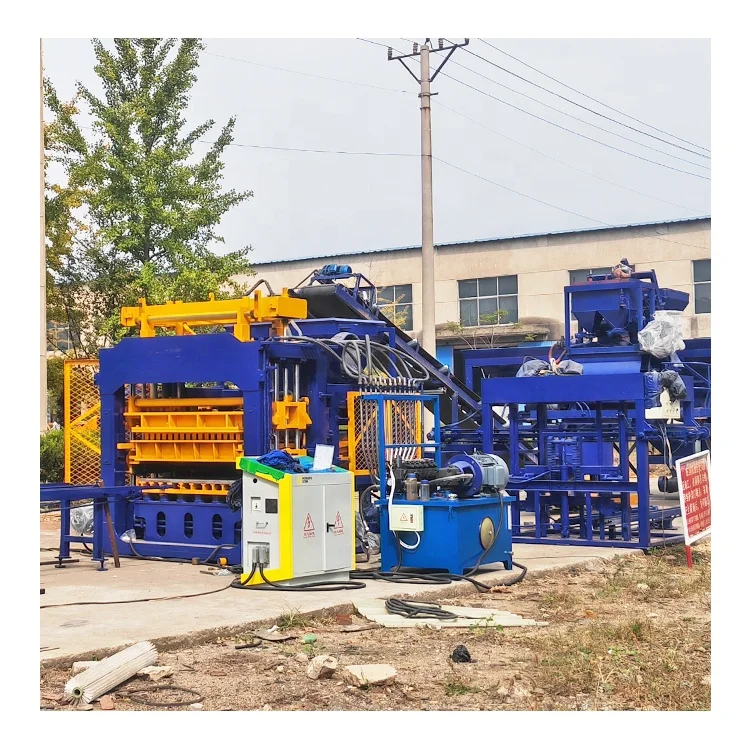

Host machine:
Shaping time:15-20 seconds
Shaping method:Hydraulic pressing+ vibration
Capacity(pcs/d):11000-96000 pcs
Power (KW):67
Pressure:21MPA
Pallet size :1350x1100x30mm
Weight :13500 kgs
Overall size :9550*3400*2900mm
PLD1200 batching machine:
Model:PLD1200
Weigh bucket capacity:1200L
Productivity :56M3/H
Batching precision:±1%
Max weighing capacity:3000
Number of material matching:3
Work loading height:3000
Feeding belt speed:1
Power:16kw
Dimension:9000*2200*3500

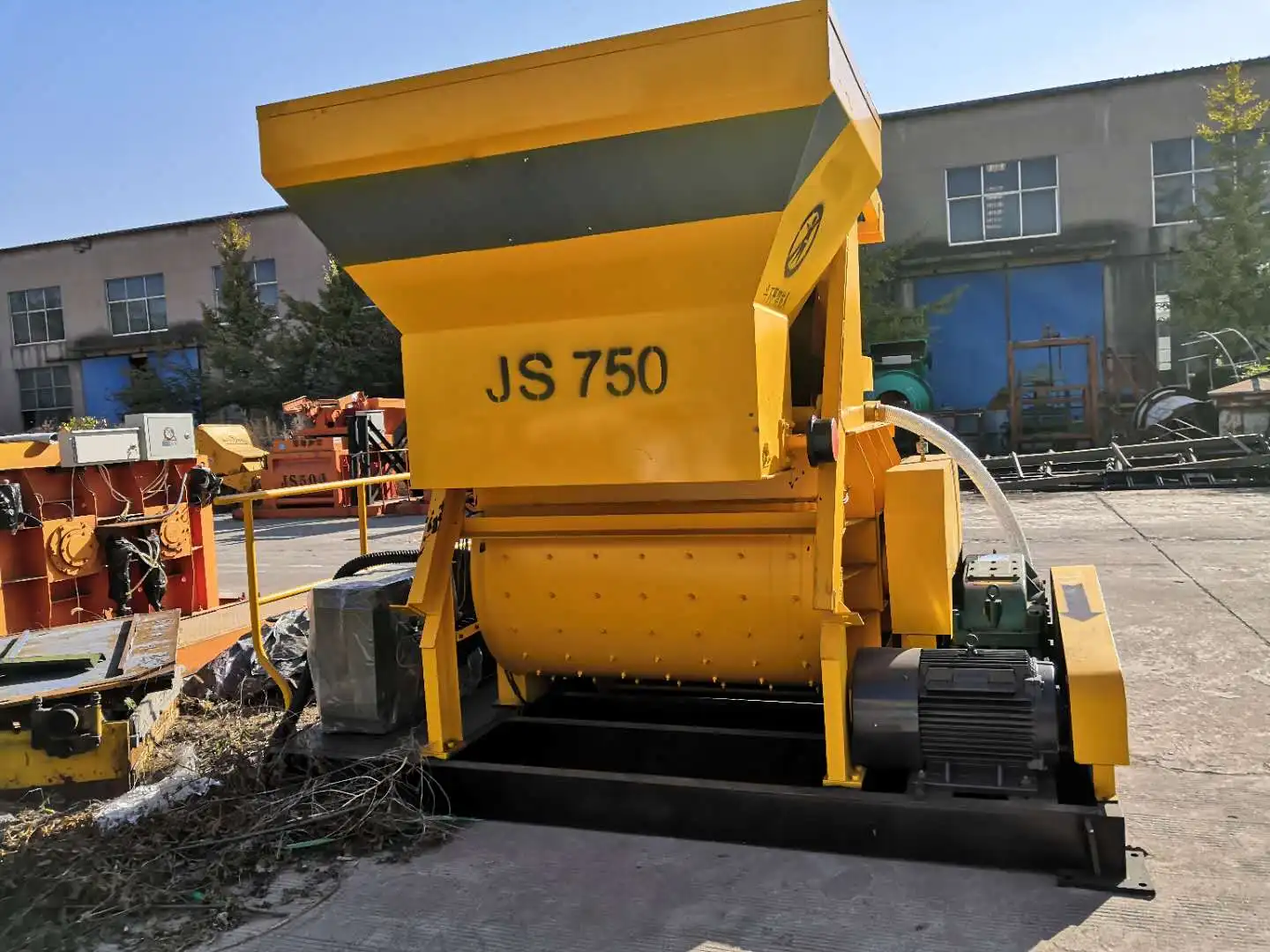

JS750 mixer:
Verticl Twin shaft positive style mixer, hight capacity and mixing even, bring materials elevator
Model:JS750
Charging capacity :1200L
Discharging capacity:750L
Production capacity:≥35 M3/H
Max Aggregate Diameter:≤40/60 MM
Mixing vane rotation speed:30.5r/min
Mixing vane quantity:2x7
Power :38.6KW
Weight:4500 KGS
Dimension:5980*2300*6260mm

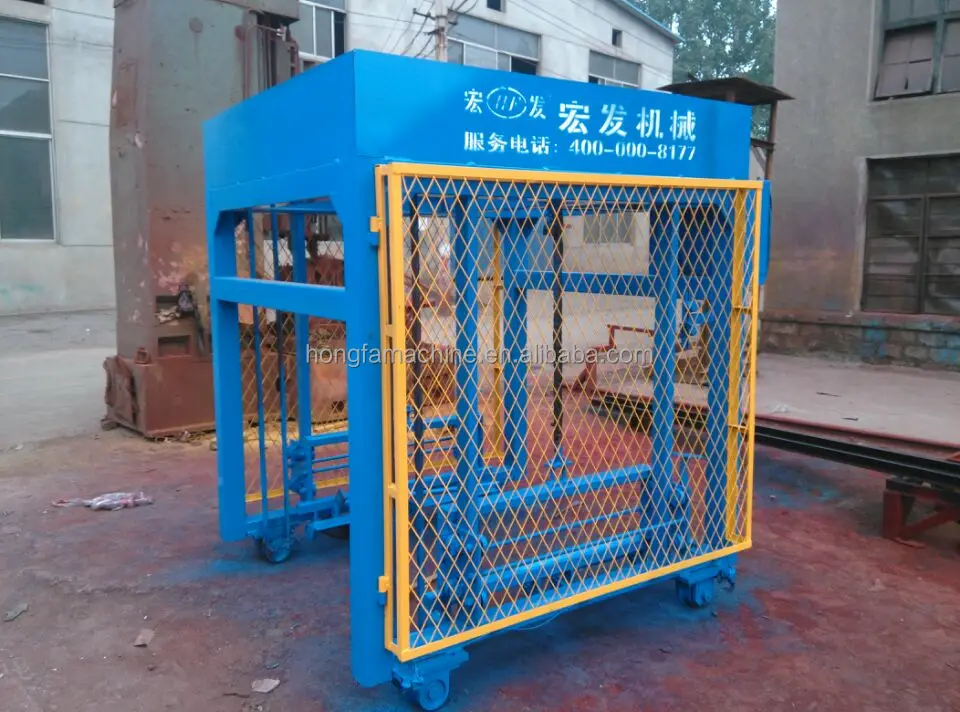

Stacker:
Lifting motor:1.5KW
Moving motor:2.2 KW
Weight:1500 kgs
Stacker layer:4 layer
Diamension:2500x1800x2300mm
Cycle:15-20 seconds
Rail shape:triangle shape

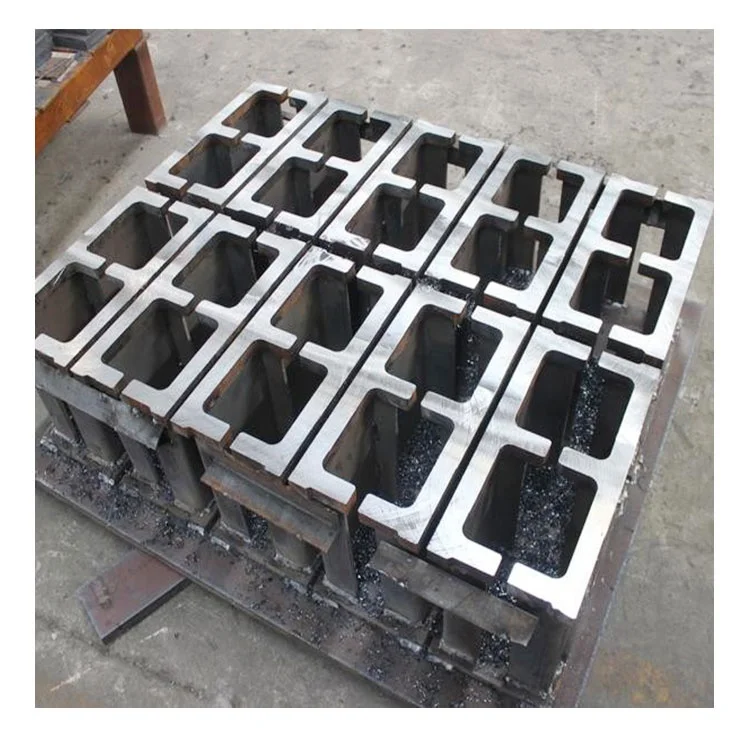

Mold
Applied to produce varies sizea and typs of comcrete blocks and bricks by replacing mould with corresponding specifications.
High manganese alloy, Molybdenum wire cutting, High temperature carburizing heat treatment

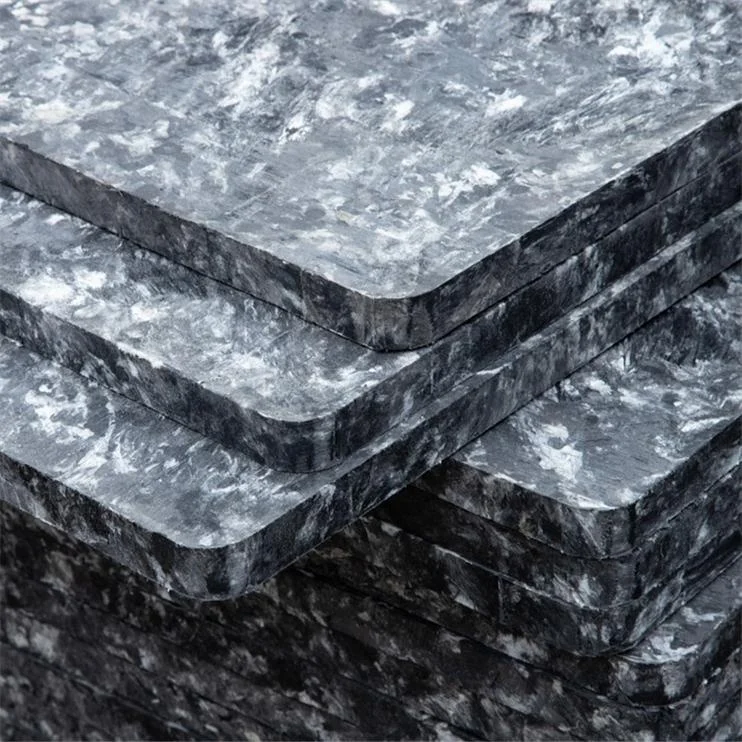

GMT Pallet
size:1350*1100*30-35mm
Glass fiber reinforce pallet , high quality , take the wet block to curing
Company Introduction
Certifications
Our Services
Pre-sale Service
1.We have full stock, and can deliver within short time.Many styles for your choices.
2.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
3.All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After-sale Service
1.We are very glad that customer give us some suggestion for price and products.
2.If any question, please contact with us freely by E-mail or Telephone.
1.We have full stock, and can deliver within short time.Many styles for your choices.
2.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
3.All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After-sale Service
1.We are very glad that customer give us some suggestion for price and products.
2.If any question, please contact with us freely by E-mail or Telephone.
Packing&Shipping
FAQ
1.Q:What is the material of the brick?
A: Cement,sand,stone.fly ash,building waste and so on.

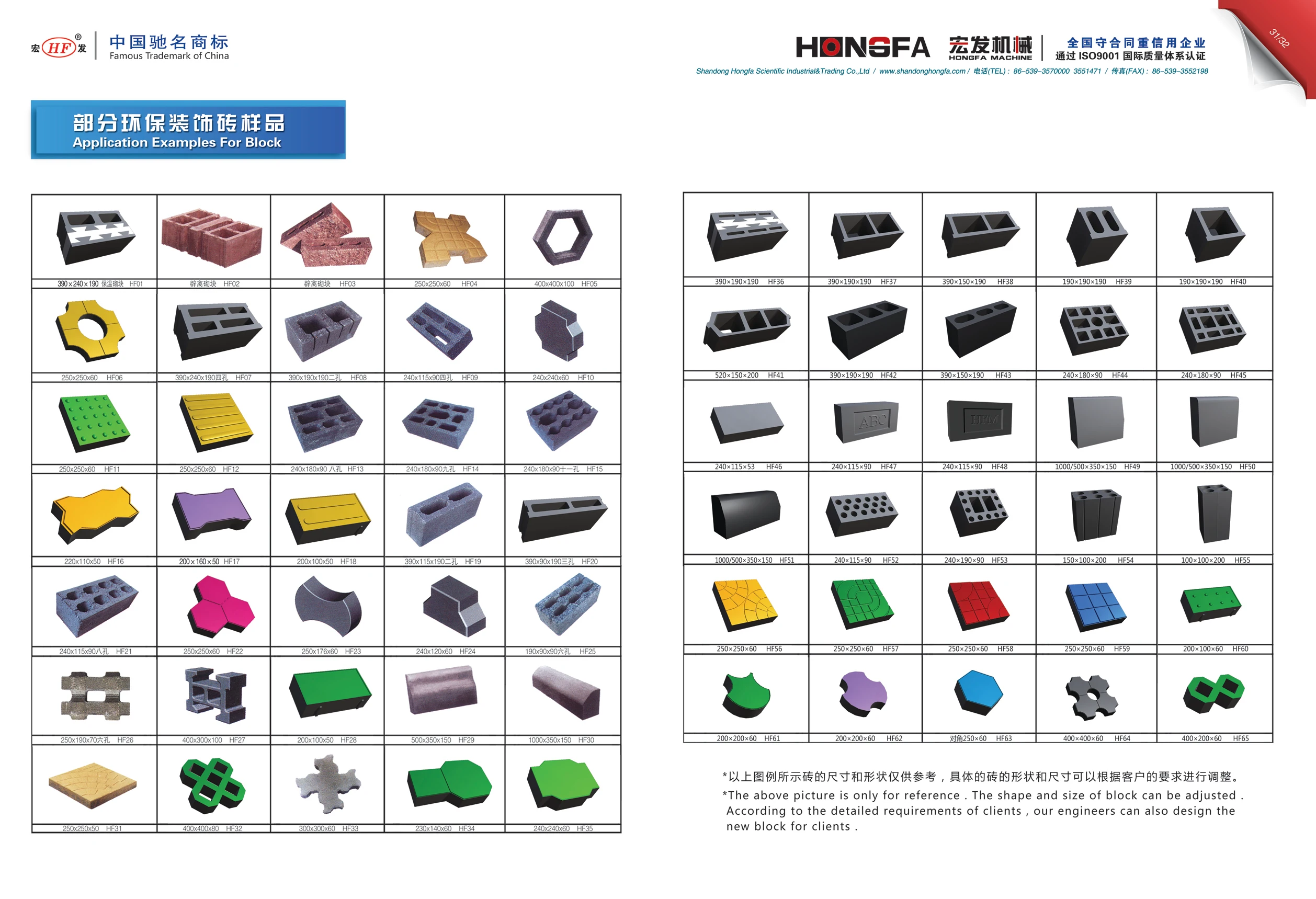

2.Q:What kind of the brick that the brick making machine can produce?
A: All kinds of the hollow block and paving brick.
You can customize the type of brick.
3.Q:what is the driving power of the hollow block making machine?
A: Electricity and diesel engine.
4. Q: Are you a manufacturer of a trading company?
A:We are the biggest building materials machinery manufacturers, with strong technical force, reliable product quality, which merge science,industry and trade together in one.Welcome to our factory at any time.
5. Q: How can I pick up a suitable machine ?
A: Only clarify your required output per day or per shift (8 hours) as well as your budget, then we can recommend suitable machine with very competitive price.
6. Q: How about the installation ?
A: We support Overseas Installation for all our medium / big machines, small machines you will gain online video technical support (Trading company may not support).
7.Q: What kind of blocks can be produced by this plant?
A: You can get blocks with different sizes by changing the position of cutting wires.
8. Q: Can you assure the quality?
A: Yes, we can. Our equipment will be carefully tested before shipping, and can be used over 10 years. If you worry about that, we can make the translation via Trade Assurance Order on Alibaba.
9. Q: How can I get this plant?
A: You can visit our factory at first, and if you want to buy, we can transport the equipment to you by sea after we get the payments.
A: Cement,sand,stone.fly ash,building waste and so on.
2.Q:What kind of the brick that the brick making machine can produce?
A: All kinds of the hollow block and paving brick.
You can customize the type of brick.
3.Q:what is the driving power of the hollow block making machine?
A: Electricity and diesel engine.
4. Q: Are you a manufacturer of a trading company?
A:We are the biggest building materials machinery manufacturers, with strong technical force, reliable product quality, which merge science,industry and trade together in one.Welcome to our factory at any time.
5. Q: How can I pick up a suitable machine ?
A: Only clarify your required output per day or per shift (8 hours) as well as your budget, then we can recommend suitable machine with very competitive price.
6. Q: How about the installation ?
A: We support Overseas Installation for all our medium / big machines, small machines you will gain online video technical support (Trading company may not support).
7.Q: What kind of blocks can be produced by this plant?
A: You can get blocks with different sizes by changing the position of cutting wires.
8. Q: Can you assure the quality?
A: Yes, we can. Our equipment will be carefully tested before shipping, and can be used over 10 years. If you worry about that, we can make the translation via Trade Assurance Order on Alibaba.
9. Q: How can I get this plant?
A: You can visit our factory at first, and if you want to buy, we can transport the equipment to you by sea after we get the payments.
If you like the machine , please contact our manager : Mr. Ken Zhang .
Wechat/ Whatsapp : 0086-18315759901
