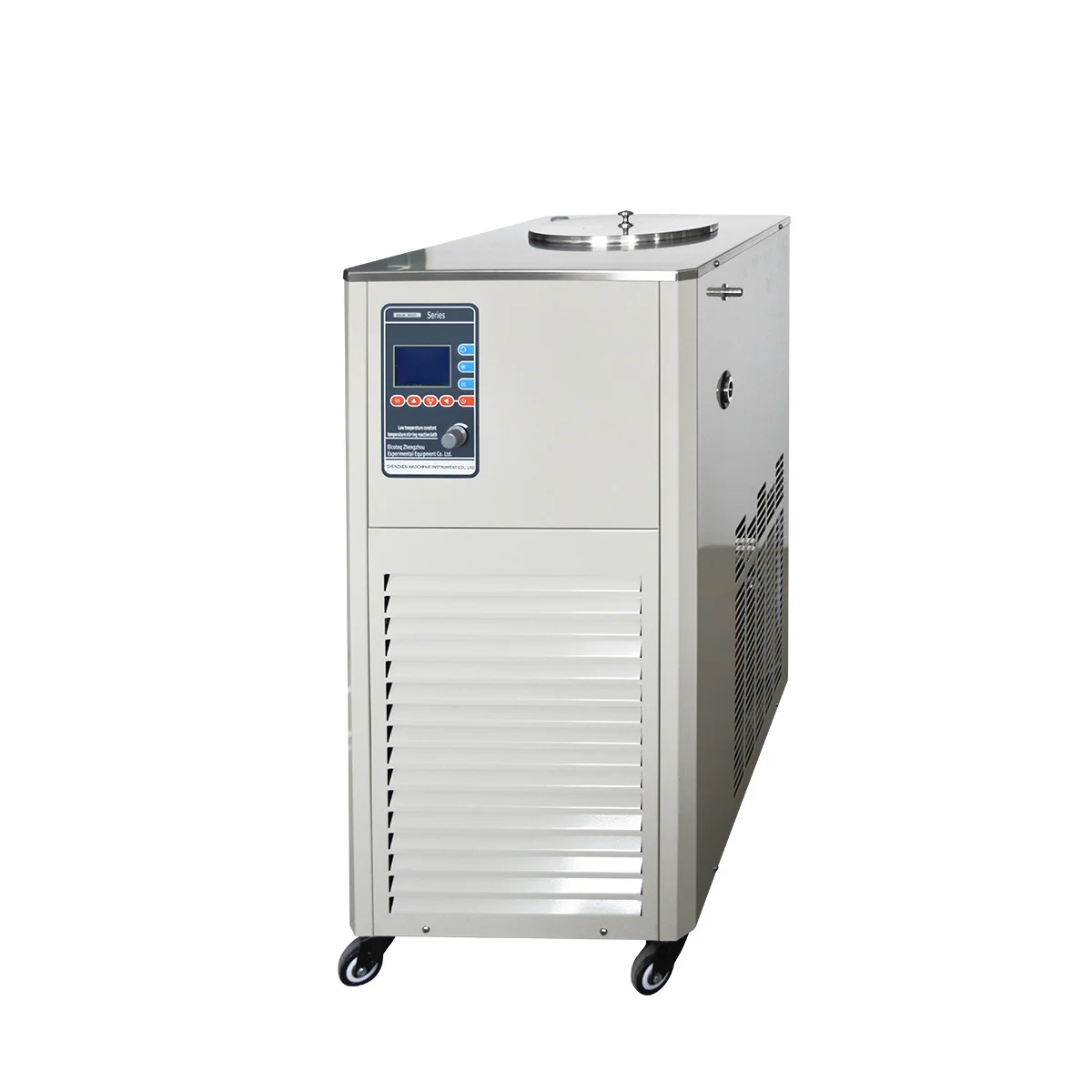

5L low temperature recirculating glycol small mini chillerand heated circulating pump reactor bath

Product Overview

Description











Use:



1.An innovate design according to Japan Tokyo physical and chemical equipment company at the similar products.



2.It can have low temperature reactions instead of dry ice and liquid nitrogen and has quite high precision of temp control.



3.Suitable for scientific research, biology, physics,chemical industry and other departments to do low temp experiments



Features:

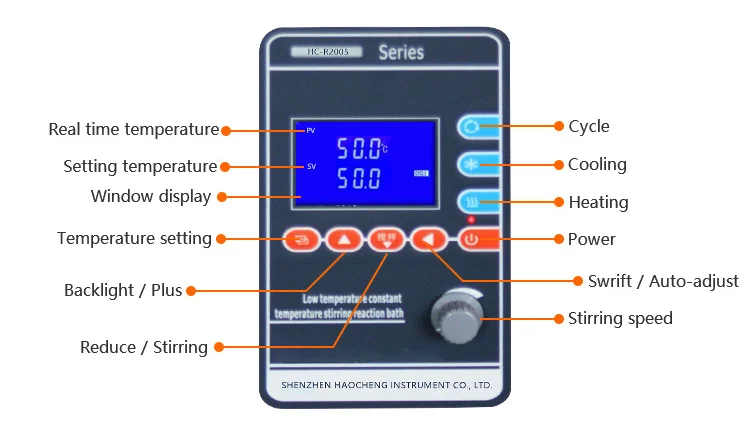

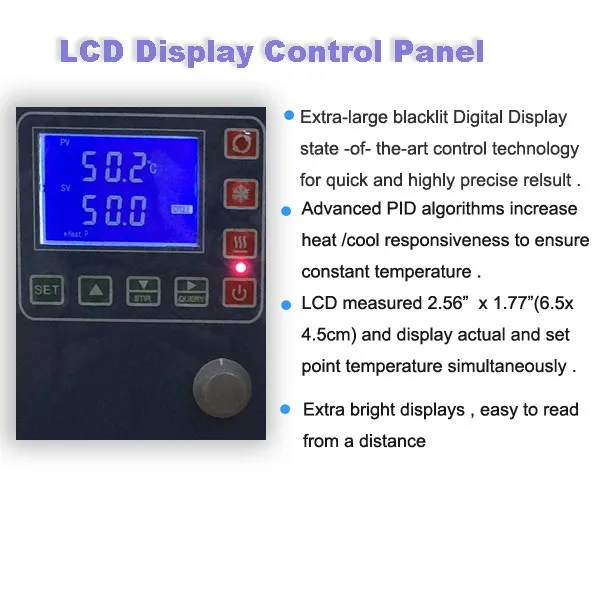

1.Temperature setting and display .Digital

2.The fully closed mixer ,guarantee the stability magnetic stir.

3. Compressor and Oil separator: both imported from Danish Danfoss original Equipment

4.Ternary compound cascade refrigeration

5. .high and low pressure control

6. The Refrigerant R50D , R13, R14

7 .Self-develop and design controller ,the microcomputer controller,owing delay protection function

8 .Use the balance of heat to cold reactions, so that the temperature accuracy of ± 0.1 °C

9 .Shell material : cold-rolled plate , electrostatic spray



Specifications

Model	ABTDHJF-2005
Volume( L )	5L
Lowest Temp (℃)	-20 ℃
Working Temperature rang	-25~99℃
Cooling Capacity (W)	166-1100W
Flow (L/min)	14L/min
Lift (m)	4-6
Coolant Temp	-25
Temp Accuracy	+/-0.5℃
Temperature control	PID Auto control
Temperature Display	Digital Display
Thermocouple type	PT100
Voltage  Supply	208V-220V
Machine Size	55 x37x 64CM
