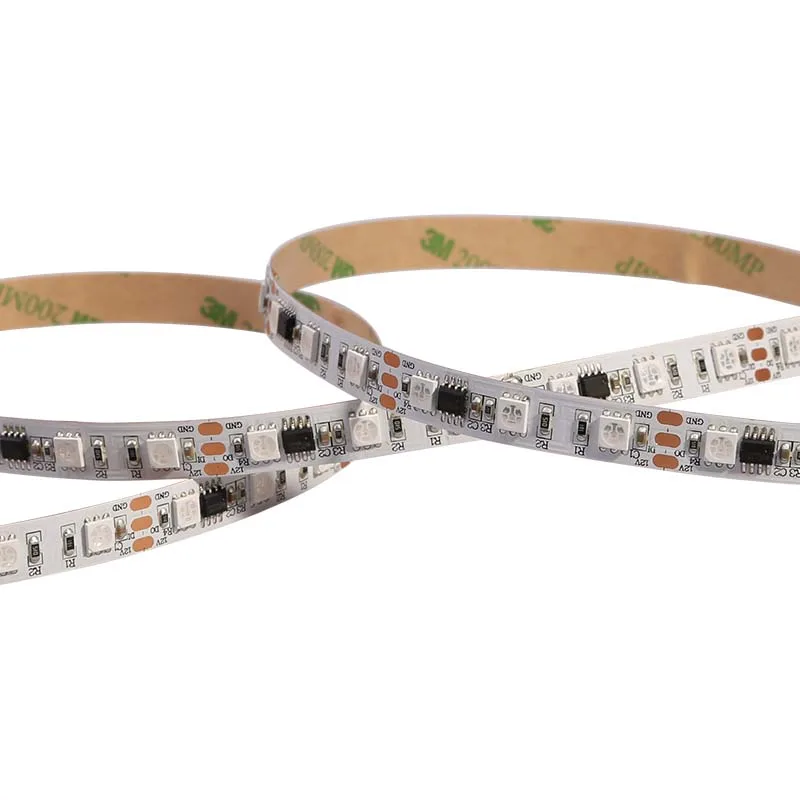

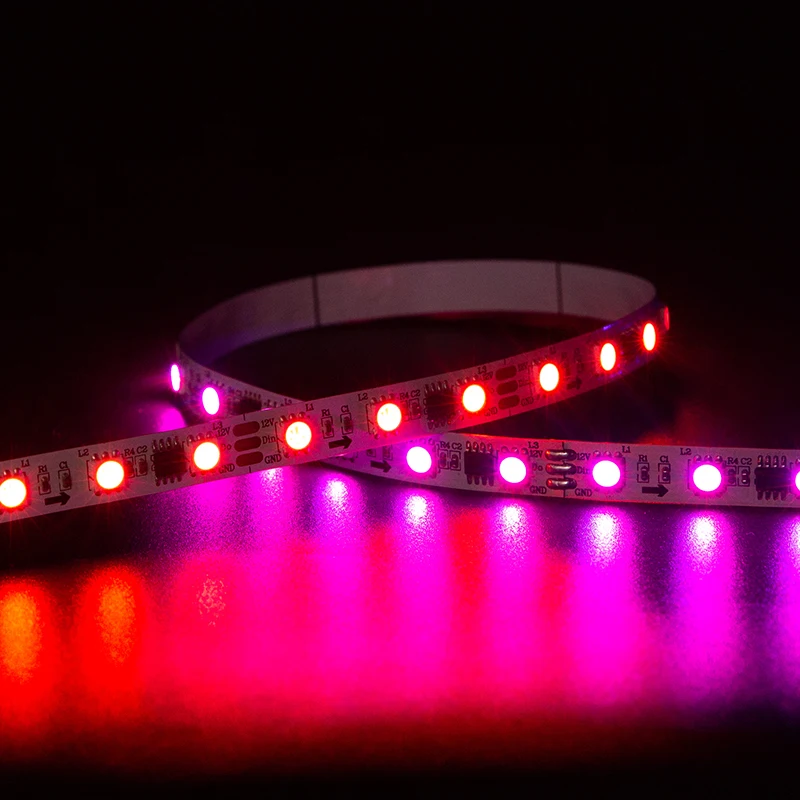

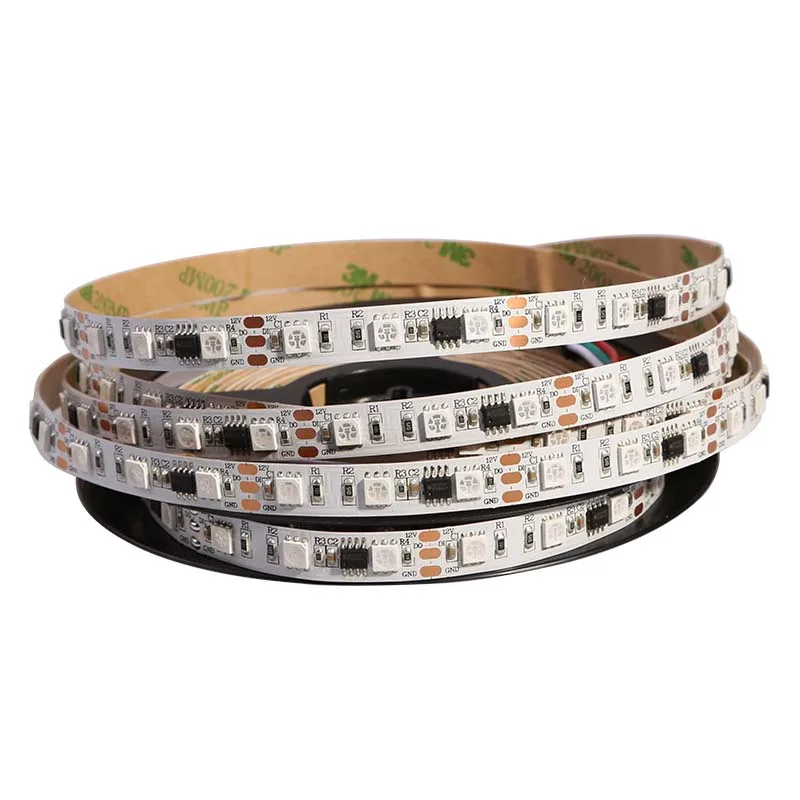

WS2811 RGB IC Smart LED Strip 12V 60LEDs IP20 Addressable Dream Color Light Tape
- Category: >>>
- Supplier: Glite Electronics Co. Ltd.Glite Ltd.
Share on (1601289417259):
Product Overview
Description
Product Introduction
RGB with IC addressable LED strip light combines red ,green , blue color LED chips with intelligent integrated circuit chips ws2812b to produce eye catching chasing effects. it has the ability to produce millions of colors, with the technology needed to achieve individual pixel control.
Addressable LED strip light, the IC chips interface with the LEDs so you can now have multiple colors on one strip on each node. This is the beauty of pixel control. The ability to control the color of each LED individually creates an endless number of possibilities for colored chasing effects.It can work with SD card controller , DMX controller , Arduino and etc ..
This is a fantastic product used for the place where need personal program color performance like Bar/KTV/SHOP TITLE/ CONCERT ETC.
Tech Parameters
TYPE | 30LEDs/m | 60LEDs/m |
IC | WS2811 | WS2811 |
PCB Width | 10mm | 10mm |
Standard Length | 5 meter/roll | 5 meter/roll |

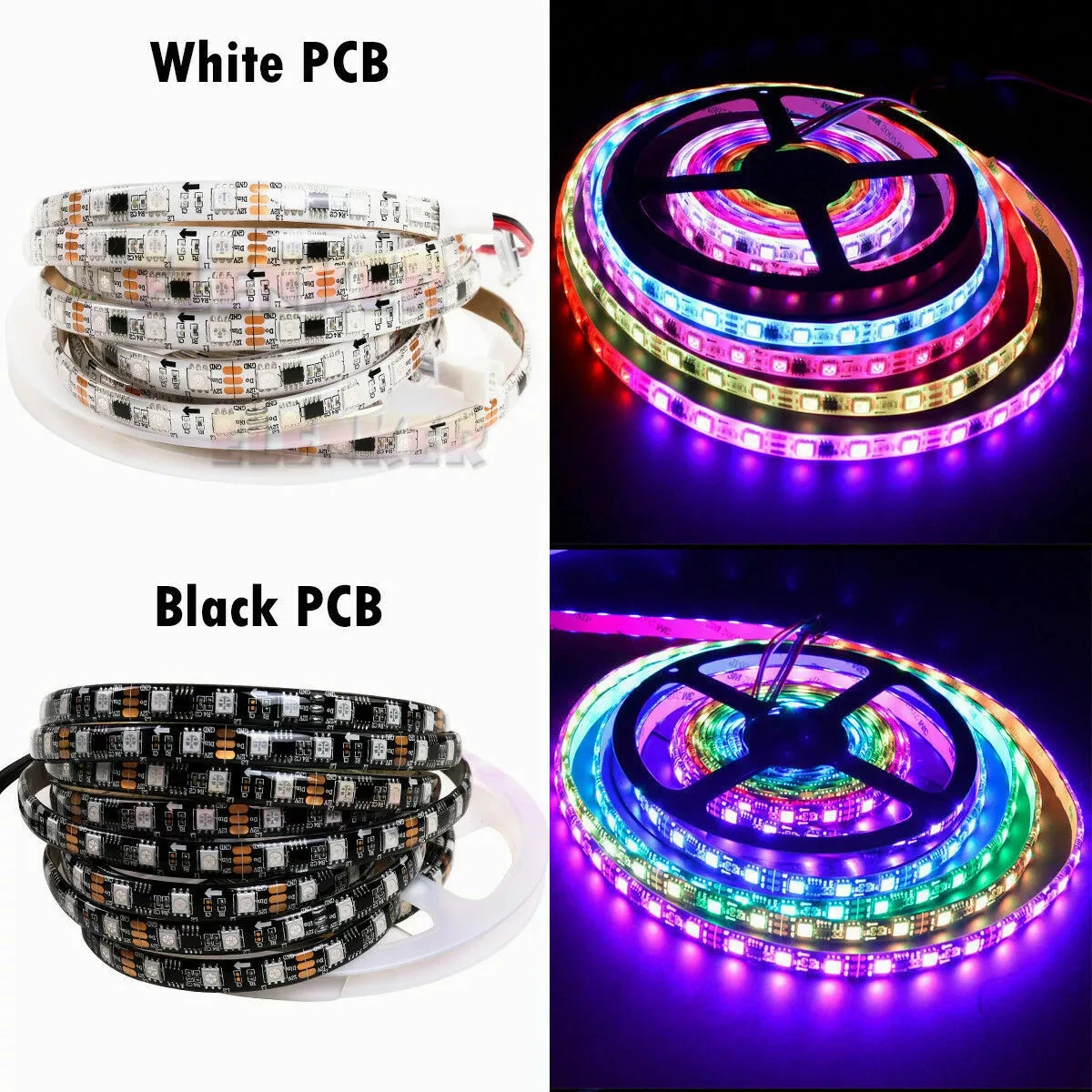

PCB color | white/black | white/back |
Voltage | DC12V | DC12V |
Watts | 9W/M | 14.4W/M |
Cutted | per 3 LED | per 3 LED |

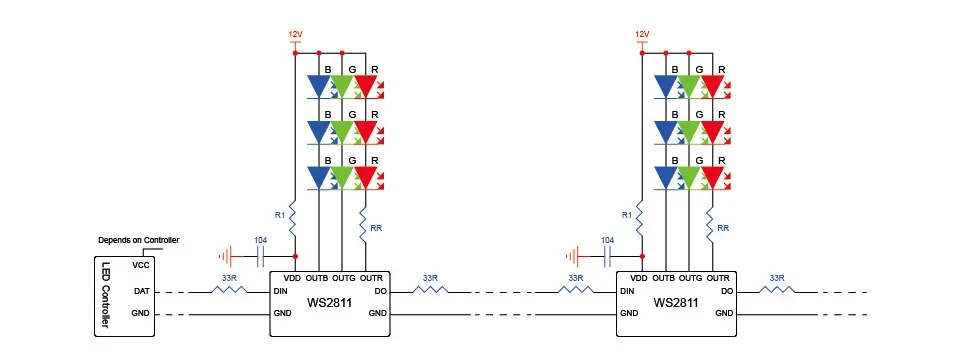

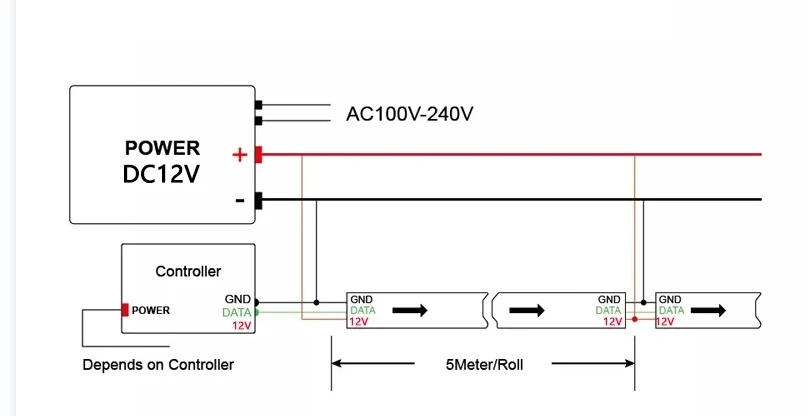

Control Component
Controller Loading ↑
Multiple controllers are necessary for chain controlling when pixel quantities are more than 2048pcs. By coordinated controllers with certain method, hundreds reels of led strips can work together to perform.
Looking For A Simple Kit?
If you are looking for a simple working light and donnot want to make things complicated, we offer completed kits for you. Click the sales man on the right side for information please →
Extended Product
5V RGBW Pixel Strip
Color: RGBW 4 in 1
IC: SK6812
Voltage: DC5V
LED QTY: 30/60/72/144
12V RGB Pixel Strip
Color: RGB
IC: WS2815
Voltage: DC12V
LED QTY: 60
5V White Pixel Strip
Color: 2700K-6500K
IC: APA102
Voltage: DC5V
LED QTY: 60/144
12V RGB Pixel Strip
Color: RGB
IC: WS2811
Voltage: DC12V
LED QTY: 30/60
24V RGBW Pixel Strip
Color: RGBW 4 in 1
IC: DMX512
Voltage: DC24V
LED QTY: 30/60
24V RGBWW Pixel Strip
Color: RGBWW 5 in 1
IC: TM1914
Voltage: DC24V
LED QTY: 60
Support
Could We Help You?
GLITE ELECTRONIC has a proffesional sales team and experienced engineers who working on pixel design project for years. We helped hundreds of clients made the best solution and offered completed project drawings.
Please contact us with your purpose to get soonest reply.
