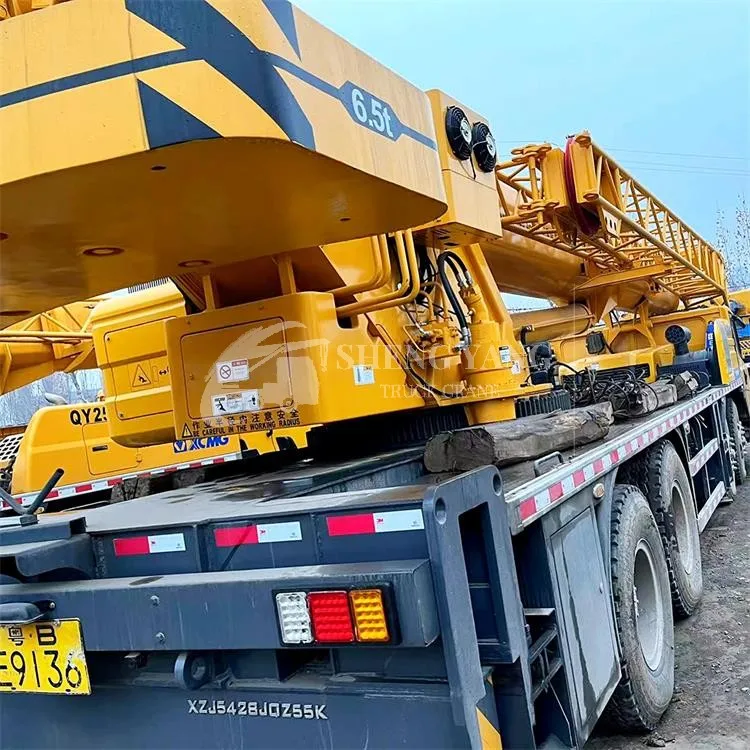

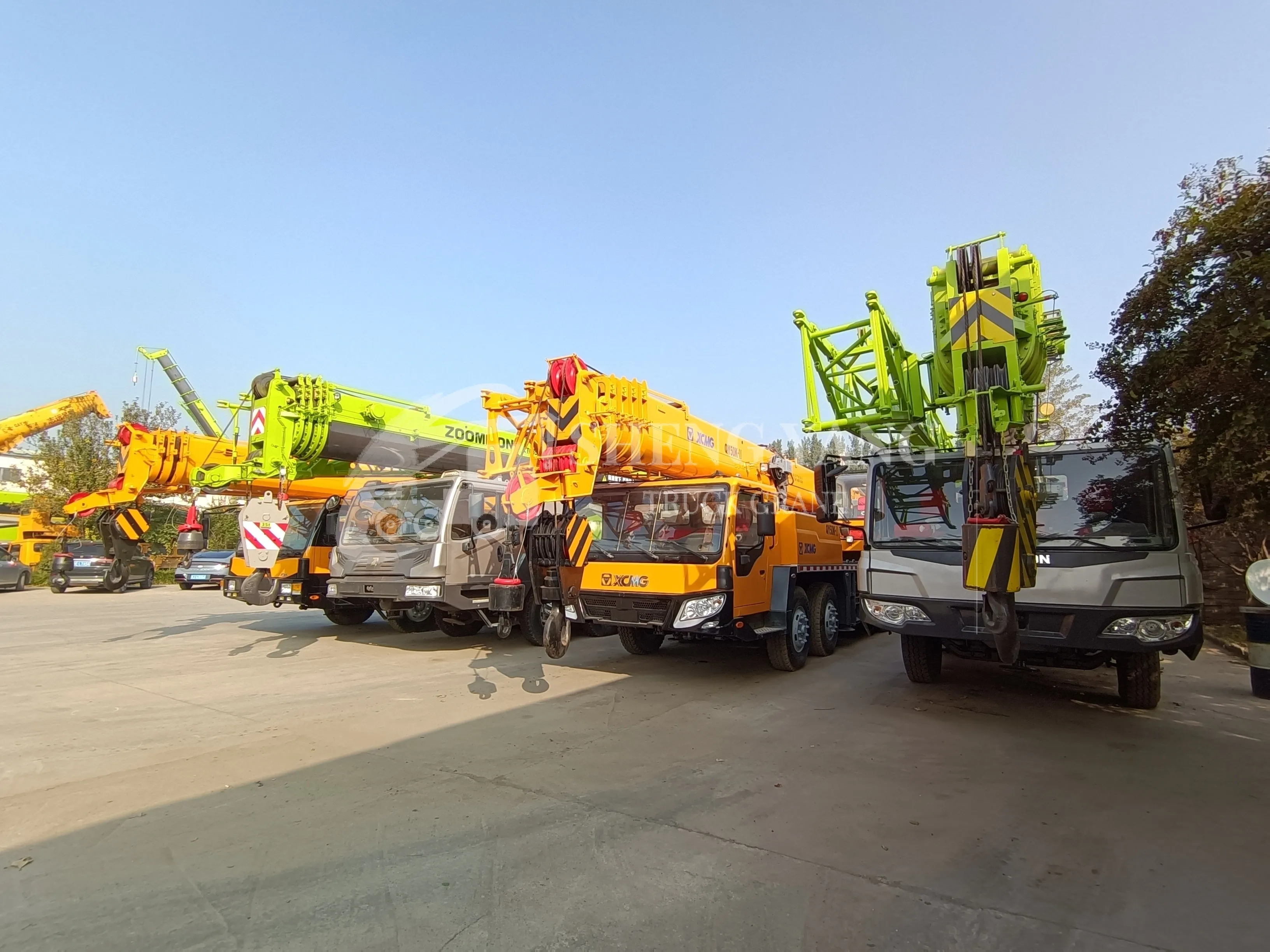

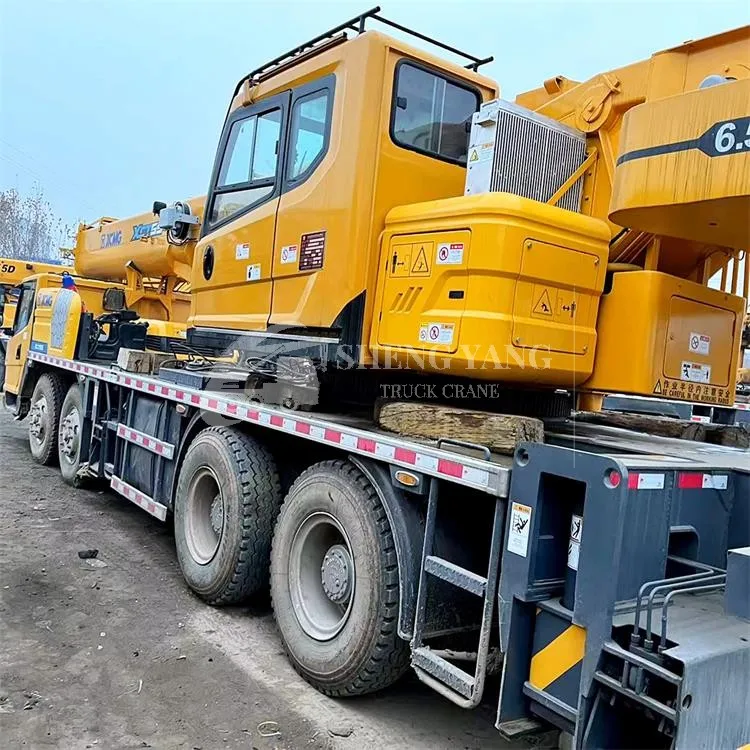

20ton 130 1200 Rt80 Rotatable Movable 1000 Turkey 200ton 42 Manufacturer 55 160 Bom Car Xct100 Truck Crane
- Category: >>>
- Supplier: Anyang Shengyang Construction Machinery Co. Ltd.Anyang Ltd.
Share on (1601289577152):
Product Overview
Description
XCMG XCT55L6 truck crane standard reshaping, all-round leading, the industry's first 6-section boom 50m jib length products, to establish a new height in the industry. The original innovative single-cylinder pin system realises a six-section lifting boom with a boom length of 50m, and the lifting performance is more than 20% ahead of the industry's best level. Low-speed and high-torque power system, realising the perfect combination of the best power and the best economy. Max. climbing capacity of 45%, maximum driving speed of 90km/h, the highest in the industry, fuel consumption of 35L per 100km.
Equipment Model | XCT55L6 | Max. rated lifting capacity (t) | 55 |
Dimension(mm) | 13650*2540*3770 | Min. rated range(m) | 3 |
Wheelbase(mm) | 1470+3700+1350 | Max. lifting moment of basic arm(kN-m) | 2058 |
Wheelbase(mm) | 2124/2124/1834/1834 | Turning radius of rotary table tail(mm) | 3830 |
Gross mass in travelling condition(kg) | 44000 | Outrigger(m)(L*W) | 8.035*7.3 |
Axle load(kg) | 9000+9000+13000×2 | Max. lifting height of basic arm(m) | 10.7 |
Engine model | mc11.36-40, sc10e340q4 | Max. lifting height of the longest main arm (m) | 49.1 |
Rated engine power(kw/(r/min)) | 268/1900, 251/1900 | Max. lifting height of main arm + jib arm (m) | 63.8 |
Rated engine torque(N.m/(r/min)) | 1800/1000-1400, 1550/1300 | Max. lifting height of main arm + jib arm (m) | 11.2 |
Maximum travelling speed(km/h) | 90 | Max. lifting height of main arm + jib arm (m) | 50 |
Minimum stable travelling speed(km/h) | 2.5～3 | Max. arm length (m) Max. main arm + sub arm length (m) | 66 |
Min. turning diameter(m) | 24 | Max. slewing speed (r/min) | 2 |
Min. turning diameter of arm(m) | 26.2 | Main Lifting Mechanism | 130 |
Max. gradient(%) | 45 | Max. slewing speed (r/min) | 130 |
Min. ground clearance (mm) | 303.5 | Boom extension and retraction time (s) | Full extension 350 |
Approach angle (°) | 16 (including front guard 10°) | Full lifting time(s) | 50 |
Departure angle (°) | 13 | Outriggers retracted - levelling(s) | 20/30 |
Braking distance (m) | ≤10 | Outriggers retracted - vertical(s) | 20/30 |
Engine model | SC9DF290Q4 | Rated engine power(kW/r/min) | SC9DF290Q4 |
Max. engine torque(N-m/r/min) | 1200/1400 |
