Dzh120 Instant Noodle Sugar Beefsteak Biscute Vitamin D Automatic Horizontal Carton Packing Cartoning Machine
- Category: >>>
- Supplier: Henan Gondor Intelligent Equipment Manufacturing Co. Ltd.
Share on (1601289579550):
Product Overview
Description
Introduction:
The fully automatic cartoning machine adopts PLC and human-machine interface automatic control operating system, stepless frequency conversion speed regulation, high degree of automation, and easy to understand operation.

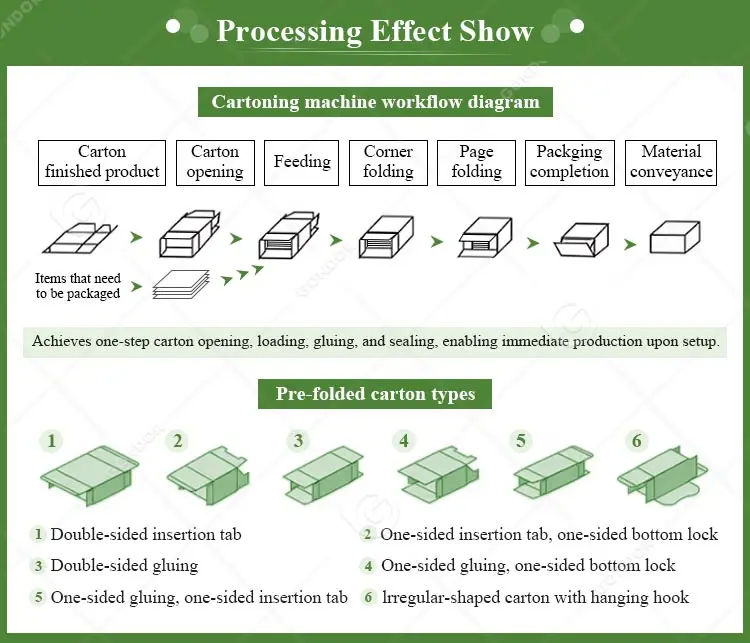

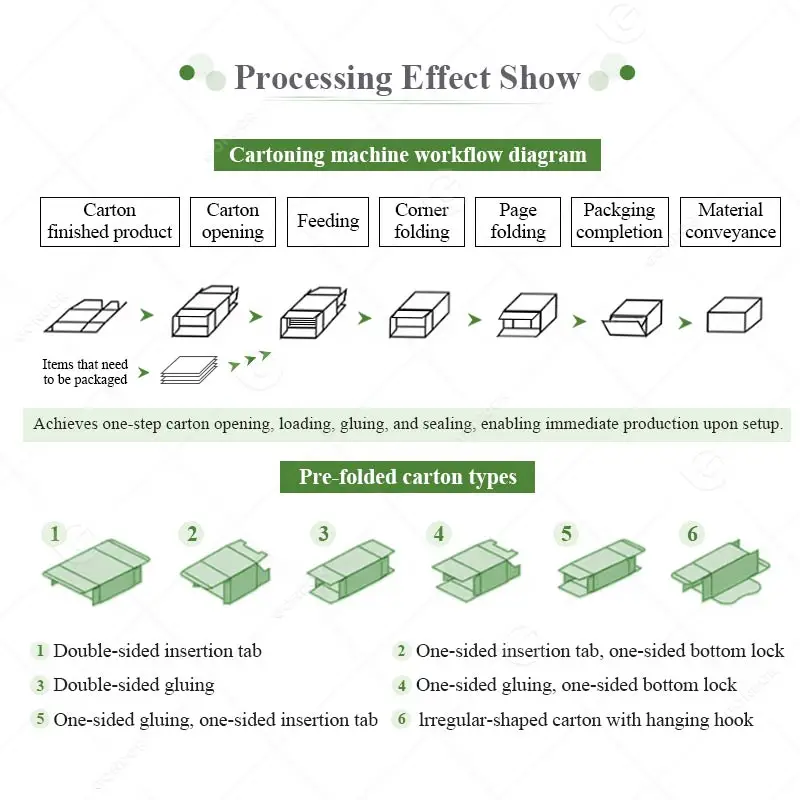

It has the functions of automatically folding the instruction manual, automatically opening the carton, packing items, printing batch numbers, sealing boxes, etc. (hot melt adhesive can also be used)

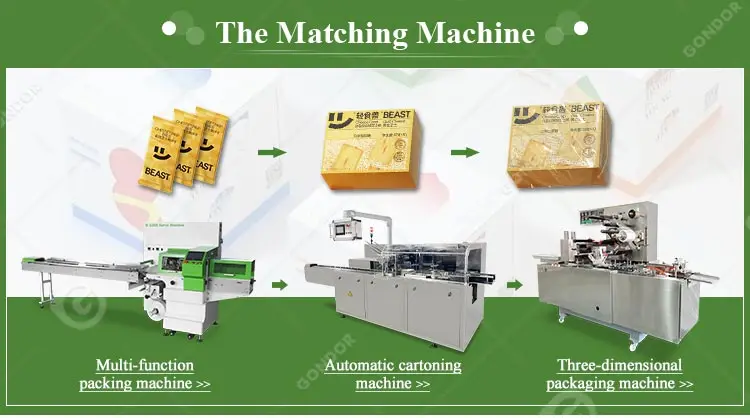

It can be connected with aluminum-plastic packaging machines, pillow packaging machines, filling machines, soap making machines, inkjet printers (or regulatory code systems), labeling machines, online weighing machines, three-dimensional packaging machines, heat shrink packaging machines, strapping machines, other production lines, etc. to achieve docking and linkage production.
It has the functions of automatically folding the instruction manual, automatically opening the carton, packing items, printing batch numbers, sealing boxes, etc. (hot melt adhesive can also be used)
It can be connected with aluminum-plastic packaging machines, pillow packaging machines, filling machines, soap making machines, inkjet printers (or regulatory code systems), labeling machines, online weighing machines, three-dimensional packaging machines, heat shrink packaging machines, strapping machines, other production lines, etc. to achieve docking and linkage production.
Application:
This machine is suitable for cartoning of food, cosmetics, auto parts, electronics, daily necessities, and similar solid regular items.
Features:
* Easy maintenance, the outer cover is made of 304 stainless steel + plexiglass structure.
* Easy to adjust, a variety of sealing methods; replace cartons of different sizes. No need to change the mold, just adjust the mold position according to the size of the box.

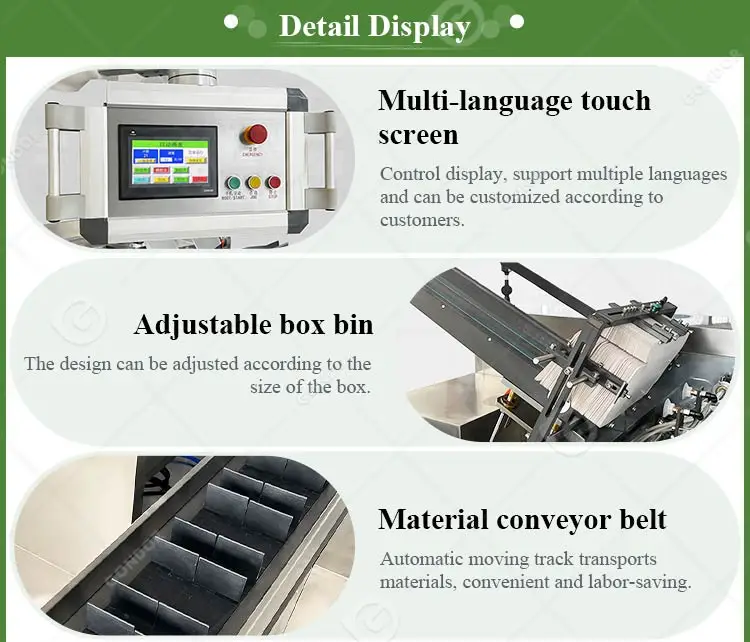

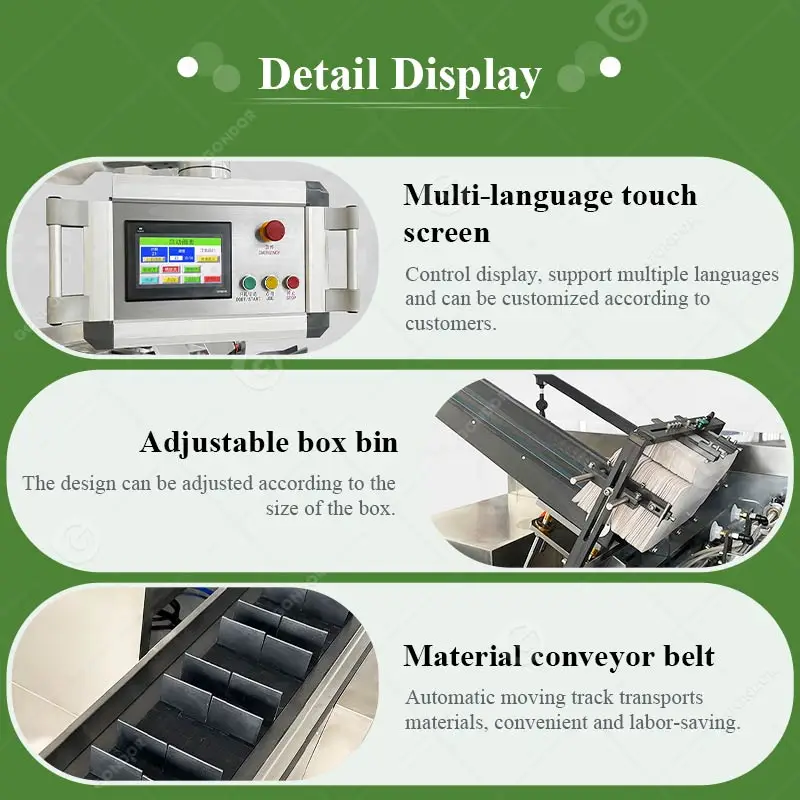

* Intelligent display of cartoning speed and production quantity.
* The equipment adopts photoelectric automatic detection (German SICK), automatically detects the product and controls the work of the folding machine, controls the product and the manual to be synchronously delivered to the push port, and put into the carton together.
* The equipment is equipped with a main drive motor and a clutch brake. When the torque is overloaded or the transmission parts are stuck with foreign objects and cause overload, the main motor is idling and disengaged from the transmission part to ensure that other transmission parts of the machine are not damaged.
* Support customization, can be configured with manual folding machine, steel stamp coding, inkjet coding and other multi-functional devices.
Paramater:
Model | ZH-100 | ZH-130 | ZH-180 |
Speed | 50-80 boxes/minute | 30-60 boxes/minute | 30-50 boxes/minute |
Overall dimension | 3640×1130×1800mm | 4600×1580×1850mm | 4700×1720×1880mm |
Weight | 1200kg | 1500kg | 1850kg |
Power Supply | 220V | 220V | 220V |
Noise | < 85 decibel | < 85 decibel | < 85 decibel |
Max box size | 200×130×55mm | 300×180×70mm | 330×210×85mm |
Min box size | 80×40×20mm | 100×70×30mm | 100×70×30mm |
Available paper | Generally choose 250g/m³-350g/m³ white board | ||
Environment temperature | 20±10℃ | ||
Paper box gluing process requirements | Tongue plug Hot melt adhesive | Tongue plug Hot melt adhesive | Tongue plug Water-based hot melt adhesive |
Trial subjects | Sanitary napkins, plasters, facial masks, eye masks, etc. | Toothpaste, facial, cleanser, etc. | Shampoo, shower gel, etc. |
Q1: Where is your factory? Can I visit your factory?
Our factory is located In Luohe City, Henan Province. We are factory manufacturing for 20 years and we provide perfect OEM and after-sale service.
Q2: How can I know your machine is suitable for you product?
If possible, you can send us samples and we will test on machines.So can we will take videos and pictures for you. We can also show you on-line by video chatting.
Q3: How can I trust you for the first-time business?
You can check our business license and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money rights and interests.
Q4: How can l know your machine is designed for my product?
You can send us samples of your product and we test it on machine.
Q5: How to contact you?
Please leave messages and click "send" to send us inquiries.

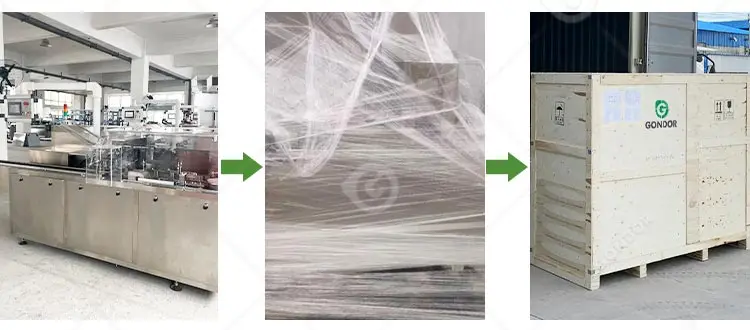

Installing waterproof membrane to reduce dust and water pollution
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
1. 24 hour communication service.
2. Fast logistics will provide you a smooth delivery service.
3. One-year warranty and lifetime technical support.
4. New design or product recommendation.
5. Attend international Fair to negotiate with customer face to face.
6. Offer official invitation if you come to China.
7. Reception service will help you book good hotel.
