Product Overview
Description
What is Fabric Formed Concrete
Factory Fabric Formed Concrete /Geosynthetic Concrete Liner for Channel / Dam Linings

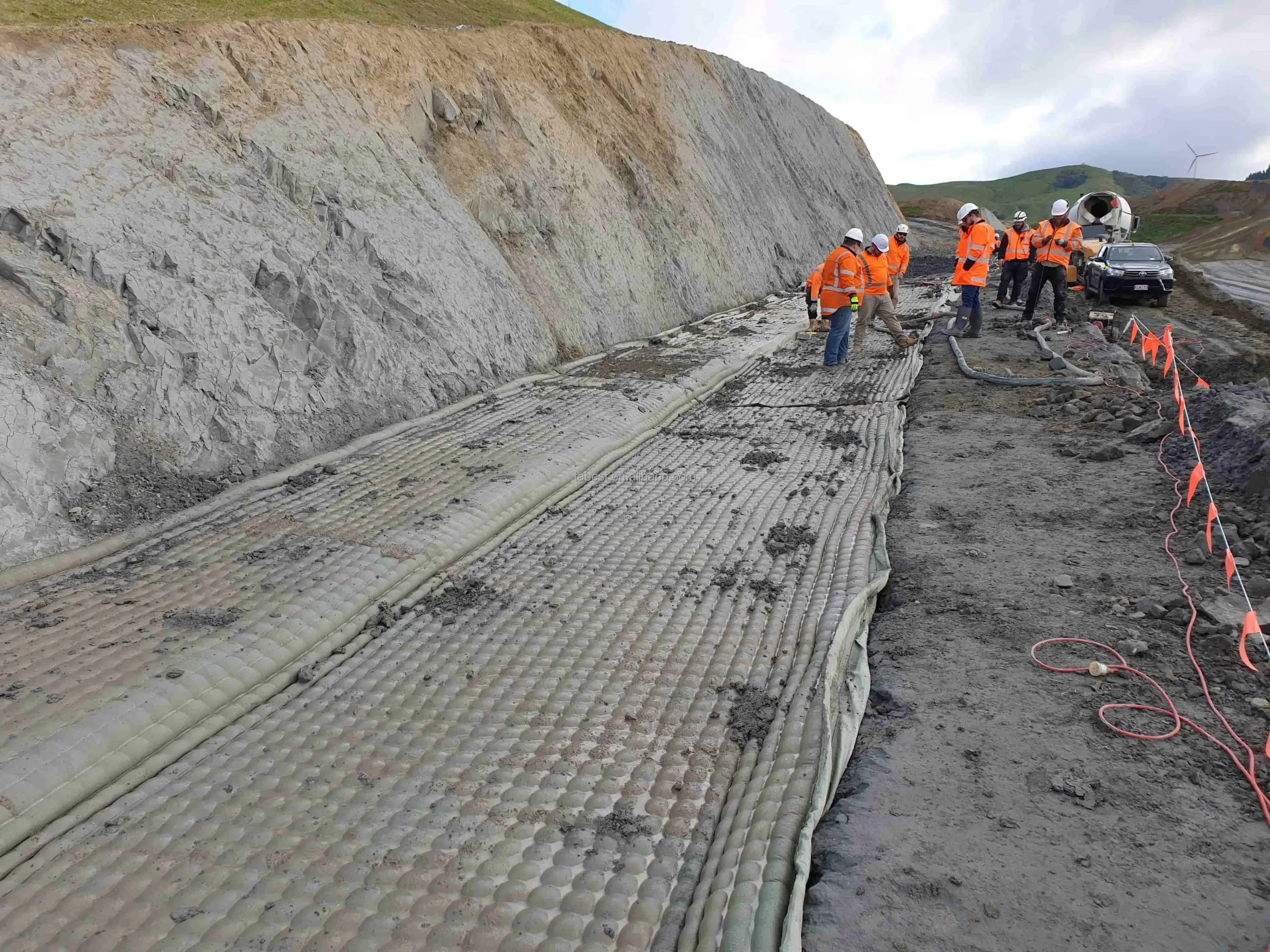

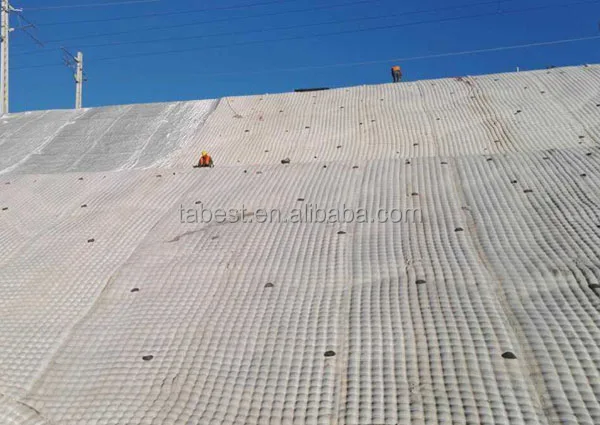

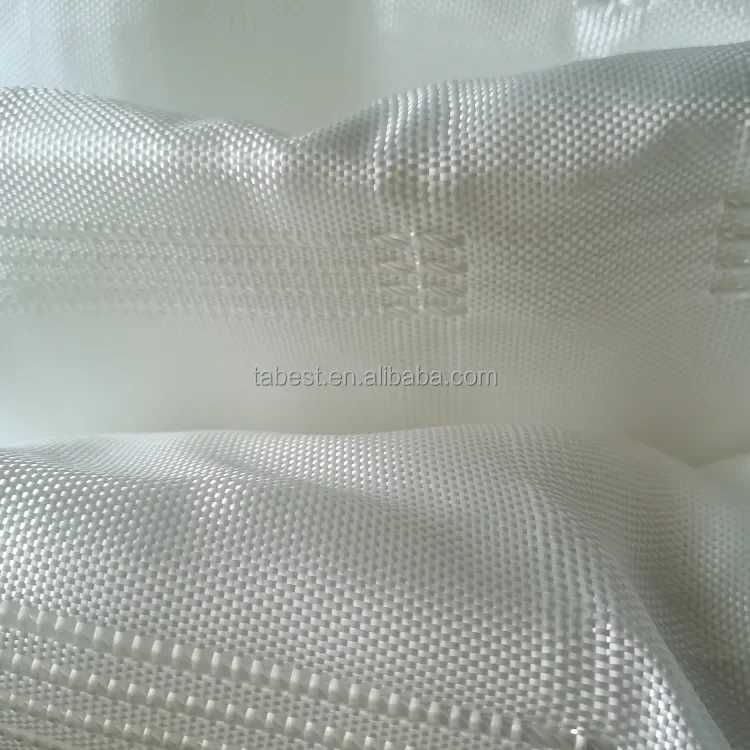

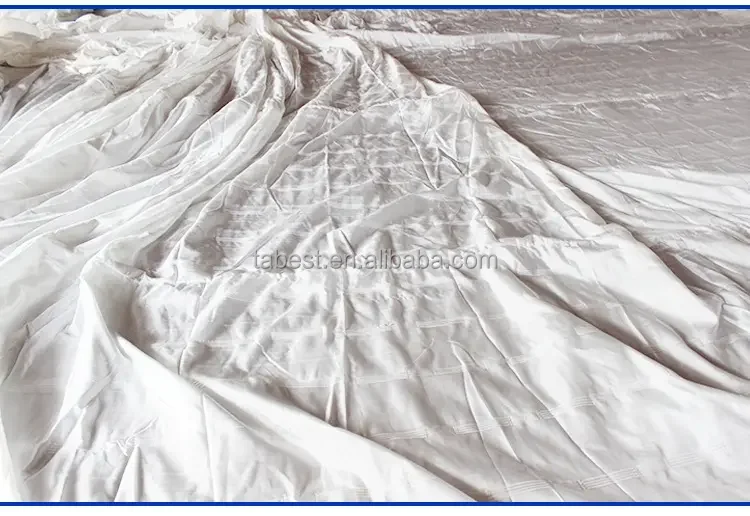

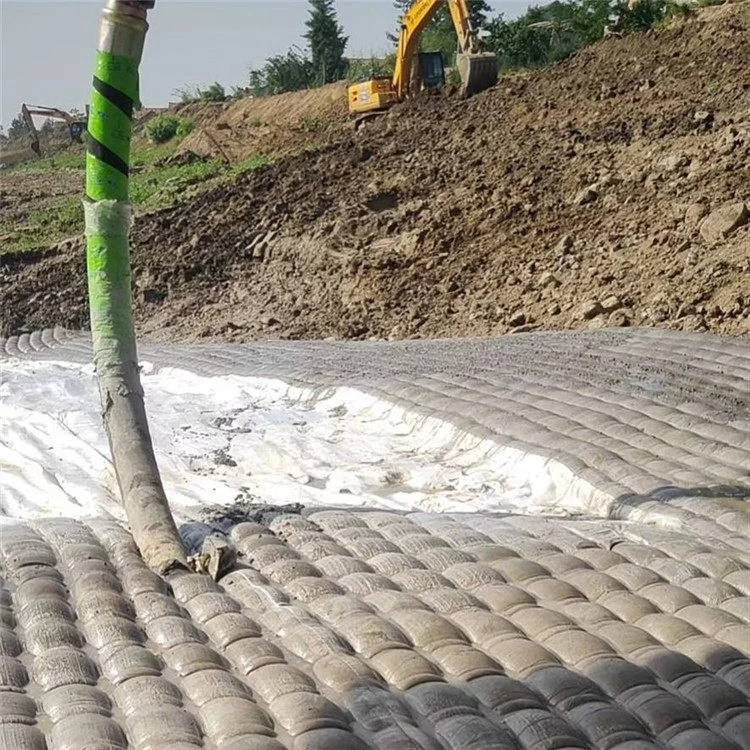

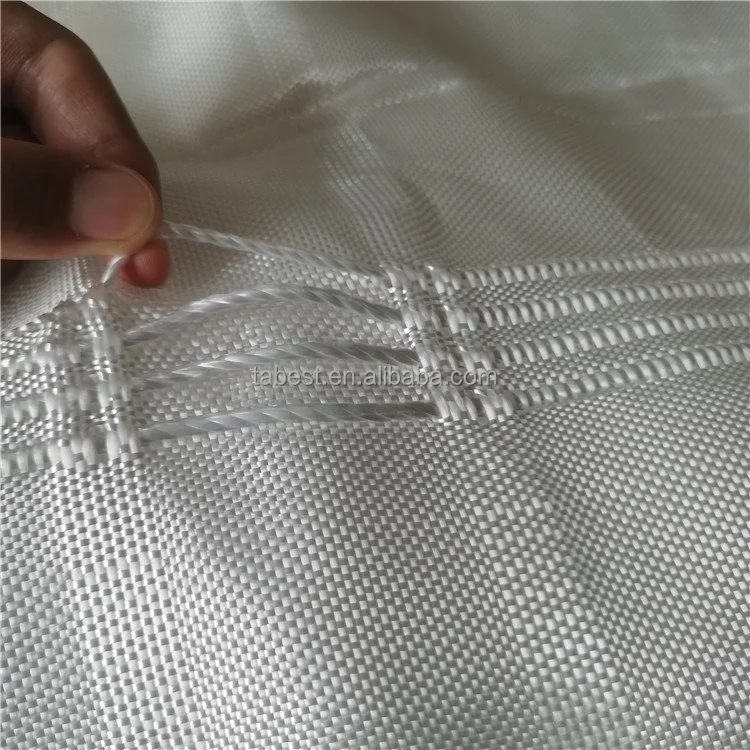

Mold bag concrete is produced by injecting concrete or cement mortar into a mold bag using a high-pressure pump. The thickness of the concrete or cement mortar is controlled by the length of the hanging reinforcement bag and rope (polymer such as nylon) inside the bag. After the concrete or cement mortar solidifies, it forms a plate-like or other structure with certain strength, which can meet the needs of the project. As a new type of building material, geotextile bags can be widely used in protective engineering such as embankment slope protection, bank protection, harbor, dock, etc. for rivers, lakes, and seas
Product Technical Parameters
Item | Unit | Index | ||||
Weight | g/sqm | ≥550 | ||||
Tensile strength | Warp Direction | N/5CM | ≥2200 | |||
Across warp | N/5CM | ≥2000 | ||||
Elongation rate | % | ≤30 | ||||
CBR bursting strength | N | 3000-4000 | ||||
Vertical permeability coefficient | CM/S | 1.0*10³-5*10³ | ||||
Equivalent aperture | MM | 0.084-0.25 | ||||
Products Application

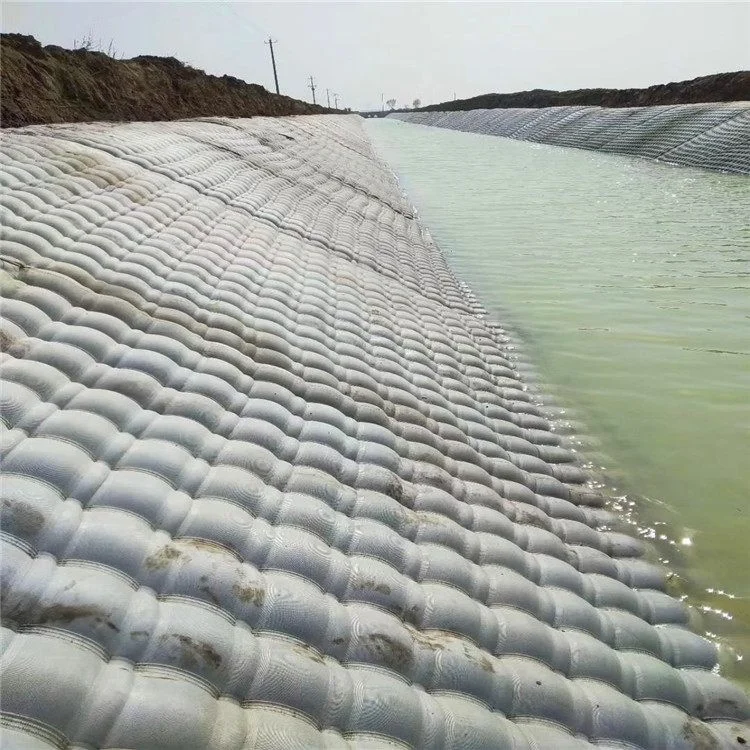

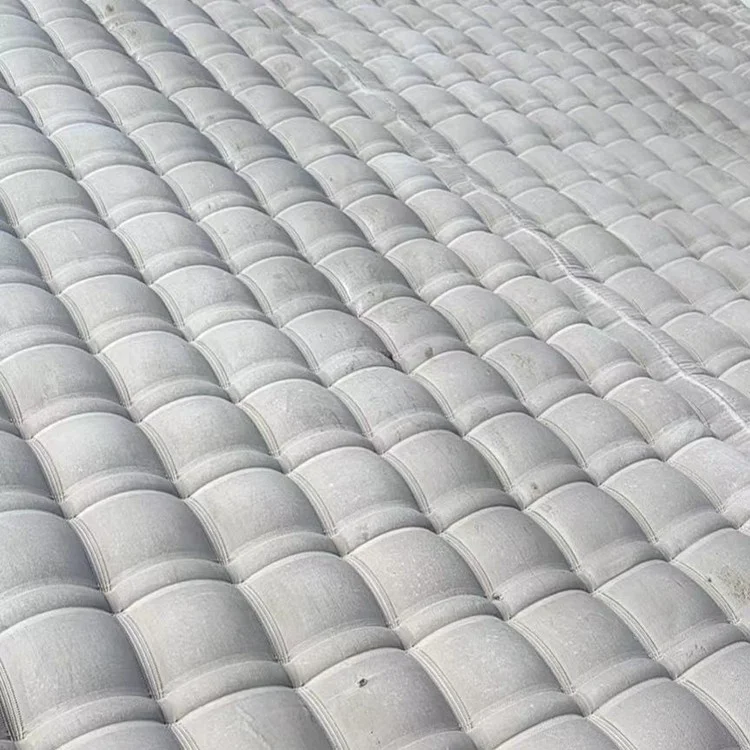

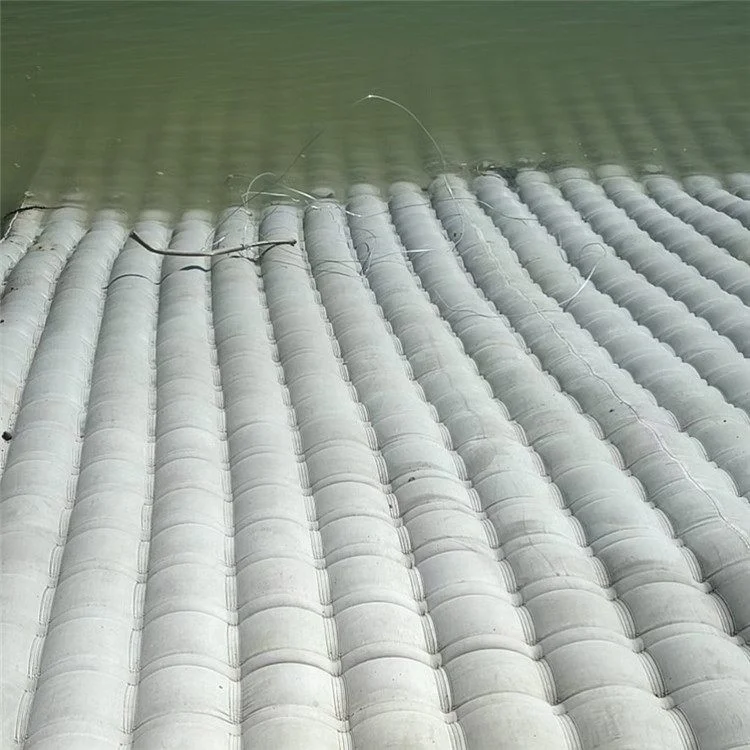

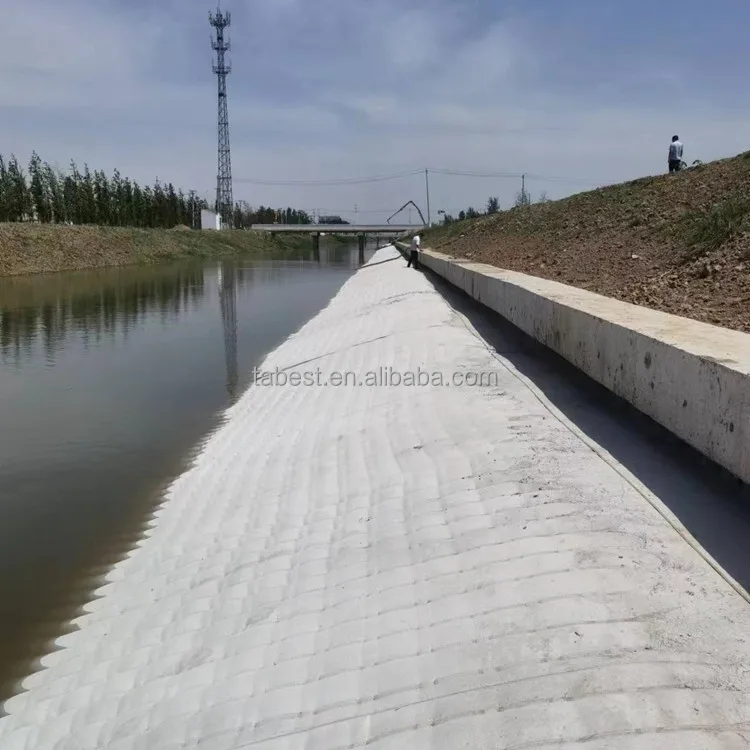

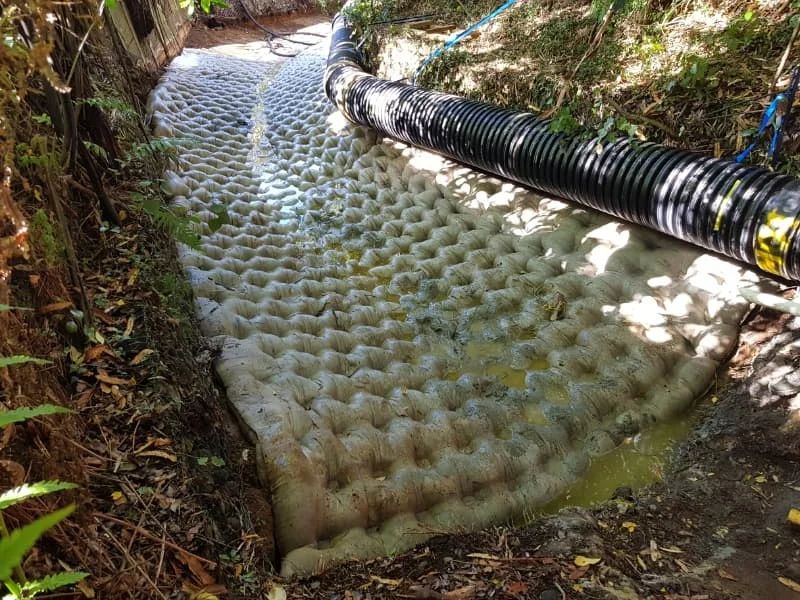

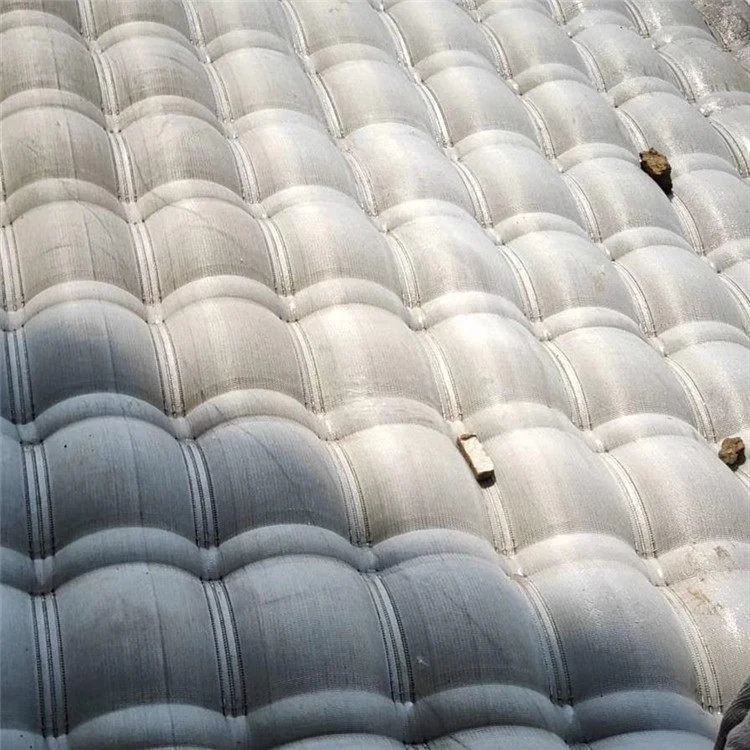

Filter Point Concrete Linings with filtration points (drains) provide erosion-resistant, permeable concrete linings for ditches,channels, canals, streams, rivers, ponds, lakes, reservoirs, marinas, and protected port and harbor areas. Filter Point Concrete linings have a cobbled surface and a relatively high coefficient of hydraulic friction in order to achieve lower flow velocities and to reduce wave run-up. The filtration points provide for the relief of hydrostatic uplift pressures, increasing the system's stability.
Product Advantage
* Cost effective alternative to concrete slabs and rip-rap applications
* Faster construction time as compared to conventional cast insitu
* Effective erosion protection option for preferences towards concrete structure applications
* Range of concrete mattress system available (rigid, flexible and green) for different site conditions
* Faster construction time as compared to conventional cast insitu
* Effective erosion protection option for preferences towards concrete structure applications
* Range of concrete mattress system available (rigid, flexible and green) for different site conditions
Product Details
1.high-quality
2.High weight
3.Advantageous price
4.Customizable solutions
5.Fast delivery
2.High weight
3.Advantageous price
4.Customizable solutions
5.Fast delivery

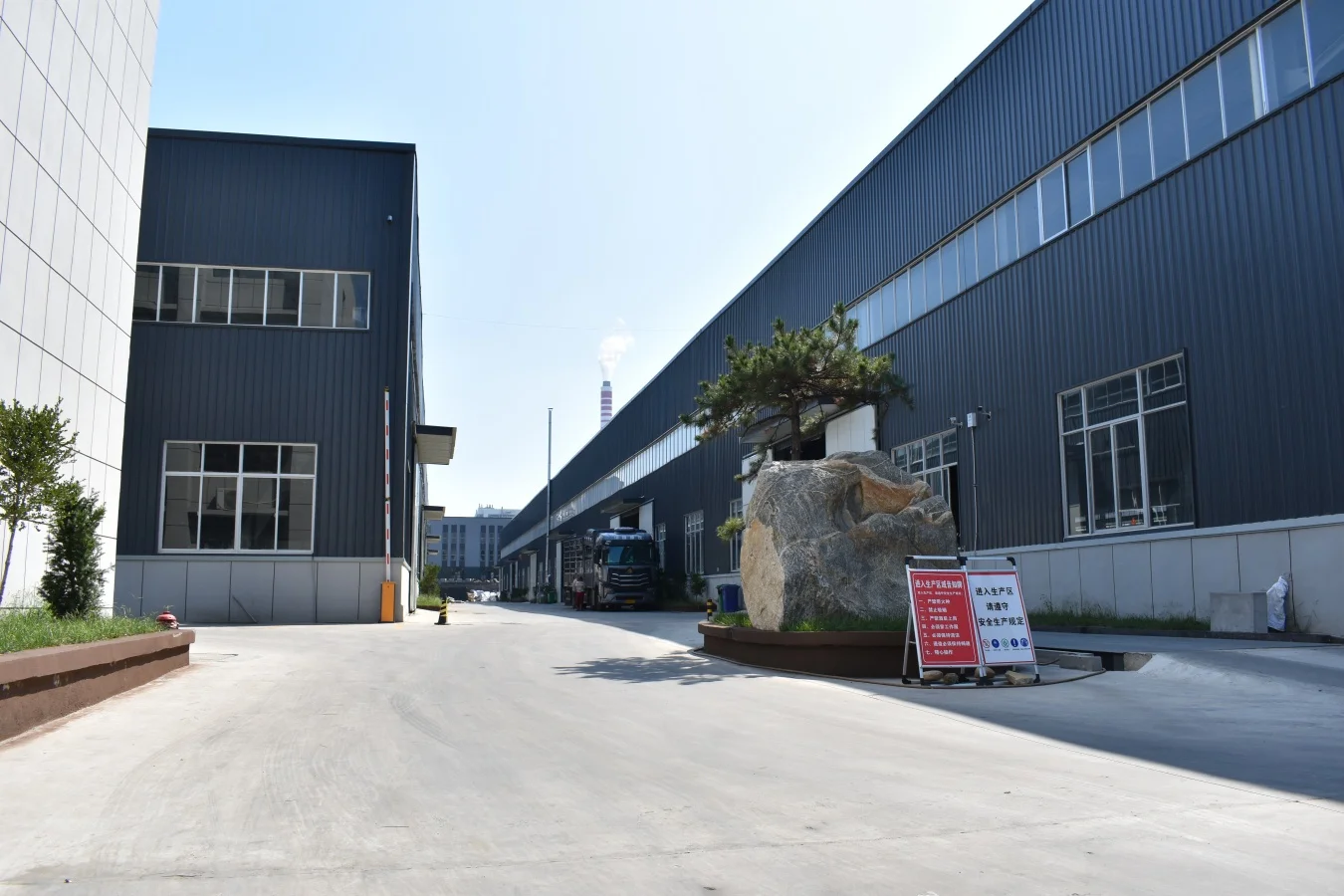

Workshop&display
