Automatic cleaning HEPA filter mobile laser cutting fume aspirator fiber laser dust collector
- Category: >>>
- Supplier: Qingdao Power Space Environmental Protection Technology Co. Ltd.Qingdao Ltd.
Share on (1601289631202):
Product Overview
Description
Automatic cleaning HEPA filter mobile laser cutting fume aspirator fiber laser dust collector
Item | Parameters | ||||
Model | LW1204-055 | LW1206-075 | LW1209-110 | ||
Processing capacity | 2500-4500m³/h | 4500-6500m³/h | 6500-9000m³/h | ||
Voltage | 380V50Hz | 380V50Hz | 380V50Hz | ||
Power | 5.5kW | 7.5kW | 11kW | ||
Filter area | 56m² | 84m² | 144m² | ||
QTY of filter cartridges | 4 | 6 | 9 | ||
Compressed air (Mpa) | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | ||
Filter element | Ahlstrom nano flame-retardant | Ahlstrom nano flame-retardant | Ahlstrom nano flame-retardant | ||
Filter efficiency | 0.3μm; >99.9% | 0.3μm; >99.9% | 0.3μm; >99.9% | ||
Noise | ≤76dB | ≤76dB | ≤76dB | ||
Size(L*W*H) | 1100*1100*1950mm | 1100*1100*2470mm | 1100*1100*2870mm | ||
Dust cleaning method | Pulse automatic blowing-back dust Removal system by compressed air | Pulse automatic blowing-back dust removal system by compressed air | Pulse automatic blowing-back dust removal system by compressed air | ||
02- Independent research and development of high-performance fan impeller, high negative pressure and large air volume, can effectively deal with fume and dust;
03- Imported high-quality nano flame-retardant filter element, high filtration efficiency and good performance;

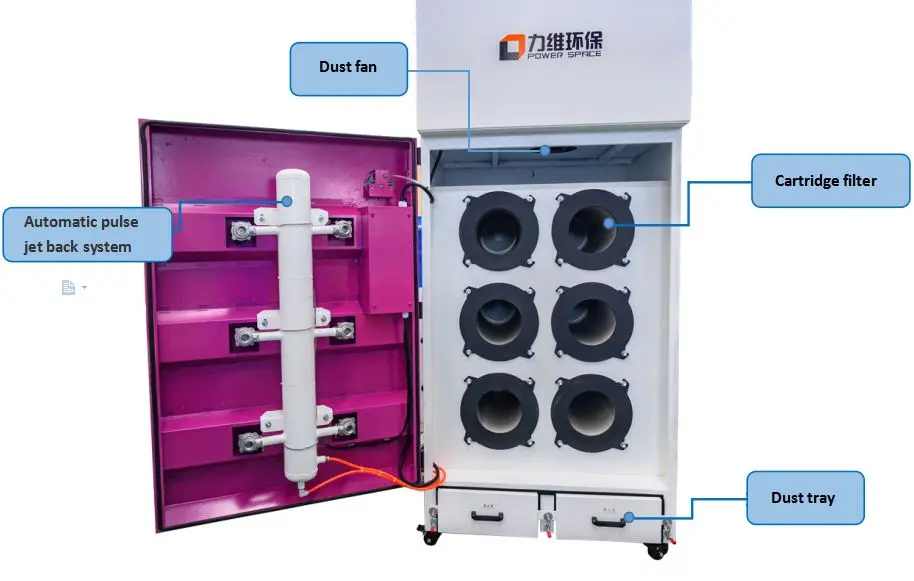

04 - Horizontal filter cartridge, open-out structure, easy maintenance, the filter cartridge is designed for easy replacement and easy maintenance and cleaning;
05 - Efficient automatic pulse blowback system, effectively clean the filter cartridge and prolong the service life of the filter cartridge;

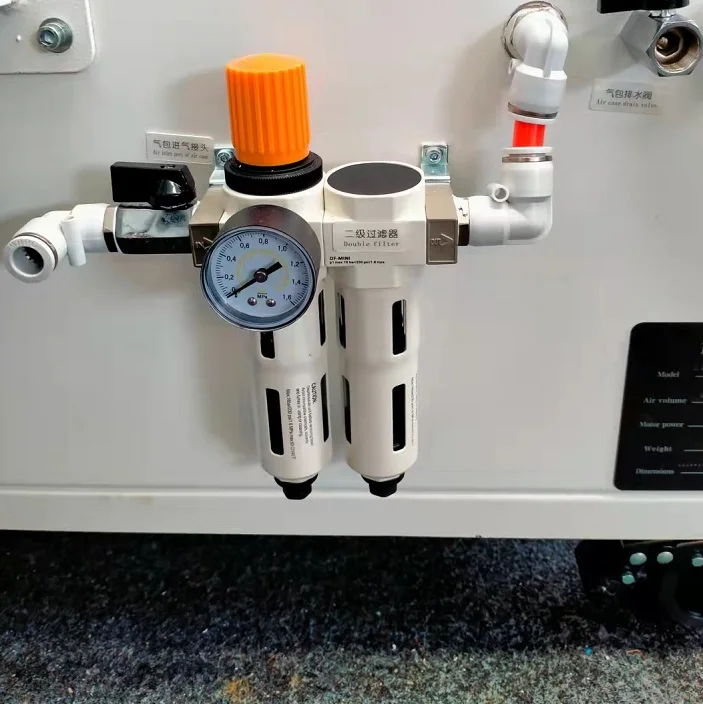

06 - Oil-water separator, can separate oil and water contained in compressed gas;

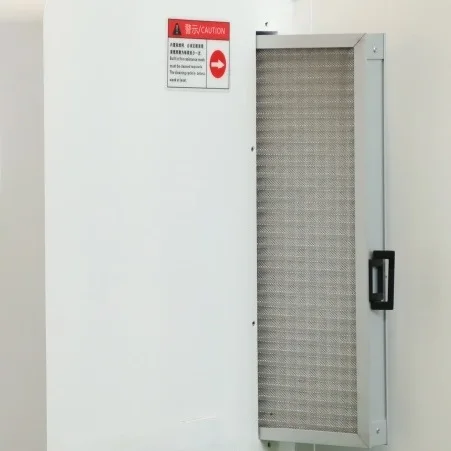

07 - Fireproof box with primary spark filter mesh, can avoid fire as much as possible.
FAQ
Q:Do you have stock products to sell?
A: We produce according to order, so there is almost no stock. We have our own brand of POWER SPACE, but OEM order is acceptable.
Q:What is your minimum order quantity?
A:Usually MOQ is 5 pieces,but negotiable.
Q:What certificates can offer?
A:CE, ISO
Q:What kind of payment do you accept ?
A:T/T, L/C, Alibaba Credit Insurance,etc
Q:What is the status of After-sale Services for customers and machines?
A:We provide on-line free technical support for whole life. Also ,if necessay, egineers available to service machinery overseas, but extra charges are needed.
Q:How many years since you have been in this field ?
A:We have been in this field for more than 12 years .We have rich experience for designing and manufacturing the machinery.
Q:How to contact you?
A: Wechat/WhatsApp/Mobile:+86 18663981088,I will reply you as soon as possible.
A: We produce according to order, so there is almost no stock. We have our own brand of POWER SPACE, but OEM order is acceptable.
Q:What is your minimum order quantity?
A:Usually MOQ is 5 pieces,but negotiable.
Q:What certificates can offer?
A:CE, ISO
Q:What kind of payment do you accept ?
A:T/T, L/C, Alibaba Credit Insurance,etc
Q:What is the status of After-sale Services for customers and machines?
A:We provide on-line free technical support for whole life. Also ,if necessay, egineers available to service machinery overseas, but extra charges are needed.
Q:How many years since you have been in this field ?
A:We have been in this field for more than 12 years .We have rich experience for designing and manufacturing the machinery.
Q:How to contact you?
A: Wechat/WhatsApp/Mobile:+86 18663981088,I will reply you as soon as possible.
