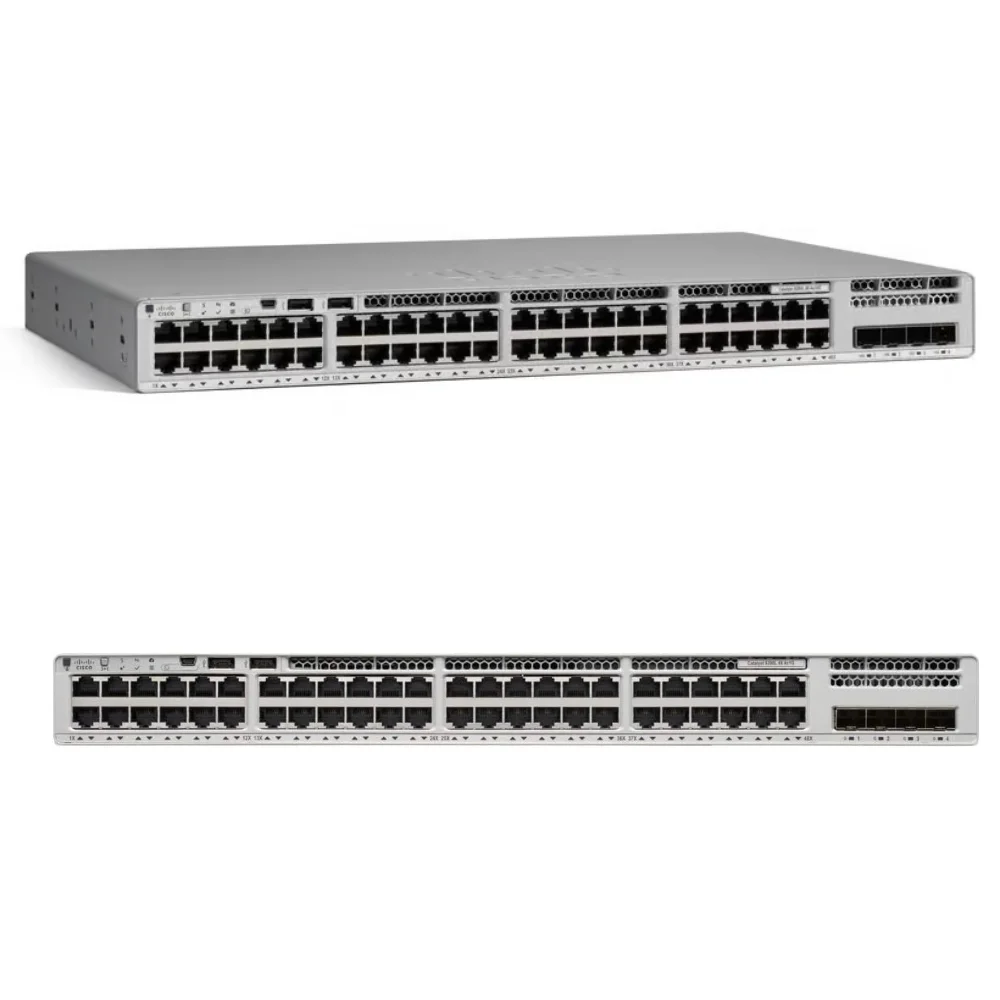

Cisco C9200L-48T-4X-E Performance
Cisco Catalyst C9200L-48T-4X-E specifications | ||
Model | Cisco Catalyst C9200L-48T-4X-E | |
Description | 48-Port Layer 3 Managed Switch with 4x 10GbE Uplinks and Gigabit Ports | |
Product Type | Network Switch | |
Form Factor | Rack-Mountable | |
Ports | 48 x 10/100/1000 Ethernet Ports | |
Uplink Ports | 4 x 10GbE SFP+ Ports | |
Power over Ethernet (PoE) | No PoE support | |
Total PoE Budget | Not applicable (no PoE) | |
Switching Capacity | 128 Gbps | |
Stacking Bandwidth | 480 Gbps (when stacked) | |
Forwarding Rate | 95.2 Mpps | |
Layer | Layer 3 | |
DRAM | 4GB | |
Flash | 2GB | |
MAC Address Table | 32,000 entries | |
VLAN Support | 4000 VLANs | |
Jumbo Frame Support | Yes, up to 9216 bytes | |
Stacking | Cisco StackWise 480 technology, up to 8 units | |
Port Mirroring | Yes | |
Redundancy Features | Hot-swappable power supplies, redundant fans | |
Power Supply | 1 x 350W AC Power Supply (optional second power supply for redundancy) | |
Hardware Forwarding | Yes | |
Layer 3 Protocols Supported | RIP, OSPF, EIGRP, BGP, PBR, VRRP | |
Quality of Service (QoS) | 8 egress queues, Congestion avoidance, Traffic prioritization | |
IPv6 Support | Yes | |
PoE+ Features | Not applicable (no PoE support) | |
Dimensions (H x W x D) | 44.5 x 44.5 x 4.4 cm (17.5 x 17.5 x 1.7 inches) | |
Weight | 4.7 kg (10.4 lbs) |
