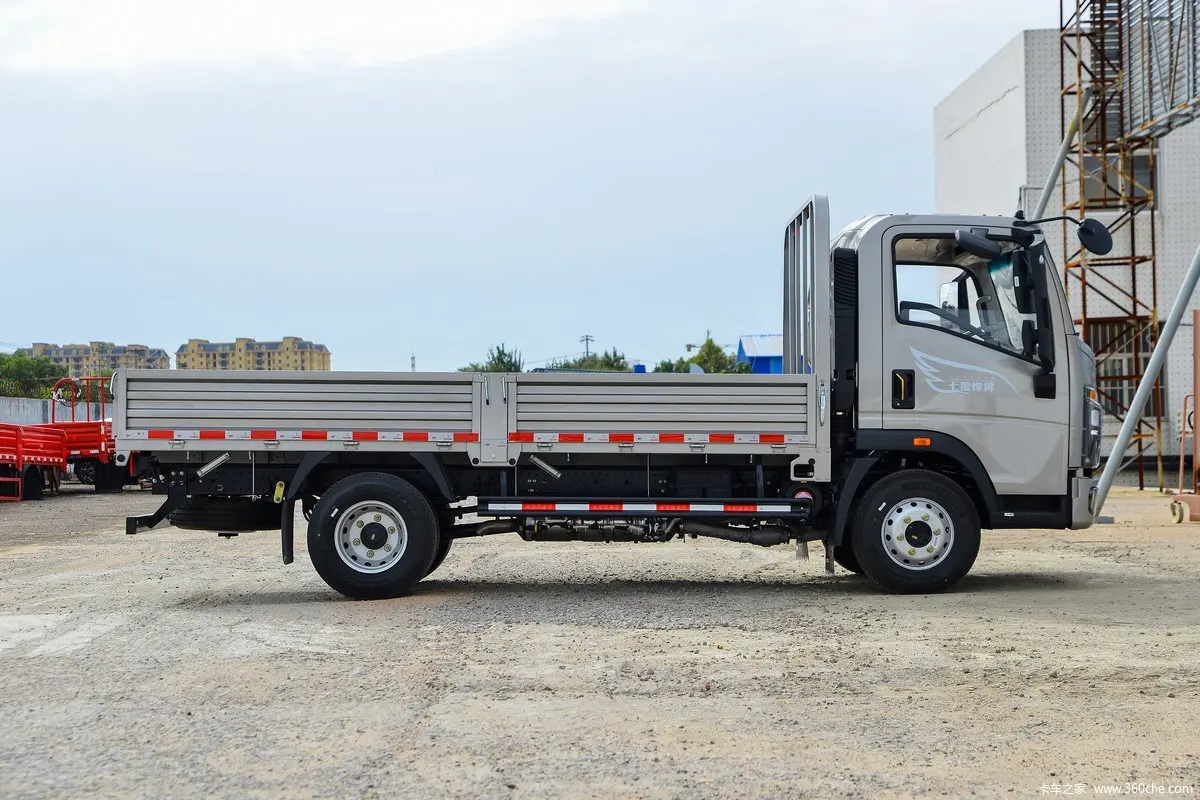

Basic Information | ||||||
Announcement Model: | ZZ1047G3215F144 | type: | Truck | |||
Drive type: | 4X2 | Wheelbase: | 3280mm | |||
Box length level: | 4.2 m | engine: | Weichai WP2.5NQ150E61 | |||
Gearbox: | Sinotruk HW51508ACL | Body length: | 5.99 m | |||
Body width: | 2.2 m | Ride height: | 2.5 m | |||
Front track: | 1620mm | Rear track: | 1560mm | |||
Vehicle weight: | 2.56 tons | Rated load: | 1.8 tons | |||
Total mass: | 4.49 tons | Maximum speed: | 95KM/h | |||
Origin: | Zhangqiu, Shandong | Tonnage level: | Light Truck | |||
Driving license: | A1,A2,B1,B2,C1 | Approach Angle: | 18 degrees | |||
Departure angle: | 17 degrees | Front overhang/rear overhang: | 1.16/1.55m | |||
Fuel Type: | diesel fuel | |||||
Engine parameters | ||||||
Engine Model: | Weichai WP2.5NQ150E61 | Engine Brand: | Weichai | |||
Engine common name: | Weichai WP2.5N | Number of cylinders: | 4 cylinders | |||
Fuel Type: | diesel fuel | Cylinder arrangement: | In-line | |||
Displacement: | 2.49L | Emission standards: | National VI | |||
Maximum output power: | 110kw | Maximum horsepower: | 150 HP | |||
Engine oil change cycle: | 50,000 km | |||||

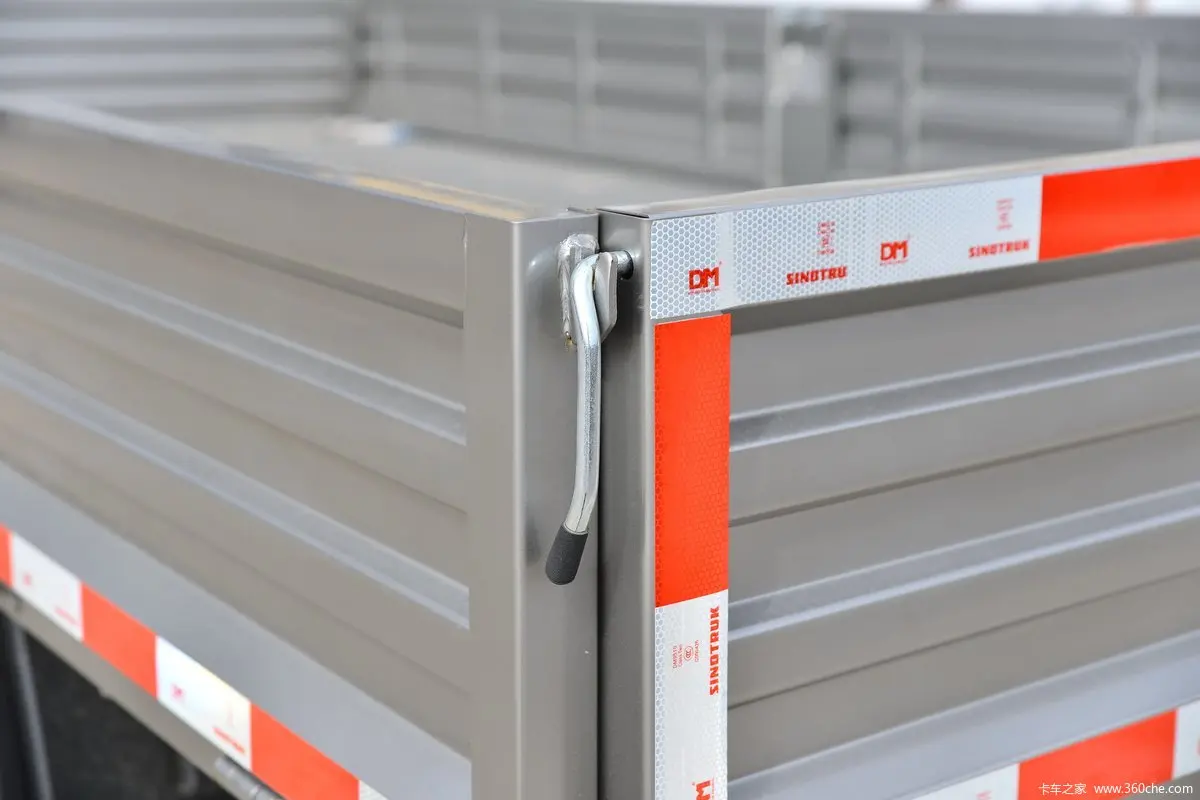

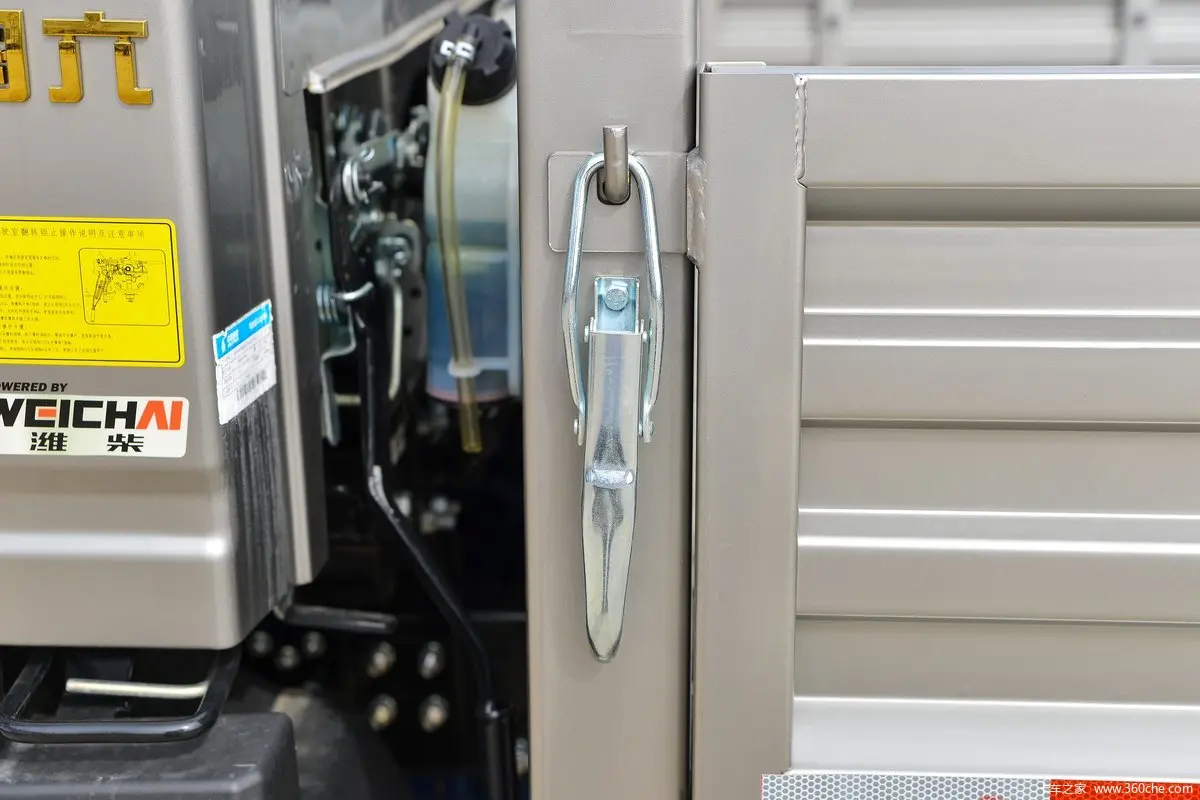

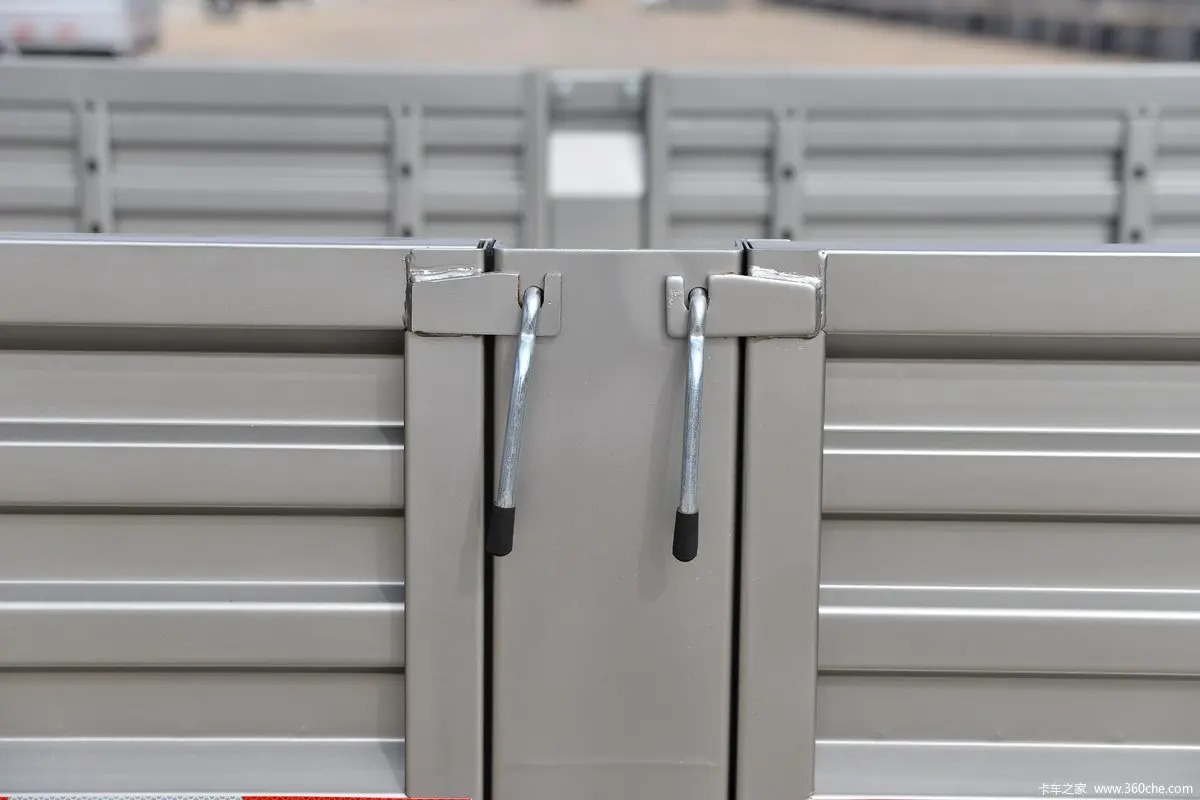

Cargo box parameters | ||||||
Cargo box form: | Fence type | Length of cargo box: | 4.15 m | |||
Cargo box width: | 2.1 m | Cargo box height: | 0.4m | |||
Gearbox parameters | ||||||
Gearbox Model: | Sinotruk HW51508ACL | Gearbox brand: | Sinotruk | |||
Shifting method: | AMT | Forward gears: | 8 gears | |||
Reverse gear number: | 2 | |||||

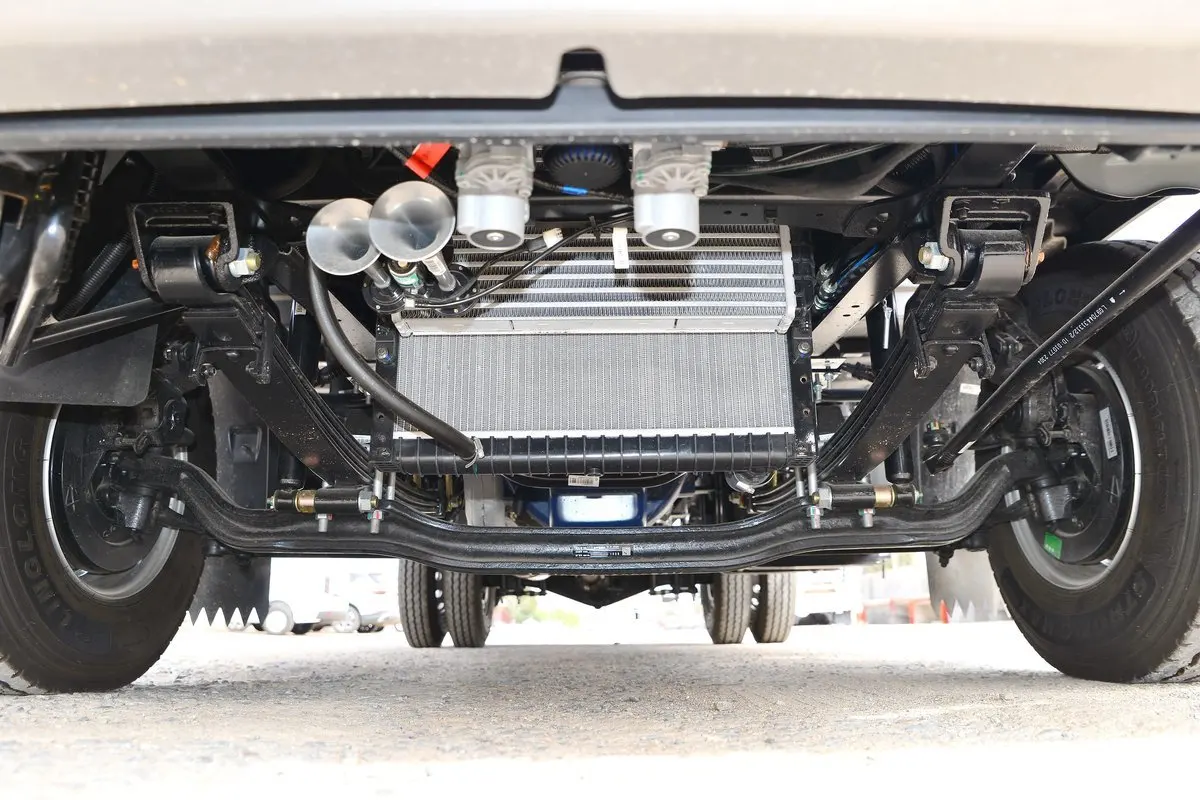

Chassis parameters | ||||||
Permissible load on front axle: | 1790KG | Permissible load on rear axle: | 2700KG | |||
Number of springs: | 3/3+2,3/5+3 | Aluminum Alloy Wheels: | ○ |
