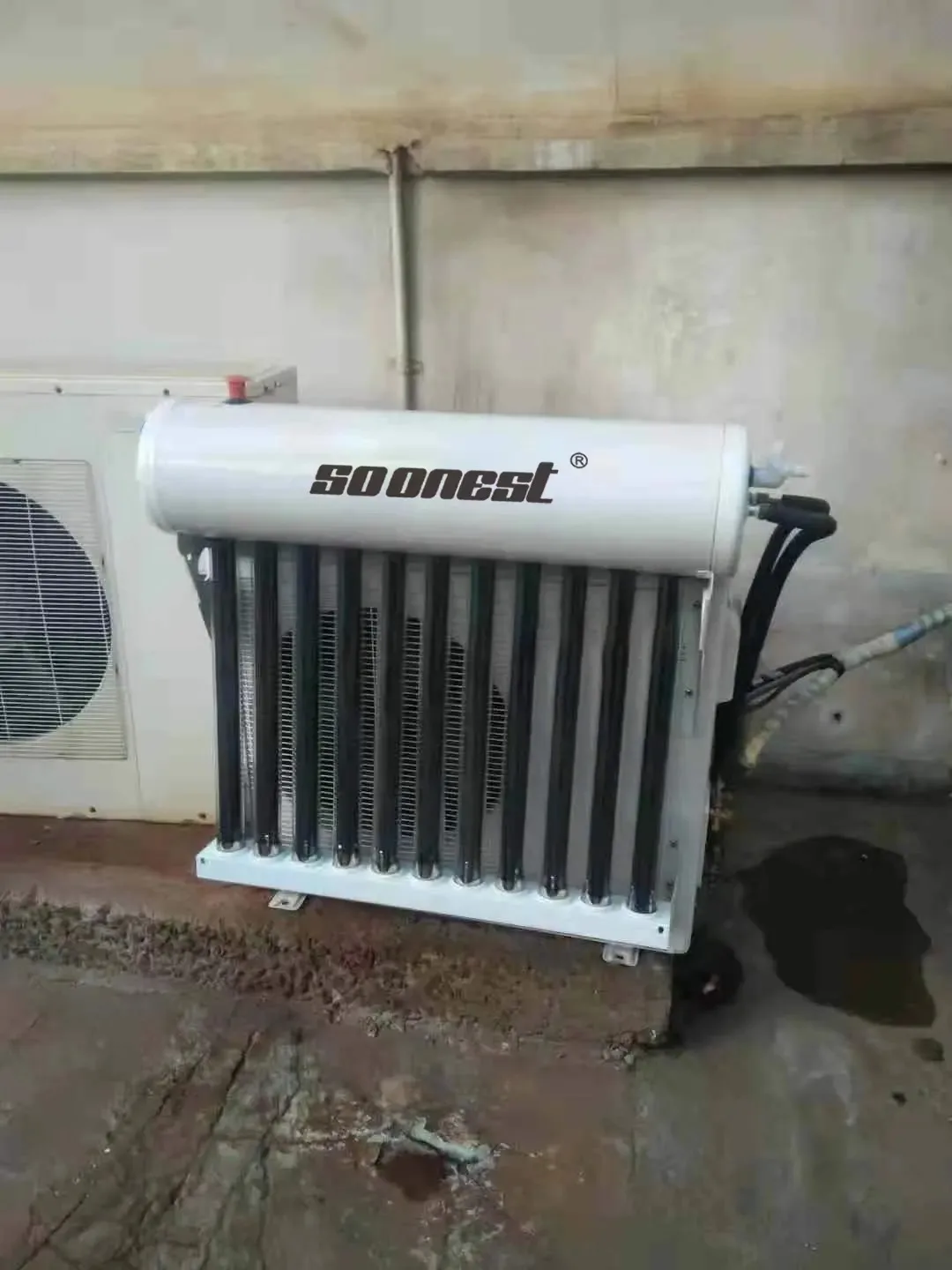

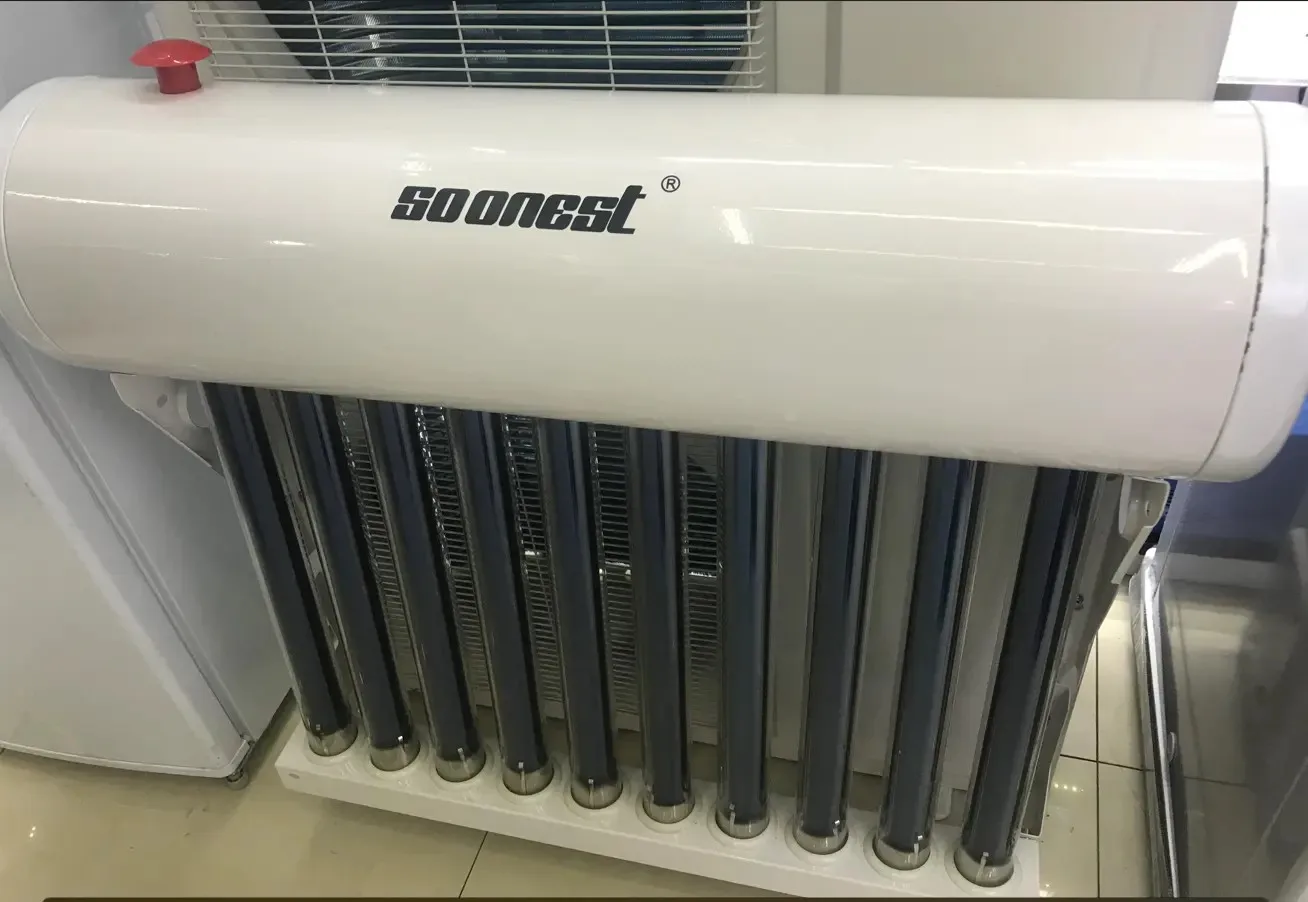

Hot sale wall mounted type hybrid solar air conditioner 12000btu 18000btu 24000btu For Home
- Category: >>>
- Supplier: Shanghai Jingyifeng Energy Technology Co. Ltd.Shanghai Ltd.
Share on (1601289791772):
Product Overview
Description

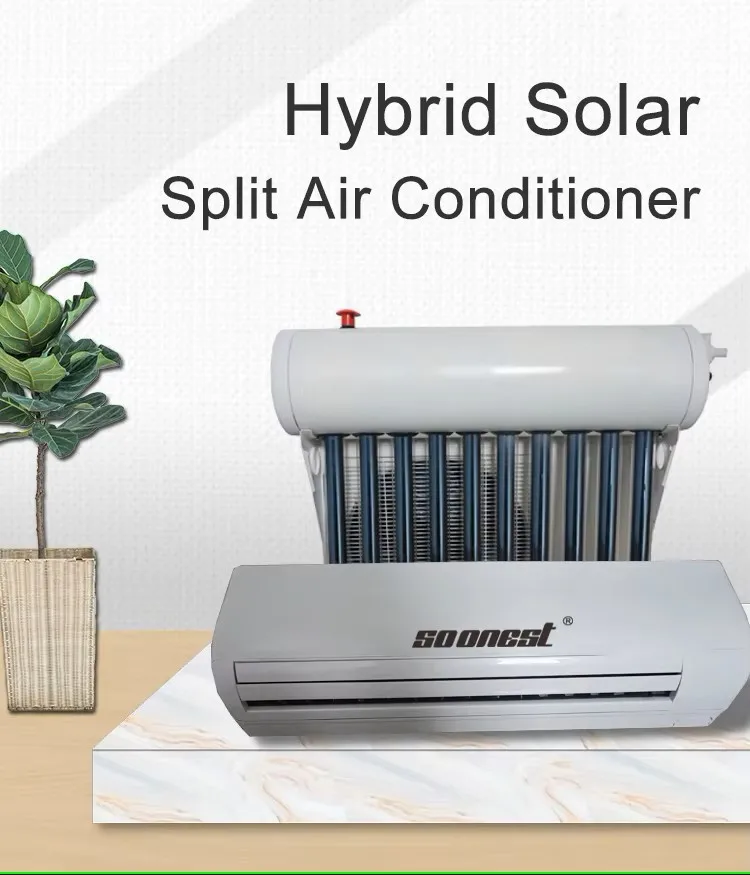

Product Display
Wall Mounted Type Vaccum tube hybrid solar air conditione | ||||||||||||||
Model No. | TKF(R)-26GWA | TKF(R)-35GWA | TKF(R)-52GWA | TKF(R)-60GWA | TKF(R)-72GWA | |||||||||
1HP | 1.5HP | 2HP | 2.5HP | 3HP | ||||||||||
0.75TON | 1TON | 1.5TON | 1.8TON | 2TON | ||||||||||
Power Supply：220-240VAC, 1PH, 50/60H | ||||||||||||||
Performance | ||||||||||||||
Capacity | Cooling | Btu/h | 9000 | 12000 | 18000 | 20000 | 24000 | |||||||
W | 2600 | 3500 | 5200 | 6000 | 7200 | |||||||||
Heating | Btu/h | 10000 | 13000 | 20000 | 22000 | 27000 | ||||||||
W | 2900 | 3800 | 6000 | 6600 | 7900 | |||||||||
Noise | Indoor | dB(A) | ≤40 | ≤442 | ≤44 | ≤46 | ≤50 | |||||||
Outdoor | dB(A) | ≤50 | ≤52 | ≤54 | ≤56 | ≤58 | ||||||||
Air Circulation | m³/h | 500 | 550 | 800 | 850 | 1150 | ||||||||
Suitable Area | m² | 11~17 | 15~23 | 26~36 | 25~42 | 30~48 | ||||||||
EER | W/W | 3.84 | 3.89 | 3.83 | 3.88 | 3.82 | ||||||||
Btu/h/w | 12.42 | 13.27 | 13.07 | 13.24 | 13.03 | |||||||||
Power Consumption | ||||||||||||||
Power Input | Cooling | W | 650~770 | 800~1025 | 1100~1300 | 1350~1560 | 1700~1900 | |||||||
Heating | W | 650~780 | 800~1050 | 1150~1350 | 1350~1590 | 1700~1950 | ||||||||
Rated Current | Cooling | A | 3.00~3.60 | 3.70~4.80 | 6.30~7.30 | 6.30~7.30 | 8.00~8.90 | |||||||
Heating | A | 3.00~3.65 | 3.70~4.90 | 6.30~7.50 | 6.30~7.50 | 8.00~8.90 | ||||||||

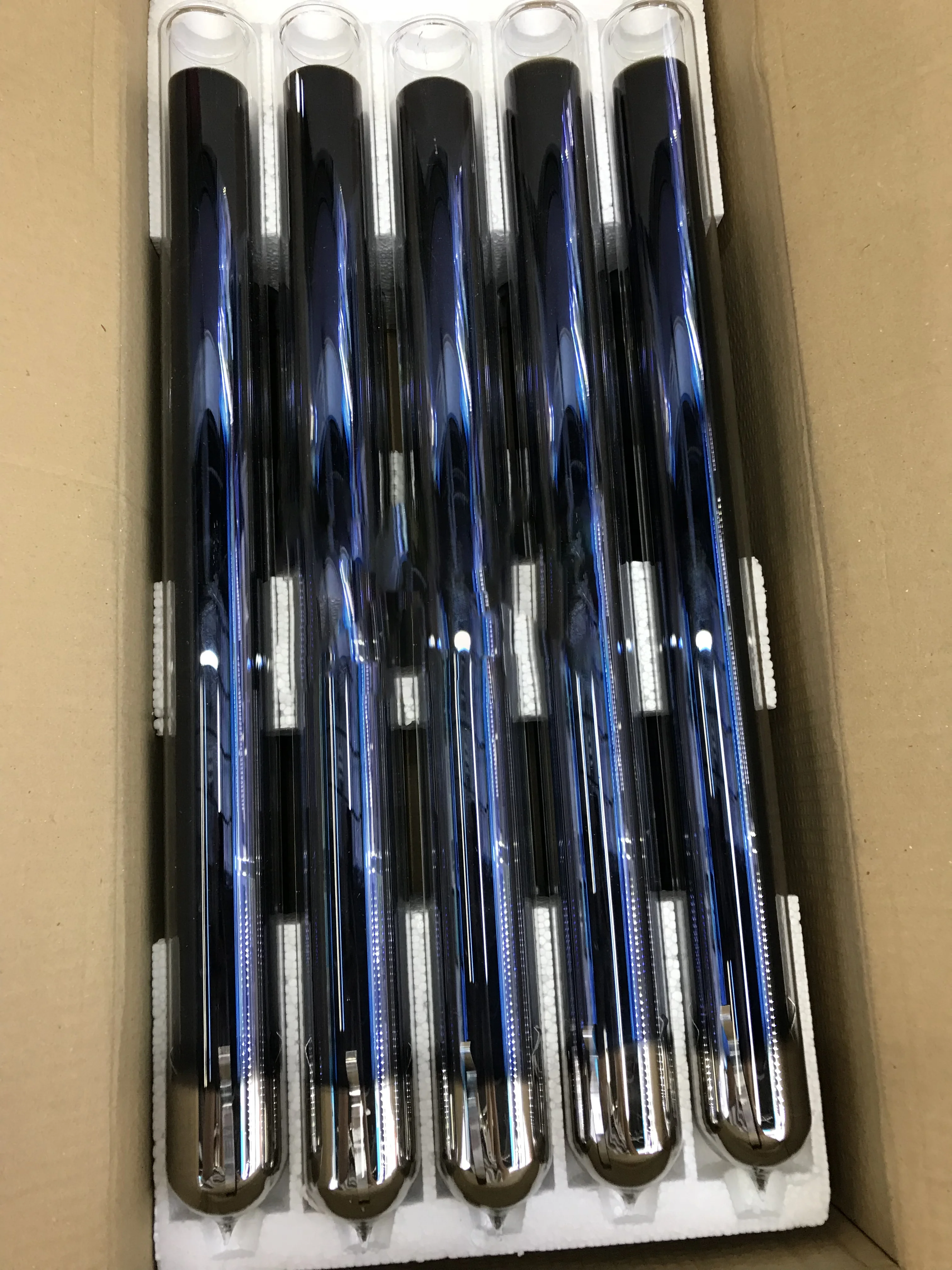

Vacuum Tube | Diameter*Length*Pcs | 47mm*520mm*10 | 47mm*520mm*10 | 47mm*620mm*11 | 47mm*620mm*11 | 47mm*620mm*11 | ||||||||
Flat plate solar collector | WXDXH (mm) | 800x500x80 | 800x500x80 | 900x500x80mm | 900x500x80 | 900x500x80 | ||||||||
Dimensions | ||||||||||||||
Indoor Unit | Net | mm | 775*265*210 | 775×265×210 | 985×300×220 | 985×300×220 | 985×300×220 | |||||||
Shipping | mm | 840*325*265 | 840×325×265 | 1080×380×300 | 1080×380×300 | 1080×380×300 | ||||||||
Outdoor Unit | Net | mm | 790*260*540 | 790*260*540 | 850* 290* 580 | 850* 290* 580 | 865*310*710 | |||||||
Shipping | mm | 910*370*610 | 910*370*610 | 995* 390*680 | 995* 390* 680 | 1025*395*790 | ||||||||
Water Tank | Shipping | mm | 910*400*330 | 910*400*330 | 980*400*370 | 980*400*370 | 980*400*370 | |||||||
Vacuum Tube | Shipping | mm | ||||||||||||
Flat plate solar collector | Shipping | mm | 900x550x90 | 900x550x90 | 950x550x90 | 950x550x90 | 950x550x90 | |||||||
Weight | ||||||||||||||
Indoor Unit | Net/Gross | kg | 9/10.5 | 10/11.5 | 16/17.5 | 16/17.5 | 20/22 | |||||||
Outdoor Unit | Net/Gross | kg | 31/34 | 38/40 | 50/52 | 50/52 | 55/58 | |||||||
Solar Collector | Net/Gross | kg | 13/15 | 13/15 | 16/17 | 16/17 | 16/17 | |||||||
Loading Qty | in 20feet | sets | 75 | 75 | 65 | 65 | 55 | |||||||
40HQ | sets | 175 | 175 | 135 | 135 | 125 | ||||||||
Related Products

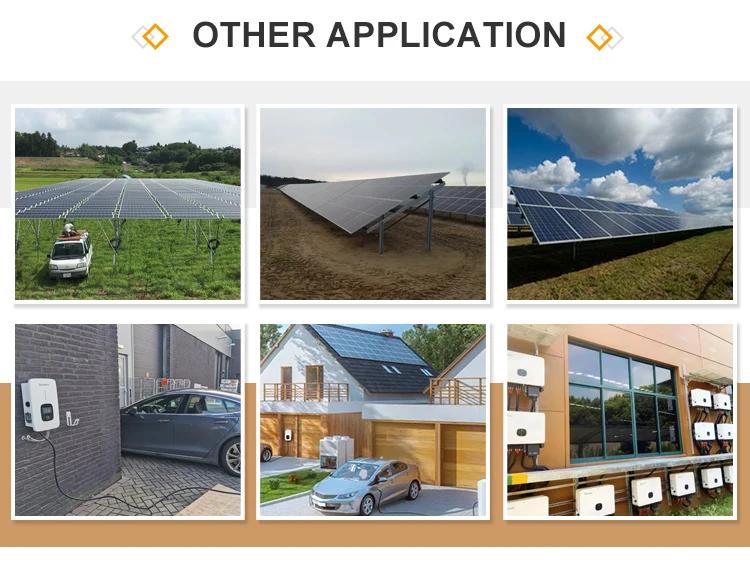

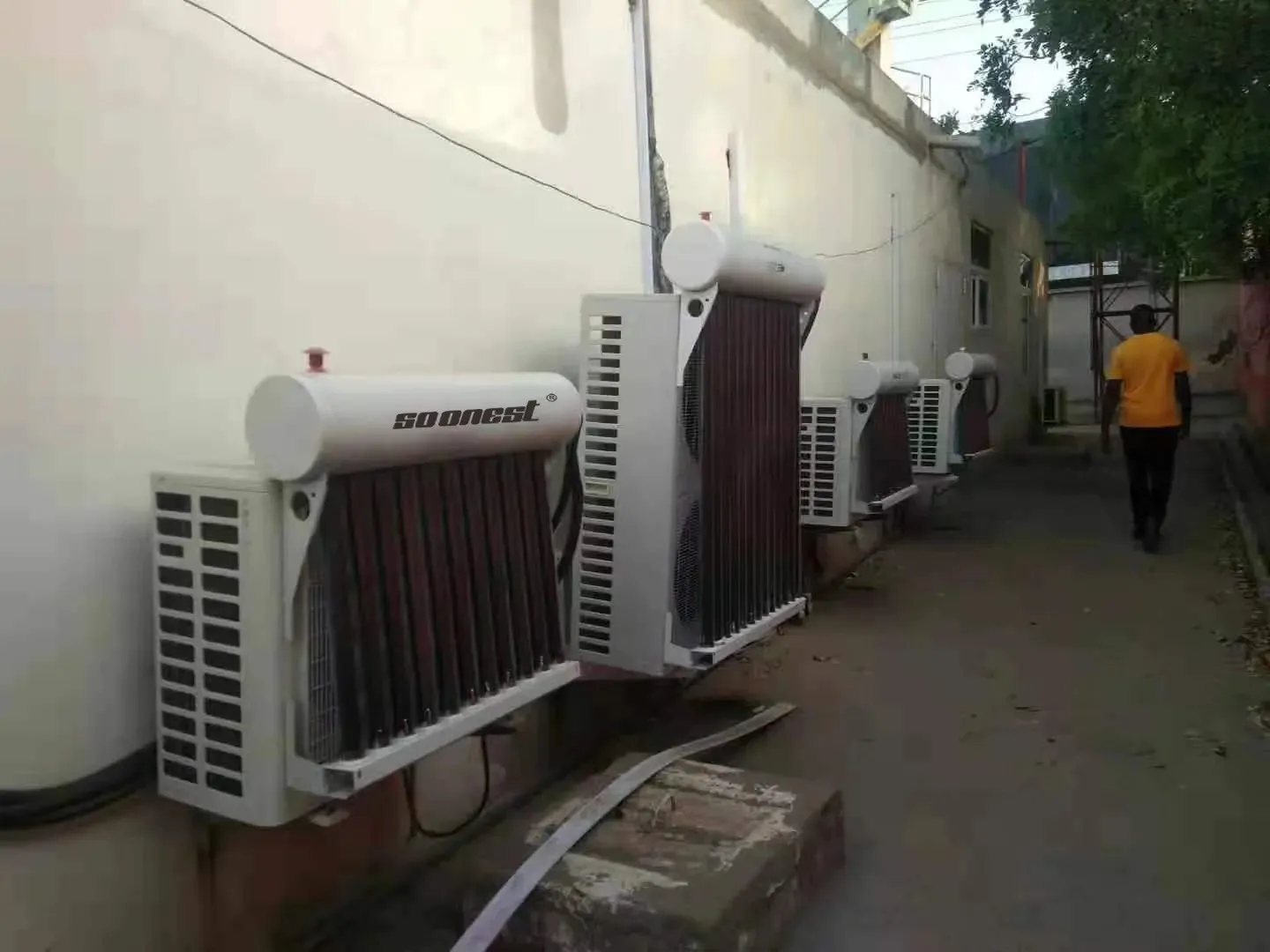

Product Application
Company Profile
Certifications
Package & Transport
FAQ
Q1.Are you trading company or manufacturer? |
A:We are factory. |
Q2.How Can I order? |
A:You can directly place an order on our shop in Alibaba web. Or you can tell us the model no of the products you like, then we will send you the quotation. |
Q3.How does your factory do regarding quality control? |
A:Quality is priority. Our people always attach great importance to quality. Controlling from the production beginning to the end.We have well-trained and professional workers and strict QC system in each production link. And each product has to be 100% inspected before shipment. |
Q4.What are the terms of payments? |
A:We accept T/T,Paypal,Western Union etc. |
Q5.What is your minimum order? |
A:Our min order is 1 set． |
Q6.What's your delivery time? |
A:In general,the delivery time is within 7-10 days after payment.We'll make the delivery as soon as possiable with the guaranteed quality. |
