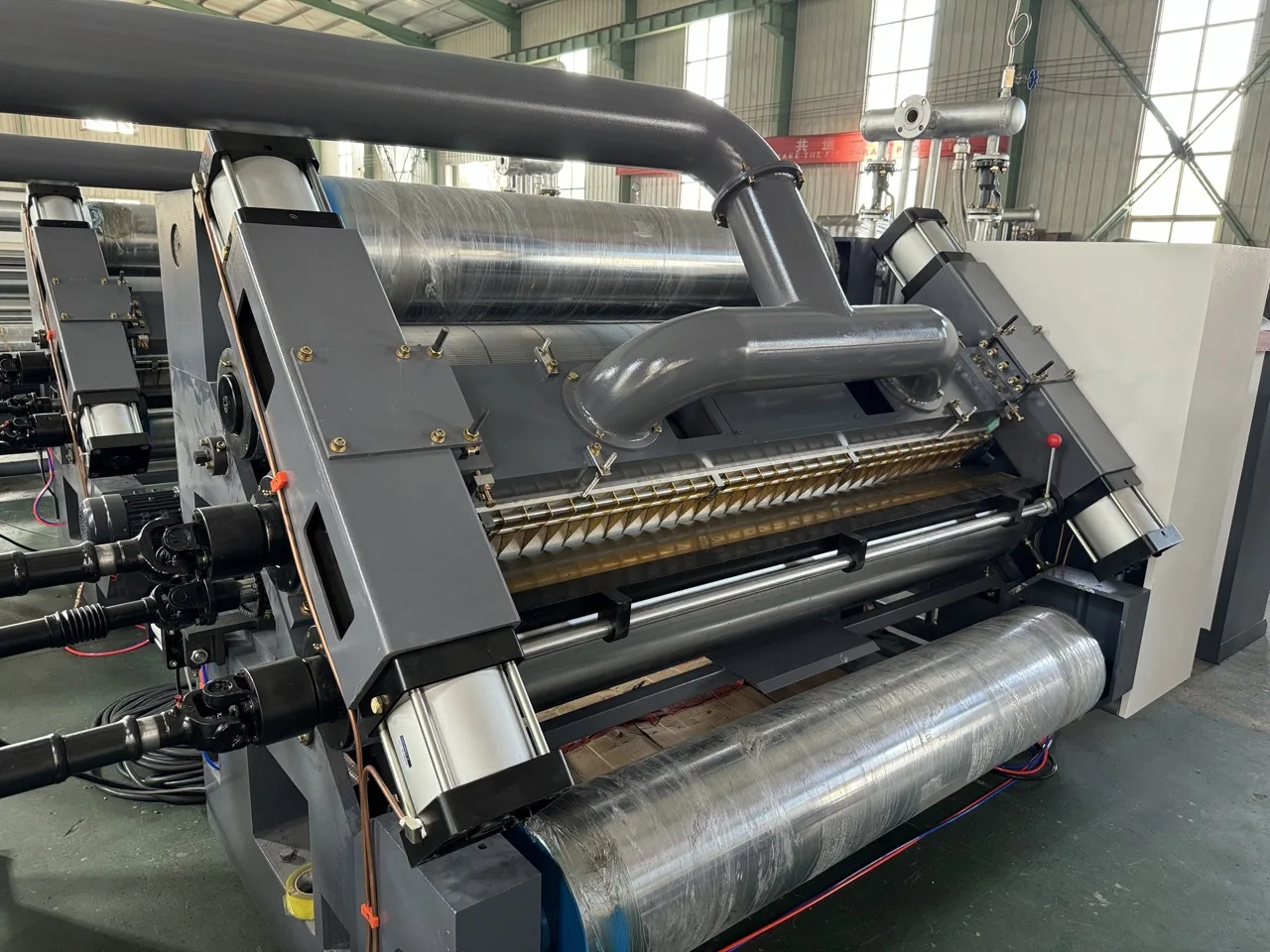

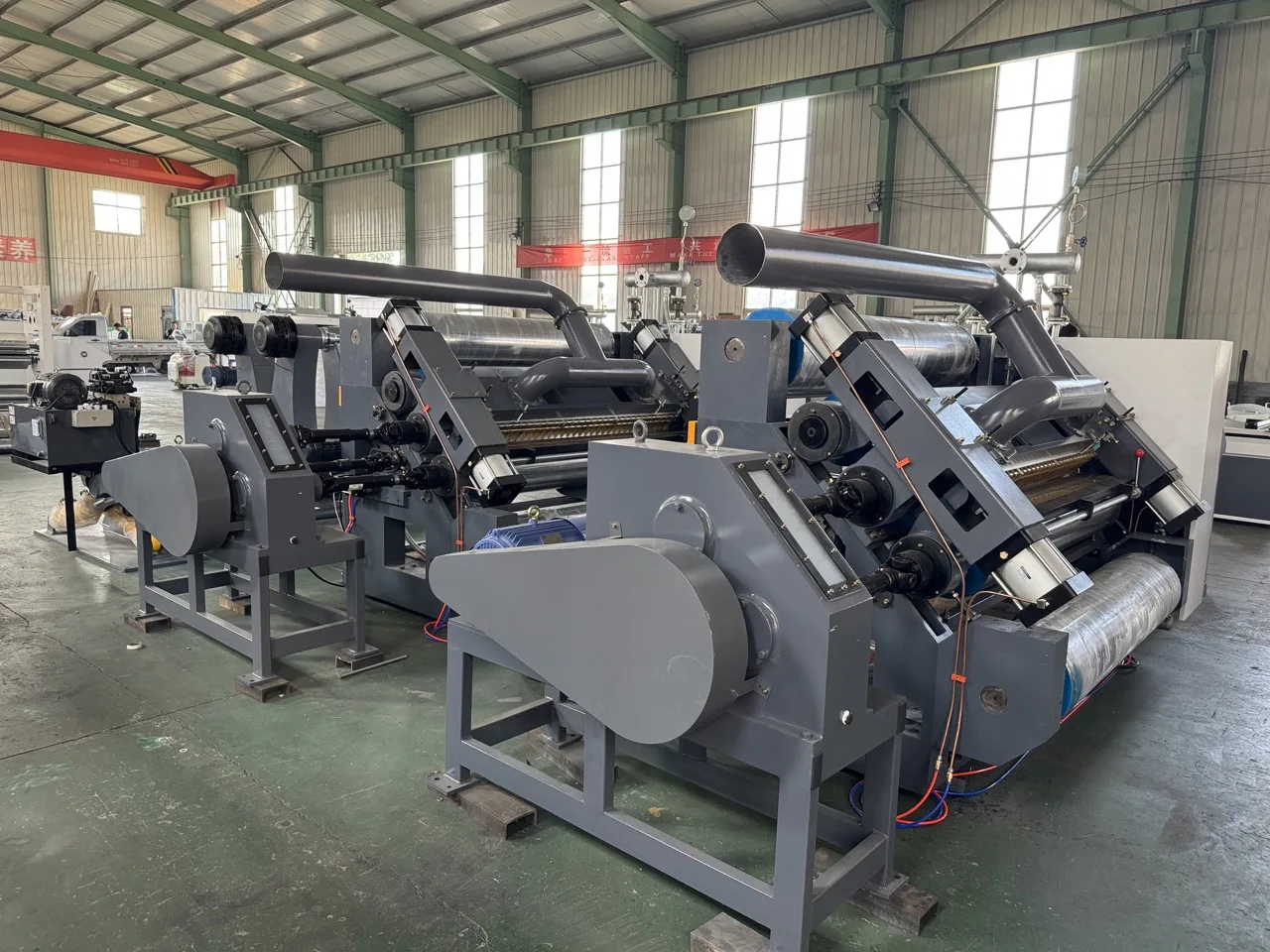

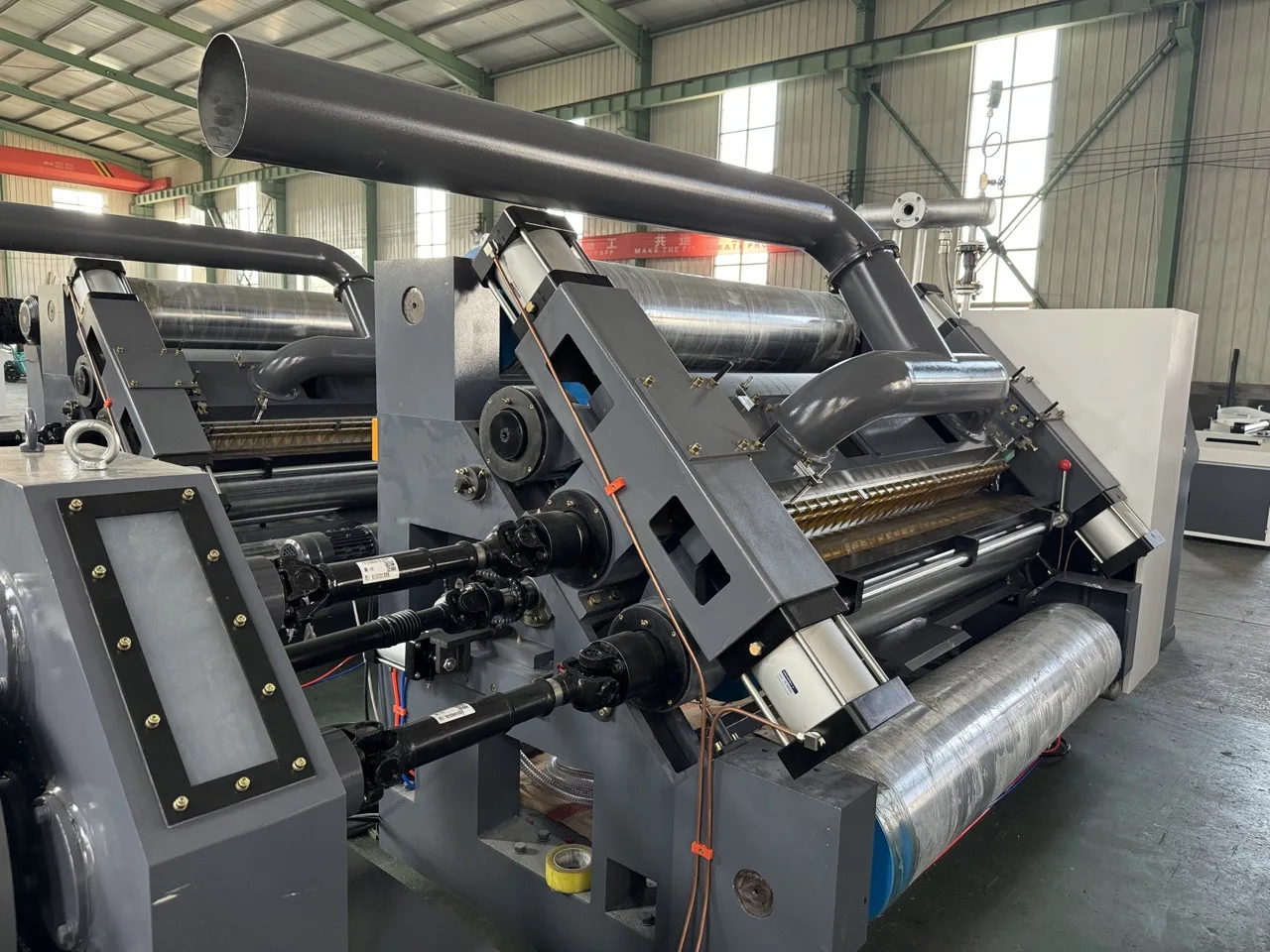

1200 1800mm Corrugated Machine Single Facer For Corrugated Cardboard Production Line
- Category: >>>
- Supplier: Cangzhou Xiaoyuan Carton Machinery Trading Co. Ltd.Cangzhou Ltd.
Share on (1601289964287):
Product Overview
Description
Main characteristics:
1.Economic speed: 50-80 m/min
2.Effective width: 1200mm/1400mm/1600mm/1800mm.
3.Corrugating roller: φ280mm.
4.Pressure roller: φ284mm. Chrome plated.
5.Fixed paste roller: φ110mm. Chrome plating.
6.Coating roller: φ215mm. Mesh cutting and chrome plating.
7.Upper and lower preheating roller: φ320mm.
8.Paper guide adopts wind adsorption to maintain the stability of corrugated type under high speed state.
9.The corrugated paper is absorbed in the 180 degree range of the corrugated roller by the fan through the empty box to form a negative pressure area to complete the corrugated rolling.
10.The upper and lower corrugated rollers are made of 48Crom alloy. After heat treatment, the surface is ground and chrome-plated.
11.The width of the suction groove of the lower corrugated roll shall not exceed 2.0-2.5mm, which can reduce the trace of dry paper line of single-sided corrugated board.

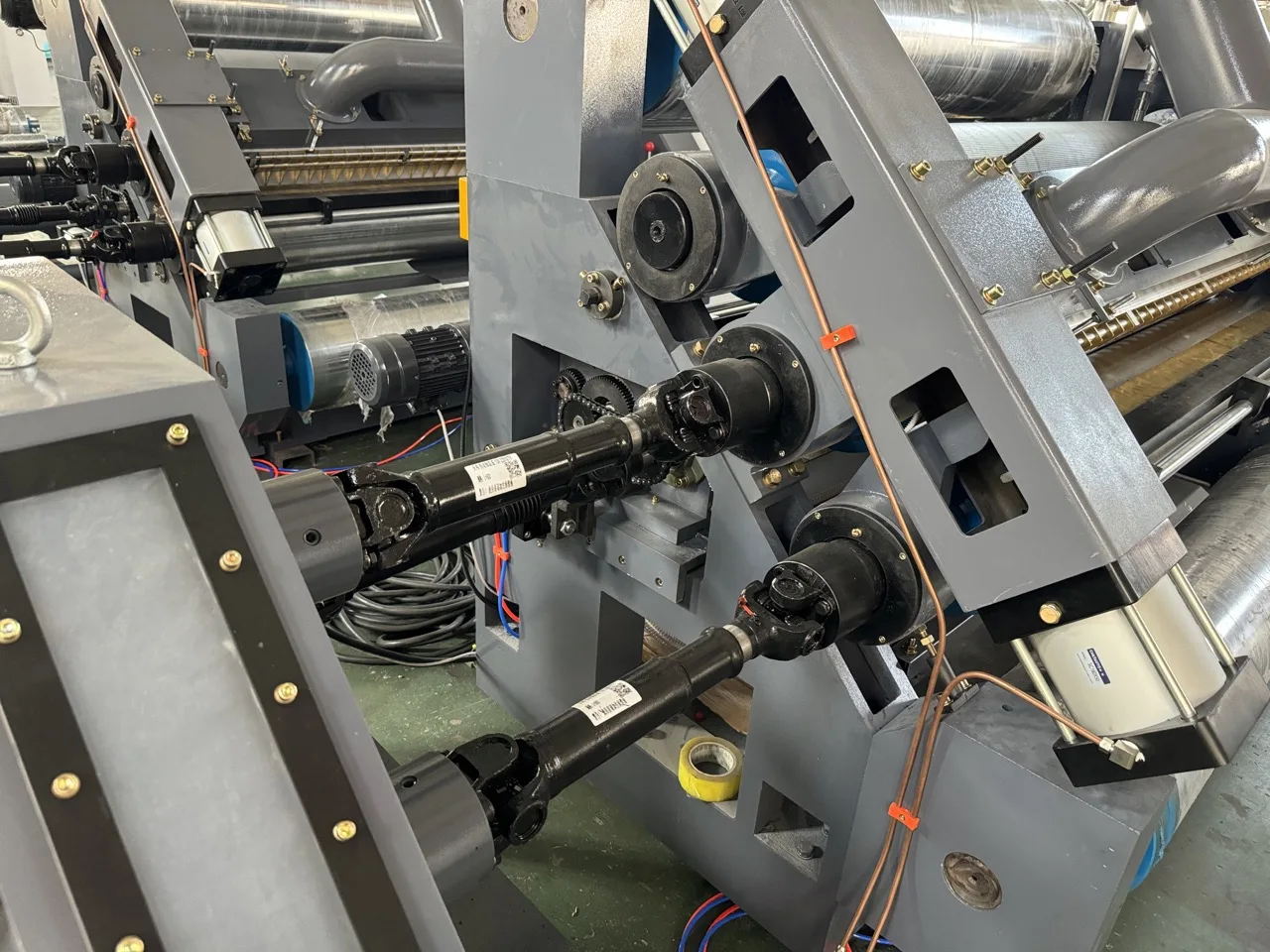

12.The transmission part adopts the Universal joint drive to isolate the vibration source, so that the transmission is more stable, reliable operation and higher maintenance.
13.The gearbox is lubricated by oil and driven by closed gears to reduce vibration.
14.Using circulation gluing, pneumatic gluing and reset, with buffering effect.
15.The surface of the rubber roller is treated with special mesh and chrome plating.
16.Machine shape: 1700*3500*1700mm.
17.Weight: 4.5 tons.
18.Heating method: Steam heating.
Raw materials and standard parts purchased
1.Wall panel material on both sides: HT200 Origin: Hebei.
2.Driving part and bottom material: HT200 Origin: Hebei.
3.Bearing: origin in Harbin and domestic brands.
4.Frequency converter: Delta brand (Taiwan) Power: 7.5Kw 1 set.
5.Main drive motor: AC frequency conversion power: 7.5Kw 1 Production area: Hebei.
6.Fan: three-phase asynchronous motor power: 7.5Kw 1 Production place: Hebei.
7.Gluing motor: reducer power: 0.75Kw 1 Production place: Wuxi.
8.Other electrical appliances: Domestic brand (Chint).
1.Economic speed: 50-80 m/min
2.Effective width: 1200mm/1400mm/1600mm/1800mm.
3.Corrugating roller: φ280mm.
4.Pressure roller: φ284mm. Chrome plated.
5.Fixed paste roller: φ110mm. Chrome plating.
6.Coating roller: φ215mm. Mesh cutting and chrome plating.
7.Upper and lower preheating roller: φ320mm.
8.Paper guide adopts wind adsorption to maintain the stability of corrugated type under high speed state.
9.The corrugated paper is absorbed in the 180 degree range of the corrugated roller by the fan through the empty box to form a negative pressure area to complete the corrugated rolling.
10.The upper and lower corrugated rollers are made of 48Crom alloy. After heat treatment, the surface is ground and chrome-plated.
11.The width of the suction groove of the lower corrugated roll shall not exceed 2.0-2.5mm, which can reduce the trace of dry paper line of single-sided corrugated board.
12.The transmission part adopts the Universal joint drive to isolate the vibration source, so that the transmission is more stable, reliable operation and higher maintenance.
13.The gearbox is lubricated by oil and driven by closed gears to reduce vibration.
14.Using circulation gluing, pneumatic gluing and reset, with buffering effect.
15.The surface of the rubber roller is treated with special mesh and chrome plating.
16.Machine shape: 1700*3500*1700mm.
17.Weight: 4.5 tons.
18.Heating method: Steam heating.
Raw materials and standard parts purchased
1.Wall panel material on both sides: HT200 Origin: Hebei.
2.Driving part and bottom material: HT200 Origin: Hebei.
3.Bearing: origin in Harbin and domestic brands.
4.Frequency converter: Delta brand (Taiwan) Power: 7.5Kw 1 set.
5.Main drive motor: AC frequency conversion power: 7.5Kw 1 Production area: Hebei.
6.Fan: three-phase asynchronous motor power: 7.5Kw 1 Production place: Hebei.
7.Gluing motor: reducer power: 0.75Kw 1 Production place: Wuxi.
8.Other electrical appliances: Domestic brand (Chint).
No. | Model | 1200 | 1400 | 1600 | 1800 |
1 | Working width | 1200mm | 1400mm | 1600mm | 1800mm |
2 | Design speed | 80-100m/min | 80-100m/min | 80-100m/min | 80-100m/min |
3 | Working speed | 40-60m/min | 40-60m/min | 40-60m/min | 40-60m/min |
4 | Heating method | electric,steam | electric,steam | electric,steam | electric,steam |
5 | Flute type | A,B,C,E,F,G | A,B,C,E,F,G | A,B,C,E,F,G | A,B,C,E,F,G |
6 | Operating direction | Left or Right | Left or Right | Left or Right | Left or Right |
7 | Corrugated roller diameter | 280mm | 280mm | 280mm | 280mm |
