Product Overview
Description
This price is the deposit price for product production
Thank you for visiting my store
We adhere to the business philosophy of customer first, all products have been strictly inspected before leaving the factory to ensure that they meet the highest safety standards, we believe you will be very satisfied with its quality after receiving the goods.
If you don't find the product you need, you can tell us, we will provide diverse styles for you to choose, please feel free to buy! Thanks again.
ABOUT OUR PRODUCTS
Shandong China Coal Import & Export Co., Ltd
Product Description
Spider cranes are small in size, large in capacity and can be lifted, which is unmatched by ordinary cranes. For example, in the basement, workshop and other operating environments, ordinary machines can not enter, and tower cranes on the roof, indoor, shopping malls or densely populated places simply do not run, but miniature crawler spider cranes can be easy and comfortable

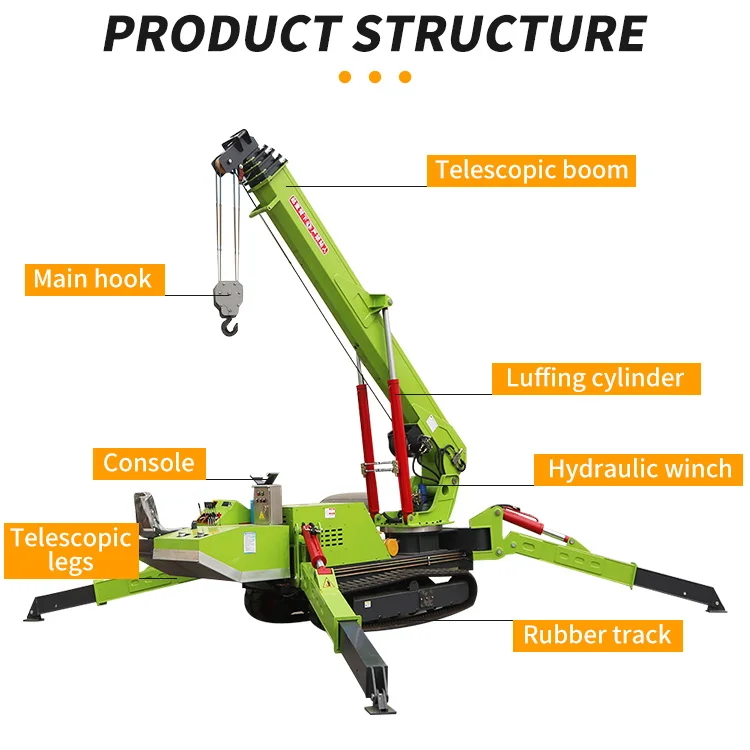

Features of spider crane
1. Spider crane, suitable for occasions where space is narrow.
2. Spider crane is a full-swing, boom-type, fully hydraulic transmission crane.
3. the main boom is 4-5 sections, the main boom section adopts U-shape structure, the single-stage telescopic cylinder and the wire rope telescopic mechanism can realize the synchronous telescoping of the main boom.
4. double insurance of marking line and alarm to cope with the extreme use condition of boom extension and retraction.
5. The crane is equipped with radiator, which is more favorable for high temperature operation in summer.
zmwm24
Features of spider crane
1. Spider crane, suitable for occasions where space is narrow.
2. Spider crane is a full-swing, boom-type, fully hydraulic transmission crane.
3. the main boom is 4-5 sections, the main boom section adopts U-shape structure, the single-stage telescopic cylinder and the wire rope telescopic mechanism can realize the synchronous telescoping of the main boom.
4. double insurance of marking line and alarm to cope with the extreme use condition of boom extension and retraction.
5. The crane is equipped with radiator, which is more favorable for high temperature operation in summer.
zmwm24
Product Parameters
Product Parameters

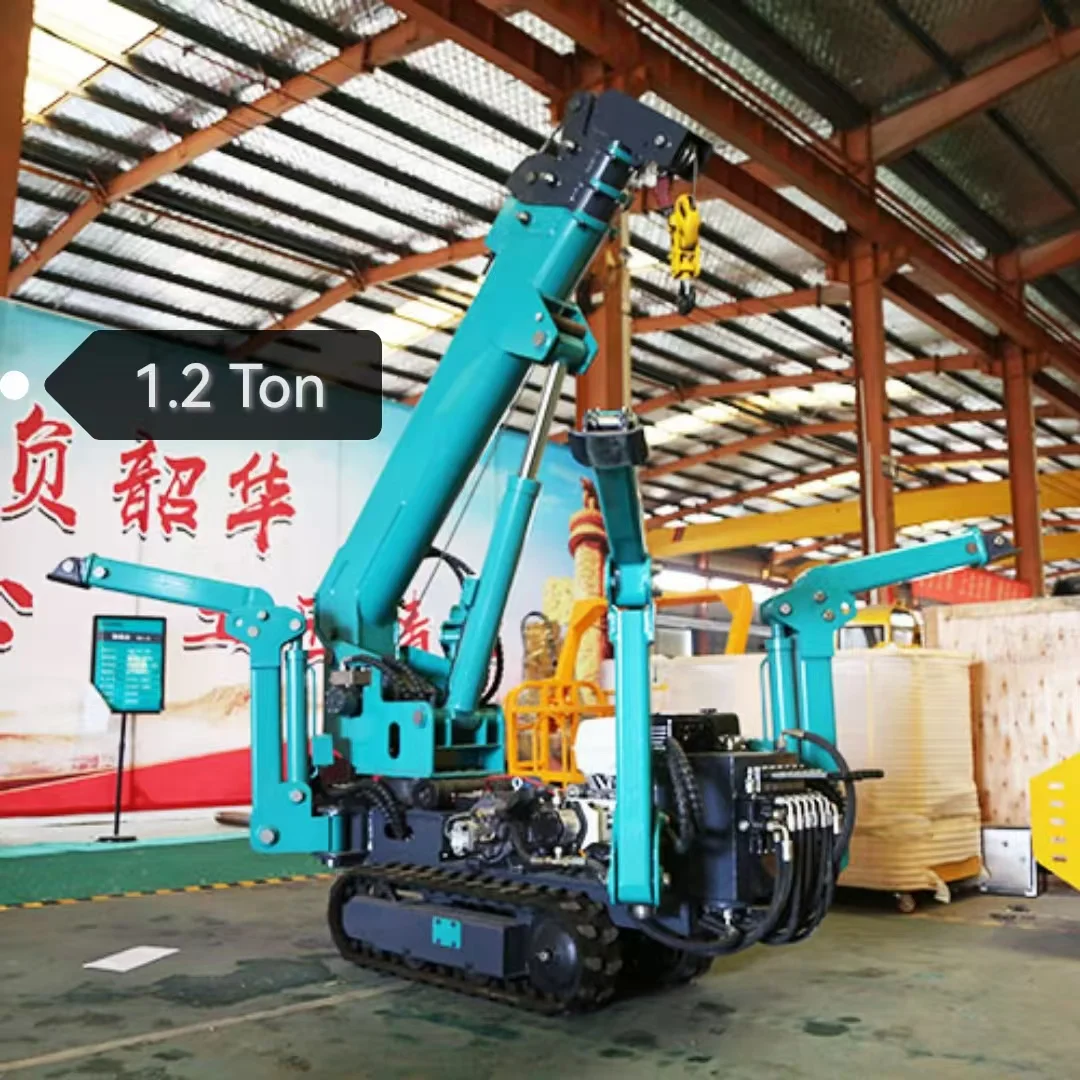

Specification | 1.2 Ton | ||
Maximum working radius | 5m × 0.3t _ | ||
Maximum ground lift | 5.8mX0.8t _ _ _ | ||
Max underground lift | --- | ||
winch | Hook up speed | 0-8m/min | |
Wire Rope Specifications | Φ8mm × 35m | ||
Telescopic device | Boom form | 4 -section boom , U-shaped high-strength manganese | |
Boom length/time | 1.7 m- 5 m/2 2 sec | ||
undulating device | Boom angle/time | 0-7 5 °/13sec | |
gyratory device | Rotation angle/speed | 0-360° (continuous)/60sec | |
outrigger | Outrigger Action Form | Manual unscrewing + hydraulic automatic support (two legs) | |
Maximum extension (mm) | 3800 (L) X 3000 (Rear) 、 (Front) | ||
walking device | way of walking | Hydraulic motor drive, two-speed | |
Walking speed | 0-2.5km/h | ||
Gradeability | 20° (36%) | ||
motor | Voltage | ||
engine | Producer | gasoline | |
Type/displacement | 9.6kW | ||
Start method | Electric start | ||
Startup performance | -5°C~40°C | ||
fuel/volume | Gasoline / 8 L | ||
battery capacity | 12v 45AH | ||
Fuel consumption | 274g/kW-h | ||
operating system | Type of operation (jib/outrigger), manual travel | Manual operation, manual walking + remote control (optional) | |
Operating characteristics | Comai hydraulic system (optional) | ||
The standard configuration | engine power | ||
Vehicle size | Length 2095*width 600*height 1393 | ||
Craftsmanship | Paint assembly process | ||

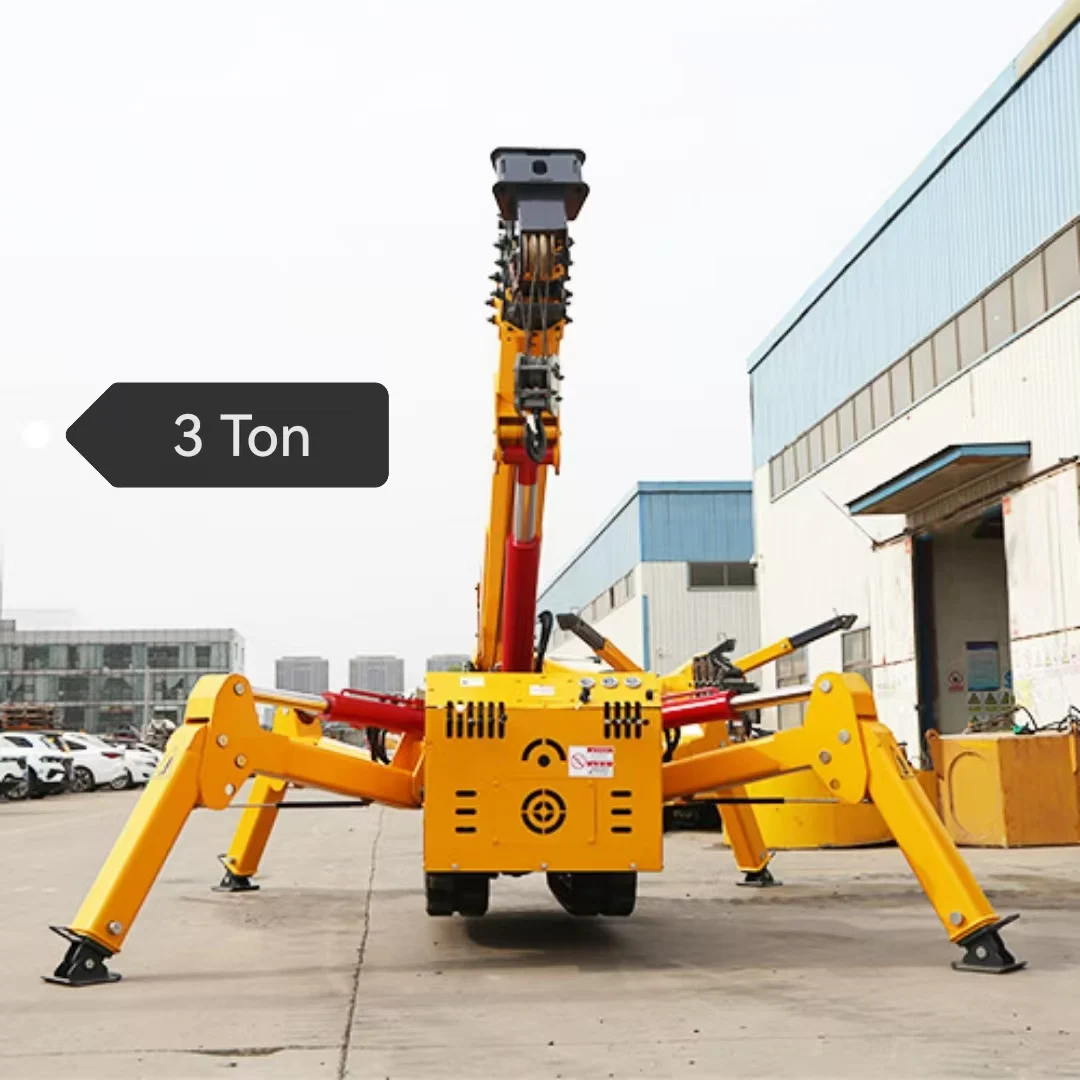

Specification | 3 Ton | ||
Maximum working radius | 7.8m × 0.2t _ | ||
Maximum ground lift | 9.2mX0.8t _ _ _ | ||
Max underground lift | --- | ||
winch | Hook up speed | 0-8m/min | |
Wire Rope Specifications | Φ8mm×45m | ||
Telescopic device | Boom form | 5 -section boom , U-shaped high-strength manganese | |
Boom length/time | 2.8 m- 8.2 m/2 2 sec | ||
undulating device | Boom angle/time | 0-7 5 °/13sec | |
gyratory device | Rotation angle/speed | 0-360° (continuous)/60sec | |
outrigger | Outrigger Action Form | Manual unscrewing + hydraulic automatic support (two legs) | |
Maximum extension (mm) | 4010 (long) X 3260 (rear) , (front) | ||
walking device | way of walking | Hydraulic motor drive, two-speed | |
Walking speed | 0-2.5km/h | ||
Gradeability | 20° (36%) | ||
motor | Voltage | AC380V | |
engine | Producer | Chang Chai | |
Type/displacement | EV80/F195 | ||
Start method | Electric start | ||
Startup performance | -5°C~40°C | ||
fuel/volume | Diesel / 8 L | ||
battery capacity | 12v 45AH | ||
Fuel consumption | 274g/kW-h | ||
noise level | Rated speed≤81.5dBA (1m) | ||
Emission Standards | Country II | ||
operating system | Type of operation (jib/outrigger), manual travel | Manual operation, manual walking + remote control (optional) | |
Operating characteristics | Comai hydraulic system (optional) | ||
The standard configuration | Diesel engine and electric motor (dual power) | ||
Vehicle size | Length 2830*width 800*height 1650 | ||
Craftsmanship | Paint assembly process | ||

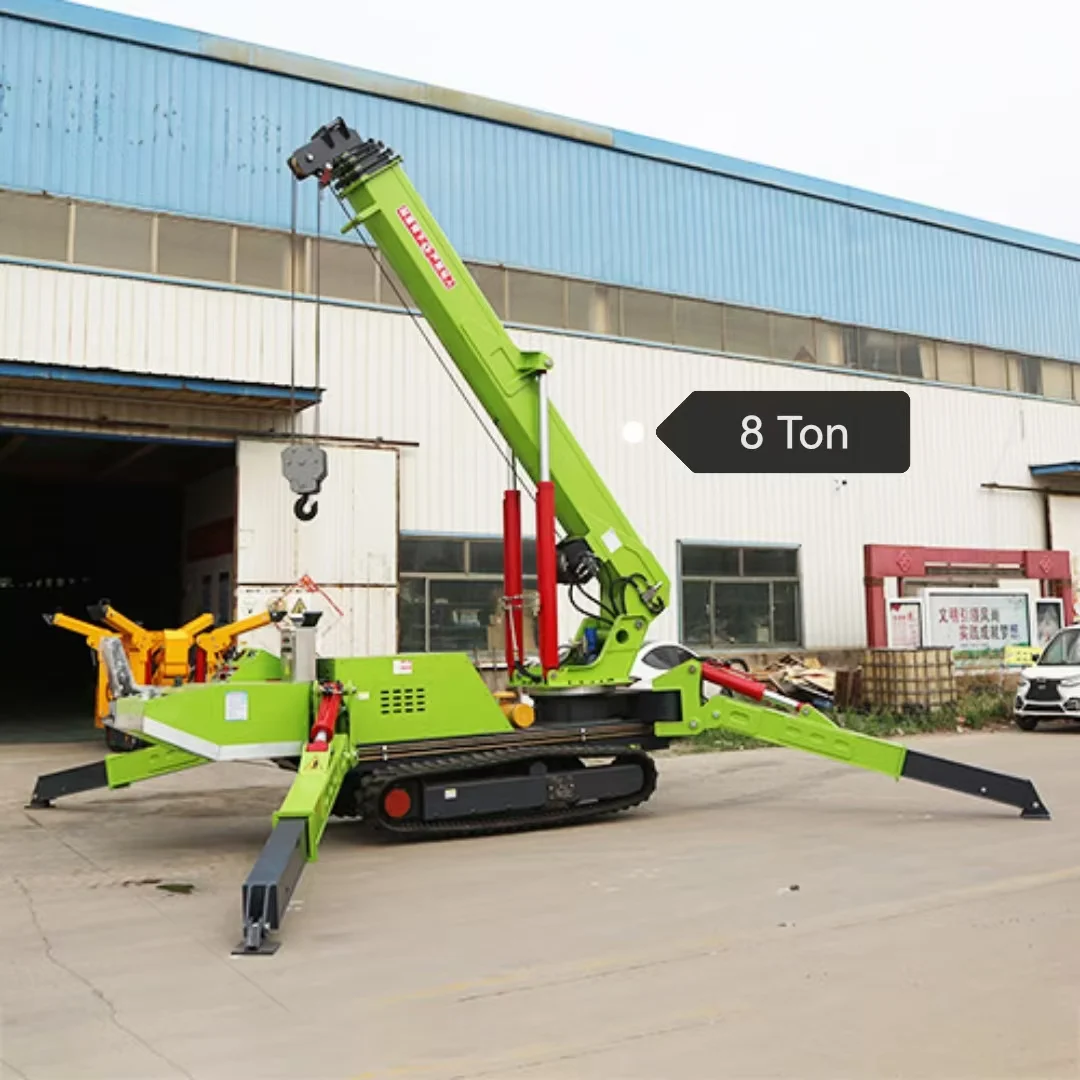

Specification | 8 Ton |
Maximum working radius | 16m × 0.2t _ | ||
Maximum ground lift | 17mX 0.9t _ _ | ||
winch | Hook up speed | 0- 10 m/min | |
Wire Rope Specifications | Φ10mm × 120m _ _ | ||
Telescopic device | Boom form | 5 -stage boom | |
Boom length | 4.5m-16m | ||
undulating device | Boom angle/time | 0-7 5 °/13sec | |
gyratory device | Rotation angle/speed | 0-360° (continuous)/60sec | |
outrigger | Outrigger Action Form | Hydraulic automatic support + manual unscrewing | |
Maximum extension (mm) | 6300 (L) X 4600 (Rear) 、 (Front) | ||
walking device | way of walking | Hydraulic motor drive, two-speed ( rubber track ) | |
Walking speed | 0-5.5 km /h | ||
Gradeability | 20° (36%) | ||
motor | Voltage | AC380V | |
engine | Producer | Yunnei | |
Type/displacement | YN27GBZ/2.7L | ||
Start method | Electric start | ||
Startup performance | -5°C~40°C | ||
fuel/volume | Diesel / 45 L | ||
battery capacity | 24v 45AH | ||
Fuel consumption | 230 g/kW-h | ||
noise level | Rated speed≤81.5dBA (1m) | ||
operating system | Type of operation (jib/outrigger), manual travel | Manual operation, manual walking + remote control (optional) | |
The standard configuration | Diesel engine and electric motor (dual power) | ||
Vehicle size | Length 4950*width 1560*height 2235 | ||
Craftsmanship | Paint assembly process | ||

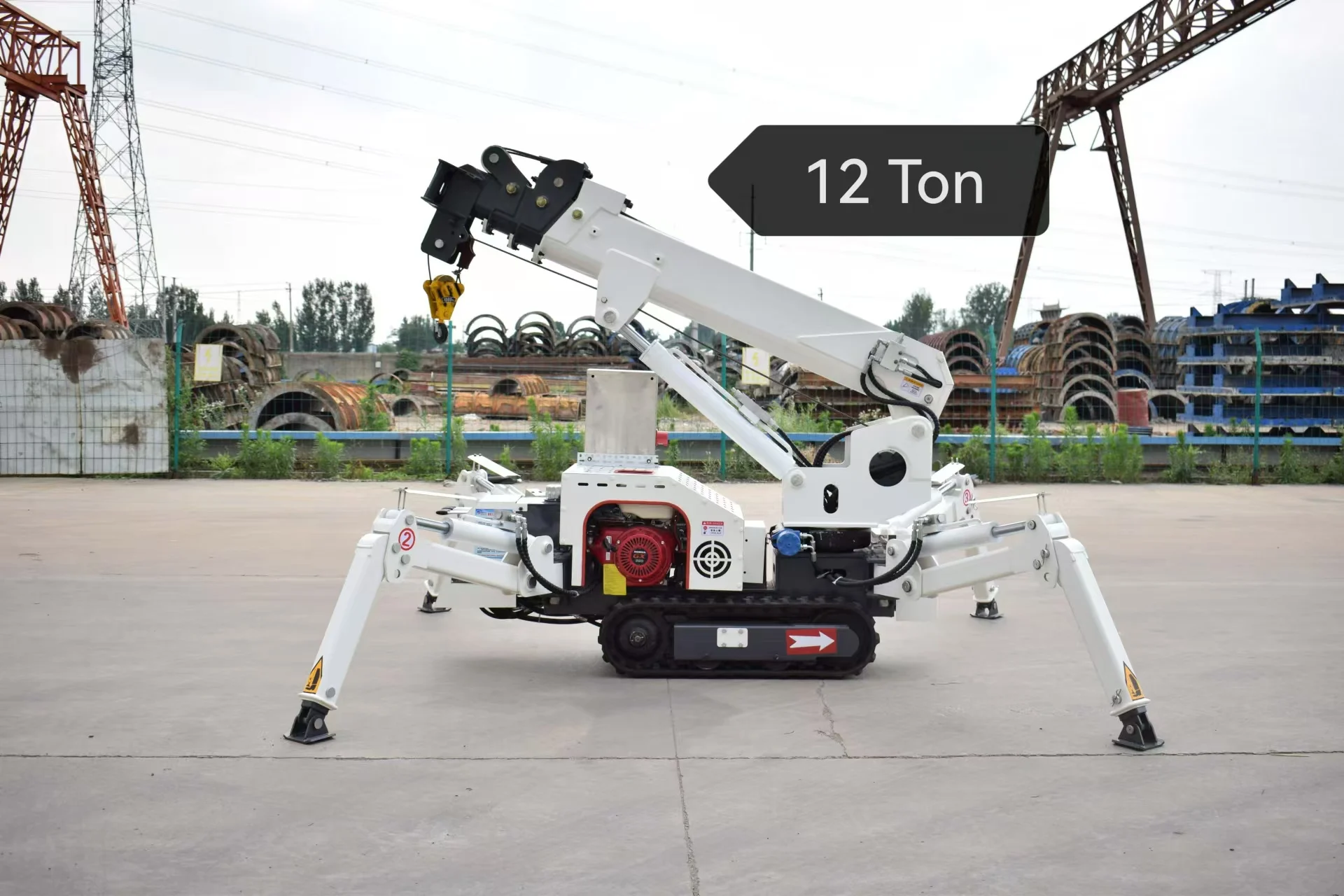

Specification | 12 Ton |
Maximum operating radius | 22*0.6t | ||
Maximum ground lift | 23.5m*0.9t | ||
Winch device | Lifting speed of hook | 0-10m/min | |
Wire rope specification | Φ12mm*80m | ||
Expansion device | Boom type | 6-section boom | |
Boom length | 5m-22m | ||
Undulating device | Boom angle/time | 0-75°/13sec | |
Gyratory device | Swing angle/speed | 0-360°(continuation)/60sec | |
Outrigger | Outrigger movement form | Oil pressure automatic support+manual screw out | |
Walking device | Walking style | Hydraulic motor drive, two speeds (rubber tracks) | |
Walking speed | 0-5.5km/h | ||
Climbing ability | 20°(36%) | ||
Motor | Voltage | AC 380V | |
Engine | Production | Quan Chai | |
Start-up method | Electric start | ||
Start-up Performance | -5°C~40°C | ||
Fuel/Volume | Diesel/55L | ||
Battery Capacity | 24v 45AH | ||
Fuel consumption rate | 230g/kW-h | ||
Noise level | Rated speed≤81.5dBA (1m) | ||
Operating System | Operation type (boom/leg), manual travel | Manual operation, manual travel + remote control (optional) | |
Standard configuration | Diesel engine and electric motor (dual power) | ||
Production Process | Baking paint assembly process | ||

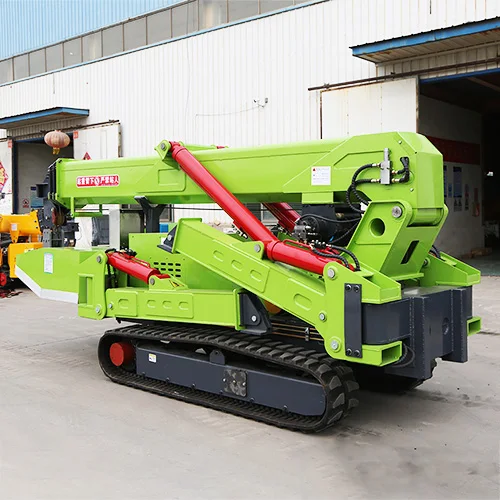

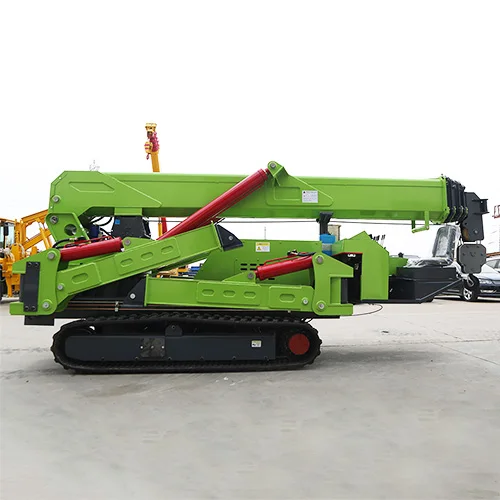

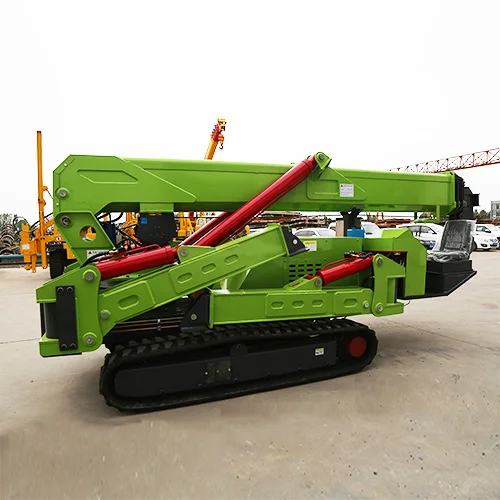

Product Pictures
Product Pictures

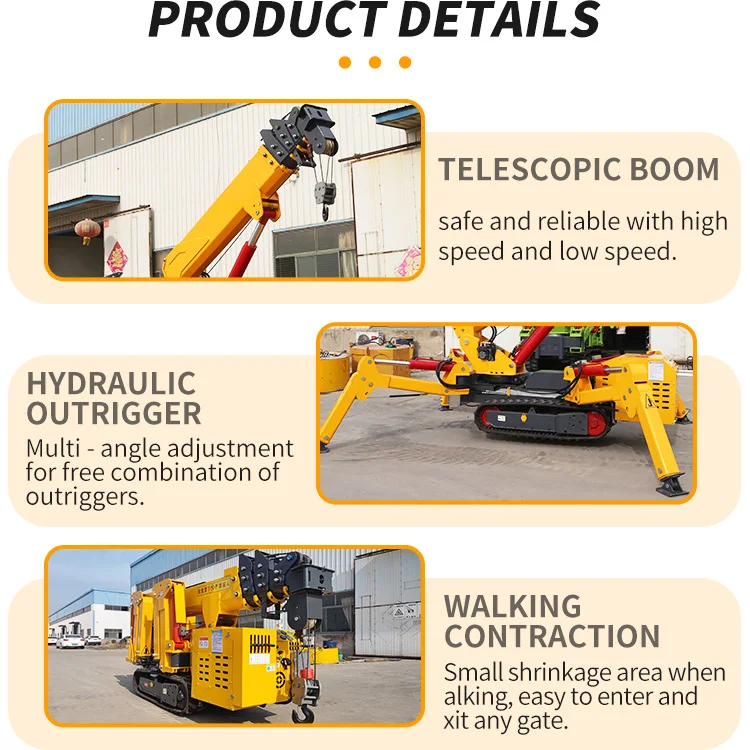

Product Details
Product Video

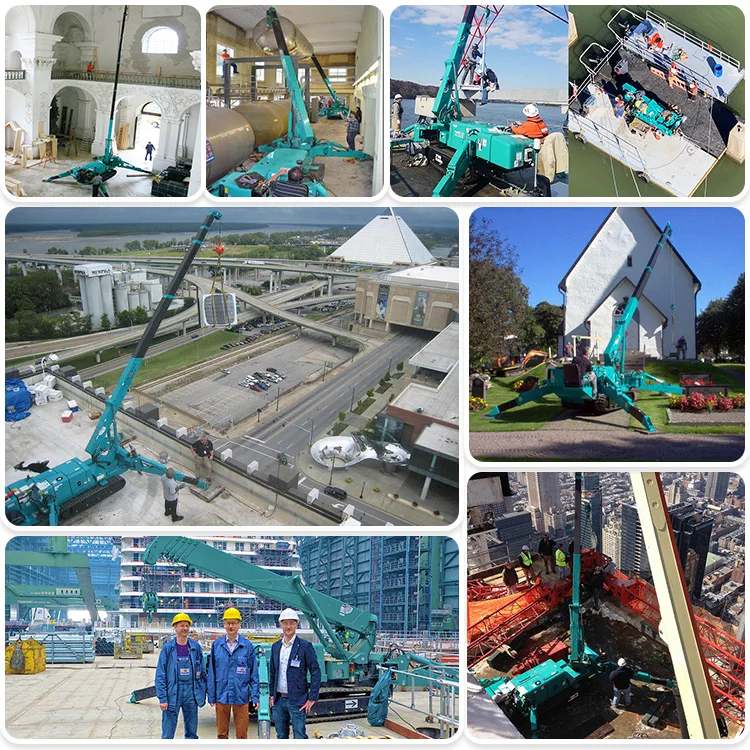

Product Application
Product Application
Why Choose Us
FAQ
Are you the manufacuturer or trade company ?
We are the manufacturer for producing tunnel grilled slag machine,rock mucking loader , mining transport car ,and verious attachments With mining equipment.
And we have owned trading company to do the International Business,
So that :
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
Can you do the ODM or OEM, what is MOQ?
Yes, it is possible as both discussed, MOQ: 1unit.
What about delivery time, how long can I get the machine since order?
The producing time fast to 15-20 workings if you will customerized machine.
The standard machine in stock, can delivery as soon as possible after ordering.
How to pay for you ?
30% down payment, then producing start, the balance 70% paid before
shipping.
If the machines in stock, pay 100% then delivery.
We are the manufacturer for producing tunnel grilled slag machine,rock mucking loader , mining transport car ,and verious attachments With mining equipment.
And we have owned trading company to do the International Business,
So that :
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
Can you do the ODM or OEM, what is MOQ?
Yes, it is possible as both discussed, MOQ: 1unit.
What about delivery time, how long can I get the machine since order?
The producing time fast to 15-20 workings if you will customerized machine.
The standard machine in stock, can delivery as soon as possible after ordering.
How to pay for you ?
30% down payment, then producing start, the balance 70% paid before
shipping.
If the machines in stock, pay 100% then delivery.
