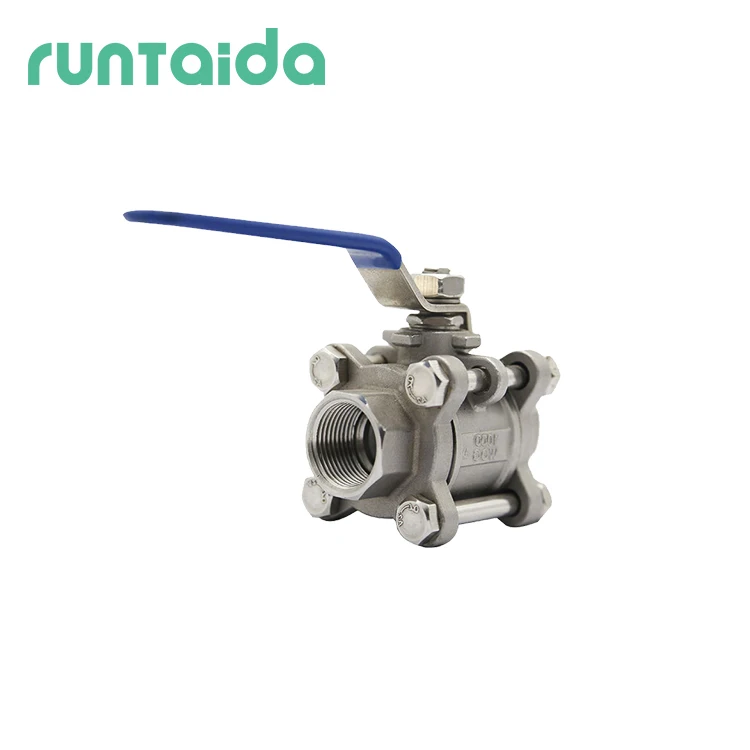

Stainless Steel 316 SS304 3pcs 1000 wog cf8m lockable handle ball valve
- Category: >>>
- Supplier: Gongyi Runda Pipeline Manufacturing Co. Ltd.Gongyi Ltd.
Share on (1601290181159):
Product Overview
Description
Products Description
Name of product | Stainless Steel 316 SS304 3pcs 1000 wog cf8m lockable handle ball valve |
Size | DN15-DN100 |
Body | SS304,316,etc. |
Pressure | PN16 |
Temp | -20℃~150℃ |
Applicable medium | Water, oil, steam, etc. |
Application | Municipal construction, water supply and drainage, water treatment,etc. |
Product Features:
1.The chemical composition and mechanical properties of the valve body material meet the national standard requirements.
1.The chemical composition and mechanical properties of the valve body material meet the national standard requirements.
2.All valve bodies and parts are processed with CNC machine tools and interchanged wildly to ensure product accuracy.
3.Before assembly of the whole product,kerosene and anti-rust oil are used for high-pressure jet cleaning,and the pressure-testing medium is cleaned after pressure test and sprayed with anti-rust oil.
4.Each valve must be pressure tested in accordance with national standards before leaving the factory,and unqualified products will never leave the factory.
3.Before assembly of the whole product,kerosene and anti-rust oil are used for high-pressure jet cleaning,and the pressure-testing medium is cleaned after pressure test and sprayed with anti-rust oil.
4.Each valve must be pressure tested in accordance with national standards before leaving the factory,and unqualified products will never leave the factory.
We can provide samples for testing, if you need, you can contact us on Alibaba.com.
Product parameter

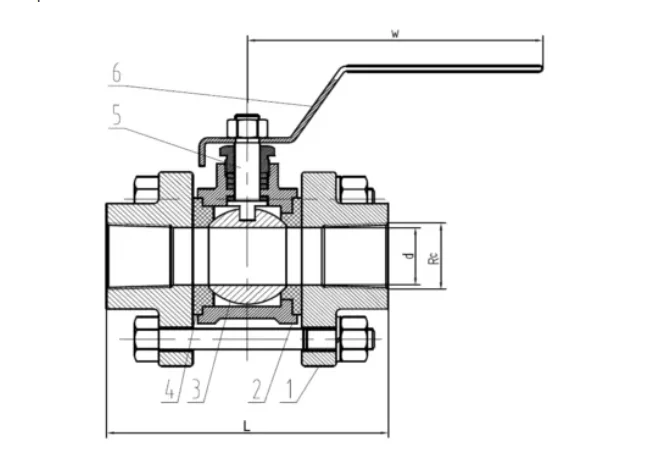

Main size information | ||||||||||
DN | NPS | Φd | L | W | H | |||||
15 | 1/2" | 15 | 68.5 | 140 | 9*9 | |||||
20 | 3/4" | 20 | 79 | 140 | 9*9 | |||||
25 | 1" | 25 | 89 | 170 | 11*11 | |||||
32 | 1 1/4" | 32 | 100.5 | 170 | 11*11 | |||||
40 | 1 1/2" | 38 | 111 | 200 | 14*14 | |||||
50 | 2" | 50 | 129 | 200 | 14*14 | |||||
65 | 2 1/2" | 65 | 169.5 | 300 | 17*17 | |||||
80 | 3" | 80 | 191 | 300 | 17*17 | |||||
100 | 4" | 100 | 242 | 300 | 17*17 | |||||
Datas above are only for reference, If you want to know more details of our products,pls contact us on alibaba.com!
