Product Overview
Description
Product Description

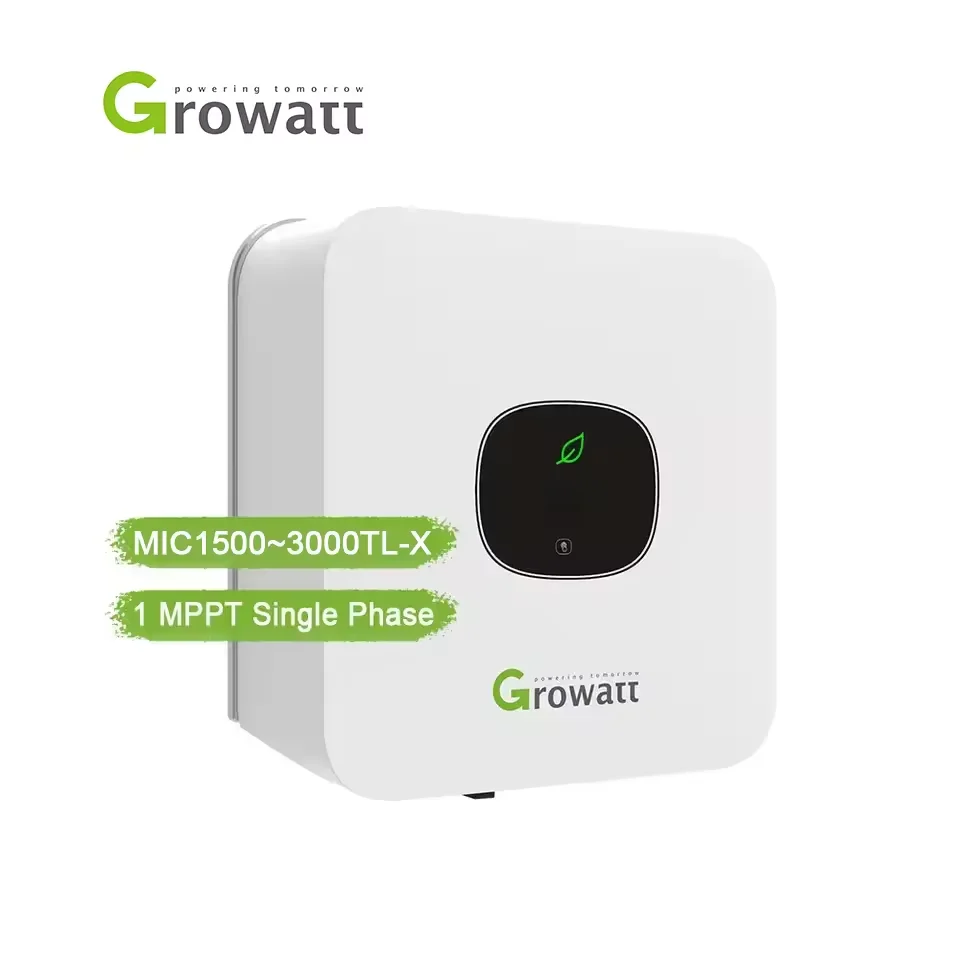

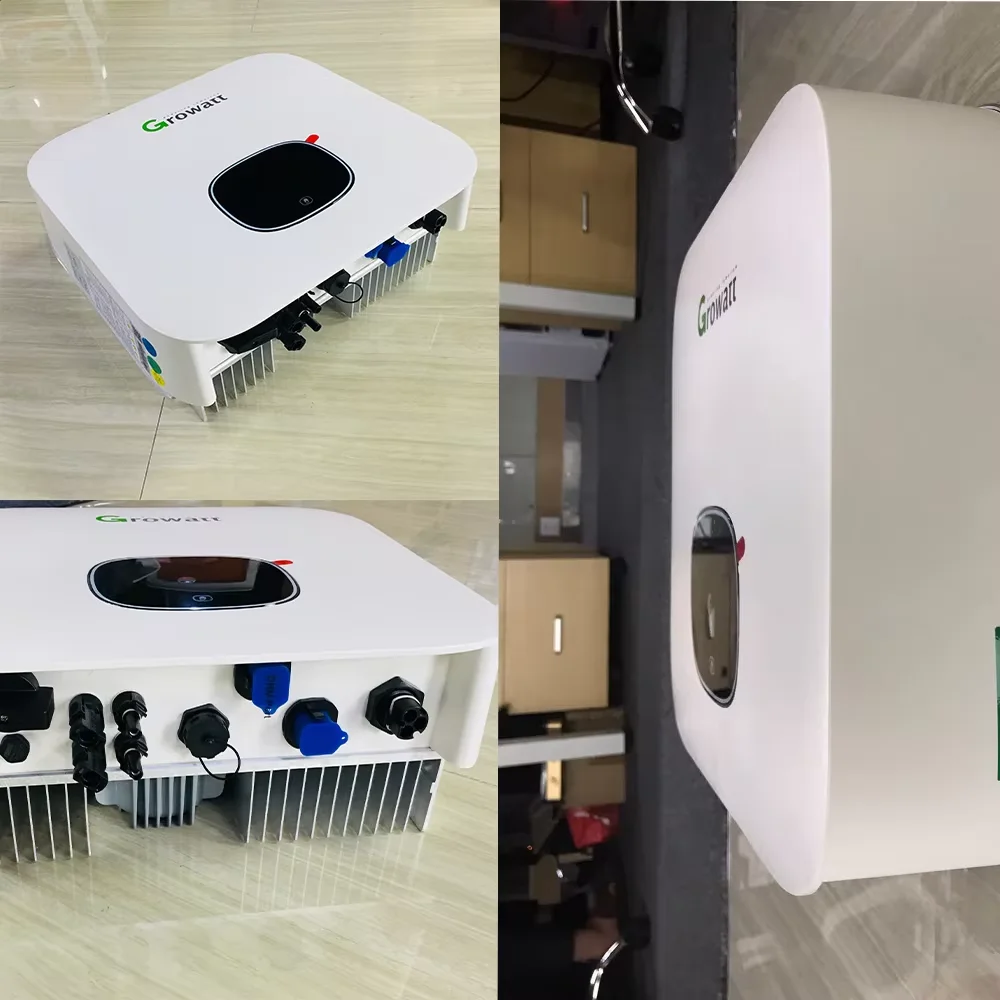

Mic 1500-3000TL-X solar inverter
Growatt Mic 1500-3000TL-X is an on grid inverter that integrates high efficiency, multifunctionality, and flexible configuration. It has the ability to work without batteries, supports multiple working modes, remote monitoring, and a wide voltage range. It is suitable for various climate conditions, stable and reliable, and is an ideal choice for photovoltaic off grid power generation systems.Growatt MIC 1500TL-X 2000TL-X 2500TL-X MIC 3000TL-X Solar Inverter Solar Power Inverters WIth wifi For Home
Features
- DC side secondary lightning protection
- Optional AFCI
- Maximum conversion efficiency 98.4%
- Protection degree: IP65
- Wide MPPT voltage range
- Touch button, OLED display
- Lightweight and beautiful, compact structural design, can be installed by one person
- Optional AFCI
- Maximum conversion efficiency 98.4%
- Protection degree: IP65
- Wide MPPT voltage range
- Touch button, OLED display
- Lightweight and beautiful, compact structural design, can be installed by one person
Product Paramenters
Datasheet | MIC 1500TL-X | MIC 2000TL-X | MIC 2500TL-X | MIC 3000TL-X | ||||
Input Data (DC) | ||||||||
Max. recommended PV power (for module STC) | 2100W | 2800W | 3500W | 4200W | ||||
Max. DC voltage | 500V | 500V | 550V | 550V | ||||
Start voltage | 50V | 80 | ||||||
Nominal voltage | 250V | 360V | ||||||
MPP voltage range | 50V-500V | 80V-500V | 65V-550V | 80V-550V | ||||
No. of MPP trackers | 1 | |||||||
No. of PV strings per MPP tracker | 1 | |||||||
Max. input current per MPP tracker | 13A | |||||||
Max. short-circuit current per MPP tracker | 16A | |||||||
Output data(AC) | ||||||||
AC nominal power | 1500W | 2000W | 2500W | 3000W | ||||
Max. AC apparent power | 1500VA | 2000VA | 2500VA | 3000VA | ||||
Nominal AC voltage(range*) | 230V (180-280V | |||||||
AC grid frequency(range*) | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||
Max. output current | 7.1A | 9.5A | 11.9A | 14.3A | ||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||
THDi | <3% | |||||||
AC grid connection type | Single phase | |||||||
Efficiency | ||||||||
Max.efficiency | 98.20% | 98.20% | 98.40% | 98.40% | ||||
European efficiency | 97.10% | 97.10% | 97.50% | 97.50% | ||||
MPPT efficiency | 99.90% | |||||||
Protection Devices | ||||||||
DC reverse polarity protection | Yes | |||||||
DC switch | Yes | |||||||
AC/DC surge protection | Type II / Type III | |||||||
Insulation resistance monitoring | Yes | |||||||
AC short-circuit protection | Yes | |||||||
Ground fault monitoring | Yes | |||||||
Grid monitoring | Yes | |||||||
Anti-islanding protection | Yes | |||||||
Residual-current monitoring unit | Yes | |||||||
AFCI protection | Yes | |||||||
General Data | ||||||||
Dimensions (W / H / D) | 274/254/138mm | |||||||
Weight | 6kg | 6.2kg | ||||||
Topology | Transformerless | |||||||
Cooling | Natural convection | |||||||
Protection degree | IP65 | |||||||
Relative humidity | 0-100% | |||||||
Altitude | 4000m | |||||||

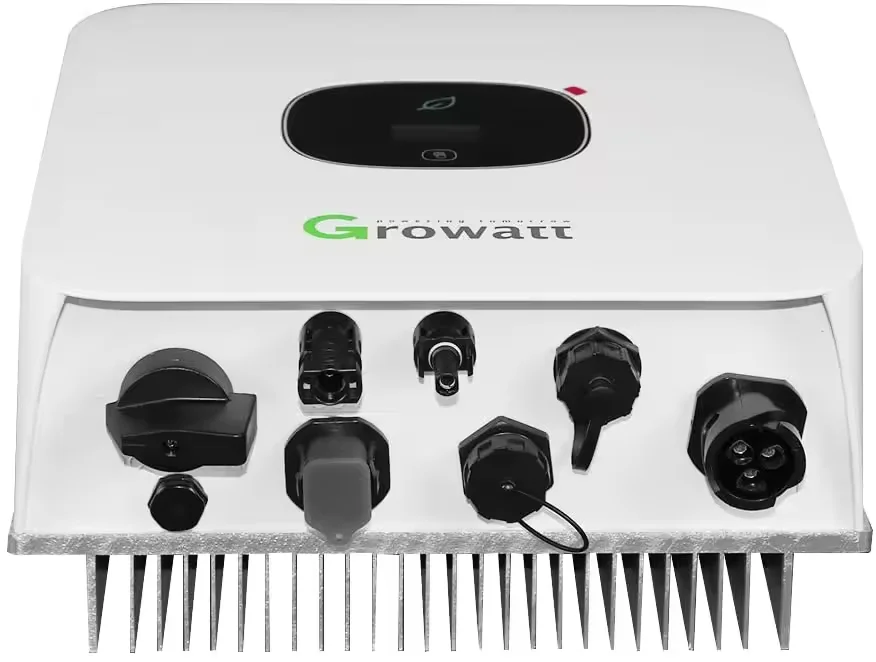

DC connection | H4/MC4(Optional) | |||||||
AC connection | Connector | |||||||
Display | OLED+LED/WIFI+APP | |||||||
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN | Yes/Yes/Optional/Optional/Optional /Optional | |||||||
Warranty: 5 years / 10 years | Yes /Optional | |||||||
CE, IEC62109, G98, G99, VDE0126-1-1, AS4777, AS/NZS 3100, VDE-AR-N4105, CQC, IEC61683, IEC60068, IEC61727, IEC62116, INMETRO, UL1741, UL1741 SA, UL1998,IEEE1547 | ||||||||
Certifications

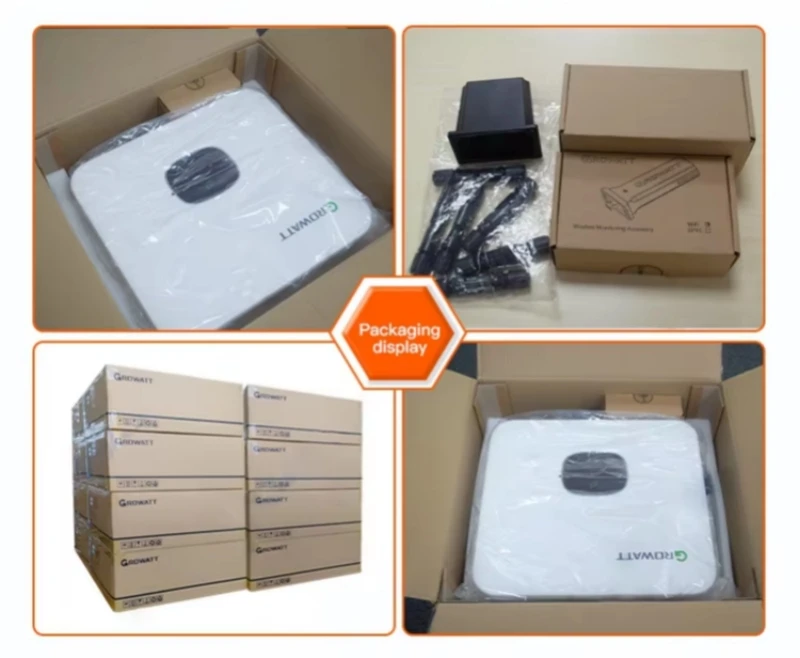

Packing & Delivery
Company Profile
The headquarters of Xiamen Kigienergy Technology Co., Ltd. Is located in Fujian, China.It is a high-tech enterprise specializing in the field of new energy. The core business includes the research and development, production, sales and service of solar panels, solar inverters, photovoltaic brackets, energy storage batteries, solar power generation systems, solar cleaning machines and other products, and undertakes large-scale photovoltaic power station projects to meet the requirements of different customers. Kigienergy's business covers more than 100 countries and regions and is widely praised around the world. Our company implements quality tracking management of its products, winning a high market reputation and being trusted by millions of customers around the world.
Employees: 160+
Professional R&D personnel: 50+
Production base area: 1,000 ㎡ Certificates: 30+
Patents: 60+
Patents: 60+
Enterprise government credit rating: AAA+
FAQ
Q: How long is the delivery time of your products?
A:Stock products need around 15days. Customized products will base on the quantity.
Q:Can you supply OEM &ODM service ?
A:Yes. The MOQ base on the service you need.
Q: Can you ship your battery products by sea or by air ?
A: We have long-term cooperated forwarders who are professional at battery shipment and can satisfy your demand.
Q: How can we guarantee quality?
A; Always a pre-production sample before mass production;
Always final Inspection before shipment;
A:Stock products need around 15days. Customized products will base on the quantity.
Q:Can you supply OEM &ODM service ?
A:Yes. The MOQ base on the service you need.
Q: Can you ship your battery products by sea or by air ?
A: We have long-term cooperated forwarders who are professional at battery shipment and can satisfy your demand.
Q: How can we guarantee quality?
A; Always a pre-production sample before mass production;
Always final Inspection before shipment;
