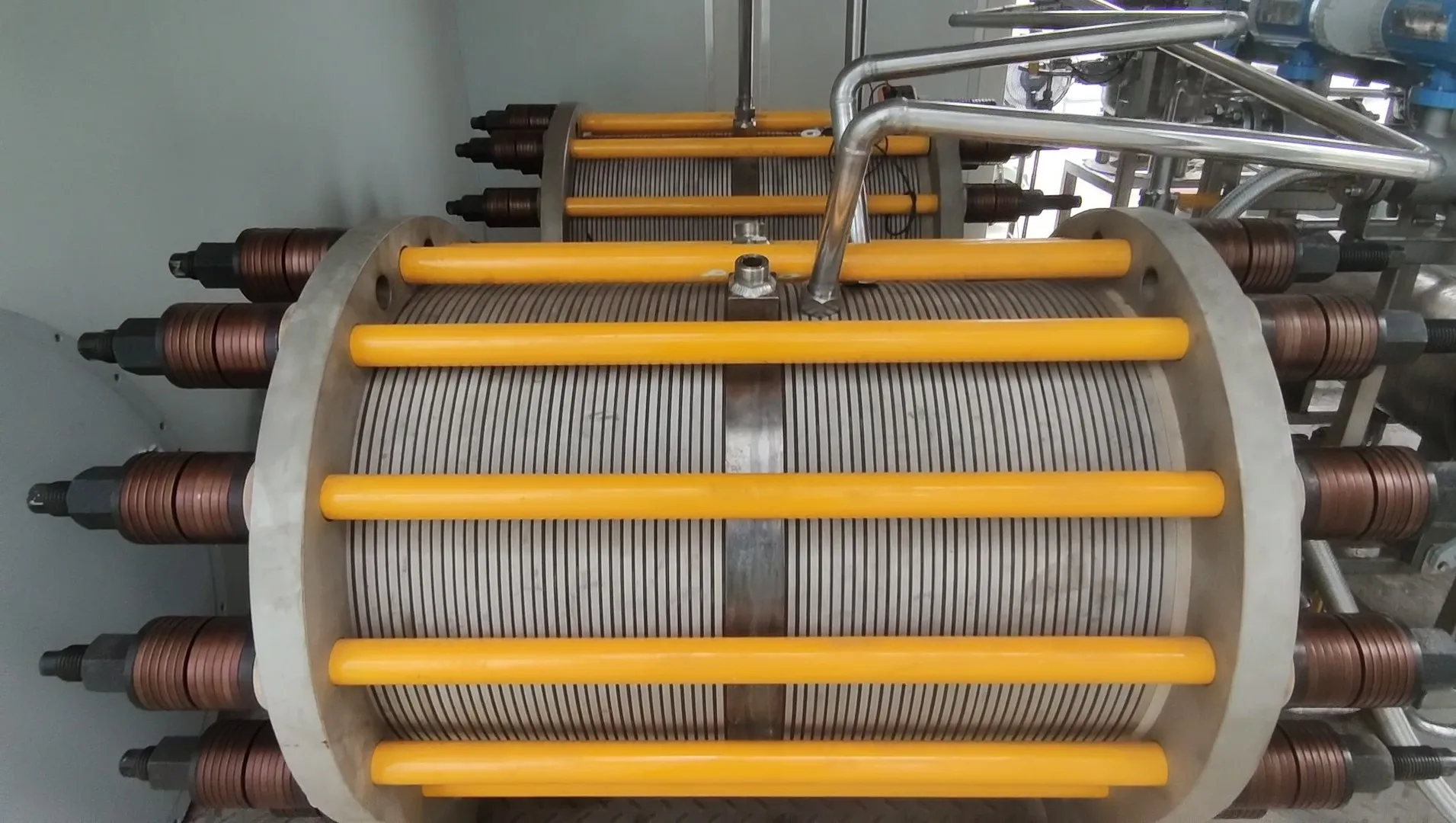

salt water sea water electrolysis hydrogen hydrogen generator for food beverage ammonia power plant industry
- Category: >>>
- Supplier: Shaanxi Clear Energy Technology Co. Ltd.Shaanxi Ltd.
Share on (1601290620748):
Product Overview
Description
Product Description
| Model | QNALK-X |
| hydrogen yield(m³/h) | 0.5Nm3/h to 1000Nm3/h |
| Hydrogen purity(v/v) | 99.999% with purification; 99.6% without purification |
Oxygen purity(v/v) | around 99.4% |
| System pressure(Mpa) | up to 3.2 |
| H2 dew point(℃) | -65 |
| Working load | 20%-100% |
| Operating temperature(℃) | 85±5 |
| DC power consumption | 4.3-4.8KW·h/m³ H² |
| Life time | 10-15 years |
| Control system | PLC |
| Electrode | carbon steel coated with nickel |
| Membrane | PPS;composite membrane |
| HS code | 8543300090 |
| Production capacity | 500 units/year |
Usage Scenario

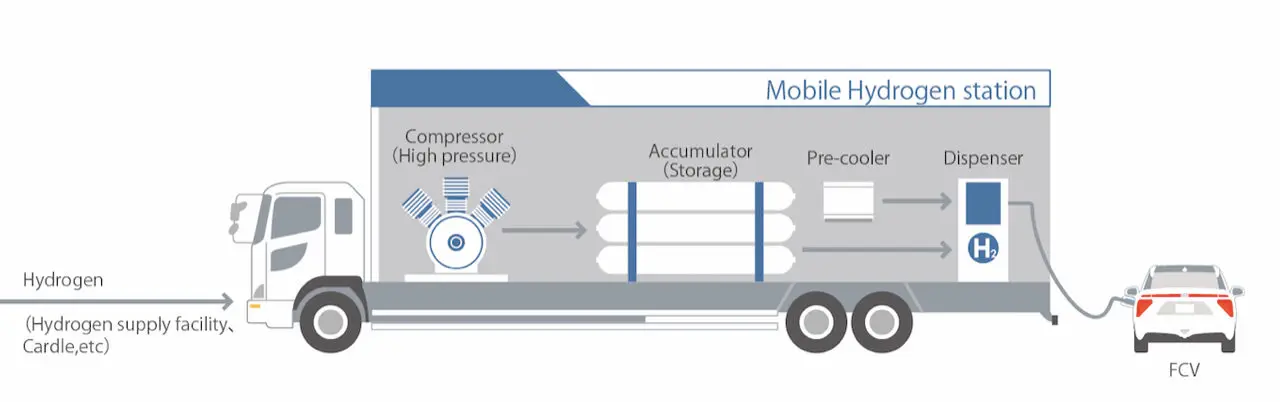

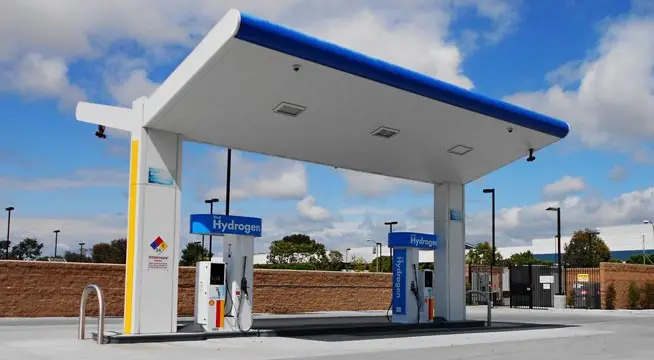

Hydrogen Refueling Station

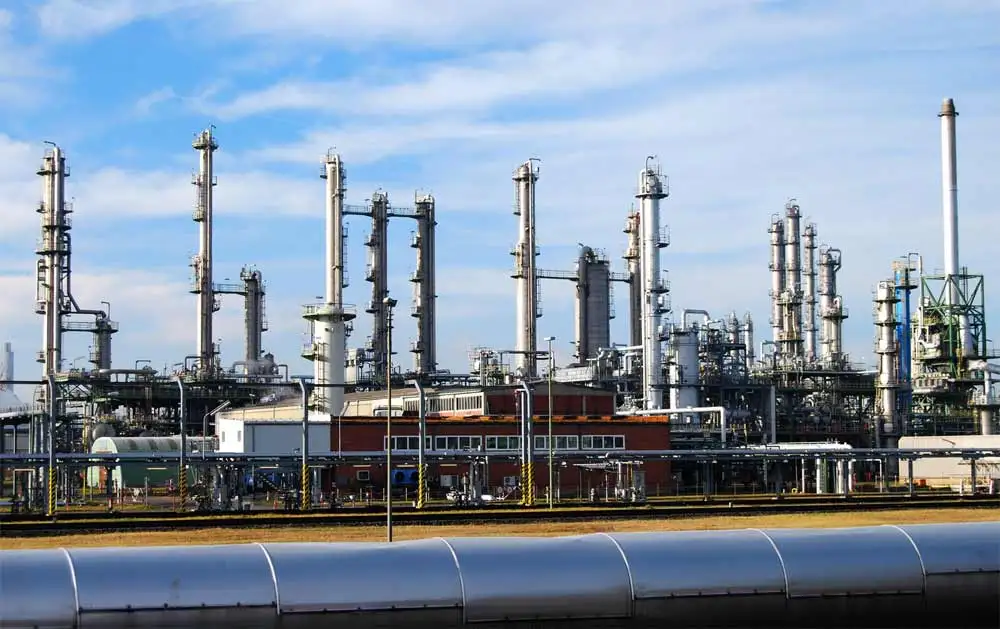

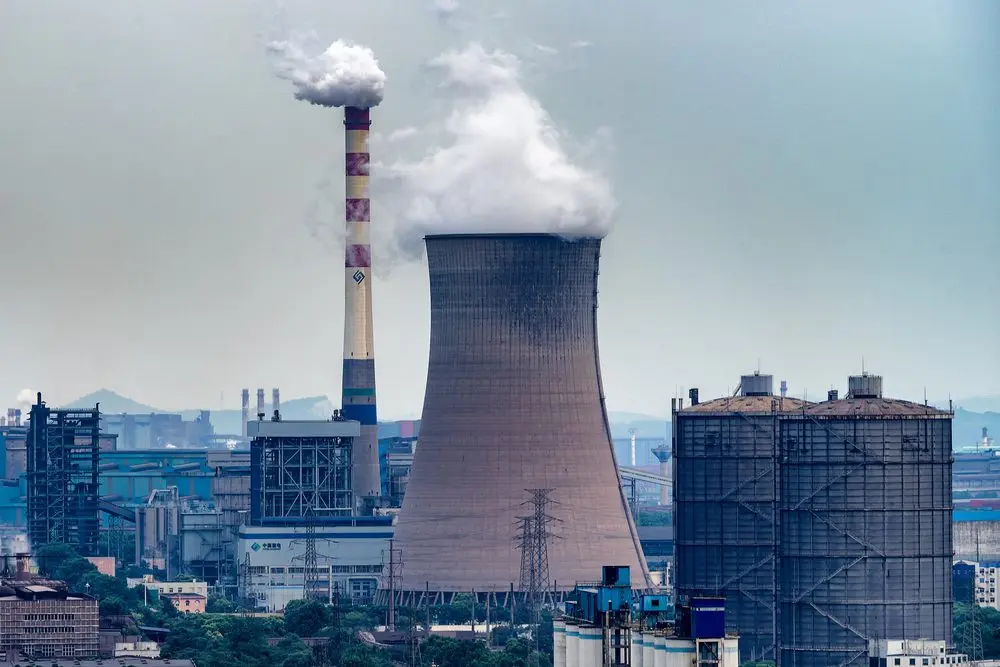

Cooling Gas in Power Plant and Protective Gas in Refinery
Certifications
Company Information

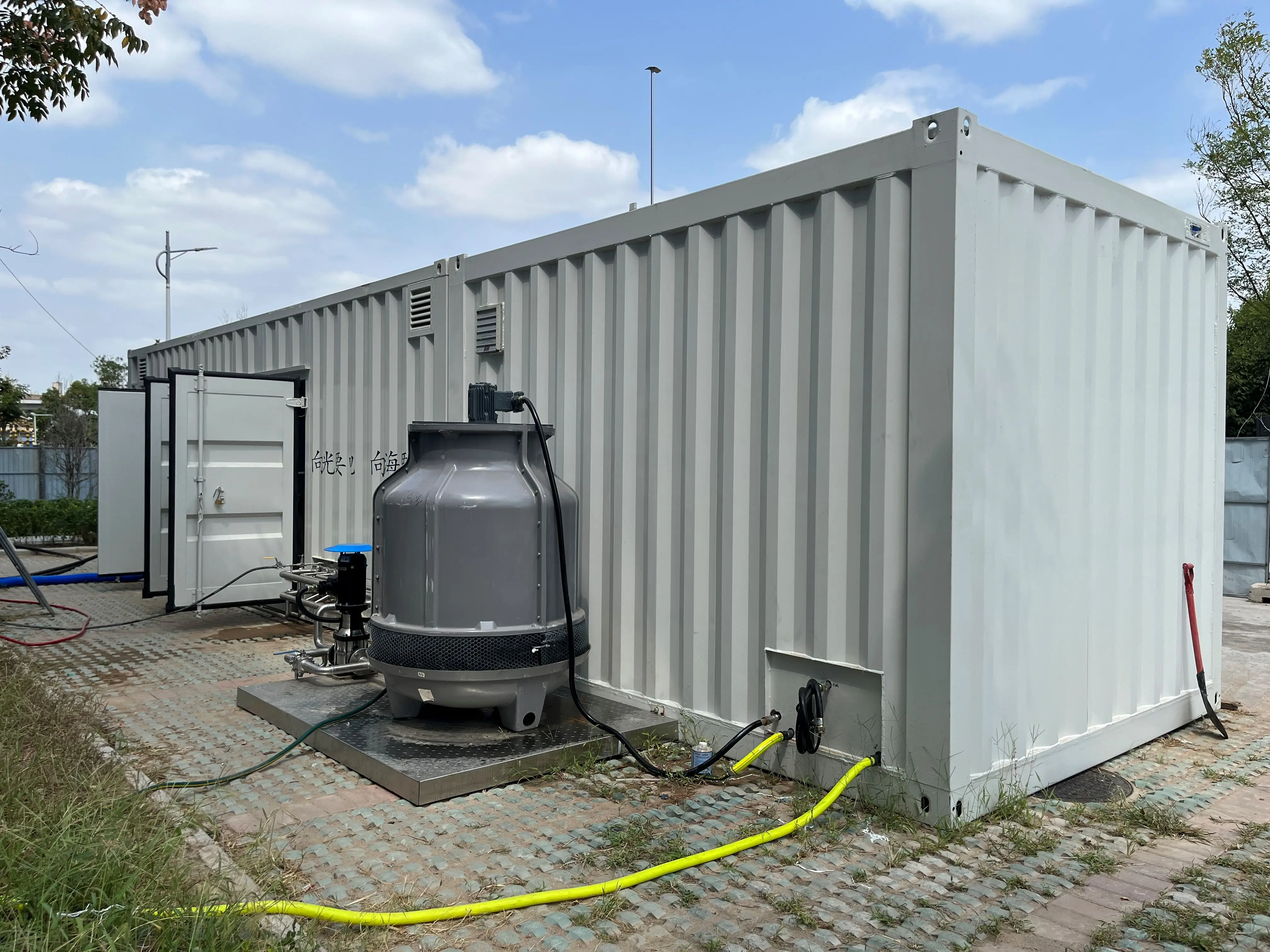

We are able to build electrolyzers producing 0.5-1000 NM3/h of hydrogen gas up to 99.999% purity on-demand. Featuring a scalable modular design that can be containerized, these systems offer solutions that are well-suited for a variety of industrial, fueling and renewable energy applications.
