JNN intelligent pump automatic water pump for industrial,commercial and agricultural
- Category: >>>
- Supplier: Yueqing Haiyin Electric Co. Ltd.Yueqing Ltd.
Share on (1601290623653):
Product Overview
Description
Produt Description

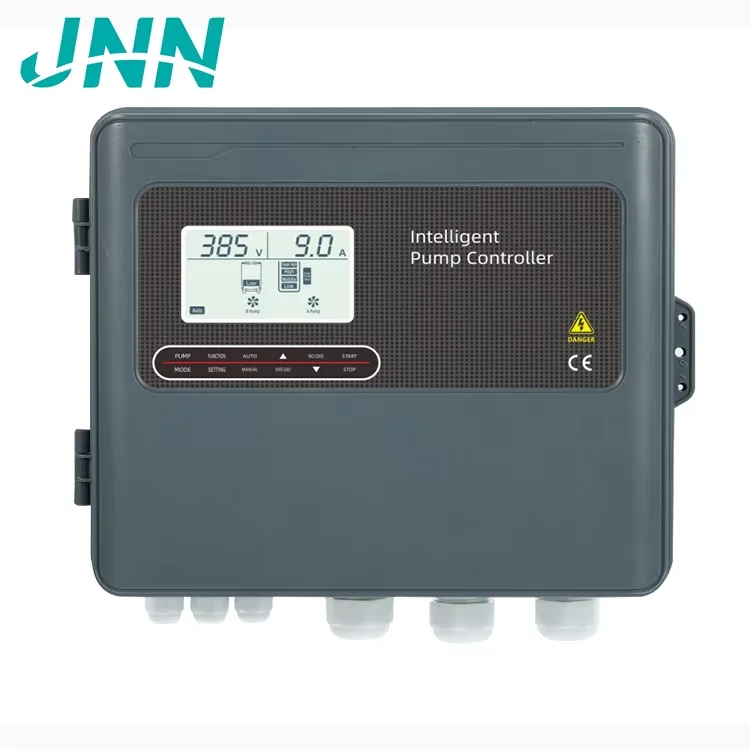

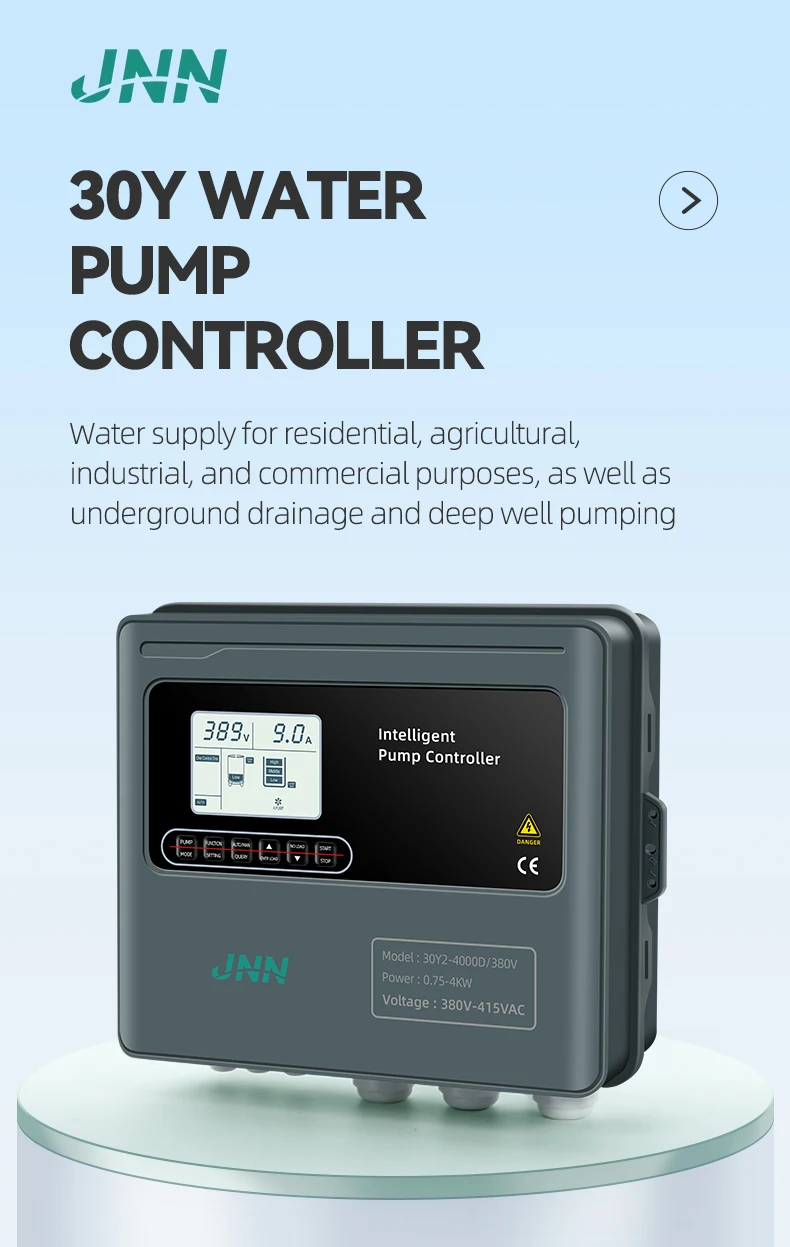

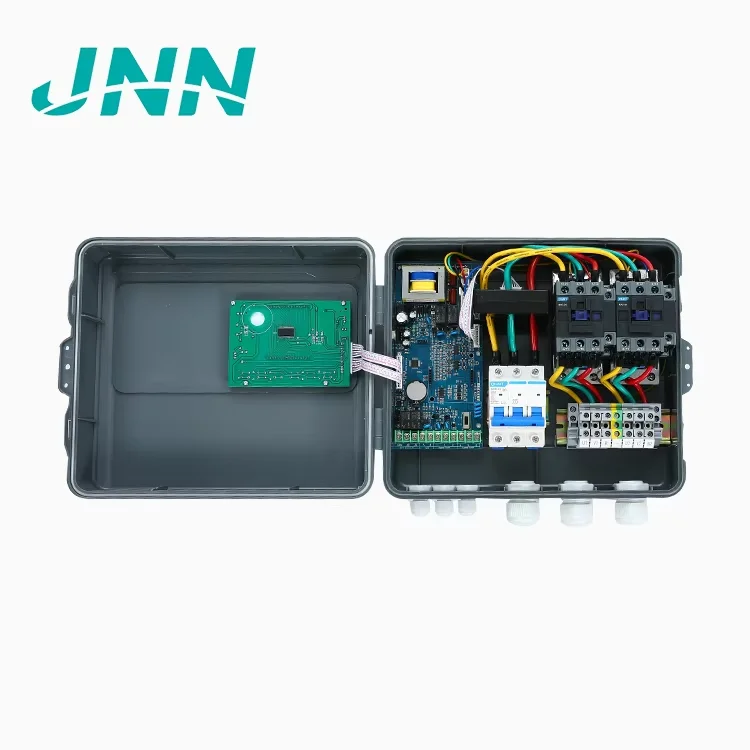

30Y series intelligent water pump controller, JNN brand high-end product line for 2024.It's core control panel is equipped with updated microcomputer chip, optimized programming language, and added new protection functions to deal with emergency circuit crises.Source manufacturer, professional team, mature production line.
WHAT YOU SEE IS WHAT YOU GET.
WHAT YOU SEE IS WHAT YOU GET.
Pump No. | Rated Voltage | Rated Power |
Single Pump Control | 380V-415VAC Three Phase | 0.75-15KW |
220V-240VAC Three Phase | 0.75-11KW | |
220V-240VAC Single Phase | 0.75-11KW | |
Two Pump Control | 380V-415VAC Three Phase | 0.75-15KW |
220V-240VAC Three Phase | 0.75-11KW | |
220V-240VAC Single Phase | 0.75-11KW |

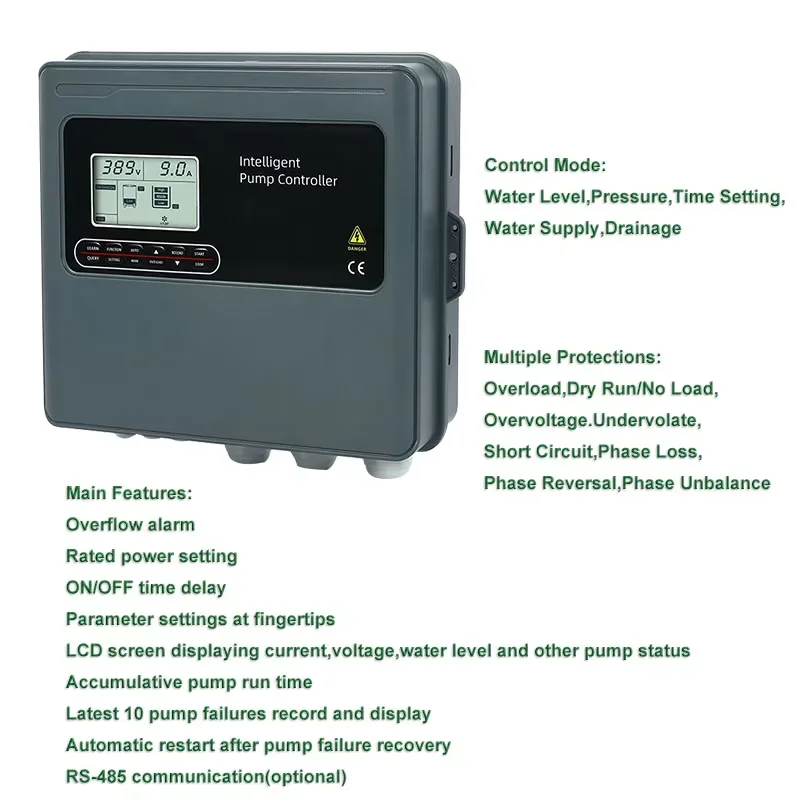

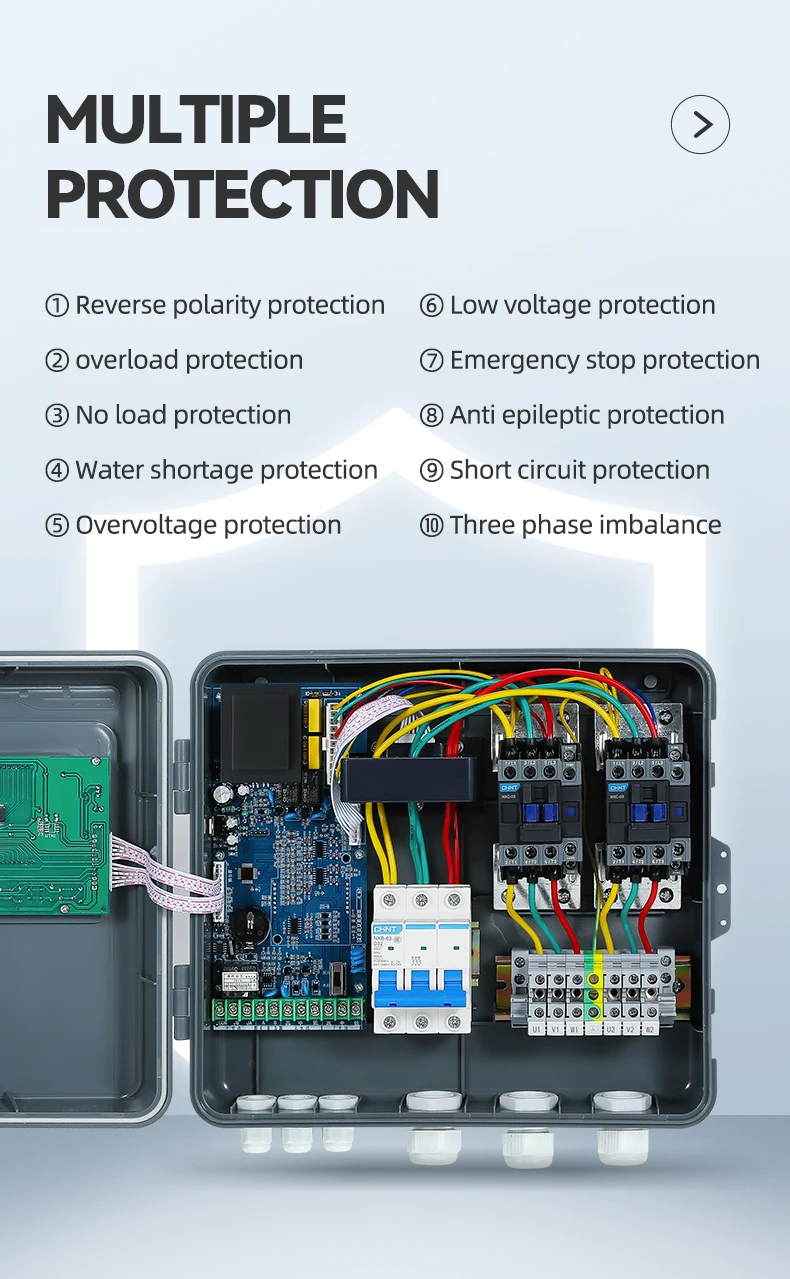

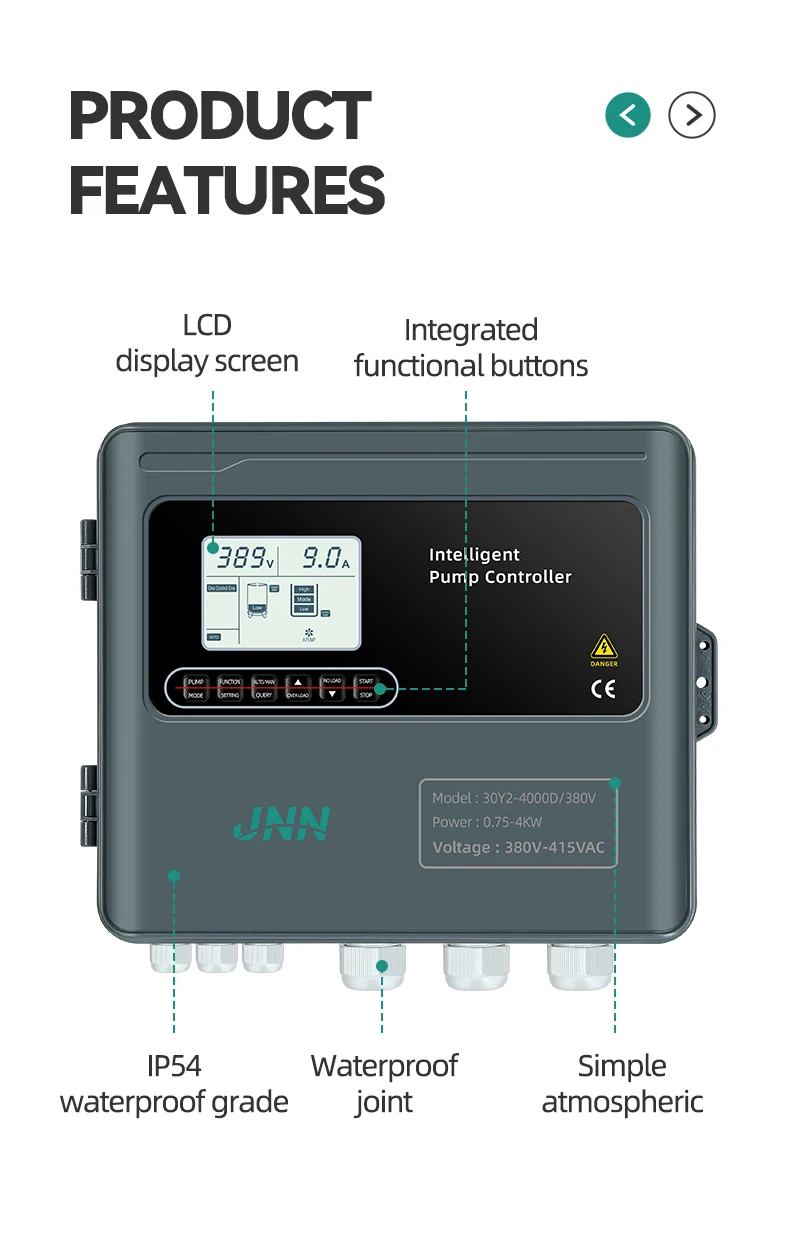

Main Features
Overflow alarm
Rated power setting
ON/OFF time delay
Parameter settings at fingertips

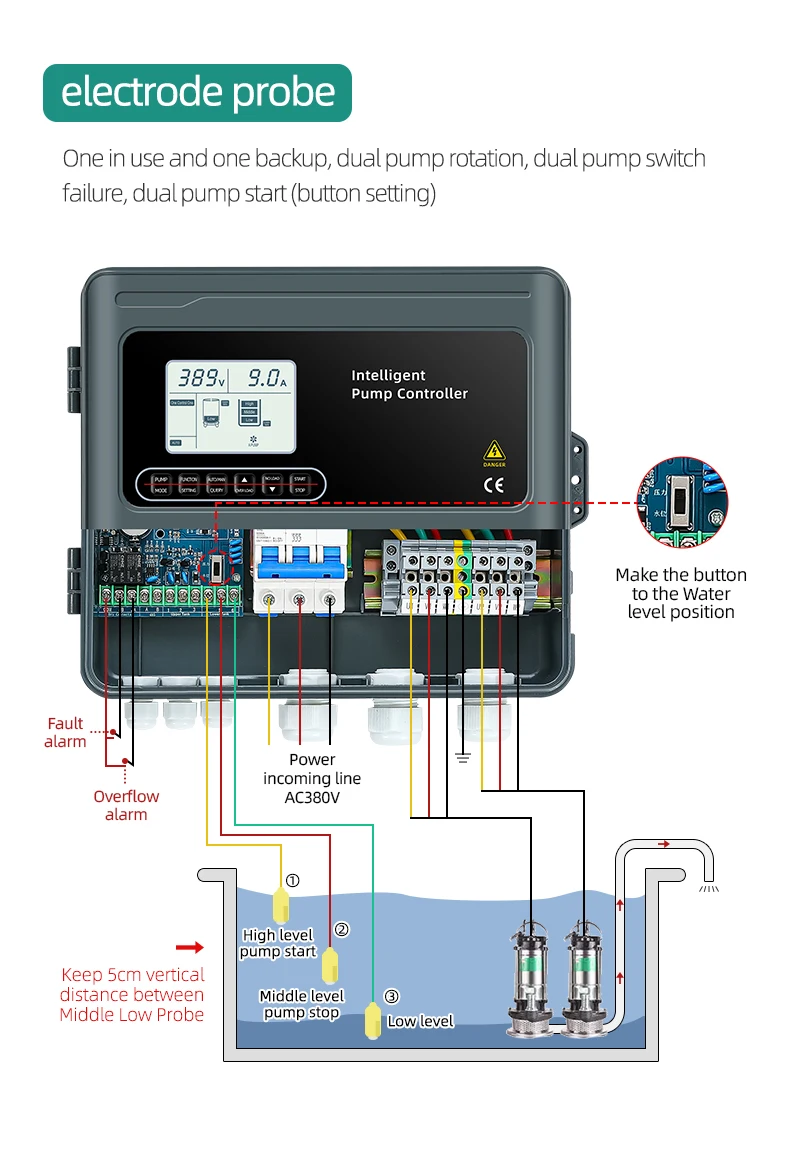

Water level control by level probes or float switch
Pressure control by pressure gauge or pressure switch
LCD screen displaying current,voltage,water level and other pump status
Accumulative pump run time
Latest 10 pump failures record and display
Automatic restart after pump failure recovery
RS-485 communication(optional)
Rated power setting
ON/OFF time delay
Parameter settings at fingertips
Water level control by level probes or float switch
Pressure control by pressure gauge or pressure switch
LCD screen displaying current,voltage,water level and other pump status
Accumulative pump run time
Latest 10 pump failures record and display
Automatic restart after pump failure recovery
RS-485 communication(optional)
Parameter Setting
P00 --- Retore factory setting
PP0 --- Rated power current setting
P01 --- Over-current protection percentage setting,100%-170% adjustable,default 135%.
P02 --- Dry run current protection percentage setting,50%-100% adjustable,default 70%.
PPP --- Pump stalled protection percentage setting,100%-200% adjustable,default 170%.
P05 --- No load restart time setting,0-720 minutes adjustable,default 30 munites.P06--- Two pump alternation time
setting,0-720minutes adjustable.
P07 --- Over-voltage setting.
P08 --- Under-voltage setting.
P09 --- Screen backlight ON time setting,0-999 minutes adjustable,default 30 minutes.
P12 --- No load protection trip delay time setting,0-600 seconds adjustable,default 0 second.
P13 --- Overload protection trip delay time setting,0-600 seconds adjustable,default 0 second.
P14 --- ON time delay,1-60 seconds adjustable, default 0 second.
P15 --- OFF time delay,1-60 seconds adjustable,default 0 second.
P16 --- Self check for anti-rust time setting,24-240hours adjustable,default 72 hours.
P17 --- Overload/over-current retart time setting,0-10 minutes adjustable,default 0 minute.
P18 --- Overflow buzzer alarm time setting,0-99 seconds adjustable,default 0 second.
P19 --- Phase loss retart time setting,0-99 minutes adjustable,default 0 minute.
P20 --- Overvoltage-undervoltage restart time setting, 0-999 seconds adjustable,default 0 second.
P21 --- Phase reversal protection setting
P22 --- Three phase unbalance percentage,0-500% adjustable,default 0.
PP0 --- Rated power current setting
P01 --- Over-current protection percentage setting,100%-170% adjustable,default 135%.
P02 --- Dry run current protection percentage setting,50%-100% adjustable,default 70%.
PPP --- Pump stalled protection percentage setting,100%-200% adjustable,default 170%.
P05 --- No load restart time setting,0-720 minutes adjustable,default 30 munites.P06--- Two pump alternation time
setting,0-720minutes adjustable.
P07 --- Over-voltage setting.
P08 --- Under-voltage setting.
P09 --- Screen backlight ON time setting,0-999 minutes adjustable,default 30 minutes.
P12 --- No load protection trip delay time setting,0-600 seconds adjustable,default 0 second.
P13 --- Overload protection trip delay time setting,0-600 seconds adjustable,default 0 second.
P14 --- ON time delay,1-60 seconds adjustable, default 0 second.
P15 --- OFF time delay,1-60 seconds adjustable,default 0 second.
P16 --- Self check for anti-rust time setting,24-240hours adjustable,default 72 hours.
P17 --- Overload/over-current retart time setting,0-10 minutes adjustable,default 0 minute.
P18 --- Overflow buzzer alarm time setting,0-99 seconds adjustable,default 0 second.
P19 --- Phase loss retart time setting,0-99 minutes adjustable,default 0 minute.
P20 --- Overvoltage-undervoltage restart time setting, 0-999 seconds adjustable,default 0 second.
P21 --- Phase reversal protection setting
P22 --- Three phase unbalance percentage,0-500% adjustable,default 0.
RFQ
Q: What's the quality guarantee period of this product？
A: Our company promises that all water pump controller series products have a one-year warranty period.
Q: Can you introduce the quality inspection process of your factory？
A: We have a professional quality control team which can perform incoming inspection, process inspection, and 100% online testing.
At present, our defect rate is less than 0.2%.
Q: Is sample order available? And can I make trial order？
A: Yes, the sample available, and you can make trial order to check the details first.Q: Is providing customized OEM or ODM services possible?

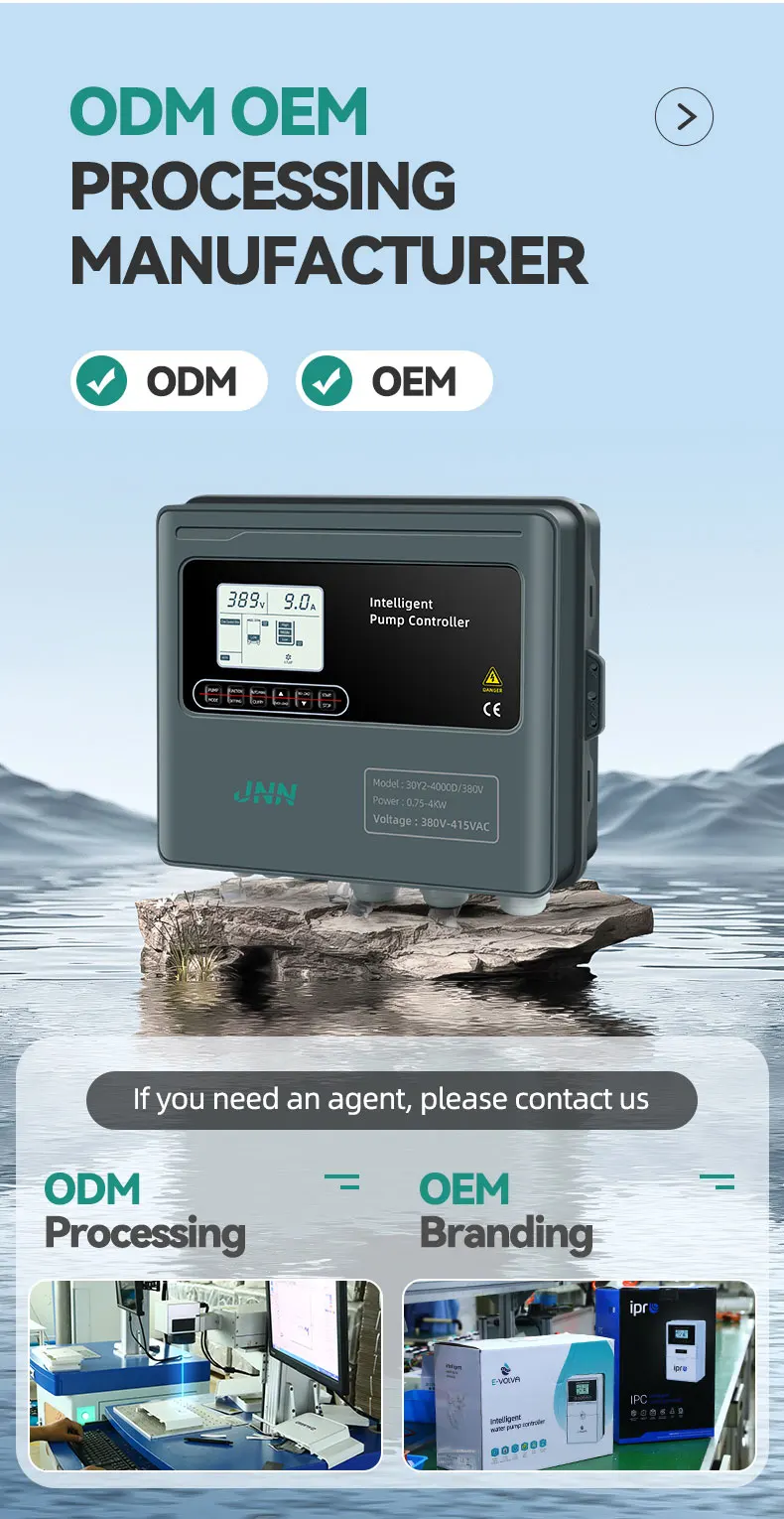

A: We can customize production according to your needs, and the MOQ for developing new products is over 500 pieces.
Q: What is the delivery time？
A: It takes 3-5 days for sample orders, and 15-20 days for official orders.
The actual situation will be determined based on the specific quantity.
A: Our company promises that all water pump controller series products have a one-year warranty period.
Q: Can you introduce the quality inspection process of your factory？
A: We have a professional quality control team which can perform incoming inspection, process inspection, and 100% online testing.
At present, our defect rate is less than 0.2%.
Q: Is sample order available? And can I make trial order？
A: Yes, the sample available, and you can make trial order to check the details first.Q: Is providing customized OEM or ODM services possible?
A: We can customize production according to your needs, and the MOQ for developing new products is over 500 pieces.
Q: What is the delivery time？
A: It takes 3-5 days for sample orders, and 15-20 days for official orders.
The actual situation will be determined based on the specific quantity.
