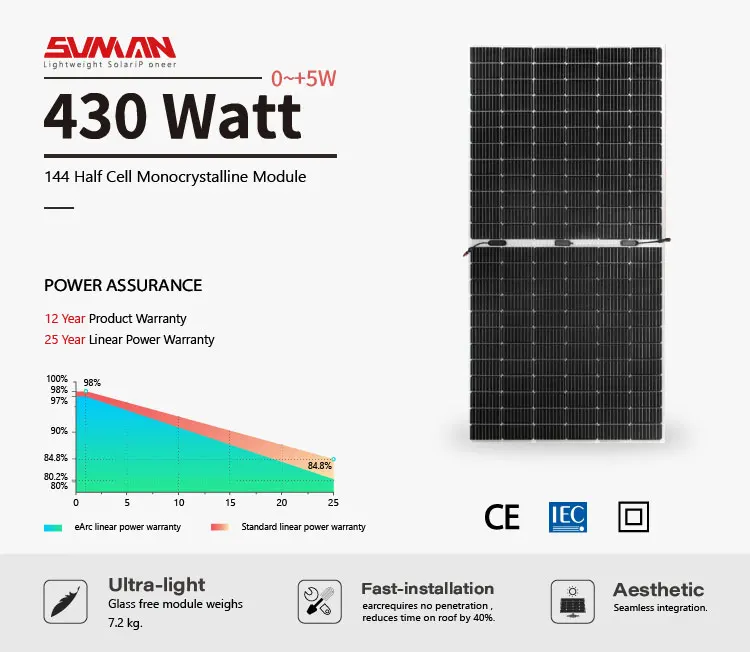

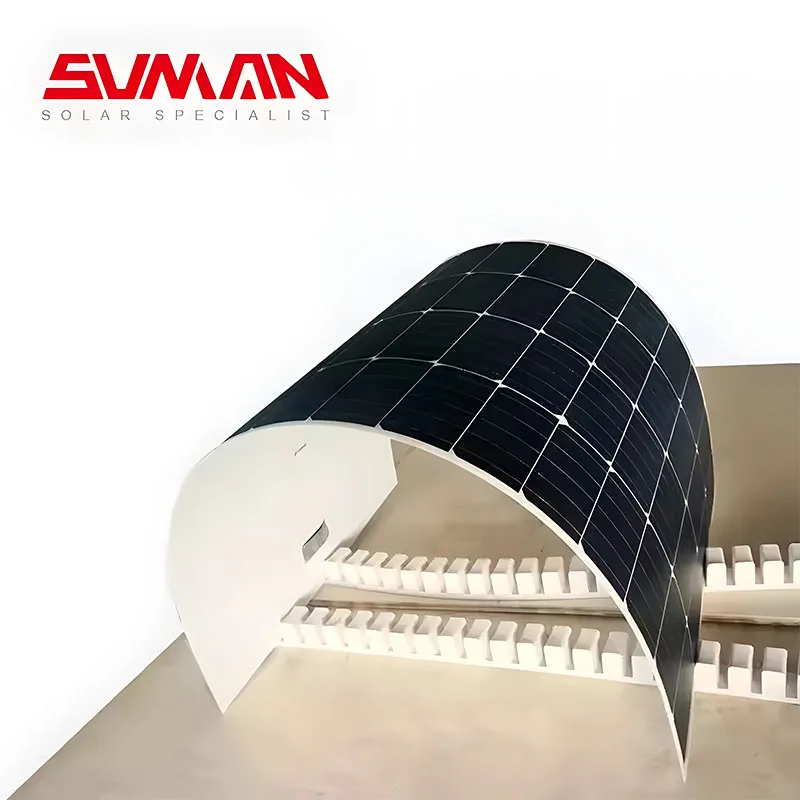

430w 450w high quality Sunman mono crystalline flexible solar panel 500w 520w easy install IP68 Rated flexible solar panel
- Category: >>>
- Supplier: Anhui Solarasia Energy Technology Co. Ltd.Anhui Ltd.
Share on (1601290681466):
Product Overview
Description
Product Parameters
STC | SMF430F-12X12UW |
Maximum Power ( Pmax ) | 430 |
Maximum Power Voltage ( Vmp ) | 42.0 |
Maximum Power Current ( Imp ) | 10.24 |
Open-circuit Voltage ( Voc ) | 49.8 |
Short-circuit Current ( Isc ) | 10.74 |
Module Efficiency (%) | 19.2 |
Operating Temperature | -40℃ to 85℃ |
Maximum System Voltage | 1000V DC(IEC) |
Maximum Series Fuse Rating | 20A |
Application Class | Class A |
Power Tolerance | 0/+5 W |
Weight | 7.3KG |

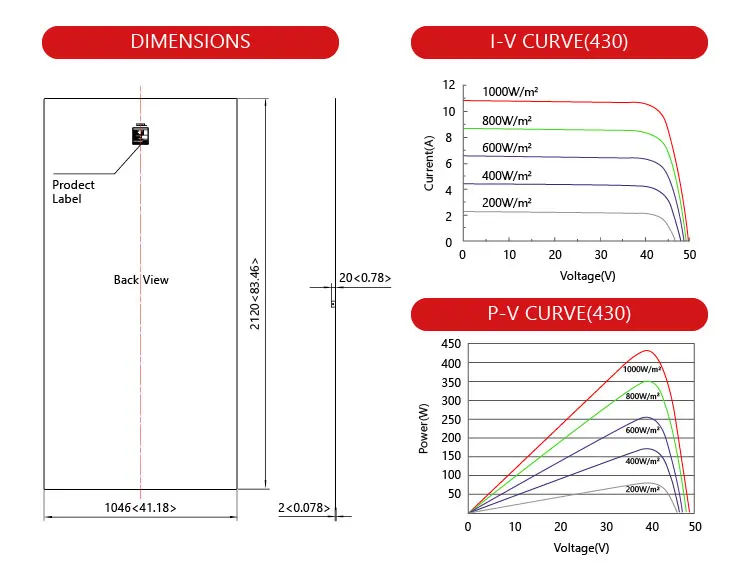

Size | 2120*1046*2mm |
STC: Irradiance 1000W/m2,Cell temperature 25℃,AM=1.5 | Tolerances of Pmax,Voc and Isc are within ±5% |

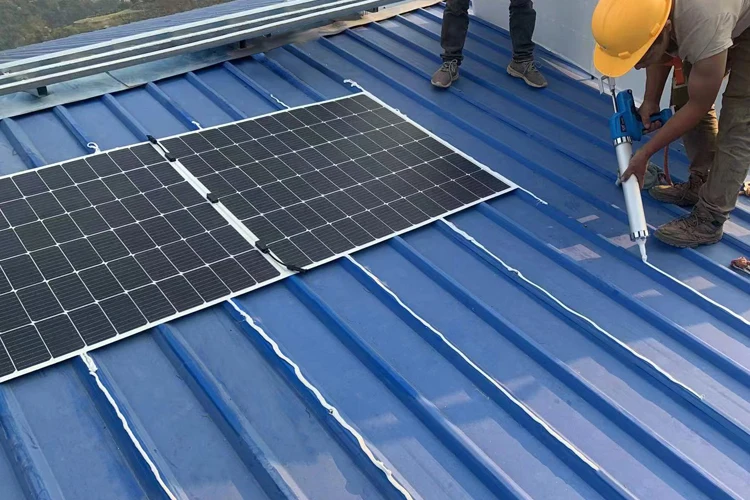

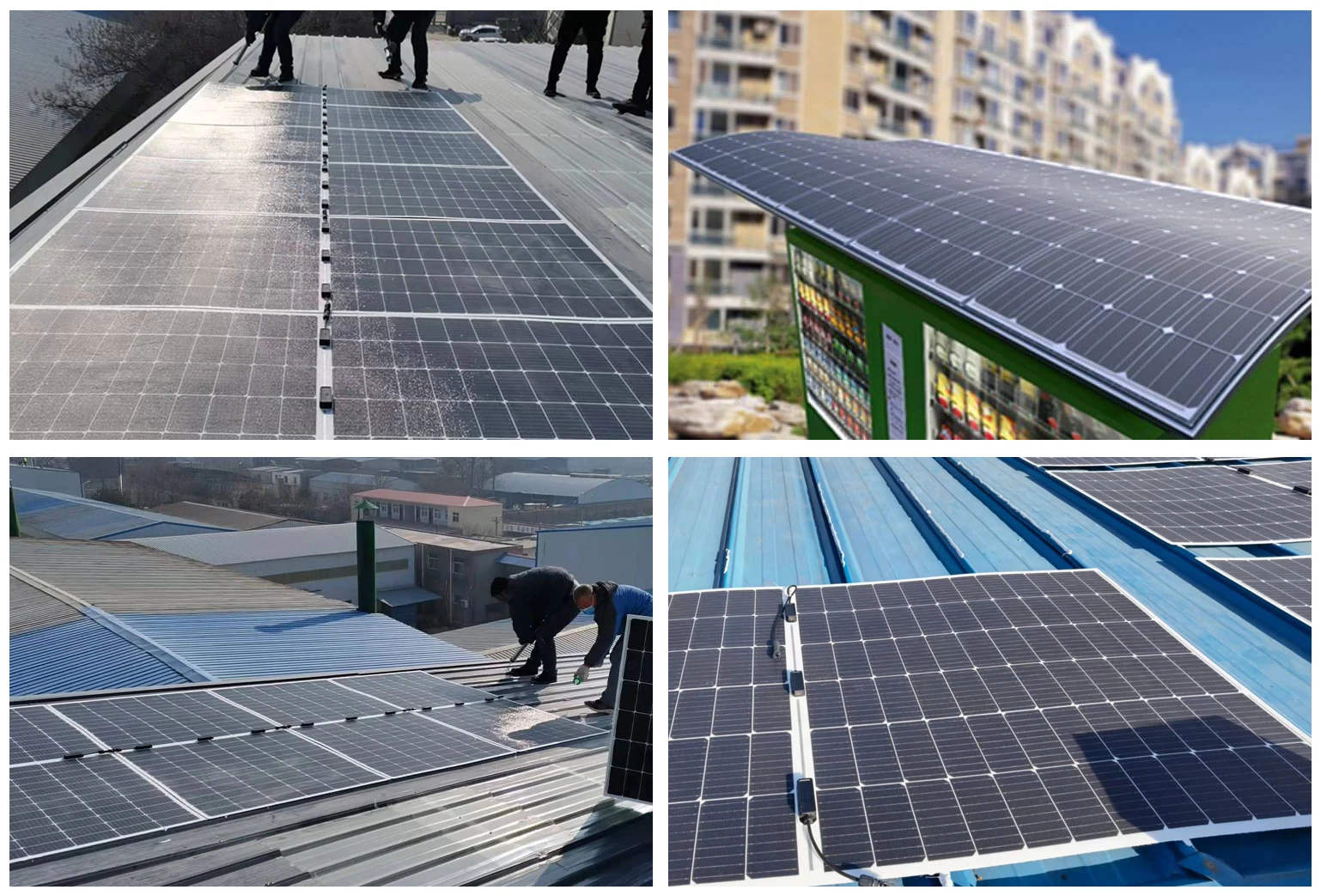

Applications
Related Products

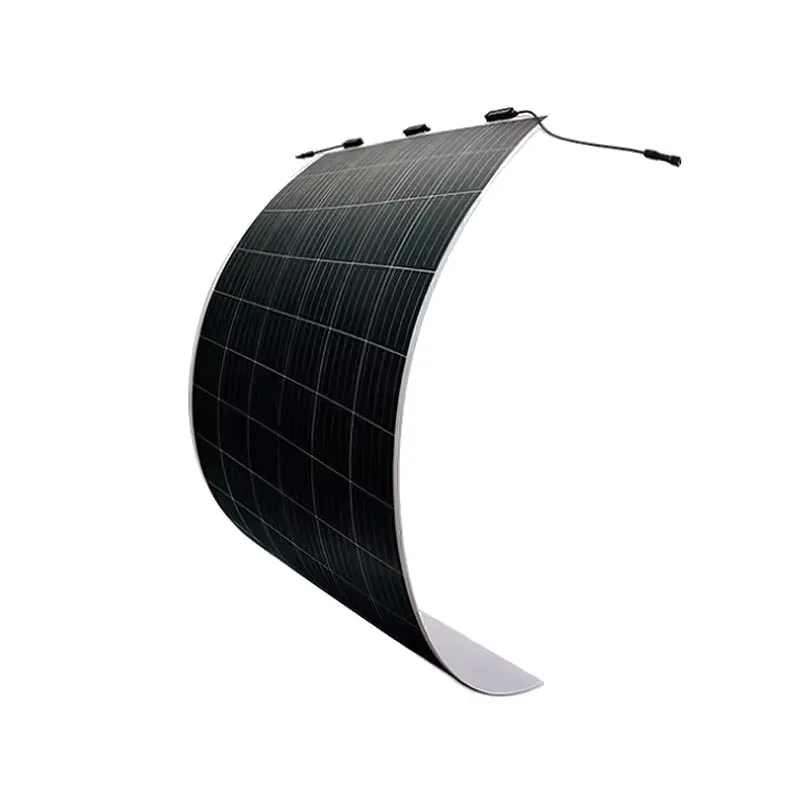

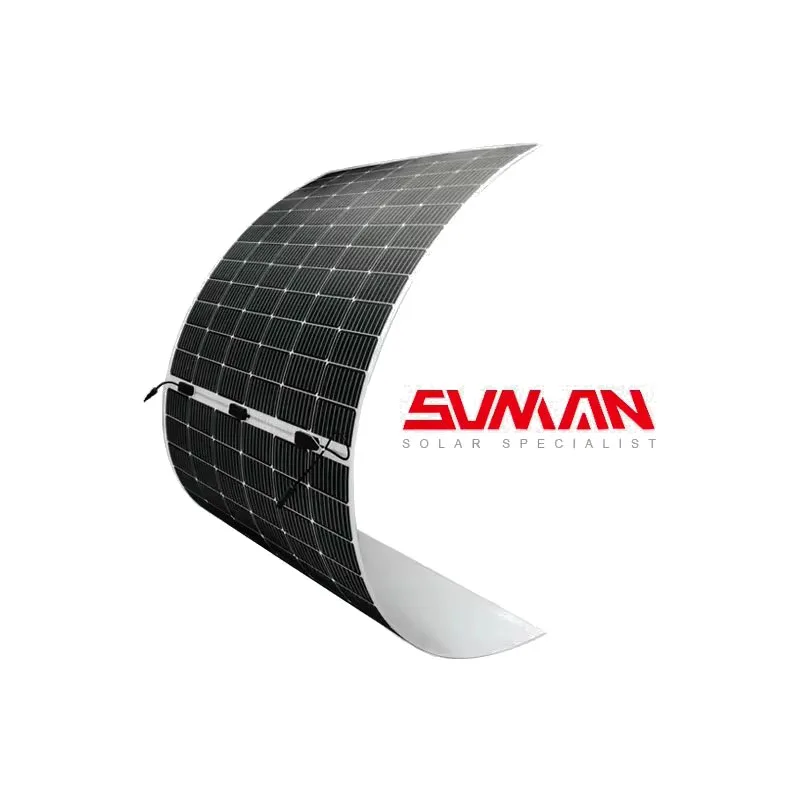

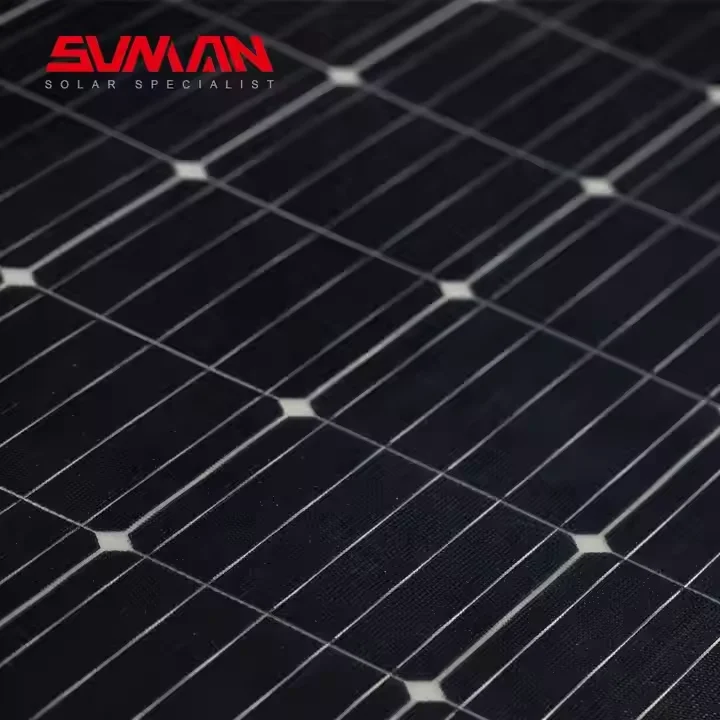

Detailed Images

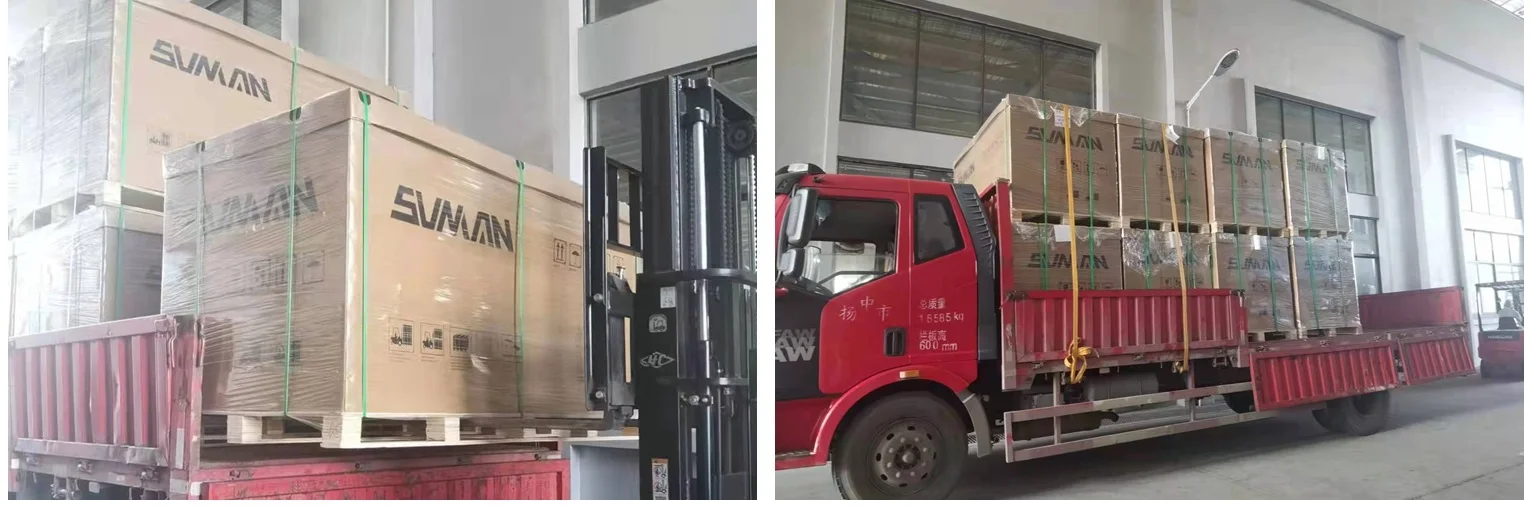

Packaging&Shipping
FAQ
Q1: How to choose the right panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: Delivery time 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty.
Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
