perforated aluminium mesh sheets 1.8mm knife shear test pass by AZUMA DESIGN salt spray test

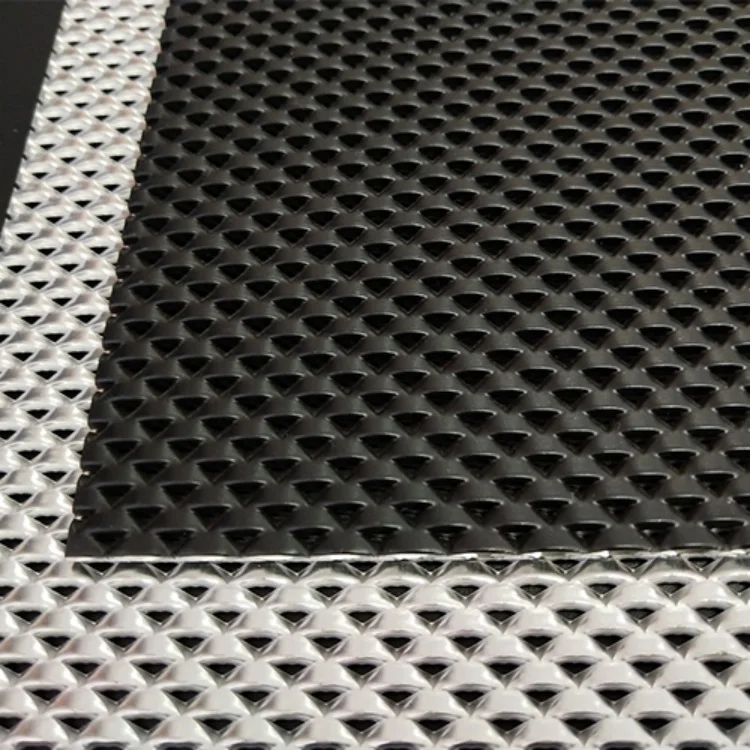

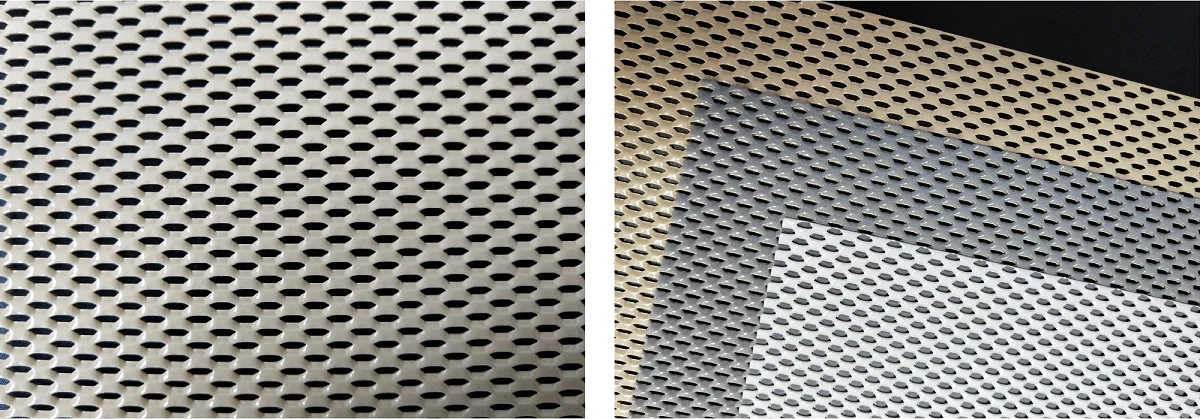

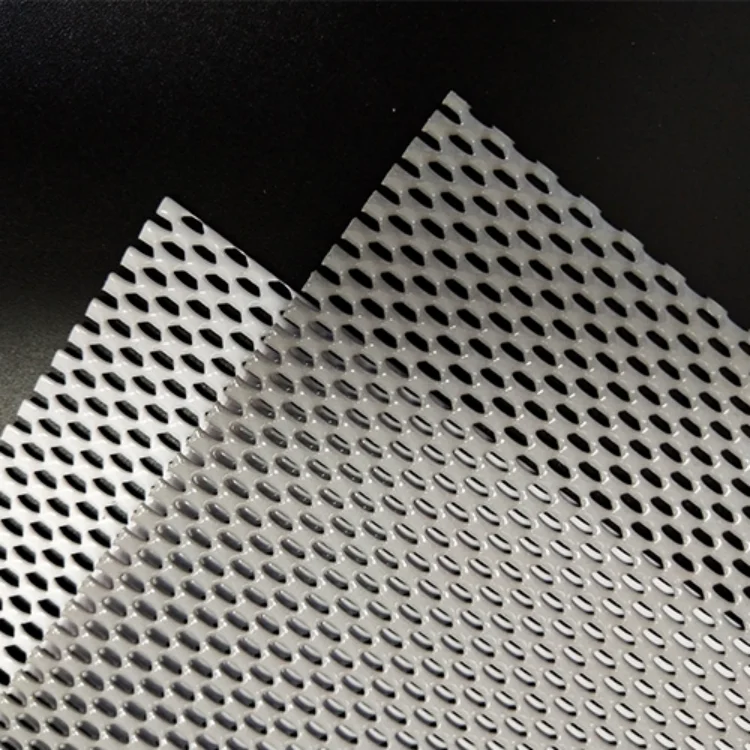

Perforated Aluminium Security mesh utilizes marine-grade aluminium alloy 5052 as raw material which is then perforated and powder coated to outdoor grade.

Its smooth surface and outstanding appearance attract a lot of customers.

Compare to its counterparts stainless steel security wire mesh, Perforated aluminium offers a stronger structure and more privacy but at a cheaper price.

Perforated Aluminium Sheet is also well corrosion-resistant, marine grade 5052 alloy offers a pretty good performance for this material.

 "Hebei Xiangguang Metal " launched 2 different thickness options for this heavy DVA screen mesh to meet the different requirements of the Australian market.

Option A (#HDVA182030)

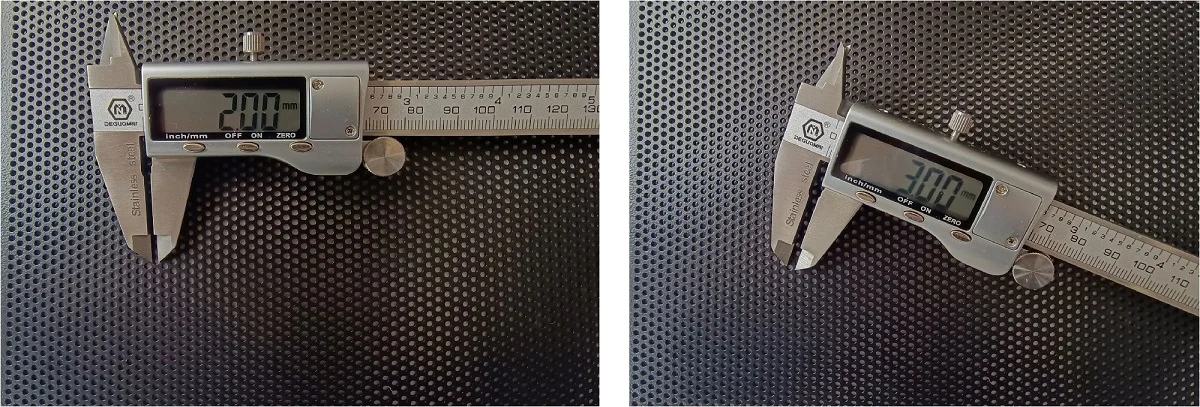

1.8mm thickness before punching and powder coating, approx 1.95-2mm after coating, the overall thickness of the screen mesh is 3mm

Option B (#HDVA121424):
1.2mm thickness before punching and powder coating, approx 1.35-1.4mm after coating, the overall thickness of the mesh is 2.4mm.

Heavy Duty DVA mesh passes most of the Australian standards for the security door industry including knife shear and 480 hours of salt spray.
Based on its one-way vision property, heavy-duty DVA aluminium mesh is a great choice for security screen doors, current steel fence privacy screen mesh, school privacy fencing, swimming pool privacy screen panels, etc.

Standard Sheet Size:
750 x 2000MM / 750 x 2200MM / 750 x 2400MM
820 x 2000MM / 820 x 2200MM / 820 x 2400MM
900 x 2000MM / 900 x 2200MM / 900 x 2400MM
1200 x 2000MM / 1200 x 2200MM / 1200 x 2400MM
Custom sizes are accepted.

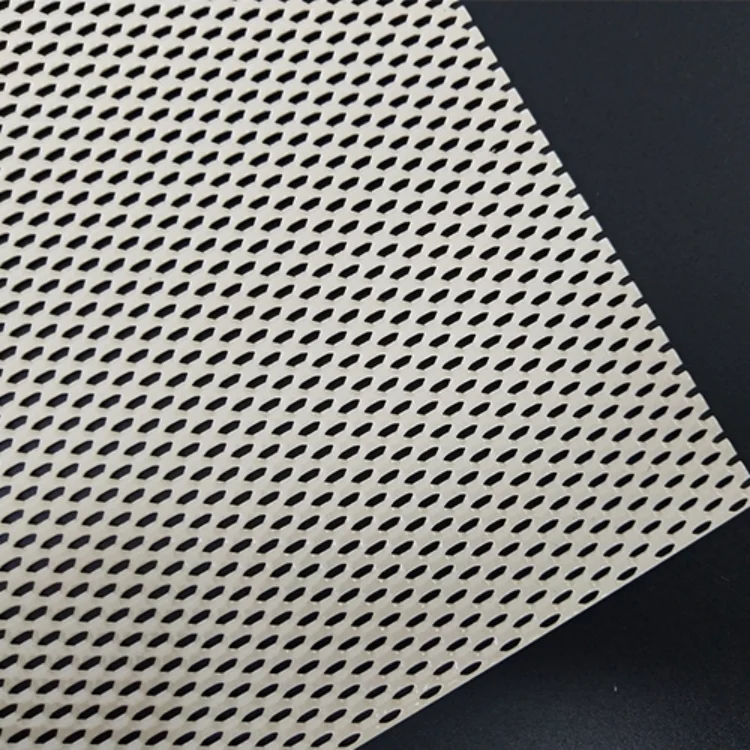

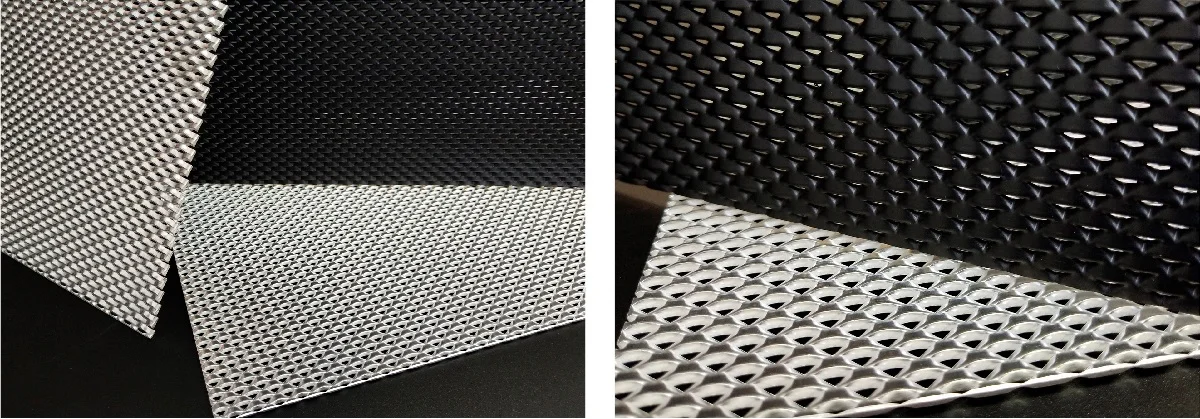

Light DVA mesh is made of 0.5mm aluminium sheets by perforation.
Due to its special design, DVA mesh allows people inside the house to see outside but not to be seen from the visitor’s side. That‘s why it is always a perfect material to be used as a privacy screen infill.
As it is a light-weighted version of DVA mesh, it can’t be used individually as a screen door infill panel.
It has to be used together with diamond grills, and cast-type grills as structural support to make the screen rigid and avoid rattle issues in the wind.

Standard Sheet Size:
750 x 2000MM / 750 x 2200MM / 750 x 2400MM
820 x 2000MM / 820 x 2200MM / 820 x 2400MM
900 x 2000MM / 900 x 2200MM / 900 x 2400MM
1200 x 2000MM / 1200 x 2200MM / 1200 x 2400MM
Custom sizes are accepted.

Related Tests by AZUMA DESIGN

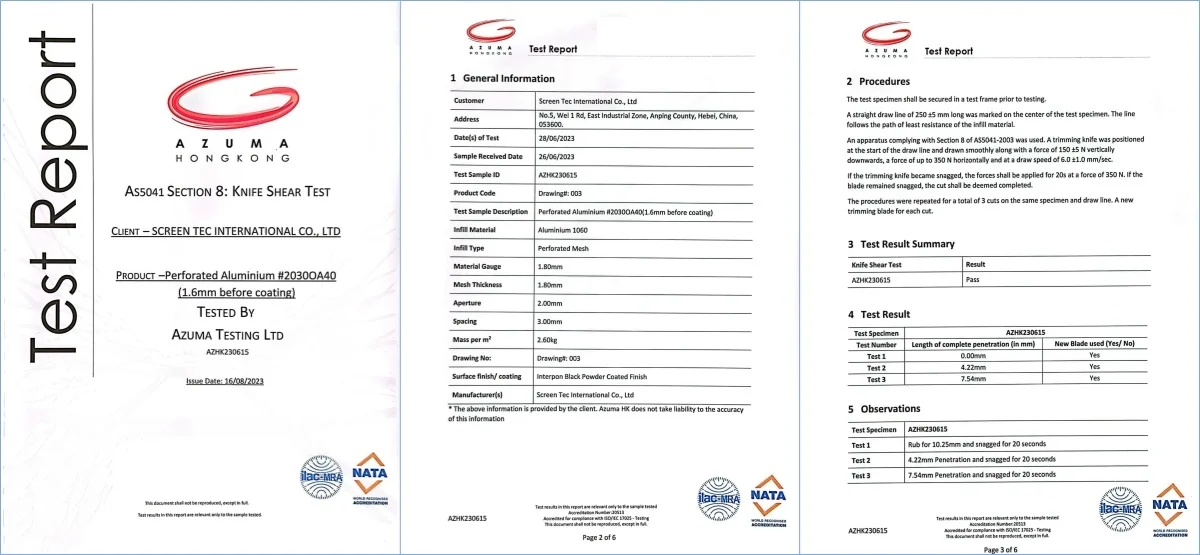

Knife Shear Test: PASS

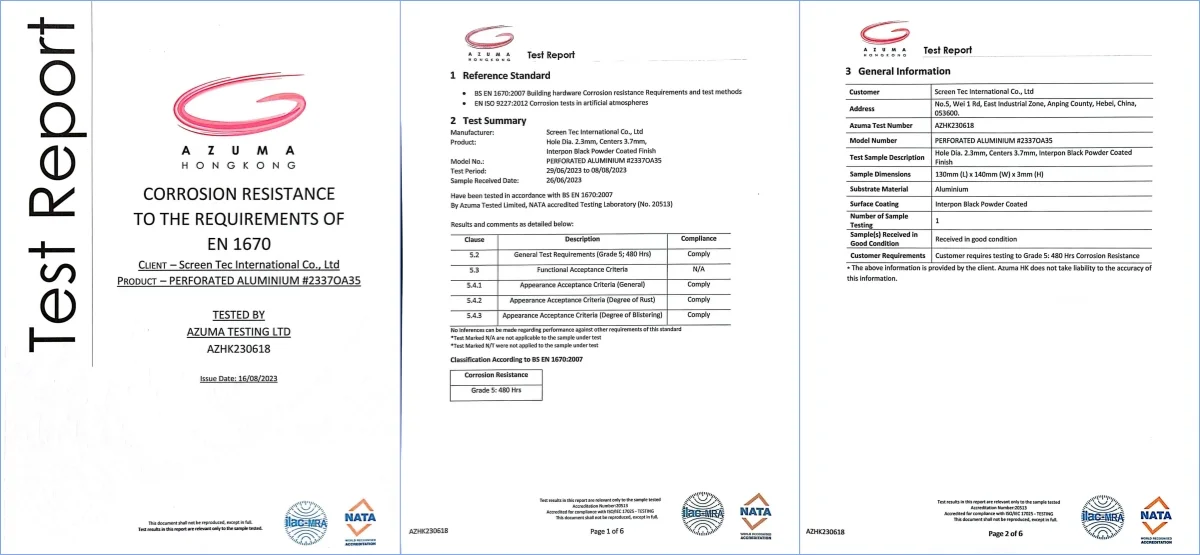

Salt Spray Test: Pass ( 480Hours, Twice the required 240hours standard )

Bush Fire Grade: Meet with the highest BAL grade.

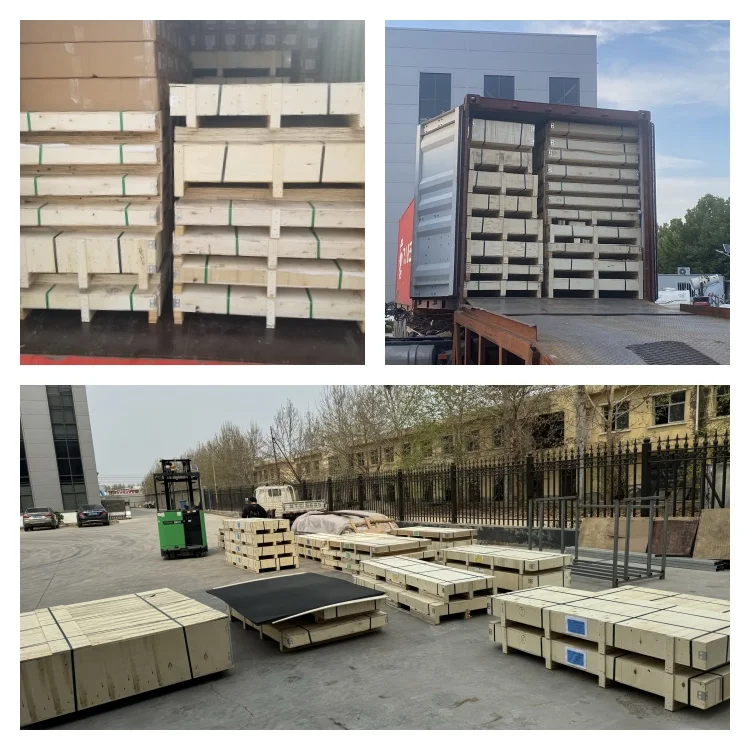

50 or 100 sheets per wooden box

Hebei Xiangguang metal CO., LTD is dedicated in the fabrication of security screen door and security window infill panel and wire mesh.Established in 2004, Xiangguang metal  has been researching and developing the technology of screen fabrication.

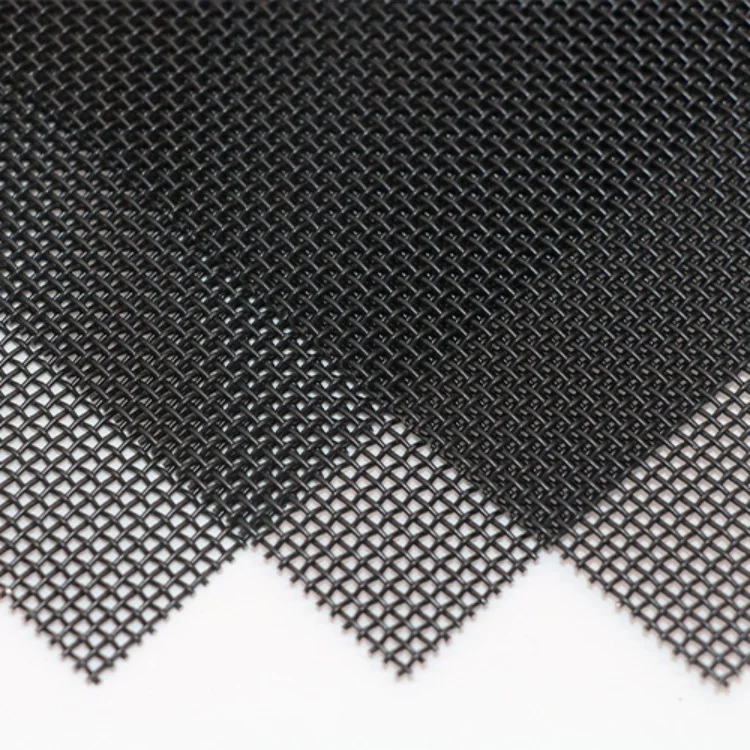

With the development of the factory, Xiangguang metal  has been a reliable manufacturer and supplier of 0.5mm light DVA mesh, 2.0mm Heavy DVA mesh, stainless steel security wire mesh, perforated aluminium, leaf mesh, aluminium insect screen mesh and stainless steel insect screen mesh.

Using German expanding machine and advanced European leveling machine, Screen Tec can consistently deliver European grade DVA mesh together with other high standard security door infill mesh and panels.

Xiangguang metal  will keep focusing on the screen mesh technology.

Choose Xiangguang metal  work with a reliable screen mesh supplier in China.

                           Who We Are & What We Offer?

When our boss's father was the boss, he was in Hongqi Street, and later moved to the Wire Mesh Big World to open wire mesh stores to serve Chinese domestic customers. Since 2008, it has increased its foreign trade business, and so far, it has served more than 200+ wire mesh dealers around the world.

Products from the very beginning of stainless steel mesh, to all kinds of window screen products in Australia, by 2023, began to produce and sell decorative mesh, perforated mesh and so on.

Where We Are?

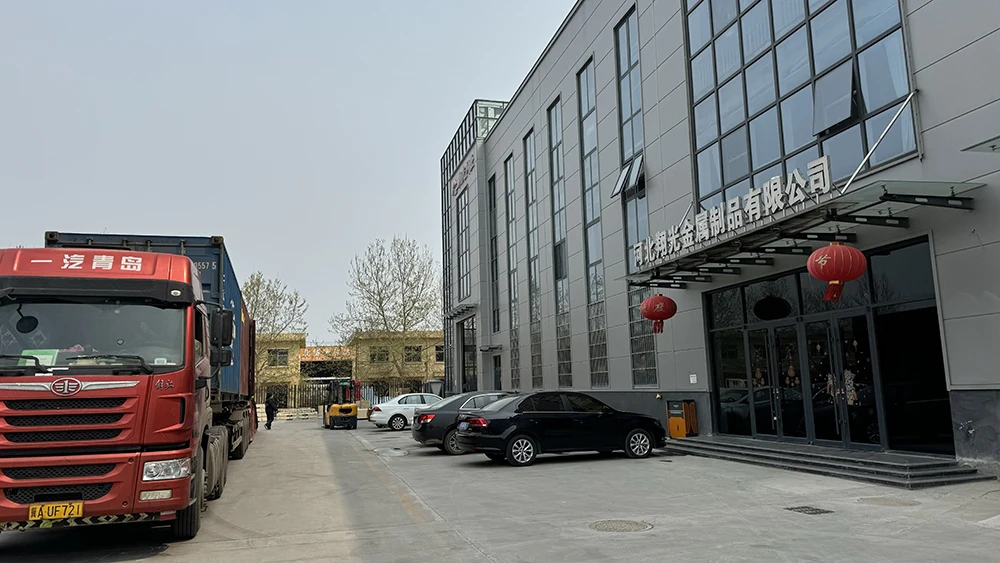

Xiangguang Metal is located in Anping, China, known as the “Hometown of Wire Mesh”. This is a concentrated metal product industrial area and there are countless large and small factories. It is close to Tianjin Port in the north and Qingdao Port in the east, and the export is very convenient. And it is China’s largest export city of wire mesh products.

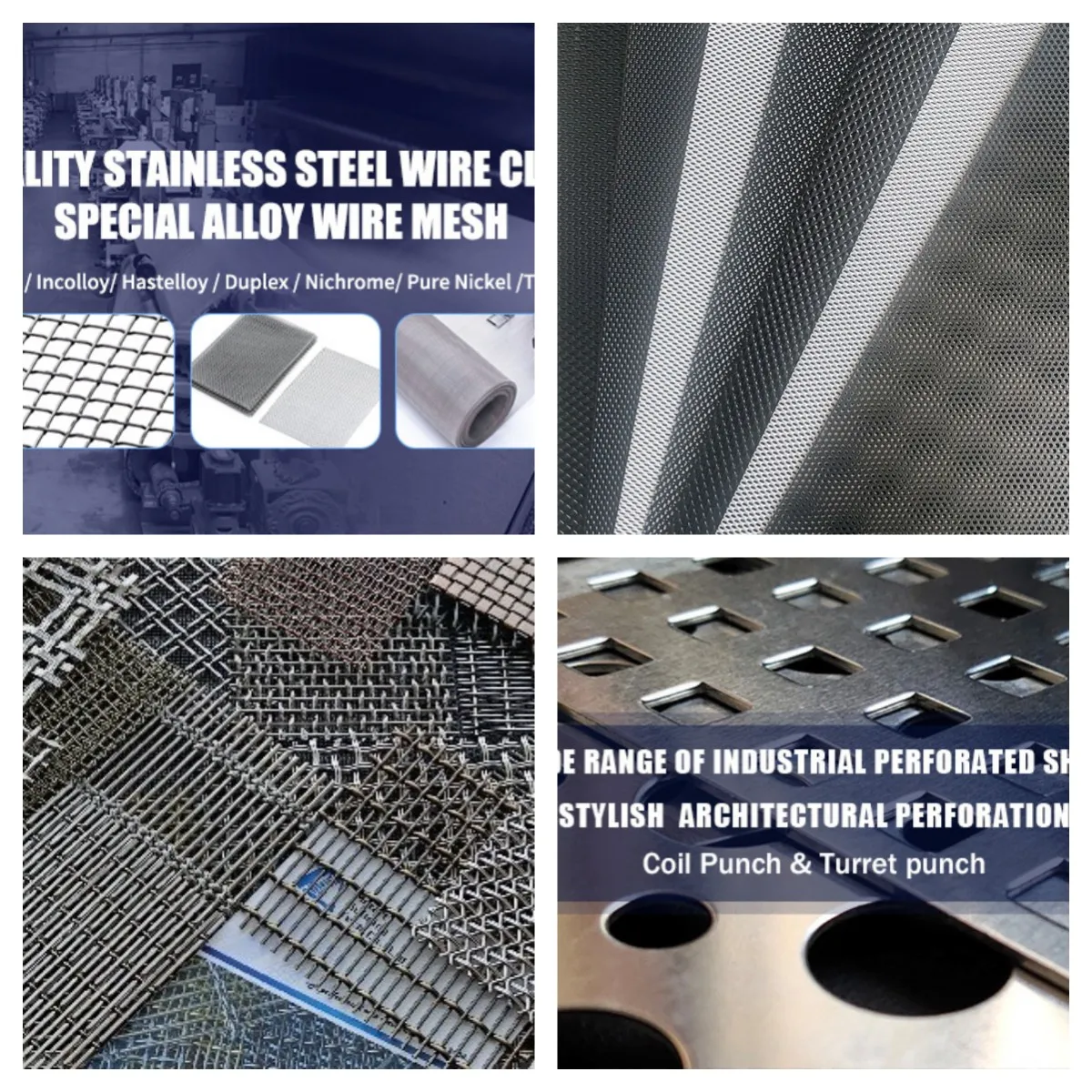

Our most famous products are as follows

1. Stainless steel mesh, including all kinds of materials, special materials, super wide net, twill mesh, dutch mesh, dense mesh, etc., large inventory, excellent quality, timely delivery.

2. Australia's perforated, DVA, 316 sucurity mesh window screens, black aluminum mesh, glass fiber mesh, 316 18-mesh woven mesh window screens, etc., belong to the high quality level of supply Australia, serving Australia's largest aluminum customers.

3. The decoration net belongs to the development of new products in 2023, you can refer to our website, www.architecturalwovenwire.com this is our website, if you need to which style, can contact me.

4. Perforated mesh, with mature punching, etching, laser technology, can provide free design drawings, the price is reasonable and low.

Q: Are you trading company or manufacturer?

A: We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.

Q: Which countries do you export to?

A: Our goods are mainly exported to Australia, USA, Germany, Thailand, South Korea ,India , Pakistan and so on.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your minimum order quantity?

A: Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.

Q: How about the delivery time?

A: It is based on the order,normally within 15-30 days after receiving your advance payment.
