KN 2200BII flexible vagina endoscope high end optical colposcope colposcopy biopsy instrument for vaginal examimation
- Category: >>>
- Supplier: Kernel Medical Equipment Co. Ltd.Kernel Ltd.
Share on (1601290731958):
Product Overview
Description

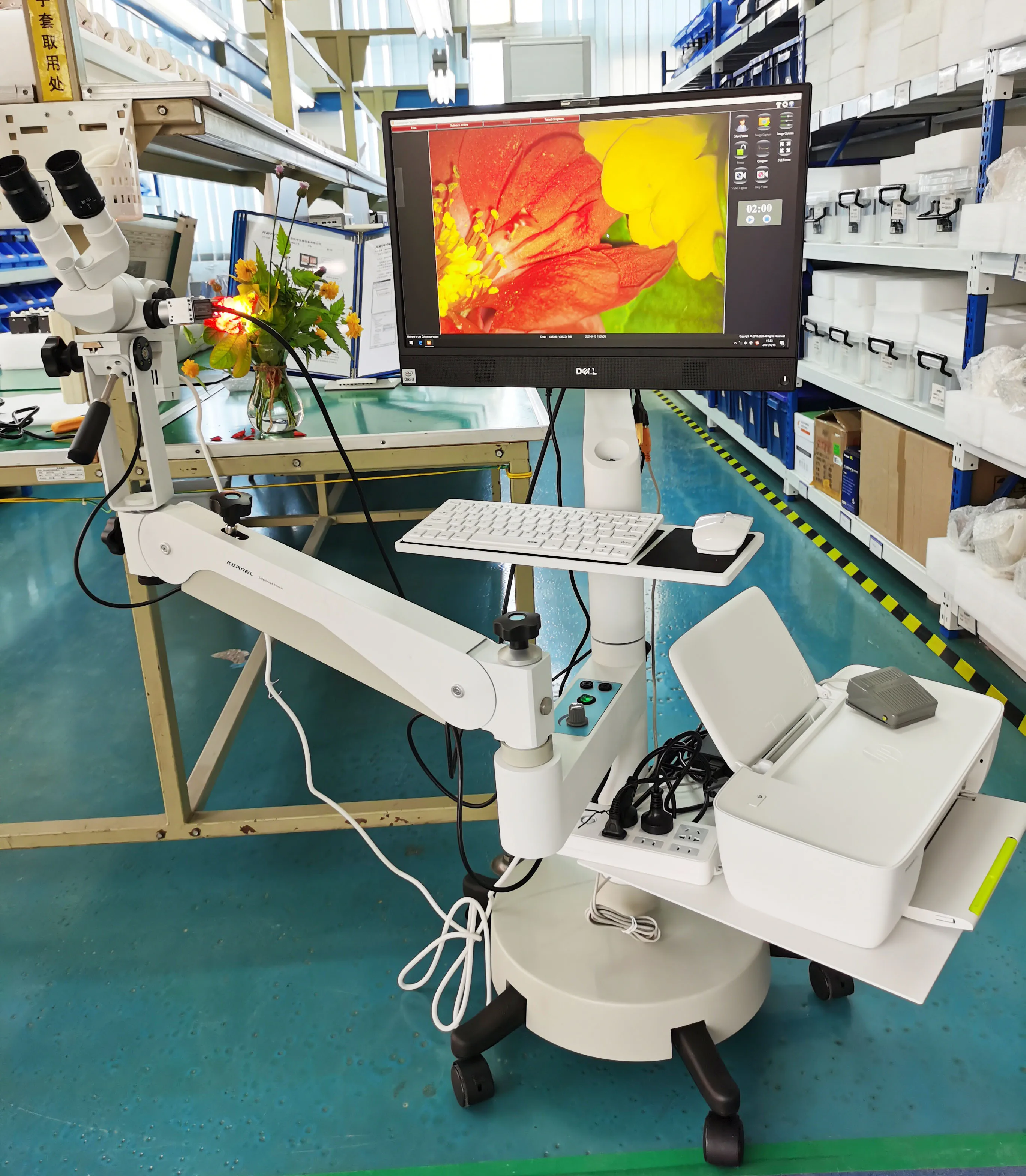

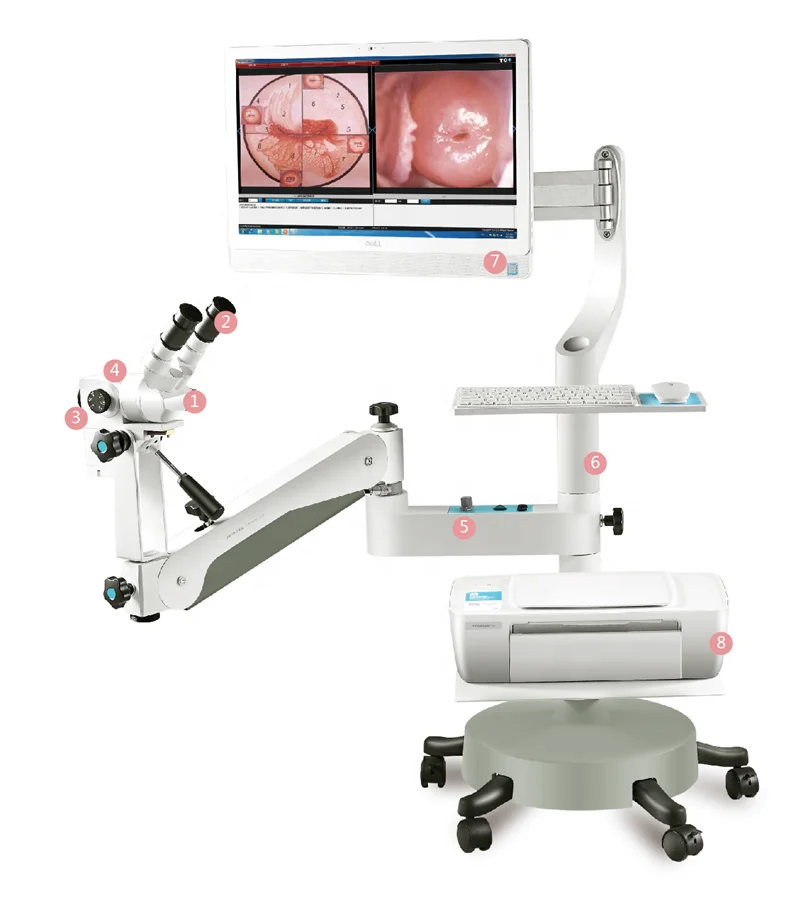

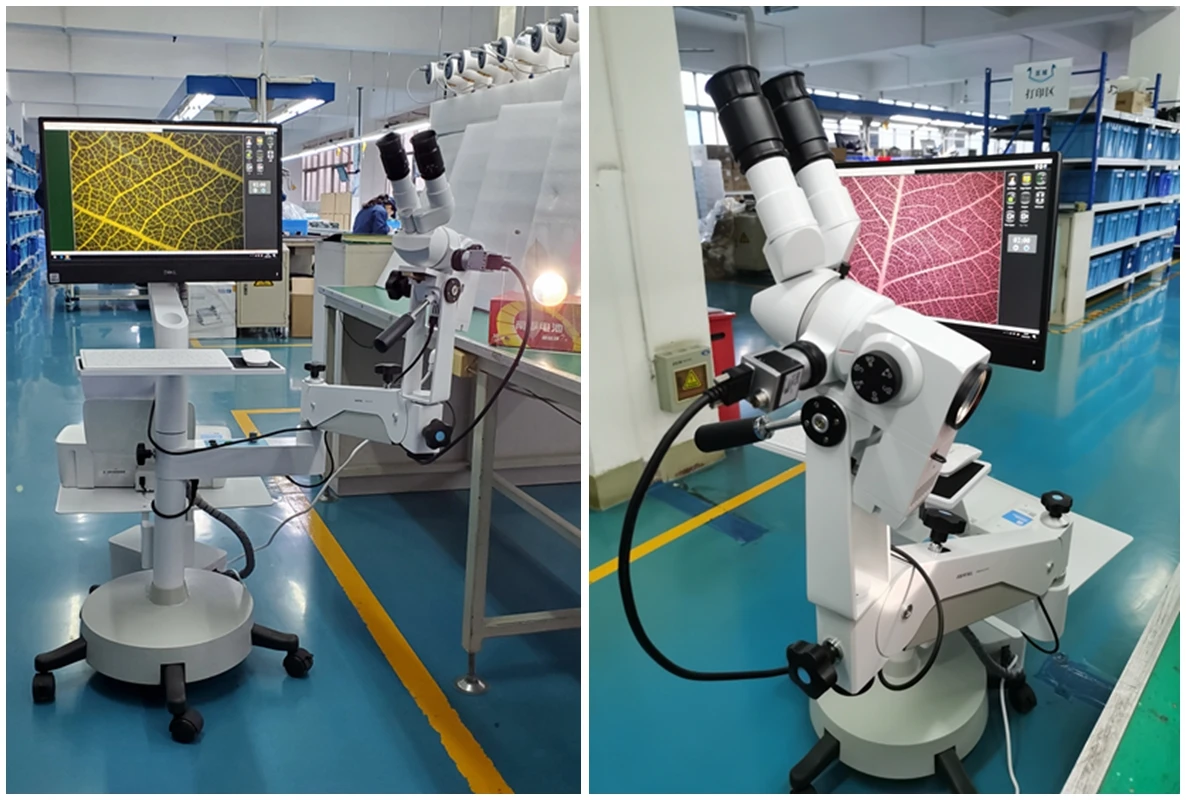

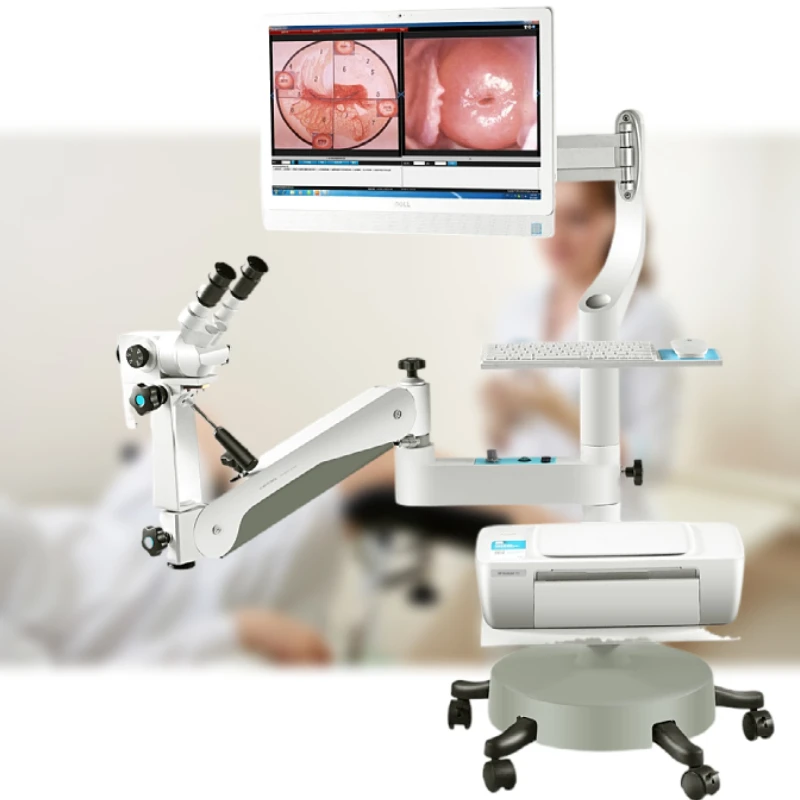

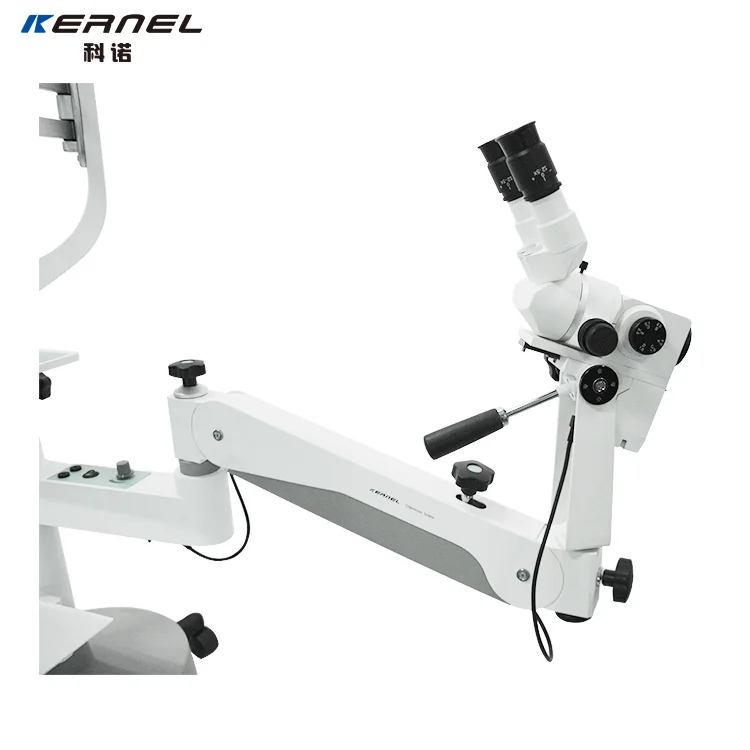

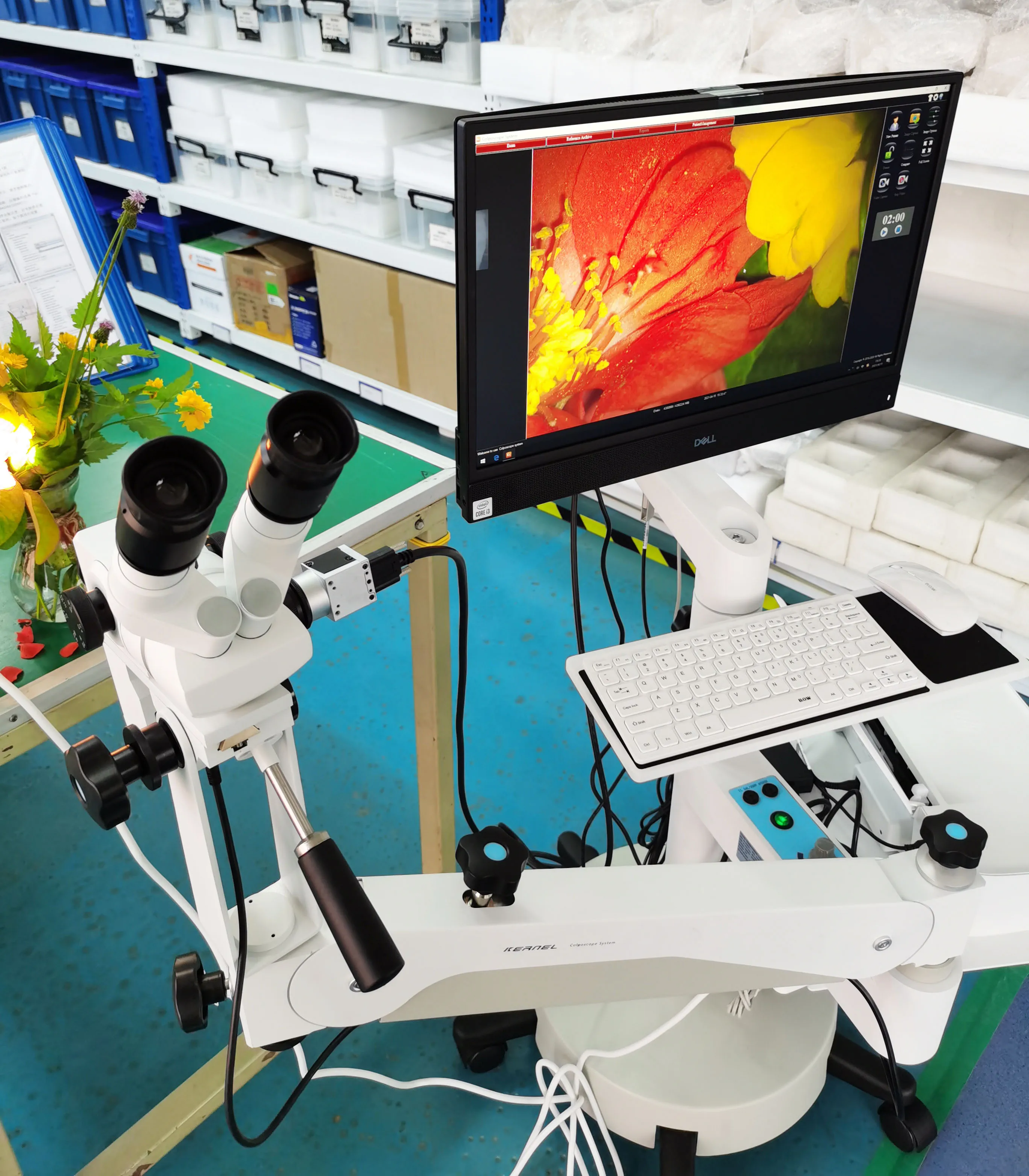

KN-2200BII Full HD 6MP Binoculars Optical Video Colposcope
Gynecologic vagina examination, cervical cancer, CIN, cervical screening
Product Description
Application
1.Suitable for gynecology examination and cervical cancer early diagnose
2.On the clinical, checkup with vulva, vagina, cervix and other part
Features

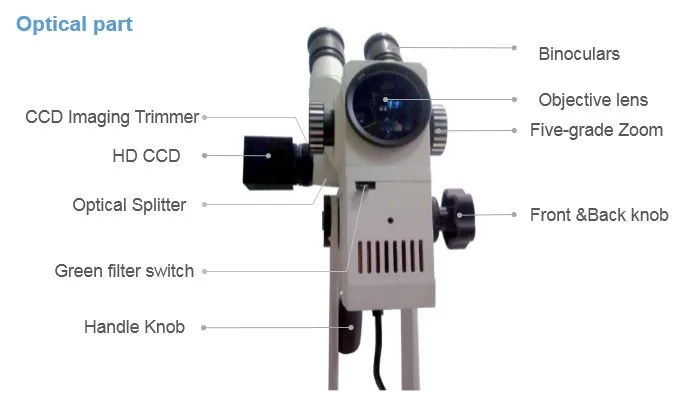

① Optical System
Ultra-long depth of field, large field of view, super-stereoscopic, realistic color reduction, unique light path design,
forpre-cancerous, pathological changes before the point of blood vessels, columnar epithelial and some small lesions to provide true 3D visual Effects.

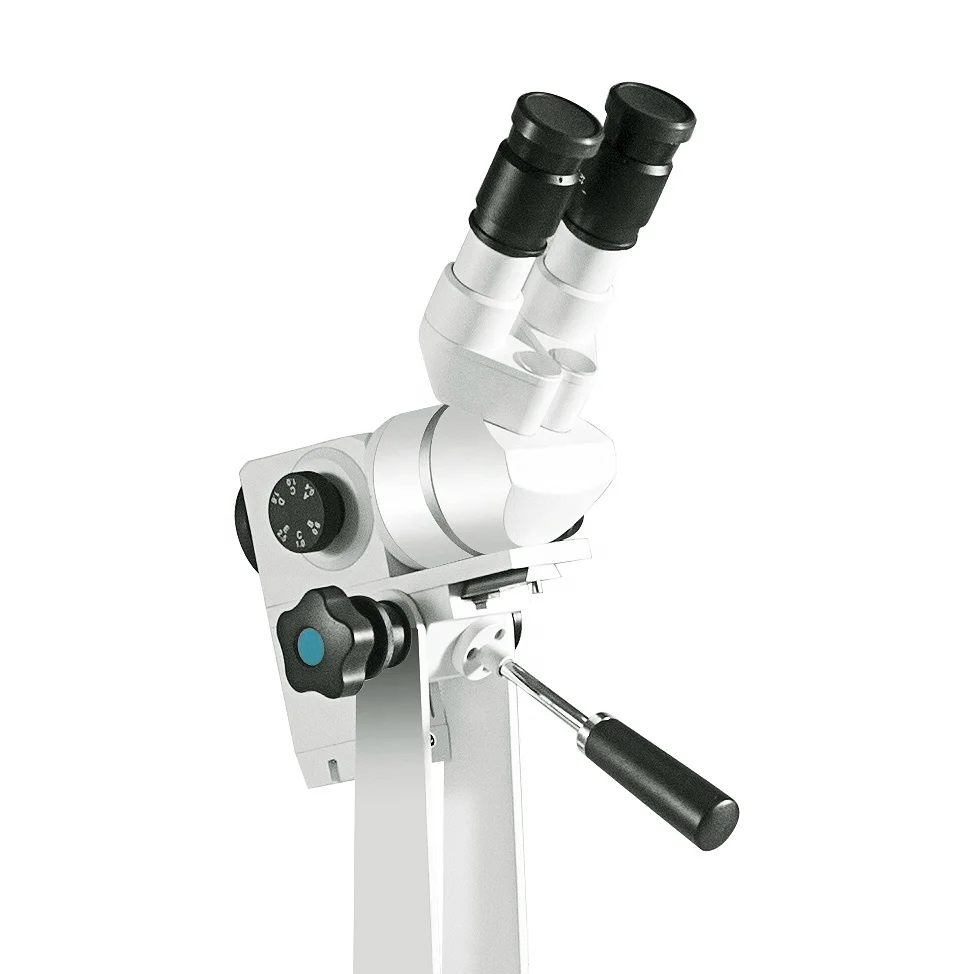

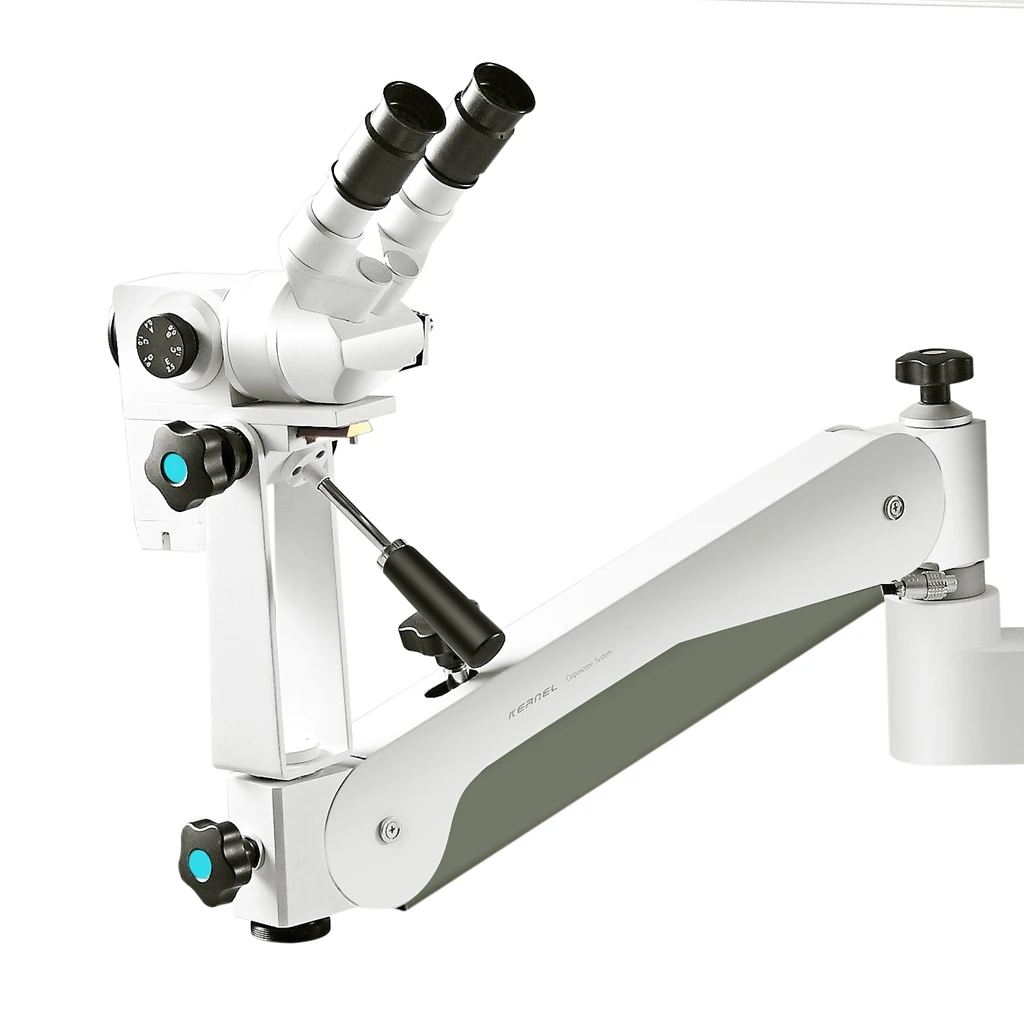

② Binocular eyepieces

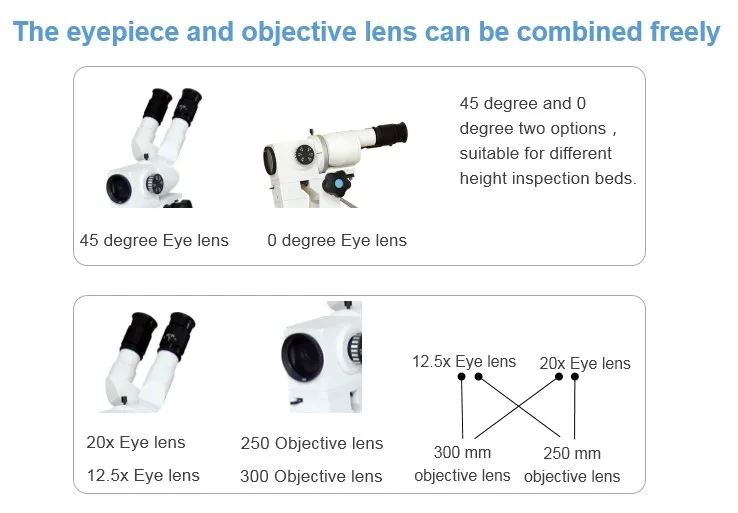

High-eye point Wide-field eyepiece, 45° and 0° eyepiece optional, suitable for different heights of inspection beds, making clinical operation more Comfortable.

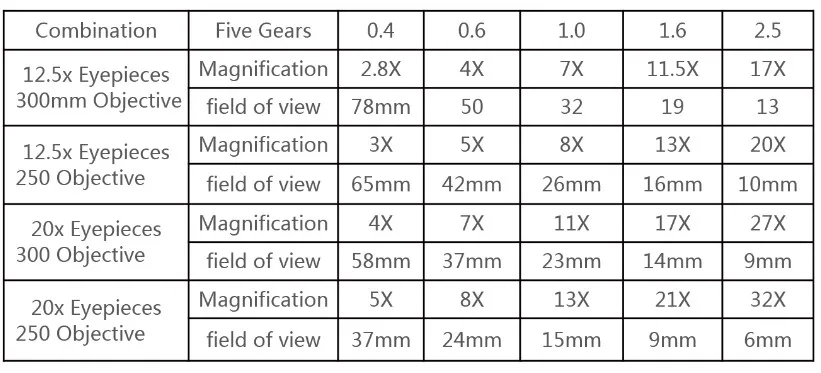

③ Five- step Zoom
Up to 30 times of optical amplification, with high-quality amplification effect can be clearly observed a variety of small pathological cells, can be used to accurately locate biopsy of live lesions, help to improve the diagnosis of various cervical diseases, pre-cancerous screening accuracy, reduce missed Diagnosis.

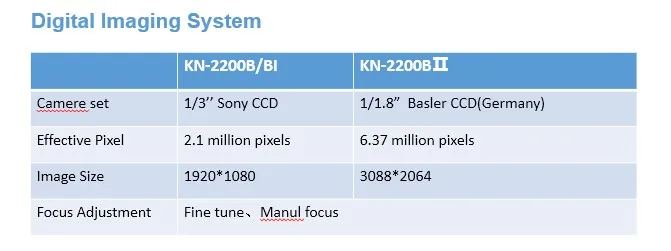

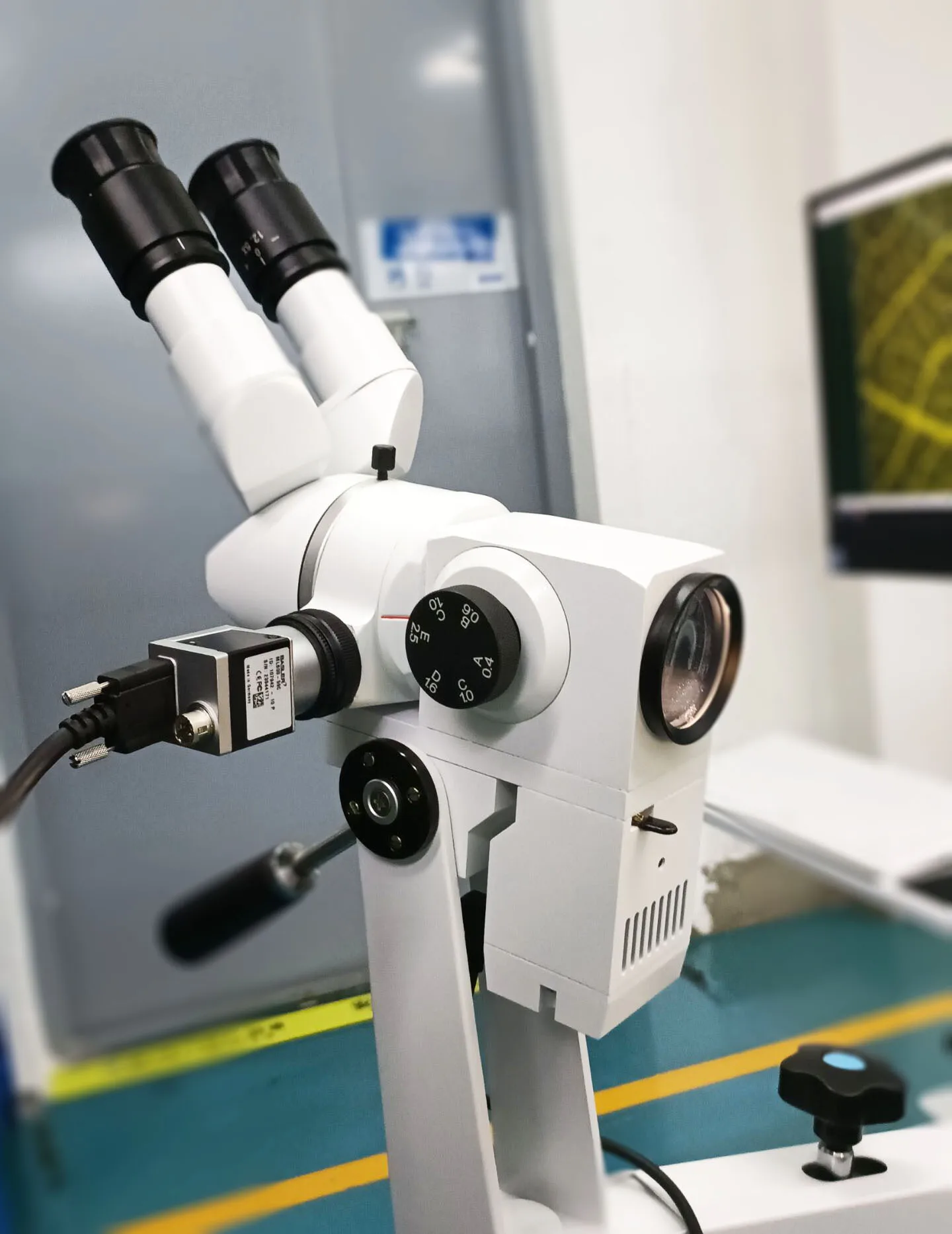

④ Camera Device
Adopt German-imported Basler camera, the pixel can reach 6.37 million, providing physicians with high-quality images with higher Resolution.
⑤Light Source
① Optical System
Ultra-long depth of field, large field of view, super-stereoscopic, realistic color reduction, unique light path design,
forpre-cancerous, pathological changes before the point of blood vessels, columnar epithelial and some small lesions to provide true 3D visual Effects.
② Binocular eyepieces
High-eye point Wide-field eyepiece, 45° and 0° eyepiece optional, suitable for different heights of inspection beds, making clinical operation more Comfortable.
③ Five- step Zoom
Up to 30 times of optical amplification, with high-quality amplification effect can be clearly observed a variety of small pathological cells, can be used to accurately locate biopsy of live lesions, help to improve the diagnosis of various cervical diseases, pre-cancerous screening accuracy, reduce missed Diagnosis.
④ Camera Device
Adopt German-imported Basler camera, the pixel can reach 6.37 million, providing physicians with high-quality images with higher Resolution.
⑤Light Source
Adopt energy-saving and environmental protection LED light source, with high brightness, long life, uniform illumination, High Color rendering index, none producing heat and so on.
* Image Acquisition
Foot switch and software two kinds of acquisition, video recording mode, The image can be dynamic, static, full-screen capture,
* Image processing
the captured image can be enlarged, reduced, negative image, marking, text labeling, local amplification, area circumferencecalculation and other operations. More convenient for doctors to identify pathological changes
Foot switch and software two kinds of acquisition, video recording mode, The image can be dynamic, static, full-screen capture,
* Image processing
the captured image can be enlarged, reduced, negative image, marking, text labeling, local amplification, area circumferencecalculation and other operations. More convenient for doctors to identify pathological changes
* Report editing
Comes with 19 standard patient case report templates for easy editing and printing of case Reports. Report template can bedesigned and modified
* Clinical analysis
Professional patient case graphs (up to 175 types) for easy Clinical Comparison. Professional Clinical Diagnostic Knowledge Base.
Comes with 19 standard patient case report templates for easy editing and printing of case Reports. Report template can bedesigned and modified
* Clinical analysis
Professional patient case graphs (up to 175 types) for easy Clinical Comparison. Professional Clinical Diagnostic Knowledge Base.
Specification
Item | value |
Place of Origin | China |
Province | Jiangsu |
Brand Name | Kernel |
Model Number | KN-2200BII |
Power Source | Electric |
Warranty | 1 Year |
After-sale Service | Free spare parts |
Material | Metal |
Quality Certification | CE ISO |
Instrument classification | Class I |
Safety standard | GB/T18830-2009 |
Product name | Colposcope |
Camera pixel | 6,370,000 pixels |
Certificate | ISO CE |
Color | Whtie |
Weight | 57KG |
Light source | LED |
Power supply | AC100-240V 50/60 Hz |
Camera | Germany Basler CCD |
