Construction Wooden Timber Beam H20 for Formwork Systems

Product Overview

Description

H20 wooden beam is a concrete formwork timber beam, double T-section timber beam used in a variety of forming and bracing applications.

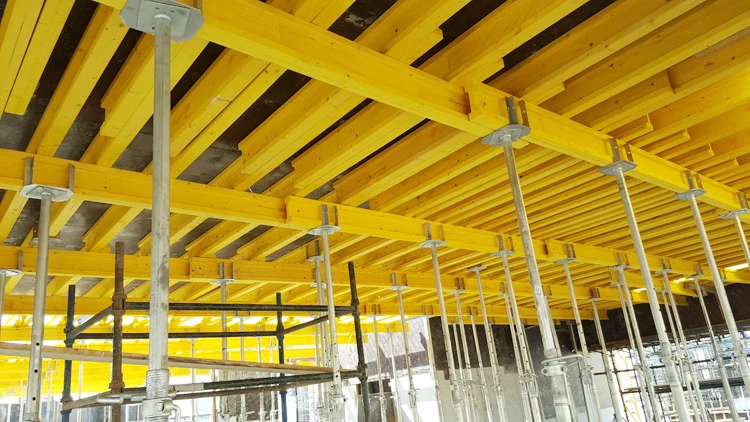

Lightweight, durable, and comes with a plastic cover to protect them from shock and moisture. Suitable for all formwork systems, including wall formwork, table formwork, slab formwork, column formwork, etc.





Product Name	H20 Beam
Material	Pine, spruce or as request

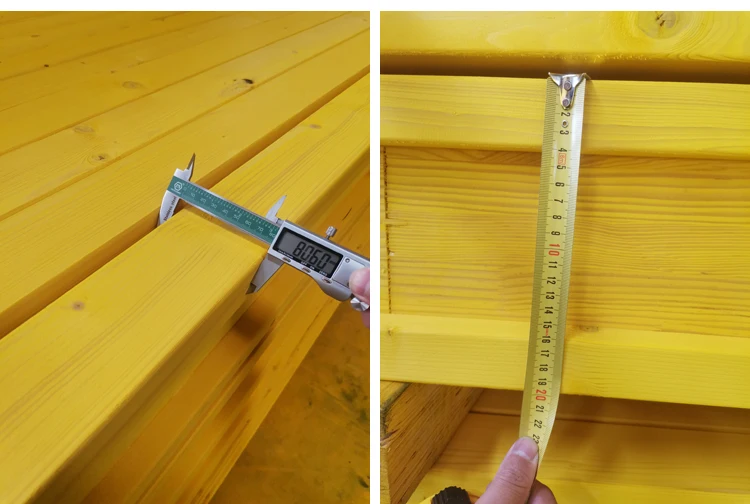

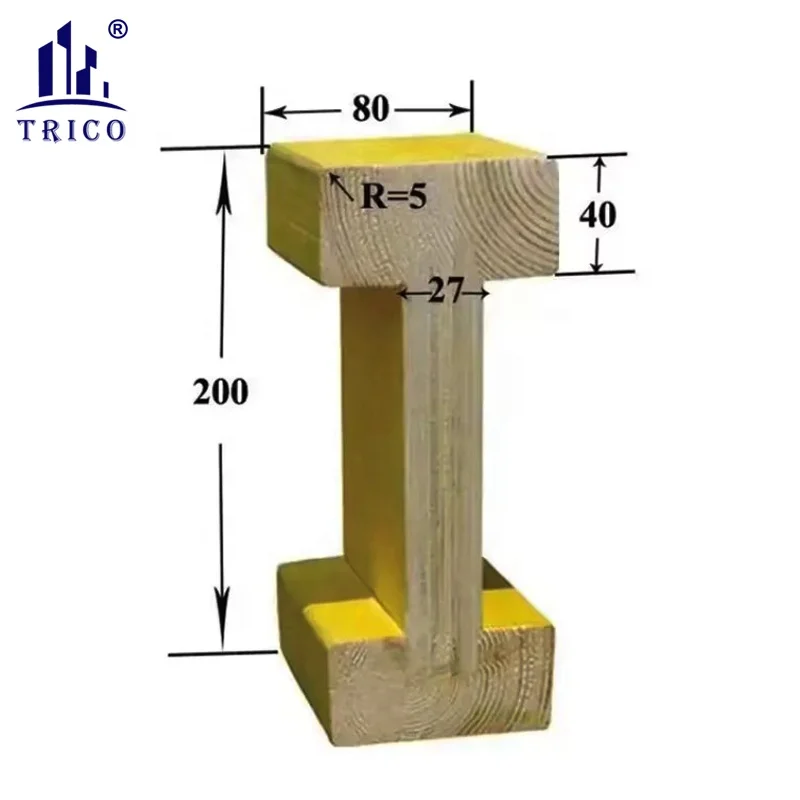

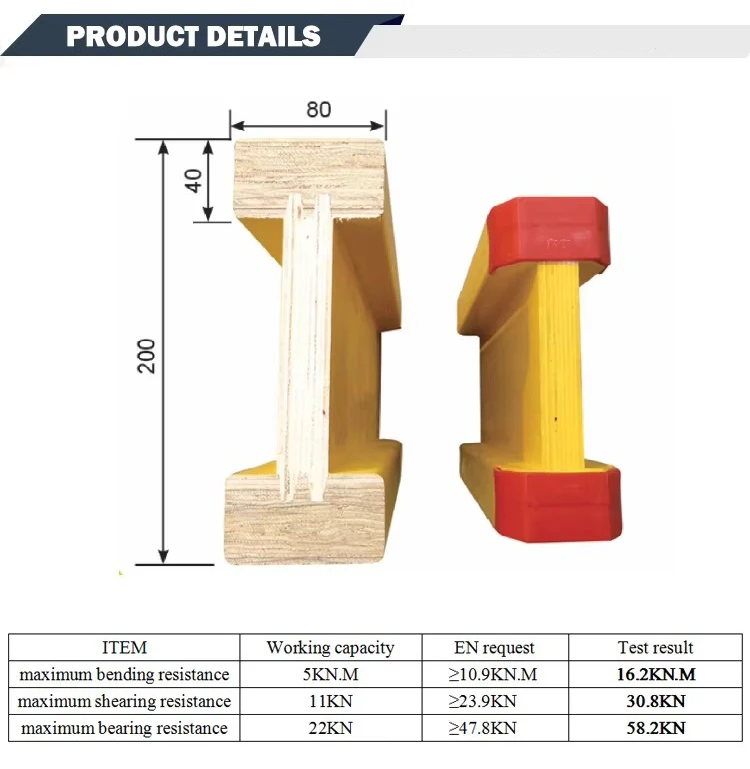

Height	200mm, +/-0.5mm, as request
Chord Height	40 mm or as request
Chord Width	80 mm or as request
Length	1.8-5.9m (1.8m, 2.9m, 3.0m, 3.3m, 3.9m, 4.9m, 5.9m)
Glue	Phenolic WBP/waterproof
Color	Coating with painting (yellow color, waterproof, rot-proof, frozen-proof)

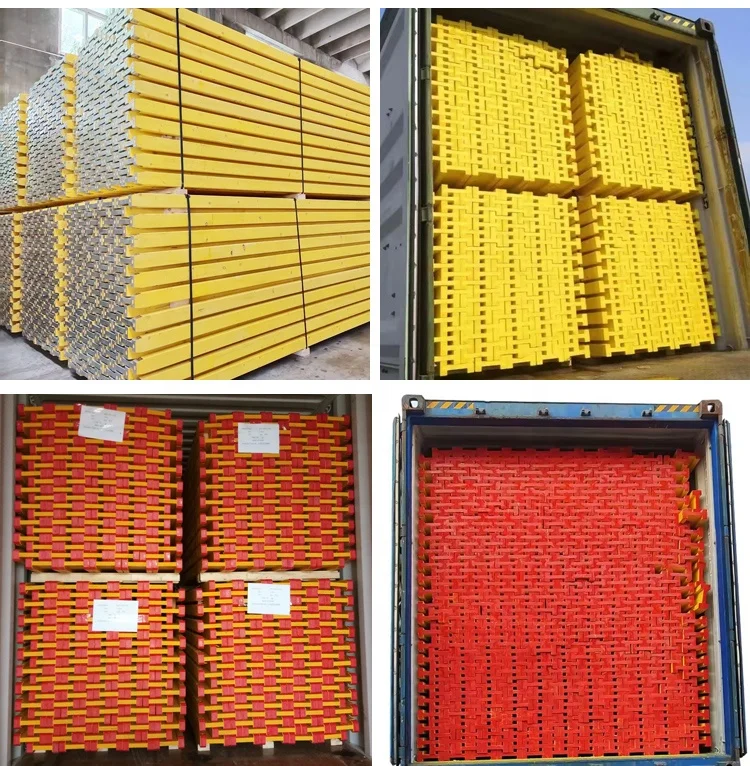

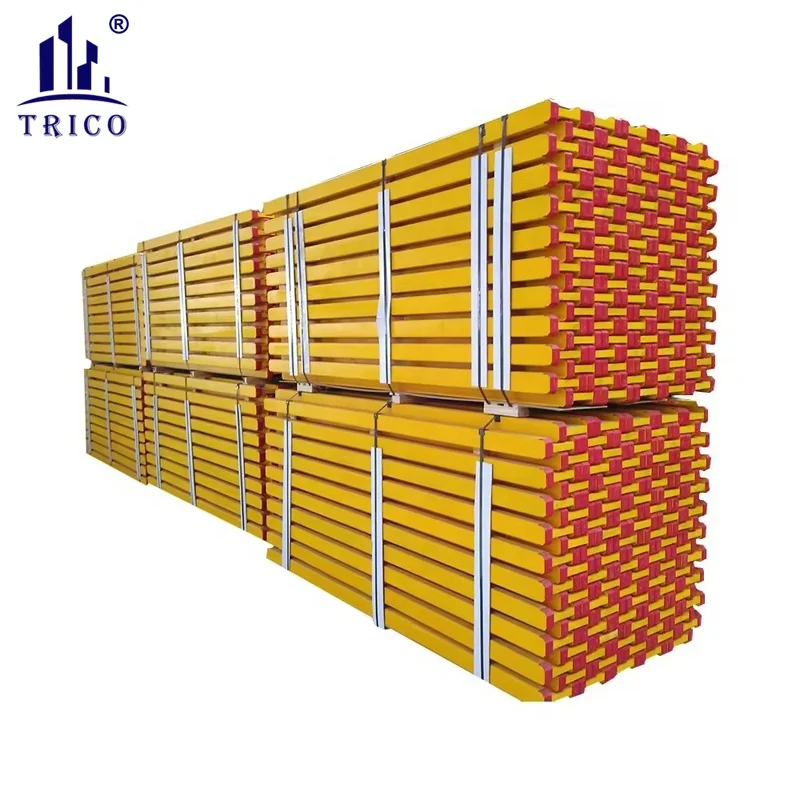

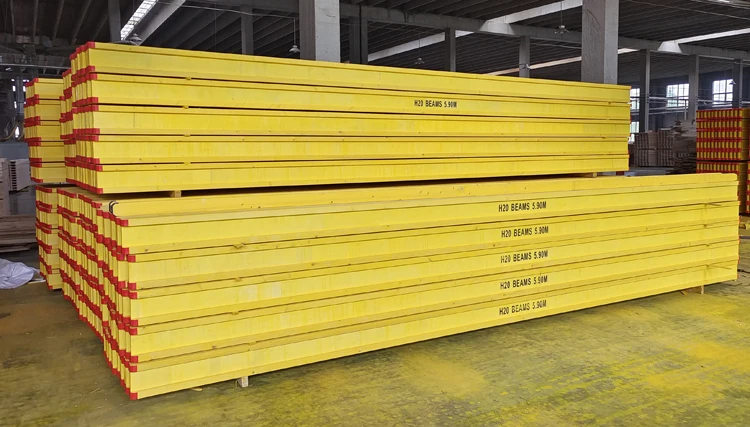

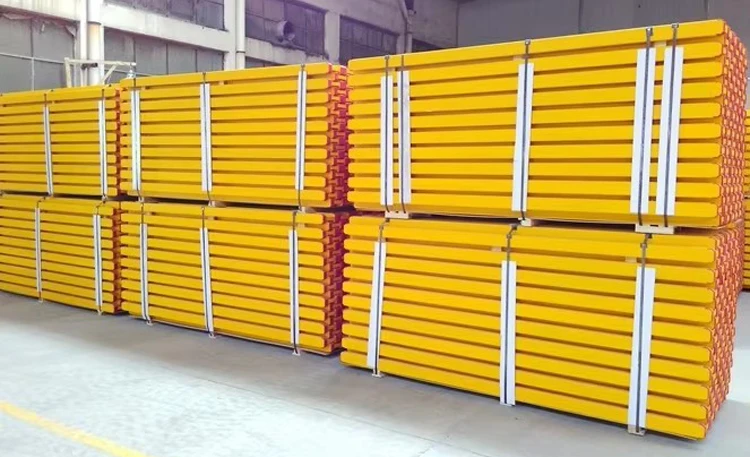

Package	Pallets on the bottom,and Steel band for strength
Loading Quantity	3800-4200m per 40ft container.
Certification	CE ISO9001 FSC CARB/AS/NZS4357.0

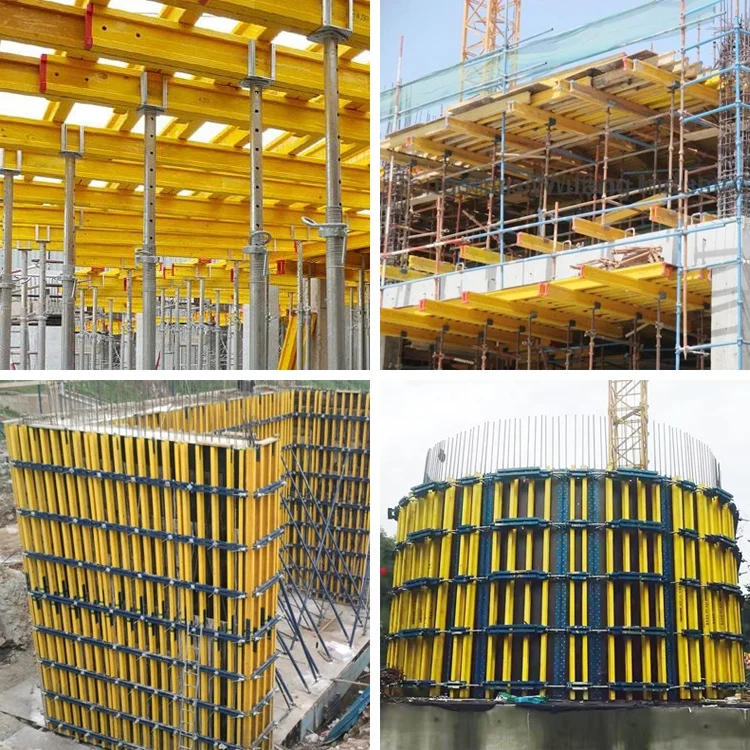

Usage	Wall formwork, slab formwork, table formwork, column formwork ect.

H20 Wooden Beam Features

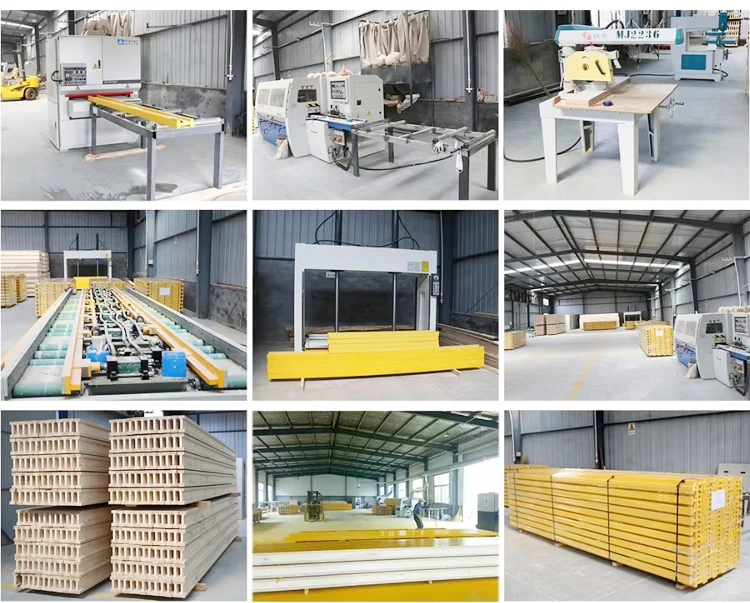

• Available in a variety of sizes, the outer parts are made of selected high-quality solid fir wood, comb-coupled with finger-joint technology, and have a triple-layer core.

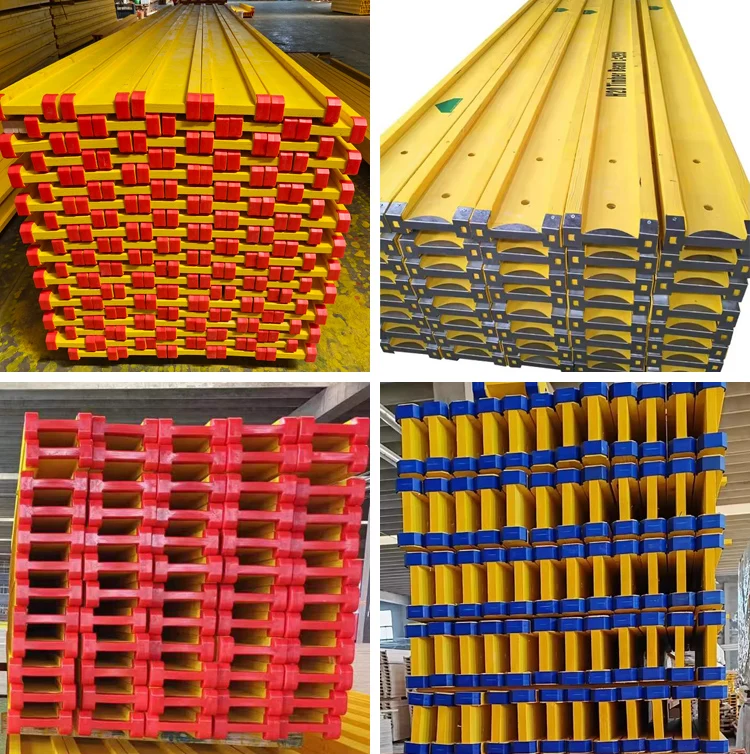

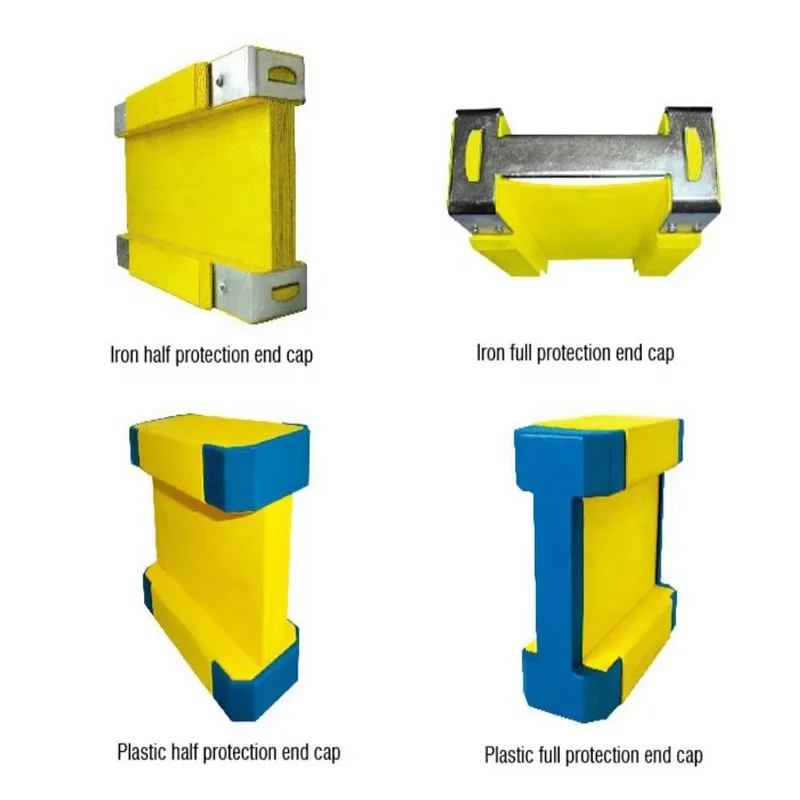

• On request, plastic protection is available to reduce the risk of scratching the outside of the beam.

• Wooden H20 beams are lightweight and heavy-duty, easy to handle and safe for construction.

Sturdy and stable. The surface of the formwork wooden beams is treated with water-repellent stains. H20 beam spray paint is also protected against UV radiation and fire.

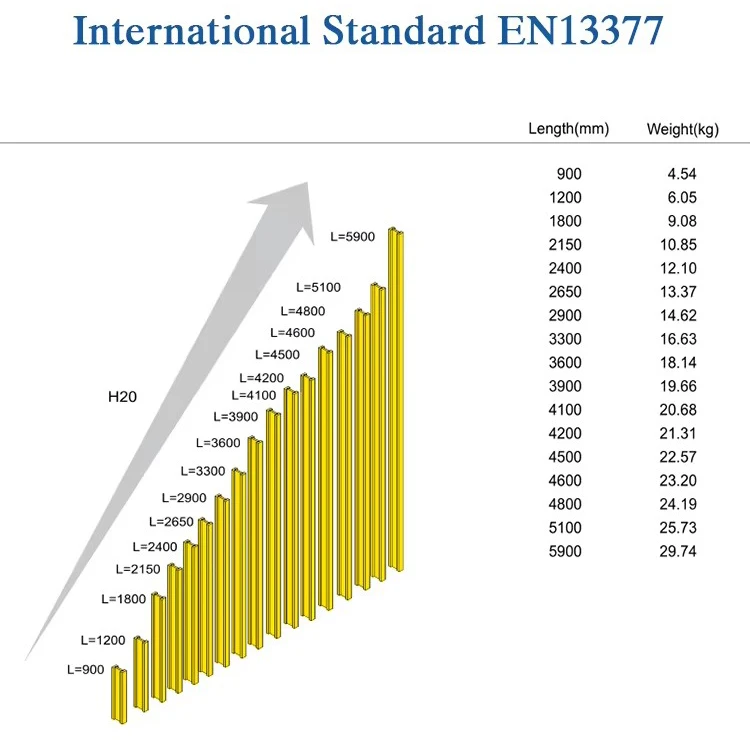

• Dimensions standards: 80 x200x2450/2900/3300/3600/3900/4200/4900/5900 mm
