Chinese M6 M9 Automatic Wall Plaster Putty Plaster Painting Machine Hopper Gypsum Sprayer Customized Electric Motor With Wheels

Share on (1601290897563):


Price:$713.00-750.00

Quantity:


Product Overview

Description



Product Description

 Gypsum spray machine16.jpg


The automatic gypsum spray plaster machine integrates the functions of feeding, mixing, pumping, and spraying, and is suitable for the construction of various ready-mixed dry-mixed mortars with different characteristics and uses, such as lime-based, gypsum-based, and cement-based plaster, masonry Construction mortar, thermal insulation mortar, repair and bonding mortar, self-leveling mortar, etc.
































































Product name



Gypsum spraying machine



Model



UR-M9



Dimensions



1230×720×1550mm



Total weight



220kg



Power



380v/50hz or customized



Throughput



30L/min



Standard pumping pressure



50bar



Main motor power



5.5kw



Air compressor power



1.5kw



Horizontal conveying distance



30m



Vertical conveying distance



20m



Maximum particle size



3mm



Hopper capacity



115L



Hopper height



90cm



1_02



Advantages


  1. Reasonable design, integrated pump, and compressor, easy to move.
2. Continuous feeding, no pulse phenomenon, uniform spraying, and strong adhesion.
3. There is basically no floor ash, saving water and materials, which can reduce the cost by more than 20%.
4. The nozzle and the nozzle are universally connected, and the yin and yang corners and the top plate can be sprayed freely, which is convenient.
5. Wide applicability, one machine with multiple functions, can spray plaster, putty, mortar, fireproof coating, refractory materials, etc., and is not affected by the area and environmental conditions and the shape of the sprayed surface.

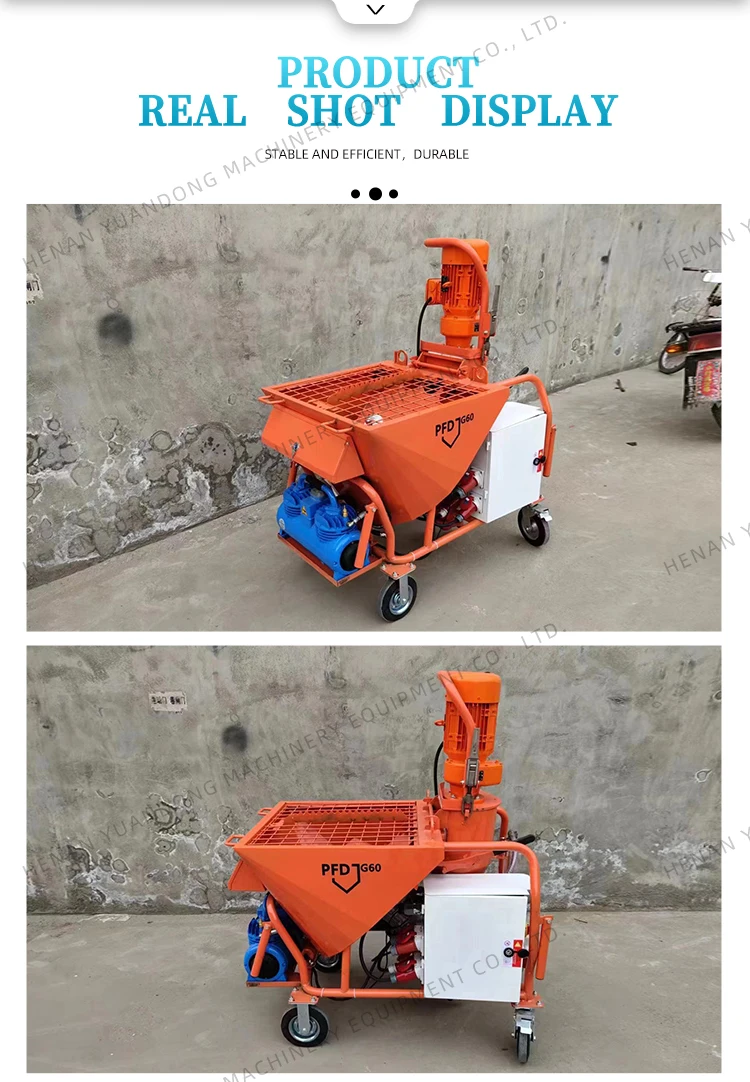

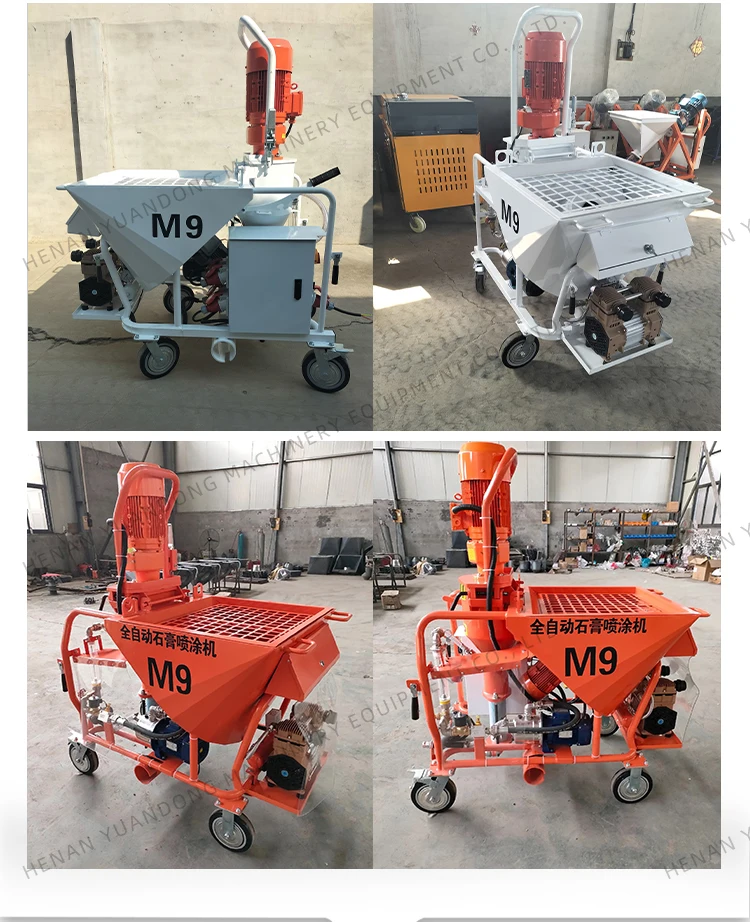

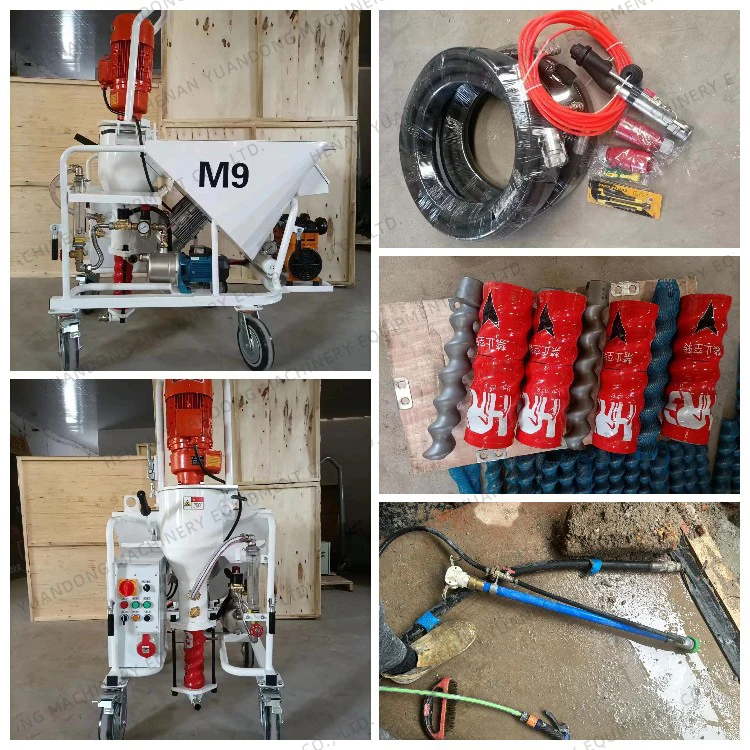

Product Display


 1_041_05

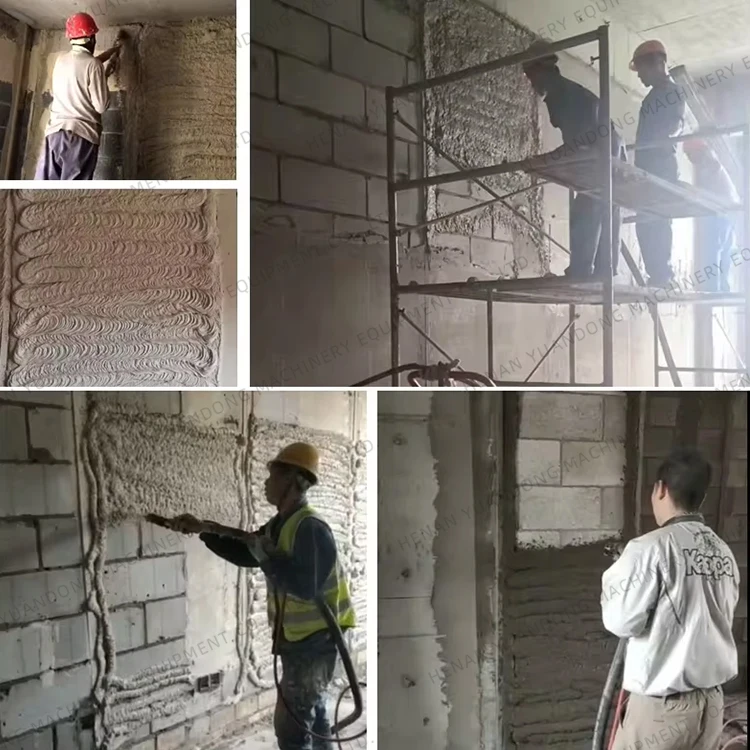

Application





Multi-function spraying machine, suitable for pumping all ready-mixed dry mixing mortar, such as self-leveling mortar, plaster mortar, lime plaster mortar, cement mortar, lime and cement mortar, polymer mortar, plaster cement mortar, clay mortar, insulation materials, grouting mortar, fireproof mortar, floor mortar, seaweed mud, thermal mortar, putty, bottom coating, wall painting, masonry mortar, etc.


1_06








1_071_081_091_10
