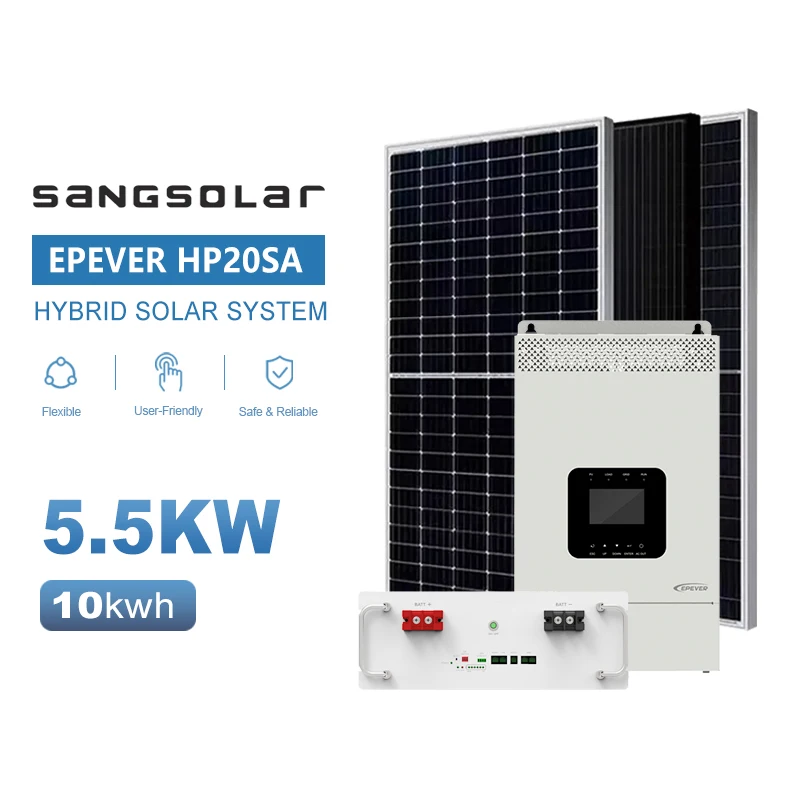

EPEVER 5.5KW 10kw KP 48V 220V 230V with 15kwh 30kwh lithium battery off grid solar power system without battery
EPEVER 5.5KW 10kw KP 48V 220V 230V with 15kwh 30kwh lithium battery off grid solar power system without battery
EPEVER 5.5KW 10kw KP 48V 220V 230V with 15kwh 30kwh lithium battery off grid solar power system without battery
EPEVER 5.5KW 10kw KP 48V 220V 230V with 15kwh 30kwh lithium battery off grid solar power system without battery
EPEVER 5.5KW 10kw KP 48V 220V 230V with 15kwh 30kwh lithium battery off grid solar power system without battery
EPEVER 5.5KW 10kw KP 48V 220V 230V with 15kwh 30kwh lithium battery off grid solar power system without battery
EPEVER 5.5KW 10kw KP 48V 220V 230V with 15kwh 30kwh lithium battery off grid solar power system without battery

EPEVER 5.5KW 10kw KP 48V 220V 230V with 15kwh 30kwh lithium battery off grid solar power system without battery

Share on (1601290899892):


Price:$1,600.00-1,800.00

Quantity:


Product Overview

Description

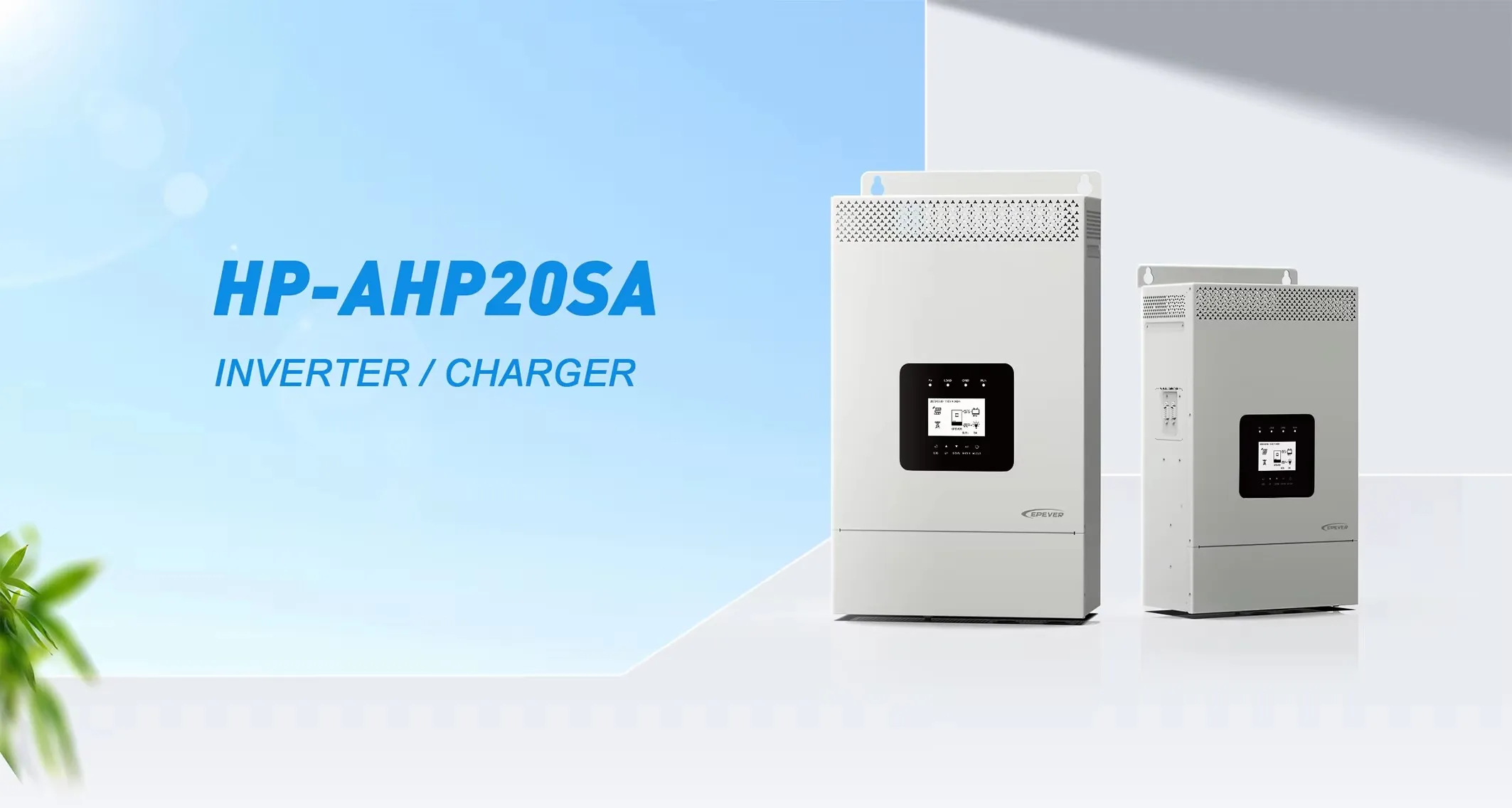

EPEVER HP-AHP20SA Series 3500W 5500W

High Frequency Hybrid Solar Inverter With MPPT

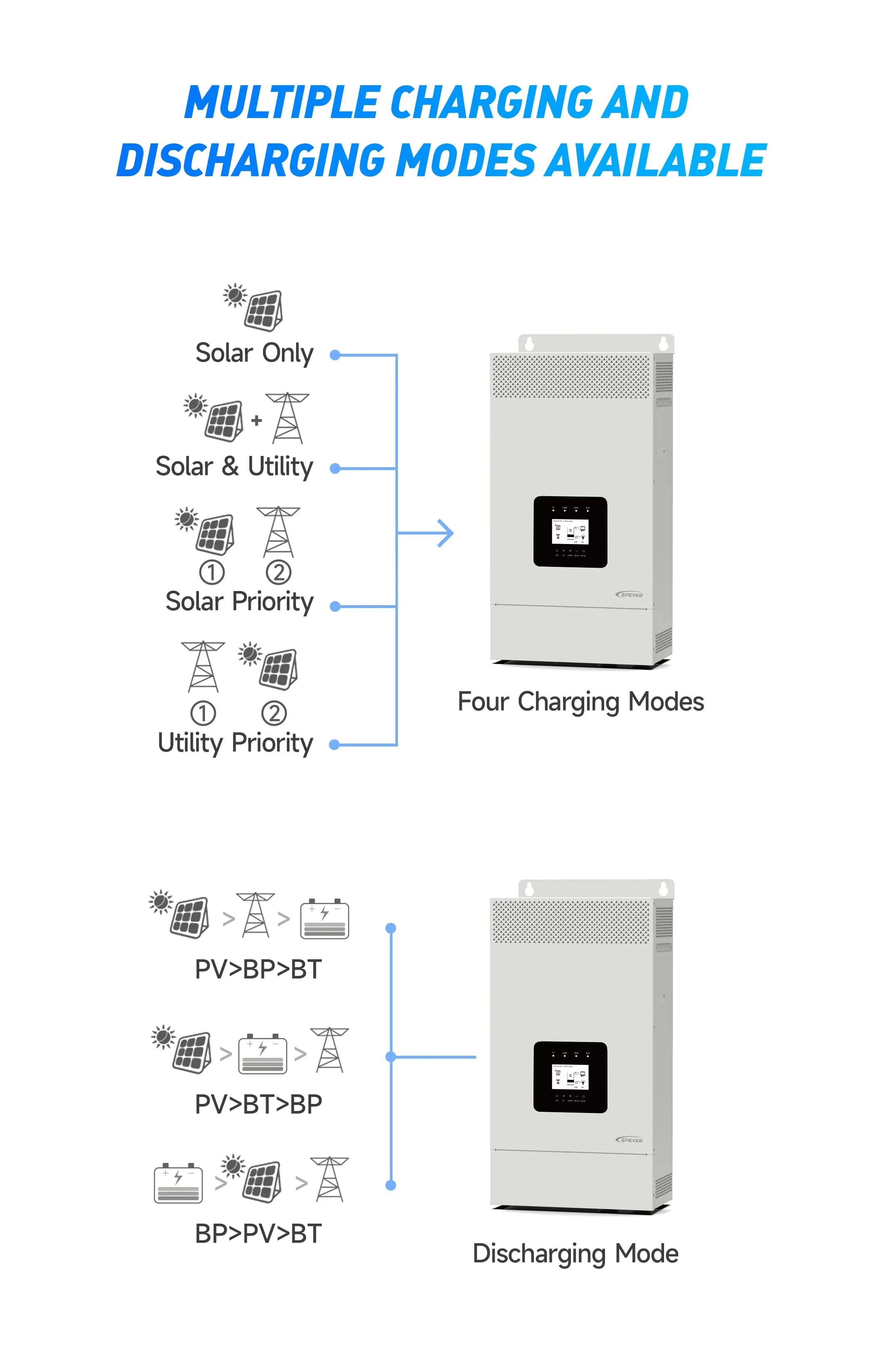

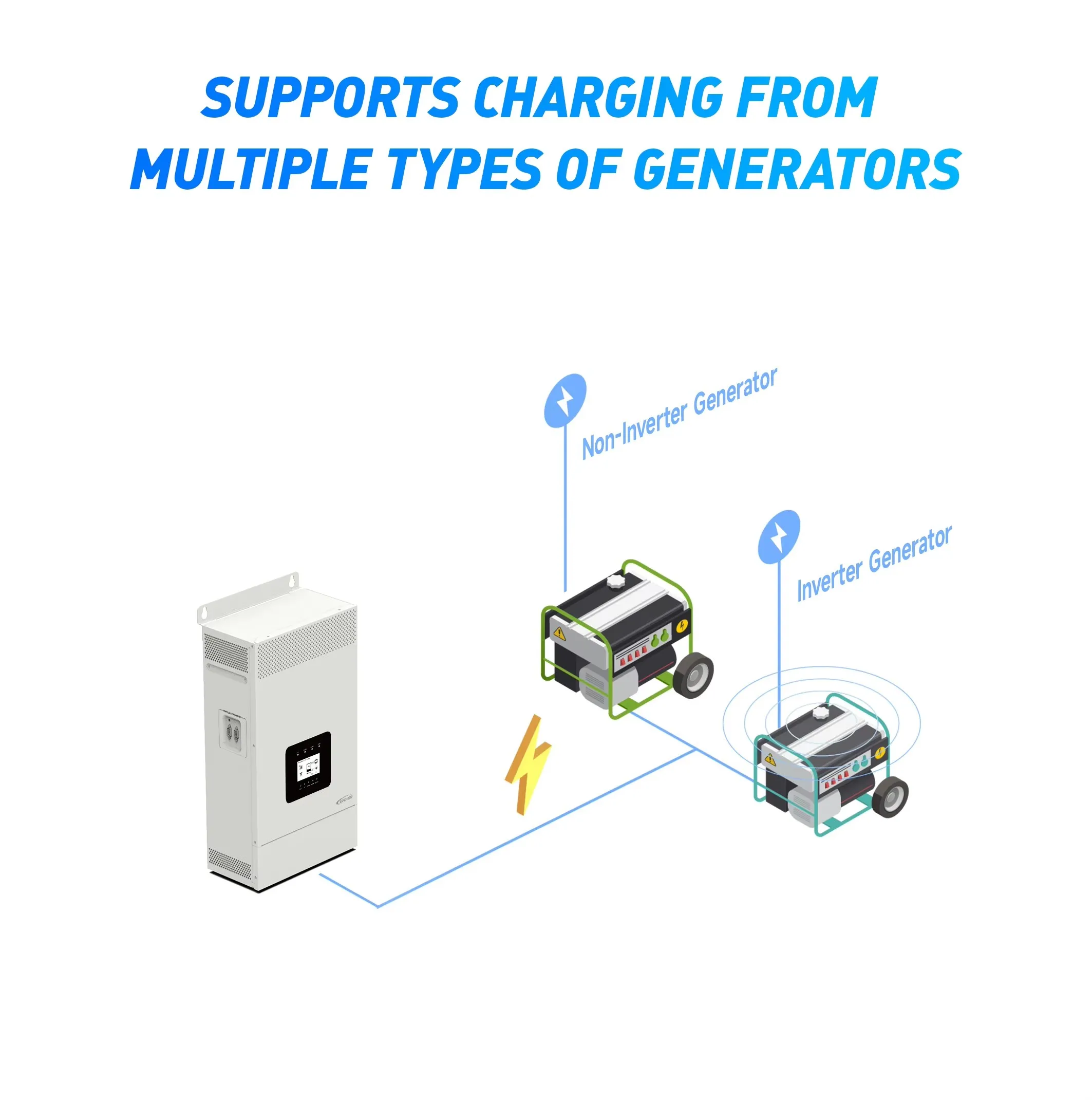

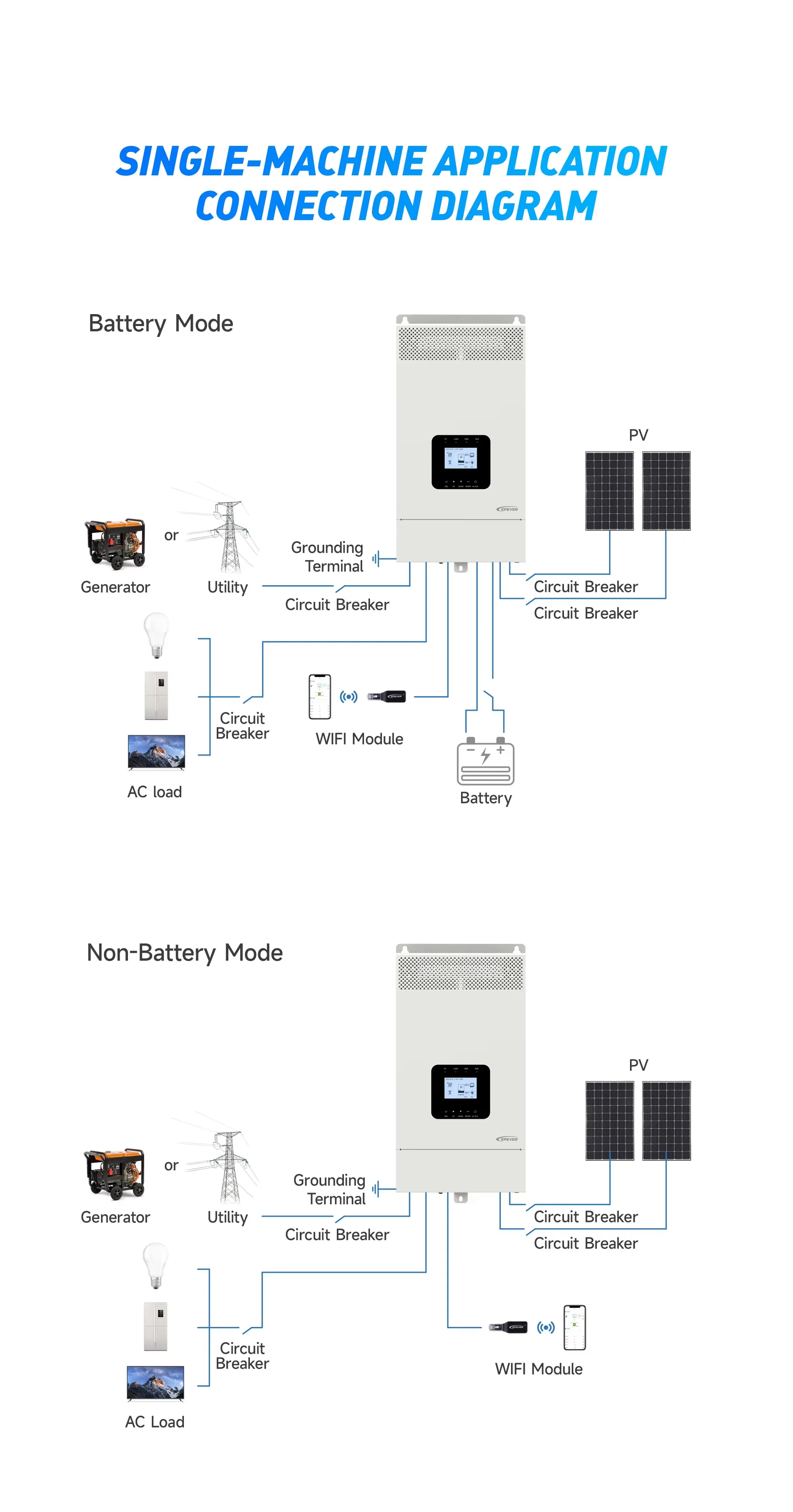

The HP-AHP20SA series is a cost-effective product. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings.







Technical Specifications



























































































































































































































Model







HP3542-AH0650P20SA




HP5542-AH1050P20SA








Utility input







Utility Voltage



176VAC~264VAC (Default), 90VAC~280VAC (Configurable)









Utility Frequency



45Hz~65Hz

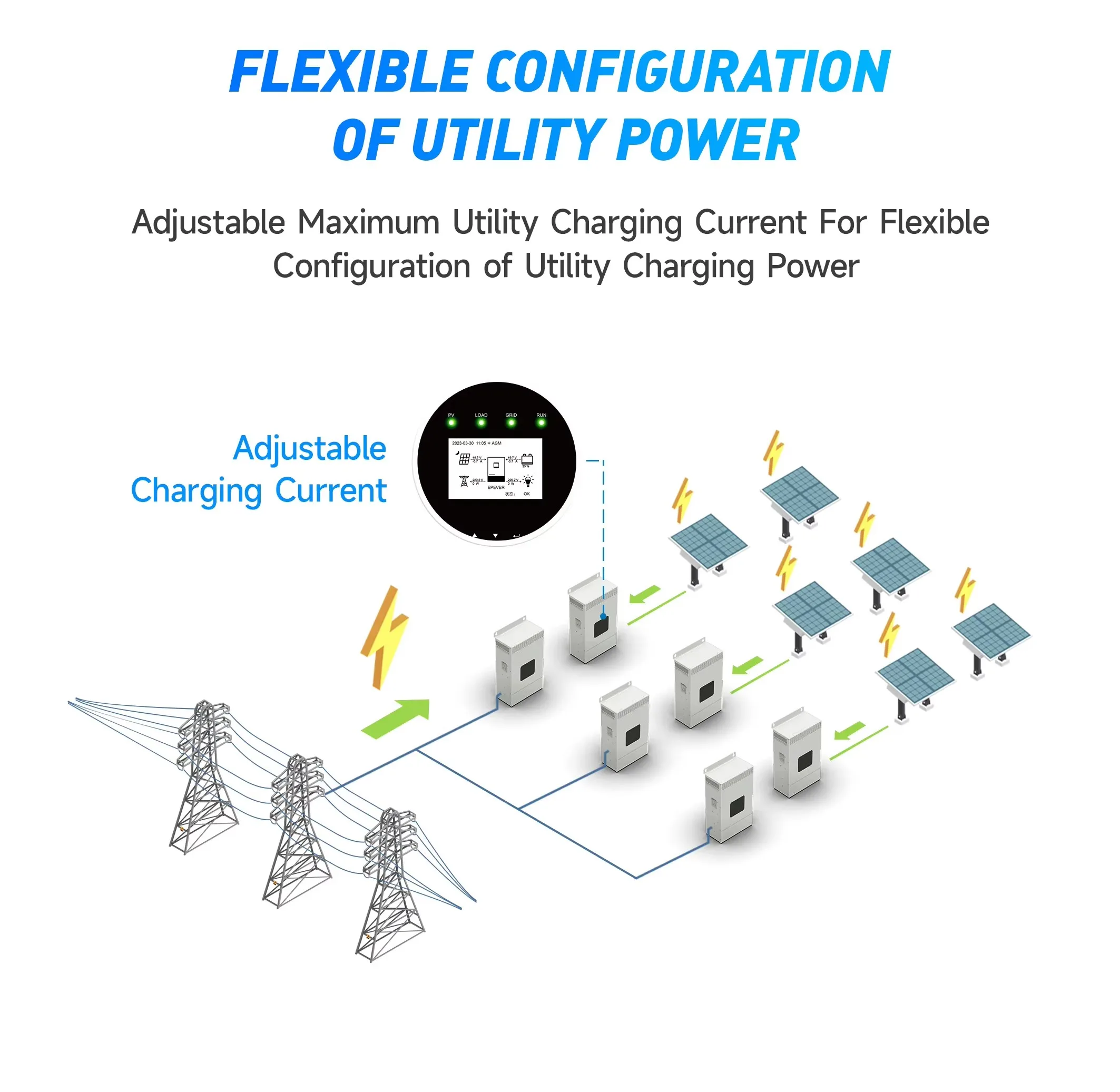

Maximum Utility Charging Current



60A




100A






Switch Response Time



Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than

100W): 20ms





















Inverter output




Inverter Rated Power (@30℃)



3500W


 5500W






3-second Transient Surge Output Power



7000W


8500W






Inverter Output Voltage




220/230VAC±3%










Inverter Frequency




50/60Hz±0.2%










Inverter Frequency




Pure sine wave










Load Power Factor




0.2~1(VA ≤ Rated output power)










THDu (Total Harmonic Voltage Distortion)




≤3% (48V resistive load)










Maximum Load Efficiency




92%










Maximum Inverter Efficiency




94%













   Solar controller




PV Maximum Open-circuit Voltage




500V (At minimum operating environment temperature) 440V (At 25℃)










MPPT Voltage Range




85~400V










PV Maximum Input Power




4000W




6000W






PV Maximum Charging Current



60A




100A







MPPT Maximum efficiency




≥99.5%











Battery




Battery Rated Voltage




48VDC










Battery Work Voltage Range




43.2VDC~60VDC










Battery Maximum Charging Current




60A




100A


















Others




No-load Losses




＜0.7A




＜1.0A










Test condition: No PV and utility, AC out is on, fan stops@48V input










Standby Current




＜0.15A













Test condition: No PV and utility, AC out is off, fan stops@48V input)










Work Temperature Range




-20℃~+50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)










Storage Temperature Range




-25℃~+60℃










Enclosure




IP20










Relative Humidity




< 95% (N.C.)










Altitude




＜4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)









Mechanical parameters




Dimension (Length x Width x Height)




534mm × 288mm × 163mm



590mm × 288mm × 163mm






Mounting size (Length x Width)




512mm x 245mm




568mm x 245mm







Mounting hole size




Φ9mm/Φ10mm




Φ9mm/Φ10mm







Net Weight




12.0Kg




15.0Kg
