Large Rotary Kiln for Cement Making New Technology Metallurgical Lime Kiln for Building Materials
- Category: >>>
- Supplier: Zhengzhou Sinoma Engineering Technology Co. LtdZhengzhou Ltd
Share on (1601290941671):
Product Overview
Description
Products Description
Rotary kiln is the main equipment for calcining cement clinker,which is mainly used in cement production line. The applicable materials include limestone, calcium carbonate, copper ore and other materials.It’s widely used in chemical industry, metallurgy, etc.
Product Paramenters
Specifications (m) | Capacity (t/d) | Kiln pitch (%) | Supporting number | Kiln Speed (r/min) | Motor Power (kW) | Weight (t) |
φ3.2x50 | 1200 | 3.5 | 3 | 0.398-3.975 | 190 | 235 |
φ3.3x54 | 1650 | 3.5 | 3 | 0.43-4.3 | 220 | 334 |
φ4x60 | 2500 | 3.5 | 3 | 0.396-3.96 | 315 | 487 |
φ4.2x60 | 2800 | 3.5 | 3 | 0.4165-4.165 | 420 | 576 |
φ4.3x64 | 3200 | 4 | 3 | 0.449-4.49 | 450 | 585 |
φ4.5x66 | 4000 | 3.5 | 3 | 0.41-4.1 | 560 | 710 |
φ4.7x72 | 5000 | 4 | 3 | 0.45-4.5 | 710 | 825 |
φ4.8x72 | 5000 | 4 | 3 | 0.403-4.03 | 630 | 847 |
φ4.8x74 | 5000 | 4 | 3 | 0.35-4.0 | 630 | 841 |
φ5x60 | 5000 | 3.5 | 2 | 0.4-4 | 710 | 787 |
φ5.2x61 | 6000 | 3.5 | 2 | 0.38-3.79 | 800 | 859 |
* Note: The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.

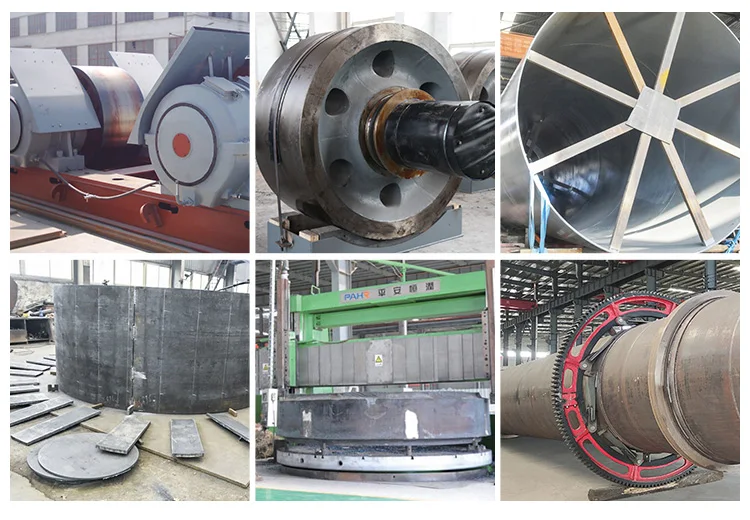

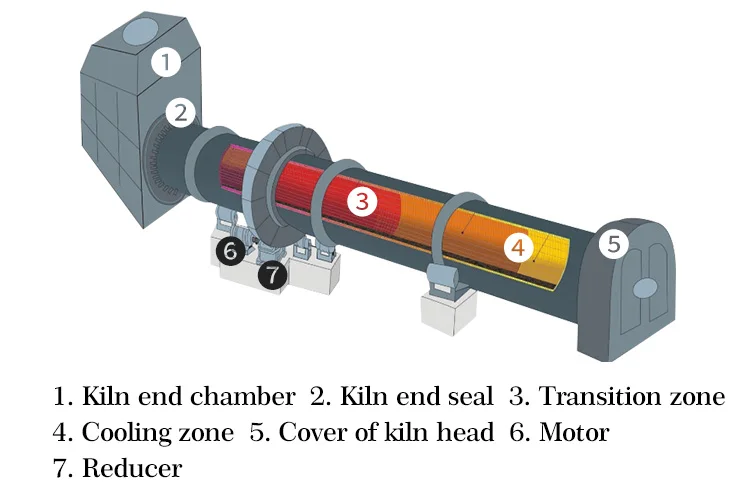

Product Structure
Features:
1. The rotary kiln can process materials such as kaolin, lime, cement, zinc oxide, bauxite and ores, it is an important calcining equipment.
1. The rotary kiln can process materials such as kaolin, lime, cement, zinc oxide, bauxite and ores, it is an important calcining equipment.
2. Large capacity, 1000-6000 t/d, suitable for different enterprises;
3. High calcining efficiency and good production quality.
4. The rotary kiln adopts an electrified control operation system, convenient to operate.
5. Good environmental protection measures.

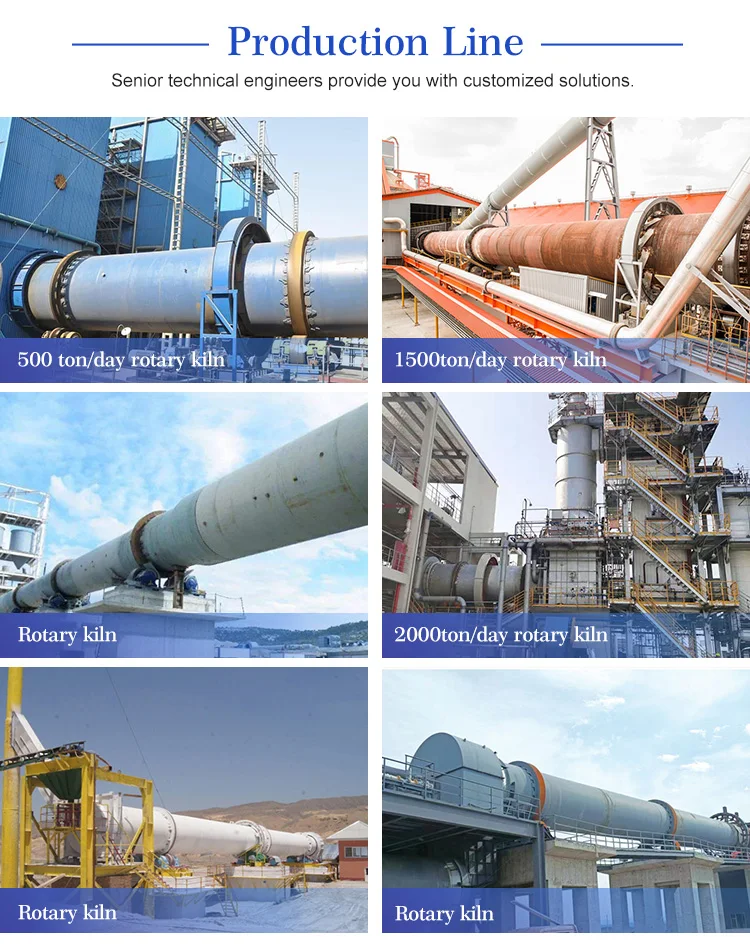

Production Application
Application:
1. Cement industry: Calcining cement clinker, the main equipment of cement manufacturing.
2. Metallurgical industry: roasting metal ores such as iron ore and sulfide ore to obtain the required metal elements.
3. Chemical industry: calcine active lime, high alumina stone, aluminum sulfate and other chemical raw materials.
4. Ceramic industry: remove moisture and organic matter from ceramic raw materials to dry and sinter the raw materials.
5. Environmental protection: Dispose of solid waste such as hazardous waste, medical waste, and sludge.

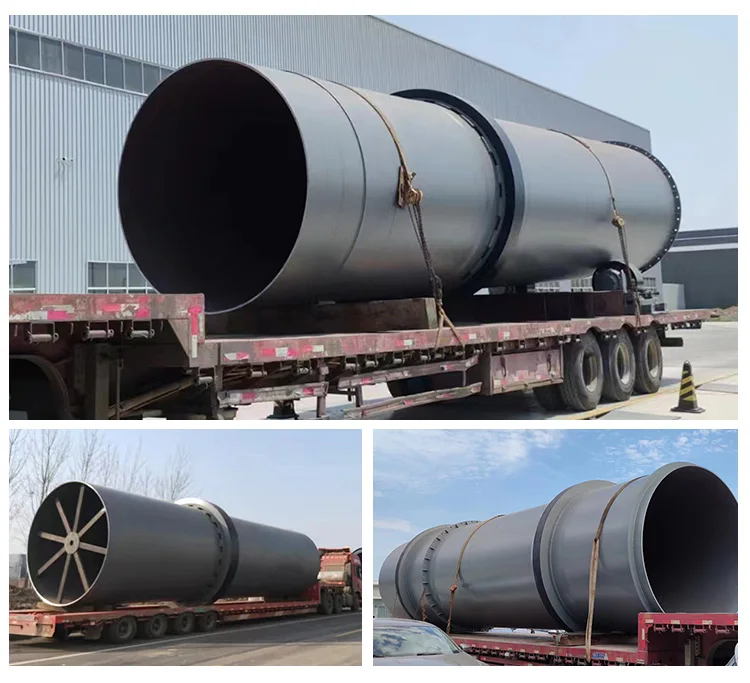

Product Packaging
Company Profile
Zhengzhou Sinoma Engineering Technology Co., Ltd. is a large-scale equipment manufacturer that integrates researching & development, production and sales together. We provide cement machinery, concrete machinery, and stone crushing machinery, including: concrete batching plant, complete cement production line, rotary kiln, vertical mill, ball mill, jaw crusher, impact crusher, cone crusher, VSI sand maker, vibrating screen, etc...
Our equipment is widely used in building, mining, construction industry. We are the largest EPC new sand gravel aggregate production line supplier in China. And we use standardized production processes and strict quality control to ensure the quality of all products.
Our equipment is widely used in building, mining, construction industry. We are the largest EPC new sand gravel aggregate production line supplier in China. And we use standardized production processes and strict quality control to ensure the quality of all products.
FAQ
1. What is your payment method?
The payment methods can be discussed with our sales manager up to you.
2. How is the product packaged and shipped?
The package is suitable for oversea exporting. We can also choose a special package depending on your needs.
3. How long is the production time?
In stock, can be shipped anytime. And it can also be customized according to your requirements
4. How long is the warranty? Does your company supply the spare parts?
1-3 year. We supply spare parts for you with lowest price.
5. If I need a complete project, can you help us to build it?
Definitely. We can help you to set up a complete production line and give the best professional design. We have already set up over 500 projects in China & Overseas.
6. How about the service?
24 hours online service, various language support, professional technical team to solve all your problems and engineers can be oversea to guide the installation on site.
The payment methods can be discussed with our sales manager up to you.
2. How is the product packaged and shipped?
The package is suitable for oversea exporting. We can also choose a special package depending on your needs.
3. How long is the production time?
In stock, can be shipped anytime. And it can also be customized according to your requirements
4. How long is the warranty? Does your company supply the spare parts?
1-3 year. We supply spare parts for you with lowest price.
5. If I need a complete project, can you help us to build it?
Definitely. We can help you to set up a complete production line and give the best professional design. We have already set up over 500 projects in China & Overseas.
6. How about the service?
24 hours online service, various language support, professional technical team to solve all your problems and engineers can be oversea to guide the installation on site.
