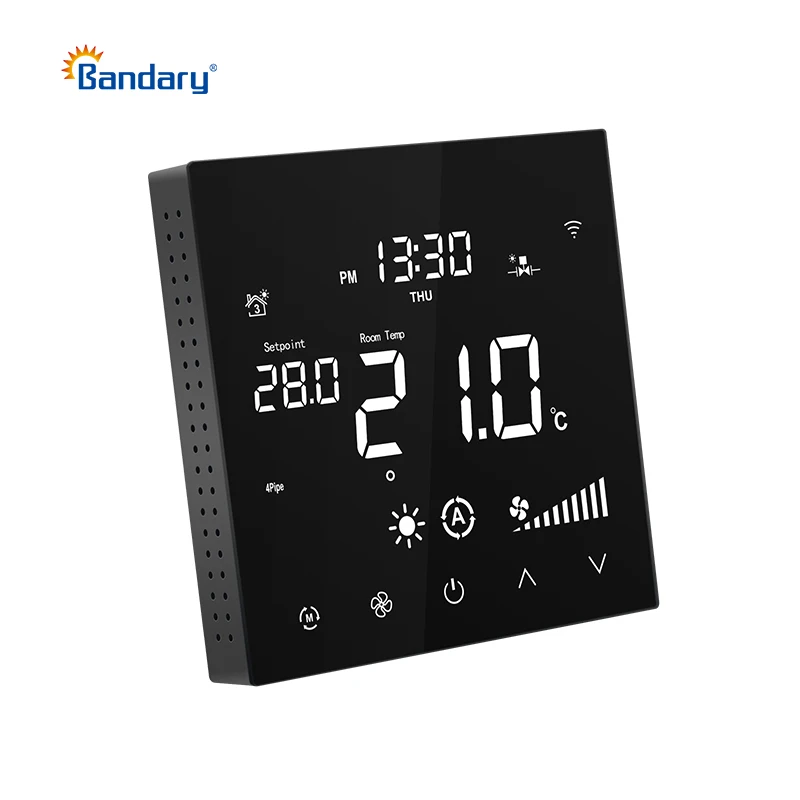

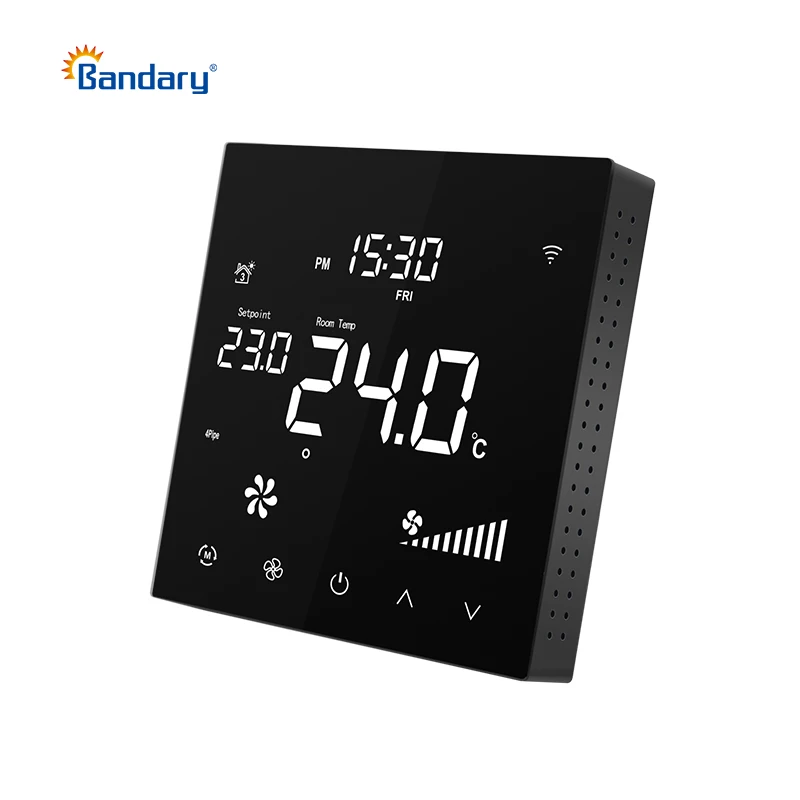

Smart Touch Screen Cooling Heating WiFi Fan coil Thermostat for HVAC Systems Parts
- Category: >>>
- Supplier: Shenzhen Bandary Technology Co. Ltd.Shenzhen Ltd.
Share on (1601290947316):
Product Overview
Description
Product Description
Technical data
Measuring values | temperature | ||||
Output switch contact | terminal 2 | 3 – 2 normally open contacts, 250 V load max 3 A (heating & cooling via 2-point control ) | terminal 4 | 5 | 6 – LO | ME | HI 3x normally open contact, 250 V load max. 3 A, Fan | |||
Voltage output | terminal 10 0-10V for cooling valve | Terminal 11 0-10V for heating valve | Terminal 12 0-10V for EC fan | ||
Network technology | WIFI (2.4G Hz) RS485 Modbus, RTU, half-duplex, baud rate 4.800, 9.600, 19.200 or 38.400, parity: non (2 stopbits), even or odd (1 stopbit) | ||||
Power supply | 100-250VAC 50Hz | ||||
Power consumption | 0.9VA (250V ) | ||||
Measuring range temp. | +1..+50 °C | ||||
Accuracy temperature | ±1 K (typ. at 21 °C) | ||||
Inputs | terminal 9 input for external sensor NTC10K | terminal 13 – ESI | DP input digital for floating contact, window contact, dew point sensor | terminal 14 - OCC input digital for floating contact, occupancy sensor, key card switch | ||
Control functions | set point adjustment +1..+50 °C, (default +16..+30 °C) | ||||

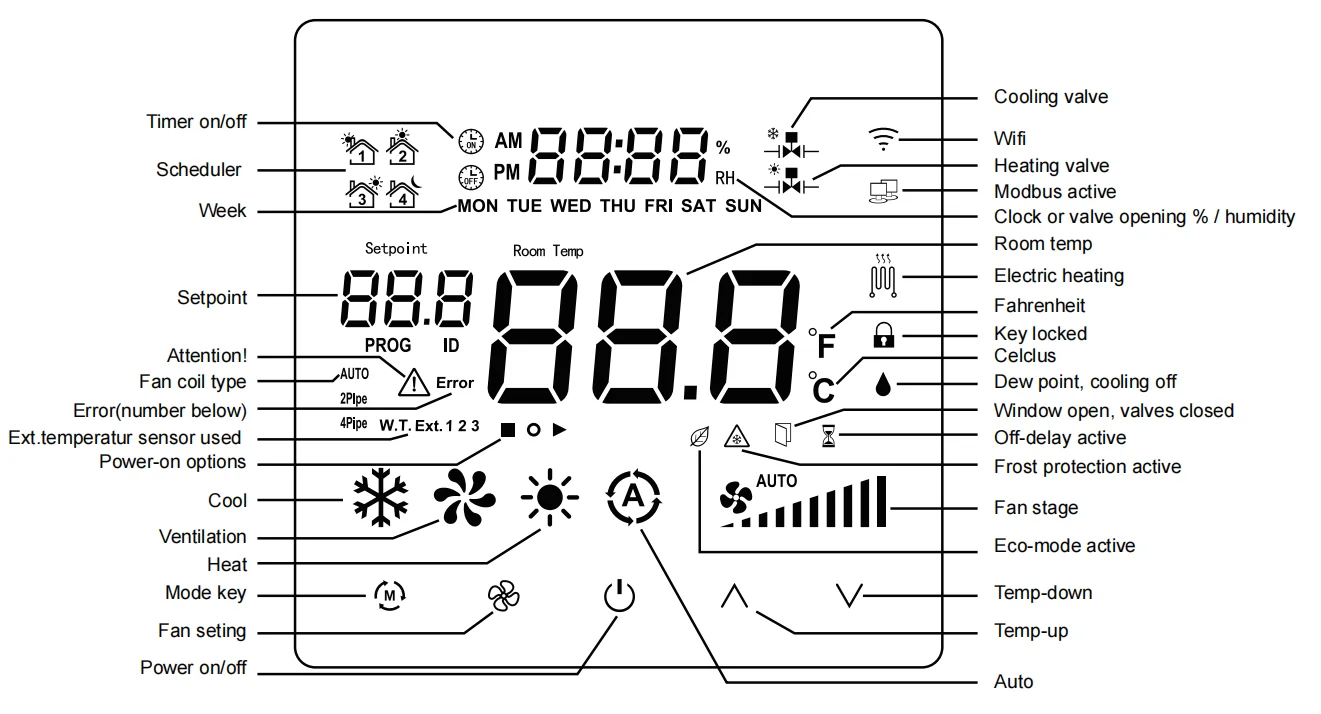

Display | LCD 77x57 mm, VA black background lighting | ||||
Enclosure | Fire Proof -ABS, Black or White | ||||
Protection | IP20 according to EN 60529 | ||||
Connection electrical | terminal block max. 1,5 mm² rear entry | ||||
Ambient condition | -10..+50 °C, max. 95% rH non-condensing | ||||
Weight | 250 g | ||||
Mounting | flush mounted with standard EU box (Ø=60 mm) | ||||

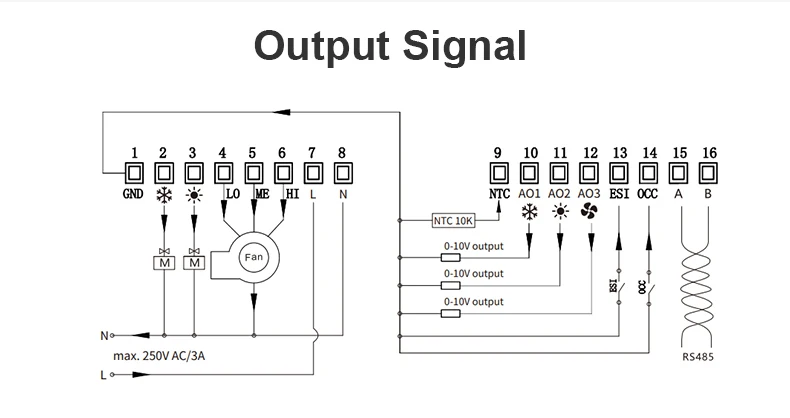

Wiring Diagram
Company Profile
FAQ
Q1: Does your company require employees to work overtime?
Q2: Are you Trading Company or Manufacturer?
A2: We are a factory with an independent R&D office in shenzhen, China. We provide electronic design and development service to meet with unique requirements, and also we have own brand. Manufacture thermostats and 3C product more than 13 years, have more 3000 square meters factory.
Q9: What's your packing?
A9: The thermostat will packed by white inner box and put into export carton box, 40pcs/ctn. We customized packing box is available for bulk orders. If you want to have a new packaging, then you can send your new design to me and tell us your requirements.
A1: Our company does not allow employees to work overtime, strictly in accordance with the management system!
Q2: Are you Trading Company or Manufacturer?
A2: We are a factory with an independent R&D office in shenzhen, China. We provide electronic design and development service to meet with unique requirements, and also we have own brand. Manufacture thermostats and 3C product more than 13 years, have more 3000 square meters factory.
Q3: Can I take samples before bulk order?
A3: Yes, we are always happy to send you sample to check our product quality . Simply let us know what your requirements are and the delivery address.
A3: Yes, we are always happy to send you sample to check our product quality . Simply let us know what your requirements are and the delivery address.
Q4: Do you accept ODM/OEM orders?
A4: Yes, we can accept OEM/ODM, MOQ:100pcs you can change logo and packaging, if you need.
A4: Yes, we can accept OEM/ODM, MOQ:100pcs you can change logo and packaging, if you need.
Q5: What is your quality control process?

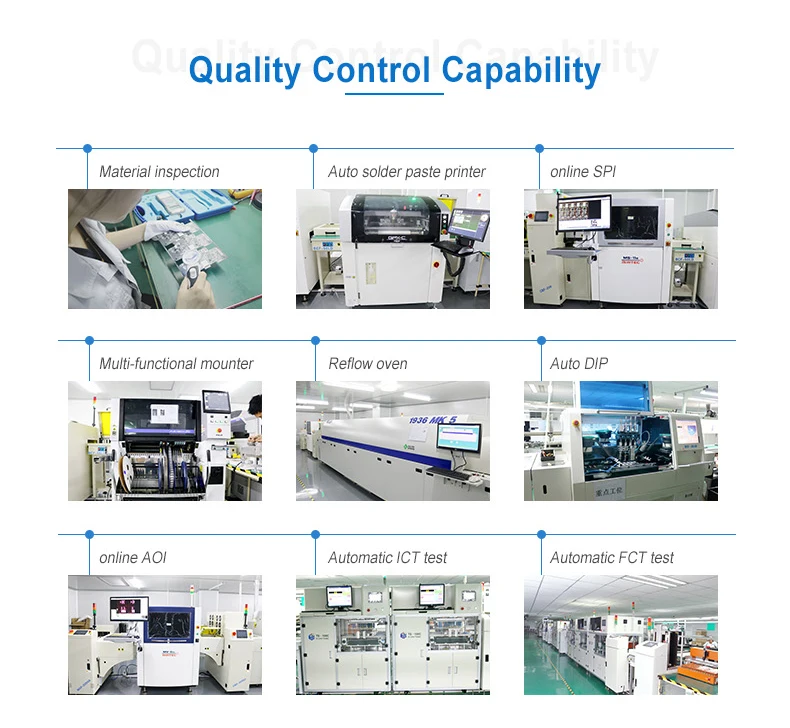

A5: We do 100% testing for all products before packing. We have an excellent QC process and department, they will inspect every product and ensure every product can work before shipped out.
A5: We do 100% testing for all products before packing. We have an excellent QC process and department, they will inspect every product and ensure every product can work before shipped out.
Q6: What's the payment way?
A6: We recommend T/T for bulk orders, and Alibaba trade assurance, Western union for small orders.
Q7: What's your best price for thermostat?
A7: We will quote you best price according to your quantity, so when you making an inquiry, please let us know the quantity you want.
A7: We will quote you best price according to your quantity, so when you making an inquiry, please let us know the quantity you want.
Q8: What's your MOQ?
A8: Without MOQ, we can accept samples order also. But we recommend buying a carton to save shipping.
A8: Without MOQ, we can accept samples order also. But we recommend buying a carton to save shipping.
Q9: What's your packing?
A9: The thermostat will packed by white inner box and put into export carton box, 40pcs/ctn. We customized packing box is available for bulk orders. If you want to have a new packaging, then you can send your new design to me and tell us your requirements.
