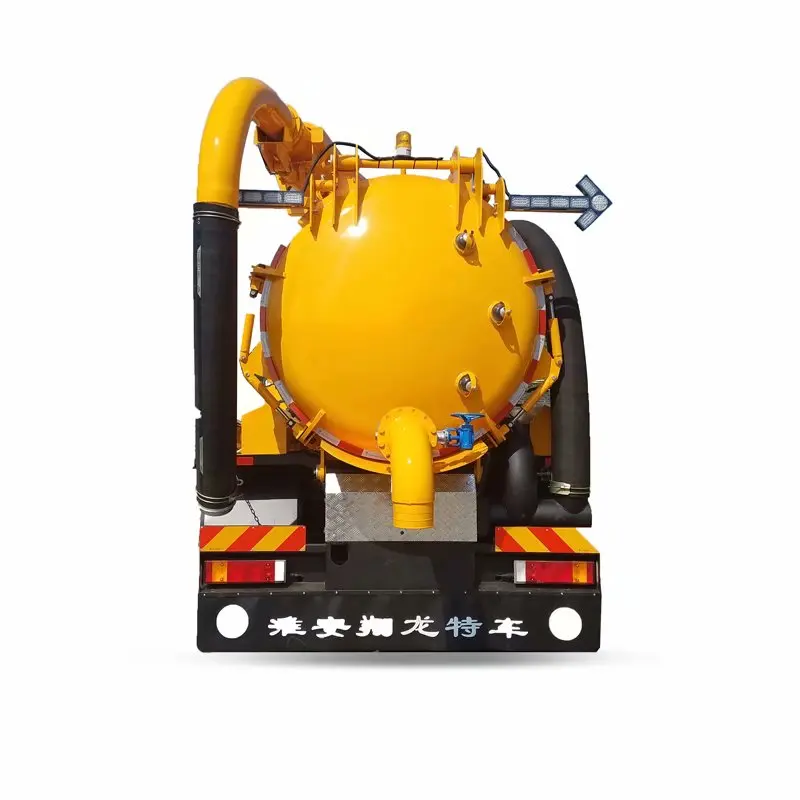

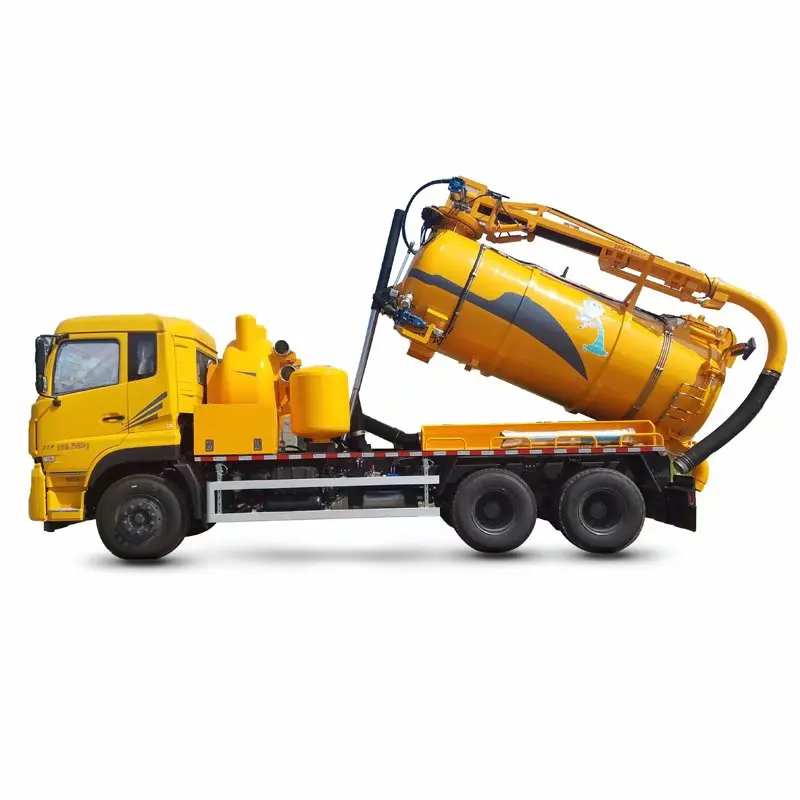

Customisable High quality famous chassis vacuum truck small volume sewage sewer pump drainage truck
- Category: >>>
- Supplier: Huaian Xianglong Special Purpose Vehicle Co. Ltd.Huaian Ltd.
Share on (1601291094014):
Product Overview
Description
Products Description
What is the main Application of the Combi Truck and Characteristics?
Application-----
1. The combi vacuum tanker with jetting,dredging,suction and recycling facility is adopted top Europe technology and it is the
best suction vehicle currently .We can choose different trucks according to customers' need.
2. The complete is smaller,suitable for narrow working condition as emergency equipment.It's lighter,more economic and
energy-saving with higher cost -effective.
1. The combi vacuum tanker with jetting,dredging,suction and recycling facility is adopted top Europe technology and it is the
best suction vehicle currently .We can choose different trucks according to customers' need.
2. The complete is smaller,suitable for narrow working condition as emergency equipment.It's lighter,more economic and
energy-saving with higher cost -effective.
Product Paramenters
Main Technical Parameter Show Blow:
Sludge and Water Tank | ||
Shape | Cylindrical shaped tank with external reinforce rings | |
Material | Mild steel | |
Capacity | 6,000L sludge tank & 4,000L fresh water tank | |
Shell thickness | 5mm | |
Tipping cylinder | Front tipping and double acting cylinder | |
Safety support | Support the tank to ensure safety when it’s tipped up | |
Sight glasses | 3units are mounted at the rear of the tank | |
Over pressure safety | Over pressure relief valve on tank top | |
Full opening rear lid | Hydraulically opening and locking | |
Inlet and Outlet Valve | Pneumatically and Manual operation | |
Primary shut off | SS float ball prevents overfilling sludge tank. | |
Vacuum system | ||
Vacuum pump | Liquid ring vacuum pump, | |
Max vacuum level | 95% | |
Continuous vacuum level | 80% | |
Air flow rate | 1400m3/h | |
Rotate speed | Max 900r/min | |
Pump cooling | Cooling Water tank 1,000L, mounted behind cab | |
Protection | 1. Aluminum filter 2. Vacuum pressure relief valve | |
Telescopic suction boom | Stainless steel material. Swivel in both vertical and horizontal plane. 270°horizontal rotation, 6m working radius, 6m below ground and 1.4m extension | |
Suction hose | Trelleborg brand from France. 4", 10m, can be lengthened, with non-return valves | |

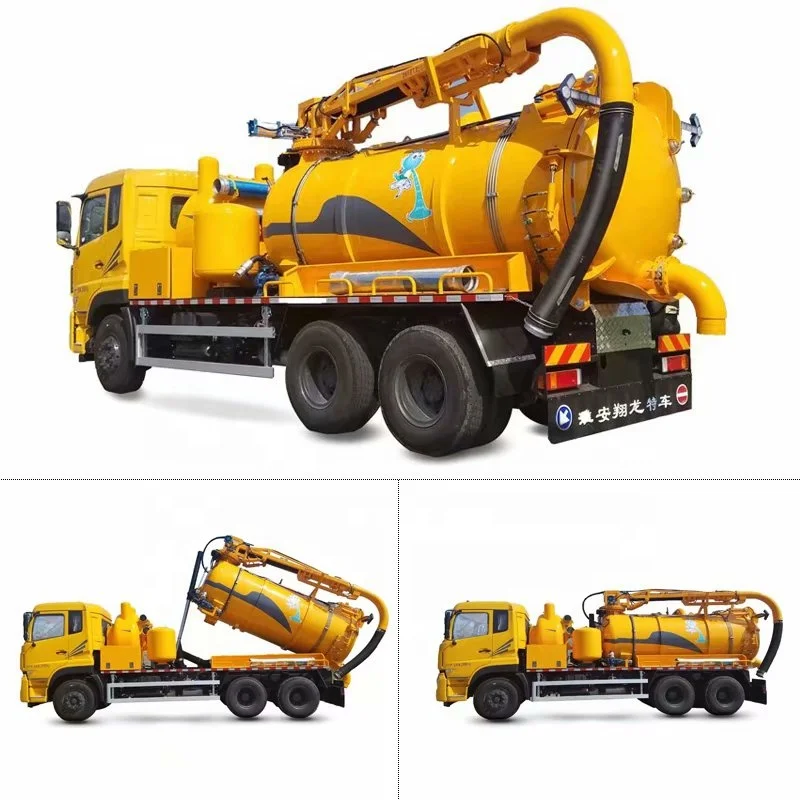

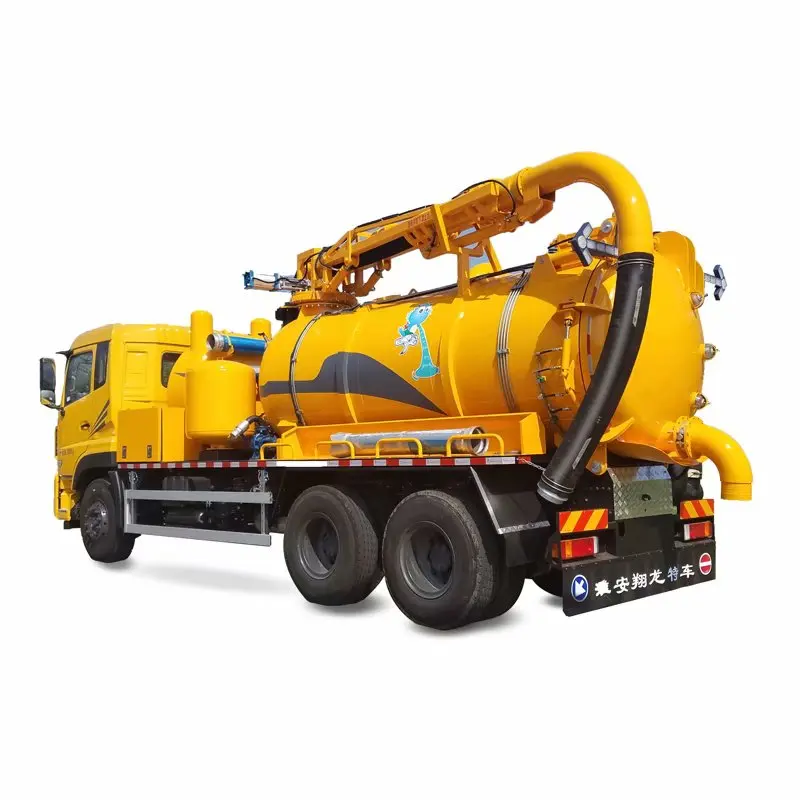

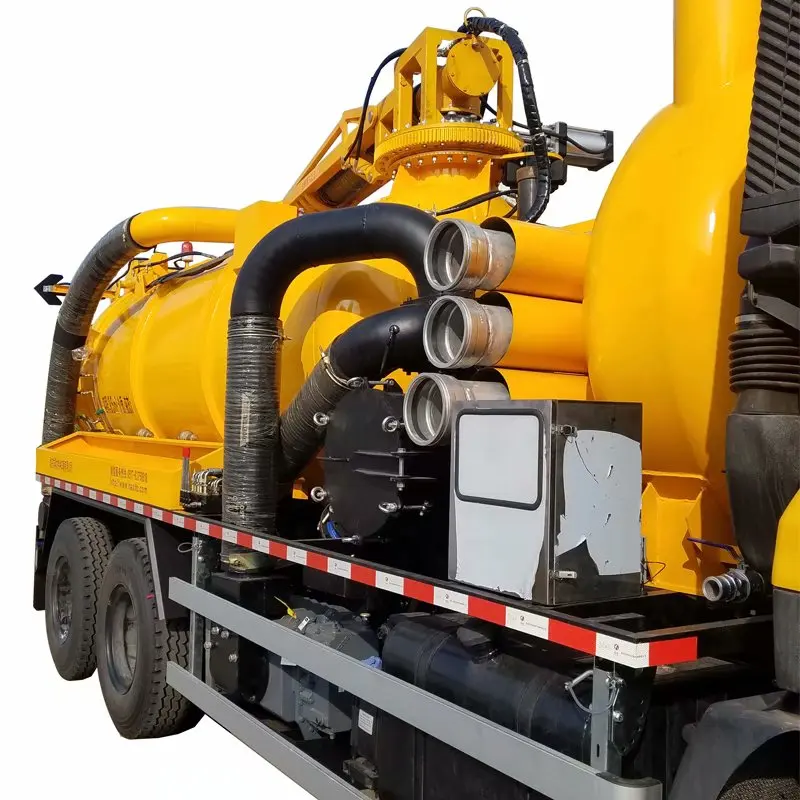

Details Images
Recommend Products

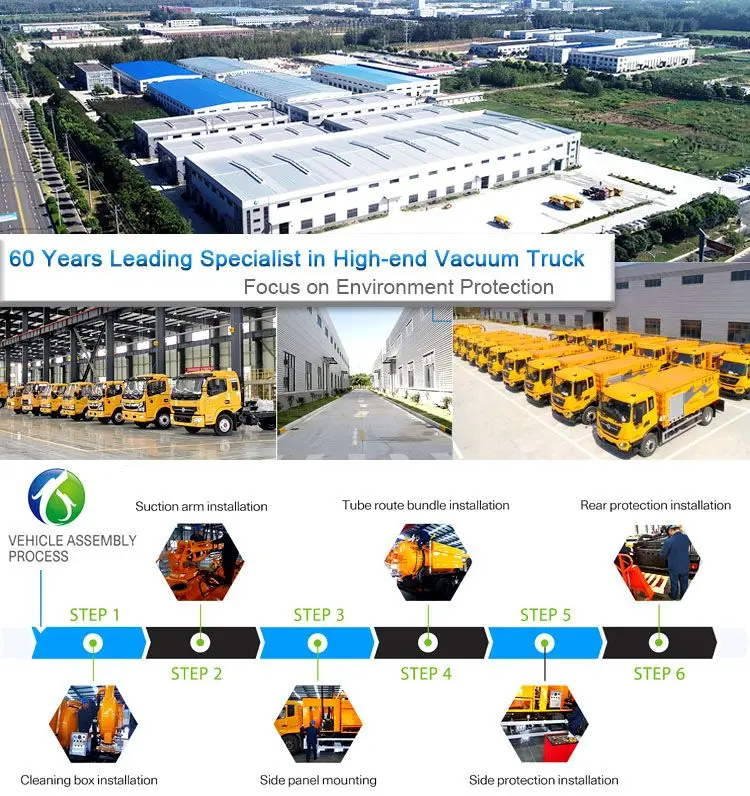

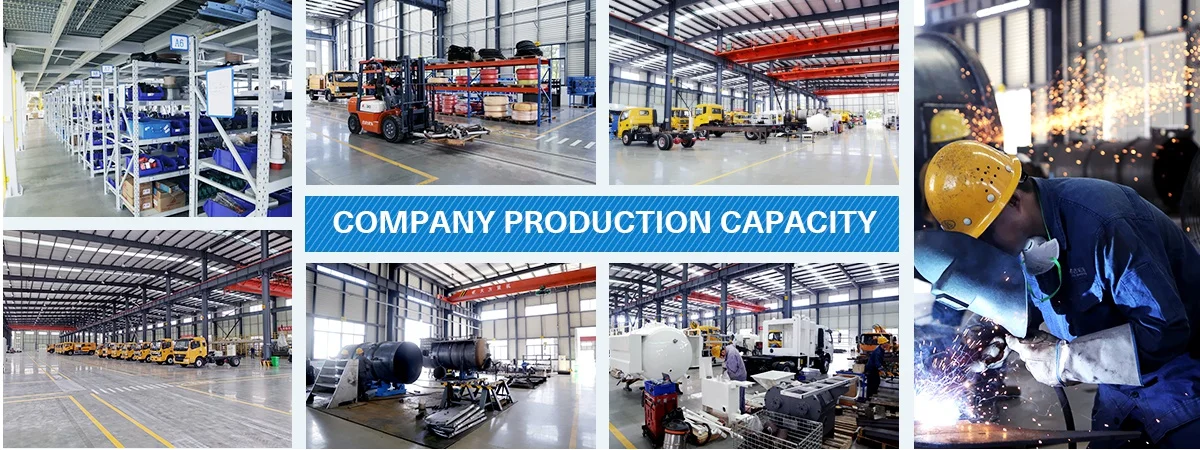

Company Profile
Inheritting near six decades of production experience, Huaian Xianglong Special Purpose Vehicle Co.,Ltd has been one of the advanced enterprises engaging in production of high-end municiple maintenance vehicles, emergency rescue vehicles, combination vacuum jetting trucks etc...
Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…
Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.
Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…
Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.
Certifications
Our selling point is :Customization,High-end quality,Professional service,Innovation keep moving.
Why Choose Us
Where is need to Use our vehicle?
To unblock and clean sewer. To vacuum suck liquid waste and clean drainage well. Dry material vacuum suction truck suck and transport powder, coal in power plant, dust or cement.
FAQ
Q1:Are you a factoty or trading company?
A1:We are professional manufacturer and seller with the experience of over 50 years.
Q2:What about the quality?
A2:Quality is priority .All the products will be 100% check before shipment .We check our products one by one before we pack and ship to make sure they are all what you ordered,to make sure the quantity and in good condition.
Q3:How can I get lower price ?
A3:We are factory manufacturer , we will provide competitive price for you , pls contact our salesman, you will get more discount.
Q4:How is your truck meeting our country standard?
A4:Firstly,we have 50 years exporting experiecne,OEM is avaliable for our customers.
Secondly,All our trucks will be made according to different countries standard, and accepted been tested and confirmed by customers before loading. we will provide valid chassis number and documents which can help register the truck on road of buyer's countries..
Secondly,All our trucks will be made according to different countries standard, and accepted been tested and confirmed by customers before loading. we will provide valid chassis number and documents which can help register the truck on road of buyer's countries..
Q5:How long does the shipping will take ?
A5:For production,We will send the goods within 30 days after 30% deposit has been confirmed.
Q6: What's the payment terms?
A6:We accept T/T, Paypal, L/C ,Secure payment, alipay and so on ...
Q7:Could you accept OEM order?.
A7:We have professional designers who can design your logo and offer best solution & styles for your OEM products.
Q8:Do you have experience to export Vacuum Truck oversea?which countries did you export before?
A8:Dear ,we have lots of experiences to export to many countries before,eg. Australia,Southeast Asia,Middle East,Africa,Russia,South America,Korea,Japan and so on.
