YANING ISO5 Lab Horizontal Laminar Flow Hood with Hepa Filter Laminar Flow Cabinet Clean Bench
- Category: >>>
- Supplier: Dongguan Yaning Purification Equipment Co. Ltd.Dongguan Ltd.
Share on (1601291121631):
Product Overview
Description
Product Description
YANING ISO5 Lab Horizontal Laminar Flow Hood with Hepa Filter Laminar Flow Cabinet Clean Bench
ISO 5 Class 100 Horizontal Laminar Flow Hoods with an air-recirculation plenum utilize HEPA filters that rate 99.995% efficient a removing 0.3 micron particulate airborne contamination to meet cleanliness requirements.
The back plenum recirculates filtered air to reduce the percentage of dirty air within the work area.
YANING‘s laminar flow cabinets are equipped with a fan module with HEPA or ULPA filters that cleans air and directs it in
horizontal or vertical airflow towards a working area at a constant speed.
YANING Tissue Culture Mushroom Compounding HEPA Filter FFU Module ISO5 Class A Modular Clean Bench Laminar Flow Cabinet Hood
YANING Tissue Culture Mushroom Compounding HEPA Filter FFU Module ISO5 Class A Modular Clean Bench Laminar Flow Cabinet
Features:
1 . Provide an operating environment with a cleanliness level of 100.
2 . Ultra-thin high-efficiency HEPA air filter, which takes up little space
3 . The touch-type electric control panel can be used to steplessly adjust the air volume of the fan to ensure that the wind speed
in the working area is always in an ideal state.

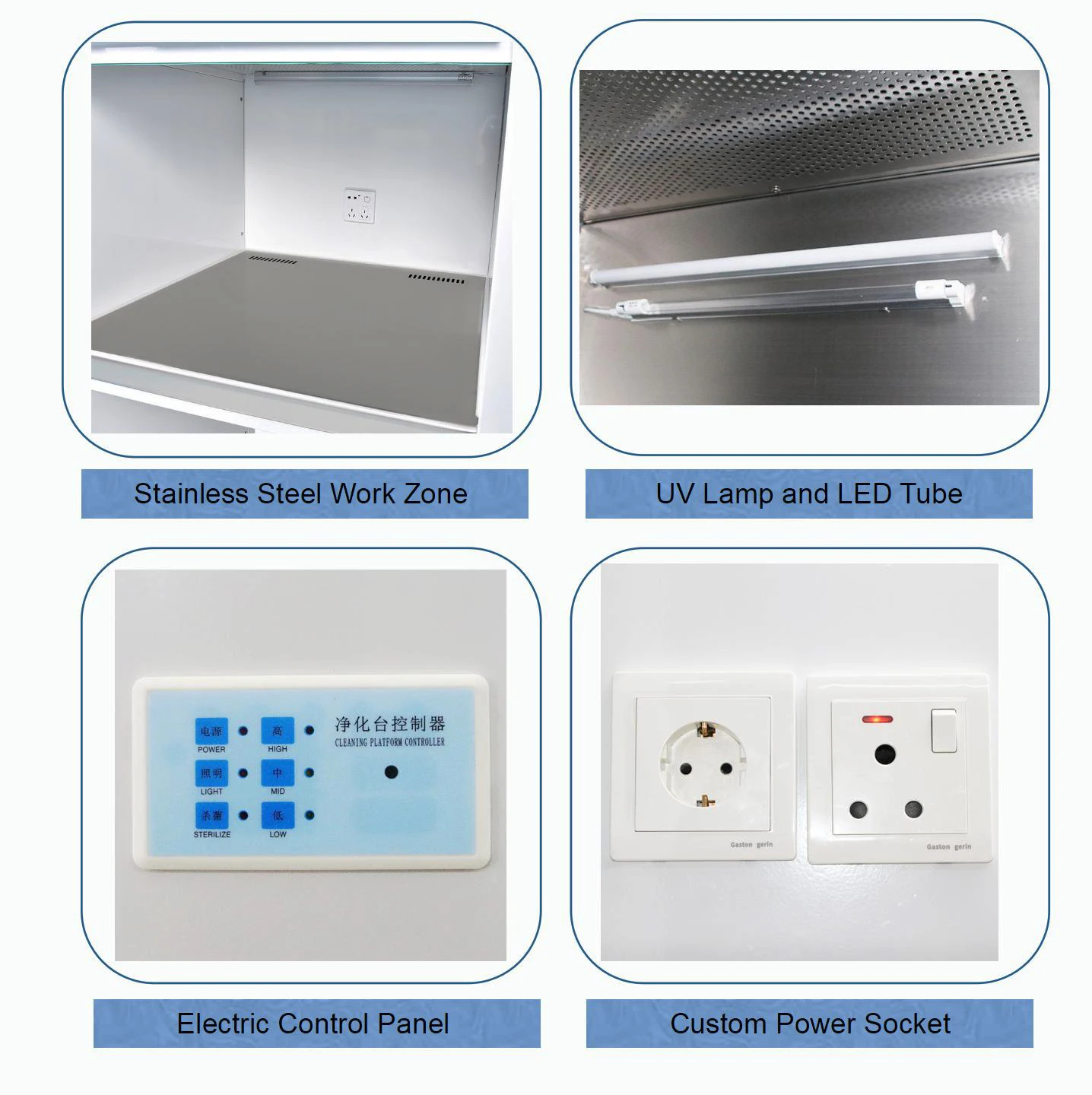

4. Stainless steel table top, with plexiglass shell, can be equipped with UV remote control electrical interface.
2 . Ultra-thin high-efficiency HEPA air filter, which takes up little space
3 . The touch-type electric control panel can be used to steplessly adjust the air volume of the fan to ensure that the wind speed
in the working area is always in an ideal state.
4. Stainless steel table top, with plexiglass shell, can be equipped with UV remote control electrical interface.

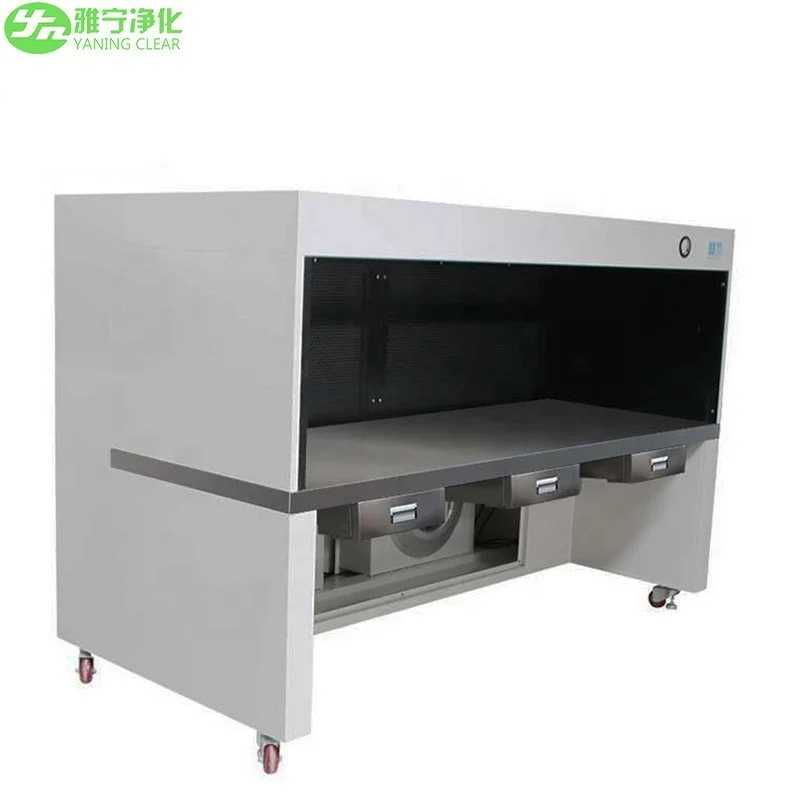

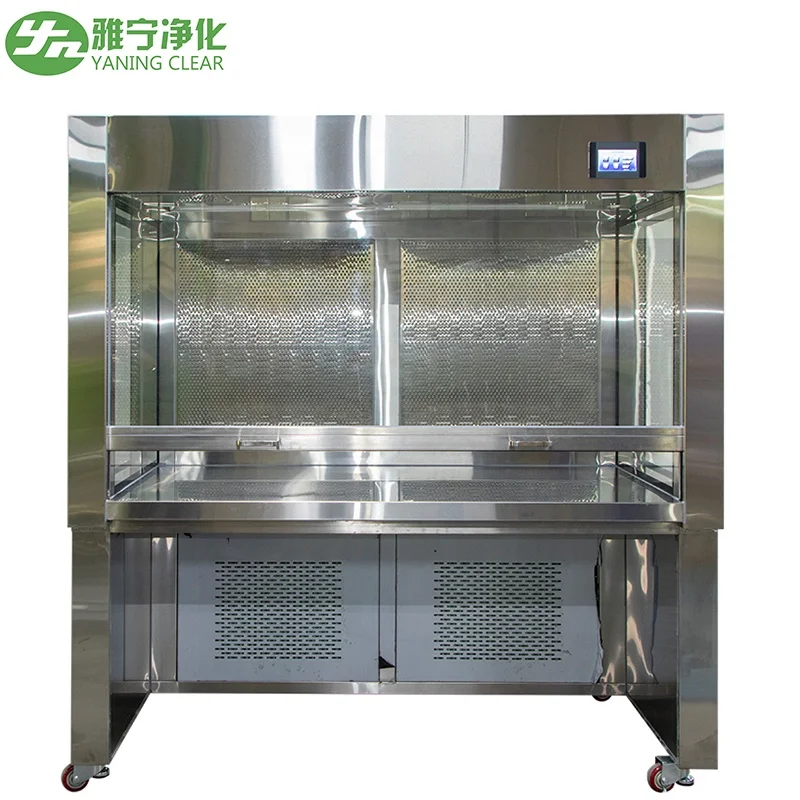

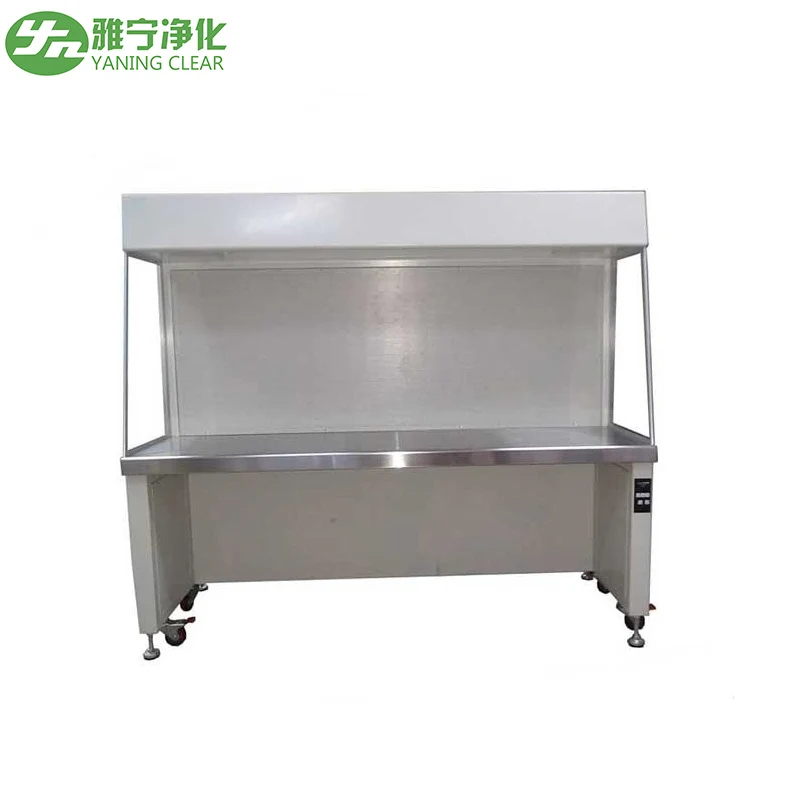

Laminar flow clean cabinet

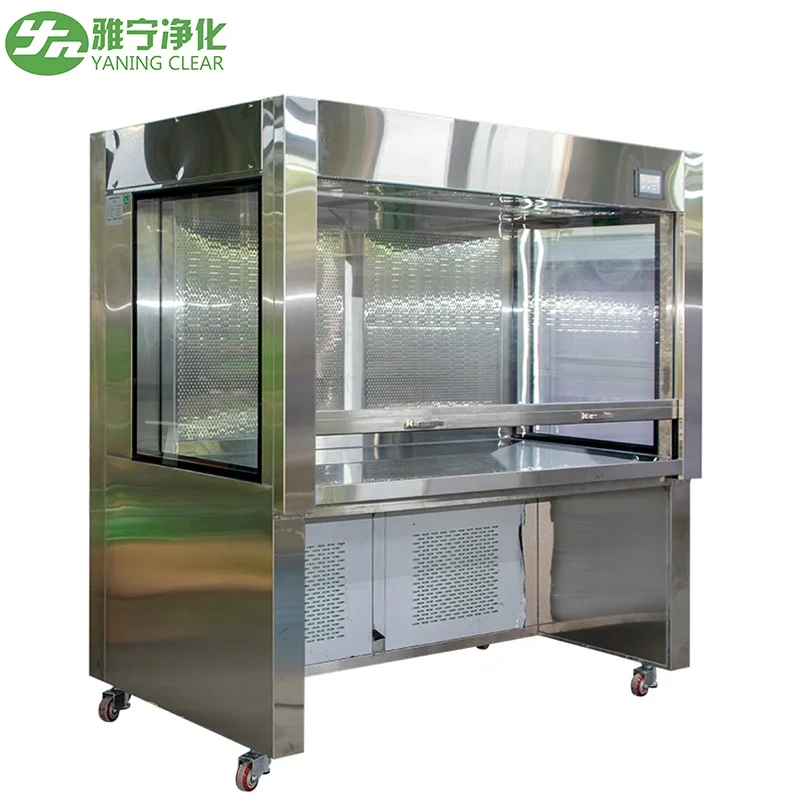

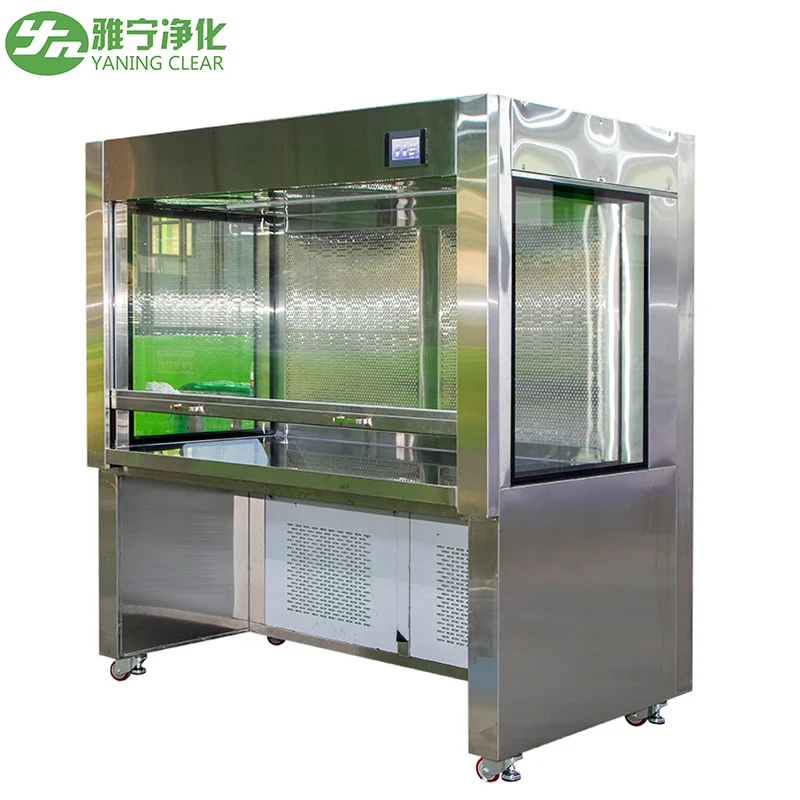

Laminar flow hood

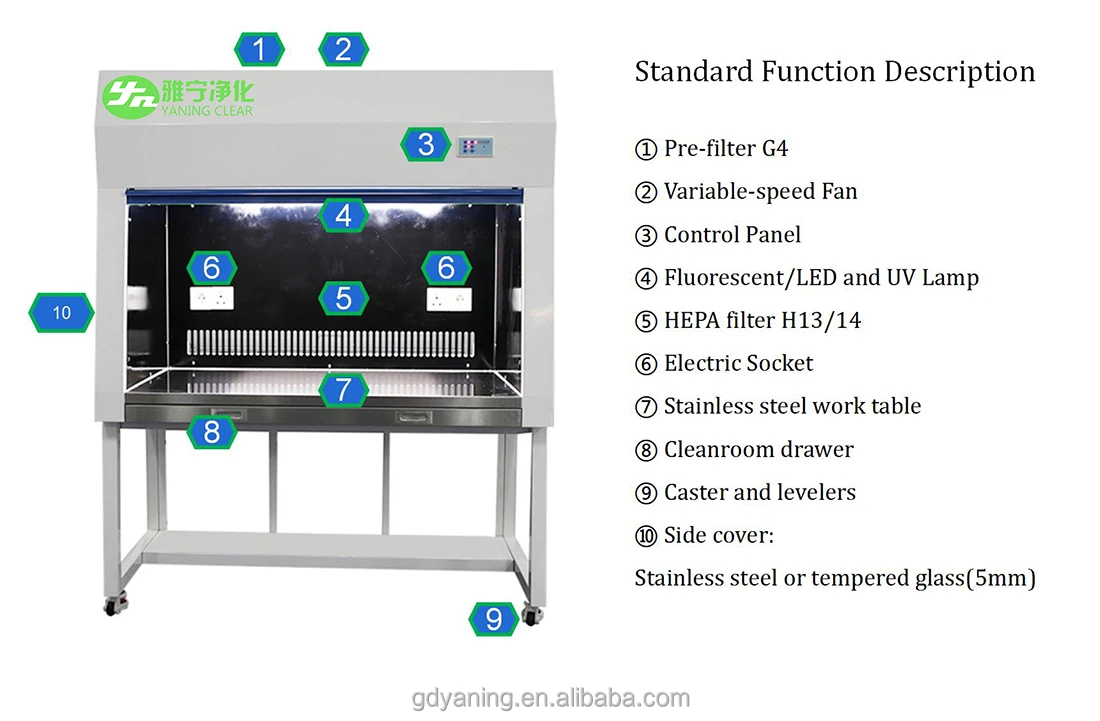

Product Detail

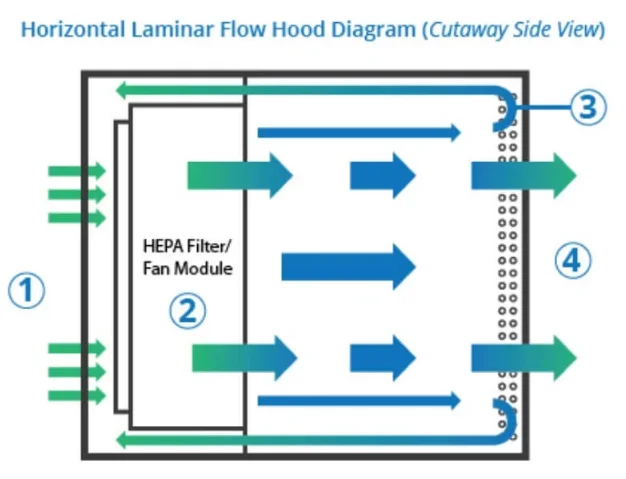

Horizontal Laminar Airflow Diagram

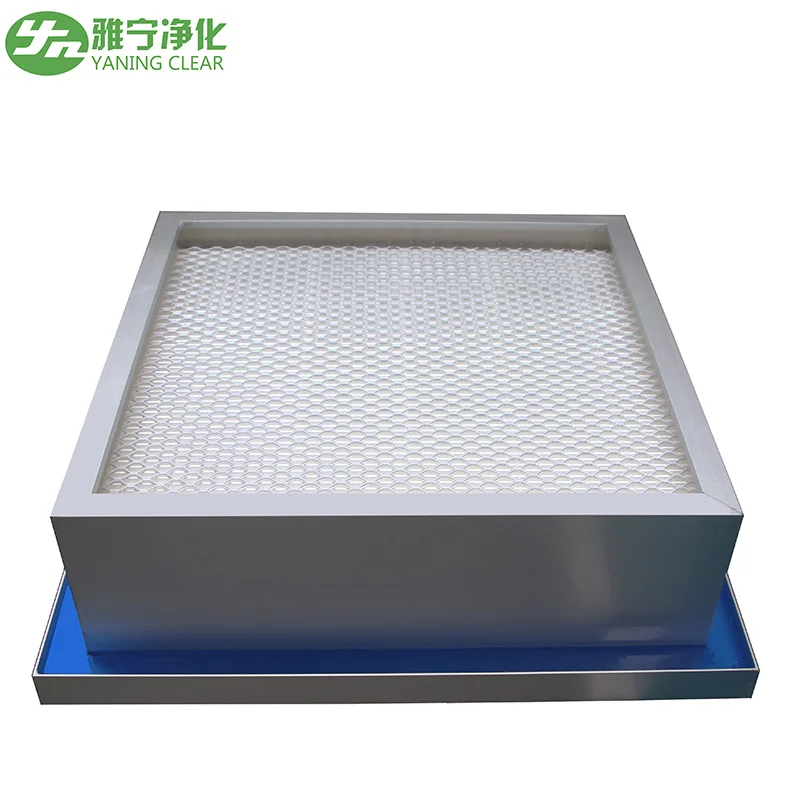

G4 Prefilter and H14 HEPA Filter 2 Layer Filtration
Product Parameter
Item | Horizontal Laminar Flow Clean Bench | ||||
Model | YN-SPT-01 | YN-SPT-02 | YN-SPT-03 | ||
External size W*D*H(mm) | 1000*850*1500 | 1200*850*1500 | 1500*850*1500 | ||
Internal size W*D*H(mm) | 960*600*600 | 1160*600*600 | 1460*600*600 | ||
HEPA Filter(mm) | 905*585*69*1Pcs | 1105*585*69*1Pcs | 1405*585*69*1Pcs | ||
HEPA Filter Efficiency | 99.95%@0.3μm | 99.95%@0.3μm | 99.95%@0.3μm | ||
G4 Pre Filter(mm) | 500*375*21*1Pcs | 500*375*21*1Pcs | 500*375*21*1Pcs | ||
Noise | 52~62dB (A) | 52~62dB (A) | 52~62dB (A) | ||
Fan Pressure | 260pa | 260pa | 260pa | ||
Fan Powder(W) | 200W*1Pcs | 200W*1Pcs | 200W*1Pcs | ||
LED Lamp Power(W) | 12W*1Pcs | 18W*1Pcs | 30W*1Pcs | ||
Air Velocity(m/s) | 0.45m/s+/-20% | ||||
Clean Level | ISO 5 | ||||
Supply Power | AC 1N 220V/50Hz | ||||

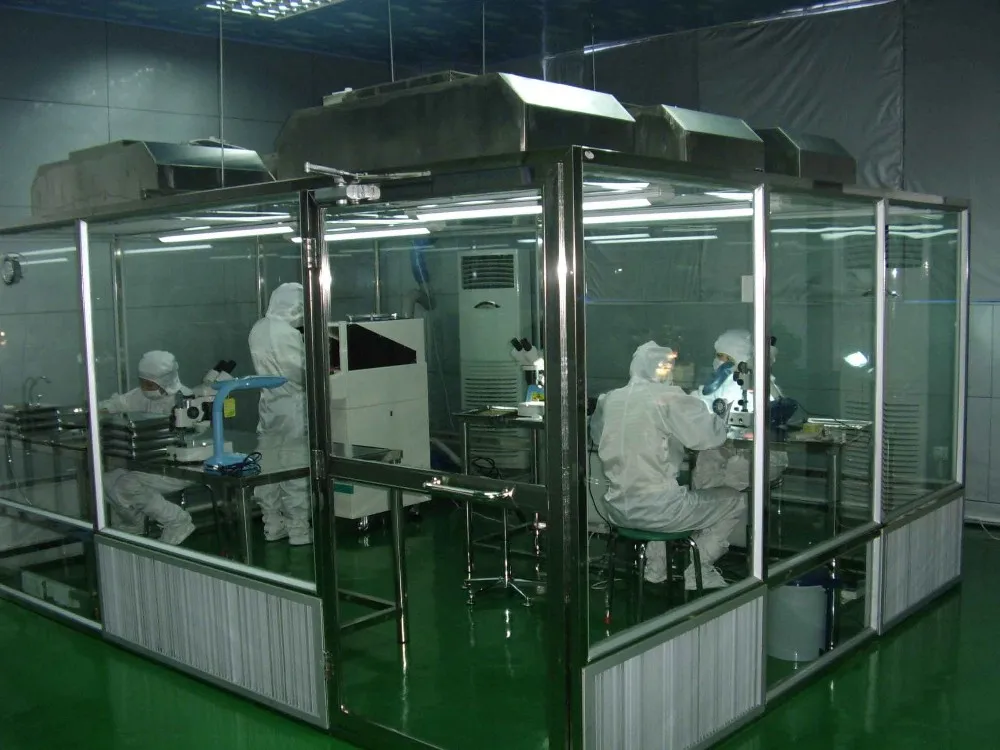

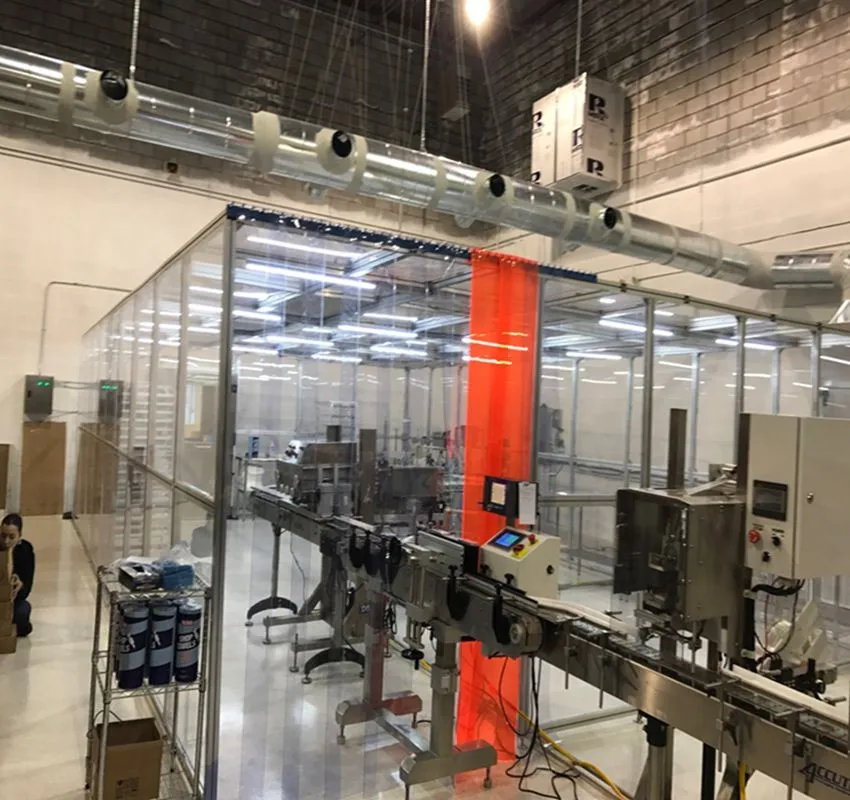

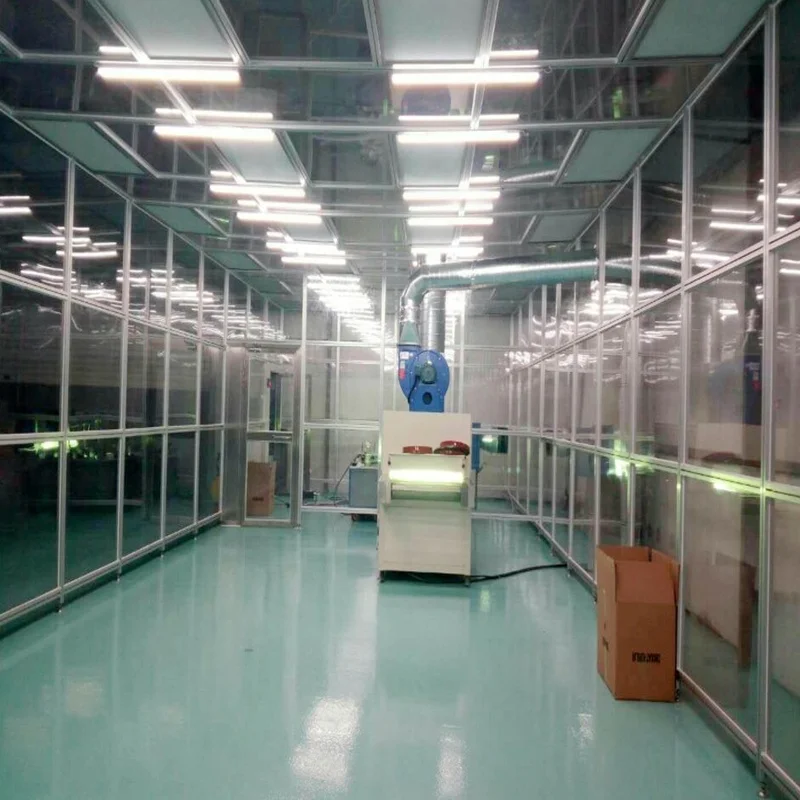

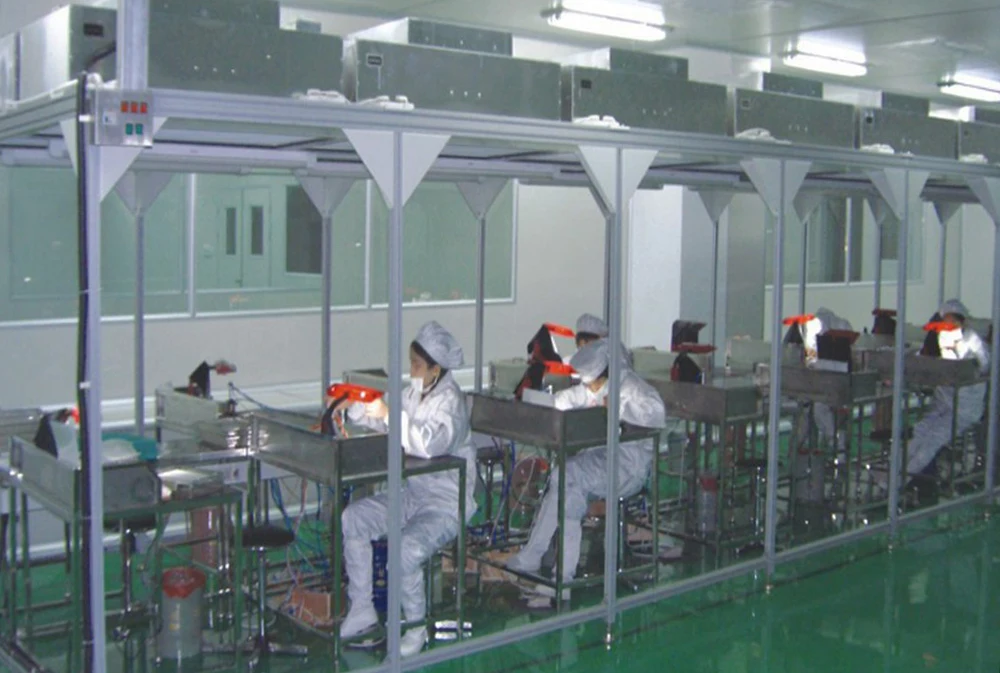

Successful Project
Recommend Products
Packing&Delivery
Packaging
Stretch film strapped whole cabinet,
Foam inside protected,
Plywood case solid fixed
Foam inside protected,
Plywood case solid fixed
Shipping
Samples be shipped by DHL/FedEx/USP and so on
Mass production be shippinh by Air or Sea
Mass production be shippinh by Air or Sea
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer for over 13 years with more then 10 years exporting experience.
2. What can you buy from us?

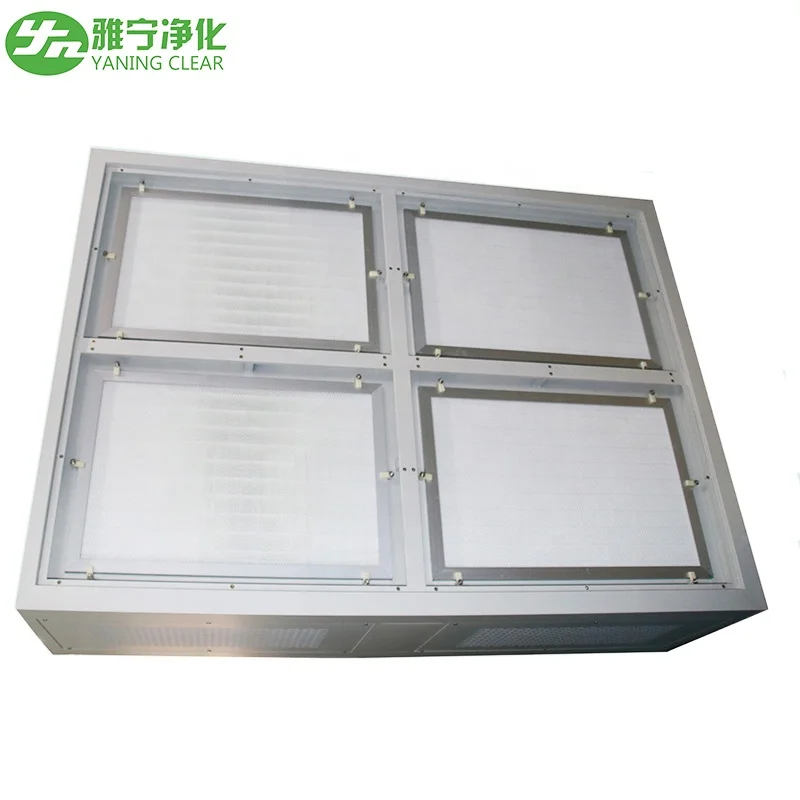

1) Modular clean room&clean room equipment like cleanroom air shower, cleanroom pass box, FFU Fan filter Unit, BFU, laminar flow ceiling, Clean Bench, Clean Booth, etc
2) Hospital Operating Room Supporting Equipment, like modular operating room, operating room wall panel, stainless steel cabinets, Laminar Flow Ceiling, Socket box for OT room, OT room intelligence Panel, stainless steel hand wash sink, all kinds of hermetic doors, operating room etc

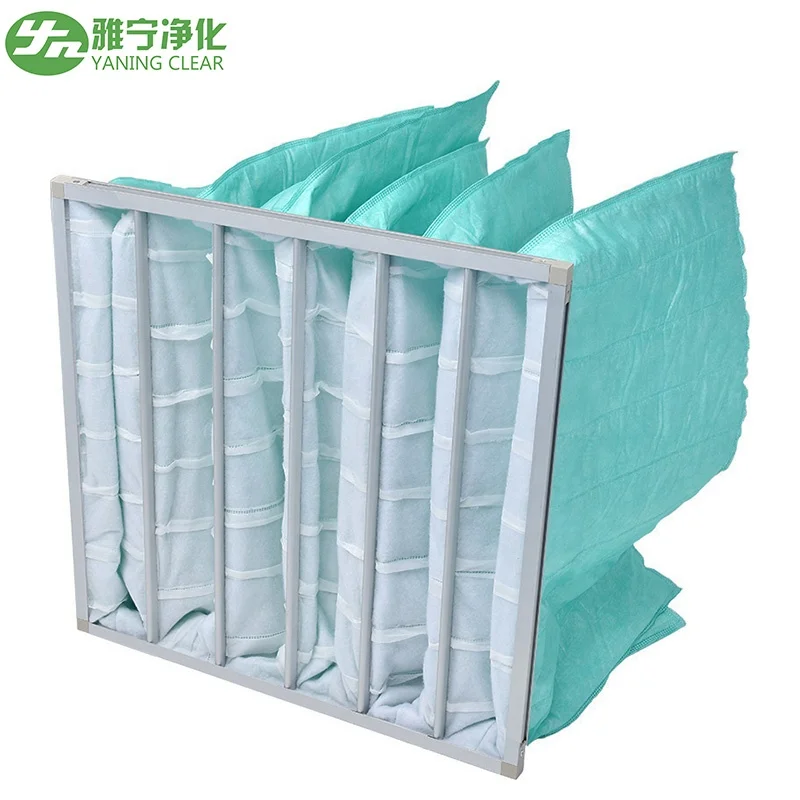

3) Air Filter, such as Plate pre filter, F5-F9 Medium Pocket Filter, V-bank hepa Filter, Pleated HEPA Filter, Activated carbon
filter, Gel Seal HEPA Filter, and High Temperature Resistant HEPA Filter etc.
4) Air Conditioning and Ventilation Terminal Equipment: Air Vent Louver Grille Series and Regulating Valve and Fire Damper
3.How long does your delivery time?
Within 15 days for one 20ft container.it will depend on the quantity.
4.Do you provide samples?
Yes,we accept free sample for some models, but the customer should be pay the shipment costs.
There will be sample cost for some models, but it can be refund after order placed for same models
5.What's your payment terms?
1).We accept the small order payment route by T/T, MoneyGram,Credit Card,Paypal,West Union,Cash,Escrow,Letter in Credit at sight. we also accept the Payment funds such as USD, EUR, HKD,CNY.
2).Usually, 50% deposit after PI confirmed and balance 50% should be paid before shipment.
if the order's total amount below $5000, It should be paid 100% in advance.
3).We also accept the Letter of Credit at sight
6. Are you an OEM production factory?
Yes,welcome OEM order,we accept customized order.
7.What's your package?
1)Plastic bag 2)Bubble film 3)Carton,plywood case 4)Pallet or according to your requirements
8.How to provide the royal quality?
1) We Always make a pre-production sample before mass production;
2) After 4 times quality levels treatment go though final Inspection before shipment.
3)Matched ISO14001,ISO9001,TUV,ROHS.CE,UL etc. certificate.
9.Accepted Delivery Terms: FOB, CFR, CIF, EXW, Air or Express Delivery；
2. What can you buy from us?
1) Modular clean room&clean room equipment like cleanroom air shower, cleanroom pass box, FFU Fan filter Unit, BFU, laminar flow ceiling, Clean Bench, Clean Booth, etc
2) Hospital Operating Room Supporting Equipment, like modular operating room, operating room wall panel, stainless steel cabinets, Laminar Flow Ceiling, Socket box for OT room, OT room intelligence Panel, stainless steel hand wash sink, all kinds of hermetic doors, operating room etc
3) Air Filter, such as Plate pre filter, F5-F9 Medium Pocket Filter, V-bank hepa Filter, Pleated HEPA Filter, Activated carbon
filter, Gel Seal HEPA Filter, and High Temperature Resistant HEPA Filter etc.
4) Air Conditioning and Ventilation Terminal Equipment: Air Vent Louver Grille Series and Regulating Valve and Fire Damper
3.How long does your delivery time?
Within 15 days for one 20ft container.it will depend on the quantity.
4.Do you provide samples?
Yes,we accept free sample for some models, but the customer should be pay the shipment costs.
There will be sample cost for some models, but it can be refund after order placed for same models
5.What's your payment terms?
1).We accept the small order payment route by T/T, MoneyGram,Credit Card,Paypal,West Union,Cash,Escrow,Letter in Credit at sight. we also accept the Payment funds such as USD, EUR, HKD,CNY.
2).Usually, 50% deposit after PI confirmed and balance 50% should be paid before shipment.
if the order's total amount below $5000, It should be paid 100% in advance.
3).We also accept the Letter of Credit at sight
6. Are you an OEM production factory?
Yes,welcome OEM order,we accept customized order.
7.What's your package?
1)Plastic bag 2)Bubble film 3)Carton,plywood case 4)Pallet or according to your requirements
8.How to provide the royal quality?
1) We Always make a pre-production sample before mass production;
2) After 4 times quality levels treatment go though final Inspection before shipment.
3)Matched ISO14001,ISO9001,TUV,ROHS.CE,UL etc. certificate.
9.Accepted Delivery Terms: FOB, CFR, CIF, EXW, Air or Express Delivery；
