Competitive Price 25 Ton Truck Crane STC250T5 with Powerful Engine on Hot Sale In Stock
- Category: >>>
- Supplier: Skymard Construction Machinery (Hunan) Co. Ltd.Skymard Ltd.
Share on (1601291225020):
Product Overview
Description
Product Description

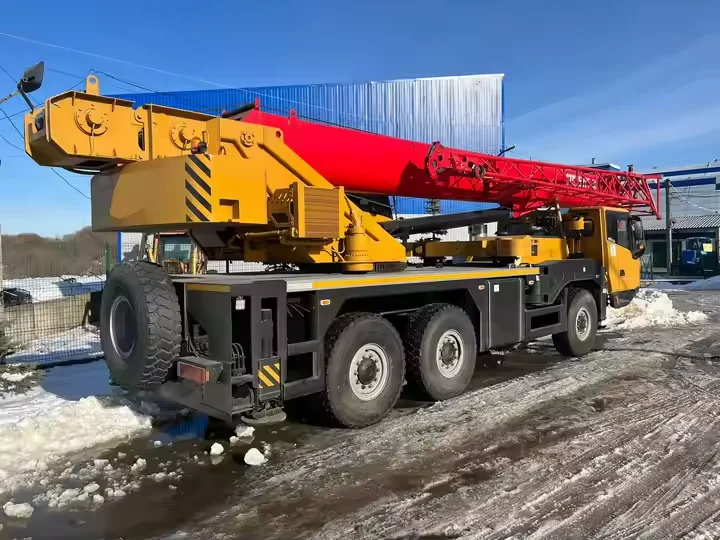

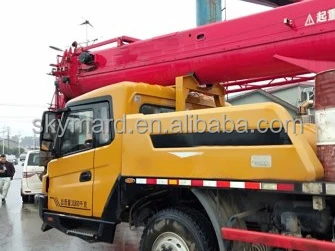

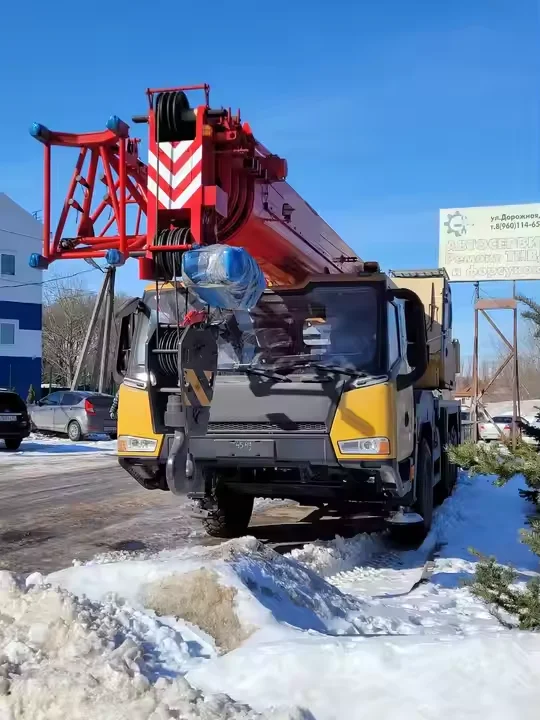

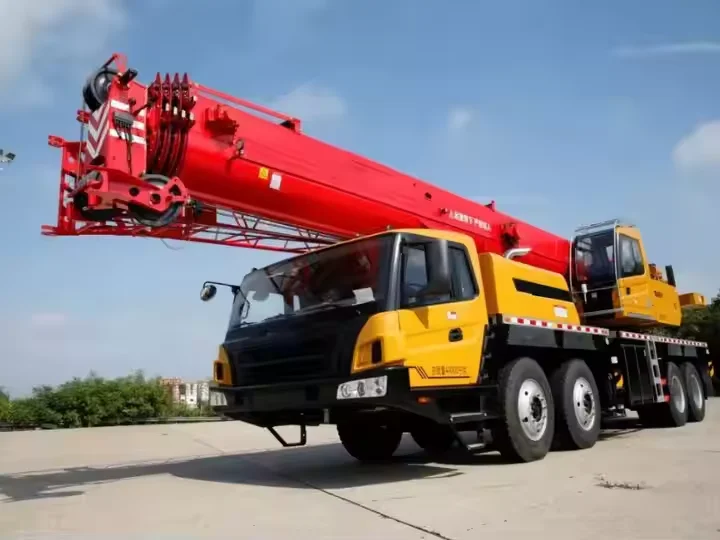

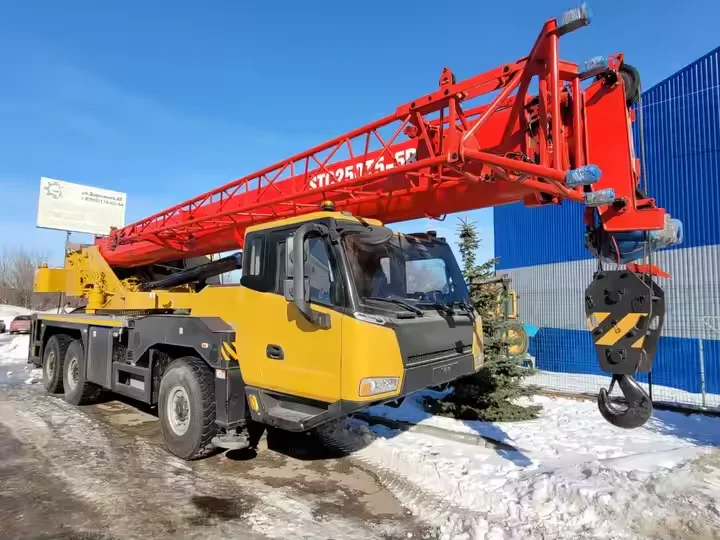

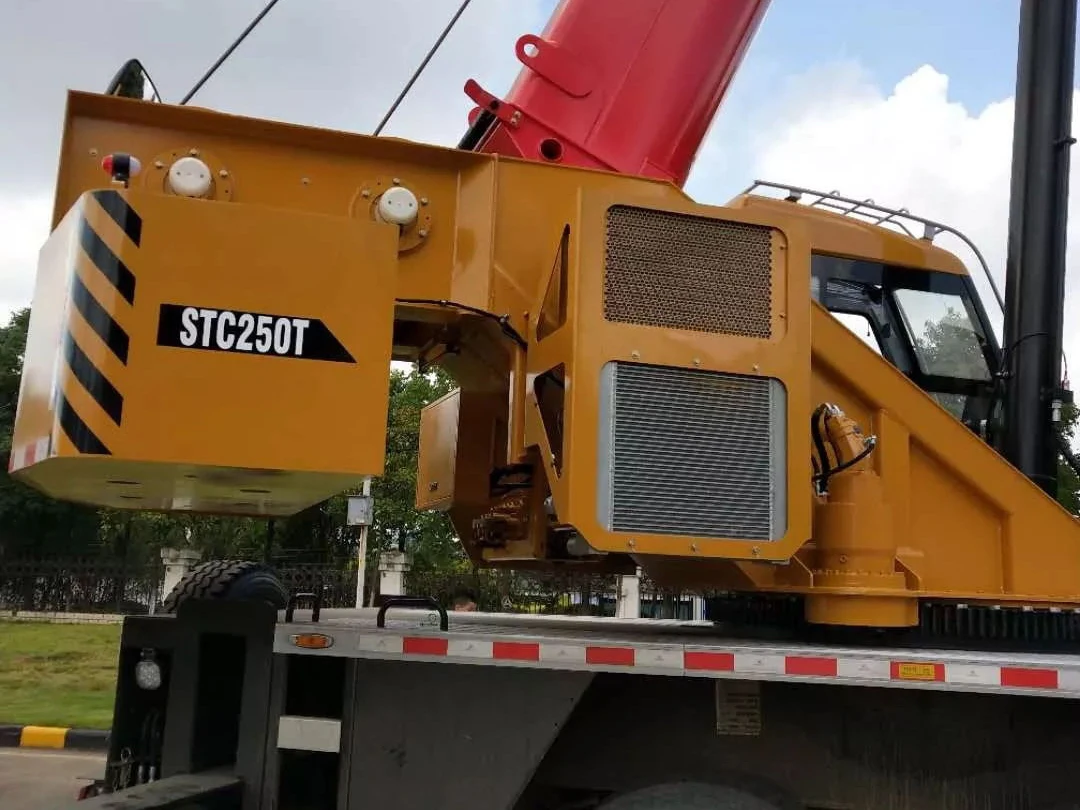

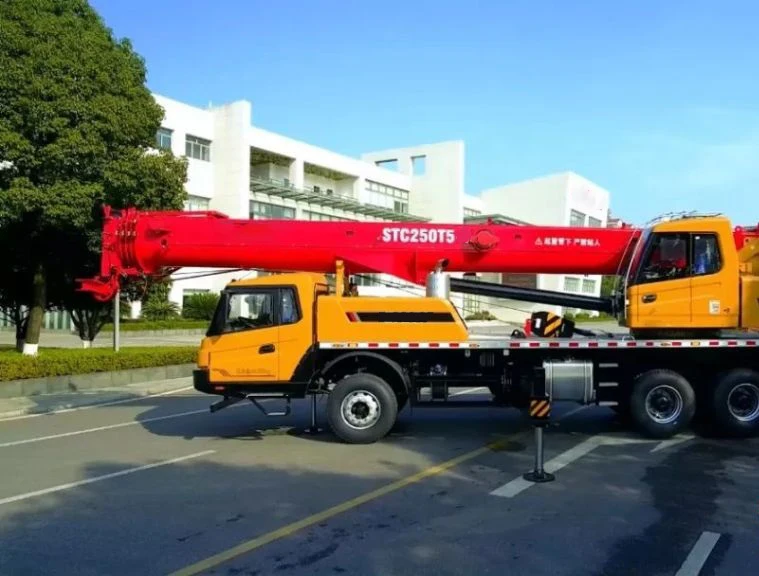

STC250T5 Truck Crane
Compact Design
The three-axle cranes are capable of accessing various urban or small jobsites, featuring high flexibility and fast
transferring.
The three-axle cranes are capable of accessing various urban or small jobsites, featuring high flexibility and fast
transferring.
Double Pump Intelligent Flow Distribution System
The electro-hydraulic control system realizes effective flow distribution, featuring quick response to combined motions and
small impact shock, energy saving, and environmentally friendly. Precise control: Excellent inching performance, min. The stable
speed of a single rope is 1.2m/min and min. The sound speed of slewing is 0.1°/s, realizing precise lifting of mm level.
Integrated slewing buffer control: boost buffer, sequential brake, and free swing technology—smooth start and stop.
The electro-hydraulic control system realizes effective flow distribution, featuring quick response to combined motions and
small impact shock, energy saving, and environmentally friendly. Precise control: Excellent inching performance, min. The stable
speed of a single rope is 1.2m/min and min. The sound speed of slewing is 0.1°/s, realizing precise lifting of mm level.
Integrated slewing buffer control: boost buffer, sequential brake, and free swing technology—smooth start and stop.
High-performance Chassis
· Innovative structural frame verified by 200,000 cycling fatigue tests to ensure high reliability.
· Innovative structural frame verified by 200,000 cycling fatigue tests to ensure high reliability.
Smart Control System
CAN BUS system: Controllers, displays, meters, I/O modules, sensors, etc., are integrated into CAN Bus networking and
fast-responsive.
· Fault diagnosis system: Operating device with intelligent controller, body with BCM module, accurately locating the fault point,
making the maintenance convenient.
· The SANY load moment indicator system protects against overloading, over-release, and over-winding.
CAN BUS system: Controllers, displays, meters, I/O modules, sensors, etc., are integrated into CAN Bus networking and
fast-responsive.
· Fault diagnosis system: Operating device with intelligent controller, body with BCM module, accurately locating the fault point,
making the maintenance convenient.
· The SANY load moment indicator system protects against overloading, over-release, and over-winding.
Precision & Economy
· Valves and other hydraulic components realize better inching motion performance. Load-sensing and constant-power techniques
optimize fuel efficiency.
· Valves and other hydraulic components realize better inching motion performance. Load-sensing and constant-power techniques
optimize fuel efficiency.
Product Paramenters
Counterweight | Max. Lifting Capacity | Max. Boom Length | Max. Jib Length | Max. Lifting Height |
5.6 T | 25 T | 41 m | 8 m | 49 m |
Max. Lifting Moment | Available Districts | Max. Gradeability | Max. Traveling Speed | Wheel Formula |
1063 kN·m | RHD | 42 % | 85 km/h | 6 x 4 x 2 |
